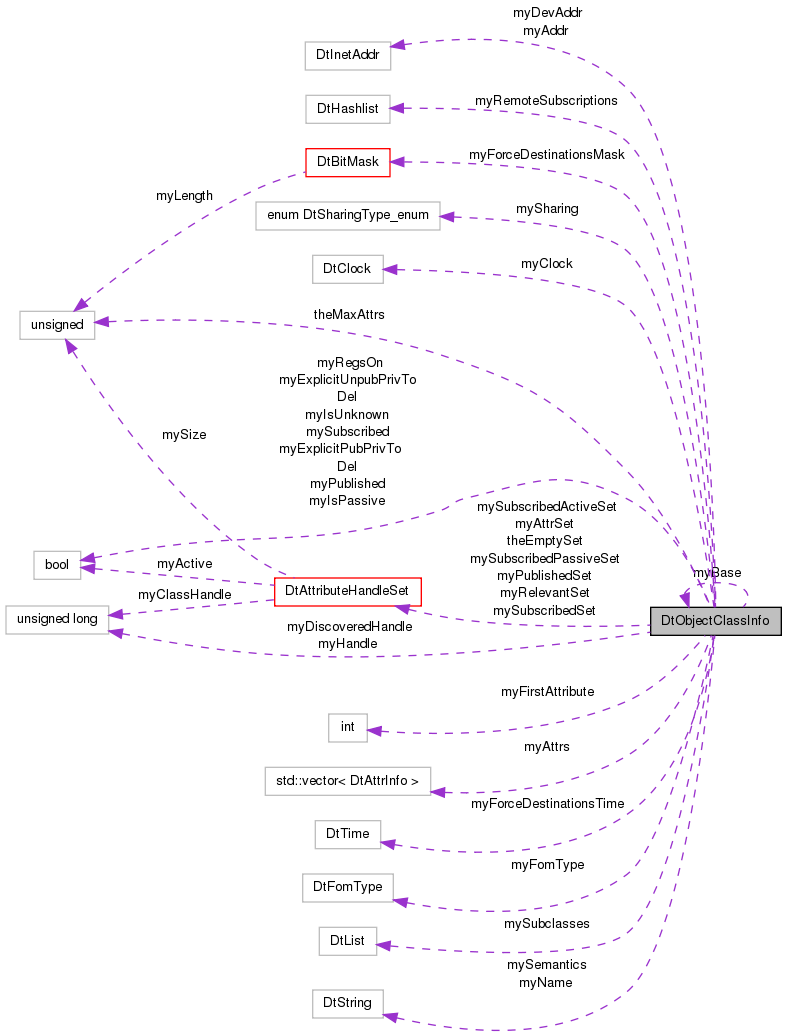

Collaboration diagram for DtObjectClassInfo:

Public Member Functions
	DtObjectClassInfo (const char name, DtObjectClassInfo base, DtObjectClassHandle handle, DtSharingType sharing, const MAKRti::DtString &semantics)
	Constructors.
	DtObjectClassInfo (const DtObjectClassInfo &orig)
virtual	~DtObjectClassInfo ()
	Destructor.
DtObjectClassInfo &	operator= (const DtObjectClassInfo &orig)
	Assignment operator (not implemented)
virtual void	setFomType (MAKRti::DtFomType type)
	Set/Get the FOM type.
virtual MAKRti::DtFomType	fomType () const
virtual DtAttrInfo *	addAttr (const char *attrName, MAKRti::DtTransportType transport, MAKRti::DtOrderType order, DtSharingType sharingType, DtFomUpdateType updateType, const MAKRti::DtString &updateCondition, DtOwnershipType ownership, const MAKRti::DtString &semantics, bool addSorted)
	Adds an attribute to the class. Used when reading Fed file.
virtual DtAttrInfo *	addAttr (const char *attrName, MAKRti::DtTransportType transport, MAKRti::DtOrderType order, DtSpaceHandle space, DtSharingType sharingType, DtFomUpdateType updateType, const MAKRti::DtString &updateCondition, DtOwnershipType ownership, const MAKRti::DtString &semantics, bool addSorted)
	Adds an attribute to the class. Used when reading Fed file.
virtual const char *	name () const
	Return class name, as in FOM.
virtual DtSharingType	sharing () const
	sharing type access/mutate
virtual void	setSharing (DtSharingType share)
virtual const char *	semantics () const
	semantics access/mutate
virtual void	setSemantics (const MAKRti::DtString &sem)
virtual bool	isName (const char *name)
	Return boolean: name matches? Compare depends on FOM type: insensitive for 1.3 and sensitive for 1516 Root name is prepended to name if necessary.
virtual bool	isFullName (const char *name)
	Root name is required.
virtual DtObjectClassHandle	handle () const
	Set/get class handle.
virtual void	setHandle (DtObjectClassHandle handleValue)
virtual DtObjectClassHandle	discoveredHandle () const
	Set/get discovered class handle This value is always 0 if isUnknown() is false.
virtual void	setDiscoveredHandle (DtObjectClassHandle handleValue)
virtual DtObjectClassInfo *	baseClass () const
	Return pointer to base class descriptor.
virtual void	setBaseClass (DtObjectClassInfo *base)
	Set base class (User should never need to set this)
virtual int	isOfClass (DtObjectClassHandle handle) const
	Returns 1 if this class is handle or is a subclass of handle.
virtual MAKRti::DtList *	subclasses ()
	Return list of subclasses.
virtual void	addSubclass (DtObjectClassInfo *sub)
	Add a subclass (called during FED processing)
virtual DtAttrInfo *	attrByName (const char *theName)
	Get Attribute descriptor by name or handle.
virtual DtAttrInfo *	attrByHandle (const DtAttributeHandle theHandle)
virtual const DtAttrInfo *	attrByName (const char *theName) const
	const versions
virtual const DtAttrInfo *	attrByHandle (const DtAttributeHandle theHandle) const
virtual DtAttributeHandle	attrHandle (const char *theName) const
	Get attribute handle from name.
virtual char *	attrName (DtAttributeHandle theHandle) const
	Get attribute name from handle.
virtual MAKRti::DtTransportType	attrTransport (DtAttributeHandle theHandle) const
	Get attribute transport type from handle.
virtual MAKRti::DtOrderType	attrOrder (DtAttributeHandle theHandle) const
	Get attribute order from handle.
virtual DtSpaceHandle	attrSpace (DtAttributeHandle theHandle) const
	Get attribute space from handle.
virtual DtAttrVector const &	attrs () const
	Returns the set of attributes.
virtual int	numAttributes () const
	Returns the number of attributes.
virtual const DtAttributeHandleSet &	allAttrs () const
	Returns the full set of attributes.
virtual void	publish (DtAttributeHandleSet const &attributeList, DtObjectMgr *objMgr, bool isReplacement, bool isRepublish)
	Publish and unpublish Publishing an empty list with replacement enabled results in unpublish from all class attributes.
virtual void	unpublishAttributes (DtAttributeHandleSet const &attributeList, bool implicitUnpublishPrivilegeToDelete, DtObjectMgr *objMgr)
virtual bool	published () const
	Return boolean: is class published?
virtual void	subscribe (const DtAttributeHandleSet &attributeList, bool isPassiveValue, bool isReplacement=true)
	Subscribe and unsubscribe.
virtual void	unsubscribeClass ()
virtual void	unsubscribeAttributes (DtAttributeHandleSet const &attributeList)
virtual bool	subscribed () const
	Return boolean: is class subscribed?
virtual bool	isPassive () const
	Return boolean: is subscription passive?
virtual const bool	isSubscribed (DtAttributeHandle attrHandle, DtRegionHandle regSetHandle) const
	Using default region handle indicates check for DM subscription only.
virtual const bool	isActiveSubscribed (DtAttributeHandle attrHandle, DtRegionHandle regSetHandle) const
virtual DtAttributeHandleSet const &	subscribedAttrs () const
	Returns the set of DM subscribed attributes.
virtual DtAttributeHandleSet const &	subscribedActiveAttrs () const
virtual DtAttributeHandleSet const &	subscribedPassiveAttrs () const
virtual const DtAttributeHandleSet &	subscribedAttrs (DtHandle regSetHandle) const
	Returns all subscribed attributes if handle is the default region set Otherwise, just those subscribed attributes that match with the remote publication region.
virtual DtAttributeHandleSet const &	subscribedActiveAttrs (DtHandle regSetHandle) const
virtual const DtAttributeHandleSet &	publishedAttrs () const
	Returns the set of published attributes.
virtual const DtAttributeHandleSet &	relevantAttrs () const
	Returns the set of relevant attributes: Attributes that could cause object discovery at a remote federate if they are published or become published.
virtual void	remoteSubscribe (const DtAttributeHandleSet &attrs, DtFederateHandle fedHandle, bool isReplacement, DtObjectMgr *objMgr)
	Do bookkeeping associated with a remote federate subscription.
virtual void	remotePassiveSubscribe (const DtAttributeHandleSet &attrs, DtFederateHandle fedHandle, bool replacement, DtObjectMgr *objMgr)
	Process remote passive subscription to add pending send register for any objects that could be discovered by it Replacement forces updates to any relevance changes from active to passive.
virtual void	remoteUnsubscribeAttributes (DtFederateHandle fedHandle, const DtAttributeHandleSet &attrs, DtObjectMgr *objMgr)
	Do bookkeeping associated with a remote federate unsubscription.
virtual void	removeSubscriptions (DtFederateHandle fedHandle, DtObjectMgr *objMgr, bool isResigning=false)
	Remove all subscriptions from the given federate.
virtual int	numRemoteFederatesSubscribed ()
	Returns number of remote federates subscribed to this class.
virtual bool	remoteFederateIsSubscribed (DtFederateHandle fedHandle) const
	Returns true if the remote federate is subscribed to this class.
virtual DtAttributeHandleSet const *	remoteSubscription (DtFederateHandle fedHandle) const
	Returns remote federate's subscribed attributes.
virtual const MAKRti::DtHashList &	subscribedFederates () const
	Returns a list of remote federate subscribed attributes.
virtual bool	relevant () const
	Returns true if the class is relevant: registered object could cause discovery at remote federate, false otherwise.
virtual bool	relevant (DtAttributeHandle) const
	Returns true if the attribute is relevant: attribute instance could cause discovery at remote federate, false otherwise.
virtual const MAKRti::DtInetAddr &	destinationAddress () const
	Set/Get the destination to send to when using DM Filtering Inclusive sets recurse for all derived classes.
virtual const MAKRti::DtInetAddr &	destinationDevice () const
virtual void	setDestination (MAKRti::DtInetAddr addr, MAKRti::DtInetAddr devAddr, bool inclusive, MAKRti::DtInetAddr oldAddr, MAKRti::DtInetAddr oldDevAddr)
virtual void	setForcedDestinations (DtBitMask const &mask, MAKRti::DtTime delay)
	Set a forced destination mask Temporarily set a forced destinations mask for given delay A negative time delay will force the destinations indefinitely.
virtual bool	getForcedDestinations (DtBitMask &mask) const
	Get the forced destination mask if active Returns true if the forced destination mask is active.
virtual void	setSubscribedRate (float rate, const MAKRti::DtString &name, bool inclusive)
	Apply objects subscribed rate to attrInfo's.
virtual float	maxSubscribedRate ()
virtual const MAKRti::DtString &	maxSubscribedRateName ()
virtual bool	save (DtRtiSaveFile &file)
	save and restore
virtual bool	restore (DtObjectClassPacket *packet, DtRtiSaveFile &file)
virtual void	print () const
	Print the contents.
virtual bool	sameAncestry (const DtObjectClassInfo *) const
	Test equality.
bool	operator== (const DtObjectClassInfo &other) const
bool	operator!= (const DtObjectClassInfo &other) const
bool	isScaffolding () const
	Determines whether the class is a scaffolding class.
bool	isUnknown () const
	Determines whether this class is an unknown class, merely present to indicate that it is in other FOM modules not in use by this federate.
void	setIsUnknown (bool unknown)

Protected Member Functions
virtual void	throwIfNotDefined (const DtAttributeHandleSet &attributeList)
	Throws AttributeNotDefined exception if any member of attrs is not a valid attribute handle.
virtual void	addRemoteSubscription (DtFederateHandle fedHandle, const DtAttributeHandleSet &attrs, bool isReplacement)
	Add/delete remote subscription to this class by indicated federate Replaces attribute set if already subscribed.
virtual void	deleteRemoteSubscription (DtFederateHandle fedHandle, DtAttributeHandleSet const &attrs)
virtual void	addRemoteSubscription (DtFederateHandle fedHandle, DtAttributeHandle attrHandle)
	Attribute subscription is added to existing subscribed set (created does not exist)
virtual void	updateRelevance (const DtAttributeHandleSet &attrs, DtFederateHandle fedHandle, DtObjectMgr *objMgr, bool isResigning=false)
	Update the relevance field of this class and all subclasses, based on a particular remote and current subscriptions.
DtObjectClassInfo *	self () const
virtual DtAttrInfo *	addAttrSorted (const char *attrName, MAKRti::DtTransportType transport, MAKRti::DtOrderType order, DtSharingType sharingType, DtFomUpdateType updateType, const MAKRti::DtString &updateCondition, DtOwnershipType ownership, const MAKRti::DtString &semantics)
	Insert Attributes in sorted or unsorted (deprecated) order.
virtual DtAttrInfo *	addAttrUnsorted (const char *attrName, MAKRti::DtTransportType transport, MAKRti::DtOrderType order, DtSharingType sharingType, DtFomUpdateType updateType, const MAKRti::DtString &updateCondition, DtOwnershipType ownership, const MAKRti::DtString &semantics)
virtual DtAttrInfo *	addAttrUnsorted (const char *attrName, MAKRti::DtTransportType transport, MAKRti::DtOrderType order, DtSpaceHandle space, DtSharingType sharingType, DtFomUpdateType updateType, const MAKRti::DtString &updateCondition, DtOwnershipType ownership, const MAKRti::DtString &semantics)
	Insert Attributes in sorted or unsorted (deprecated) order.
virtual DtAttrInfo *	addAttrSorted (const char *attrName, MAKRti::DtTransportType transport, MAKRti::DtOrderType order, DtSpaceHandle space, DtSharingType sharingType, DtFomUpdateType updateType, const MAKRti::DtString &updateCondition, DtOwnershipType ownership, const MAKRti::DtString &semantics)
virtual bool	intersectPublished (DtObjectClassInfo *objClass, const DtAttributeHandleSet &listToIntersect)
	Run an intersection between the list of attributes and all published attributes including children.

Static Protected Member Functions
static bool	sameObjectClass (const DtObjectClassInfo &, const DtObjectClassInfo &)
	Test class for equality (including attributes)
static bool	sameAttrs (const std::vector< DtAttrInfo > &, const std::vector< DtAttrInfo > &)
	Test attributes for equality.

Protected Attributes
MAKRti::DtString	myName
DtSharingType	mySharing
MAKRti::DtString	mySemantics
DtObjectClassHandle	myHandle
DtObjectClassHandle	myDiscoveredHandle
MAKRti::DtFomType	myFomType
bool	mySubscribed
bool	myPublished
bool	myIsPassive
bool	myExplicitPubPrivToDel
bool	myExplicitUnpubPrivToDel
DtObjectClassInfo *	myBase
MAKRti::DtList	mySubclasses
MAKRti::DtHashlist	myRemoteSubscriptions
bool	myRegsOn
	Have we most recently told the federate to turn on or off registration.
DtAttrVector	myAttrs
int	myFirstAttribute
DtAttributeHandleSet	myAttrSet
DtAttributeHandleSet	myPublishedSet
DtAttributeHandleSet	mySubscribedSet
DtAttributeHandleSet	mySubscribedActiveSet
DtAttributeHandleSet	mySubscribedPassiveSet
DtAttributeHandleSet	myRelevantSet
	Attributes that could cause object discovery at a remote federate if they are published or become published.
MAKRti::DtInetAddr	myAddr
MAKRti::DtInetAddr	myDevAddr
DtBitMask *	myForceDestinationsMask
	Create this bit mask to temporarily force destinations after publish.
MAKRti::DtTime	myForceDestinationsTime
MAKRti::DtClock	myClock
bool	myIsUnknown
	Indicates whether this class is an unknown class, merely present to indicate that it is in other FOM modules not in use by this federate.

Static Protected Attributes
static const DtAttributeHandleSet	theEmptySet
static const unsigned int	theMaxAttrs = DtMaxAttributesPerClass

Constructor & Destructor Documentation

DtObjectClassInfo::DtObjectClassInfo	(	const char *	name,
		DtObjectClassInfo *	base,
		DtObjectClassHandle	handle,
		DtSharingType	sharing,
		const MAKRti::DtString &	semantics
	)

Constructors.

References addAttr(), addSubclass(), attrByHandle(), DtAttrInfo::dimensions(), false, fomType(), myAttrs, myFirstAttribute, DtAttrInfo::name(), DtAttrInfo::order(), DtAttrInfo::ownershipType(), DtAttrInfo::semantics(), DtAttrInfo::setDimensions(), setFomType(), DtAttrInfo::sharingType(), DtAttrInfo::space(), DtAttrInfo::transport(), DtAttrInfo::updateCondition(), and DtAttrInfo::updateType().

DtObjectClassInfo::DtObjectClassInfo ( const DtObjectClassInfo & orig )

References attrs(), myForceDestinationsMask, myRemoteSubscriptions, NULL, DtSubByRegionAttributes::regionHandle(), and remoteSubscription().

DtObjectClassInfo::~DtObjectClassInfo ( )

virtual

Destructor.

References myForceDestinationsMask, myRemoteSubscriptions, mySubclasses, and NULL.

Member Function Documentation

DtAttrInfo * DtObjectClassInfo::addAttr	(	const char *	attrName,
		MAKRti::DtTransportType	transport,
		MAKRti::DtOrderType	order,
		DtSharingType	sharingType,
		DtFomUpdateType	updateType,
		const MAKRti::DtString &	updateCondition,
		DtOwnershipType	ownership,
		const MAKRti::DtString &	semantics,
		bool	addSorted
	)

virtual

Adds an attribute to the class. Used when reading Fed file.

References addAttrSorted(), addAttrUnsorted(), attrByName(), myAttrs, and theMaxAttrs.

Referenced by DtFomClassMgr::addAttribute(), DtFomClassMgr::addObjClass(), DtObjectClassInfo(), and DtFomClassMgr::mergeAttributes().

DtAttrInfo * DtObjectClassInfo::addAttr	(	const char *	attrName,
		MAKRti::DtTransportType	transport,
		MAKRti::DtOrderType	order,
		DtSpaceHandle	space,
		DtSharingType	sharingType,
		DtFomUpdateType	updateType,
		const MAKRti::DtString &	updateCondition,
		DtOwnershipType	ownership,
		const MAKRti::DtString &	semantics,
		bool	addSorted
	)

virtual

Adds an attribute to the class. Used when reading Fed file.

References addAttrSorted(), addAttrUnsorted(), attrByName(), attrName(), DtToWString(), fomType(), myAttrs, DtAttrInfo::nameIsPrivilegeToDelete(), and theMaxAttrs.

DtAttrInfo * DtObjectClassInfo::addAttrSorted	(	const char *	attrName,
		MAKRti::DtTransportType	transport,
		MAKRti::DtOrderType	order,
		DtSharingType	sharingType,
		DtFomUpdateType	updateType,
		const MAKRti::DtString &	updateCondition,
		DtOwnershipType	ownership,
		const MAKRti::DtString &	semantics
	)

protectedvirtual

Insert Attributes in sorted or unsorted (deprecated) order.

References DtAttributeHandleSet::add(), fomType(), myAttrs, myAttrSet, myFirstAttribute, and name().

Referenced by addAttr().

DtAttrInfo * DtObjectClassInfo::addAttrSorted	(	const char *	attrName,
		MAKRti::DtTransportType	transport,
		MAKRti::DtOrderType	order,
		DtSpaceHandle	space,
		DtSharingType	sharingType,
		DtFomUpdateType	updateType,
		const MAKRti::DtString &	updateCondition,
		DtOwnershipType	ownership,
		const MAKRti::DtString &	semantics
	)

protectedvirtual

References DtAttributeHandleSet::add(), fomType(), myAttrs, myAttrSet, myFirstAttribute, and name().

DtAttrInfo * DtObjectClassInfo::addAttrUnsorted	(	const char *	attrName,
		MAKRti::DtTransportType	transport,
		MAKRti::DtOrderType	order,
		DtSharingType	sharingType,
		DtFomUpdateType	updateType,
		const MAKRti::DtString &	updateCondition,
		DtOwnershipType	ownership,
		const MAKRti::DtString &	semantics
	)

protectedvirtual

References DtAttributeHandleSet::add(), fomType(), myAttrs, myAttrSet, and DtAttrInfo::setTransport().

Referenced by addAttr().

DtAttrInfo * DtObjectClassInfo::addAttrUnsorted	(	const char *	attrName,
		MAKRti::DtTransportType	transport,
		MAKRti::DtOrderType	order,
		DtSpaceHandle	space,
		DtSharingType	sharingType,
		DtFomUpdateType	updateType,
		const MAKRti::DtString &	updateCondition,
		DtOwnershipType	ownership,
		const MAKRti::DtString &	semantics
	)

protectedvirtual

Insert Attributes in sorted or unsorted (deprecated) order.

References DtAttributeHandleSet::add(), fomType(), myAttrs, myAttrSet, and DtAttrInfo::setTransport().

void DtObjectClassInfo::addRemoteSubscription	(	DtFederateHandle	fedHandle,
		const DtAttributeHandleSet &	attrs,
		bool	isReplacement
	)

protectedvirtual

Add/delete remote subscription to this class by indicated federate Replaces attribute set if already subscribed.

References attrs(), myRemoteSubscriptions, and DtAttributeHandleSet::setUnion().

Referenced by remoteSubscribe(), and restore().

void DtObjectClassInfo::addRemoteSubscription	(	DtFederateHandle	fedHandle,
		DtAttributeHandle	attrHandle
	)

protectedvirtual

Attribute subscription is added to existing subscribed set (created does not exist)

References DtAttributeHandleSet::add(), and myRemoteSubscriptions.

void DtObjectClassInfo::addSubclass ( DtObjectClassInfo * sub )

virtual

Add a subclass (called during FED processing)

References mySubclasses.

Referenced by DtObjectClassInfo(), and setBaseClass().

const DtAttributeHandleSet & DtObjectClassInfo::allAttrs ( ) const

virtual

Returns the full set of attributes.

References myAttrSet.

Referenced by DtObjectMgr::acquireAttrs(), DtObjectMgr::cancelAcquire(), DtObjectMgr::cancelDivest(), DtObjectMgr::divestOwnership(), DtRtiObject::DtRtiObject(), DtObjectMgr::releaseResponse(), DtObjectMgr::requestObjectUpdate(), DtObjectMgr::sendNotDiscoveredMsgForSmartForwarding(), DtObjectMgr::unpublishClass(), and DtObjectMgr::unsubscribeClass().

DtAttrInfo * DtObjectClassInfo::attrByHandle ( const DtAttributeHandle theHandle )

virtual

References myAttrs, and NULL.

Referenced by attrName(), attrOrder(), attrSpace(), attrTransport(), DtObjectClassInfo(), isActiveSubscribed(), isSubscribed(), DtRtiObject::okToReceive(), print(), DtObjectMgr::processUpdate(), DtObjectMgr::publish(), DtObjectMgr::queryOwnership(), relevant(), DtObjectMgr::requestClassUpdate(), DtObjectMgr::sendUpdate(), DtObjectMgr::subscribe(), and DtObjectMgr::unsubscribeAttributes().

const DtAttrInfo * DtObjectClassInfo::attrByHandle ( const DtAttributeHandle theHandle ) const

virtual

DtAttrInfo * DtObjectClassInfo::attrByName ( const char * theName )

virtual

Get Attribute descriptor by name or handle.

References isName(), myAttrs, and NULL.

Referenced by addAttr(), DtFomClassMgr::addAttributeDimension(), DtFomClassMgr::addAttrInfoToChildren(), attrHandle(), DtFomClassMgr::mergeAttributes(), DtFomClassMgr::resolveAttributeDimensions(), and DtFomClassMgr::resolveAttributeTransportations().

const DtAttrInfo * DtObjectClassInfo::attrByName ( const char * theName ) const

virtual

const versions

DtAttributeHandle DtObjectClassInfo::attrHandle ( const char * theName ) const

virtual

Get attribute handle from name.

References attrByName(), and DtAttrInfo::handle().

Referenced by DtFomClassMgr::attrHandle().

char * DtObjectClassInfo::attrName ( DtAttributeHandle theHandle ) const

virtual

Get attribute name from handle.

References attrByHandle(), and DtAttrInfo::name().

Referenced by addAttr(), DtFomClassMgr::attrName(), and DtAttributeHandleSet::print().

MAKRti::DtOrderType DtObjectClassInfo::attrOrder ( DtAttributeHandle theHandle ) const

virtual

Get attribute order from handle.

References attrByHandle(), and DtAttrInfo::order().

Referenced by DtRtiObject::DtRtiObject().

DtAttrVector const & DtObjectClassInfo::attrs ( ) const

virtual

Returns the set of attributes.

References myAttrs.

Referenced by addRemoteSubscription(), DtFomClassMgr::attrPresent(), DtObjectClassInfo(), DtRtiObject::getBaseClassDestinations(), isScaffolding(), maxSubscribedRate(), maxSubscribedRateName(), DtFomClassMgr::mergeAttributes(), DtNetStatsMonitor::recursivelyAddAttributes(), DtNetStatsMonitor::recursivelyAddAttributesNames(), DtNetStatsMonitor::recursivelyAddAttrInitState(), sameObjectClass(), DtNetStatsMonitor::sendAttributeNames(), DtNetStatsMonitor::sendAttributeState(), DtNetStatsMonitor::sendInitAttrState(), and setSubscribedRate().

DtSpaceHandle DtObjectClassInfo::attrSpace ( DtAttributeHandle theHandle ) const

virtual

Get attribute space from handle.

References attrByHandle(), DtDefaultSpaceHandle, and DtAttrInfo::space().

MAKRti::DtTransportType DtObjectClassInfo::attrTransport ( DtAttributeHandle theHandle ) const

virtual

Get attribute transport type from handle.

References attrByHandle(), and DtAttrInfo::transport().

Referenced by DtRtiObject::DtRtiObject(), and DtObjectMgr::sendNotDiscoveredMsgForSmartForwarding().

DtObjectClassInfo * DtObjectClassInfo::baseClass ( ) const

virtual

Return pointer to base class descriptor.

References myBase.

Referenced by DtFomClassMgr::addObjClass(), DtObjectMgr::collectRemoteSubscriptions(), DtObjectMgr::firstSubscribedClass(), DtRtiObject::getBaseClassDestinations(), DtRtiObject::getDestinations(), DtNetStatsMonitor::getNameFromObject(), isOfClass(), DtFomClassMgr::mergeObjectInfo(), DtFedExec::processJoin(), DtObjectMgr::processPub(), sameAncestry(), and updateRelevance().

void DtObjectClassInfo::deleteRemoteSubscription	(	DtFederateHandle	fedHandle,
		DtAttributeHandleSet const &	attrs
	)

protectedvirtual

References DtAttributeHandleSet::isEmpty(), myRemoteSubscriptions, and DtAttributeHandleSet::removeSetIntersection().

Referenced by remoteSubscribe(), and removeSubscriptions().

const MAKRti::DtInetAddr & DtObjectClassInfo::destinationAddress ( ) const

virtual

Set/Get the destination to send to when using DM Filtering Inclusive sets recurse for all derived classes.

References myAddr.

Referenced by DtObjectMgr::addClassMulticast(), DtFomClassMgr::initDMFilteringParameters(), DtObjectMgr::removeClassMulticast(), and DtObjectMgr::sendUpdateMessage().

const MAKRti::DtInetAddr & DtObjectClassInfo::destinationDevice ( ) const

virtual

References myDevAddr.

Referenced by DtObjectMgr::addClassMulticast(), and DtFomClassMgr::initDMFilteringParameters().

DtObjectClassHandle DtObjectClassInfo::discoveredHandle ( ) const

virtual

Set/get discovered class handle This value is always 0 if isUnknown() is false.

References myDiscoveredHandle.

MAKRti::DtFomType DtObjectClassInfo::fomType ( ) const

virtual

References myFomType.

Referenced by addAttr(), addAttrSorted(), addAttrUnsorted(), DtObjectClassInfo(), isFullName(), isName(), and sameAttrs().

bool DtObjectClassInfo::getForcedDestinations ( DtBitMask & mask ) const

virtual

Get the forced destination mask if active Returns true if the forced destination mask is active.

References myClock, myForceDestinationsMask, myForceDestinationsTime, and NULL.

Referenced by DtRtiObject::getDestinations().

DtObjectClassHandle DtObjectClassInfo::handle ( ) const

virtual

Set/get class handle.

References myHandle.

bool DtObjectClassInfo::intersectPublished	(	DtObjectClassInfo *	objClass,
		const DtAttributeHandleSet &	listToIntersect
	)

protectedvirtual

Run an intersection between the list of attributes and all published attributes including children.

Returns: true if there is an intersection, false otherwise

References publishedAttrs(), relevantAttrs(), DtAttributeHandleSet::setIntersection(), DtAttributeHandleSet::size(), and subclasses().

Referenced by publish(), and updateRelevance().

const bool DtObjectClassInfo::isActiveSubscribed	(	DtAttributeHandle	attrHandle,
		DtRegionHandle	regSetHandle
	)		const

virtual

References attrByHandle(), DtAttributeHandleSet::isMember(), DtAttrInfo::subRegionSet(), and subscribedActiveAttrs().

bool DtObjectClassInfo::isFullName ( const char * name )

virtual

Root name is required.

References fomType(), myName, and name().

Referenced by isName().

bool DtObjectClassInfo::isName ( const char * name )

virtual

Return boolean: name matches? Compare depends on FOM type: insensitive for 1.3 and sensitive for 1516 Root name is prepended to name if necessary.

References fomType(), isFullName(), and name().

Referenced by attrByName().

int DtObjectClassInfo::isOfClass ( DtObjectClassHandle handle ) const

virtual

Returns 1 if this class is handle or is a subclass of handle.

References baseClass(), handle(), and isOfClass().

Referenced by DtObjectMgr::addPendingRegister(), DtRtiObject::isOfActualClass(), isOfClass(), DtRtiObject::isOfKnownClass(), DtObjectMgr::notifyDivestedAttributes(), DtObjectMgr::resendMultiRegister(), and DtObjectMgr::sendPendingRegister().

bool DtObjectClassInfo::isPassive ( ) const

virtual

Return boolean: is subscription passive?

References myIsPassive.

bool DtObjectClassInfo::isScaffolding ( ) const

Determines whether the class is a scaffolding class.

References attrs(), and myFirstAttribute.

Referenced by DtFomClassMgr::mergeObjectInfo().

const bool DtObjectClassInfo::isSubscribed	(	DtAttributeHandle	attrHandle,
		DtRegionHandle	regSetHandle
	)		const

virtual

Using default region handle indicates check for DM subscription only.

Return bool: does attribute subscription overlap with this region?

References attrByHandle(), DtAttributeHandleSet::isMember(), DtAttrInfo::pasRegionSet(), DtAttrInfo::subRegionSet(), and subscribedAttrs().

Referenced by DtUpdateMsg::fillFromNetAttrs(), DtUpdateMsg::fillFromNetBigAttrs(), and DtObjectMgr::processNewObj().

bool DtObjectClassInfo::isUnknown ( ) const

Determines whether this class is an unknown class, merely present to indicate that it is in other FOM modules not in use by this federate.

References myIsUnknown.

Referenced by DtNetStatsMonitor::gatherClassDataAndSend(), DtNetStatsMonitor::recursivelyAddAttributes(), DtNetStatsMonitor::recursivelyAddAttributesNames(), DtNetStatsMonitor::recursivelyAddAttrInitState(), DtNetStatsMonitor::recursivelyAddObjects(), and DtNetStatsMonitor::sendAttributeState().

float DtObjectClassInfo::maxSubscribedRate ( )

virtual

References attrs(), and myAttrs.

Referenced by DtObjectMgr::addClassMulticast(), and DtObjectMgr::removeClassMulticast().

const MAKRti::DtString & DtObjectClassInfo::maxSubscribedRateName ( )

virtual

References attrs(), and myAttrs.

const char * DtObjectClassInfo::name ( ) const

virtual

Return class name, as in FOM.

References myName.

Referenced by addAttrSorted(), DtFomClassMgr::addClassHdlForUnknownClass(), DtFomClassMgr::className(), DtNetStatsMonitor::gatherClassDataAndSend(), DtNetStatsMonitor::getNameFromObject(), isFullName(), isName(), DtFomClassMgr::mergeAttributes(), DtFomClassMgr::mergeObjectInfo(), DtFomClassMgr::objectClassPosition(), DtFomClassMgr::objectClassPresent(), sameAncestry(), sameAttrs(), and sameObjectClass().

int DtObjectClassInfo::numAttributes ( ) const

virtual

Returns the number of attributes.

References myAttrs.

Referenced by DtFomClassMgr::addAttribute(), DtFomClassMgr::addObjClass(), DtRtiObject::decode(), DtRtiObject::DtRtiObject(), and DtRtiObject::encode().

int DtObjectClassInfo::numRemoteFederatesSubscribed ( )

virtual

Returns number of remote federates subscribed to this class.

References myRemoteSubscriptions.

bool DtObjectClassInfo::operator!= ( const DtObjectClassInfo & other ) const

References sameObjectClass().

DtObjectClassInfo& DtObjectClassInfo::operator= ( const DtObjectClassInfo & orig )

Assignment operator (not implemented)

bool DtObjectClassInfo::operator== ( const DtObjectClassInfo & other ) const

References sameObjectClass().

void DtObjectClassInfo::print ( ) const

virtual

Print the contents.

References attrByHandle(), myAttrs, myBase, myHandle, and myName.

void DtObjectClassInfo::publish	(	DtAttributeHandleSet const &	attributeList,
		DtObjectMgr *	objMgr,
		bool	isReplacement,
		bool	isRepublish
	)

virtual

Publish and unpublish Publishing an empty list with replacement enabled results in unpublish from all class attributes.

References DtAttributeHandleSet::add(), DtObjectMgr::addPendingStartReg(), DtObjectMgr::addPendingStopReg(), DtPrivilegeToDelete, DtRtiMtdDestinationList::getMaxDestinations(), handle(), intersectPublished(), DtAttributeHandleSet::isMember(), myAttrs, myExplicitPubPrivToDel, myExplicitUnpubPrivToDel, myPublished, myPublishedSet, myRegsOn, DtObjectMgr::params(), relevantAttrs(), DtBitMask::reset(), DtRIDParameters::routeToAllByDefault, setForcedDestinations(), DtAttributeHandleSet::setUnion(), DtAttributeHandleSet::size(), DtRIDParameters::smartForwardingLevel, and throwIfNotDefined().

Referenced by DtObjectMgr::publish(), and unpublishAttributes().

bool DtObjectClassInfo::published ( ) const

virtual

Return boolean: is class published?

References myPublished.

Referenced by DtObjectMgr::acquireAttrs(), DtObjectMgr::published(), DtObjectMgr::registerObj(), remotePassiveSubscribe(), remoteSubscribe(), restore(), DtObjectMgr::sendPendingStopReg(), and DtObjectMgr::unpublishAttributes().

const DtAttributeHandleSet & DtObjectClassInfo::publishedAttrs ( ) const

virtual

Returns the set of published attributes.

References myPublishedSet.

Referenced by DtObjectMgr::acquireAttrs(), DtRtiObject::DtRtiObject(), intersectPublished(), DtObjectMgr::processDivest(), DtObjectMgr::publish(), and DtObjectMgr::unpublishAttributes().

bool DtObjectClassInfo::relevant ( ) const

virtual

Returns true if the class is relevant: registered object could cause discovery at remote federate, false otherwise.

References myRelevantSet, and DtAttributeHandleSet::size().

Referenced by restore(), and updateRelevance().

bool DtObjectClassInfo::relevant ( DtAttributeHandle hand ) const

virtual

Returns true if the attribute is relevant: attribute instance could cause discovery at remote federate, false otherwise.

References attrByHandle(), and DtAttrInfo::relevant().

const DtAttributeHandleSet & DtObjectClassInfo::relevantAttrs ( ) const

virtual

Returns the set of relevant attributes: Attributes that could cause object discovery at a remote federate if they are published or become published.

The attributes must be remotely subscribed at this class or at a base class that is a discovery candidate.

References myRelevantSet.

Referenced by DtObjectMgr::acquireAttrs(), intersectPublished(), DtObjectMgr::processNotifyAcquire(), publish(), and updateRelevance().

bool DtObjectClassInfo::remoteFederateIsSubscribed ( DtFederateHandle fedHandle ) const

virtual

Returns true if the remote federate is subscribed to this class.

References myRemoteSubscriptions, and NULL.

Referenced by remotePassiveSubscribe(), and updateRelevance().

void DtObjectClassInfo::remotePassiveSubscribe	(	const DtAttributeHandleSet &	attrs,
		DtFederateHandle	fedHandle,
		bool	replacement,
		DtObjectMgr *	objMgr
	)

virtual

Process remote passive subscription to add pending send register for any objects that could be discovered by it Replacement forces updates to any relevance changes from active to passive.

References DtObjectMgr::addPendingRegister(), DtAttributeHandleSet::getHandle(), handle(), myAttrs, mySubclasses, NULL, published(), remoteFederateIsSubscribed(), remotePassiveSubscribe(), remoteSubscribe(), remoteUnsubscribeAttributes(), and DtAttributeHandleSet::size().

Referenced by DtObjectMgr::processSub(), and remotePassiveSubscribe().

void DtObjectClassInfo::remoteSubscribe	(	const DtAttributeHandleSet &	attrs,
		DtFederateHandle	fedHandle,
		bool	isReplacement,
		DtObjectMgr *	objMgr
	)

virtual

Do bookkeeping associated with a remote federate subscription.

Calls update relevance.

References DtObjectMgr::addPendingRegister(), addRemoteSubscription(), deleteRemoteSubscription(), DtAttributeHandleSet::getHandle(), handle(), DtAttributeHandleSet::isEmpty(), myAttrs, published(), remoteSubscription(), DtAttributeHandleSet::removeSetIntersection(), DtAttributeHandleSet::size(), and updateRelevance().

Referenced by DtObjectMgr::processSub(), remotePassiveSubscribe(), and remoteUnsubscribeAttributes().

DtAttributeHandleSet const * DtObjectClassInfo::remoteSubscription ( DtFederateHandle fedHandle ) const

virtual

Returns remote federate's subscribed attributes.

References myRemoteSubscriptions.

Referenced by DtRtiObject::acquireRemoteSubscriptions(), DtObjectClassInfo(), remoteSubscribe(), DtObjectMgr::remoteSubscribe(), remoteUnsubscribeAttributes(), removeSubscriptions(), and DtRtiObject::setDiscoveredClass().

void DtObjectClassInfo::remoteUnsubscribeAttributes	(	DtFederateHandle	fedHandle,
		const DtAttributeHandleSet &	attrs,
		DtObjectMgr *	objMgr
	)

virtual

Do bookkeeping associated with a remote federate unsubscription.

Calls update relevance.

References remoteSubscribe(), remoteSubscription(), and DtAttributeHandleSet::removeSetIntersection().

Referenced by DtObjectMgr::processUnsub(), and remotePassiveSubscribe().

void DtObjectClassInfo::removeSubscriptions	(	DtFederateHandle	fedHandle,
		DtObjectMgr *	objMgr,
		bool	isResigning = `false`
	)

virtual

Remove all subscriptions from the given federate.

References DtAttributeHandleSet::add(), DtAttrInfo::deleteRemoteSubscription(), deleteRemoteSubscription(), DtAttrInfo::deleteRemoteSubscriptionWithRegion(), DtAttrInfo::handle(), DtAttributeHandleSet::isEmpty(), DtAttributeHandleSet::isMember(), myAttrs, DtAttrInfo::remoteFederateIsSubscribedWithRegion(), remoteSubscription(), and updateRelevance().

Referenced by DtObjectMgr::processResign().

bool DtObjectClassInfo::restore	(	DtObjectClassPacket *	packet,
		DtRtiSaveFile &	file
	)

virtual

bool DtObjectClassInfo::sameAncestry ( const DtObjectClassInfo * comp ) const

virtual

Test equality.

References baseClass(), and name().

Referenced by DtFomClassMgr::mergeObjectInfo().

bool DtObjectClassInfo::sameAttrs	(	const std::vector< DtAttrInfo > &	first,
		const std::vector< DtAttrInfo > &	second
	)

staticprotected

Test attributes for equality.

References fomType(), name(), and DtAttrInfo::nameIsPrivilegeToDelete().

Referenced by sameObjectClass().

bool DtObjectClassInfo::sameObjectClass	(	const DtObjectClassInfo &	first,
		const DtObjectClassInfo &	secondClass
	)

staticprotected

Test class for equality (including attributes)

References attrs(), name(), and sameAttrs().

Referenced by operator!=(), and operator==().

bool DtObjectClassInfo::save ( DtRtiSaveFile & file )

virtual

save and restore

DtObjectClassInfo * DtObjectClassInfo::self ( ) const

protected

const char * DtObjectClassInfo::semantics ( ) const

virtual

semantics access/mutate

References mySemantics.

Referenced by DtFomClassMgr::mergeObjectInfo().

void DtObjectClassInfo::setBaseClass ( DtObjectClassInfo * base )

virtual

Set base class (User should never need to set this)

References addSubclass(), and myBase.

void DtObjectClassInfo::setDestination	(	MAKRti::DtInetAddr	addr,
		MAKRti::DtInetAddr	devAddr,
		bool	inclusive,
		MAKRti::DtInetAddr	oldAddr,
		MAKRti::DtInetAddr	oldDevAddr
	)

virtual

References myAddr, myDevAddr, and mySubclasses.

Referenced by DtFomClassMgr::initDMFilteringParameters().

void DtObjectClassInfo::setDiscoveredHandle ( DtObjectClassHandle handleValue )

virtual

References myDiscoveredHandle.

Referenced by DtFomClassMgr::addClassHdlForUnknownClass().

void DtObjectClassInfo::setFomType ( MAKRti::DtFomType type )

virtual

Set/Get the FOM type.

References myFomType.

Referenced by DtFomClassMgr::addObjClassSorted(), DtFomClassMgr::addObjClassUnsorted(), and DtObjectClassInfo().

void DtObjectClassInfo::setForcedDestinations	(	DtBitMask const &	mask,
		MAKRti::DtTime	delay
	)

virtual

Set a forced destination mask Temporarily set a forced destinations mask for given delay A negative time delay will force the destinations indefinitely.

References myClock, myForceDestinationsMask, and myForceDestinationsTime.

Referenced by publish().

void DtObjectClassInfo::setHandle ( DtObjectClassHandle handleValue )

virtual

References myHandle.

void DtObjectClassInfo::setIsUnknown ( bool unknown )

References myIsUnknown.

Referenced by DtFomClassMgr::addClassHdlForUnknownClass().

void DtObjectClassInfo::setSemantics ( const MAKRti::DtString & sem )

virtual

References mySemantics.

void DtObjectClassInfo::setSharing ( DtSharingType share )

virtual

References mySharing.

void DtObjectClassInfo::setSubscribedRate	(	float	rate,
		const MAKRti::DtString &	name,
		bool	inclusive
	)

virtual

Apply objects subscribed rate to attrInfo's.

References attrs(), myAttrs, and mySubclasses.

Referenced by DtFomClassMgr::initUpdateRates().

DtSharingType DtObjectClassInfo::sharing ( ) const

virtual

sharing type access/mutate

References mySharing.

Referenced by DtFomClassMgr::addClassHdlForUnknownClass(), and DtFomClassMgr::mergeObjectInfo().

MAKRti::DtList * DtObjectClassInfo::subclasses ( )

virtual

Return list of subclasses.

References mySubclasses.

Referenced by DtFomClassMgr::addAttrInfoToChildren(), DtObjectMgr::addClassMulticast(), DtNetStatsMonitor::createSerializedTreesAndSend(), intersectPublished(), DtNetStatsMonitor::recursivelyAddAttributes(), DtNetStatsMonitor::recursivelyAddAttributesNames(), DtNetStatsMonitor::recursivelyAddAttrInitState(), DtNetStatsMonitor::recursivelyAddObjects(), DtObjectMgr::removeClassMulticast(), DtNetStatsMonitor::sendAttributeNames(), and DtNetStatsMonitor::sendInitAttrState().

void DtObjectClassInfo::subscribe	(	const DtAttributeHandleSet &	attributeList,
		bool	isPassiveValue,
		bool	isReplacement = `true`
	)

virtual

Subscribe and unsubscribe.

Parameters

isReplacement 1.3 is replacement

References DtAttributeHandleSet::add(), DtAttributeHandleSet::empty(), DtAttributeHandleSet::isMember(), myAttrs, myIsPassive, mySubscribed, mySubscribedActiveSet, mySubscribedPassiveSet, mySubscribedSet, DtAttributeHandleSet::remove(), DtAttributeHandleSet::size(), and throwIfNotDefined().

Referenced by DtObjectMgr::subscribe(), unsubscribeAttributes(), and unsubscribeClass().

bool DtObjectClassInfo::subscribed ( ) const

virtual

Return boolean: is class subscribed?

References mySubscribed.

Referenced by DtObjectMgr::firstSubscribedClass(), restore(), DtObjectMgr::subscribe(), DtObjectMgr::subscribed(), DtObjectMgr::unsubscribeAttributes(), and DtObjectMgr::unsubscribeClass().

DtAttributeHandleSet const & DtObjectClassInfo::subscribedActiveAttrs ( ) const

virtual

References mySubscribedActiveSet.

Referenced by isActiveSubscribed(), DtObjectMgr::processPub(), and DtObjectMgr::sendPendingSubscription().

const DtAttributeHandleSet & DtObjectClassInfo::subscribedActiveAttrs ( DtHandle regSetHandle ) const

virtual

References DtDefaultRegionSetHandle, mySubscribedActiveSet, and theEmptySet.

const DtAttributeHandleSet & DtObjectClassInfo::subscribedAttrs ( ) const

virtual

Returns the set of DM subscribed attributes.

References mySubscribedSet.

Referenced by DtRtiObject::expecting(), isSubscribed(), DtObjectMgr::processMultiRegister(), DtObjectMgr::processNewObj(), and DtObjectMgr::processRegister().

const DtAttributeHandleSet & DtObjectClassInfo::subscribedAttrs ( DtHandle regSetHandle ) const

virtual

Returns all subscribed attributes if handle is the default region set Otherwise, just those subscribed attributes that match with the remote publication region.

References DtDefaultRegionSetHandle, mySubscribedSet, and theEmptySet.

const MAKRti::DtHashList & DtObjectClassInfo::subscribedFederates ( ) const

virtual

Returns a list of remote federate subscribed attributes.

References myRemoteSubscriptions.

Referenced by DtObjectMgr::collectRemoteSubscriptions().

DtAttributeHandleSet const & DtObjectClassInfo::subscribedPassiveAttrs ( ) const

virtual

References mySubscribedPassiveSet.

void DtObjectClassInfo::throwIfNotDefined ( const DtAttributeHandleSet & attributeList )

protectedvirtual

Throws AttributeNotDefined exception if any member of attrs is not a valid attribute handle.

References DtAttributeHandleSet::getHandle(), myAttrs, and DtAttributeHandleSet::size().

Referenced by publish(), subscribe(), unpublishAttributes(), and unsubscribeAttributes().

void DtObjectClassInfo::unpublishAttributes	(	DtAttributeHandleSet const &	attributeList,
		bool	implicitUnpublishPrivilegeToDelete,
		DtObjectMgr *	objMgr
	)

virtual

References DtPrivilegeToDelete, DtAttributeHandleSet::isMember(), myExplicitPubPrivToDel, myExplicitUnpubPrivToDel, myPublishedSet, publish(), DtAttributeHandleSet::remove(), DtAttributeHandleSet::removeSetIntersection(), DtAttributeHandleSet::size(), and throwIfNotDefined().

Referenced by DtObjectMgr::unpublishAttributes().

void DtObjectClassInfo::unsubscribeAttributes ( DtAttributeHandleSet const & attributeList )

virtual

References mySubscribedActiveSet, mySubscribedPassiveSet, DtAttributeHandleSet::removeSetIntersection(), DtAttributeHandleSet::size(), subscribe(), and throwIfNotDefined().

Referenced by DtObjectMgr::unsubscribeAttributes().

void DtObjectClassInfo::unsubscribeClass ( )

virtual

References subscribe().

void DtObjectClassInfo::updateRelevance	(	const DtAttributeHandleSet &	attrs,
		DtFederateHandle	fedHandle,
		DtObjectMgr *	objMgr,
		bool	isResigning = `false`
	)
