Distributes fomModule files from initiating federate to RtiExec and then from RtiExec to all joining federates. More...

Inheritance diagram for DtSynchronousFileDistributor:

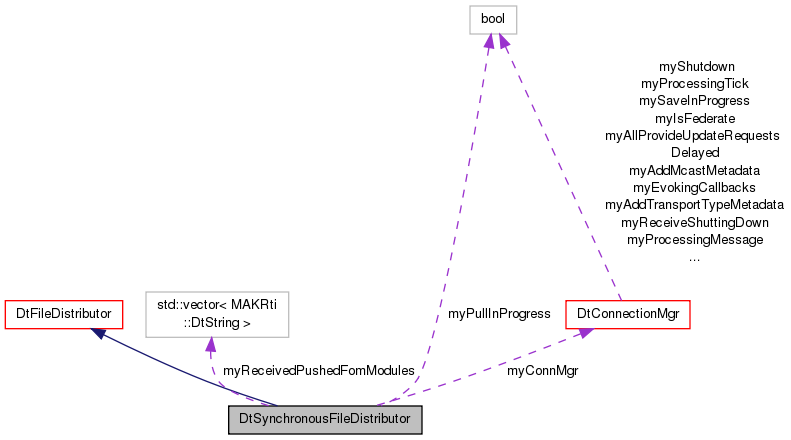

Collaboration diagram for DtSynchronousFileDistributor:

Public Member Functions
	DtSynchronousFileDistributor (const int fedEx, const MAKRti::DtString &fedExName, DtConnectionMgr *connMgr)
	Federate Constructor.
virtual	~DtSynchronousFileDistributor ()
	Destructor.
virtual bool	tick ()
	Tick the multFileDistributor.
virtual bool	sendFedFile (const std::vector< MAKRti::DtString > &modules)
	Override sendFedFile upload fed files passed in.
virtual bool	pullEntireFedFile (const std::vector< MAKRti::DtString > &modules, bool sc=true)
	Download FED File from the RtiExec ( blocking )
bool	pushedFomModules () const
	Has the fedex pushed an entire fom module since the last time getPushedFomModules called?
bool	pullInProgress () const
	Is the distributor currently pulling FOM modules?
void	getPushedFomModules (std::vector< MAKRti::DtString > &modules)
	Populate modules w/ the names of pushedFomModules.
void	multFileRequestedCb (const DtFomModuleRequestMsg &msg)
	File requested callback ( part of multiple file requested)
void	multFileReceivedCb (const DtFomModuleDistributionMsg &msg)
	File received callback ( part of multiple file recieved)
void	fileReceivedCb (const DtFomModuleDistributionMsg &msg)
	We're hiding DtFileDistributorRunnable's fileReceivedCb.
Public Member Functions inherited from DtFileDistributor
virtual bool	pushFedFile (DtConnectionMgr connMgr, const MAKRti::DtString &fileName, const unsigned int fileSize, const char fileBuffer, const DtFederateHandle destination=0)
	pushFedFile
virtual void	fedFileUploaded (const MAKRti::DtString fileUploaded)
	Called when Fom Module received successfully.
virtual bool	fileReceived (const DtFomModuleDistributionMsg &msg, bool &areAllHere)
virtual bool	fileRequested (const DtFomModuleRequestMsg &msg)
virtual void	removeFile (const MAKRti::DtString fileName)
	Remove all knowledge of this file from myFiles.
virtual void	removeFiles (const std::vector< MAKRti::DtString > &modules)
	Remove all knowledge of these file from myFiles.
virtual bool	fedFileReady (const MAKRti::DtString &fileName) const
	Does the distributor have a valid copy of this fom Module.
virtual bool	fedFilesReady (const std::vector< MAKRti::DtString > *fileNames) const
	Does the distributor have a valid copy of all of these fom Modules.
const FILE *	fedFilePtr (MAKRti::DtString fileName) const
	Get the fed file pointer.
const char *	fedFileBuff (MAKRti::DtString fileName) const
	Get the fed file buffer.
DtFileInformation *	takeFedFile (MAKRti::DtString fileName)
	Take ownership of the file.
unsigned int	fileSize (MAKRti::DtString fileName) const
FILE *	getTmpFile ()
void	setFedHandle (unsigned int newHandle)
	Set the Fed Handle of the distributor.
void	setFedexHandle (unsigned int newHandle)
bool	requestsPending () const
	Are there outstanding requests to be handled?

Static Public Member Functions
static DtSynchronousFileDistributor *	create (const int fedEx, const MAKRti::DtString &fedExName, DtConnectionMgr *connMgr)
static void	multFileReceivedCb (const DtFomModuleDistributionMsg &msg, void *usr)
	File received callback ( part of multiple file recieved)
Static Public Member Functions inherited from DtFileDistributor
static void	setCreatorFunction (DtFileDistributorCreator fn)

Private Member Functions
	DtSynchronousFileDistributor ()
	DtSynchronousFileDistributor (const DtSynchronousFileDistributor &orig)
DtSynchronousFileDistributor &	operator= (const DtSynchronousFileDistributor &orig)

Private Attributes
DtConnectionMgr *	myConnMgr
	Map between files that have been uploaded to me and their 'file names'.
std::vector< MAKRti::DtString >	myReceivedPushedFomModules
bool	myPullInProgress
	Indicates that a FOM module pull is currently in progress.

Additional Inherited Members
Protected Types inherited from DtFileDistributor
typedef std::list< DtRtiMsg * >	rtiMsgList
Protected Member Functions inherited from DtFileDistributor
	DtFileDistributor (const int fedExHandle, const int federateHandle, const MAKRti::DtString &fedExName)
	Constructor.
virtual	~DtFileDistributor ()
	Destructor.
Protected Attributes inherited from DtFileDistributor
std::map< MAKRti::DtString, DtFileInformation * >	myFiles
	Map between files that have been uploaded to me and their 'file names'.
std::set< std::pair < DtFederateHandle, MAKRti::DtString > >	myPendingRequests
MAKRti::DtString	myFedExName
int	myFedExHandle
int	myFederateHandle
std::map< MAKRti::DtString, FILE * >	myTempFileHandles
Static Protected Attributes inherited from DtFileDistributor
static DtFileDistributorCreator	theCreator = 0

Detailed Description

Distributes fomModule files from initiating federate to RtiExec and then from RtiExec to all joining federates.

Constructor & Destructor Documentation

DtSynchronousFileDistributor::DtSynchronousFileDistributor	(	const int	fedEx,
		const MAKRti::DtString &	fedExName,
		DtConnectionMgr *	connMgr
	)

Federate Constructor.

References DtFomModuleDistributionMsg::addCallback(), multFileReceivedCb(), and myConnMgr.

DtSynchronousFileDistributor::~DtSynchronousFileDistributor ( )

virtual

Destructor.

References multFileReceivedCb(), myConnMgr, and DtFomModuleDistributionMsg::removeCallback().

DtSynchronousFileDistributor::DtSynchronousFileDistributor ( )

private

DtSynchronousFileDistributor::DtSynchronousFileDistributor ( const DtSynchronousFileDistributor & orig )

private

Member Function Documentation

static DtSynchronousFileDistributor* DtSynchronousFileDistributor::create	(	const int	fedEx,
		const MAKRti::DtString &	fedExName,
		DtConnectionMgr *	connMgr
	)

static

void DtSynchronousFileDistributor::fileReceivedCb ( const DtFomModuleDistributionMsg & msg )

We're hiding DtFileDistributorRunnable's fileReceivedCb.

void DtSynchronousFileDistributor::getPushedFomModules ( std::vector< MAKRti::DtString > & modules )

Populate modules w/ the names of pushedFomModules.

References myReceivedPushedFomModules.

Referenced by DtRtiExecFederateMgr::posttick().

void DtSynchronousFileDistributor::multFileReceivedCb	(	const DtFomModuleDistributionMsg &	msg,
		void *	usr
	)

static

File received callback ( part of multiple file recieved)

Referenced by DtSynchronousFileDistributor(), and ~DtSynchronousFileDistributor().

void DtSynchronousFileDistributor::multFileReceivedCb ( const DtFomModuleDistributionMsg & msg )

File received callback ( part of multiple file recieved)

References DtFileDistributor::fedFileUploaded(), DtFileDistributor::fileReceived(), DtFomModuleDistributionMsg::fomModuleName(), DtFileDistributor::myFiles, and myReceivedPushedFomModules.

void DtSynchronousFileDistributor::multFileRequestedCb ( const DtFomModuleRequestMsg & msg )

File requested callback ( part of multiple file requested)

References DtFileDistributor::fileRequested(), DtFomModuleRequestMsg::getFomModuleNames(), DtFileDistributor::myPendingRequests, and DtFomModuleRequestMsg::sourceID().

DtSynchronousFileDistributor& DtSynchronousFileDistributor::operator= ( const DtSynchronousFileDistributor & orig )

private

bool DtSynchronousFileDistributor::pullEntireFedFile	(	const std::vector< MAKRti::DtString > &	modules,
		bool	sc = `true`
	)

virtual

bool DtSynchronousFileDistributor::pullInProgress ( ) const

Is the distributor currently pulling FOM modules?

References myPullInProgress.

Referenced by DtRtiExecFederateMgr::posttick().

bool DtSynchronousFileDistributor::pushedFomModules ( ) const

Has the fedex pushed an entire fom module since the last time getPushedFomModules called?

References myReceivedPushedFomModules.

Referenced by DtRtiExecFederateMgr::posttick().

bool DtSynchronousFileDistributor::sendFedFile ( const std::vector< MAKRti::DtString > & modules )

virtual

Override sendFedFile upload fed files passed in.

Reimplemented from DtFileDistributor.

References myConnMgr, DtFileDistributor::myFiles, DtFileDistributor::pushFedFile(), DtFileDistributor::sendFedFile(), and DtConnectionMgr::tick().

bool DtSynchronousFileDistributor::tick ( )

virtual

Tick the multFileDistributor.

References myConnMgr, DtFileDistributor::myFiles, DtFileDistributor::myPendingRequests, NULL, and DtFileDistributor::pushFedFile().

Referenced by pullEntireFedFile().

Member Data Documentation

DtConnectionMgr* DtSynchronousFileDistributor::myConnMgr

private

Map between files that have been uploaded to me and their 'file names'.

Referenced by DtSynchronousFileDistributor(), pullEntireFedFile(), sendFedFile(), tick(), and ~DtSynchronousFileDistributor().

bool DtSynchronousFileDistributor::myPullInProgress

private

Indicates that a FOM module pull is currently in progress.

Referenced by pullEntireFedFile(), and pullInProgress().

std::vector<MAKRti::DtString> DtSynchronousFileDistributor::myReceivedPushedFomModules

private

Referenced by getPushedFomModules(), multFileReceivedCb(), and pushedFomModules().
