DtAssistantConnectionInfoMgr Class Reference

Maintains lists of known RTI connections. More...

Inheritance diagram for DtAssistantConnectionInfoMgr:

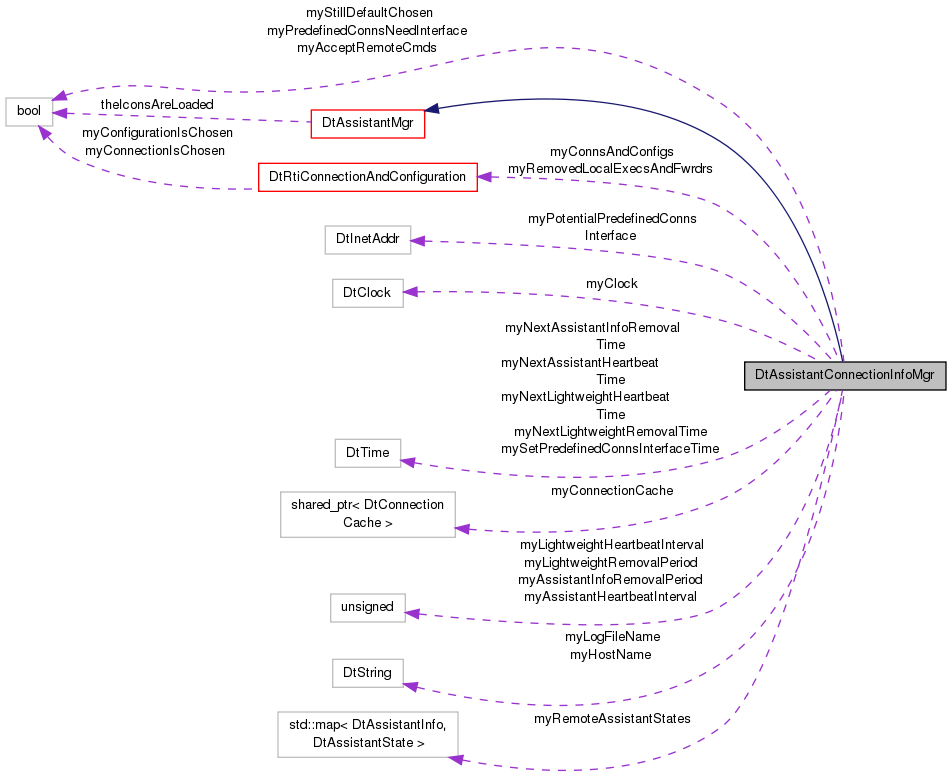

Collaboration diagram for DtAssistantConnectionInfoMgr:

Classes
struct	DtAssistantState

Public Slots
void	processLocalRtiComponentConnected (const DtAssistantComponentInfo *compInfo)
	Processes a local component successfully using a connection.
void	processLocalRtiComponentNotConnected (const DtAssistantComponentInfo *compInfo)
	Processes a local component no longer using a connection.
void	processLocalForwarderHasRtiexec (const DtAssistantComponentInfo *compInfo)
	Processes a local forwarder reporting a connection with an rtiexec.
void	processLocalForwarderHasNoRtiexec (const DtAssistantComponentInfo *compInfo)
	Processes a local forwarder reporting no connection with an rtiexec.
void	processNewChosenConnection (const DtRtiConnectionInfo &conn, const DtRtiConnectionConfigurationInfo &config)
	Processes the setting of a new chosen connection and configuration.
void	processClearChosenConnection ()
	Processes the clearing of the chosen connection and configuration.
void	setLightweightMemory (unsigned int newVal)
	Processes the lightweight memory value changing.
void	setAssistantUpdateInterval (unsigned int newVal)
	Processes the assistant update interval value changing.
void	setAcceptRemoteCommands (bool newVal)
	Processes the accept remote commands setting changing.
Public Slots inherited from DtAssistantMgr
void	displayWarningDialogs ()
	Displays all warning dialogs.

Signals
void	heartbeat ()
	Emitted when other managers should heartbeat local data to remote assistants.
void	prune ()
	Emitted when other managers should prune data from remote assistants.
void	connectionsAddedOrUpdated (const DtRtiConnectionAndConfiguration &conns)
	Emitted when a connection is added or updated.
void	connectionsAboutToBeRemoved (const DtRtiConnectionAndConfiguration &conns)
	Emitted when a connection is about to be completely removed.
void	connectionsRemoved (const DtRtiConnectionAndConfiguration &conns)
	Emitted when a connection is completely removed.
void	assistantFound (const DtAssistantInfo &info)
	Emitted when a new assistant is discovered.
void	assistantLost (const DtAssistantInfo &info)
	Emitted when a known assistant is lost.
void	rtiexecStartupRequested (const DtRtiConnectionInfoDataPair &, const DtRtiConnectionConfigurationInfo &, bool)
	Emitted when a remote request is received to start an rtiexec.
Signals inherited from DtAssistantMgr
void	warningDialogDisplayed ()
	Emitted when a warning dialog is displayed.
void	warningDialogDismissed ()
	Emitted when a warning dialog is dismissed.
void	popupRequested (const MAKRti::DtString &text, int sourceCompId, const MAKRti::DtString &advancedText)
	Emitted when a popup dialog should be displayed.
void	popupRequested (const MAKRti::DtString &text, const MAKRti::DtString &source, const MAKRti::DtString &advancedText)
	Emitted when a popup dialog should be displayed.
void	notificationRequested (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, int sourceCompId, bool logOnly)
	Emitted when a notification should be displayed.
void	notificationRequested (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, const MAKRti::DtString &source, bool logOnly)
	Emitted when a notification should be displayed.

Public Member Functions
	DtAssistantConnectionInfoMgr (DtBoost::shared_ptr< DtRtiAssistantServer > server, DtBoost::shared_ptr< DtRtiAssistantPeer > peer, DtAssistantSignalRouter &signalRouter, const MAKRti::DtFilename &configDir, const MAKRti::DtString &logFileName)
	Constructor.
virtual	~DtAssistantConnectionInfoMgr ()
	Destructor.
virtual void	tick ()
	Performs tasks that need to be completed periodically.
virtual void	startShutdown ()
	Performs any necessary processing at the start of shutdown.
virtual bool	isCacheFileVersionOld () const
	Returns true if the opened cache file had an older version.
virtual unsigned int	lightweightMemoryPeriod () const
	Get memory period, in minutes, for remote lightweight connections.
virtual unsigned int	lightweightHeartbeatInterval () const
	Get the interval between lightweight conn heartbeat messages.
virtual unsigned int	assistantMemoryPeriod () const
	Get memory period, in seconds, for remote assistant information.
virtual unsigned int	assistantHeartbeatInterval () const
	Get the interval between assistant heartbeat messages.
virtual unsigned int	requestedAssistantHeartbeatInterval () const
	Get the interval at which this assistant requests remote assistant heartbeat messages.
virtual bool	acceptRemoteCommands () const
	Get whether or not this assistant accepts commands.
virtual bool	remoteAssistantAcceptsCommands (const DtAssistantInfo &assistant) const
	Get whether or not a remote assistant accepts commands.
virtual bool	hostHasARemoteAssistantThatAcceptsCommands (const DtHostNameAddress &host, const MAKRti::DtInetAddr &interfaceAddr) const
	Determine whether there are any remote assistants on the given host machine that will accept commands.
virtual int	localRtiexecCompId (const DtRtiConnectionInfo &conn) const
	Gets the component ID of the local rtiexec on the given connection, or returns -1 if it cannot be found.
virtual int	localRtiForwarderCompId (const DtRtiConnectionInfo &conn) const
	Gets the component ID of the local rtiFrowarder that matches the conn.
virtual bool	getRemoteRtiexecLocation (const DtRtiConnectionInfo &conn, DtAssistantInfo &assistant, int &id) const
	Finds the location (assistant and component ID) of the remote rtiexec for the given connection.
virtual bool	getRemoteRtiForwarderLocation (const DtRtiConnectionInfo &conn, DtAssistantInfo &assistant, int &id) const
	Finds the location (assistant and component ID) of the remote RTI Forwarder for the given connection.
virtual bool	getRemoteRtiexecConnInfo (const DtAssistantInfo &assistant, int id, DtRtiConnectionInfoDataPair &conn) const
	Finds connection information for the remote rtiexec based on its location (assistant and component ID)
virtual bool	getRemoteForwarderConnInfo (const DtAssistantInfo &assistant, int id, DtRtiConnectionInfoDataPair &conn) const
	Finds connection information for the remote forwarder based on its location (assistant and component ID)
virtual bool	getChosenConnectionAndConfiguration (DtRtiConnectionInfoDataPair &conn, DtRtiConfigurationInfoDataPair &config)
	Finds the currently chosen connection and configuration.
virtual bool	getConnectionInfo (DtRtiConnectionInfoDataPair &conn)
	Finds and retrieves the full connection info and associated data for the connection.
virtual bool	getConfigurationForConn (const DtRtiConnectionInfo &conn, DtRtiConfigurationInfoDataPair &config)
	Finds and retrieves the full connection info and associated data for the connection.
virtual MAKRti::DtString	connectionName (const DtRtiConnectionInfo &conn)
	Returns the name for the given connection.
virtual bool	isStillDefaultChosen () const
	Returns true if a connection file was not found and loaded when the cache was created and the user has not yet set (or unset) a chosen connection.
virtual const DtRtiConnectionAndConfiguration &	connectionsAndConfigurations ()
	Returns the current list of all connections and configurations.
virtual void	addUserDefinedConnections (const DtRtiConnectionAndConfiguration &conns)
	Adds new user defined connections.
virtual void	removeUserDeletedConnections (const DtRtiConnectionAndConfiguration &conns)
	Removes user deleted connections.
virtual void	removeAllLocalRtiexecsForwarders ()
	Remove all local rtiexecs and forwarders.
virtual void	removeAllLocalLightweightConns ()
	Remove all local lightweight connections.
virtual bool	isConnConflicting (const DtRtiConnectionInfo &conn, MAKRti::DtString &reason) const
	If the given connection conflicts with any currently active connection, returns true, sets the name of the active conflicting connection, and sets a description of the reason for the conflict.
void	saveConnections ()
	Saves the connections to file.
Public Member Functions inherited from DtAssistantMgr
	DtAssistantMgr (DtBoost::shared_ptr< DtRtiAssistantServer > server, DtBoost::shared_ptr< DtRtiAssistantPeer > peer, DtAssistantSignalRouter &signalRouter)
	Constructor.
virtual	~DtAssistantMgr ()
	Destructor.
virtual void	initialize ()
	Initializes this manager just prior to beginning assistant processing.
virtual bool	dialogsVisible () const
	Determines if there are any visible dialogs for which this manager is responsible.
virtual void	configWidget (DtAssistantConfigWidget **widget, QIcon &icon, QString &name, DtPreferencesPage &pageId)
	Retrieves a widget which will be placed in the configuration dialog for configuring user preferences.
virtual void	updateConfigWidget ()
	Forces the configuration widget to be updated.
virtual void	processConfigWidgetAccept ()
	Process the changes that were accepted in the configuration widget.

Protected Types
typedef std::map < DtAssistantInfo, DtAssistantState >	DtAssistantStateMap
typedef std::pair < DtAssistantInfo, DtAssistantState >	DtAssistantStatePair

Protected Member Functions
virtual void	processInterfaceFound ()
	Called by the callback function to process discovery of a new network interface.
virtual void	heartbeatAssistant ()
	Sends heartbeat messages for majority of assistant information.
virtual void	heartbeatLightweightConnections ()
	Sends heartbeat messages for all lightweight connections.
virtual void	pruneStaleLightweightConns ()
	Prune remote lightweight connections which have not been heartbeated since the last removal time.
virtual void	pruneStaleAssistantsExecsFwrdrs ()
	Prune remote assistants, rtiexecs, and forwarders which have not been heartbeated since the last removal time.
virtual void	determineHeartbeatIntervals ()
	From the list of known assistant peers and their respective heartbeat periods, calculate the heartbeat interval (half the shortest interval) for lightweight connection info and other information.
virtual DtAssistantStateMap::iterator	findOrAddRemoteAssistant (const DtAssistantInfo &assistant)
	Finds the given state information for the given assistant, or adds the assistant if it is not yet present.
virtual void	unverifyRtiexecsForwardersForAssistant (DtAssistantStateMap::iterator astntIter, DtRtiConnectionAndConfiguration &connsToRemove, DtRtiConnectionAndConfiguration &updatedConns)
	Unverify all rtiexecs and forwarders owned by this assistant (assumes iterator is valid).
virtual void	unverifyListedRtiexecsForwardersForAssistant (const DtRtiConnectionAndConfiguration &removeList, DtAssistantStateMap::iterator astntIter, DtRtiConnectionAndConfiguration &connsToRemove, DtRtiConnectionAndConfiguration &updatedConns)
	Unverify all of the rtiexecs and forwarders in the given list from the stored list if they are owned by the given assistant (assumes iterator is valid).
virtual void	addListedRtiexecsForwardersForAssistant (const DtRtiConnectionAndConfiguration &addList, DtAssistantStateMap::iterator astntIter, DtRtiConnectionAndConfiguration &connsToRemove, DtRtiConnectionAndConfiguration &updatedConns)
	Add all of the rtiexecs and forwarders in the given list to the stored list and assign ownership to the given assistant (assumes iterator is valid).
virtual void	checkForConflictingConns (DtRtiConnectionAndConfiguration &updatedConns)
	Checks all connections with unknown or conflicting state to see if they are now conflicting.
virtual void	removeConnections (const DtRtiConnectionAndConfiguration &connsToRemove)
	Removes the given connections from the connection list and emits necessary signals.
virtual void	setInterfaceForPredefinedConns (const MAKRti::DtInetAddr &interfaceAddr)
	Sets the network interface address to be used for the predefined connections.
Protected Member Functions inherited from DtAssistantMgr
void	startDialog (QDialog *dlg, bool inTaskbar, bool warningDialog)
	Sets up the given widget as a dialog.
void	finishDialog (QDialog *dlg)
	Should be called prior to deleting any dialog started with startDialog.
void	showDialog (QDialog *dlg)
	Shows the dialog.
void	startMainWindow (QMainWindow *dlg)
	Sets up a main window dialog.
void	finishMainWindow (QMainWindow *dlg)
	Should be called prior to deleting any dialog started with startMainWindow.
void	showMainWindow (QMainWindow *dlg)
	Shows the dialog.
void	showPopup (const MAKRti::DtString &text, int sourceCompId=-1, const MAKRti::DtString &advancedText=MAKRti::DtString::nullString())
	Displays a popup message with the given text, advanced text, and name of the given source component.
void	showPopup (const MAKRti::DtString &text, const MAKRti::DtString &source, const MAKRti::DtString &advancedText=MAKRti::DtString::nullString())
	Displays a popup message with the given text, advanced text, and source name.
void	displayNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, int sourceCompId=-1)
	Displays and logs a notification from the given component.
void	displayNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, const MAKRti::DtString &source)
	Displays and logs notification with the given component name.
void	logNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, int sourceCompId=-1)
	Logs a notification from the given component, does not display.
void	logNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, const MAKRti::DtString &source)
	Logs a notification with the given component name, does not display.

Static Protected Member Functions
static void	processInterfaceFound (void *usr)
	Callback to process the discovery of a new network interface.

Protected Attributes
DtBoost::shared_ptr < DtConnectionCache >	myConnectionCache
	The cached rtiexec and lightweight connections.
bool	myAcceptRemoteCmds
	Whether or not remote commands are accepted.
DtClock	myClock
	Clock for timeouts and periodic update messages.
DtTime	myNextAssistantHeartbeatTime
	Time at which we will next send information on our own assistant and local rtiexecs, forwarders, and licenses.
DtTime	myNextLightweightHeartbeatTime
	Time at which we will next send information on our own local lightweight connections.
DtTime	myNextAssistantInfoRemovalTime
	Time at which we will next remove any un-heartbeated remote assistants, rtiexecs, and forwarders.
DtTime	myNextLightweightRemovalTime
	Time at which we will next remove any un-heartbeated remote lightweight connections.
unsigned int	myAssistantHeartbeatInterval
	Interval, in secs, at which we will send assistant info heartbeat msgs.
unsigned int	myLightweightHeartbeatInterval
	Interval, in secs, at which we will send lightweight conn heartbeat msgs.
unsigned int	myAssistantInfoRemovalPeriod
	Interval at which we will check for remote assistants, rtiexecs, and forwarders have not been heartbeated.
unsigned int	myLightweightRemovalPeriod
	Interval at which we will check for remote lightweight connections that have not been heartbeated.
MAKRti::DtString	myHostName
	Name of this host.
DtRtiConnectionAndConfiguration	myRemovedLocalExecsAndFwrdrs
	Sets of removed local rtiexecs and forwarders.
DtAssistantStateMap	myRemoteAssistantStates
	All known remote assistants and their current rtiexecs and forwarders.
DtRtiConnectionAndConfiguration	myConnsAndConfigs
	All of the connections and configurations.
bool	myStillDefaultChosen
	Indicates that the default chosen connection state is still in use (no connection file existed and user has not chosen or unchosen a connection to be used without prompting).
bool	myPredefinedConnsNeedInterface
	If there was no network interface when the assistant started, the predefined connections will be invalid.
MAKRti::DtInetAddr	myPotentialPredefinedConnsInterface
	A network interface to potentially use for the predefined connections, if it stays active long enough.
DtTime	mySetPredefinedConnsInterfaceTime
	Time at which predefined connections should be set with the myPotentialPredefinedConnsInterface.
MAKRti::DtString	myLogFileName
	The name of the log file.
Protected Attributes inherited from DtAssistantMgr
DtBoost::shared_ptr < DtRtiAssistantServer >	myServer
	The Assistant server from which new messages will arrive from local RTI components.
DtBoost::shared_ptr < DtRtiAssistantPeer >	myPeer
	The Assistant peer which communicates with other Assistants.
std::set< QDialog * >	myUnparentedDialogs
	All unparented dialogs that are created by the GUI should be added to this set.
std::set< QMainWindow * >	myMainWindows
	All main windows that are created by the GUI should be added to this set.
std::set< QDialog * >	myWarningDialogs
	Set of the popup dialogs, either parented or unparented, which, when active, should cause a warning icon to be displayed.

Private Member Functions
	DtAssistantConnectionInfoMgr (DtAssistantConnectionInfoMgr const &)
	Copy Constructor not implemented – Copy Not Allowed!
DtAssistantConnectionInfoMgr &	operator= (DtAssistantConnectionInfoMgr const &)
	Assignment not implemented – Assignment Not Allowed!

Message Callbacks
Callbacks for remote assistant info messages
static void	processQueryMsg (const DtAssistantQueryMsg &queryMsg, void *usr)
	Query message callback.
static void	processInfoMsg (const DtAssistantInfoMsg &infoMsg, void *usr)
	Assistant information message callback.
static void	processLightweightInfoMsg (const DtAssistantLightweightInfoMsg &infoMsg, void *usr)
	Assistant lightweight information message callback.
static void	processRemovalMsg (const DtAssistantRemovalMsg &remMsg, void *usr)
	Assistant removal message callback.
static void	processStartRtiexecMsg (const DtAssistantStartRtiexecMsg &msg, void *usr)
	Start rtiexec message callback.
virtual void	processQueryMsg (const DtAssistantQueryMsg &queryMsg)
	Query message callback.
virtual void	processInfoMsg (const DtAssistantInfoMsg &infoMsg)
	Query message callback.
virtual void	processLightweightInfoMsg (const DtAssistantLightweightInfoMsg &infoMsg)
	Query message callback.
virtual void	processRemovalMsg (const DtAssistantRemovalMsg &remMsg)
	Query message callback.
virtual void	processStartRtiexecMsg (const DtAssistantStartRtiexecMsg &msg)
	Query message callback.

Additional Inherited Members
Static Protected Attributes inherited from DtAssistantMgr
static QIcon	theRtiIcon
	The icons used by the RTI Assistant.
static QIcon	theSmallRtiIcon
static QIcon	theWebIcon
static QIcon	theNotifyRtiIcon
static QIcon	theWarningRtiIcon
static QIcon	thePreferencesIcon
static QIcon	theAboutIcon
static QIcon	theHelpIcon
static bool	theIconsAreLoaded
	Whether or not the icons have yet been loaded.

Detailed Description

Maintains lists of known RTI connections.

This includes all lightweight and rtiexec, remote and local, active and inactive connections.

Member Typedef Documentation

typedef std::map< DtAssistantInfo, DtAssistantState > DtAssistantConnectionInfoMgr::DtAssistantStateMap

protected

typedef std::pair< DtAssistantInfo, DtAssistantState > DtAssistantConnectionInfoMgr::DtAssistantStatePair

protected

Constructor & Destructor Documentation

DtAssistantConnectionInfoMgr::DtAssistantConnectionInfoMgr	(	DtBoost::shared_ptr< DtRtiAssistantServer >	server,
		DtBoost::shared_ptr< DtRtiAssistantPeer >	peer,
		DtAssistantSignalRouter &	signalRouter,
		const MAKRti::DtFilename &	configDir,
		const MAKRti::DtString &	logFileName
	)

Constructor.

virtual DtAssistantConnectionInfoMgr::~DtAssistantConnectionInfoMgr ( )

virtual

Destructor.

DtAssistantConnectionInfoMgr::DtAssistantConnectionInfoMgr ( DtAssistantConnectionInfoMgr const &  )

private

Copy Constructor not implemented – Copy Not Allowed!

Member Function Documentation

virtual bool DtAssistantConnectionInfoMgr::acceptRemoteCommands ( ) const

virtual

Get whether or not this assistant accepts commands.

virtual void DtAssistantConnectionInfoMgr::addListedRtiexecsForwardersForAssistant ( const DtRtiConnectionAndConfiguration &  addList, DtAssistantStateMap::iterator  astntIter, DtRtiConnectionAndConfiguration &  connsToRemove, DtRtiConnectionAndConfiguration &  updatedConns  )

protectedvirtual

Add all of the rtiexecs and forwarders in the given list to the stored list and assign ownership to the given assistant (assumes iterator is valid).

Adds updated connections as well as connection which need to be removed to the specified lists.

virtual void DtAssistantConnectionInfoMgr::addUserDefinedConnections ( const DtRtiConnectionAndConfiguration &  conns )

virtual

Adds new user defined connections.

void DtAssistantConnectionInfoMgr::assistantFound ( const DtAssistantInfo &  info )

signal

Emitted when a new assistant is discovered.

virtual unsigned int DtAssistantConnectionInfoMgr::assistantHeartbeatInterval ( ) const

virtual

Get the interval between assistant heartbeat messages.

This interval is based on the desired update rates of the remote assistants.

void DtAssistantConnectionInfoMgr::assistantLost ( const DtAssistantInfo &  info )

signal

Emitted when a known assistant is lost.

virtual unsigned int DtAssistantConnectionInfoMgr::assistantMemoryPeriod ( ) const

virtual

Get memory period, in seconds, for remote assistant information.

virtual void DtAssistantConnectionInfoMgr::checkForConflictingConns ( DtRtiConnectionAndConfiguration &  updatedConns )

protectedvirtual

Checks all connections with unknown or conflicting state to see if they are now conflicting.

virtual MAKRti::DtString DtAssistantConnectionInfoMgr::connectionName ( const DtRtiConnectionInfo &  conn )

virtual

Returns the name for the given connection.

void DtAssistantConnectionInfoMgr::connectionsAboutToBeRemoved ( const DtRtiConnectionAndConfiguration &  conns )

signal

Emitted when a connection is about to be completely removed.

void DtAssistantConnectionInfoMgr::connectionsAddedOrUpdated ( const DtRtiConnectionAndConfiguration &  conns )

signal

Emitted when a connection is added or updated.

virtual const DtRtiConnectionAndConfiguration& DtAssistantConnectionInfoMgr::connectionsAndConfigurations ( )

virtual

Returns the current list of all connections and configurations.

void DtAssistantConnectionInfoMgr::connectionsRemoved ( const DtRtiConnectionAndConfiguration &  conns )

signal

Emitted when a connection is completely removed.

virtual void DtAssistantConnectionInfoMgr::determineHeartbeatIntervals ( )

protectedvirtual

From the list of known assistant peers and their respective heartbeat periods, calculate the heartbeat interval (half the shortest interval) for lightweight connection info and other information.

virtual DtAssistantStateMap::iterator DtAssistantConnectionInfoMgr::findOrAddRemoteAssistant ( const DtAssistantInfo &  assistant )

protectedvirtual

Finds the given state information for the given assistant, or adds the assistant if it is not yet present.

virtual bool DtAssistantConnectionInfoMgr::getChosenConnectionAndConfiguration ( DtRtiConnectionInfoDataPair &  conn, DtRtiConfigurationInfoDataPair &  config  )

virtual

Finds the currently chosen connection and configuration.

Returns false there is no chosen connection.

virtual bool DtAssistantConnectionInfoMgr::getConfigurationForConn ( const DtRtiConnectionInfo &  conn, DtRtiConfigurationInfoDataPair &  config  )

virtual

Finds and retrieves the full connection info and associated data for the connection.

Returns false if the connection could not be found or if it had no associated configuration.

virtual bool DtAssistantConnectionInfoMgr::getConnectionInfo ( DtRtiConnectionInfoDataPair &  conn )

virtual

Finds and retrieves the full connection info and associated data for the connection.

Returns false if the connection could not be found.

virtual bool DtAssistantConnectionInfoMgr::getRemoteForwarderConnInfo ( const DtAssistantInfo &  assistant, int  id, DtRtiConnectionInfoDataPair &  conn  ) const

virtual

Finds connection information for the remote forwarder based on its location (assistant and component ID)

virtual bool DtAssistantConnectionInfoMgr::getRemoteRtiexecConnInfo ( const DtAssistantInfo &  assistant, int  id, DtRtiConnectionInfoDataPair &  conn  ) const

virtual

Finds connection information for the remote rtiexec based on its location (assistant and component ID)

virtual bool DtAssistantConnectionInfoMgr::getRemoteRtiexecLocation ( const DtRtiConnectionInfo &  conn, DtAssistantInfo &  assistant, int &  id  ) const

virtual

Finds the location (assistant and component ID) of the remote rtiexec for the given connection.

virtual bool DtAssistantConnectionInfoMgr::getRemoteRtiForwarderLocation ( const DtRtiConnectionInfo &  conn, DtAssistantInfo &  assistant, int &  id  ) const

virtual

Finds the location (assistant and component ID) of the remote RTI Forwarder for the given connection.

void DtAssistantConnectionInfoMgr::heartbeat ( )

signal

Emitted when other managers should heartbeat local data to remote assistants.

virtual void DtAssistantConnectionInfoMgr::heartbeatAssistant ( )

protectedvirtual

Sends heartbeat messages for majority of assistant information.

virtual void DtAssistantConnectionInfoMgr::heartbeatLightweightConnections ( )

protectedvirtual

Sends heartbeat messages for all lightweight connections.

virtual bool DtAssistantConnectionInfoMgr::hostHasARemoteAssistantThatAcceptsCommands ( const DtHostNameAddress &  host, const MAKRti::DtInetAddr &  interfaceAddr  ) const

virtual

Determine whether there are any remote assistants on the given host machine that will accept commands.

virtual bool DtAssistantConnectionInfoMgr::isCacheFileVersionOld ( ) const

virtual

Returns true if the opened cache file had an older version.

virtual bool DtAssistantConnectionInfoMgr::isConnConflicting ( const DtRtiConnectionInfo &  conn, MAKRti::DtString &  reason  ) const

virtual

If the given connection conflicts with any currently active connection, returns true, sets the name of the active conflicting connection, and sets a description of the reason for the conflict.

virtual bool DtAssistantConnectionInfoMgr::isStillDefaultChosen ( ) const

virtual

Returns true if a connection file was not found and loaded when the cache was created and the user has not yet set (or unset) a chosen connection.

virtual unsigned int DtAssistantConnectionInfoMgr::lightweightHeartbeatInterval ( ) const

virtual

Get the interval between lightweight conn heartbeat messages.

virtual unsigned int DtAssistantConnectionInfoMgr::lightweightMemoryPeriod ( ) const

virtual

Get memory period, in minutes, for remote lightweight connections.

virtual int DtAssistantConnectionInfoMgr::localRtiexecCompId ( const DtRtiConnectionInfo &  conn ) const

virtual

Gets the component ID of the local rtiexec on the given connection, or returns -1 if it cannot be found.

virtual int DtAssistantConnectionInfoMgr::localRtiForwarderCompId ( const DtRtiConnectionInfo &  conn ) const

virtual

Gets the component ID of the local rtiFrowarder that matches the conn.

DtAssistantConnectionInfoMgr& DtAssistantConnectionInfoMgr::operator= ( DtAssistantConnectionInfoMgr const &  )

private

Assignment not implemented – Assignment Not Allowed!

void DtAssistantConnectionInfoMgr::processClearChosenConnection ( )

slot

Processes the clearing of the chosen connection and configuration.

static void DtAssistantConnectionInfoMgr::processInfoMsg ( const DtAssistantInfoMsg &  infoMsg, void *  usr  )

staticprotected

Assistant information message callback.

virtual void DtAssistantConnectionInfoMgr::processInfoMsg ( const DtAssistantInfoMsg &  infoMsg )

protectedvirtual

Query message callback.

static void DtAssistantConnectionInfoMgr::processInterfaceFound ( void *  usr )

staticprotected

Callback to process the discovery of a new network interface.

virtual void DtAssistantConnectionInfoMgr::processInterfaceFound ( )

protectedvirtual

Called by the callback function to process discovery of a new network interface.

static void DtAssistantConnectionInfoMgr::processLightweightInfoMsg ( const DtAssistantLightweightInfoMsg &  infoMsg, void *  usr  )

staticprotected

Assistant lightweight information message callback.

virtual void DtAssistantConnectionInfoMgr::processLightweightInfoMsg ( const DtAssistantLightweightInfoMsg &  infoMsg )

protectedvirtual

Query message callback.

void DtAssistantConnectionInfoMgr::processLocalForwarderHasNoRtiexec ( const DtAssistantComponentInfo *  compInfo )

slot

Processes a local forwarder reporting no connection with an rtiexec.

void DtAssistantConnectionInfoMgr::processLocalForwarderHasRtiexec ( const DtAssistantComponentInfo *  compInfo )

slot

Processes a local forwarder reporting a connection with an rtiexec.

void DtAssistantConnectionInfoMgr::processLocalRtiComponentConnected ( const DtAssistantComponentInfo *  compInfo )

slot

Processes a local component successfully using a connection.

void DtAssistantConnectionInfoMgr::processLocalRtiComponentNotConnected ( const DtAssistantComponentInfo *  compInfo )

slot

Processes a local component no longer using a connection.

void DtAssistantConnectionInfoMgr::processNewChosenConnection ( const DtRtiConnectionInfo &  conn, const DtRtiConnectionConfigurationInfo &  config  )

slot

Processes the setting of a new chosen connection and configuration.

static void DtAssistantConnectionInfoMgr::processQueryMsg ( const DtAssistantQueryMsg &  queryMsg, void *  usr  )

staticprotected

Query message callback.

virtual void DtAssistantConnectionInfoMgr::processQueryMsg ( const DtAssistantQueryMsg &  queryMsg )

protectedvirtual

Query message callback.

static void DtAssistantConnectionInfoMgr::processRemovalMsg ( const DtAssistantRemovalMsg &  remMsg, void *  usr  )

staticprotected

Assistant removal message callback.

virtual void DtAssistantConnectionInfoMgr::processRemovalMsg ( const DtAssistantRemovalMsg &  remMsg )

protectedvirtual

Query message callback.

static void DtAssistantConnectionInfoMgr::processStartRtiexecMsg ( const DtAssistantStartRtiexecMsg &  msg, void *  usr  )

staticprotected

Start rtiexec message callback.

virtual void DtAssistantConnectionInfoMgr::processStartRtiexecMsg ( const DtAssistantStartRtiexecMsg &  msg )

protectedvirtual

Query message callback.

void DtAssistantConnectionInfoMgr::prune ( )

signal

Emitted when other managers should prune data from remote assistants.

virtual void DtAssistantConnectionInfoMgr::pruneStaleAssistantsExecsFwrdrs ( )

protectedvirtual

Prune remote assistants, rtiexecs, and forwarders which have not been heartbeated since the last removal time.

virtual void DtAssistantConnectionInfoMgr::pruneStaleLightweightConns ( )

protectedvirtual

Prune remote lightweight connections which have not been heartbeated since the last removal time.

virtual bool DtAssistantConnectionInfoMgr::remoteAssistantAcceptsCommands ( const DtAssistantInfo &  assistant ) const

virtual

Get whether or not a remote assistant accepts commands.

virtual void DtAssistantConnectionInfoMgr::removeAllLocalLightweightConns ( )

virtual

Remove all local lightweight connections.

virtual void DtAssistantConnectionInfoMgr::removeAllLocalRtiexecsForwarders ( )

virtual

Remove all local rtiexecs and forwarders.

virtual void DtAssistantConnectionInfoMgr::removeConnections ( const DtRtiConnectionAndConfiguration &  connsToRemove )

protectedvirtual

Removes the given connections from the connection list and emits necessary signals.

virtual void DtAssistantConnectionInfoMgr::removeUserDeletedConnections ( const DtRtiConnectionAndConfiguration &  conns )

virtual

Removes user deleted connections.

virtual unsigned int DtAssistantConnectionInfoMgr::requestedAssistantHeartbeatInterval ( ) const

virtual

Get the interval at which this assistant requests remote assistant heartbeat messages.

void DtAssistantConnectionInfoMgr::rtiexecStartupRequested ( const DtRtiConnectionInfoDataPair &  , const DtRtiConnectionConfigurationInfo &  , bool    )

signal

Emitted when a remote request is received to start an rtiexec.

void DtAssistantConnectionInfoMgr::saveConnections

(

)

Saves the connections to file.

void DtAssistantConnectionInfoMgr::setAcceptRemoteCommands ( bool  newVal )

slot

Processes the accept remote commands setting changing.

void DtAssistantConnectionInfoMgr::setAssistantUpdateInterval ( unsigned int  newVal )

slot

Processes the assistant update interval value changing.

virtual void DtAssistantConnectionInfoMgr::setInterfaceForPredefinedConns ( const MAKRti::DtInetAddr &  interfaceAddr )

protectedvirtual

Sets the network interface address to be used for the predefined connections.

void DtAssistantConnectionInfoMgr::setLightweightMemory ( unsigned int  newVal )

slot

Processes the lightweight memory value changing.

virtual void DtAssistantConnectionInfoMgr::startShutdown ( )

virtual

Performs any necessary processing at the start of shutdown.

Reimplemented from DtAssistantMgr.

virtual void DtAssistantConnectionInfoMgr::tick ( )

virtual

Performs tasks that need to be completed periodically.

Reimplemented from DtAssistantMgr.

virtual void DtAssistantConnectionInfoMgr::unverifyListedRtiexecsForwardersForAssistant ( const DtRtiConnectionAndConfiguration &  removeList, DtAssistantStateMap::iterator  astntIter, DtRtiConnectionAndConfiguration &  connsToRemove, DtRtiConnectionAndConfiguration &  updatedConns  )

protectedvirtual

Unverify all of the rtiexecs and forwarders in the given list from the stored list if they are owned by the given assistant (assumes iterator is valid).

Adds updated connections as well as connection which need to be removed to the specified lists.

virtual void DtAssistantConnectionInfoMgr::unverifyRtiexecsForwardersForAssistant ( DtAssistantStateMap::iterator  astntIter, DtRtiConnectionAndConfiguration &  connsToRemove, DtRtiConnectionAndConfiguration &  updatedConns  )

protectedvirtual

Unverify all rtiexecs and forwarders owned by this assistant (assumes iterator is valid).

Returns lists of conns that have been updated or need to be removed.

Member Data Documentation

bool DtAssistantConnectionInfoMgr::myAcceptRemoteCmds

protected

Whether or not remote commands are accepted.

unsigned int DtAssistantConnectionInfoMgr::myAssistantHeartbeatInterval

protected

Interval, in secs, at which we will send assistant info heartbeat msgs.

unsigned int DtAssistantConnectionInfoMgr::myAssistantInfoRemovalPeriod

protected

Interval at which we will check for remote assistants, rtiexecs, and forwarders have not been heartbeated.

DtClock DtAssistantConnectionInfoMgr::myClock

protected

Clock for timeouts and periodic update messages.

DtBoost::shared_ptr<DtConnectionCache> DtAssistantConnectionInfoMgr::myConnectionCache

protected

The cached rtiexec and lightweight connections.

DtRtiConnectionAndConfiguration DtAssistantConnectionInfoMgr::myConnsAndConfigs

protected

All of the connections and configurations.

MAKRti::DtString DtAssistantConnectionInfoMgr::myHostName

protected

Name of this host.

unsigned int DtAssistantConnectionInfoMgr::myLightweightHeartbeatInterval

protected

Interval, in secs, at which we will send lightweight conn heartbeat msgs.

unsigned int DtAssistantConnectionInfoMgr::myLightweightRemovalPeriod

protected

Interval at which we will check for remote lightweight connections that have not been heartbeated.

MAKRti::DtString DtAssistantConnectionInfoMgr::myLogFileName

protected

The name of the log file.

DtTime DtAssistantConnectionInfoMgr::myNextAssistantHeartbeatTime

protected

Time at which we will next send information on our own assistant and local rtiexecs, forwarders, and licenses.

DtTime DtAssistantConnectionInfoMgr::myNextAssistantInfoRemovalTime

protected

Time at which we will next remove any un-heartbeated remote assistants, rtiexecs, and forwarders.

DtTime DtAssistantConnectionInfoMgr::myNextLightweightHeartbeatTime

protected

Time at which we will next send information on our own local lightweight connections.

DtTime DtAssistantConnectionInfoMgr::myNextLightweightRemovalTime

protected

Time at which we will next remove any un-heartbeated remote lightweight connections.

MAKRti::DtInetAddr DtAssistantConnectionInfoMgr::myPotentialPredefinedConnsInterface

protected

A network interface to potentially use for the predefined connections, if it stays active long enough.

bool DtAssistantConnectionInfoMgr::myPredefinedConnsNeedInterface

protected

If there was no network interface when the assistant started, the predefined connections will be invalid.

DtAssistantStateMap DtAssistantConnectionInfoMgr::myRemoteAssistantStates

protected

All known remote assistants and their current rtiexecs and forwarders.

DtRtiConnectionAndConfiguration DtAssistantConnectionInfoMgr::myRemovedLocalExecsAndFwrdrs

protected

Sets of removed local rtiexecs and forwarders.

DtTime DtAssistantConnectionInfoMgr::mySetPredefinedConnsInterfaceTime

protected

Time at which predefined connections should be set with the myPotentialPredefinedConnsInterface.

bool DtAssistantConnectionInfoMgr::myStillDefaultChosen

protected

Indicates that the default chosen connection state is still in use (no connection file existed and user has not chosen or unchosen a connection to be used without prompting).

---

The documentation for this class was generated from the following file:

• connInfoMgr.h
