DtFederateMgr Class Reference

Instances of DtFederateMgr process federation-level messages (such as create, destroy, join, resign, and sync points) and manages the objects responsible for handling general communication, objects, interactions, the FOM, MOM, and data distribution mmg. More...

Inheritance diagram for DtFederateMgr:

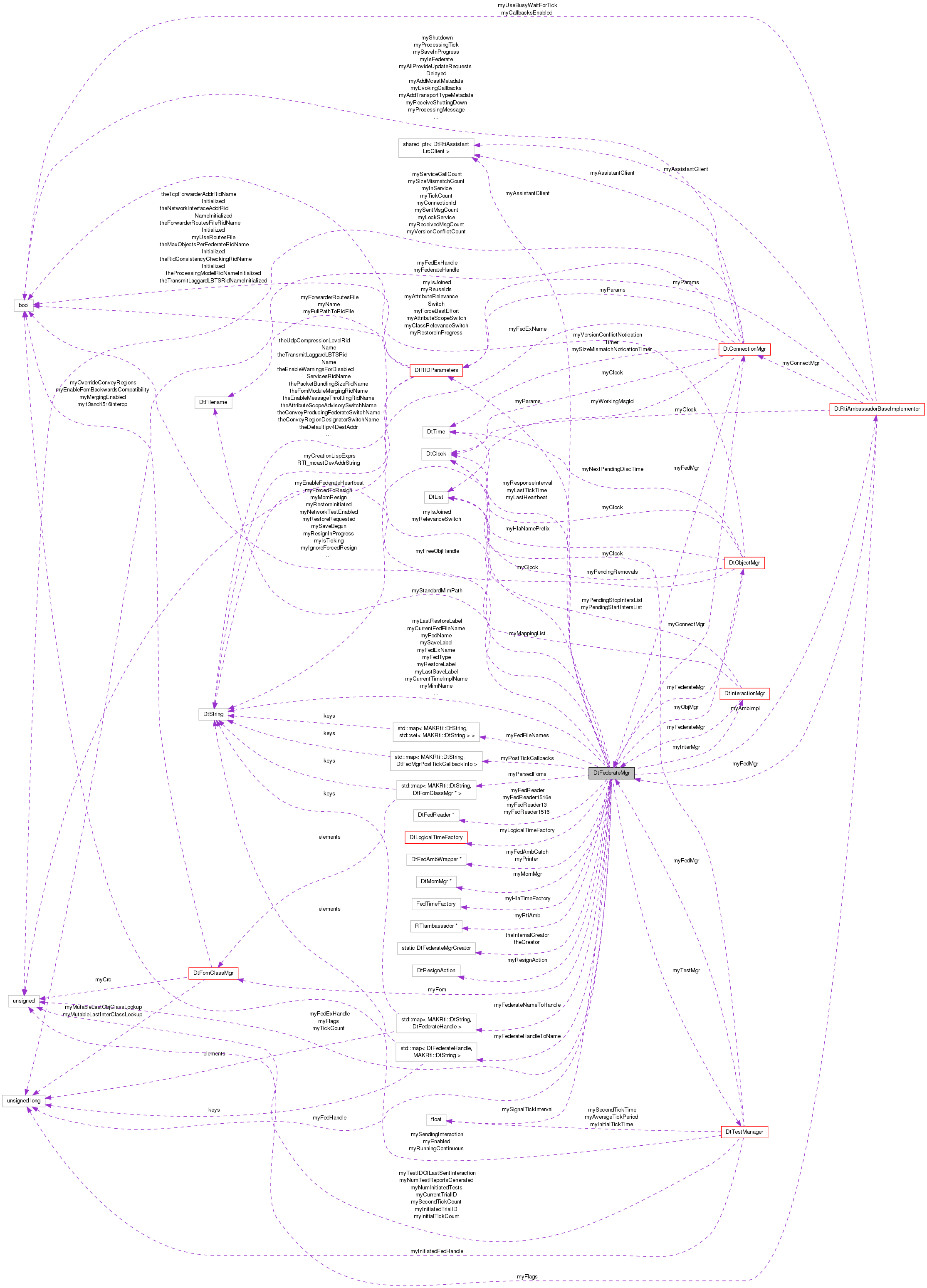

Collaboration diagram for DtFederateMgr:

Public Types
typedef DtFederateMgr *(*	DtFederateMgrCreator )(DtRIDParameters *ridParams, DtRtiAmbassadorBaseImplementor *ambImplPtr, DtConnectionMgr *connMgr, DtBoost::shared_ptr< DtRtiAssistantLrcClient > assistantClient)
	Federate manager creator.
typedef void(*	DtFedMgrPostTickCallbackFcn )(void *)
typedef std::pair < DtFedMgrPostTickCallbackFcn, void * >	DtFedMgrPostTickCallbackInfo
typedef std::map < MAKRti::DtString, DtFedMgrPostTickCallbackInfo >	DtPostTickCallbackMap

Public Member Functions
virtual	~DtFederateMgr ()
	Destructor.
virtual void	createFederationExecution (const char *executionName, const char *timeImplName, const char *fed)=0
	Process the create federation execution service.
virtual void	destroyFederationExecution (const char *executionName)=0
	Process the destroy federation execution service.
virtual RTI::FederateHandle	joinFederationExecution (const char *yourName, const char *executionName, RTI::FederateAmbassador *federateAmbassadorReference, unsigned long flags)=0
	Process the join federation execution service.
virtual void	resignFederationExecution (RTI::ResignAction theAction)
	Process the resign federation execution service.
virtual bool	automaticReserveObjectName (const char *)
	HLA 1.3 does not have the ability to reserve an object name, so this function allows us to implici.
virtual void	registerFederationSynchronizationPoint (const char *label, const char *theTag)=0
	Process the register federation synchronization point service.
virtual void	waitForResignResponse (bool serviceCall=true)
	Wait for Resign Response.
virtual void	waitForReserveNameResponse (bool serviceCall=true)
	Wait for Resign Response.
virtual void	registerFederationSynchronizationPoint (const char *label, const char *theTag, DtFederateHandleSet const &syncSet)=0
	Process the register federation synchronization point service.
virtual void	synchronizationPointAchieved (const char *label, bool successfully=true)=0
	Process the synchronization point achieved service.
virtual MAKRti::DtString	fedFileName (MAKRti::DtString execName)
	Return the .fed file name associated with the federation execution name.
virtual MAKRti::DtString	timeImplName (MAKRti::DtString execName)
	Return the time implementation name associated with the federation execution name.
virtual void	init ()
	Virtual initialization within create.
virtual bool	tick ()
	Update the state of the federation.
virtual void	pretick ()
virtual void	posttick ()
virtual void	postTickCallbacks ()
virtual void	addPostTickCallback (const MAKRti::DtString &label, const DtFedMgrPostTickCallbackInfo &cb)
virtual void	removePostTickCallback (const MAKRti::DtString &label)
virtual void	requestFederationSave (const char *label, const RTI::FedTime *time=NULL)=0
	Process the requested federation save service.
virtual void	federateSaveBegun ()=0
	Process the federate save begun service.
virtual void	federateSaveComplete ()=0
	Process the federate save complete service.
virtual void	federateSaveNotComplete ()=0
	Process the federate save not complete service.
virtual void	requestFederationRestore (const char *label)=0
	Process the request federation restore service.
virtual void	federateRestoreComplete ()=0
	Process the federate restore complete service.
virtual void	federateRestoreNotComplete ()=0
	Process the federate restore not complete service.
virtual char *	getTransportationName (MAKRti::DtTransportType transport)
	Get transport name service.
virtual char *	getOrderName (MAKRti::DtOrderType order)
	Get order name service.
virtual MAKRti::DtTransportType	getTransportationHandle (MAKRti::DtString transport)
	Get transport handle service.
virtual MAKRti::DtOrderType	getOrderHandle (MAKRti::DtString order)
	Get order handle service.
virtual DtFederateHandle	federateHandle () const
	Get the federate handle.
virtual MAKRti::DtString const &	fedType () const
	Get the federate type.
virtual MAKRti::DtString const &	fedName () const
	Get the federate name (HLA Evolved)
virtual MAKRti::DtString const &	fedExName () const
	Get the federation execution name.
virtual unsigned long	fedExHandle () const
	Get the federation execution handle.
virtual bool	isJoined () const
	Return boolean: federate is joined?
virtual DtConnectionMgr *	connectMgr ()
	Access to the connection manager.
virtual DtConnectionMgr *	connectMgr () const
virtual DtRIDParameters *	params ()
	Access to the RID parameters.
virtual DtRIDParameters *	params () const
virtual DtFomClassMgr *	fom ()
	Access to the fom.
virtual DtFomClassMgr *	fom () const
virtual DtInteractionMgr *	interMgr ()
	Access to the interaction mgr.
virtual DtInteractionMgr *	interMgr () const
virtual DtTestManager *	testMgr ()
	Access to the test Manager.
virtual DtTestManager *	testMgr () const
virtual DtObjectMgr *	objMgr ()
	Access to the object mgr.
virtual DtObjectMgr *	objMgr () const
virtual DtLogicalTimeFactory *	timeFactory ()
	Access to the time factory.
virtual DtLogicalTimeFactory *	timeFactory () const
virtual DtRtiAssistantLrcClient *	assistantClient ()
	Access to the RTI Assistant client.
virtual DtRtiAssistantLrcClient *	assistantClient () const
virtual bool	isJoinedFederate (DtFederateHandle federateHandleValue) const
	Return bool: Is the federate handle known to be in the federation.
virtual bool	forcedToResign () const
	Return bool: Was federate forced to resign?
virtual void	setMomResign ()
	Marks that MOM is invoking resign.
virtual void	resetMomResign ()
	Unmark that MOM is invoking resign.
virtual bool	saveInitiated () const
	return bool: save initiated?
virtual bool	saveBegun () const
	return bool: save begun?
virtual bool	restoreRequested () const
	return bool: restore requested?
virtual bool	restoreInitiated () const
	return bool: restore initiated ?
virtual bool	restoreBegun () const
	return bool: restore begun?
virtual const MAKRti::DtString &	restoreLabel () const
	return current restore label
virtual const MAKRti::DtString &	lastRestoreLabel () const
	return last restore label
const MAKRti::DtString &	currentFedFileName () const
	get/set current FED file name
void	setCurrentFedFileName (const MAKRti::DtString &)
const MAKRti::DtString &	mimName () const
	get/set MIM name
void	setMimName (const MAKRti::DtString &)
const MAKRti::DtString &	currentTimeImplName () const
	get/set current time implementation name
void	setCurrentTimeImplName (const MAKRti::DtString &)
virtual const MAKRti::DtString &	saveLabel () const
	Set/Get save label.
virtual void	setSaveLabel (const MAKRti::DtString &value)
virtual const MAKRti::DtString &	lastSaveLabel () const
	Set/Get last save label.
virtual void	setLastSaveLabel (const MAKRti::DtString &value)
virtual void	testSaveProgress ()=0
	Perform exception tests on save/restore state.
virtual void	initiateSave ()
	Perform the actual save possibly after waiting to enter time advancing state.
virtual void	initiateTimedSave (RTI::FedTime const &saveTime)
	Save is initiated possibly after waiting to enter time advancing state.
virtual bool	save (DtRtiSaveFile &file)
	Perform the actual save.
virtual bool	restore (DtRtiSaveFile &file)
	Perform the actual restore.
virtual MAKRti::DtString &	getSaveFileName (const char *label, DtFederateHandle fedHandle, MAKRti::DtString &fileName, bool extendName=true)
	Create a save file name from the label and return in supplied parameter.
virtual MAKRti::DtString &	getRestoreFileName (const char *label, DtFederateHandle fedHandle, MAKRti::DtString &fileName)
	Create a restore file name from the label and return in supplied parameter.
virtual unsigned long	tickCount () const
	Return the number of ticks.
virtual bool	isTicking () const
	Return true if currently processing tick.
virtual void	reportLatencyTestResults (const DtLatencyReportMsg &msg)
	Report results of a latency test.
virtual void	reportLatencyTestStatus (const DtTestMgrStatusMsg &msg)
	Report current latency test status.
unsigned long	flags () const
DtResignAction	automaticResignDirective () const
virtual const MAKRti::DtString &	getFederateNameFromHandle (DtFederateHandle handle)
	Get Federate Name / Handle from Handle / Name.
virtual DtFederateHandle	getFederateHandleFromName (const MAKRti::DtString &name)
virtual void	setTopLevelAmbassador (RTI::RTIambassador *ambPtr)
	Provide access to top level RTI Ambassador (and Federate Ambassador for 1516E)
RTI::RTIambassador *	rtiAmb ()
	Access to the top level RTI Ambassador given to the federate.
RTI::RTIambassador *	rtiAmb () const
	Access to the top level RTI Ambassador given to the federate.
virtual RTI::FederateAmbassador *	federateAmbassador () const
	Access to the Federate Ambassador submitted by the federate.

Static Public Member Functions
static DtFederateMgr *	create (DtRIDParameters *params, DtRtiAmbassadorBaseImplementor *ambImplPtr, DtConnectionMgr *connMgr, DtBoost::shared_ptr< DtRtiAssistantLrcClient > assistantClient)
	A Federate Manager instance is created, initialized, and its pointer is returned.
static void	setCreatorFunction (DtFederateMgrCreator fn)
	Register a creator function.
static void	setInternalCreatorFunction (DtFederateMgrCreator fn)
	Register alternate internal creators.

Public Attributes
bool	myFedCallbackReached

Protected Member Functions
	DtFederateMgr (DtRIDParameters *params, DtRtiAmbassadorBaseImplementor *ambImplPtr, DtConnectionMgr *connMgr, DtBoost::shared_ptr< DtRtiAssistantLrcClient > assistantClient)
	Constructor.
virtual void	sendAlive ()
	Send the alive message.
virtual void	sendResignMsg (const char *fedExName, DtFederateHandle fedHandle, DtResignAction action)
	Send the resign message.
void	sendTickedMsg ()
	Send the signal ticked message.
virtual void	applyRidParameters ()
	Apply RID parameters.
virtual MAKRti::DtFilename	fedFileNameToUse (MAKRti::DtString fileName, MAKRti::DtString executionName)
	Utility function, finds fed file name to use based on fed file name and exeution name.
virtual void	testReadFedFile (MAKRti::DtString fileName, MAKRti::DtString executionName)
	Attempts to read a fed file but does not fill in the fom class.
virtual void	readFedFile (MAKRti::DtString fileName, MAKRti::DtString executionName)
	Reads a FED file into a DtFomClassMgr object.
virtual void	readFedFilePtr (const FILE *fp, const MAKRti::DtString &fileName, const MAKRti::DtString &executionName)
	Reads a FED file into a DtFomClassMgr object.
virtual void	addFedExNameMapping (const MAKRti::DtString &execName, const MAKRti::DtString &timeImplName, const MAKRti::DtString &fed)
	Add mapping between federation execution name, time Impl Name and fed file name.
virtual void	addFomModuleNameMapping (const MAKRti::DtString executionName, const std::vector< MAKRti::DtString > &modules)
virtual void	addFomModuleNameMapping (const MAKRti::DtString executionName, const MAKRti::DtString &modules)
virtual DtResignAction	testResign (RTI::ResignAction theAction)
	Test the resign action and return the internal representation.
virtual void	postJoinInit (const char *federateType, const char *executionName, const char *federateName, RTI::FederateAmbassador *federateAmbassadorReference)
	Uses the given information to initialize federate data.
virtual void	postJoinConfirmInit ()
virtual MAKRti::DtResignAction	convertResignAction (RTI::ResignAction) const
virtual RTI::ResignAction	convertResignAction (MAKRti::DtResignAction) const
DtFedReader *	getReader (DtFomType theFomType, DtFomClassMgr *target)
DtFedReader *	getReader (DtFomType theFomType)
void	addToParsedFomMap (DtFedReader *myFedReader, const MAKRti::DtString &fileNameToUse, DtFomClassMgr *fedTarget, unsigned long theCrc=0)
MAKRti::DtFilename &	getStandardMimPath ()
MessageHandling
Process federation management messages Registered callback call these methods
virtual void	processResign (const DtResignMsg &msg)
	Process resign message.
virtual void	processEnableDisableNetworkTesting (const DtEnableDisableNetworkTestingMsg &msg)
	disable network testing
virtual void	processSaveInitiate (const DtSaveInitiateMsg &msg)
	Process save initiate message.
virtual void	processSaveResponse (const DtSaveResponseMsg &msg)
	Process save resonse message.
virtual void	processSaveFinished (const DtSaveFinishedMsg &msg)
	Process save finished message.
virtual void	processRestoreReply (const DtRestoreReplyMsg &msg)
	Process restore reply message.
virtual void	processRestoreInitiate (const DtRestoreInitiateMsg &msg)
	Process restore initiate message.
virtual void	processRestoreEnd (const DtRestoreEndMsg &msg)
	Process restore end message.
virtual void	processRestore (const DtRestoreMsg &msg)
	Process restore message.
AssistantMessageHandling
Process assistant messages Registered callback call these methods
virtual void	processAssistantResign (const DtAssistantExitMsg &msg)
	Process resign message from Assistant.
virtual void	processAssistantEnableLogging (const DtAssistantLogEnableMsg &msg)
	Process resign message from Assistant.
virtual void	processSignalTickInterval (const DtAssistantFederateSignalTickIntervalMsg &msg)
	Process a change in the interval at which a federate is expected to tick.
virtual void	processRidParamRequest (const DtAssistantRidParamsMsg &msg)
	Process a RID parameter request from the Assistant.
CreateManager
Create various managers
virtual void	createObjectMgr ()
	Create the Object Manager.
virtual void	createInteractionMgr ()
	Create the Interaction Manager.
virtual void	createDdmMgr ()
	Create the DDM Manager.
virtual void	createTimeMgr ()
	Create the Time manager.
virtual void	createMomMgr ()
	Create the MOM Manager.
virtual void	createTestMgr ()
	Create the test Manager.

Static Protected Member Functions
MessageCallbacks
Register these callbacks methods with connection manager. Pass this manager as the user data.
static void	processResign (const DtResignMsg &msg, void *usr)
	resign message callback
static void	processEnableDisableNetworkTesting (const DtEnableDisableNetworkTestingMsg &msg, void *usr)
	process enable / disable network testing callback
static void	processSaveInitiate (const DtSaveInitiateMsg &msg, void *usr)
	save initiate message callback
static void	processSaveResponse (const DtSaveResponseMsg &msg, void *usr)
	save response message callback
static void	processSaveFinished (const DtSaveFinishedMsg &msg, void *usr)
	save finished message callback
static void	processRestoreReply (const DtRestoreReplyMsg &msg, void *usr)
	restore reply message callback
static void	processRestore (const DtRestoreMsg &msg, void *usr)
	restore message callback
static void	processRestoreInitiate (const DtRestoreInitiateMsg &msg, void *usr)
	restore initiate message callback
static void	processRestoreEnd (const DtRestoreEndMsg &msg, void *usr)
	restore end message callback
AssistantMessageCallbacks
Register these callbacks methods with the assistant client. Pass this manager as the user data.
static void	processAssistantResign (const DtAssistantExitMsg &msg, void *usr)
	Assistant resign message callback.
static void	processAssistantEnableLogging (const DtAssistantLogEnableMsg &msg, void *usr)
	Assistant logging enable message callback.
static void	processSignalTickInterval (const DtAssistantFederateSignalTickIntervalMsg &msg, void *usr)
	Assistant signal tick interval message callback.
static void	processRidParamRequest (const DtAssistantRidParamsMsg &msg, void *usr)
	Assistant RID parameter request message callback.

Protected Attributes
RTI::RTIambassador *	myRtiAmb
	The federate's RTI Ambassador.
DtRtiAmbassadorBaseImplementor *	myAmbImpl
	The federate's RTI Ambassador Implementor.
MAKRti::DtTime	myResponseInterval
	Interval to wait for response message during a message protocol.
MAKRti::DtString	myFedExName
	Federation execution name.
unsigned long	myFedExHandle
	Federation handle.
MAKRti::DtString	myFedType
	Federate type.
MAKRti::DtString	myFedName
	Federate name.
DtFederateHandle	myFedHandle
	Federate handle.
MAKRti::DtString	myCurrentFedFileName
	Current FED/FDD file name.
MAKRti::DtString	myMimName
	MIM name.
MAKRti::DtString	myCurrentTimeImplName
	Current time implementation name.
MAKRti::DtTime	myLastHeartbeat
	Time of last heartbeat.
DtLogicalTimeFactory *	myLogicalTimeFactory
	Logical time factory Even if NULL, need to have this factory.
RTI::FedTimeFactory	myHlaTimeFactory
DtFedAmbWrapper *	myPrinter
	Prints data for federate ambassador calls.
DtFedAmbWrapper *	myFedAmbCatch
	Catches exceptions from federate ambassador calls.
DtRIDParameters *	myParams
	Initialization data.
DtFedReader *	myFedReader
	Temporary internal reader used until changes made to VR-Link fed reader.
DtFedReader *	myFedReader13
DtFedReader *	myFedReader1516
DtFedReader *	myFedReader1516e
MAKRti::DtList	myMappingList
	List of federation execution names with FED files names and time implementation names.
std::map< MAKRti::DtString, std::set< MAKRti::DtString > >	myFedFileNames
std::map< MAKRti::DtString, DtFomClassMgr * >	myParsedFoms
	Map containing FOMs parsed into FedTargets.
DtBoost::shared_ptr < DtRtiAssistantLrcClient >	myAssistantClient
	Manages the connection to the RTI Assistant.
bool	myIgnoreForcedResign
	Prevents forcing duplicate resign.
bool	myForcedToResign
	Indicates forced resign occurred.
bool	myMomResign
	Indicates MOM caused resign.
bool	myMomSaveEvokeCallbacks
	State of evoking callbacks prior to MOM resign.
bool	myResignInProgress
	Indicates a resign is in progress.
MAKRti::DtClock	myClock
	Clock for timing.
unsigned long	myTickCount
	Tick counter.
bool	myIsTicking
	indicates currently processing tick
bool	myEnableFederateHeartbeat
	is heartbeating enabled?
unsigned long	myFlags
DtTestManager *	myTestMgr
bool	myNetworkTestEnabled
float	mySignalTickInterval
	The Signal Tick Interval.
DtTime	myLastTickTime
	The last tick time.
DtPostTickCallbackMap	myPostTickCallbacks
MAKRti::DtFilename	myStandardMimPath
std::map< MAKRti::DtString, DtFederateHandle >	myFederateNameToHandle
std::map< DtFederateHandle, MAKRti::DtString >	myFederateHandleToName
MAKRti::DtResignAction	myResignAction
	The resign action.
ManagerAccess
Access to various manager components
DtConnectionMgr *	myConnectMgr
	The connection manager.
DtFomClassMgr *	myFom
	The FOM manager.
DtInteractionMgr *	myInterMgr
	The interaction manager.
DtObjectMgr *	myObjMgr
	The object manager.
DtMomMgr *	myMomMgr
	The MOM manager.
SaveRestoreData
Data used for processing save and restore.
bool	mySaveInitiated
	Indicates save initiated.
bool	mySaveBegun
	Indicates save begun.
bool	myRestoreRequested
	Indicates restore requested.
bool	myRestoreInitiated
	Indicates restore initiated.
bool	myRestoreBegun
	Indicates restore begun.
MAKRti::DtString	mySaveLabel
	The save label.
MAKRti::DtString	myLastSaveLabel
	The last save label.
MAKRti::DtString	myRestoreLabel
	The restore label.
MAKRti::DtString	myLastRestoreLabel
	The last restore label.

Static Protected Attributes
static DtFederateMgrCreator	theCreator
	The plugin creator.
static DtFederateMgrCreator	theInternalCreator
	The internal creator.

Private Member Functions
	DtFederateMgr (DtFederateMgr const &)
	Copy Constructor not implemented – Copy Not Allowed!
DtFederateMgr &	operator= (DtFederateMgr const &)
	Assignment not implemented – Assignment Not Allowed!

Detailed Description

Instances of DtFederateMgr process federation-level messages (such as create, destroy, join, resign, and sync points) and manages the objects responsible for handling general communication, objects, interactions, the FOM, MOM, and data distribution mmg.

Users should generally not need to override this class directly. Instead, they should override either DtRtiExecFederateMgr (which is instantiated when using the rtiexec) or DtSimpleFederateMgr (which is used when LRCs communicate peer to peer). To inspect federation data, users can obtain a pointer to an instance of this class through the RTI's DtRtiAmbassadorBaseImplementor instance.

Member Typedef Documentation

typedef DtFederateMgr*(* DtFederateMgr::DtFederateMgrCreator)(DtRIDParameters *ridParams, DtRtiAmbassadorBaseImplementor *ambImplPtr, DtConnectionMgr *connMgr, DtBoost::shared_ptr< DtRtiAssistantLrcClient > assistantClient)

Federate manager creator.

typedef void(* DtFederateMgr::DtFedMgrPostTickCallbackFcn)(void *)

typedef std::pair<DtFedMgrPostTickCallbackFcn, void*> DtFederateMgr::DtFedMgrPostTickCallbackInfo

typedef std::map< MAKRti::DtString, DtFedMgrPostTickCallbackInfo > DtFederateMgr::DtPostTickCallbackMap

Constructor & Destructor Documentation

DtFederateMgr::DtFederateMgr ( DtRIDParameters *  params, DtRtiAmbassadorBaseImplementor *  ambImplPtr, DtConnectionMgr *  connMgr, DtBoost::shared_ptr< DtRtiAssistantLrcClient >  assistantClient  )

protected

Constructor.

virtual DtFederateMgr::~DtFederateMgr ( )

virtual

Destructor.

DtFederateMgr::DtFederateMgr ( DtFederateMgr const &  )

private

Copy Constructor not implemented – Copy Not Allowed!

Member Function Documentation

virtual void DtFederateMgr::addFedExNameMapping ( const MAKRti::DtString &  execName, const MAKRti::DtString &  timeImplName, const MAKRti::DtString &  fed  )

protectedvirtual

Add mapping between federation execution name, time Impl Name and fed file name.

virtual void DtFederateMgr::addFomModuleNameMapping ( const MAKRti::DtString  executionName, const std::vector< MAKRti::DtString > &  modules  )

protectedvirtual

virtual void DtFederateMgr::addFomModuleNameMapping ( const MAKRti::DtString  executionName, const MAKRti::DtString &  modules  )

protectedvirtual

virtual void DtFederateMgr::addPostTickCallback ( const MAKRti::DtString &  label, const DtFedMgrPostTickCallbackInfo &  cb  )

virtual

void DtFederateMgr::addToParsedFomMap ( DtFedReader *  myFedReader, const MAKRti::DtString &  fileNameToUse, DtFomClassMgr *  fedTarget, unsigned long  theCrc = 0  )

protected

virtual void DtFederateMgr::applyRidParameters ( )

protectedvirtual

Apply RID parameters.

Reimplemented in DtRtiExecFederateMgr.

virtual DtRtiAssistantLrcClient* DtFederateMgr::assistantClient ( )

virtual

Access to the RTI Assistant client.

virtual DtRtiAssistantLrcClient* DtFederateMgr::assistantClient ( ) const

virtual

virtual bool DtFederateMgr::automaticReserveObjectName ( const char *  )

virtual

HLA 1.3 does not have the ability to reserve an object name, so this function allows us to implici.

DtResignAction DtFederateMgr::automaticResignDirective

(

)

const

virtual DtConnectionMgr* DtFederateMgr::connectMgr ( )

virtual

Access to the connection manager.

virtual DtConnectionMgr* DtFederateMgr::connectMgr ( ) const

virtual

virtual MAKRti::DtResignAction DtFederateMgr::convertResignAction ( RTI::ResignAction  ) const

protectedvirtual

virtual RTI::ResignAction DtFederateMgr::convertResignAction ( MAKRti::DtResignAction  ) const

protectedvirtual

static DtFederateMgr* DtFederateMgr::create ( DtRIDParameters *  params, DtRtiAmbassadorBaseImplementor *  ambImplPtr, DtConnectionMgr *  connMgr, DtBoost::shared_ptr< DtRtiAssistantLrcClient >  assistantClient  )

static

A Federate Manager instance is created, initialized, and its pointer is returned.

A registered creator is used if present; otherwise, an internal class is instantiated. Note: A NULL pointer will be returned unless a plugin or internal creator is set because this class is abstract.

Reimplemented in DtRtiExecFederateMgr, and DtSimpleFederateMgr.

virtual void DtFederateMgr::createDdmMgr ( )

protectedvirtual

Create the DDM Manager.

virtual void DtFederateMgr::createFederationExecution ( const char *  executionName, const char *  timeImplName, const char *  fed  )

pure virtual

Process the create federation execution service.

Implemented in DtRtiExecFederateMgr, and DtSimpleFederateMgr.

virtual void DtFederateMgr::createInteractionMgr ( )

protectedvirtual

Create the Interaction Manager.

virtual void DtFederateMgr::createMomMgr ( )

protectedvirtual

Create the MOM Manager.

virtual void DtFederateMgr::createObjectMgr ( )

protectedvirtual

Create the Object Manager.

virtual void DtFederateMgr::createTestMgr ( )

protectedvirtual

Create the test Manager.

virtual void DtFederateMgr::createTimeMgr ( )

protectedvirtual

Create the Time manager.

const MAKRti::DtString& DtFederateMgr::currentFedFileName

(

)

const

get/set current FED file name

const MAKRti::DtString& DtFederateMgr::currentTimeImplName

(

)

const

get/set current time implementation name

virtual void DtFederateMgr::destroyFederationExecution ( const char *  executionName )

pure virtual

Process the destroy federation execution service.

Implemented in DtRtiExecFederateMgr, and DtSimpleFederateMgr.

virtual RTI::FederateAmbassador* DtFederateMgr::federateAmbassador ( ) const

virtual

Access to the Federate Ambassador submitted by the federate.

virtual DtFederateHandle DtFederateMgr::federateHandle ( ) const

virtual

Get the federate handle.

virtual void DtFederateMgr::federateRestoreComplete ( )

pure virtual

Process the federate restore complete service.

Implemented in DtRtiExecFederateMgr, and DtSimpleFederateMgr.

virtual void DtFederateMgr::federateRestoreNotComplete ( )

pure virtual

Process the federate restore not complete service.

Implemented in DtRtiExecFederateMgr, and DtSimpleFederateMgr.

virtual void DtFederateMgr::federateSaveBegun ( )

pure virtual

Process the federate save begun service.

Implemented in DtRtiExecFederateMgr, and DtSimpleFederateMgr.

virtual void DtFederateMgr::federateSaveComplete ( )

pure virtual

Process the federate save complete service.

Implemented in DtRtiExecFederateMgr, and DtSimpleFederateMgr.

virtual void DtFederateMgr::federateSaveNotComplete ( )

pure virtual

Process the federate save not complete service.

Implemented in DtRtiExecFederateMgr, and DtSimpleFederateMgr.

virtual unsigned long DtFederateMgr::fedExHandle ( ) const

virtual

Get the federation execution handle.

virtual MAKRti::DtString const& DtFederateMgr::fedExName ( ) const

virtual

Get the federation execution name.

virtual MAKRti::DtString DtFederateMgr::fedFileName ( MAKRti::DtString  execName )

virtual

Return the .fed file name associated with the federation execution name.

If none has been registered using addFedExNameMapping, we use <execName>.fed.

virtual MAKRti::DtFilename DtFederateMgr::fedFileNameToUse ( MAKRti::DtString  fileName, MAKRti::DtString  executionName  )

protectedvirtual

Utility function, finds fed file name to use based on fed file name and exeution name.

Back-compat with pre-1.3.6 releases, where FED file name does not come in a join response message.

virtual MAKRti::DtString const& DtFederateMgr::fedName ( ) const

virtual

Get the federate name (HLA Evolved)

virtual MAKRti::DtString const& DtFederateMgr::fedType ( ) const

virtual

Get the federate type.

unsigned long DtFederateMgr::flags

(

)

const

virtual DtFomClassMgr* DtFederateMgr::fom ( )

virtual

Access to the fom.

virtual DtFomClassMgr* DtFederateMgr::fom ( ) const

virtual

virtual bool DtFederateMgr::forcedToResign ( ) const

virtual

Return bool: Was federate forced to resign?

virtual DtFederateHandle DtFederateMgr::getFederateHandleFromName ( const MAKRti::DtString &  name )

virtual

virtual const MAKRti::DtString& DtFederateMgr::getFederateNameFromHandle ( DtFederateHandle  handle )

virtual

Get Federate Name / Handle from Handle / Name.

virtual MAKRti::DtOrderType DtFederateMgr::getOrderHandle ( MAKRti::DtString  order )

virtual

Get order handle service.

virtual char* DtFederateMgr::getOrderName ( MAKRti::DtOrderType  order )

virtual

Get order name service.

DtFedReader* DtFederateMgr::getReader ( DtFomType  theFomType, DtFomClassMgr *  target  )

protected

DtFedReader* DtFederateMgr::getReader ( DtFomType  theFomType )

protected

virtual MAKRti::DtString& DtFederateMgr::getRestoreFileName ( const char *  label, DtFederateHandle  fedHandle, MAKRti::DtString &  fileName  )

virtual

Create a restore file name from the label and return in supplied parameter.

The default name is extended if a file with that name already exists. Name extension can be turned off using the supplied parameter. Returns a reference to the supplied file name parameter

virtual MAKRti::DtString& DtFederateMgr::getSaveFileName ( const char *  label, DtFederateHandle  fedHandle, MAKRti::DtString &  fileName, bool  extendName = true  )

virtual

Create a save file name from the label and return in supplied parameter.

The default name is extended if a file with that name already exists. Name extension can be turned off using the supplied parameter. Returns a reference to the supplied file name parameter

MAKRti::DtFilename& DtFederateMgr::getStandardMimPath ( )

protected

virtual MAKRti::DtTransportType DtFederateMgr::getTransportationHandle ( MAKRti::DtString  transport )

virtual

Get transport handle service.

virtual char* DtFederateMgr::getTransportationName ( MAKRti::DtTransportType  transport )

virtual

Get transport name service.

virtual void DtFederateMgr::init ( )

virtual

Virtual initialization within create.

Reimplemented in DtRtiExecFederateMgr.

virtual void DtFederateMgr::initiateSave ( )

virtual

Perform the actual save possibly after waiting to enter time advancing state.

Reimplemented in DtRtiExecFederateMgr.

virtual void DtFederateMgr::initiateTimedSave ( RTI::FedTime const &  saveTime )

virtual

Save is initiated possibly after waiting to enter time advancing state.

Provide time of save.

Reimplemented in DtRtiExecFederateMgr.

virtual DtInteractionMgr* DtFederateMgr::interMgr ( )

virtual

Access to the interaction mgr.

virtual DtInteractionMgr* DtFederateMgr::interMgr ( ) const

virtual

virtual bool DtFederateMgr::isJoined ( ) const

virtual

Return boolean: federate is joined?

virtual bool DtFederateMgr::isJoinedFederate ( DtFederateHandle  federateHandleValue ) const

virtual

Return bool: Is the federate handle known to be in the federation.

virtual bool DtFederateMgr::isTicking ( ) const

virtual

Return true if currently processing tick.

virtual RTI::FederateHandle DtFederateMgr::joinFederationExecution ( const char *  yourName, const char *  executionName, RTI::FederateAmbassador *  federateAmbassadorReference, unsigned long  flags  )

pure virtual

Process the join federation execution service.

Implemented in DtRtiExecFederateMgr, and DtSimpleFederateMgr.

virtual const MAKRti::DtString& DtFederateMgr::lastRestoreLabel ( ) const

virtual

return last restore label

virtual const MAKRti::DtString& DtFederateMgr::lastSaveLabel ( ) const

virtual

Set/Get last save label.

const MAKRti::DtString& DtFederateMgr::mimName

(

)

const

get/set MIM name

virtual DtObjectMgr* DtFederateMgr::objMgr ( )

virtual

Access to the object mgr.

virtual DtObjectMgr* DtFederateMgr::objMgr ( ) const

virtual

DtFederateMgr& DtFederateMgr::operator= ( DtFederateMgr const &  )

private

Assignment not implemented – Assignment Not Allowed!

virtual DtRIDParameters* DtFederateMgr::params ( )

virtual

Access to the RID parameters.

virtual DtRIDParameters* DtFederateMgr::params ( ) const

virtual

virtual void DtFederateMgr::postJoinConfirmInit ( )

protectedvirtual

Reimplemented in DtRtiExecFederateMgr.

virtual void DtFederateMgr::postJoinInit ( const char *  federateType, const char *  executionName, const char *  federateName, RTI::FederateAmbassador *  federateAmbassadorReference  )

protectedvirtual

Uses the given information to initialize federate data.

DtFomClassMgr needs to be initialized before this function is called.

Reimplemented in DtRtiExecFederateMgr.

virtual void DtFederateMgr::posttick ( )

virtual

Reimplemented in DtRtiExecFederateMgr.

virtual void DtFederateMgr::postTickCallbacks ( )

virtual

virtual void DtFederateMgr::pretick ( )

virtual

virtual void DtFederateMgr::processAssistantEnableLogging ( const DtAssistantLogEnableMsg &  msg )

protectedvirtual

Process resign message from Assistant.

static void DtFederateMgr::processAssistantEnableLogging ( const DtAssistantLogEnableMsg &  msg, void *  usr  )

staticprotected

Assistant logging enable message callback.

virtual void DtFederateMgr::processAssistantResign ( const DtAssistantExitMsg &  msg )

protectedvirtual

Process resign message from Assistant.

static void DtFederateMgr::processAssistantResign ( const DtAssistantExitMsg &  msg, void *  usr  )

staticprotected

Assistant resign message callback.

virtual void DtFederateMgr::processEnableDisableNetworkTesting ( const DtEnableDisableNetworkTestingMsg &  msg )

protectedvirtual

disable network testing

static void DtFederateMgr::processEnableDisableNetworkTesting ( const DtEnableDisableNetworkTestingMsg &  msg, void *  usr  )

staticprotected

process enable / disable network testing callback

virtual void DtFederateMgr::processResign ( const DtResignMsg &  msg )

protectedvirtual

Process resign message.

static void DtFederateMgr::processResign ( const DtResignMsg &  msg, void *  usr  )

staticprotected

resign message callback

virtual void DtFederateMgr::processRestore ( const DtRestoreMsg &  msg )

protectedvirtual

Process restore message.

Reimplemented in DtRtiExecFederateMgr.

static void DtFederateMgr::processRestore ( const DtRestoreMsg &  msg, void *  usr  )

staticprotected

restore message callback

virtual void DtFederateMgr::processRestoreEnd ( const DtRestoreEndMsg &  msg )

protectedvirtual

Process restore end message.

Reimplemented in DtRtiExecFederateMgr.

static void DtFederateMgr::processRestoreEnd ( const DtRestoreEndMsg &  msg, void *  usr  )

staticprotected

restore end message callback

virtual void DtFederateMgr::processRestoreInitiate ( const DtRestoreInitiateMsg &  msg )

protectedvirtual

Process restore initiate message.

Reimplemented in DtRtiExecFederateMgr.

static void DtFederateMgr::processRestoreInitiate ( const DtRestoreInitiateMsg &  msg, void *  usr  )

staticprotected

restore initiate message callback

virtual void DtFederateMgr::processRestoreReply ( const DtRestoreReplyMsg &  msg )

protectedvirtual

Process restore reply message.

Reimplemented in DtRtiExecFederateMgr.

static void DtFederateMgr::processRestoreReply ( const DtRestoreReplyMsg &  msg, void *  usr  )

staticprotected

restore reply message callback

virtual void DtFederateMgr::processRidParamRequest ( const DtAssistantRidParamsMsg &  msg )

protectedvirtual

Process a RID parameter request from the Assistant.

static void DtFederateMgr::processRidParamRequest ( const DtAssistantRidParamsMsg &  msg, void *  usr  )

staticprotected

Assistant RID parameter request message callback.

virtual void DtFederateMgr::processSaveFinished ( const DtSaveFinishedMsg &  msg )

protectedvirtual

Process save finished message.

Reimplemented in DtRtiExecFederateMgr.

static void DtFederateMgr::processSaveFinished ( const DtSaveFinishedMsg &  msg, void *  usr  )

staticprotected

save finished message callback

virtual void DtFederateMgr::processSaveInitiate ( const DtSaveInitiateMsg &  msg )

protectedvirtual

Process save initiate message.

Reimplemented in DtRtiExecFederateMgr.

static void DtFederateMgr::processSaveInitiate ( const DtSaveInitiateMsg &  msg, void *  usr  )

staticprotected

save initiate message callback

virtual void DtFederateMgr::processSaveResponse ( const DtSaveResponseMsg &  msg )

protectedvirtual

Process save resonse message.

Reimplemented in DtRtiExecFederateMgr.

static void DtFederateMgr::processSaveResponse ( const DtSaveResponseMsg &  msg, void *  usr  )

staticprotected

save response message callback

virtual void DtFederateMgr::processSignalTickInterval ( const DtAssistantFederateSignalTickIntervalMsg &  msg )

protectedvirtual

Process a change in the interval at which a federate is expected to tick.

static void DtFederateMgr::processSignalTickInterval ( const DtAssistantFederateSignalTickIntervalMsg &  msg, void *  usr  )

staticprotected

Assistant signal tick interval message callback.

virtual void DtFederateMgr::readFedFile ( MAKRti::DtString  fileName, MAKRti::DtString  executionName  )

protectedvirtual

Reads a FED file into a DtFomClassMgr object.

If fileName = "", this class will try to read in a file with the name <executionName>.fed

virtual void DtFederateMgr::readFedFilePtr ( const FILE *  fp, const MAKRti::DtString &  fileName, const MAKRti::DtString &  executionName  )

protectedvirtual

Reads a FED file into a DtFomClassMgr object.

This form is preferred when using the distributed Fed File option.

virtual void DtFederateMgr::registerFederationSynchronizationPoint ( const char *  label, const char *  theTag  )

pure virtual

Process the register federation synchronization point service.

Implemented in DtRtiExecFederateMgr, and DtSimpleFederateMgr.

virtual void DtFederateMgr::registerFederationSynchronizationPoint ( const char *  label, const char *  theTag, DtFederateHandleSet const &  syncSet  )

pure virtual

Process the register federation synchronization point service.

Implemented in DtRtiExecFederateMgr, and DtSimpleFederateMgr.

virtual void DtFederateMgr::removePostTickCallback ( const MAKRti::DtString &  label )

virtual

virtual void DtFederateMgr::reportLatencyTestResults ( const DtLatencyReportMsg &  msg )

virtual

Report results of a latency test.

virtual void DtFederateMgr::reportLatencyTestStatus ( const DtTestMgrStatusMsg &  msg )

virtual

Report current latency test status.

virtual void DtFederateMgr::requestFederationRestore ( const char *  label )

pure virtual

Process the request federation restore service.

Implemented in DtRtiExecFederateMgr, and DtSimpleFederateMgr.

virtual void DtFederateMgr::requestFederationSave ( const char *  label, const RTI::FedTime *  time = NULL  )

pure virtual

Process the requested federation save service.

Implemented in DtRtiExecFederateMgr, and DtSimpleFederateMgr.

virtual void DtFederateMgr::resetMomResign ( )

virtual

Unmark that MOM is invoking resign.

virtual void DtFederateMgr::resignFederationExecution ( RTI::ResignAction  theAction )

virtual

Process the resign federation execution service.

Reimplemented in DtRtiExecFederateMgr, and DtSimpleFederateMgr.

virtual bool DtFederateMgr::restore ( DtRtiSaveFile &  file )

inlinevirtual

Perform the actual restore.

Reimplemented in DtRtiExecFederateMgr.

virtual bool DtFederateMgr::restoreBegun ( ) const

virtual

return bool: restore begun?

virtual bool DtFederateMgr::restoreInitiated ( ) const

virtual

return bool: restore initiated ?

virtual const MAKRti::DtString& DtFederateMgr::restoreLabel ( ) const

virtual

return current restore label

virtual bool DtFederateMgr::restoreRequested ( ) const

virtual

return bool: restore requested?

RTI::RTIambassador* DtFederateMgr::rtiAmb

(

)

Access to the top level RTI Ambassador given to the federate.

RTI::RTIambassador* DtFederateMgr::rtiAmb

(

)

const

Access to the top level RTI Ambassador given to the federate.

virtual bool DtFederateMgr::save ( DtRtiSaveFile &  file )

inlinevirtual

Perform the actual save.

Reimplemented in DtRtiExecFederateMgr.

virtual bool DtFederateMgr::saveBegun ( ) const

virtual

return bool: save begun?

virtual bool DtFederateMgr::saveInitiated ( ) const

virtual

return bool: save initiated?

virtual const MAKRti::DtString& DtFederateMgr::saveLabel ( ) const

virtual

Set/Get save label.

virtual void DtFederateMgr::sendAlive ( )

protectedvirtual

Send the alive message.

virtual void DtFederateMgr::sendResignMsg ( const char *  fedExName, DtFederateHandle  fedHandle, DtResignAction  action  )

protectedvirtual

Send the resign message.

void DtFederateMgr::sendTickedMsg ( )

protected

Send the signal ticked message.

static void DtFederateMgr::setCreatorFunction ( DtFederateMgrCreator  fn )

static

Register a creator function.

When set, it will be used to create the Federate Manager.

void DtFederateMgr::setCurrentFedFileName

(

const MAKRti::DtString &

)

void DtFederateMgr::setCurrentTimeImplName

(

const MAKRti::DtString &

)

static void DtFederateMgr::setInternalCreatorFunction ( DtFederateMgrCreator  fn )

static

Register alternate internal creators.

The RTI proper uses this function to choose from various internal implementations. This function should not be used by plugins as the assignment may be overridden internally. Use the setCreatorFunction.

virtual void DtFederateMgr::setLastSaveLabel ( const MAKRti::DtString &  value )

virtual

void DtFederateMgr::setMimName

(

const MAKRti::DtString &

)

virtual void DtFederateMgr::setMomResign ( )

virtual

Marks that MOM is invoking resign.

virtual void DtFederateMgr::setSaveLabel ( const MAKRti::DtString &  value )

virtual

virtual void DtFederateMgr::setTopLevelAmbassador ( RTI::RTIambassador *  ambPtr )

virtual

Provide access to top level RTI Ambassador (and Federate Ambassador for 1516E)

virtual void DtFederateMgr::synchronizationPointAchieved ( const char *  label, bool  successfully = true  )

pure virtual

Process the synchronization point achieved service.

Implemented in DtRtiExecFederateMgr, and DtSimpleFederateMgr.

virtual DtTestManager* DtFederateMgr::testMgr ( )

virtual

Access to the test Manager.

virtual DtTestManager* DtFederateMgr::testMgr ( ) const

virtual

virtual void DtFederateMgr::testReadFedFile ( MAKRti::DtString  fileName, MAKRti::DtString  executionName  )

protectedvirtual

Attempts to read a fed file but does not fill in the fom class.

virtual DtResignAction DtFederateMgr::testResign ( RTI::ResignAction  theAction )

protectedvirtual

Test the resign action and return the internal representation.

virtual void DtFederateMgr::testSaveProgress ( )

pure virtual

Perform exception tests on save/restore state.

Implemented in DtRtiExecFederateMgr, and DtSimpleFederateMgr.

virtual bool DtFederateMgr::tick ( )

virtual

Update the state of the federation.

virtual unsigned long DtFederateMgr::tickCount ( ) const

virtual

Return the number of ticks.

virtual DtLogicalTimeFactory* DtFederateMgr::timeFactory ( )

virtual

Access to the time factory.

virtual DtLogicalTimeFactory* DtFederateMgr::timeFactory ( ) const

virtual

virtual MAKRti::DtString DtFederateMgr::timeImplName ( MAKRti::DtString  execName )

virtual

Return the time implementation name associated with the federation execution name.

If none has been registered using addFedExNameMapping, an empty string (default implementation) is returned

virtual void DtFederateMgr::waitForReserveNameResponse ( bool  serviceCall = true )

virtual

Wait for Resign Response.

Reimplemented in DtRtiExecFederateMgr.

virtual void DtFederateMgr::waitForResignResponse ( bool  serviceCall = true )

virtual

Wait for Resign Response.

Reimplemented in DtRtiExecFederateMgr.

Member Data Documentation

DtRtiAmbassadorBaseImplementor* DtFederateMgr::myAmbImpl

protected

The federate's RTI Ambassador Implementor.

DtBoost::shared_ptr<DtRtiAssistantLrcClient> DtFederateMgr::myAssistantClient

protected

Manages the connection to the RTI Assistant.

MAKRti::DtClock DtFederateMgr::myClock

protected

Clock for timing.

DtConnectionMgr* DtFederateMgr::myConnectMgr

protected

The connection manager.

MAKRti::DtString DtFederateMgr::myCurrentFedFileName

protected

Current FED/FDD file name.

MAKRti::DtString DtFederateMgr::myCurrentTimeImplName

protected

Current time implementation name.

bool DtFederateMgr::myEnableFederateHeartbeat

protected

is heartbeating enabled?

DtFedAmbWrapper* DtFederateMgr::myFedAmbCatch

protected

Catches exceptions from federate ambassador calls.

bool DtFederateMgr::myFedCallbackReached

std::map< DtFederateHandle, MAKRti::DtString > DtFederateMgr::myFederateHandleToName

protected

std::map< MAKRti::DtString, DtFederateHandle > DtFederateMgr::myFederateNameToHandle

protected

unsigned long DtFederateMgr::myFedExHandle

protected

Federation handle.

MAKRti::DtString DtFederateMgr::myFedExName

protected

Federation execution name.

std::map<MAKRti::DtString, std::set<MAKRti::DtString> > DtFederateMgr::myFedFileNames

protected

DtFederateHandle DtFederateMgr::myFedHandle

protected

Federate handle.

MAKRti::DtString DtFederateMgr::myFedName

protected

Federate name.

In HLA Evolved, the federate may choose this. In other HLA versions, the name is always assigned by the RTI.

DtFedReader* DtFederateMgr::myFedReader

protected

Temporary internal reader used until changes made to VR-Link fed reader.

DtFedReader* DtFederateMgr::myFedReader13

protected

DtFedReader* DtFederateMgr::myFedReader1516

protected

DtFedReader* DtFederateMgr::myFedReader1516e

protected

MAKRti::DtString DtFederateMgr::myFedType

protected

Federate type.

unsigned long DtFederateMgr::myFlags

protected

DtFomClassMgr* DtFederateMgr::myFom

protected

The FOM manager.

bool DtFederateMgr::myForcedToResign

protected

Indicates forced resign occurred.

RTI::FedTimeFactory DtFederateMgr::myHlaTimeFactory

protected

bool DtFederateMgr::myIgnoreForcedResign

protected

Prevents forcing duplicate resign.

DtInteractionMgr* DtFederateMgr::myInterMgr

protected

The interaction manager.

bool DtFederateMgr::myIsTicking

protected

indicates currently processing tick

MAKRti::DtTime DtFederateMgr::myLastHeartbeat

protected

Time of last heartbeat.

MAKRti::DtString DtFederateMgr::myLastRestoreLabel

protected

The last restore label.

MAKRti::DtString DtFederateMgr::myLastSaveLabel

protected

The last save label.

DtTime DtFederateMgr::myLastTickTime

protected

The last tick time.

DtLogicalTimeFactory* DtFederateMgr::myLogicalTimeFactory

protected

Logical time factory Even if NULL, need to have this factory.

MAKRti::DtList DtFederateMgr::myMappingList

protected

List of federation execution names with FED files names and time implementation names.

These names are collected when creating federation executions.

MAKRti::DtString DtFederateMgr::myMimName

protected

MIM name.

DtMomMgr* DtFederateMgr::myMomMgr

protected

The MOM manager.

bool DtFederateMgr::myMomResign

protected

Indicates MOM caused resign.

bool DtFederateMgr::myMomSaveEvokeCallbacks

protected

State of evoking callbacks prior to MOM resign.

bool DtFederateMgr::myNetworkTestEnabled

protected

DtObjectMgr* DtFederateMgr::myObjMgr

protected

The object manager.

DtRIDParameters* DtFederateMgr::myParams

protected

Initialization data.

std::map<MAKRti::DtString, DtFomClassMgr*> DtFederateMgr::myParsedFoms

protected

Map containing FOMs parsed into FedTargets.

DtPostTickCallbackMap DtFederateMgr::myPostTickCallbacks

protected

DtFedAmbWrapper* DtFederateMgr::myPrinter

protected

Prints data for federate ambassador calls.

MAKRti::DtResignAction DtFederateMgr::myResignAction

protected

The resign action.

bool DtFederateMgr::myResignInProgress

protected

Indicates a resign is in progress.

MAKRti::DtTime DtFederateMgr::myResponseInterval

protected

Interval to wait for response message during a message protocol.

bool DtFederateMgr::myRestoreBegun

protected

Indicates restore begun.

bool DtFederateMgr::myRestoreInitiated

protected

Indicates restore initiated.

MAKRti::DtString DtFederateMgr::myRestoreLabel

protected

The restore label.

bool DtFederateMgr::myRestoreRequested

protected

Indicates restore requested.

RTI::RTIambassador* DtFederateMgr::myRtiAmb

protected

The federate's RTI Ambassador.

bool DtFederateMgr::mySaveBegun

protected

Indicates save begun.

bool DtFederateMgr::mySaveInitiated

protected

Indicates save initiated.

MAKRti::DtString DtFederateMgr::mySaveLabel

protected

The save label.

float DtFederateMgr::mySignalTickInterval

protected

The Signal Tick Interval.

MAKRti::DtFilename DtFederateMgr::myStandardMimPath

protected

DtTestManager* DtFederateMgr::myTestMgr

protected

unsigned long DtFederateMgr::myTickCount

protected

Tick counter.

DtFederateMgrCreator DtFederateMgr::theCreator

staticprotected

The plugin creator.

DtFederateMgrCreator DtFederateMgr::theInternalCreator

staticprotected

The internal creator.

---

The documentation for this class was generated from the following file:

• fedMgr.h
