DtForwarderNode Class Reference

The DtForwarderNode class defines a 3-way message distribution architecture for building forwarding networks of arbitrary complexity. More...

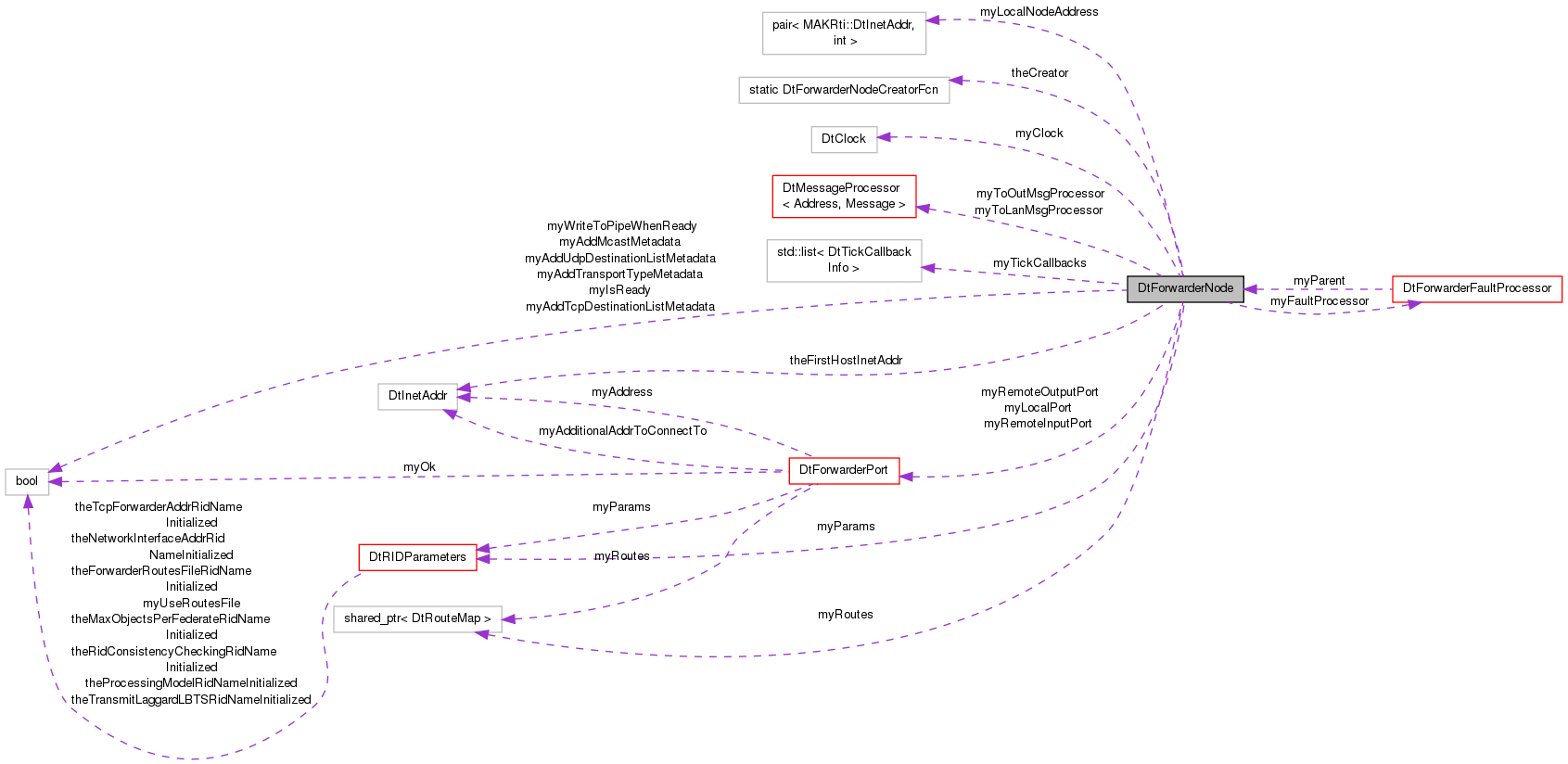

Collaboration diagram for DtForwarderNode:

Public Types
typedef DtMessageProcessor < DtInetAddrAndPort, DtForwarderPort::DtForwarderMsg >	DtForwarderMessageProcessor
typedef DtForwarderNode *(*	DtForwarderNodeCreatorFcn )(const DtRIDParameters *, DtForwarderMessageProcessor *, DtForwarderMessageProcessor *, int forwarderPort, MAKRti::DtInetAddr forwarderAddrToConnectTo, bool writeToPipeWhenReady)
	DtForwarderNode creator signature.

Public Member Functions
virtual	~DtForwarderNode ()
virtual int	tick (double maxTime=0.0f)
	Forward pending inbound messages.
virtual void	addTickCallback (DtTickCbFn fn, void *usr, MAKRti::DtTime interval)
	Register a callback to be called during tick, but only at the given interval.
virtual void	removeTickCallback (DtTickCbFn fn, void *usr)
virtual bool	ready () const
	Is the forwarder fully connected and actively forwarding?
virtual const DtRIDParameters *	params () const
	Get the RID parameters object.
virtual DtBoost::shared_ptr < DtRouteMap >	routeMap () const
	Get the Route Map.
virtual DtForwarderPort *	inPort () const
	Get a pointer to the IN/OUT/LAN port.
virtual DtForwarderPort *	lanPort () const
virtual DtForwarderPort *	outPort () const
virtual void	selectParams (MAKRti::DtSelectParamWithWrite &selectParams)
	Get the current set of file descriptors to select against for notification.
virtual unsigned long	localNodeId () const
	Get the ID of this Node for Routing purposes.
const DtInetAddrAndPort &	localNodeAddress () const
	Get the address of this Node for Routing purposes Not virtual as used in CTOR.
virtual MAKRti::DtString	localNodeName () const
	Get the forwarder name.
virtual void	processInToLanMsg (DtForwarderPort::DtAddressMsgPair &msg)
	Process and Send Msg from IN to LAN.
virtual void	processInToOutMsg (DtForwarderPort::DtAddressMsgPair &msg)
	Process and Send Msg from IN to OUT.
virtual void	processLanToOutMsg (DtForwarderPort::DtAddressMsgPair &msg)
	Process and Send Msg from LAN to OUT.
virtual void	sendToLanPort (DtForwarderPort::DtAddressMsgPair &msg)
	Send message directly to LAN port.
virtual void	sendToOutPort (DtForwarderPort::DtAddressMsgPair &msg)
	Send message directly to OUT port (all destinations)
virtual void	sendToOutPort (DtForwarderPort::DtAddressMsgPair &msg, const DtRouteMap::DtAddressPortList &destinations)
	Send message directly to the specified OUT port destinations.
virtual void	registerOutPortProcessor (DtForwarderMessageProcessor::Filter *processor)
	Add/Remove a Message Processor for IN or LAN to OUT messages (LAN to OUT messages identifiable since src == local)
virtual void	unregisterOutPortProcessor (DtForwarderMessageProcessor::Filter *processor)
virtual void	registerLanPortProcessor (DtForwarderMessageProcessor::Filter *processor)
	Add/Remove a Message Processor for IN to LAN messages.
virtual void	unregisterLanPortProcessor (DtForwarderMessageProcessor::Filter *processor)
virtual void	packageAndSendReliable (DtRtiMsg &msg, unsigned int sendViaIntfc)
	Wrap a DtRtiMsg in a DtForwarderMsg envelope and send to the indicated interfaces.
virtual void	packageAndSendReliable (DtRtiMsg &msg, unsigned int sendViaIntfc, const DtRouteMap::DtAddressPortList &destinations)
virtual void	setMetadataControl (DtMetadataType type, bool onOff)
	Set/Get metadata control indicators.
virtual bool	isMetadataEnabled (DtMetadataType type)
virtual void	lanPortListenToMulticastGroup (const MAKRti::DtInetAddr &mcastAddr)
	Listen/Drop multicast groups on LAN port's UDP receive socket.
virtual void	lanPortDropMulticastGroup (const MAKRti::DtInetAddr &mcastAddr)
virtual bool	lanPortUpdateFederateConnectionId (unsigned long orig, unsigned long final)
	Set locally connected federate's connectionId to final value specified by federate in its Connect Confirm message.
virtual DtInetAddrAndPort	nextForwarderOnRoute (const DtInetAddrAndPort &target)
	Locate the next forwarder connection on the route to the targeted address.
virtual DtInetAddrAndPort	nextForwarderOnRoute (const MAKRti::DtString &targetGroupName)
virtual DtInetAddrAndPort	rootForwarder ()
	Return the IP address of the rtiexec's root forwarder.
virtual DtInetAddrAndPort	nextHopToExec ()
	Return the next upstream outbound forwarder's IP address on the path toward the rtiexec's root forwarder.
virtual void	abortPendingConnections ()
	Abort setting up embryonic connections.
virtual unsigned int	abortedConnections ()
	Get the count of failed/aborted connection attempts.
virtual bool	connectionInformation (unsigned int &numForwarderToForwarderConns, std::vector< MAKRti::DtString > &forwarderIdentifiers, std::vector< MAKRti::DtString > &forwarderConnectionHostNames, std::vector< DtInetAddrAndPort > &forwarderConnectionAddrs, unsigned int &numForwarderExecConns, unsigned int &numForwarderClientConns, std::vector< MAKRti::DtString > &clientConnectionHostNames, std::vector< MAKRti::DtInetAddr > &clientConnectionAddrs)
	Get connections information from the forwarder.
void	continueWithoutUnconnectedFws ()
	If the forwarder is currently waiting for remote forwarder connections, this method tells it to abandon any unconnected forwarders and continue on without them.

Static Public Member Functions
static DtForwarderNode *	create (const DtRIDParameters *params, DtForwarderMessageProcessor *toOutProcessor, DtForwarderMessageProcessor *toLanProcessor, int forwarderPort, MAKRti::DtInetAddr forwarderAddrToConnectTo, bool writeToPipeWhenReady)
	Creates an instance of a DtForwarderNode.
static void	setCreatorFunction (DtForwarderNodeCreatorFcn creator)
	Call this function to set an alternate creator function With this function, users can replace this DtForwarderNode with their own derived class.
static int	newInPortConnection (const MAKRti::DtString &connName, unsigned int connID, const DtInetAddrAndPort &connAddr, void *usr)
	Callbacks.
static int	newOutPortConnection (const MAKRti::DtString &connName, unsigned int connID, const DtInetAddrAndPort &connAddr, void *usr)
static int	lostInPortConnection (const MAKRti::DtString &connName, unsigned int connID, const DtInetAddrAndPort &connAddr, void *usr)
static int	lostOutPortConnection (const MAKRti::DtString &connName, unsigned int connID, const DtInetAddrAndPort &connAddr, void *usr)
static void	inOutForwarderPortReady (unsigned long forwarderNodeId, void *usr)

Protected Member Functions
	DtForwarderNode (const DtRIDParameters *params, DtForwarderMessageProcessor *toOutProcessor, DtForwarderMessageProcessor *toLanProcessor, int forwarderPort, const MAKRti::DtInetAddr &forwarderAddrToConnectTo, bool writeToPipeWhenReady)
	Base Constructor.
	DtForwarderNode ()
	Default Ctor, Copy Ctor, and Assignment - unimplemented.
	DtForwarderNode (const DtForwarderNode &orig)
DtForwarderNode &	operator= (const DtForwarderNode &orig)
int	refreshConnections ()
	Ensure that all connections are stable and connected.
void	writeMessageToPipe (const MAKRti::DtString &msg)
	Write message to rtiexec pipe.
int	newInPortConnection (const MAKRti::DtString &connName, unsigned int connID, const DtInetAddrAndPort &connAddr)
	Callbacks.
int	newOutPortConnection (const MAKRti::DtString &connName, unsigned int connID, const DtInetAddrAndPort &connAddr)
int	lostInPortConnection (const MAKRti::DtString &connName, unsigned int connID, const DtInetAddrAndPort &connAddr)
int	lostOutPortConnection (const MAKRti::DtString &connName, unsigned int connID, const DtInetAddrAndPort &connAddr)
void	inOutForwarderPortReady (unsigned long forwarderNodeId)

Protected Attributes
const DtRIDParameters *	myParams
	RID file configuration.
DtForwarderMessageProcessor *	myToOutMsgProcessor
	Outgoing message processors allow user defined operations to be performed on messages before sending to specified port.
DtForwarderMessageProcessor *	myToLanMsgProcessor
DtForwarderFaultProcessor *	myFaultProcessor
	Fault handler.
DtClock	myClock
	A clock used for basic timing.
bool	myIsReady
	Is the Forwarder in a "Good" state and ready to forward?
DtBoost::shared_ptr< DtRouteMap >	myRoutes
	Routing file configuration Keep this variable before myLocalPort in the class declaration!!
DtForwarderPort *	myRemoteInputPort
	IN Port - incoming message path from other DtForwarderNodes.
DtForwarderPort *	myRemoteOutputPort
	OUT Port - outgoing message path to other DtForwarderNodes.
DtForwarderPort *	myLocalPort
	LAN Port - bidirectional message path to/from local message sources/sinks Keep this variable after myRoutes in the class declaration!!
DtInetAddrAndPort	myLocalNodeAddress
	IP address and port of the local node.
bool	myAddTcpDestinationListMetadata
	Metadata control indicators.
bool	myAddUdpDestinationListMetadata
bool	myAddTransportTypeMetadata
bool	myAddMcastMetadata
bool	myWriteToPipeWhenReady
	Whether the forwarder should write to the pipe once it is ready.
std::list< DtTickCallbackInfo >	myTickCallbacks
	List of tick callbacks.

Static Protected Attributes
static const MAKRti::DtInetAddr	theFirstHostInetAddr
static DtForwarderNodeCreatorFcn	theCreator

Detailed Description

The DtForwarderNode class defines a 3-way message distribution architecture for building forwarding networks of arbitrary complexity.

The DtForwarderNode has 3 interfaces: IN: - incoming message path from other DtForwarderNodes OUT: - outgoing message path to other DtForwarderNodes LAN: - bidirectional message path to/from local message sources/sinks ( generally HLA Federates )

• these are the message distribution endpoints

Forwarding Pathways: 1) Messages from LAN will be forwarded out to upstream/downstream forwarders in hierarchical configurations, to the portal forwarders in foreign Forwarder Groups, and to other LAN connections 2) Messages from IN will be forwarded out to LAN 3) Messages from IN can ONLY be forwarded out to OUT under the following conditions: (a) The forwarder is acting as a bridge (aka "link") node between upstream forwarders and downstream forwarders in a hierarchical network. In this case the user must configure the route and specify the endpoints and the bridge forwarder. This will create an entry in the DtRouteMap myRoutesByLinkAddrMap map. Messages can be forwarded FROM upstream sources TO downstream recipients and vice-versa. (b) The forwarder is acting as a portal forwarder in a Forwarder Group. Only certain internal messages will be forwarded, and only FROM foreign Forwarder Groups TO members of the local group, not in the reverse direction. The reverse direction is taken care of by virtue of the fact that all the local group members will have a connection to a portal in the foreign Forwarder Groups so the messages do not need to pass through the local portal. Some messages require the local portal to aggregate responses of the local group members, but the group members individual response messages are not forwarded in those cases.

Note: These pathways do not guarantee that a message will be forwarded as described above. Outlets may be altered by filters and destinations can be added or removed based on the type of message and the network topology. An optional filter may be applied to all messages forwarded to OUT to allow a final message processing step before passing the message.

Member Typedef Documentation

typedef DtMessageProcessor< DtInetAddrAndPort, DtForwarderPort::DtForwarderMsg > DtForwarderNode::DtForwarderMessageProcessor

typedef DtForwarderNode*(* DtForwarderNode::DtForwarderNodeCreatorFcn)(const DtRIDParameters *, DtForwarderMessageProcessor *, DtForwarderMessageProcessor *, int forwarderPort, MAKRti::DtInetAddr forwarderAddrToConnectTo, bool writeToPipeWhenReady)

DtForwarderNode creator signature.

Constructor & Destructor Documentation

DtForwarderNode::DtForwarderNode ( const DtRIDParameters *  params, DtForwarderMessageProcessor *  toOutProcessor, DtForwarderMessageProcessor *  toLanProcessor, int  forwarderPort, const MAKRti::DtInetAddr &  forwarderAddrToConnectTo, bool  writeToPipeWhenReady  )

protected

Base Constructor.

• DtForwarderNodes should be constructed using the standard plugin creator method

virtual DtForwarderNode::~DtForwarderNode ( )

virtual

DtForwarderNode::DtForwarderNode ( )

protected

Default Ctor, Copy Ctor, and Assignment - unimplemented.

DtForwarderNode::DtForwarderNode ( const DtForwarderNode &  orig )

protected

Member Function Documentation

unsigned int DtForwarderNode::abortedConnections ( )

inlinevirtual

Get the count of failed/aborted connection attempts.

References lanPort(), and outPort().

virtual void DtForwarderNode::abortPendingConnections ( )

virtual

Abort setting up embryonic connections.

virtual void DtForwarderNode::addTickCallback ( DtTickCbFn  fn, void *  usr, MAKRti::DtTime  interval  )

virtual

Register a callback to be called during tick, but only at the given interval.

virtual bool DtForwarderNode::connectionInformation ( unsigned int &  numForwarderToForwarderConns, std::vector< MAKRti::DtString > &  forwarderIdentifiers, std::vector< MAKRti::DtString > &  forwarderConnectionHostNames, std::vector< DtInetAddrAndPort > &  forwarderConnectionAddrs, unsigned int &  numForwarderExecConns, unsigned int &  numForwarderClientConns, std::vector< MAKRti::DtString > &  clientConnectionHostNames, std::vector< MAKRti::DtInetAddr > &  clientConnectionAddrs  )

virtual

Get connections information from the forwarder.

void DtForwarderNode::continueWithoutUnconnectedFws

(

)

If the forwarder is currently waiting for remote forwarder connections, this method tells it to abandon any unconnected forwarders and continue on without them.

static DtForwarderNode* DtForwarderNode::create ( const DtRIDParameters *  params, DtForwarderMessageProcessor *  toOutProcessor, DtForwarderMessageProcessor *  toLanProcessor, int  forwarderPort, MAKRti::DtInetAddr  forwarderAddrToConnectTo, bool  writeToPipeWhenReady  )

static

Creates an instance of a DtForwarderNode.

static void DtForwarderNode::inOutForwarderPortReady ( unsigned long  forwarderNodeId, void *  usr  )

static

void DtForwarderNode::inOutForwarderPortReady ( unsigned long  forwarderNodeId )

protected

DtForwarderPort * DtForwarderNode::inPort ( ) const

inlinevirtual

Get a pointer to the IN/OUT/LAN port.

References myRemoteInputPort.

virtual bool DtForwarderNode::isMetadataEnabled ( DtMetadataType  type )

virtual

DtForwarderPort * DtForwarderNode::lanPort ( ) const

inlinevirtual

References myLocalPort.

Referenced by abortedConnections().

virtual void DtForwarderNode::lanPortDropMulticastGroup ( const MAKRti::DtInetAddr &  mcastAddr )

virtual

virtual void DtForwarderNode::lanPortListenToMulticastGroup ( const MAKRti::DtInetAddr &  mcastAddr )

virtual

Listen/Drop multicast groups on LAN port's UDP receive socket.

virtual bool DtForwarderNode::lanPortUpdateFederateConnectionId ( unsigned long  orig, unsigned long  final  )

virtual

Set locally connected federate's connectionId to final value specified by federate in its Connect Confirm message.

const DtInetAddrAndPort& DtForwarderNode::localNodeAddress

(

)

const

Get the address of this Node for Routing purposes Not virtual as used in CTOR.

virtual unsigned long DtForwarderNode::localNodeId ( ) const

virtual

Get the ID of this Node for Routing purposes.

virtual MAKRti::DtString DtForwarderNode::localNodeName ( ) const

virtual

Get the forwarder name.

static int DtForwarderNode::lostInPortConnection ( const MAKRti::DtString &  connName, unsigned int  connID, const DtInetAddrAndPort &  connAddr, void *  usr  )

static

int DtForwarderNode::lostInPortConnection ( const MAKRti::DtString &  connName, unsigned int  connID, const DtInetAddrAndPort &  connAddr  )

protected

static int DtForwarderNode::lostOutPortConnection ( const MAKRti::DtString &  connName, unsigned int  connID, const DtInetAddrAndPort &  connAddr, void *  usr  )

static

int DtForwarderNode::lostOutPortConnection ( const MAKRti::DtString &  connName, unsigned int  connID, const DtInetAddrAndPort &  connAddr  )

protected

static int DtForwarderNode::newInPortConnection ( const MAKRti::DtString &  connName, unsigned int  connID, const DtInetAddrAndPort &  connAddr, void *  usr  )

static

Callbacks.

int DtForwarderNode::newInPortConnection ( const MAKRti::DtString &  connName, unsigned int  connID, const DtInetAddrAndPort &  connAddr  )

protected

Callbacks.

static int DtForwarderNode::newOutPortConnection ( const MAKRti::DtString &  connName, unsigned int  connID, const DtInetAddrAndPort &  connAddr, void *  usr  )

static

int DtForwarderNode::newOutPortConnection ( const MAKRti::DtString &  connName, unsigned int  connID, const DtInetAddrAndPort &  connAddr  )

protected

virtual DtInetAddrAndPort DtForwarderNode::nextForwarderOnRoute ( const DtInetAddrAndPort &  target )

virtual

Locate the next forwarder connection on the route to the targeted address.

Returns the address only if connection is active (ie. the socket is connected).

virtual DtInetAddrAndPort DtForwarderNode::nextForwarderOnRoute ( const MAKRti::DtString &  targetGroupName )

virtual

virtual DtInetAddrAndPort DtForwarderNode::nextHopToExec ( )

virtual

Return the next upstream outbound forwarder's IP address on the path toward the rtiexec's root forwarder.

DtForwarderNode& DtForwarderNode::operator= ( const DtForwarderNode &  orig )

protected

DtForwarderPort * DtForwarderNode::outPort ( ) const

inlinevirtual

References myRemoteOutputPort.

Referenced by abortedConnections(), DtConnectionLossDetectorFilter::applyFilter(), and DtConnectionLossDetectorFilter::doMessageProcessing().

virtual void DtForwarderNode::packageAndSendReliable ( DtRtiMsg &  msg, unsigned int  sendViaIntfc  )

virtual

Wrap a DtRtiMsg in a DtForwarderMsg envelope and send to the indicated interfaces.

Always sends via reliable transport.

virtual void DtForwarderNode::packageAndSendReliable ( DtRtiMsg &  msg, unsigned int  sendViaIntfc, const DtRouteMap::DtAddressPortList &  destinations  )

virtual

const DtRIDParameters * DtForwarderNode::params ( ) const

inlinevirtual

Get the RID parameters object.

References myParams.

virtual void DtForwarderNode::processInToLanMsg ( DtForwarderPort::DtAddressMsgPair &  msg )

virtual

Process and Send Msg from IN to LAN.

virtual void DtForwarderNode::processInToOutMsg ( DtForwarderPort::DtAddressMsgPair &  msg )

virtual

Process and Send Msg from IN to OUT.

virtual void DtForwarderNode::processLanToOutMsg ( DtForwarderPort::DtAddressMsgPair &  msg )

virtual

Process and Send Msg from LAN to OUT.

bool DtForwarderNode::ready ( ) const

inlinevirtual

Is the forwarder fully connected and actively forwarding?

References myIsReady.

int DtForwarderNode::refreshConnections ( )

protected

Ensure that all connections are stable and connected.

virtual void DtForwarderNode::registerLanPortProcessor ( DtForwarderMessageProcessor::Filter *  processor )

virtual

Add/Remove a Message Processor for IN to LAN messages.

virtual void DtForwarderNode::registerOutPortProcessor ( DtForwarderMessageProcessor::Filter *  processor )

virtual

Add/Remove a Message Processor for IN or LAN to OUT messages (LAN to OUT messages identifiable since src == local)

virtual void DtForwarderNode::removeTickCallback ( DtTickCbFn  fn, void *  usr  )

virtual

virtual DtInetAddrAndPort DtForwarderNode::rootForwarder ( )

virtual

Return the IP address of the rtiexec's root forwarder.

DtBoost::shared_ptr< DtRouteMap > DtForwarderNode::routeMap ( ) const

inlinevirtual

Get the Route Map.

References myRoutes.

virtual void DtForwarderNode::selectParams ( MAKRti::DtSelectParamWithWrite &  selectParams )

virtual

Get the current set of file descriptors to select against for notification.

virtual void DtForwarderNode::sendToLanPort ( DtForwarderPort::DtAddressMsgPair &  msg )

virtual

Send message directly to LAN port.

Referenced by DtConnectionLossDetectorFilter::doMessageProcessing().

virtual void DtForwarderNode::sendToOutPort ( DtForwarderPort::DtAddressMsgPair &  msg )

virtual

Send message directly to OUT port (all destinations)

Referenced by DtConnectionLossDetectorFilter::doMessageProcessing().

virtual void DtForwarderNode::sendToOutPort ( DtForwarderPort::DtAddressMsgPair &  msg, const DtRouteMap::DtAddressPortList &  destinations  )

virtual

Send message directly to the specified OUT port destinations.

static void DtForwarderNode::setCreatorFunction ( DtForwarderNodeCreatorFcn  creator )

static

Call this function to set an alternate creator function With this function, users can replace this DtForwarderNode with their own derived class.

virtual void DtForwarderNode::setMetadataControl ( DtMetadataType  type, bool  onOff  )

virtual

Set/Get metadata control indicators.

virtual int DtForwarderNode::tick ( double  maxTime = 0.0f )

virtual

Forward pending inbound messages.

• maxTime allows the caller to specify a time-out after which tick will return even if msgs are still pending
• default: 0.0f implies process msgs until there are NO more pending

virtual void DtForwarderNode::unregisterLanPortProcessor ( DtForwarderMessageProcessor::Filter *  processor )

virtual

virtual void DtForwarderNode::unregisterOutPortProcessor ( DtForwarderMessageProcessor::Filter *  processor )

virtual

void DtForwarderNode::writeMessageToPipe ( const MAKRti::DtString &  msg )

protected

Write message to rtiexec pipe.

Member Data Documentation

bool DtForwarderNode::myAddMcastMetadata

protected

bool DtForwarderNode::myAddTcpDestinationListMetadata

protected

Metadata control indicators.

bool DtForwarderNode::myAddTransportTypeMetadata

protected

bool DtForwarderNode::myAddUdpDestinationListMetadata

protected

DtClock DtForwarderNode::myClock

protected

A clock used for basic timing.

DtForwarderFaultProcessor* DtForwarderNode::myFaultProcessor

protected

Fault handler.

bool DtForwarderNode::myIsReady

protected

Is the Forwarder in a "Good" state and ready to forward?

Referenced by ready().

DtInetAddrAndPort DtForwarderNode::myLocalNodeAddress

protected

IP address and port of the local node.

DtForwarderPort* DtForwarderNode::myLocalPort

protected

LAN Port - bidirectional message path to/from local message sources/sinks Keep this variable after myRoutes in the class declaration!!

Referenced by lanPort().

const DtRIDParameters* DtForwarderNode::myParams

protected

RID file configuration.

Referenced by params().

DtForwarderPort* DtForwarderNode::myRemoteInputPort

protected

IN Port - incoming message path from other DtForwarderNodes.

Referenced by inPort().

DtForwarderPort* DtForwarderNode::myRemoteOutputPort

protected

OUT Port - outgoing message path to other DtForwarderNodes.

Referenced by outPort().

DtBoost::shared_ptr<DtRouteMap> DtForwarderNode::myRoutes

protected

Routing file configuration Keep this variable before myLocalPort in the class declaration!!

Referenced by routeMap().

std::list<DtTickCallbackInfo> DtForwarderNode::myTickCallbacks

protected

List of tick callbacks.

DtForwarderMessageProcessor* DtForwarderNode::myToLanMsgProcessor

protected

DtForwarderMessageProcessor* DtForwarderNode::myToOutMsgProcessor

protected

Outgoing message processors allow user defined operations to be performed on messages before sending to specified port.

bool DtForwarderNode::myWriteToPipeWhenReady

protected

Whether the forwarder should write to the pipe once it is ready.

DtForwarderNodeCreatorFcn DtForwarderNode::theCreator

staticprotected

const MAKRti::DtInetAddr DtForwarderNode::theFirstHostInetAddr

staticprotected

---

The documentation for this class was generated from the following file:

• forwarderNode.h
