DtRequestDatabase Class Reference

class DtRequestDatabase More...

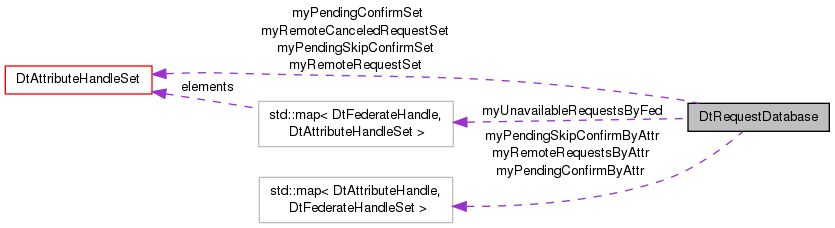

Collaboration diagram for DtRequestDatabase:

Public Member Functions
	DtRequestDatabase ()
virtual	~DtRequestDatabase ()
virtual void	clearAll ()
	Clear database of all entries.
virtual void	addRemoteRequest (const DtAttributeHandleSet &requestSet, DtFederateHandle fed)
	Call to indicate that a remote federate has requested ownership of requestSet.
virtual void	removeRemoteRequest (const DtAttributeHandleSet &requestSet, DtFederateHandle fed)
	Remove a Federate from the list of federates pending confirm for a set of attributes.
virtual void	removeRemoteRequest (const DtAttributeHandleSet &requestSet)
	Remote request of supplied attributes is complete.
virtual void	addPendingConfirm (const DtAttributeHandleSet &requestSet, DtFederateHandle fed)
	Call to indicate that these this federate has matched a divest with a remote request.
virtual void	removePendingConfirm (const DtAttributeHandleSet &requestSet, DtFederateHandle fed)
	Remove a Federate from the list of federates pending confirm for a set of attributes.
virtual void	addSkipPendingConfirm (const DtAttributeHandleSet &requestSet, DtFederateHandle fed)
virtual void	removeSkipPendingConfirm (const DtAttributeHandleSet &requestSet, DtFederateHandle fed)
virtual void	removePendingSkipConfirm (const DtAttributeHandleSet &requestSet)
virtual void	removePendingConfirm (const DtAttributeHandleSet &requestSet)
	Remote request of supplied attributes is complete.
void	moveRemoteRequestToPendingList (const DtAttributeHandleSet &requestSet)
	Move all requests for the supplied attributes from the request list to the pending confirm list.
virtual void	cancelRemoteRequest (const DtAttributeHandleSet &canceledSet, DtFederateHandle fed)
	Remote request of supplied attributes is canceled.
virtual void	cancelAllRemoteRequest (const DtAttributeHandleSet &canceledSet)
	Remove all supplied attributes from pending set and add them to canceled set.
virtual void	removeCanceledRequests (const DtAttributeHandleSet &releaseSet)
	Remove the supplied attributes from the canceled set.
virtual bool	isRequestCanceled (DtAttributeHandle hand) const
	Returns boolean: is there a canceled request for the attribute for which the federate has not responded?
virtual DtAttributeHandleSet	canceledRequestSet () const
	Returns the set of canceled attributes requests.
virtual DtFederateHandle	releaseRequested (const DtAttributeHandleSet &inSet, DtAttributeHandleSet *releasedSet, bool keepForConfirm)
	Calls to this method with the attributes provided in inSet will remove and return in releaseSet any matching requested attributes from a single requesting federate, whose handle is the return argument.
virtual DtFederateHandle	releaseConfirm (const DtAttributeHandleSet &inSet, DtAttributeHandleSet *releasedSet)
	Calls to this method with the attributes provided in inSet will remove and return in releaseSet any matching pending confirm attributes assigned to a single requesting federate, whose handle is the return argument.
virtual DtFederateHandle	pendingRemoteRequest (DtAttributeHandle hand) const
	Returns the handle of the federate that has most recently requested ownership of this attribute.
virtual DtFederateHandle	pendingConfirm (DtAttributeHandle hand) const
	Returns the handle of the remote federate that will be given ownership pending confirmation from the local federate.
virtual DtAttributeHandleSet	requestedByFed (DtFederateHandle fed, bool includePendingConfirm=false) const
	Returns the set of attributes most recently requested by fed By default, attributes that are pending confirm are not returned.
virtual DtAttributeHandleSet	remoteRequestByFed (DtFederateHandle fed) const
	Returns the set of Attributes requested (not pending) by this federate.
virtual DtAttributeHandleSet	pendingConfirmByFed (DtFederateHandle fed) const
	Returns the current set of attributes that are pending confirm.
virtual int	requestCount () const
	Return the number of requested attributes.
virtual DtAttributeHandleSet const &	requestedAttributes () const
	Return the set of requested attributes.
virtual int	confirmCount () const
	Return the number of pending confirmed attributes.
virtual DtAttributeHandleSet const &	pendingConfirmAttributes () const
	Return the set of pending confirmed attributes.
virtual DtAttributeHandleSet const &	pendingSkipConfirmAttributes () const
virtual void	markPendingRequestsUnavailable (const DtAttributeHandleSet &requestSet, DtFederateHandle confirmedFed)
	Mark Pending Requests unavailable for all requesting federates except the federate which has been confirmed.
virtual DtFederateHandle	unavailablePendingRequests (DtAttributeHandleSet *invalidatedSet)
	Get the next federate with pending requests that have become unavailable and the invalidated attrs.
virtual DtAttributeHandleSet	pendingSkipConfirmByFed (DtFederateHandle fed) const
virtual DtFederateHandle	pendingSkipConfirm (DtAttributeHandle hand) const

Protected Types
typedef std::map < DtAttributeHandle, DtFederateHandleSet >	DtAttrToFederatesMap
typedef std::map < DtFederateHandle, DtAttributeHandleSet >	DtFedToAttributesMap

Protected Attributes
DtAttributeHandleSet	myRemoteRequestSet
	Attributes whose ownership has been requested by a remote federate.
DtAttributeHandleSet	myRemoteCanceledRequestSet
	Requests that have been canceled. Not important by whom.
DtAttrToFederatesMap	myRemoteRequestsByAttr
DtAttrToFederatesMap	myPendingConfirmByAttr
	In 1516, the attributes are not release until confirmed.
DtAttributeHandleSet	myPendingConfirmSet
DtAttrToFederatesMap	myPendingSkipConfirmByAttr
	In 1516-2010, the some pending confirms do not send unavailable.
DtAttributeHandleSet	myPendingSkipConfirmSet
DtFedToAttributesMap	myUnavailableRequestsByFed
	In 1516, multiple federates may have pending requests, when the divest is confirmed for one federate, the attrs become unavailable for all others.

Detailed Description

class DtRequestDatabase

An object uses an instance of this class to manage ownership requests from remote federates. Adding a remote federate's request replaces any previous requests (i.e., only the most recent request is saved). As attributes are divested, this database is queried for matching requests. In the 1.3 IFSPEC, the requests are satisfied as soon as they are matched with a divestiture. In the 1516 IFSPEC, the request are not fully satisfied until the federate confirms the divestiture. A request can be canceled (and removed from the database). In the 1.3 IFSPEC, canceled requests are maintained in order to determine valid releases. Released attributes must have been requested, but a request can be canceled after a release request but before the release response.

Member Typedef Documentation

typedef std::map< DtAttributeHandle, DtFederateHandleSet > DtRequestDatabase::DtAttrToFederatesMap

protected

typedef std::map< DtFederateHandle, DtAttributeHandleSet > DtRequestDatabase::DtFedToAttributesMap

protected

Constructor & Destructor Documentation

DtRequestDatabase::DtRequestDatabase

(

)

virtual DtRequestDatabase::~DtRequestDatabase ( )

virtual

Member Function Documentation

virtual void DtRequestDatabase::addPendingConfirm ( const DtAttributeHandleSet &  requestSet, DtFederateHandle  fed  )

virtual

Call to indicate that these this federate has matched a divest with a remote request.

virtual void DtRequestDatabase::addRemoteRequest ( const DtAttributeHandleSet &  requestSet, DtFederateHandle  fed  )

virtual

Call to indicate that a remote federate has requested ownership of requestSet.

If an attribute is passed to this function more than once, the more recent request takes precedence. That is, when it's time to divest, we will divest the attribute to the most recent requesting federate.

virtual void DtRequestDatabase::addSkipPendingConfirm ( const DtAttributeHandleSet &  requestSet, DtFederateHandle  fed  )

virtual

virtual void DtRequestDatabase::cancelAllRemoteRequest ( const DtAttributeHandleSet &  canceledSet )

virtual

Remove all supplied attributes from pending set and add them to canceled set.

virtual DtAttributeHandleSet DtRequestDatabase::canceledRequestSet ( ) const

virtual

Returns the set of canceled attributes requests.

virtual void DtRequestDatabase::cancelRemoteRequest ( const DtAttributeHandleSet &  canceledSet, DtFederateHandle  fed  )

virtual

Remote request of supplied attributes is canceled.

Remove them from pending set and add them to canceled set.

virtual void DtRequestDatabase::clearAll ( )

virtual

Clear database of all entries.

virtual int DtRequestDatabase::confirmCount ( ) const

virtual

Return the number of pending confirmed attributes.

virtual bool DtRequestDatabase::isRequestCanceled ( DtAttributeHandle  hand ) const

virtual

Returns boolean: is there a canceled request for the attribute for which the federate has not responded?

virtual void DtRequestDatabase::markPendingRequestsUnavailable ( const DtAttributeHandleSet &  requestSet, DtFederateHandle  confirmedFed  )

virtual

Mark Pending Requests unavailable for all requesting federates except the federate which has been confirmed.

void DtRequestDatabase::moveRemoteRequestToPendingList

(

const DtAttributeHandleSet &

requestSet

)

Move all requests for the supplied attributes from the request list to the pending confirm list.

virtual DtFederateHandle DtRequestDatabase::pendingConfirm ( DtAttributeHandle  hand ) const

virtual

Returns the handle of the remote federate that will be given ownership pending confirmation from the local federate.

virtual DtAttributeHandleSet const& DtRequestDatabase::pendingConfirmAttributes ( ) const

virtual

Return the set of pending confirmed attributes.

virtual DtAttributeHandleSet DtRequestDatabase::pendingConfirmByFed ( DtFederateHandle  fed ) const

virtual

Returns the current set of attributes that are pending confirm.

virtual DtFederateHandle DtRequestDatabase::pendingRemoteRequest ( DtAttributeHandle  hand ) const

virtual

Returns the handle of the federate that has most recently requested ownership of this attribute.

virtual DtFederateHandle DtRequestDatabase::pendingSkipConfirm ( DtAttributeHandle  hand ) const

virtual

virtual DtAttributeHandleSet const& DtRequestDatabase::pendingSkipConfirmAttributes ( ) const

virtual

virtual DtAttributeHandleSet DtRequestDatabase::pendingSkipConfirmByFed ( DtFederateHandle  fed ) const

virtual

virtual DtFederateHandle DtRequestDatabase::releaseConfirm ( const DtAttributeHandleSet &  inSet, DtAttributeHandleSet *  releasedSet  )

virtual

Calls to this method with the attributes provided in inSet will remove and return in releaseSet any matching pending confirm attributes assigned to a single requesting federate, whose handle is the return argument.

The method should be called repeatedly until it returns 0 to release all the matching attributes. Not all the attributes may match a pending confirm.

virtual DtFederateHandle DtRequestDatabase::releaseRequested ( const DtAttributeHandleSet &  inSet, DtAttributeHandleSet *  releasedSet, bool  keepForConfirm  )

virtual

Calls to this method with the attributes provided in inSet will remove and return in releaseSet any matching requested attributes from a single requesting federate, whose handle is the return argument.

The method should be called repeatedly until it returns 0 to release all the matching attributes. In 1516 negotiated divest, these attributes are not fully released. Set the bool value to move them to a pending confirm status (see releaseConfirm below). Not all the attributes may match a request.

virtual DtAttributeHandleSet DtRequestDatabase::remoteRequestByFed ( DtFederateHandle  fed ) const

virtual

Returns the set of Attributes requested (not pending) by this federate.

virtual void DtRequestDatabase::removeCanceledRequests ( const DtAttributeHandleSet &  releaseSet )

virtual

Remove the supplied attributes from the canceled set.

virtual void DtRequestDatabase::removePendingConfirm ( const DtAttributeHandleSet &  requestSet, DtFederateHandle  fed  )

virtual

Remove a Federate from the list of federates pending confirm for a set of attributes.

Note: this method assumes that caller handles the case that this is the last pending Federate.

virtual void DtRequestDatabase::removePendingConfirm ( const DtAttributeHandleSet &  requestSet )

virtual

Remote request of supplied attributes is complete.

Remove them from pending set.

virtual void DtRequestDatabase::removePendingSkipConfirm ( const DtAttributeHandleSet &  requestSet )

virtual

virtual void DtRequestDatabase::removeRemoteRequest ( const DtAttributeHandleSet &  requestSet, DtFederateHandle  fed  )

virtual

Remove a Federate from the list of federates pending confirm for a set of attributes.

Note: this method assumes that caller handles the case that this is the last pending Federate.

virtual void DtRequestDatabase::removeRemoteRequest ( const DtAttributeHandleSet &  requestSet )

virtual

Remote request of supplied attributes is complete.

Remove them from pending set.

virtual void DtRequestDatabase::removeSkipPendingConfirm ( const DtAttributeHandleSet &  requestSet, DtFederateHandle  fed  )

virtual

virtual int DtRequestDatabase::requestCount ( ) const

virtual

Return the number of requested attributes.

virtual DtAttributeHandleSet const& DtRequestDatabase::requestedAttributes ( ) const

virtual

Return the set of requested attributes.

virtual DtAttributeHandleSet DtRequestDatabase::requestedByFed ( DtFederateHandle  fed, bool  includePendingConfirm = false  ) const

virtual

Returns the set of attributes most recently requested by fed By default, attributes that are pending confirm are not returned.

virtual DtFederateHandle DtRequestDatabase::unavailablePendingRequests ( DtAttributeHandleSet *  invalidatedSet )

virtual

Get the next federate with pending requests that have become unavailable and the invalidated attrs.

Member Data Documentation

DtAttrToFederatesMap DtRequestDatabase::myPendingConfirmByAttr

protected

In 1516, the attributes are not release until confirmed.

DtAttributeHandleSet DtRequestDatabase::myPendingConfirmSet

protected

DtAttrToFederatesMap DtRequestDatabase::myPendingSkipConfirmByAttr

protected

In 1516-2010, the some pending confirms do not send unavailable.

DtAttributeHandleSet DtRequestDatabase::myPendingSkipConfirmSet

protected

DtAttributeHandleSet DtRequestDatabase::myRemoteCanceledRequestSet

protected

Requests that have been canceled. Not important by whom.

DtAttrToFederatesMap DtRequestDatabase::myRemoteRequestsByAttr

protected

DtAttributeHandleSet DtRequestDatabase::myRemoteRequestSet

protected

Attributes whose ownership has been requested by a remote federate.

DtFedToAttributesMap DtRequestDatabase::myUnavailableRequestsByFed

protected

In 1516, multiple federates may have pending requests, when the divest is confirmed for one federate, the attrs become unavailable for all others.

---

The documentation for this class was generated from the following file:

• requestDb.h
