DtRidFileTester Class Reference

Compares a rid file. More...

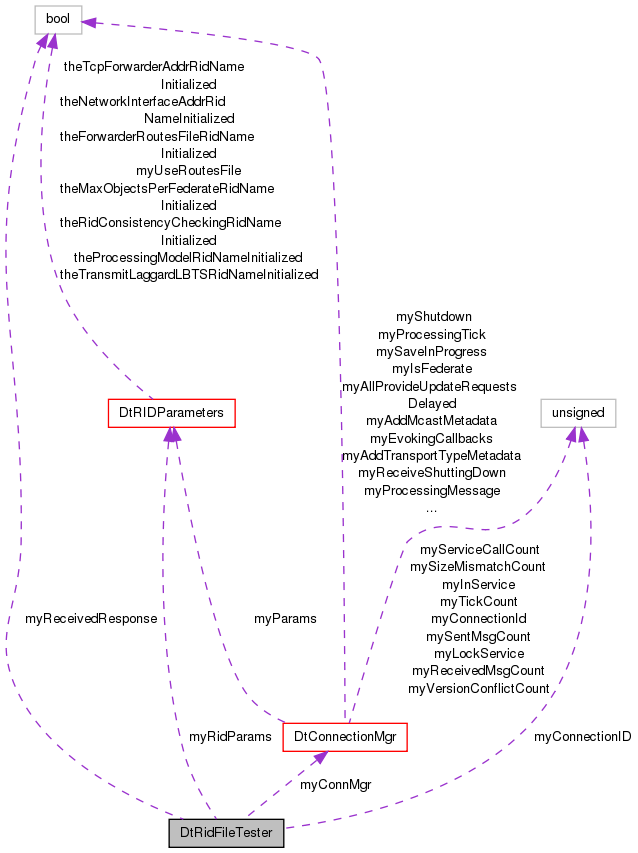

Collaboration diagram for DtRidFileTester:

Public Member Functions
	DtRidFileTester (DtConnectionMgr *connMgr, DtRIDParameters *ridParams)
	Federate Constructor.
virtual	~DtRidFileTester ()
	Destructor.
virtual void	sendRequestForTesting (const unsigned long initiatingFedID)
	Send the Rid file to the RTI for testing.
virtual bool	receivedResponse ()
	Returns true if this class has received a ridResponse since it last requested a test.

Static Public Member Functions
static void	ridResponseCb (const DtTransferRidParamsMsg &msg, void *usr)
	The RID response callback is processed by the LRC upon receiving a ridTest Response.

Protected Member Functions
virtual void	ridResponseCb (const DtTransferRidParamsMsg &msg)
	RID File Response callback.

Protected Attributes
bool	myReceivedResponse
DtConnectionMgr *	myConnMgr
DtRIDParameters *	myRidParams
unsigned long	myConnectionID

Private Member Functions
	DtRidFileTester ()
	Default Ctor, Copy Ctor and Assign Op. undefined.
	DtRidFileTester (const DtRidFileTester &orig)
DtRidFileTester &	operator= (const DtRidFileTester &orig)

Detailed Description

Compares a rid file.

Constructor & Destructor Documentation

DtRidFileTester::DtRidFileTester	(	DtConnectionMgr *	connMgr,
		DtRIDParameters *	ridParams
	)

Federate Constructor.

virtual DtRidFileTester::~DtRidFileTester ( )

virtual

Destructor.

DtRidFileTester::DtRidFileTester ( )

private

Default Ctor, Copy Ctor and Assign Op. undefined.

DtRidFileTester::DtRidFileTester ( const DtRidFileTester &  orig )

private

Member Function Documentation

DtRidFileTester& DtRidFileTester::operator= ( const DtRidFileTester &  orig )

private

virtual bool DtRidFileTester::receivedResponse ( )

inlinevirtual

Returns true if this class has received a ridResponse since it last requested a test.

static void DtRidFileTester::ridResponseCb ( const DtTransferRidParamsMsg &  msg, void *  usr  )

static

The RID response callback is processed by the LRC upon receiving a ridTest Response.

It compares the rid parameters passed in the message with the rid parameters that are currently known to the LRC. Then it modifies and/or warns the user of a possible discrepancy. The rid parameter RTI_ridConsistencyChecking determines whether the function will modify or warn of an error.

virtual void DtRidFileTester::ridResponseCb ( const DtTransferRidParamsMsg &  msg )

protectedvirtual

RID File Response callback.

virtual void DtRidFileTester::sendRequestForTesting ( const unsigned long  initiatingFedID )

virtual

Send the Rid file to the RTI for testing.

Member Data Documentation

unsigned long DtRidFileTester::myConnectionID

protected

DtConnectionMgr* DtRidFileTester::myConnMgr

protected

bool DtRidFileTester::myReceivedResponse

protected

DtRIDParameters* DtRidFileTester::myRidParams

protected

---

The documentation for this class was generated from the following file:

• ridFileTester.h
