DtAssistantNetworkCompInfoMgr Class Reference

Compiles network component information from RTI Forwarders. More...

Inheritance diagram for DtAssistantNetworkCompInfoMgr:

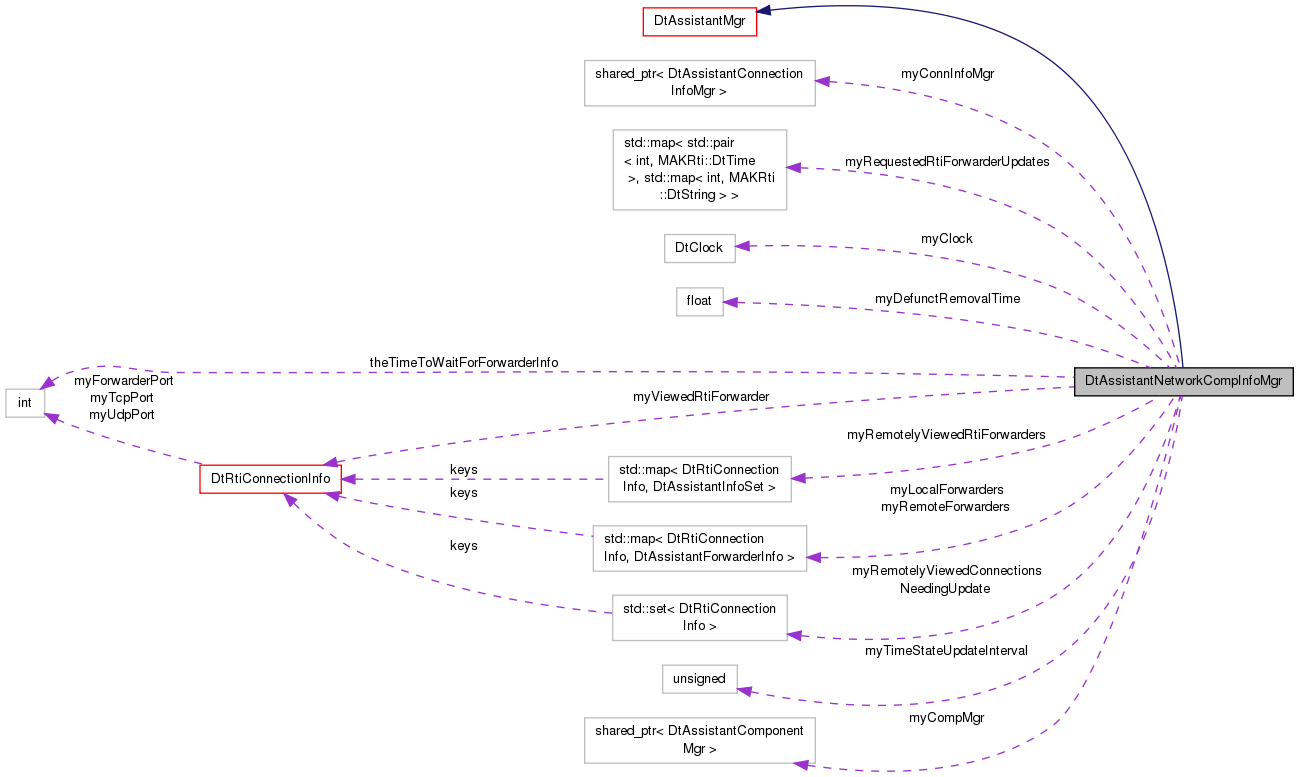

Collaboration diagram for DtAssistantNetworkCompInfoMgr:

Public Slots
void	processConnectionsUpdate (const DtRtiConnectionAndConfiguration &conns)
	Processes changes in connection state.
void	processConnectionsRemoval (const DtRtiConnectionAndConfiguration &conns)
	Processes removal of known connections.
void	sendAllForwarderInfo ()
	Sends udpate message for all local conns to remote assistants.
void	sendObserveForwarderMsg ()
	Sends a message indicating the current connection whose forwarder is being observed by this assistant.
void	federateRemovalTimeChanged (float val)
	Handle a change in the defunct federation removal time.
void	provideForwarderInfo (const DtRtiConnectionInfo &conn, const DtAssistantForwarderInfo **info)
	Response to a query for forwarder info.
Public Slots inherited from DtAssistantMgr
void	displayWarningDialogs ()
	Displays all warning dialogs.

Signals
void	forwarderAdded (const DtRtiConnectionInfo &conn)
	Emitted when a new forwarder is discovered.
void	forwarderConnUpdated (const DtRtiConnectionInfo &conn)
	Emitted when the connection info of a known forwarder is updated.
void	forwarderUpdated (const DtRtiConnectionInfo &conn)
	Emitted when a known forwarder is updated.
void	forwarderRemoved (const DtRtiConnectionInfo &conn)
	Emitted when a known forwarder is removed.
Signals inherited from DtAssistantMgr
void	warningDialogDisplayed ()
	Emitted when a warning dialog is displayed.
void	warningDialogDismissed ()
	Emitted when a warning dialog is dismissed.
void	popupRequested (const MAKRti::DtString &text, int sourceCompId, const MAKRti::DtString &advancedText)
	Emitted when a popup dialog should be displayed.
void	popupRequested (const MAKRti::DtString &text, const MAKRti::DtString &source, const MAKRti::DtString &advancedText)
	Emitted when a popup dialog should be displayed.
void	notificationRequested (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, int sourceCompId, bool logOnly)
	Emitted when a notification should be displayed.
void	notificationRequested (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, const MAKRti::DtString &source, bool logOnly)
	Emitted when a notification should be displayed.

Public Member Functions
	DtAssistantNetworkCompInfoMgr (DtBoost::shared_ptr< DtRtiAssistantServer > server, DtBoost::shared_ptr< DtRtiAssistantPeer > peer, DtAssistantSignalRouter &signalRouter, DtBoost::shared_ptr< DtAssistantComponentMgr > compMgr, DtBoost::shared_ptr< DtAssistantConnectionInfoMgr > connInfoMgr)
	Constructor.
	~DtAssistantNetworkCompInfoMgr ()
	Destructor.
virtual void	tick ()
	Performs tasks that need to be completed periodically.
virtual bool	isLocalForwarder (const DtRtiConnectionInfo &conn) const
	Returns true if the given forwarder connection is for an active local forwarder.
virtual bool	isRemoteForwarder (const DtRtiConnectionInfo &conn) const
	Returns true if the given forwarder connection is for an active remote forwarder.
virtual void	requestSingleUpdateFromConnectedForwarders (int id)
	Performs a single data request of the connected RTI Forwarders.
virtual void	viewNetworkComponentsForConnection (const DtRtiConnectionInfo &conn)
	Sets the connection which is currently being viewed.
virtual const DtAssistantForwarderInfo *	forwarderInfo (const DtRtiConnectionInfo &conn) const
	Gets the stored information for the given forwarder.
Public Member Functions inherited from DtAssistantMgr
	DtAssistantMgr (DtBoost::shared_ptr< DtRtiAssistantServer > server, DtBoost::shared_ptr< DtRtiAssistantPeer > peer, DtAssistantSignalRouter &signalRouter)
	Constructor.
virtual	~DtAssistantMgr ()
	Destructor.
virtual void	initialize ()
	Initializes this manager just prior to beginning assistant processing.
virtual void	startShutdown ()
	Performs any necessary processing at the start of shutdown.
virtual bool	dialogsVisible () const
	Determines if there are any visible dialogs for which this manager is responsible.
virtual void	configWidget (DtAssistantConfigWidget **widget, QIcon &icon, QString &name, DtPreferencesPage &pageId)
	Retrieves a widget which will be placed in the configuration dialog for configuring user preferences.
virtual void	updateConfigWidget ()
	Forces the configuration widget to be updated.
virtual void	processConfigWidgetAccept ()
	Process the changes that were accepted in the configuration widget.

Protected Types
typedef std::map < DtRtiConnectionInfo, DtAssistantInfoSet >	DtConnectionToObserversMap
typedef std::map < DtRtiConnectionInfo, DtAssistantForwarderInfo >	DtForwarderStateByConnectionMap

Protected Member Functions
virtual void	pruneTimedOutSingleUpdates ()
	If there were RTI Forwarder updates that timed out, we send back the incomplete msg.
Protected Member Functions inherited from DtAssistantMgr
void	startDialog (QDialog *dlg, bool inTaskbar, bool warningDialog)
	Sets up the given widget as a dialog.
void	finishDialog (QDialog *dlg)
	Should be called prior to deleting any dialog started with startDialog.
void	showDialog (QDialog *dlg)
	Shows the dialog.
void	startMainWindow (QMainWindow *dlg)
	Sets up a main window dialog.
void	finishMainWindow (QMainWindow *dlg)
	Should be called prior to deleting any dialog started with startMainWindow.
void	showMainWindow (QMainWindow *dlg)
	Shows the dialog.
void	showPopup (const MAKRti::DtString &text, int sourceCompId=-1, const MAKRti::DtString &advancedText=MAKRti::DtString::nullString())
	Displays a popup message with the given text, advanced text, and name of the given source component.
void	showPopup (const MAKRti::DtString &text, const MAKRti::DtString &source, const MAKRti::DtString &advancedText=MAKRti::DtString::nullString())
	Displays a popup message with the given text, advanced text, and source name.
void	displayNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, int sourceCompId=-1)
	Displays and logs a notification from the given component.
void	displayNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, const MAKRti::DtString &source)
	Displays and logs notification with the given component name.
void	logNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, int sourceCompId=-1)
	Logs a notification from the given component, does not display.
void	logNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, const MAKRti::DtString &source)
	Logs a notification with the given component name, does not display.

Protected Attributes
DtBoost::shared_ptr < DtAssistantComponentMgr >	myCompMgr
	The local RTI component manager.
DtBoost::shared_ptr < DtAssistantConnectionInfoMgr >	myConnInfoMgr
	The connection info manager.
DtRtiConnectionInfo	myViewedRtiForwarder
	The forwarder connection currently being viewed at this Assistant.
DtConnectionToObserversMap	myRemotelyViewedRtiForwarders
	Local forwarder connections currently being viewed by remote Assistants, and the set of all Assistants which are viewing them.
std::set< DtRtiConnectionInfo >	myRemotelyViewedConnectionsNeedingUpdate
	Local forwarder connections currently being viewed by remote Assistants which require an update to be sent as soon as we get one.
DtForwarderStateByConnectionMap	myRemoteForwarders
	information on all known remote forwarders.
DtForwarderStateByConnectionMap	myLocalForwarders
	information on all local forwarders.
MAKRti::DtClock	myClock
	Clock used to determine if we need to resend lost messages.
unsigned int	myTimeStateUpdateInterval
	The interval, in ms, at which local rtiForwarders should be requested to send updated time state information from local rtiForwarders.
float	myDefunctRemovalTime
	Defunct removal time for dropped federates.
std::map< std::pair< int, MAKRti::DtTime >, std::map < int, MAKRti::DtString > >	myRequestedRtiForwarderUpdates
Protected Attributes inherited from DtAssistantMgr
DtBoost::shared_ptr < DtRtiAssistantServer >	myServer
	The Assistant server from which new messages will arrive from local RTI components.
DtBoost::shared_ptr < DtRtiAssistantPeer >	myPeer
	The Assistant peer which communicates with other Assistants.
std::set< QDialog * >	myUnparentedDialogs
	All unparented dialogs that are created by the GUI should be added to this set.
std::set< QMainWindow * >	myMainWindows
	All main windows that are created by the GUI should be added to this set.
std::set< QDialog * >	myWarningDialogs
	Set of the popup dialogs, either parented or unparented, which, when active, should cause a warning icon to be displayed.

Static Protected Attributes
static const int	theTimeToWaitForForwarderInfo
	The time, in seconds, to wait for information from the remotely viewed RTI Forwarder before resending the observation request.
Static Protected Attributes inherited from DtAssistantMgr
static QIcon	theRtiIcon
	The icons used by the RTI Assistant.
static QIcon	theSmallRtiIcon
static QIcon	theWebIcon
static QIcon	theNotifyRtiIcon
static QIcon	theWarningRtiIcon
static QIcon	thePreferencesIcon
static QIcon	theAboutIcon
static QIcon	theHelpIcon
static bool	theIconsAreLoaded
	Whether or not the icons have yet been loaded.

Private Member Functions
	DtAssistantNetworkCompInfoMgr (DtAssistantNetworkCompInfoMgr const &)
	Copy Constructor not implemented – Copy Not Allowed!
DtAssistantNetworkCompInfoMgr &	operator= (DtAssistantNetworkCompInfoMgr const &)
	Assignment not implemented – Assignment Not Allowed!

Message Callbacks
Callbacks for federation information messages
virtual void	processForwarderObserveMsg (const DtAssistantStateObserveMsg &msg)
	Called by the callback function to process a forwarder state message.
virtual void	processForwarderStateMsgForConnection (const DtAssistantForwarderStateMsg &msg)
	Called by the callback function to process a federation state message on behalf of an rtiAssistanttoAssistantClient that requested the data.
virtual void	handleRtiCommands (const DtAssistantForwarderStateMsg &msg)
	Called by the callback function to process a forwarder state message.
virtual void	processAssistantCommandMsg (const DtAssistantCommandMsg &msg)
	Processes an RTI Assistant command message.
static void	processForwarderObserveMsg (const DtAssistantStateObserveMsg &msg, void *usr)
	Callback to process a forwarder state message.
static void	processForwarderStateMsgForConnection (const DtAssistantForwarderStateMsg &msg, void *usr)
	Called to process a forwarder state message on behalf of an rtiAssistanttoAssistantClient that requested the data.
static void	processAssistantCommandMsg (const DtAssistantCommandMsg &msg, void *usr)
	Processes an RTI Assistant command message.

Detailed Description

Compiles network component information from RTI Forwarders.

Member Typedef Documentation

typedef std::map< DtRtiConnectionInfo, DtAssistantInfoSet > DtAssistantNetworkCompInfoMgr::DtConnectionToObserversMap

protected

typedef std::map< DtRtiConnectionInfo, DtAssistantForwarderInfo > DtAssistantNetworkCompInfoMgr::DtForwarderStateByConnectionMap

protected

Constructor & Destructor Documentation

DtAssistantNetworkCompInfoMgr::DtAssistantNetworkCompInfoMgr	(	DtBoost::shared_ptr< DtRtiAssistantServer >	server,
		DtBoost::shared_ptr< DtRtiAssistantPeer >	peer,
		DtAssistantSignalRouter &	signalRouter,
		DtBoost::shared_ptr< DtAssistantComponentMgr >	compMgr,
		DtBoost::shared_ptr< DtAssistantConnectionInfoMgr >	connInfoMgr
	)

Constructor.

DtAssistantNetworkCompInfoMgr::~DtAssistantNetworkCompInfoMgr

(

)

Destructor.

DtAssistantNetworkCompInfoMgr::DtAssistantNetworkCompInfoMgr ( DtAssistantNetworkCompInfoMgr const &  )

private

Copy Constructor not implemented – Copy Not Allowed!

Member Function Documentation

void DtAssistantNetworkCompInfoMgr::federateRemovalTimeChanged ( float  val )

slot

Handle a change in the defunct federation removal time.

void DtAssistantNetworkCompInfoMgr::forwarderAdded ( const DtRtiConnectionInfo &  conn )

signal

Emitted when a new forwarder is discovered.

void DtAssistantNetworkCompInfoMgr::forwarderConnUpdated ( const DtRtiConnectionInfo &  conn )

signal

Emitted when the connection info of a known forwarder is updated.

virtual const DtAssistantForwarderInfo* DtAssistantNetworkCompInfoMgr::forwarderInfo ( const DtRtiConnectionInfo &  conn ) const

virtual

Gets the stored information for the given forwarder.

void DtAssistantNetworkCompInfoMgr::forwarderRemoved ( const DtRtiConnectionInfo &  conn )

signal

Emitted when a known forwarder is removed.

void DtAssistantNetworkCompInfoMgr::forwarderUpdated ( const DtRtiConnectionInfo &  conn )

signal

Emitted when a known forwarder is updated.

virtual void DtAssistantNetworkCompInfoMgr::handleRtiCommands ( const DtAssistantForwarderStateMsg &  msg )

virtual

Called by the callback function to process a forwarder state message.

virtual bool DtAssistantNetworkCompInfoMgr::isLocalForwarder ( const DtRtiConnectionInfo &  conn ) const

virtual

Returns true if the given forwarder connection is for an active local forwarder.

virtual bool DtAssistantNetworkCompInfoMgr::isRemoteForwarder ( const DtRtiConnectionInfo &  conn ) const

virtual

Returns true if the given forwarder connection is for an active remote forwarder.

DtAssistantNetworkCompInfoMgr& DtAssistantNetworkCompInfoMgr::operator= ( DtAssistantNetworkCompInfoMgr const &  )

private

Assignment not implemented – Assignment Not Allowed!

static void DtAssistantNetworkCompInfoMgr::processAssistantCommandMsg ( const DtAssistantCommandMsg &  msg, void *  usr  )

static

Processes an RTI Assistant command message.

virtual void DtAssistantNetworkCompInfoMgr::processAssistantCommandMsg ( const DtAssistantCommandMsg &  msg )

virtual

Processes an RTI Assistant command message.

void DtAssistantNetworkCompInfoMgr::processConnectionsRemoval ( const DtRtiConnectionAndConfiguration &  conns )

slot

Processes removal of known connections.

void DtAssistantNetworkCompInfoMgr::processConnectionsUpdate ( const DtRtiConnectionAndConfiguration &  conns )

slot

Processes changes in connection state.

static void DtAssistantNetworkCompInfoMgr::processForwarderObserveMsg ( const DtAssistantStateObserveMsg &  msg, void *  usr  )

static

Callback to process a forwarder state message.

virtual void DtAssistantNetworkCompInfoMgr::processForwarderObserveMsg ( const DtAssistantStateObserveMsg &  msg )

virtual

Called by the callback function to process a forwarder state message.

static void DtAssistantNetworkCompInfoMgr::processForwarderStateMsgForConnection ( const DtAssistantForwarderStateMsg &  msg, void *  usr  )

static

Called to process a forwarder state message on behalf of an rtiAssistanttoAssistantClient that requested the data.

virtual void DtAssistantNetworkCompInfoMgr::processForwarderStateMsgForConnection ( const DtAssistantForwarderStateMsg &  msg )

virtual

Called by the callback function to process a federation state message on behalf of an rtiAssistanttoAssistantClient that requested the data.

void DtAssistantNetworkCompInfoMgr::provideForwarderInfo ( const DtRtiConnectionInfo &  conn, const DtAssistantForwarderInfo **  info  )

slot

Response to a query for forwarder info.

virtual void DtAssistantNetworkCompInfoMgr::pruneTimedOutSingleUpdates ( )

protectedvirtual

If there were RTI Forwarder updates that timed out, we send back the incomplete msg.

virtual void DtAssistantNetworkCompInfoMgr::requestSingleUpdateFromConnectedForwarders ( int  id )

virtual

Performs a single data request of the connected RTI Forwarders.

void DtAssistantNetworkCompInfoMgr::sendAllForwarderInfo ( )

slot

Sends udpate message for all local conns to remote assistants.

void DtAssistantNetworkCompInfoMgr::sendObserveForwarderMsg ( )

slot

Sends a message indicating the current connection whose forwarder is being observed by this assistant.

virtual void DtAssistantNetworkCompInfoMgr::tick ( )

virtual

Performs tasks that need to be completed periodically.

Reimplemented from DtAssistantMgr.

virtual void DtAssistantNetworkCompInfoMgr::viewNetworkComponentsForConnection ( const DtRtiConnectionInfo &  conn )

virtual

Sets the connection which is currently being viewed.

Member Data Documentation

MAKRti::DtClock DtAssistantNetworkCompInfoMgr::myClock

protected

Clock used to determine if we need to resend lost messages.

DtBoost::shared_ptr<DtAssistantComponentMgr> DtAssistantNetworkCompInfoMgr::myCompMgr

protected

The local RTI component manager.

DtBoost::shared_ptr<DtAssistantConnectionInfoMgr> DtAssistantNetworkCompInfoMgr::myConnInfoMgr

protected

The connection info manager.

float DtAssistantNetworkCompInfoMgr::myDefunctRemovalTime

protected

Defunct removal time for dropped federates.

DtForwarderStateByConnectionMap DtAssistantNetworkCompInfoMgr::myLocalForwarders

protected

information on all local forwarders.

DtForwarderStateByConnectionMap DtAssistantNetworkCompInfoMgr::myRemoteForwarders

protected

information on all known remote forwarders.

std::set< DtRtiConnectionInfo > DtAssistantNetworkCompInfoMgr::myRemotelyViewedConnectionsNeedingUpdate

protected

Local forwarder connections currently being viewed by remote Assistants which require an update to be sent as soon as we get one.

DtConnectionToObserversMap DtAssistantNetworkCompInfoMgr::myRemotelyViewedRtiForwarders

protected

Local forwarder connections currently being viewed by remote Assistants, and the set of all Assistants which are viewing them.

std::map<std::pair<int, MAKRti::DtTime>, std::map<int, MAKRti::DtString> > DtAssistantNetworkCompInfoMgr::myRequestedRtiForwarderUpdates

protected

unsigned int DtAssistantNetworkCompInfoMgr::myTimeStateUpdateInterval

protected

The interval, in ms, at which local rtiForwarders should be requested to send updated time state information from local rtiForwarders.

Takes into account remote assistants as well.

DtRtiConnectionInfo DtAssistantNetworkCompInfoMgr::myViewedRtiForwarder

protected

The forwarder connection currently being viewed at this Assistant.

const int DtAssistantNetworkCompInfoMgr::theTimeToWaitForForwarderInfo

staticprotected

The time, in seconds, to wait for information from the remotely viewed RTI Forwarder before resending the observation request.

---

The documentation for this class was generated from the following file:

• networkCompInfoMgr.h
