DtRIDParameters Class Reference
The RTIspy RTI Utility Library (rtiutil)

This class manages the RTI's start-up configuration using both MTL variables and functions. More...

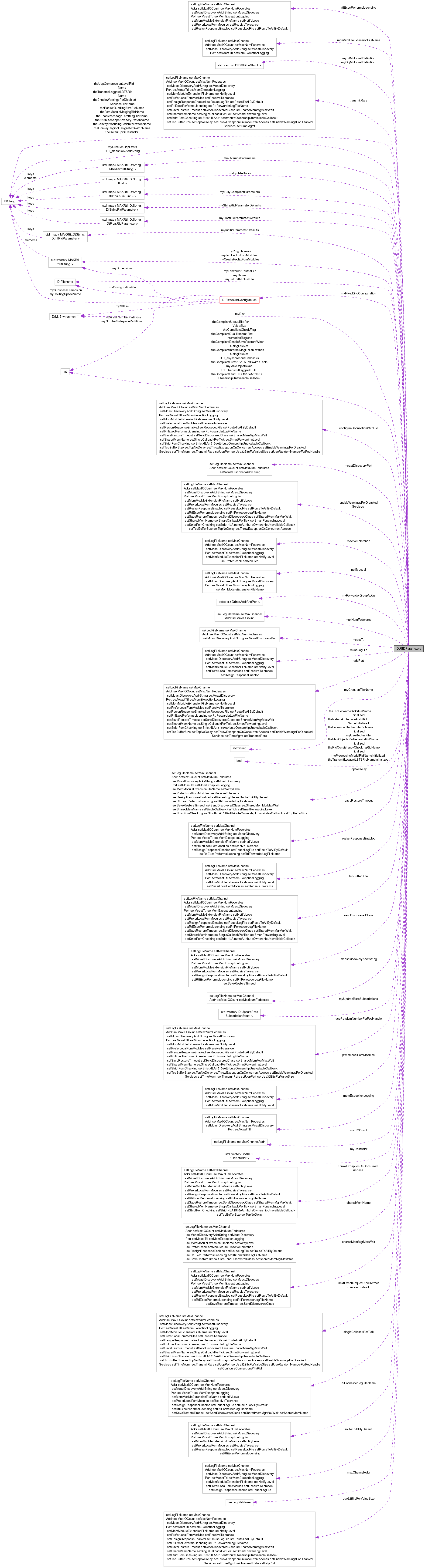

+ Collaboration diagram for DtRIDParameters:

Classes

class  DtFloatRidParameter
 Float based Rid parameter. More...
class  DtIntRidParameter
 Int based Rid parameter. More...
class  DtRidParameter
 Generic Rid information. More...
class  DtStringRidParameter
 String based Rid parameter. More...

Public Types

enum  DtInconsistentRidReaction { DtInconsistentRidDoNothing = 0, DtInconsistentRidAutoCorrect, DtInconsistentRidThrowException }
 0 == no RID consistency checking. More...
enum  DtAsynchronousIOModeEnum { DtSynchronousMode = 0, DtAsynchronousMode, DtAsynchronousProcessMessage, DtAsynchronousCallbacks }
 0 == no Async IO 1 == Asynchronous IO, (same as old parameter RTI_asynchronousIO ) 2 == Asynchronous IO + Asynchronous Message Processing (same as old parameter RTI_asynchronousMessageProcessing) 3 == Asynchronous IO + Asynchronous Callbacks ( same as old parameter RTI_asynchronousCallbacks ) More...
enum  DtFomDataTransportTypeControlEnum { DtFomTransportTypeUseFomSettings = 0, DtFomTransportTypeUseBestEffort, DtFomTransportTypeUseReliable }
 0 == ( Default ) FOM data is sent either best effort or reliable based on FOM settings. More...
enum  DtRidFileSearchStatus {
  DtUnInitialized = 0, DtRidFileFound, DtCreationArgRidFileNotFound, DtRtiRidFileAndRtiConfigFileNotFound,
  DtRtiRidFileFileNotFound, DtRtiConfigFileNotFound, DtBadRelativePath, DtNoRidFileSpecified
}
 Status of RID file search. More...
typedef std::vector
< DtDMFilterStruct > 		DtDMFilterList
typedef std::vector
< MAKRti::DtString > 		DtStringList
typedef std::vector
< MAKRti::DtInetAddr > 		DtInetAddrList
typedef std::set
< DtInetAddrAndPort > 		DtInetAddrAndPortSet

Public Member Functions

 DtRIDParameters (int highestNotifyLevelDuringInitialization=MAKRti::DtNlFatal, const std::vector< MAKRti::DtString > *const ridExpressions=NULL, bool enableRtiExec=false)
 constructors
 DtRIDParameters (const MAKRti::DtString &expression)
 DtRIDParameters (const DtRIDParameters &orig)
virtual ~DtRIDParameters ()
 destructor
virtual MAKRti::DtString compareRIDParameters (DtRIDParameters *ridParam) const
 Compare the given RID with this one.
virtual void compareRIDParameters (DtRIDParameters *ridParam, std::map< MAKRti::DtString, int > &intMap, std::map< MAKRti::DtString, float > &floatMap, std::map< MAKRti::DtString, MAKRti::DtString > &stringMap) const
 Compare the given RID with this one.
virtual MAKRti::DtString ridsToConsistencyCheck ()
 Consistency checking is performed on a subset of RID parameters Returns a string containing the names of those parameters that should be consistency checked.
virtual void toLispString (MAKRti::DtString &lispString)
 Converts the RID parameters to a lisp string.
virtual bool ridMapFromLispString (const MAKRti::DtString &inputString, std::map< MAKRti::DtString, int > &intMap, std::map< MAKRti::DtString, float > &floatMap, std::map< MAKRti::DtString, MAKRti::DtString > &stringMap) const
 Populate the maps with rid parameters (names and values) for each parameter name found in the given input string.
virtual void applySpecifiedRidParameters (const MAKRti::DtString &expression)
 Apply the RID initialization expression to this RID.
const std::map
< MAKRti::DtString,
DtStringRidParameter > & 		stringRidParameters () const
 Return the map of string parameters.
const std::map
< MAKRti::DtString,
DtIntRidParameter > & 		intRidParameters () const
 Return the map of integer parameters.
const std::map
< MAKRti::DtString,
DtFloatRidParameter > & 		floatRidParameters () const
 Return the map of float parameters.
bool isStringParameter (const MAKRti::DtString &) const
 Does the given parameter have a string value?
bool isIntParameter (const MAKRti::DtString &) const
 Does the given parameter have an integer value?
bool isFloatParameter (const MAKRti::DtString &) const
 Does the given parameter have a float value?
virtual bool getParameter (const MAKRti::DtString &name, MAKRti::DtString &value, std::map< MAKRti::DtString, DtStringRidParameter >::const_iterator &iter) const
 Get the string value for the given parameter name Returns boolean: got value successfully?
virtual bool getParameter (const MAKRti::DtString &name, MAKRti::DtString &value) const
virtual bool getParameter (const MAKRti::DtString &name, int &value, std::map< MAKRti::DtString, DtIntRidParameter >::const_iterator &iter) const
 Get the integer value for the given parameter name Returns boolean: got value successfully?
virtual bool getParameter (const MAKRti::DtString &name, int &value) const
virtual bool getParameter (const MAKRti::DtString &name, float &value, std::map< MAKRti::DtString, DtFloatRidParameter >::const_iterator &iter) const
 Get the float value for the given parameter name Returns boolean: got value successfully?
virtual bool getParameter (const MAKRti::DtString &name, float &value) const
bool setParameter (const MAKRti::DtString &name, const MAKRti::DtString &val)
 Set the string value for the given parameter name Returns boolean: set value successfully?
bool setParameter (const MAKRti::DtString &name, int val)
 Set the integer value for the given parameter name Returns boolean: set value successfully?
bool setParameter (const MAKRti::DtString &name, float val)
 Set the float value for the given parameter name Returns boolean: set value successfully?
const MAKRti::DtMtlEnvironment & mtlEnvironment () const
 returns mtl environment
const MAKRti::DtFilename & ridName () const
 Returns the RID file name.
const MAKRti::DtFilename forwarderRoutesFile () const
 Returns the forwarder routes file name.
void setForwarderRoutesFile (MAKRti::DtFilename file)
 Set the forwarder routes file name.
MAKRti::DtInetAddr destAddr () const
 Get the destination address as a network address (versus string representation).
MAKRti::DtInetAddr networkInterfaceAddr () const
 Get the multicast network interface address as a network address (versus string representation).
MAKRti::DtString networkInterfaceAddrString () const
 get networkInterfaceAddr
void setNetworkInterfaceAddr (const MAKRti::DtString &networkIFace)
 set networkInt
MAKRti::DtString tcpForwarderAddrString () const
 get tcpForwarderAddr String
void setTcpForwarderAddr (const MAKRti::DtString &addr)
 set tcpForwarder Addr String
MAKRti::DtInetAddr tcpForwarderAddr () const
 Get the TCP Forwarder address as a network address (versus string representation).
MAKRti::DtInetAddr minChannel () const
 Get the minimum DDM multicast address as a network address (versus string representation).
MAKRti::DtInetAddr maxChannel () const
 Get the Maximum DDM multicast address as a network address (versus string representation).
MAKRti::DtInetAddr mcastDiscoveryAddr () const
 Get the multicast discovery address as a network address (versus string representation).
DtFixedGridConfiguration * fixedGridConfiguration () const
 Get the DDM fixed grid configuration Returns NULL if not initialized.
MAKRti::DtInetAddr DMMulticastGroupInterface (MAKRti::DtInetAddr multicastGroup) const
 Get the network interface for the specified DM Multicast address (returns networkInterfaceAddr() if no interface was specified)
bool useGroupSocket () const
 Returns true if we should use a group socket; 0 otherwise.
bool useDMFiltering () const
 Returns true if we should use DM filtering.
MAKRti::DtFilename getFullPathToRidFile () const
 returns full working path to rid file, either absolutely or relatively.
const std::string & getCreationFileName () const
 returns reference to member myCreationFileName.
const MAKRti::DtString & getCreationLispExprs () const
 returns reference to member myCreationLispExprs
MAKRti::DtFilename saveRestoreDirectoryPath ()
 Return the directory with an appended path separator.
int maxObjectsPerFederate () const
 Return maximum number of objects allowed in a federation.
void setMaxObjectsPerFederate (int val)
 Set maximum number of objects allowed in a federation.
int transmitLaggardLBTS () const
 Return the indicator to transmit laggard LBTS value.
void setTransmitLaggardLBTS (int yesNo)
 Set the indicator to transmit laggard LBTS value.
DtInconsistentRidReaction ridConsistencyChecking () const
 Returns value of RID consistency checking variable.
void setRidConsistencyChecking (DtInconsistentRidReaction value)
 Set value of RID consistency checking variable.
DtAsynchronousIOModeEnum processingModel () const
 Return processing mode value.
void setProcessingModel (DtAsynchronousIOModeEnum value)
 Set processing mode value.
const DtDMFilterList & objectMulticastDefinitions () const
 Return the object class definitions for DM mulitcast filtering.
const DtDMFilterList & interactionMulticastDefinitions () const
 Return the interaction class definitions for DM mulitcast filtering.
const DtStringList & createFomModules () const
 Return the list of create FOM modules.
const DtStringList & joinFomModules () const
 Return the names of join FOM modules.
const DtInetAddrList & destinationAddrs () const
 Return the list of additional destination addresses.
const DtInetAddrAndPortSet & forwarderGroupAddrs () const
 Return the list of forwarder group addresses.
unsigned int forwarderGroupSize ()
 Return the size of the forwarder group list.
bool useRoutesFile () const
 Set/Get routes file control.
void setUseRoutesFile (bool fileShouldBeUsed)
void clearAncillaryForwarderGroupAddrs ()
 Clear the list of ancillary forwarder group addresses.
DtUpdateNameRateMap const & updateRates () const
 Return the map between update rate names and values.
const std::vector
< DtUpdateRateSubscriptionStruct > & 		updateRateSubscriptions () const
 Return the update rate subscription definitions.
void fullyCompliantParameters (std::map< MAKRti::DtString, int > &parameters) const
 Caller passes fullyCompliantParameters an empty map which will be populated with the compliance parameters and their compliant settings.
bool isFullyCompliant () const
 Is this RID Params object fully compliant?
bool requiredComplianceParameter (const MAKRti::DtString &parameter) const
 Is this parameter required for compliance.
int compliantSettingForParameter (const MAKRti::DtString &parameter) const
 What is the required compliance setting for this parameter.
void forceParametersToCompliance ()
 Forces all parameters required for compliance to their compliant settings.
void saveOriginalCompliantSettings ()
 Saves the current settings of the compliance parameters as the original settings.
void revertComplianceParametersToOriginalSettings ()
 Forces all compliant parameters back to their original values.
void sanityCheckRIDParameters ()
 Some RID parameters have dependent settings.
void sanityCheckReliableConnRIDParameters ()
 Specific sanity checks for reliable connection parameters.
void printParameters ()
 Prints all RID parameters.
MAKRti::DtString resolveAbsoluteFileLocation (MAKRti::DtString path, MAKRti::DtString fileName)
 Returns the absolute file location.
int enableBigMessage () const
 deprecated.
int asynchronousIO () const
 deprecated.
int asynchronousCallbacks () const
 deprecated.
int asynchronousProcessMessage () const
 deprecated.
MAKRti::DtString mcastDevAddrString () const
 deprecated.
void sanityCheckAddressFamily ()
 Sanity checks to ensure all IP addresses use the same address family.
void sanityCheckTcpAddressFamily ()
 Sanity checks to ensure all IP addresses use the same address family.
void sanityCheckUdpAddressFamily ()
 Sanity checks to ensure all IP addresses use the same address family.

Static Public Member Functions

static void overrideRidParameters (const std::map< std::string, std::string > &params)
 Sets the the RID parameters to be overridden after the RID file is loaded.

Public Attributes

setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance
setResignResponseEnabled
setReuseLogFile
setRouteToAllByDefault
setRtiExecPerformsLicensing
setRtiForwarderLogFileName
setSaveRestoreTimeout
setSendDiscoveredClass
setSharedMemMgrMaxWait
setSharedMemName
setSingleCallbackPerTick
setSmartForwardingLevel
setStrictFomChecking
setStrictHLA1516eAttributeOwnershipUnavailableCallback
setTcpBufferSize setTcpNoDelay
setThrowExceptionOnConcurrentAccess
setEnableWarningsForDisabledServices
setTimeMgmt setTransmitRate
setUdpPort
setUse32BitsForValueSize
setUseRandomNumberForFedHandle
setConfigureConnectionWithRid
setNextEventRequestAndRetractServiceEnabled
bool 		theForwarderRoutesFileRidNameInitialized
bool theProcessingModelRidNameInitialized
bool theRidConsistencyCheckingRidNameInitialized
bool theMaxObjectsPerFederateRidNameInitialized
bool theTransmitLaggardLBTSRidNameInitialized
bool theTcpForwarderAddrRidNameInitialized
bool theNetworkInterfaceAddrRidNameInitialized

Protected Member Functions

MAKRti::DtMtlEnvironment & mtlEnvironment ()
 returns mtl environment
virtual void accessorError (const char *parameterName) const
 Handle error when accessor fails.
virtual void mutatorError (const char *parameterName) const
 Handle error when mutator fails.
void copyRidParameters (const DtRIDParameters &orig)
 copyRidParameters is used by the DtRIDParameters copy constructor to deep copy the DtRidParameter objects.
void destroyAllRidParameters ()
 destroy all RidParameter objects.
void destroyRidParameter (MAKRti::DtString name)
 destroy a single RidParameter object.
MAKRti::DtFilename findLispFile ()
 lookup the RID file base on args passed to createRTIAmbassador (1516 only) working directory and env.
bool extractRidFileName (const MAKRti::DtString &arg)
 Parses string for RID file name directive (must be at beginning of string).
void extractRidExpressions (const std::vector< MAKRti::DtString > &ridExpressions)
 Parses supplied strings and extracts RID expressions.
void buildDmFilterList (bool forObjectsElseInteractions)
 read all DM filters for Objects or Interactions from lisp env.
void buildFomModulesList ()
 read all additional Fom Modules specified from lisp env.
bool buildDdmGrid (MAKRti::DtFilename const &gridConfigFilename)
 Read and process DDM fixed grid definition Returns false when gridConfigFilename not found.
void initializeParameters (bool forceEnableRtiExec, const MAKRti::DtString &expression=MAKRti::DtString::nullString())
 Used to initialize RID parameters from disk, or from the given expression.
void checkUseRtiExec (bool forceEnableRtiExec)
 If forceEnableRtiExec is enabled ( we were instantiated from an ExecThread ) then make sure useRtiExec is set.
void applyAmbassadorCreationArguments ()
 rti1516::createRtiAmbassador has a std::set<wstring> argument which can be used to apply lisp changes to the rid as if the changes were in the rid file itself.
void initializeFixedGrid ()
 Build and print the Fixed DDM Grid.
void populateRidGroups ()
 Populate the compliant, federation, LRC, etc. lists.
void initializeDestAddrs ()
 Build list of Dest Addrs.
void initializeForwarderGroups ()
 Build list of Forwarder Groups.
void initializeUpdateRates ()
 Build update Rates table.
void verifyPortsAreUnique () const
 Check and validate uniqueness of all ports in the RID.
void verifyIpAddresses () const
 Check all IP addresses in RID for validity. Throws if they are not.
void verifyIpAddress (const MAKRti::DtString &ip, const MAKRti::DtString &name=MAKRti::DtString::nullString()) const
 Check the validity of a single IP address. Throws if invalid.
void registerParameters ()
 (called from constructor) registers all MTL parameters
void loadLispFile ()
 loads rid.mtl
void loadLispExpressions ()
 loads the expressions for function rid parameters
virtual int * createRidParameter (MAKRti::DtString label, MAKRti::DtString name, MAKRti::DtString toolTip, MAKRti::DtString parent, int defaultValue, bool editable, MAKRti::DtString range)
 createRidParameter will take and store all of the elements required of a DtRidParameter object, in three forms (int, MAKRti::DtString, and float).
virtual MAKRti::DtString * createRidParameter (MAKRti::DtString label, MAKRti::DtString name, MAKRti::DtString toolTip, MAKRti::DtString parent, MAKRti::DtString defaultValue, bool editable, MAKRti::DtString range)
 createRidParameter will take and store all of the elements required of a DtRidParameter object, in three forms (int, MAKRti::DtString, and float).
virtual float * createRidParameter (MAKRti::DtString label, MAKRti::DtString name, MAKRti::DtString toolTip, MAKRti::DtString parent, float defaultValue, bool editable, MAKRti::DtString range)
 createRidParameter will take and store all of the elements required of a DtRidParameter object, in three forms (int, MAKRti::DtString, and float).

Protected Attributes

MAKRti::DtMtlEnvironment * myEnv
 The MTL environment used to process RID parameters.
DtInetAddrList myDestAddr
 Group socket configuration.
DtInetAddrAndPortSet myForwarderGroupAddrs
 The forwarder group addresses.
DtDMFilterList myIntMulticastDefinition
 DM object class configuration.
DtDMFilterList myObjMulticastDefinition
 DM interaction class configuration.
DtStringList myPluginNames
 Plugin names configuration.
MAKRti::DtFilename myName
 The RID file name.
MAKRti::DtFilename myForwarderRoutesFile
 The forwarder routes file name.
MAKRti::DtFilename myFullPathToRidFile
 The path to the loaded file.
DtRidFileSearchStatus myRidFileSearchStatus
 The status of the file search of the RID file.
MAKRti::DtString myCreationLispExprs
 The expressions found in the creation arguments (if any)
std::string myCreationFileName
 The RID file name found in the creation arguments (if present)
DtStringList myCreateFedExFomModules
 The list of create FOM modules.
DtStringList myJoinFedExFomModules
 The list of join FOM modules.
DtFixedGridConfiguration * myFixedGridConfiguration
 Fixed grid configuration.
DtUpdateNameRateMap myUpdateRates
 Pre-Evolved way to set the list of (name rate) Map from update rate name to value.
std::vector
< DtUpdateRateSubscriptionStruct > 		myUpdateRateSubscriptions
 Update rate subscriptions.
std::map< MAKRti::DtString,
DtFloatRidParameter > 		myFloatRidParameterDefaults
 The default values for float RID parameters.
std::map< MAKRti::DtString,
DtIntRidParameter > 		myIntRidParameterDefaults
 The default values for integer RID parameters.
std::map< MAKRti::DtString,
DtStringRidParameter > 		myStringRidParameterDefaults
 The default values for string RID parameters.
std::map< MAKRti::DtString,
std::pair< int, int > > 		myFullyCompliantParameters
 The list of parameters that effect compliance, their fully compliant setting, and their original setting (as read from the RID file)
const int myMaxObjectsCap
 The maximum number of objects a single federate may register.
bool myUseRoutesFile
 Controls whether routes file should be used (set internally)
int RTI_maxObjectsPerFederate
 Deprecated RID parameters.
int RTI_transmitLaggardLBTS
 Deprecated RID parameters.
int RTI_enableBigMessage
 Deprecated RID parameters.
int RTI_asynchronousIO
 Deprecated RID parameters.
int RTI_asynchronousProcessMessage
 Deprecated RID parameters.
int RTI_asynchronousCallbacks
 Deprecated RID parameters.
MAKRti::DtString RTI_mcastDevAddrString
 Deprecated RID parameters.

Static Protected Attributes

static std::map
< MAKRti::DtString,
MAKRti::DtString > 		theOverrideParameters
 Overridden RID parameters.
static const int theCompliantUseRtiExec
 The parameter values that make configuration compliant.
static const int theCompliantInternalMsgReliableWhenUsingRtiexec
 The parameter values that make configuration compliant.
static const int theCompliantFomDataTransportTypeControl
 The parameter values that make configuration compliant.
static const int theCompliantTimeMgmt
 The parameter values that make configuration compliant.
static const int theCompliantDataDistMgmt
 The parameter values that make configuration compliant.
static const int theCompliantMomServiceAvailable
 The parameter values that make configuration compliant.
static const int theCompliantMomFederateUpdateInterval
 The parameter values that make configuration compliant.
static const int theCompliantStrictFomChecking
 The parameter values that make configuration compliant.
static const int theCompliantCheckFlag
 The parameter values that make configuration compliant.
static const int theCompliantEnableHlaObjectNamePrefix
 The parameter values that make configuration compliant.
static const int theCompliantSendDiscoveredClass
 The parameter values that make configuration compliant.
static const int theCompliantExtend13and1516interop
 The parameter values that make configuration compliant.
static const int theCompliantProcessUnknownUpdatesForDiscovery
 The parameter values that make configuration compliant.
static const int theCompliantEnableNameReservation
 The parameter values that make configuration compliant.
static const int theCompliantEnableSaveRestoreWhenUsingRtiexec
 The parameter values that make configuration compliant.
static const int theCompliantFomModuleMerging
 The parameter values that make configuration compliant.
static const int theCompliantDistributeFedFile
 The parameter values that make configuration compliant.
static const int theCompliantPreferRidToFedSwitchTable
 The parameter values that make configuration compliant.
static const int theCompliantEnableUpdateRateReduction
 The parameter values that make configuration compliant.
static const int theCompliantThrowExceptionCallNotAllowedFromWithinCallback
 The parameter values that make configuration compliant.
static const int theResignResponseEnabled
 The parameter values that make configuration compliant.
static const int theCompliantUse32BitsForValueSize
 The parameter values that make configuration compliant.
static const int theCompliantDualTransmitFirstInteractionRegions
 The parameter values that make configuration compliant.
static const int theCompliantStrictHLA1516eAttributeOwnershipUnavailableCallback
 The parameter values that make configuration compliant.
static const int theCompliantNextEventRequestAndRetractServiceEnabled
 The parameter values that make configuration compliant.
static const MAKRti::DtString theAdvancedNetworkingGroupName
 The strings that represent the RID parameter groups RID Group names.
static const MAKRti::DtString theAdvisoriesGroupName
 The strings that represent the RID parameter groups RID Group names.
static const MAKRti::DtString theAsynchGroupName
 The strings that represent the RID parameter groups RID Group names.
static const MAKRti::DtString theCommunicationsGroupName
 The strings that represent the RID parameter groups RID Group names.
static const MAKRti::DtString theCompressionGroupName
 The strings that represent the RID parameter groups RID Group names.
static const MAKRti::DtString theDdmGroupName
 The strings that represent the RID parameter groups RID Group names.
static const MAKRti::DtString theDiagnosticGroupName
 The strings that represent the RID parameter groups RID Group names.
static const MAKRti::DtString theFaultToleranceGroupName
 The strings that represent the RID parameter groups RID Group names.
static const MAKRti::DtString theFomGroupName
 The strings that represent the RID parameter groups RID Group names.
static const MAKRti::DtString theForwarderGroupName
 The strings that represent the RID parameter groups RID Group names.
static const MAKRti::DtString theLicensingGroupName
 The strings that represent the RID parameter groups RID Group names.
static const MAKRti::DtString theMomGroupName
 The strings that represent the RID parameter groups RID Group names.
static const MAKRti::DtString theMulticastDiscoveryGroupName
 The strings that represent the RID parameter groups RID Group names.
static const MAKRti::DtString theNameReservationGroupName
 The strings that represent the RID parameter groups RID Group names.
static const MAKRti::DtString theOptionalServicesGroupName
 The strings that represent the RID parameter groups RID Group names.
static const MAKRti::DtString theRtiSpyGroupName
 The strings that represent the RID parameter groups RID Group names.
static const MAKRti::DtString theSaveRestoreGroupName
 The strings that represent the RID parameter groups RID Group names.
static const MAKRti::DtString theServiceImplGroupName
 The strings that represent the RID parameter groups RID Group names.
static const MAKRti::DtString theSharedMemoryGroupName
 The strings that represent the RID parameter groups RID Group names.
static const MAKRti::DtString thePreferRidToFedSwitchTableName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theAutoProvideSwitchName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theConveyRegionDesignatorSwitchName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theConveyProducingFederateSwitchName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theAttributeScopeAdvisorySwitchName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theAttributeRelevanceAdvisorySwitchName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theObjectClassRelevanceAdvisorySwitchName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theInteractionRelevanceAdvisorySwitchName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theServiceReportingSwitchName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theExceptionReportingSwitchName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theDelaySubscriptionEvaluationSwitchName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theAddressDelayRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theAutoProvideDelayRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theAllProvideUpdateRequestsDelayedRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theBestEffortSendRetriesRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theBestEffortSendRetryWaitUsecRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theCatchFedAmbExceptionsRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theCheckFlagRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theConfigureConnectionWithRidRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theConveyOnlyAvailableDimensionsRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theCrcCheckFedFileRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theDataDistMgmtRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theDdmFixedGridFilenameRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theDdmFixedGridRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theDefaultTimeImplementationRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theDefaultFedFileRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theDeleteOrphansRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theDeprecatedAsynchronousIORidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theDeprecatedEnableBigMessageRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theDeprecatedAsynchronousProcessMessageRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theDeprecatedAsynchronousCallbacksRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theDestAddrStringRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theDetachNotifyLevelFromStdOutRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theDisableUnlicensedForTwoRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theDiscoveryMsgBundlingDelayRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theDistributedForwarderPortRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theDistributedUdpForwarderModeRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theDistributeFedFileAsynchronouslyRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theDistributeFedFileRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theFullFedFileDistributionName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theDualTransmitFirstInteractionRegionsRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theDumpFedRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theDumpRidRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theEnableBestEffortSendRetryRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theAutomaticNameReserveEnabledRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theEnableCheckVersionRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theEnableFederateHeartbeatRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theEnableFedexMsgRoutingRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theEnableFomBackwardsCompatibilityRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theEnableHlaObjectNamePrefixRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theEnableMessageThrottlingRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theEnableNameReservationRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theEnableLRCNetworkStatisticsMonitoringRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theEnableNetworkTestingRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theEnablePacketBundlingRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theEnableSaveRestoreWhenUsingRtiexecRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theEnableSharedMemoryExecEventLogRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theEnableTcpCompressionRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theEnableTcpSmartForwardingRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theEnableUdpCompressionRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theEnableUdpSmartForwardingRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theEnableUpdateRateReductionRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theExecMcastDiscoveryDelayRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theExtend13and1516interopRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theFederateHeartbeatIntervalRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theFederateReconnectPauseRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theFederateTimeoutIntervalRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theFlushTimeoutIntervalRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theFomDataTransportTypeControlRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theFomModuleMergingRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theForceFullComplianceRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theForceUnlicensedForTwoRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theForwarderRoutesFileRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theForwardingDelayRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theImplicitDdmParamsFileRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theInternalMsgReliableWhenUsingRtiexecRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theInternalMsgSmartForwardingWhenUsingRtiexecRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theIOPeriodRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theLogFileDirectoryName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theTickWaitPeriodRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theLogFileNameRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theLrcMcastDiscoveryDelayRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theMaxChannelAddrRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theMaxForwarderQueueRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theMaxIOCountRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theMaxIOQueueRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theMaxObjectsPerFederateRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theMaxNumFederatesRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theMaxUdpPacketSizeRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theDeprecatedMcastDevAddrStringRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theMcastDiscoveryAddrStringRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theMcastDiscoveryEnabledRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theMcastDiscoveryPortRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theMcastDiscoveryTriesRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theMcastTtlRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theMinChannelAddrRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theMomExceptionLoggingRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theMomFederateUpdateIntervalRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theMomModuleExtensionFileNameRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theMomServiceAvailableRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theNetworkInterfaceAddrRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theNotifyLevelRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString thePacketBundlingSizeRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString thePreferLocalFomModulesRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theProcessingModelRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theProcessUnknownUpdatesForDiscoveryRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theReceiveToleranceRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theReconnectEnabledRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theResignResponseEnabledRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theResponseIntervalRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theReuseLogFileRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theReuseReleasedObjectHandlesRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theRouteToAllByDefaultRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theRidConsistencyCheckingRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theRtiExecLogFileNameRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theRtiExecPerformsLicensingRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theRtiExecReconnectPauseRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theRtiForwarderLogFileNameRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theSaveRestoreDirectoryRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theSaveRestoreTimeoutRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theSaveTransientMessagesRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theSendDiscoveredClassRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theSharedMemExecLogFileNameRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theSharedMemoryMgrMaxWaitRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theSharedMemoryModeRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theSharedMemoryNameRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theSharedMemoryQueueLengthRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theSingleCallbackPerTickRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theSocketReceiveBufferSizeRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theSmartForwardingLevelRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theSocketSendBufferSizeRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theStrictFomCheckingRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theStrictNameReservationRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theStrictHLA1516eAttributeOwnershipUnavailableCallbackRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theWaitIOPeriodForBundlingRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theTcpBufferSizeRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theTcpCompressionLevelRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theTcpForwarderAddrRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theTcpNoDelayRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theThrowExceptionForDisabledServiceRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theThrowExceptionOnConcurrentAccessRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theThrowExceptionCallNotAllowedFromWithinCallbackRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theEnableWarningsForDisabledServicesRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theTickFavorsNetworkRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theTimeMgmtRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theTransmitDelayRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theTransmitLaggardLBTSRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theTransmitRateRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theUdpCompressionLevelRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theUdpPortRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theTcpPortRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theUse32BitsForValueSizeRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theUseBusyWaitForTickMinMaxRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theUseRandomNumberForFedHandleRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theUseRtiExecRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theMomVerboseLevelRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theNextEventRequestAndRetractServiceEnabledRidName
 The strings that represent the RID parameter groups RID Parameter names.
static const MAKRti::DtString theDefaultIpv4DestAddr
 Default destination address strings for IPv4 and IPv6.
static const MAKRti::DtString theDefaultIpv6DestAddr
 Default destination address strings for IPv4 and IPv6.
static const MAKRti::DtString theDefaultIpv4MinChannelAddr
 DDM channel addresses to be used if none are specified in the RID.
static const MAKRti::DtString theDefaultIpv4MaxChannelAddr
 DDM channel addresses to be used if none are specified in the RID.
static const MAKRti::DtString theDefaultIpv6MinChannelAddr
 DDM channel addresses to be used if none are specified in the RID.
static const MAKRti::DtString theDefaultIpv6MaxChannelAddr
 DDM channel addresses to be used if none are specified in the RID.
static const MAKRti::DtString theUseTheDefaultChannelAddrStr
 DDM channel addresses to be used if none are specified in the RID.
 autoProvideSwitch
 RID Parameters Declarations.
setAutoProvideSwitch conveyProducingFederateSwitch
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch 		attributeRelevanceAdvisorySwitch
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch 		interactionRelevanceAdvisorySwitch
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch 		exceptionReportingSwitch
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch 		addressDelay
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay 		allProvideUpdateRequestsDelayed
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed 		bestEffortSendRetryWaitUsec
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec 		errorChecking
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking 		crcCheckFedFile
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile 		ddmFixedGridFilename
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename 		defaultTimeImplementation
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation 		deleteOrphans
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation
setDeleteOrphans 		detachNotifyLevelFromStdOut
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation
setDeleteOrphans
setDetachNotifyLevelFromStdOut 		discoveryMsgBundlingDelay
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation
setDeleteOrphans
setDetachNotifyLevelFromStdOut
setDiscoveryMsgBundlingDelay 		distributedUdpForwarderMode
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation
setDeleteOrphans
setDetachNotifyLevelFromStdOut
setDiscoveryMsgBundlingDelay
setDistributedUdpForwarderMode 		distributeFedFile
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation
setDeleteOrphans
setDetachNotifyLevelFromStdOut
setDiscoveryMsgBundlingDelay
setDistributedUdpForwarderMode
setDistributeFedFile 		dualTransmitFirstInteractionRegions
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation
setDeleteOrphans
setDetachNotifyLevelFromStdOut
setDiscoveryMsgBundlingDelay
setDistributedUdpForwarderMode
setDistributeFedFile
setDualTransmitFirstInteractionRegions 		dumpRid
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation
setDeleteOrphans
setDetachNotifyLevelFromStdOut
setDiscoveryMsgBundlingDelay
setDistributedUdpForwarderMode
setDistributeFedFile
setDualTransmitFirstInteractionRegions
setDumpRid 		enableBestEffortSendRetry
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation
setDeleteOrphans
setDetachNotifyLevelFromStdOut
setDiscoveryMsgBundlingDelay
setDistributedUdpForwarderMode
setDistributeFedFile
setDualTransmitFirstInteractionRegions
setDumpRid
setEnableBestEffortSendRetry 		enableFederateHeartbeat
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation
setDeleteOrphans
setDetachNotifyLevelFromStdOut
setDiscoveryMsgBundlingDelay
setDistributedUdpForwarderMode
setDistributeFedFile
setDualTransmitFirstInteractionRegions
setDumpRid
setEnableBestEffortSendRetry
setEnableFederateHeartbeat 		enableFomBackwardsCompatibility
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation
setDeleteOrphans
setDetachNotifyLevelFromStdOut
setDiscoveryMsgBundlingDelay
setDistributedUdpForwarderMode
setDistributeFedFile
setDualTransmitFirstInteractionRegions
setDumpRid
setEnableBestEffortSendRetry
setEnableFederateHeartbeat
setEnableFomBackwardsCompatibility 		enableMessageThrottling
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation
setDeleteOrphans
setDetachNotifyLevelFromStdOut
setDiscoveryMsgBundlingDelay
setDistributedUdpForwarderMode
setDistributeFedFile
setDualTransmitFirstInteractionRegions
setDumpRid
setEnableBestEffortSendRetry
setEnableFederateHeartbeat
setEnableFomBackwardsCompatibility
setEnableMessageThrottling 		lrcNetworkStatisticsMonitoringEnabled
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation
setDeleteOrphans
setDetachNotifyLevelFromStdOut
setDiscoveryMsgBundlingDelay
setDistributedUdpForwarderMode
setDistributeFedFile
setDualTransmitFirstInteractionRegions
setDumpRid
setEnableBestEffortSendRetry
setEnableFederateHeartbeat
setEnableFomBackwardsCompatibility
setEnableMessageThrottling
setLrcNetworkStatisticsMonitoringEnabled 		enablePacketBundling
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation
setDeleteOrphans
setDetachNotifyLevelFromStdOut
setDiscoveryMsgBundlingDelay
setDistributedUdpForwarderMode
setDistributeFedFile
setDualTransmitFirstInteractionRegions
setDumpRid
setEnableBestEffortSendRetry
setEnableFederateHeartbeat
setEnableFomBackwardsCompatibility
setEnableMessageThrottling
setLrcNetworkStatisticsMonitoringEnabled
setEnablePacketBundling 		enableSharedMemoryExecEventLog
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation
setDeleteOrphans
setDetachNotifyLevelFromStdOut
setDiscoveryMsgBundlingDelay
setDistributedUdpForwarderMode
setDistributeFedFile
setDualTransmitFirstInteractionRegions
setDumpRid
setEnableBestEffortSendRetry
setEnableFederateHeartbeat
setEnableFomBackwardsCompatibility
setEnableMessageThrottling
setLrcNetworkStatisticsMonitoringEnabled
setEnablePacketBundling
setEnableSharedMemoryExecEventLog 		isTcpSmartForwardingEnabled
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation
setDeleteOrphans
setDetachNotifyLevelFromStdOut
setDiscoveryMsgBundlingDelay
setDistributedUdpForwarderMode
setDistributeFedFile
setDualTransmitFirstInteractionRegions
setDumpRid
setEnableBestEffortSendRetry
setEnableFederateHeartbeat
setEnableFomBackwardsCompatibility
setEnableMessageThrottling
setLrcNetworkStatisticsMonitoringEnabled
setEnablePacketBundling
setEnableSharedMemoryExecEventLog
setTcpSmartForwardingEnabled 		isUdpSmartForwardingEnabled
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation
setDeleteOrphans
setDetachNotifyLevelFromStdOut
setDiscoveryMsgBundlingDelay
setDistributedUdpForwarderMode
setDistributeFedFile
setDualTransmitFirstInteractionRegions
setDumpRid
setEnableBestEffortSendRetry
setEnableFederateHeartbeat
setEnableFomBackwardsCompatibility
setEnableMessageThrottling
setLrcNetworkStatisticsMonitoringEnabled
setEnablePacketBundling
setEnableSharedMemoryExecEventLog
setTcpSmartForwardingEnabled
setUdpSmartForwardingEnabled 		execMcastDiscoveryDelay
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation
setDeleteOrphans
setDetachNotifyLevelFromStdOut
setDiscoveryMsgBundlingDelay
setDistributedUdpForwarderMode
setDistributeFedFile
setDualTransmitFirstInteractionRegions
setDumpRid
setEnableBestEffortSendRetry
setEnableFederateHeartbeat
setEnableFomBackwardsCompatibility
setEnableMessageThrottling
setLrcNetworkStatisticsMonitoringEnabled
setEnablePacketBundling
setEnableSharedMemoryExecEventLog
setTcpSmartForwardingEnabled
setUdpSmartForwardingEnabled
setExecMcastDiscoveryDelay 		federateHeartbeatInterval
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation
setDeleteOrphans
setDetachNotifyLevelFromStdOut
setDiscoveryMsgBundlingDelay
setDistributedUdpForwarderMode
setDistributeFedFile
setDualTransmitFirstInteractionRegions
setDumpRid
setEnableBestEffortSendRetry
setEnableFederateHeartbeat
setEnableFomBackwardsCompatibility
setEnableMessageThrottling
setLrcNetworkStatisticsMonitoringEnabled
setEnablePacketBundling
setEnableSharedMemoryExecEventLog
setTcpSmartForwardingEnabled
setUdpSmartForwardingEnabled
setExecMcastDiscoveryDelay
setFederateHeartbeatInterval 		federateTimeoutInterval
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation
setDeleteOrphans
setDetachNotifyLevelFromStdOut
setDiscoveryMsgBundlingDelay
setDistributedUdpForwarderMode
setDistributeFedFile
setDualTransmitFirstInteractionRegions
setDumpRid
setEnableBestEffortSendRetry
setEnableFederateHeartbeat
setEnableFomBackwardsCompatibility
setEnableMessageThrottling
setLrcNetworkStatisticsMonitoringEnabled
setEnablePacketBundling
setEnableSharedMemoryExecEventLog
setTcpSmartForwardingEnabled
setUdpSmartForwardingEnabled
setExecMcastDiscoveryDelay
setFederateHeartbeatInterval
setFederateTimeoutInterval 		fomDataTransportTypeControl
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation
setDeleteOrphans
setDetachNotifyLevelFromStdOut
setDiscoveryMsgBundlingDelay
setDistributedUdpForwarderMode
setDistributeFedFile
setDualTransmitFirstInteractionRegions
setDumpRid
setEnableBestEffortSendRetry
setEnableFederateHeartbeat
setEnableFomBackwardsCompatibility
setEnableMessageThrottling
setLrcNetworkStatisticsMonitoringEnabled
setEnablePacketBundling
setEnableSharedMemoryExecEventLog
setTcpSmartForwardingEnabled
setUdpSmartForwardingEnabled
setExecMcastDiscoveryDelay
setFederateHeartbeatInterval
setFederateTimeoutInterval
setFomDataTransportTypeControl 		forceFullCompliance
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation
setDeleteOrphans
setDetachNotifyLevelFromStdOut
setDiscoveryMsgBundlingDelay
setDistributedUdpForwarderMode
setDistributeFedFile
setDualTransmitFirstInteractionRegions
setDumpRid
setEnableBestEffortSendRetry
setEnableFederateHeartbeat
setEnableFomBackwardsCompatibility
setEnableMessageThrottling
setLrcNetworkStatisticsMonitoringEnabled
setEnablePacketBundling
setEnableSharedMemoryExecEventLog
setTcpSmartForwardingEnabled
setUdpSmartForwardingEnabled
setExecMcastDiscoveryDelay
setFederateHeartbeatInterval
setFederateTimeoutInterval
setFomDataTransportTypeControl
setForceFullCompliance 		forwardingDelay
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation
setDeleteOrphans
setDetachNotifyLevelFromStdOut
setDiscoveryMsgBundlingDelay
setDistributedUdpForwarderMode
setDistributeFedFile
setDualTransmitFirstInteractionRegions
setDumpRid
setEnableBestEffortSendRetry
setEnableFederateHeartbeat
setEnableFomBackwardsCompatibility
setEnableMessageThrottling
setLrcNetworkStatisticsMonitoringEnabled
setEnablePacketBundling
setEnableSharedMemoryExecEventLog
setTcpSmartForwardingEnabled
setUdpSmartForwardingEnabled
setExecMcastDiscoveryDelay
setFederateHeartbeatInterval
setFederateTimeoutInterval
setFomDataTransportTypeControl
setForceFullCompliance
setForwardingDelay 		internalMsgReliableWhenUsingRtiexec
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation
setDeleteOrphans
setDetachNotifyLevelFromStdOut
setDiscoveryMsgBundlingDelay
setDistributedUdpForwarderMode
setDistributeFedFile
setDualTransmitFirstInteractionRegions
setDumpRid
setEnableBestEffortSendRetry
setEnableFederateHeartbeat
setEnableFomBackwardsCompatibility
setEnableMessageThrottling
setLrcNetworkStatisticsMonitoringEnabled
setEnablePacketBundling
setEnableSharedMemoryExecEventLog
setTcpSmartForwardingEnabled
setUdpSmartForwardingEnabled
setExecMcastDiscoveryDelay
setFederateHeartbeatInterval
setFederateTimeoutInterval
setFomDataTransportTypeControl
setForceFullCompliance
setForwardingDelay
setInternalMsgReliableWhenUsingRtiexec 		IOPeriod
 RID Parameters Declarations.
 logFileName
 RID Parameters Declarations.
setLogFileName maxChannelAddr
 RID Parameters Declarations.
setLogFileName setMaxChannelAddr maxIOCount
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount 		maxNumFederates
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates 		mcastDiscoveryAddrString
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString 		mcastDiscoveryPort
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort 		mcastTtl
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl 		momExceptionLogging
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging 		momModuleExtensionFileName
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName 		notifyLevel
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel 		preferLocalFomModules
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules 		receiveTolerance
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance 		resignResponseEnabled
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance
setResignResponseEnabled 		reuseLogFile
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance
setResignResponseEnabled
setReuseLogFile 		routeToAllByDefault
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance
setResignResponseEnabled
setReuseLogFile
setRouteToAllByDefault 		rtiExecPerformsLicensing
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance
setResignResponseEnabled
setReuseLogFile
setRouteToAllByDefault
setRtiExecPerformsLicensing 		rtiForwarderLogFileName
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance
setResignResponseEnabled
setReuseLogFile
setRouteToAllByDefault
setRtiExecPerformsLicensing
setRtiForwarderLogFileName 		saveRestoreTimeout
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance
setResignResponseEnabled
setReuseLogFile
setRouteToAllByDefault
setRtiExecPerformsLicensing
setRtiForwarderLogFileName
setSaveRestoreTimeout 		sendDiscoveredClass
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance
setResignResponseEnabled
setReuseLogFile
setRouteToAllByDefault
setRtiExecPerformsLicensing
setRtiForwarderLogFileName
setSaveRestoreTimeout
setSendDiscoveredClass 		sharedMemMgrMaxWait
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance
setResignResponseEnabled
setReuseLogFile
setRouteToAllByDefault
setRtiExecPerformsLicensing
setRtiForwarderLogFileName
setSaveRestoreTimeout
setSendDiscoveredClass
setSharedMemMgrMaxWait 		sharedMemName
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance
setResignResponseEnabled
setReuseLogFile
setRouteToAllByDefault
setRtiExecPerformsLicensing
setRtiForwarderLogFileName
setSaveRestoreTimeout
setSendDiscoveredClass
setSharedMemMgrMaxWait
setSharedMemName 		singleCallbackPerTick
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance
setResignResponseEnabled
setReuseLogFile
setRouteToAllByDefault
setRtiExecPerformsLicensing
setRtiForwarderLogFileName
setSaveRestoreTimeout
setSendDiscoveredClass
setSharedMemMgrMaxWait
setSharedMemName
setSingleCallbackPerTick 		smartForwardingLevel
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance
setResignResponseEnabled
setReuseLogFile
setRouteToAllByDefault
setRtiExecPerformsLicensing
setRtiForwarderLogFileName
setSaveRestoreTimeout
setSendDiscoveredClass
setSharedMemMgrMaxWait
setSharedMemName
setSingleCallbackPerTick
setSmartForwardingLevel 		strictFomChecking
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance
setResignResponseEnabled
setReuseLogFile
setRouteToAllByDefault
setRtiExecPerformsLicensing
setRtiForwarderLogFileName
setSaveRestoreTimeout
setSendDiscoveredClass
setSharedMemMgrMaxWait
setSharedMemName
setSingleCallbackPerTick
setSmartForwardingLevel
setStrictFomChecking 		strictHLA1516eAttributeOwnershipUnavailableCallback
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance
setResignResponseEnabled
setReuseLogFile
setRouteToAllByDefault
setRtiExecPerformsLicensing
setRtiForwarderLogFileName
setSaveRestoreTimeout
setSendDiscoveredClass
setSharedMemMgrMaxWait
setSharedMemName
setSingleCallbackPerTick
setSmartForwardingLevel
setStrictFomChecking
setStrictHLA1516eAttributeOwnershipUnavailableCallback 		tcpBufferSize
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance
setResignResponseEnabled
setReuseLogFile
setRouteToAllByDefault
setRtiExecPerformsLicensing
setRtiForwarderLogFileName
setSaveRestoreTimeout
setSendDiscoveredClass
setSharedMemMgrMaxWait
setSharedMemName
setSingleCallbackPerTick
setSmartForwardingLevel
setStrictFomChecking
setStrictHLA1516eAttributeOwnershipUnavailableCallback
setTcpBufferSize 		tcpNoDelay
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance
setResignResponseEnabled
setReuseLogFile
setRouteToAllByDefault
setRtiExecPerformsLicensing
setRtiForwarderLogFileName
setSaveRestoreTimeout
setSendDiscoveredClass
setSharedMemMgrMaxWait
setSharedMemName
setSingleCallbackPerTick
setSmartForwardingLevel
setStrictFomChecking
setStrictHLA1516eAttributeOwnershipUnavailableCallback
setTcpBufferSize setTcpNoDelay 		throwExceptionOnConcurrentAccess
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance
setResignResponseEnabled
setReuseLogFile
setRouteToAllByDefault
setRtiExecPerformsLicensing
setRtiForwarderLogFileName
setSaveRestoreTimeout
setSendDiscoveredClass
setSharedMemMgrMaxWait
setSharedMemName
setSingleCallbackPerTick
setSmartForwardingLevel
setStrictFomChecking
setStrictHLA1516eAttributeOwnershipUnavailableCallback
setTcpBufferSize setTcpNoDelay
setThrowExceptionOnConcurrentAccess 		enableWarningsForDisabledServices
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance
setResignResponseEnabled
setReuseLogFile
setRouteToAllByDefault
setRtiExecPerformsLicensing
setRtiForwarderLogFileName
setSaveRestoreTimeout
setSendDiscoveredClass
setSharedMemMgrMaxWait
setSharedMemName
setSingleCallbackPerTick
setSmartForwardingLevel
setStrictFomChecking
setStrictHLA1516eAttributeOwnershipUnavailableCallback
setTcpBufferSize setTcpNoDelay
setThrowExceptionOnConcurrentAccess
setEnableWarningsForDisabledServices 		timeMgmt
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance
setResignResponseEnabled
setReuseLogFile
setRouteToAllByDefault
setRtiExecPerformsLicensing
setRtiForwarderLogFileName
setSaveRestoreTimeout
setSendDiscoveredClass
setSharedMemMgrMaxWait
setSharedMemName
setSingleCallbackPerTick
setSmartForwardingLevel
setStrictFomChecking
setStrictHLA1516eAttributeOwnershipUnavailableCallback
setTcpBufferSize setTcpNoDelay
setThrowExceptionOnConcurrentAccess
setEnableWarningsForDisabledServices
setTimeMgmt 		transmitRate
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance
setResignResponseEnabled
setReuseLogFile
setRouteToAllByDefault
setRtiExecPerformsLicensing
setRtiForwarderLogFileName
setSaveRestoreTimeout
setSendDiscoveredClass
setSharedMemMgrMaxWait
setSharedMemName
setSingleCallbackPerTick
setSmartForwardingLevel
setStrictFomChecking
setStrictHLA1516eAttributeOwnershipUnavailableCallback
setTcpBufferSize setTcpNoDelay
setThrowExceptionOnConcurrentAccess
setEnableWarningsForDisabledServices
setTimeMgmt setTransmitRate 		udpPort
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance
setResignResponseEnabled
setReuseLogFile
setRouteToAllByDefault
setRtiExecPerformsLicensing
setRtiForwarderLogFileName
setSaveRestoreTimeout
setSendDiscoveredClass
setSharedMemMgrMaxWait
setSharedMemName
setSingleCallbackPerTick
setSmartForwardingLevel
setStrictFomChecking
setStrictHLA1516eAttributeOwnershipUnavailableCallback
setTcpBufferSize setTcpNoDelay
setThrowExceptionOnConcurrentAccess
setEnableWarningsForDisabledServices
setTimeMgmt setTransmitRate
setUdpPort 		use32BitsForValueSize
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance
setResignResponseEnabled
setReuseLogFile
setRouteToAllByDefault
setRtiExecPerformsLicensing
setRtiForwarderLogFileName
setSaveRestoreTimeout
setSendDiscoveredClass
setSharedMemMgrMaxWait
setSharedMemName
setSingleCallbackPerTick
setSmartForwardingLevel
setStrictFomChecking
setStrictHLA1516eAttributeOwnershipUnavailableCallback
setTcpBufferSize setTcpNoDelay
setThrowExceptionOnConcurrentAccess
setEnableWarningsForDisabledServices
setTimeMgmt setTransmitRate
setUdpPort
setUse32BitsForValueSize 		useRandomNumberForFedHandle
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance
setResignResponseEnabled
setReuseLogFile
setRouteToAllByDefault
setRtiExecPerformsLicensing
setRtiForwarderLogFileName
setSaveRestoreTimeout
setSendDiscoveredClass
setSharedMemMgrMaxWait
setSharedMemName
setSingleCallbackPerTick
setSmartForwardingLevel
setStrictFomChecking
setStrictHLA1516eAttributeOwnershipUnavailableCallback
setTcpBufferSize setTcpNoDelay
setThrowExceptionOnConcurrentAccess
setEnableWarningsForDisabledServices
setTimeMgmt setTransmitRate
setUdpPort
setUse32BitsForValueSize
setUseRandomNumberForFedHandle 		configureConnectionWithRid
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance
setResignResponseEnabled
setReuseLogFile
setRouteToAllByDefault
setRtiExecPerformsLicensing
setRtiForwarderLogFileName
setSaveRestoreTimeout
setSendDiscoveredClass
setSharedMemMgrMaxWait
setSharedMemName
setSingleCallbackPerTick
setSmartForwardingLevel
setStrictFomChecking
setStrictHLA1516eAttributeOwnershipUnavailableCallback
setTcpBufferSize setTcpNoDelay
setThrowExceptionOnConcurrentAccess
setEnableWarningsForDisabledServices
setTimeMgmt setTransmitRate
setUdpPort
setUse32BitsForValueSize
setUseRandomNumberForFedHandle
setConfigureConnectionWithRid 		nextEventRequestAndRetractServiceEnabled
 RID Parameters Declarations.
 DtDECLARE_BOOL_ACCESSOR_MUTATOR (thePreferRidToFedSwitchTableName, preferRidToFedSwitchTable, setPreferRidToFedSwitchTable) DtDECLARE_BOOL_ACCESSOR_MUTATOR(theAutoProvideSwitchName
 RID Parameters Declarations.
setAutoProvideSwitch DtDECLARE_BOOL_ACCESSOR_MUTATOR (theConveyRegionDesignatorSwitchName, conveyRegionDesignatorSwitch, setConveyRegionDesignatorSwitch) DtDECLARE_BOOL_ACCESSOR_MUTATOR(theConveyProducingFederateSwitchName
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch 		DtDECLARE_BOOL_ACCESSOR_MUTATOR (theAttributeScopeAdvisorySwitchName, attributeScopeAdvisorySwitch, setAttributeScopeAdvisorySwitch) DtDECLARE_BOOL_ACCESSOR_MUTATOR(theAttributeRelevanceAdvisorySwitchName
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch 		DtDECLARE_BOOL_ACCESSOR_MUTATOR (theObjectClassRelevanceAdvisorySwitchName, objectClassRelevanceAdvisorySwitch, setObjectClassRelevanceAdvisorySwitch) DtDECLARE_BOOL_ACCESSOR_MUTATOR(theInteractionRelevanceAdvisorySwitchName
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch 		DtDECLARE_BOOL_ACCESSOR_MUTATOR (theServiceReportingSwitchName, serviceReportingSwitch, setServiceReportingSwitch) DtDECLARE_BOOL_ACCESSOR_MUTATOR(theExceptionReportingSwitchName
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch 		DtDECLARE_BOOL_ACCESSOR_MUTATOR (theDelaySubscriptionEvaluationSwitchName, delaySubscriptionEvaluationSwitch, setDelaySubscriptionEvaluationSwitch) DtDECLARE_FLOAT_ACCESSOR_MUTATOR(theAddressDelayRidName
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay 		DtDECLARE_FLOAT_ACCESSOR_MUTATOR (theAutoProvideDelayRidName, autoProvideDelay, setAutoProvideDelay) DtDECLARE_BOOL_ACCESSOR_MUTATOR(theAllProvideUpdateRequestsDelayedRidName
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed 		DtDECLARE_INT_ACCESSOR_MUTATOR (theBestEffortSendRetriesRidName, bestEffortSendRetries, setBestEffortSendRetries) DtDECLARE_INT_ACCESSOR_MUTATOR(theBestEffortSendRetryWaitUsecRidName
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec 		DtDECLARE_INT_ACCESSOR_MUTATOR (theCatchFedAmbExceptionsRidName, catchFedAmbExceptions, setCatchFedAmbExceptions) DtDECLARE_BOOL_ACCESSOR_MUTATOR(theCheckFlagRidName
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking 		DtDECLARE_INT_ACCESSOR_MUTATOR (theConveyOnlyAvailableDimensionsRidName, conveyOnlyAvailableDimensions, setConveyOnlyAvailableDimensions) DtDECLARE_BOOL_ACCESSOR_MUTATOR(theCrcCheckFedFileRidName
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile 		DtDECLARE_INT_ACCESSOR_MUTATOR (theDataDistMgmtRidName, dataDistMgmt, setDataDistMgmt) DtDECLARE_STRING_ACCESSOR_MUTATOR(theDdmFixedGridFilenameRidName
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename 		DtDECLARE_INT_ACCESSOR_MUTATOR (theDdmFixedGridRidName, ddmFixedGrid, setDdmFixedGrid) DtDECLARE_STRING_ACCESSOR_MUTATOR(theDefaultTimeImplementationRidName
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation 		DtDECLARE_STRING_ACCESSOR_MUTATOR (theDefaultFedFileRidName, defaultFedFile, setDefaultFedFile) DtDECLARE_INT_ACCESSOR_MUTATOR(theDeleteOrphansRidName
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation
setDeleteOrphans 		DtDECLARE_STRING_ACCESSOR_MUTATOR (theDestAddrStringRidName, destAddrString, setDestAddrString) DtDECLARE_INT_ACCESSOR_MUTATOR(theDetachNotifyLevelFromStdOutRidName
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation
setDeleteOrphans
setDetachNotifyLevelFromStdOut 		DtDECLARE_INT_ACCESSOR_MUTATOR (theDisableUnlicensedForTwoRidName, disableUnlicensedForTwo, setDisableUnlicensedForTwo) DtDECLARE_FLOAT_ACCESSOR_MUTATOR(theDiscoveryMsgBundlingDelayRidName
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation
setDeleteOrphans
setDetachNotifyLevelFromStdOut
setDiscoveryMsgBundlingDelay 		DtDECLARE_INT_ACCESSOR_MUTATOR (theDistributedForwarderPortRidName, distributedForwarderPort, setDistributedForwarderPort) DtDECLARE_INT_ACCESSOR_MUTATOR(theDistributedUdpForwarderModeRidName
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation
setDeleteOrphans
setDetachNotifyLevelFromStdOut
setDiscoveryMsgBundlingDelay
setDistributedUdpForwarderMode 		DtDECLARE_INT_ACCESSOR_MUTATOR (theDistributeFedFileAsynchronouslyRidName, distributeFedFileAsynchronously, setDistributeFedFileAsynchronously) DtDECLARE_INT_ACCESSOR_MUTATOR(theDistributeFedFileRidName
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation
setDeleteOrphans
setDetachNotifyLevelFromStdOut
setDiscoveryMsgBundlingDelay
setDistributedUdpForwarderMode
setDistributeFedFile 		DtDECLARE_BOOL_ACCESSOR_MUTATOR (theFullFedFileDistributionName, fullFedFileDistribution, setFullFedFileDistribution) DtDECLARE_INT_ACCESSOR_MUTATOR(theDualTransmitFirstInteractionRegionsRidName
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation
setDeleteOrphans
setDetachNotifyLevelFromStdOut
setDiscoveryMsgBundlingDelay
setDistributedUdpForwarderMode
setDistributeFedFile
setDualTransmitFirstInteractionRegions 		DtDECLARE_INT_ACCESSOR_MUTATOR (theDumpFedRidName, dumpFed, setDumpFed) DtDECLARE_INT_ACCESSOR_MUTATOR(theDumpRidRidName
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation
setDeleteOrphans
setDetachNotifyLevelFromStdOut
setDiscoveryMsgBundlingDelay
setDistributedUdpForwarderMode
setDistributeFedFile
setDualTransmitFirstInteractionRegions
setDumpRid 		DtDECLARE_BOOL_ACCESSOR_MUTATOR (theAutomaticNameReserveEnabledRidName, automaticNameReserveEnabled, setAutomaticNameReserveEnabled) DtDECLARE_BOOL_ACCESSOR_MUTATOR(theEnableBestEffortSendRetryRidName
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation
setDeleteOrphans
setDetachNotifyLevelFromStdOut
setDiscoveryMsgBundlingDelay
setDistributedUdpForwarderMode
setDistributeFedFile
setDualTransmitFirstInteractionRegions
setDumpRid
setEnableBestEffortSendRetry 		DtDECLARE_BOOL_ACCESSOR_MUTATOR (theEnableCheckVersionRidName, enableCheckVersion, setEnableCheckVersion) DtDECLARE_BOOL_ACCESSOR_MUTATOR(theEnableFederateHeartbeatRidName
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation
setDeleteOrphans
setDetachNotifyLevelFromStdOut
setDiscoveryMsgBundlingDelay
setDistributedUdpForwarderMode
setDistributeFedFile
setDualTransmitFirstInteractionRegions
setDumpRid
setEnableBestEffortSendRetry
setEnableFederateHeartbeat 		DtDECLARE_BOOL_ACCESSOR_MUTATOR (theEnableFedexMsgRoutingRidName, enableFedexMsgRouting, setEnableFedexMsgRouting) DtDECLARE_BOOL_ACCESSOR_MUTATOR(theEnableFomBackwardsCompatibilityRidName
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation
setDeleteOrphans
setDetachNotifyLevelFromStdOut
setDiscoveryMsgBundlingDelay
setDistributedUdpForwarderMode
setDistributeFedFile
setDualTransmitFirstInteractionRegions
setDumpRid
setEnableBestEffortSendRetry
setEnableFederateHeartbeat
setEnableFomBackwardsCompatibility 		DtDECLARE_BOOL_ACCESSOR_MUTATOR (theEnableHlaObjectNamePrefixRidName, enableHlaObjectNamePrefix, setEnableHlaObjectNamePrefix) DtDECLARE_BOOL_ACCESSOR_MUTATOR(theEnableMessageThrottlingRidName
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation
setDeleteOrphans
setDetachNotifyLevelFromStdOut
setDiscoveryMsgBundlingDelay
setDistributedUdpForwarderMode
setDistributeFedFile
setDualTransmitFirstInteractionRegions
setDumpRid
setEnableBestEffortSendRetry
setEnableFederateHeartbeat
setEnableFomBackwardsCompatibility
setEnableMessageThrottling 		DtDECLARE_BOOL_ACCESSOR_MUTATOR (theEnableNameReservationRidName, enableNameReservation, setEnableNameReservation) DtDECLARE_BOOL_ACCESSOR_MUTATOR(theEnableLRCNetworkStatisticsMonitoringRidName
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation
setDeleteOrphans
setDetachNotifyLevelFromStdOut
setDiscoveryMsgBundlingDelay
setDistributedUdpForwarderMode
setDistributeFedFile
setDualTransmitFirstInteractionRegions
setDumpRid
setEnableBestEffortSendRetry
setEnableFederateHeartbeat
setEnableFomBackwardsCompatibility
setEnableMessageThrottling
setLrcNetworkStatisticsMonitoringEnabled 		DtDECLARE_BOOL_ACCESSOR_MUTATOR (theEnableNetworkTestingRidName, enableNetworkTesting, setEnableNetworkTesting) DtDECLARE_BOOL_ACCESSOR_MUTATOR(theEnablePacketBundlingRidName
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation
setDeleteOrphans
setDetachNotifyLevelFromStdOut
setDiscoveryMsgBundlingDelay
setDistributedUdpForwarderMode
setDistributeFedFile
setDualTransmitFirstInteractionRegions
setDumpRid
setEnableBestEffortSendRetry
setEnableFederateHeartbeat
setEnableFomBackwardsCompatibility
setEnableMessageThrottling
setLrcNetworkStatisticsMonitoringEnabled
setEnablePacketBundling 		DtDECLARE_BOOL_ACCESSOR_MUTATOR (theEnableSaveRestoreWhenUsingRtiexecRidName, enableSaveRestoreWhenUsingRtiexec, setEnableSaveRestoreWhenUsingRtiexec) DtDECLARE_BOOL_ACCESSOR_MUTATOR(theEnableSharedMemoryExecEventLogRidName
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation
setDeleteOrphans
setDetachNotifyLevelFromStdOut
setDiscoveryMsgBundlingDelay
setDistributedUdpForwarderMode
setDistributeFedFile
setDualTransmitFirstInteractionRegions
setDumpRid
setEnableBestEffortSendRetry
setEnableFederateHeartbeat
setEnableFomBackwardsCompatibility
setEnableMessageThrottling
setLrcNetworkStatisticsMonitoringEnabled
setEnablePacketBundling
setEnableSharedMemoryExecEventLog 		DtDECLARE_BOOL_ACCESSOR_MUTATOR (theEnableTcpCompressionRidName, isTcpCompressionEnabled, setTcpCompressionEnabled) DtDECLARE_BOOL_ACCESSOR_MUTATOR(theEnableTcpSmartForwardingRidName
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation
setDeleteOrphans
setDetachNotifyLevelFromStdOut
setDiscoveryMsgBundlingDelay
setDistributedUdpForwarderMode
setDistributeFedFile
setDualTransmitFirstInteractionRegions
setDumpRid
setEnableBestEffortSendRetry
setEnableFederateHeartbeat
setEnableFomBackwardsCompatibility
setEnableMessageThrottling
setLrcNetworkStatisticsMonitoringEnabled
setEnablePacketBundling
setEnableSharedMemoryExecEventLog
setTcpSmartForwardingEnabled 		DtDECLARE_BOOL_ACCESSOR_MUTATOR (theEnableUdpCompressionRidName, isUdpCompressionEnabled, setUdpCompressionEnabled) DtDECLARE_BOOL_ACCESSOR_MUTATOR(theEnableUdpSmartForwardingRidName
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation
setDeleteOrphans
setDetachNotifyLevelFromStdOut
setDiscoveryMsgBundlingDelay
setDistributedUdpForwarderMode
setDistributeFedFile
setDualTransmitFirstInteractionRegions
setDumpRid
setEnableBestEffortSendRetry
setEnableFederateHeartbeat
setEnableFomBackwardsCompatibility
setEnableMessageThrottling
setLrcNetworkStatisticsMonitoringEnabled
setEnablePacketBundling
setEnableSharedMemoryExecEventLog
setTcpSmartForwardingEnabled
setUdpSmartForwardingEnabled 		DtDECLARE_BOOL_ACCESSOR_MUTATOR (theEnableUpdateRateReductionRidName, enableUpdateRateReduction, setEnableUpdateRateReduction) DtDECLARE_FLOAT_ACCESSOR_MUTATOR(theExecMcastDiscoveryDelayRidName
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation
setDeleteOrphans
setDetachNotifyLevelFromStdOut
setDiscoveryMsgBundlingDelay
setDistributedUdpForwarderMode
setDistributeFedFile
setDualTransmitFirstInteractionRegions
setDumpRid
setEnableBestEffortSendRetry
setEnableFederateHeartbeat
setEnableFomBackwardsCompatibility
setEnableMessageThrottling
setLrcNetworkStatisticsMonitoringEnabled
setEnablePacketBundling
setEnableSharedMemoryExecEventLog
setTcpSmartForwardingEnabled
setUdpSmartForwardingEnabled
setExecMcastDiscoveryDelay 		DtDECLARE_INT_ACCESSOR_MUTATOR (theExtend13and1516interopRidName, extend13and1516interop, setExtend13and1516interop) DtDECLARE_FLOAT_ACCESSOR_MUTATOR(theFederateHeartbeatIntervalRidName
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation
setDeleteOrphans
setDetachNotifyLevelFromStdOut
setDiscoveryMsgBundlingDelay
setDistributedUdpForwarderMode
setDistributeFedFile
setDualTransmitFirstInteractionRegions
setDumpRid
setEnableBestEffortSendRetry
setEnableFederateHeartbeat
setEnableFomBackwardsCompatibility
setEnableMessageThrottling
setLrcNetworkStatisticsMonitoringEnabled
setEnablePacketBundling
setEnableSharedMemoryExecEventLog
setTcpSmartForwardingEnabled
setUdpSmartForwardingEnabled
setExecMcastDiscoveryDelay
setFederateHeartbeatInterval 		DtDECLARE_INT_ACCESSOR_MUTATOR (theFederateReconnectPauseRidName, federateReconnectPause, setFederateReconnectPause) DtDECLARE_FLOAT_ACCESSOR_MUTATOR(theFederateTimeoutIntervalRidName
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation
setDeleteOrphans
setDetachNotifyLevelFromStdOut
setDiscoveryMsgBundlingDelay
setDistributedUdpForwarderMode
setDistributeFedFile
setDualTransmitFirstInteractionRegions
setDumpRid
setEnableBestEffortSendRetry
setEnableFederateHeartbeat
setEnableFomBackwardsCompatibility
setEnableMessageThrottling
setLrcNetworkStatisticsMonitoringEnabled
setEnablePacketBundling
setEnableSharedMemoryExecEventLog
setTcpSmartForwardingEnabled
setUdpSmartForwardingEnabled
setExecMcastDiscoveryDelay
setFederateHeartbeatInterval
setFederateTimeoutInterval 		DtDECLARE_FLOAT_ACCESSOR_MUTATOR (theFlushTimeoutIntervalRidName, flushTimeoutInterval, setFlushTimeoutInterval) DtDECLARE_INT_ACCESSOR_MUTATOR(theFomDataTransportTypeControlRidName
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation
setDeleteOrphans
setDetachNotifyLevelFromStdOut
setDiscoveryMsgBundlingDelay
setDistributedUdpForwarderMode
setDistributeFedFile
setDualTransmitFirstInteractionRegions
setDumpRid
setEnableBestEffortSendRetry
setEnableFederateHeartbeat
setEnableFomBackwardsCompatibility
setEnableMessageThrottling
setLrcNetworkStatisticsMonitoringEnabled
setEnablePacketBundling
setEnableSharedMemoryExecEventLog
setTcpSmartForwardingEnabled
setUdpSmartForwardingEnabled
setExecMcastDiscoveryDelay
setFederateHeartbeatInterval
setFederateTimeoutInterval
setFomDataTransportTypeControl 		DtDECLARE_INT_ACCESSOR_MUTATOR (theFomModuleMergingRidName, fomModuleMerging, setFomModuleMerging) DtDECLARE_INT_ACCESSOR_MUTATOR(theForceFullComplianceRidName
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation
setDeleteOrphans
setDetachNotifyLevelFromStdOut
setDiscoveryMsgBundlingDelay
setDistributedUdpForwarderMode
setDistributeFedFile
setDualTransmitFirstInteractionRegions
setDumpRid
setEnableBestEffortSendRetry
setEnableFederateHeartbeat
setEnableFomBackwardsCompatibility
setEnableMessageThrottling
setLrcNetworkStatisticsMonitoringEnabled
setEnablePacketBundling
setEnableSharedMemoryExecEventLog
setTcpSmartForwardingEnabled
setUdpSmartForwardingEnabled
setExecMcastDiscoveryDelay
setFederateHeartbeatInterval
setFederateTimeoutInterval
setFomDataTransportTypeControl
setForceFullCompliance 		DtDECLARE_INT_ACCESSOR_MUTATOR (theForceUnlicensedForTwoRidName, forceUnlicensedForTwo, setForceUnlicensedForTwo) DtDECLARE_FLOAT_ACCESSOR_MUTATOR(theForwardingDelayRidName
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation
setDeleteOrphans
setDetachNotifyLevelFromStdOut
setDiscoveryMsgBundlingDelay
setDistributedUdpForwarderMode
setDistributeFedFile
setDualTransmitFirstInteractionRegions
setDumpRid
setEnableBestEffortSendRetry
setEnableFederateHeartbeat
setEnableFomBackwardsCompatibility
setEnableMessageThrottling
setLrcNetworkStatisticsMonitoringEnabled
setEnablePacketBundling
setEnableSharedMemoryExecEventLog
setTcpSmartForwardingEnabled
setUdpSmartForwardingEnabled
setExecMcastDiscoveryDelay
setFederateHeartbeatInterval
setFederateTimeoutInterval
setFomDataTransportTypeControl
setForceFullCompliance
setForwardingDelay 		DtDECLARE_STRING_ACCESSOR_MUTATOR (theImplicitDdmParamsFileRidName, implicitDdmParamsFile, setImplicitDdmParamsFile) DtDECLARE_INT_ACCESSOR_MUTATOR(theInternalMsgReliableWhenUsingRtiexecRidName
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation
setDeleteOrphans
setDetachNotifyLevelFromStdOut
setDiscoveryMsgBundlingDelay
setDistributedUdpForwarderMode
setDistributeFedFile
setDualTransmitFirstInteractionRegions
setDumpRid
setEnableBestEffortSendRetry
setEnableFederateHeartbeat
setEnableFomBackwardsCompatibility
setEnableMessageThrottling
setLrcNetworkStatisticsMonitoringEnabled
setEnablePacketBundling
setEnableSharedMemoryExecEventLog
setTcpSmartForwardingEnabled
setUdpSmartForwardingEnabled
setExecMcastDiscoveryDelay
setFederateHeartbeatInterval
setFederateTimeoutInterval
setFomDataTransportTypeControl
setForceFullCompliance
setForwardingDelay
setInternalMsgReliableWhenUsingRtiexec 		DtDECLARE_INT_ACCESSOR_MUTATOR (theInternalMsgSmartForwardingWhenUsingRtiexecRidName, internalMsgSmartForwardingWhenUsingRtiexec, setInternalMsgSmartForwardingWhenUsingRtiexec) DtDECLARE_FLOAT_ACCESSOR_MUTATOR(theIOPeriodRidName
 RID Parameters Declarations.
setAutoProvideSwitch
setConveyProducingFederateSwitch
setAttributeRelevanceAdvisorySwitch
setInteractionRelevanceAdvisorySwitch
setExceptionReportingSwitch
setAddressDelay
setAllProvideUpdateRequestsDelayed
setBestEffortSendRetryWaitUsec
setErrorChecking
setCrcCheckFedFile
setDdmFixedGridFilename
setDefaultTimeImplementation
setDeleteOrphans
setDetachNotifyLevelFromStdOut
setDiscoveryMsgBundlingDelay
setDistributedUdpForwarderMode
setDistributeFedFile
setDualTransmitFirstInteractionRegions
setDumpRid
setEnableBestEffortSendRetry
setEnableFederateHeartbeat
setEnableFomBackwardsCompatibility
setEnableMessageThrottling
setLrcNetworkStatisticsMonitoringEnabled
setEnablePacketBundling
setEnableSharedMemoryExecEventLog
setTcpSmartForwardingEnabled
setUdpSmartForwardingEnabled
setExecMcastDiscoveryDelay
setFederateHeartbeatInterval
setFederateTimeoutInterval
setFomDataTransportTypeControl
setForceFullCompliance
setForwardingDelay
setInternalMsgReliableWhenUsingRtiexec
setIOPeriod 		DtDECLARE_STRING_ACCESSOR_MUTATOR (theLogFileDirectoryName, logFileDirectory, setLogFileDirectoryName)
 RID Parameters Declarations.
 DtDECLARE_FLOAT_ACCESSOR_MUTATOR (theTickWaitPeriodRidName, tickWaitPeriod, setTickWaitPeriod) DtDECLARE_STRING_ACCESSOR_MUTATOR(theLogFileNameRidName
 RID Parameters Declarations.
setLogFileName DtDECLARE_FLOAT_ACCESSOR_MUTATOR (theLrcMcastDiscoveryDelayRidName, lrcMcastDiscoveryDelay, setLrcMcastDiscoveryDelay) DtDECLARE_STRING_ACCESSOR_MUTATOR(theMaxChannelAddrRidName
 RID Parameters Declarations.
setLogFileName setMaxChannelAddr DtDECLARE_INT_ACCESSOR_MUTATOR (theMaxForwarderQueueRidName, maxForwarderQueue, setMaxForwarderQueue) DtDECLARE_INT_ACCESSOR_MUTATOR(theMaxIOCountRidName
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount 		DtDECLARE_INT_ACCESSOR_MUTATOR (theMaxIOQueueRidName, maxIOQueue, setMaxIOQueue) DtDECLARE_INT_ACCESSOR_MUTATOR(theMaxNumFederatesRidName
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates 		DtDECLARE_INT_ACCESSOR_MUTATOR (theMaxUdpPacketSizeRidName, maxUdpPacketSize, setMaxUdpPacketSize) DtDECLARE_STRING_ACCESSOR_MUTATOR(theMcastDiscoveryAddrStringRidName
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString 		DtDECLARE_BOOL_ACCESSOR_MUTATOR (theMcastDiscoveryEnabledRidName, mcastDiscoveryEnabled, setMcastDiscoveryEnabled) DtDECLARE_INT_ACCESSOR_MUTATOR(theMcastDiscoveryPortRidName
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort 		DtDECLARE_INT_ACCESSOR_MUTATOR (theMcastDiscoveryTriesRidName, mcastDiscoveryTries, setMcastDiscoveryTries) DtDECLARE_INT_ACCESSOR_MUTATOR(theMcastTtlRidName
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl 		DtDECLARE_STRING_ACCESSOR_MUTATOR (theMinChannelAddrRidName, minChannelAddr, setMinChannelAddr) DtDECLARE_INT_ACCESSOR_MUTATOR(theMomExceptionLoggingRidName
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging 		DtDECLARE_INT_ACCESSOR_MUTATOR (theMomFederateUpdateIntervalRidName, momFederateUpdateInterval, setMomFederateUpdateInterval) DtDECLARE_STRING_ACCESSOR_MUTATOR(theMomModuleExtensionFileNameRidName
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName 		DtDECLARE_INT_ACCESSOR_MUTATOR (theMomServiceAvailableRidName, momServiceAvailable, setMomServiceAvailable) DtDECLARE_INT_ACCESSOR_MUTATOR(theNotifyLevelRidName
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel 		DtDECLARE_INT_ACCESSOR_MUTATOR (thePacketBundlingSizeRidName, packetBundlingSize, setPacketBundlingeSize) DtDECLARE_BOOL_ACCESSOR_MUTATOR(thePreferLocalFomModulesRidName
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules 		DtDECLARE_INT_ACCESSOR_MUTATOR (theProcessUnknownUpdatesForDiscoveryRidName, processUnknownUpdatesForDiscovery, setProcessUnknownUpdatesForDiscovery) DtDECLARE_FLOAT_ACCESSOR_MUTATOR(theReceiveToleranceRidName
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance 		DtDECLARE_BOOL_ACCESSOR_MUTATOR (theReconnectEnabledRidName, reconnectEnabled, setReconnectEnabled) DtDECLARE_BOOL_ACCESSOR_MUTATOR(theResignResponseEnabledRidName
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance
setResignResponseEnabled 		DtDECLARE_FLOAT_ACCESSOR_MUTATOR (theResponseIntervalRidName, responseInterval, setResponseInterval) DtDECLARE_INT_ACCESSOR_MUTATOR(theReuseLogFileRidName
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance
setResignResponseEnabled
setReuseLogFile 		DtDECLARE_INT_ACCESSOR_MUTATOR (theReuseReleasedObjectHandlesRidName, reuseReleasedObjectHandles, setReuseReleasedObjectHandles) DtDECLARE_BOOL_ACCESSOR_MUTATOR(theRouteToAllByDefaultRidName
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance
setResignResponseEnabled
setReuseLogFile
setRouteToAllByDefault 		DtDECLARE_STRING_ACCESSOR_MUTATOR (theRtiExecLogFileNameRidName, rtiExecLogFileName, setRtiExecLogFileName) DtDECLARE_INT_ACCESSOR_MUTATOR(theRtiExecPerformsLicensingRidName
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance
setResignResponseEnabled
setReuseLogFile
setRouteToAllByDefault
setRtiExecPerformsLicensing 		DtDECLARE_INT_ACCESSOR_MUTATOR (theRtiExecReconnectPauseRidName, rtiExecReconnectPause, setRtiExecReconnectPause) DtDECLARE_STRING_ACCESSOR_MUTATOR(theRtiForwarderLogFileNameRidName
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance
setResignResponseEnabled
setReuseLogFile
setRouteToAllByDefault
setRtiExecPerformsLicensing
setRtiForwarderLogFileName 		DtDECLARE_STRING_ACCESSOR_MUTATOR (theSaveRestoreDirectoryRidName, saveRestoreDirectory, setSaveRestoreDirectory) DtDECLARE_INT_ACCESSOR_MUTATOR(theSaveRestoreTimeoutRidName
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance
setResignResponseEnabled
setReuseLogFile
setRouteToAllByDefault
setRtiExecPerformsLicensing
setRtiForwarderLogFileName
setSaveRestoreTimeout 		DtDECLARE_INT_ACCESSOR_MUTATOR (theSaveTransientMessagesRidName, saveTransientMessages, setSaveTransientMessages) DtDECLARE_INT_ACCESSOR_MUTATOR(theSendDiscoveredClassRidName
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance
setResignResponseEnabled
setReuseLogFile
setRouteToAllByDefault
setRtiExecPerformsLicensing
setRtiForwarderLogFileName
setSaveRestoreTimeout
setSendDiscoveredClass 		DtDECLARE_STRING_ACCESSOR_MUTATOR (theSharedMemExecLogFileNameRidName, sharedMemExecLogFileName, setSharedMemExecLogFileName) DtDECLARE_FLOAT_ACCESSOR_MUTATOR(theSharedMemoryMgrMaxWaitRidName
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance
setResignResponseEnabled
setReuseLogFile
setRouteToAllByDefault
setRtiExecPerformsLicensing
setRtiForwarderLogFileName
setSaveRestoreTimeout
setSendDiscoveredClass
setSharedMemMgrMaxWait 		DtDECLARE_INT_ACCESSOR_MUTATOR (theSharedMemoryModeRidName, useSharedMem, setSharedMemoryMode) DtDECLARE_STRING_ACCESSOR_MUTATOR(theSharedMemoryNameRidName
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance
setResignResponseEnabled
setReuseLogFile
setRouteToAllByDefault
setRtiExecPerformsLicensing
setRtiForwarderLogFileName
setSaveRestoreTimeout
setSendDiscoveredClass
setSharedMemMgrMaxWait
setSharedMemName 		DtDECLARE_INT_ACCESSOR_MUTATOR (theSharedMemoryQueueLengthRidName, sharedMemLength, setSharedMemLength) DtDECLARE_INT_ACCESSOR_MUTATOR(theSingleCallbackPerTickRidName
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance
setResignResponseEnabled
setReuseLogFile
setRouteToAllByDefault
setRtiExecPerformsLicensing
setRtiForwarderLogFileName
setSaveRestoreTimeout
setSendDiscoveredClass
setSharedMemMgrMaxWait
setSharedMemName
setSingleCallbackPerTick 		DtDECLARE_INT_ACCESSOR_MUTATOR (theSocketReceiveBufferSizeRidName, socketReceiveBufferSize, setSocketReceiveBufferSize) DtDECLARE_INT_ACCESSOR_MUTATOR(theSmartForwardingLevelRidName
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance
setResignResponseEnabled
setReuseLogFile
setRouteToAllByDefault
setRtiExecPerformsLicensing
setRtiForwarderLogFileName
setSaveRestoreTimeout
setSendDiscoveredClass
setSharedMemMgrMaxWait
setSharedMemName
setSingleCallbackPerTick
setSmartForwardingLevel 		DtDECLARE_INT_ACCESSOR_MUTATOR (theSocketSendBufferSizeRidName, socketSendBufferSize, setSocketSendBufferSize) DtDECLARE_INT_ACCESSOR_MUTATOR(theStrictFomCheckingRidName
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance
setResignResponseEnabled
setReuseLogFile
setRouteToAllByDefault
setRtiExecPerformsLicensing
setRtiForwarderLogFileName
setSaveRestoreTimeout
setSendDiscoveredClass
setSharedMemMgrMaxWait
setSharedMemName
setSingleCallbackPerTick
setSmartForwardingLevel
setStrictFomChecking 		DtDECLARE_INT_ACCESSOR_MUTATOR (theStrictNameReservationRidName, strictNameReservation, setStrictNameReservation) DtDECLARE_BOOL_ACCESSOR_MUTATOR(theStrictHLA1516eAttributeOwnershipUnavailableCallbackRidName
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance
setResignResponseEnabled
setReuseLogFile
setRouteToAllByDefault
setRtiExecPerformsLicensing
setRtiForwarderLogFileName
setSaveRestoreTimeout
setSendDiscoveredClass
setSharedMemMgrMaxWait
setSharedMemName
setSingleCallbackPerTick
setSmartForwardingLevel
setStrictFomChecking
setStrictHLA1516eAttributeOwnershipUnavailableCallback 		DtDECLARE_BOOL_ACCESSOR_MUTATOR (theWaitIOPeriodForBundlingRidName, waitIOPeriodForBundling, setWaitIOPeriodForBundling) DtDECLARE_INT_ACCESSOR_MUTATOR(theTcpBufferSizeRidName
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance
setResignResponseEnabled
setReuseLogFile
setRouteToAllByDefault
setRtiExecPerformsLicensing
setRtiForwarderLogFileName
setSaveRestoreTimeout
setSendDiscoveredClass
setSharedMemMgrMaxWait
setSharedMemName
setSingleCallbackPerTick
setSmartForwardingLevel
setStrictFomChecking
setStrictHLA1516eAttributeOwnershipUnavailableCallback
setTcpBufferSize 		DtDECLARE_INT_ACCESSOR_MUTATOR (theTcpCompressionLevelRidName, tcpCompressionLevel, setTcpCompressionLevel) DtDECLARE_INT_ACCESSOR_MUTATOR(theTcpNoDelayRidName
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance
setResignResponseEnabled
setReuseLogFile
setRouteToAllByDefault
setRtiExecPerformsLicensing
setRtiForwarderLogFileName
setSaveRestoreTimeout
setSendDiscoveredClass
setSharedMemMgrMaxWait
setSharedMemName
setSingleCallbackPerTick
setSmartForwardingLevel
setStrictFomChecking
setStrictHLA1516eAttributeOwnershipUnavailableCallback
setTcpBufferSize setTcpNoDelay 		DtDECLARE_BOOL_ACCESSOR_MUTATOR (theThrowExceptionForDisabledServiceRidName, throwExceptionForDisabledService, setThrowExceptionForDisabledService) DtDECLARE_BOOL_ACCESSOR_MUTATOR(theThrowExceptionOnConcurrentAccessRidName
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance
setResignResponseEnabled
setReuseLogFile
setRouteToAllByDefault
setRtiExecPerformsLicensing
setRtiForwarderLogFileName
setSaveRestoreTimeout
setSendDiscoveredClass
setSharedMemMgrMaxWait
setSharedMemName
setSingleCallbackPerTick
setSmartForwardingLevel
setStrictFomChecking
setStrictHLA1516eAttributeOwnershipUnavailableCallback
setTcpBufferSize setTcpNoDelay
setThrowExceptionOnConcurrentAccess 		DtDECLARE_BOOL_ACCESSOR_MUTATOR (theThrowExceptionCallNotAllowedFromWithinCallbackRidName, throwExceptionCallNotAllowedFromWithinCallback, setThrowExceptionCallNotAllowedFromWithinCallback) DtDECLARE_BOOL_ACCESSOR_MUTATOR(theEnableWarningsForDisabledServicesRidName
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance
setResignResponseEnabled
setReuseLogFile
setRouteToAllByDefault
setRtiExecPerformsLicensing
setRtiForwarderLogFileName
setSaveRestoreTimeout
setSendDiscoveredClass
setSharedMemMgrMaxWait
setSharedMemName
setSingleCallbackPerTick
setSmartForwardingLevel
setStrictFomChecking
setStrictHLA1516eAttributeOwnershipUnavailableCallback
setTcpBufferSize setTcpNoDelay
setThrowExceptionOnConcurrentAccess
setEnableWarningsForDisabledServices 		DtDECLARE_INT_ACCESSOR_MUTATOR (theTickFavorsNetworkRidName, tickFavorsNetwork, setTickFavorsNetwork) DtDECLARE_INT_ACCESSOR_MUTATOR(theTimeMgmtRidName
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance
setResignResponseEnabled
setReuseLogFile
setRouteToAllByDefault
setRtiExecPerformsLicensing
setRtiForwarderLogFileName
setSaveRestoreTimeout
setSendDiscoveredClass
setSharedMemMgrMaxWait
setSharedMemName
setSingleCallbackPerTick
setSmartForwardingLevel
setStrictFomChecking
setStrictHLA1516eAttributeOwnershipUnavailableCallback
setTcpBufferSize setTcpNoDelay
setThrowExceptionOnConcurrentAccess
setEnableWarningsForDisabledServices
setTimeMgmt 		DtDECLARE_FLOAT_ACCESSOR_MUTATOR (theTransmitDelayRidName, transmitDelay, setTransmitDelay) DtDECLARE_FLOAT_ACCESSOR_MUTATOR(theTransmitRateRidName
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance
setResignResponseEnabled
setReuseLogFile
setRouteToAllByDefault
setRtiExecPerformsLicensing
setRtiForwarderLogFileName
setSaveRestoreTimeout
setSendDiscoveredClass
setSharedMemMgrMaxWait
setSharedMemName
setSingleCallbackPerTick
setSmartForwardingLevel
setStrictFomChecking
setStrictHLA1516eAttributeOwnershipUnavailableCallback
setTcpBufferSize setTcpNoDelay
setThrowExceptionOnConcurrentAccess
setEnableWarningsForDisabledServices
setTimeMgmt setTransmitRate 		DtDECLARE_INT_ACCESSOR_MUTATOR (theUdpCompressionLevelRidName, udpCompressionLevel, setUdpCompressionLevel) DtDECLARE_INT_ACCESSOR_MUTATOR(theUdpPortRidName
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance
setResignResponseEnabled
setReuseLogFile
setRouteToAllByDefault
setRtiExecPerformsLicensing
setRtiForwarderLogFileName
setSaveRestoreTimeout
setSendDiscoveredClass
setSharedMemMgrMaxWait
setSharedMemName
setSingleCallbackPerTick
setSmartForwardingLevel
setStrictFomChecking
setStrictHLA1516eAttributeOwnershipUnavailableCallback
setTcpBufferSize setTcpNoDelay
setThrowExceptionOnConcurrentAccess
setEnableWarningsForDisabledServices
setTimeMgmt setTransmitRate
setUdpPort 		DtDECLARE_INT_ACCESSOR_MUTATOR (theTcpPortRidName, tcpPort, setTcpPort) DtDECLARE_INT_ACCESSOR_MUTATOR(theUse32BitsForValueSizeRidName
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance
setResignResponseEnabled
setReuseLogFile
setRouteToAllByDefault
setRtiExecPerformsLicensing
setRtiForwarderLogFileName
setSaveRestoreTimeout
setSendDiscoveredClass
setSharedMemMgrMaxWait
setSharedMemName
setSingleCallbackPerTick
setSmartForwardingLevel
setStrictFomChecking
setStrictHLA1516eAttributeOwnershipUnavailableCallback
setTcpBufferSize setTcpNoDelay
setThrowExceptionOnConcurrentAccess
setEnableWarningsForDisabledServices
setTimeMgmt setTransmitRate
setUdpPort
setUse32BitsForValueSize 		DtDECLARE_INT_ACCESSOR_MUTATOR (theUseBusyWaitForTickMinMaxRidName, useBusyWaitForTickMinMax, setUseBusyWaitForTickMinMax) DtDECLARE_BOOL_ACCESSOR_MUTATOR(theUseRandomNumberForFedHandleRidName
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance
setResignResponseEnabled
setReuseLogFile
setRouteToAllByDefault
setRtiExecPerformsLicensing
setRtiForwarderLogFileName
setSaveRestoreTimeout
setSendDiscoveredClass
setSharedMemMgrMaxWait
setSharedMemName
setSingleCallbackPerTick
setSmartForwardingLevel
setStrictFomChecking
setStrictHLA1516eAttributeOwnershipUnavailableCallback
setTcpBufferSize setTcpNoDelay
setThrowExceptionOnConcurrentAccess
setEnableWarningsForDisabledServices
setTimeMgmt setTransmitRate
setUdpPort
setUse32BitsForValueSize
setUseRandomNumberForFedHandle 		DtDECLARE_BOOL_ACCESSOR_MUTATOR (theUseRtiExecRidName, useRtiExec, setUseRtiExec) DtDECLARE_BOOL_ACCESSOR_MUTATOR(theConfigureConnectionWithRidRidName
 RID Parameters Declarations.
setLogFileName
setMaxChannelAddr
setMaxIOCount
setMaxNumFederates
setMcastDiscoveryAddrString
setMcastDiscoveryPort
setMcastTtl
setMomExceptionLogging
setMomModuleExtensionFileName
setNotifyLevel
setPreferLocalFomModules
setReceiveTolerance
setResignResponseEnabled
setReuseLogFile
setRouteToAllByDefault
setRtiExecPerformsLicensing
setRtiForwarderLogFileName
setSaveRestoreTimeout
setSendDiscoveredClass
setSharedMemMgrMaxWait
setSharedMemName
setSingleCallbackPerTick
setSmartForwardingLevel
setStrictFomChecking
setStrictHLA1516eAttributeOwnershipUnavailableCallback
setTcpBufferSize setTcpNoDelay
setThrowExceptionOnConcurrentAccess
setEnableWarningsForDisabledServices
setTimeMgmt setTransmitRate
setUdpPort
setUse32BitsForValueSize
setUseRandomNumberForFedHandle
setConfigureConnectionWithRid 		DtDECLARE_INT_ACCESSOR_MUTATOR (theMomVerboseLevelRidName, momVerboseLevel, setMomVerboseLevel) DtDECLARE_BOOL_ACCESSOR_MUTATOR(theNextEventRequestAndRetractServiceEnabledRidName
 RID Parameters Declarations.

Detailed Description

This class manages the RTI's start-up configuration using both MTL variables and functions.

Member Typedef Documentation

typedef std::vector< DtDMFilterStruct > DtRIDParameters::DtDMFilterList
typedef std::set< DtInetAddrAndPort > DtRIDParameters::DtInetAddrAndPortSet
typedef std::vector< MAKRti::DtInetAddr > DtRIDParameters::DtInetAddrList
typedef std::vector< MAKRti::DtString > DtRIDParameters::DtStringList

Member Enumeration Documentation

enum DtRIDParameters::DtAsynchronousIOModeEnum

0 == no Async IO 1 == Asynchronous IO, (same as old parameter RTI_asynchronousIO ) 2 == Asynchronous IO + Asynchronous Message Processing (same as old parameter RTI_asynchronousMessageProcessing) 3 == Asynchronous IO + Asynchronous Callbacks ( same as old parameter RTI_asynchronousCallbacks )

Enumerator:
DtSynchronousMode
DtAsynchronousMode
DtAsynchronousProcessMessage
DtAsynchronousCallbacks
enum DtRIDParameters::DtFomDataTransportTypeControlEnum

0 == ( Default ) FOM data is sent either best effort or reliable based on FOM settings.

(default, forced setting when using forceFullCompliance is enabled) 1 == All FOM data is sent best effort. (forced setting when using lightweight configurations) 2 == All FOM data is sent reliable. (only permitted when RTI_configureConnectionWithRid is 1)

Enumerator:
DtFomTransportTypeUseFomSettings
DtFomTransportTypeUseBestEffort
DtFomTransportTypeUseReliable
enum DtRIDParameters::DtInconsistentRidReaction

0 == no RID consistency checking.

1 == The RTI should correct inconsistent variables 2 == The RTI should throw an exception if the rid is inconsistent.

Enumerator:
DtInconsistentRidDoNothing
DtInconsistentRidAutoCorrect
DtInconsistentRidThrowException
enum DtRIDParameters::DtRidFileSearchStatus

Status of RID file search.

Enumerator:
DtUnInitialized
DtRidFileFound
DtCreationArgRidFileNotFound
DtRtiRidFileAndRtiConfigFileNotFound
DtRtiRidFileFileNotFound
DtRtiConfigFileNotFound
DtBadRelativePath
DtNoRidFileSpecified

Constructor & Destructor Documentation

DtRIDParameters::DtRIDParameters ( int  highestNotifyLevelDuringInitialization = MAKRti::DtNlFatal,
const std::vector< MAKRti::DtString > *const  ridExpressions = NULL,
bool  enableRtiExec = false
)

constructors

DtRIDParameters::DtRIDParameters ( const MAKRti::DtString &  expression)
DtRIDParameters::DtRIDParameters ( const DtRIDParameters &  orig)
virtual DtRIDParameters::~DtRIDParameters ( )
virtual

destructor

Member Function Documentation

virtual void DtRIDParameters::accessorError ( const char *  parameterName) const
protectedvirtual

Handle error when accessor fails.

void DtRIDParameters::applyAmbassadorCreationArguments ( )
protected

rti1516::createRtiAmbassador has a std::set<wstring> argument which can be used to apply lisp changes to the rid as if the changes were in the rid file itself.

virtual void DtRIDParameters::applySpecifiedRidParameters ( const MAKRti::DtString &  expression)
virtual

Apply the RID initialization expression to this RID.

int DtRIDParameters::asynchronousCallbacks ( ) const

deprecated.

Declaring as a private rid variable.

int DtRIDParameters::asynchronousIO ( ) const

deprecated.

Declaring as a private rid variable.

int DtRIDParameters::asynchronousProcessMessage ( ) const

deprecated.

Declaring as a private rid variable.

bool DtRIDParameters::buildDdmGrid ( MAKRti::DtFilename const &  gridConfigFilename)
protected

Read and process DDM fixed grid definition Returns false when gridConfigFilename not found.

void DtRIDParameters::buildDmFilterList ( bool  forObjectsElseInteractions)
protected

read all DM filters for Objects or Interactions from lisp env.

void DtRIDParameters::buildFomModulesList ( )
protected

read all additional Fom Modules specified from lisp env.

void DtRIDParameters::checkUseRtiExec ( bool  forceEnableRtiExec)
protected

If forceEnableRtiExec is enabled ( we were instantiated from an ExecThread ) then make sure useRtiExec is set.

void DtRIDParameters::clearAncillaryForwarderGroupAddrs ( )

Clear the list of ancillary forwarder group addresses.

virtual MAKRti::DtString DtRIDParameters::compareRIDParameters ( DtRIDParameters *  ridParam) const
virtual

Compare the given RID with this one.

Returns a string containing the names of parameters that don't match.

virtual void DtRIDParameters::compareRIDParameters ( DtRIDParameters *  ridParam,
std::map< MAKRti::DtString, int > &  intMap,
std::map< MAKRti::DtString, float > &  floatMap,
std::map< MAKRti::DtString, MAKRti::DtString > &  stringMap
) const
virtual

Compare the given RID with this one.

Populates maps with names and values of parameters that don't match.

int DtRIDParameters::compliantSettingForParameter ( const MAKRti::DtString &  parameter) const

What is the required compliance setting for this parameter.

void DtRIDParameters::copyRidParameters ( const DtRIDParameters &  orig)
protected

copyRidParameters is used by the DtRIDParameters copy constructor to deep copy the DtRidParameter objects.

const DtStringList& DtRIDParameters::createFomModules ( ) const

Return the list of create FOM modules.

virtual int* DtRIDParameters::createRidParameter ( MAKRti::DtString  label,
MAKRti::DtString  name,
MAKRti::DtString  toolTip,
MAKRti::DtString  parent,
int  defaultValue,
bool  editable,
MAKRti::DtString  range
)
protectedvirtual

createRidParameter will take and store all of the elements required of a DtRidParameter object, in three forms (int, MAKRti::DtString, and float).

createRidParameter will allocate memory for the variable and return the address allocated. DtRidParameter objects are expected to be valid for the lifetime of the DtRIDParameters object, ~DtRIDParameters calls destroyAllRidParameters and frees the allocated memory. copyRidParameters is used by the DtRIDParameters copy constructor to deep copy the DtRidParameter objects.

virtual MAKRti::DtString* DtRIDParameters::createRidParameter ( MAKRti::DtString  label,
MAKRti::DtString  name,
MAKRti::DtString  toolTip,
MAKRti::DtString  parent,
MAKRti::DtString  defaultValue,
bool  editable,
MAKRti::DtString  range
)
protectedvirtual

createRidParameter will take and store all of the elements required of a DtRidParameter object, in three forms (int, MAKRti::DtString, and float).

createRidParameter will allocate memory for the variable and return the address allocated. DtRidParameter objects are expected to be valid for the lifetime of the DtRIDParameters object, ~DtRIDParameters calls destroyAllRidParameters and frees the allocated memory. copyRidParameters is used by the DtRIDParameters copy constructor to deep copy the DtRidParameter objects.

virtual float* DtRIDParameters::createRidParameter ( MAKRti::DtString  label,
MAKRti::DtString  name,
MAKRti::DtString  toolTip,
MAKRti::DtString  parent,
float  defaultValue,
bool  editable,
MAKRti::DtString  range
)
protectedvirtual

createRidParameter will take and store all of the elements required of a DtRidParameter object, in three forms (int, MAKRti::DtString, and float).

createRidParameter will allocate memory for the variable and return the address allocated. DtRidParameter objects are expected to be valid for the lifetime of the DtRIDParameters object, ~DtRIDParameters calls destroyAllRidParameters and frees the allocated memory. copyRidParameters is used by the DtRIDParameters copy constructor to deep copy the DtRidParameter objects.

MAKRti::DtInetAddr DtRIDParameters::destAddr ( ) const

Get the destination address as a network address (versus string representation).

const DtInetAddrList& DtRIDParameters::destinationAddrs ( ) const

Return the list of additional destination addresses.

void DtRIDParameters::destroyAllRidParameters ( )
protected

destroy all RidParameter objects.

RidParameter objects are expected to be valid for the lifetime of the DtRIDParameter object.

void DtRIDParameters::destroyRidParameter ( MAKRti::DtString  name)
protected

destroy a single RidParameter object.

RidParameter objects are expected to be valid for the lifetime of the DtRIDParameter object.

MAKRti::DtInetAddr DtRIDParameters::DMMulticastGroupInterface ( MAKRti::DtInetAddr  multicastGroup) const

Get the network interface for the specified DM Multicast address (returns networkInterfaceAddr() if no interface was specified)

DtRIDParameters::DtDECLARE_BOOL_ACCESSOR_MUTATOR ( thePreferRidToFedSwitchTableName  ,
preferRidToFedSwitchTable  ,
setPreferRidToFedSwitchTable
)

RID Parameters Declarations.

setAutoProvideSwitch DtRIDParameters::DtDECLARE_BOOL_ACCESSOR_MUTATOR ( theConveyRegionDesignatorSwitchName  ,
conveyRegionDesignatorSwitch  ,
setConveyRegionDesignatorSwitch
)

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch DtRIDParameters::DtDECLARE_BOOL_ACCESSOR_MUTATOR ( theAttributeScopeAdvisorySwitchName  ,
attributeScopeAdvisorySwitch  ,
setAttributeScopeAdvisorySwitch
)

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch DtRIDParameters::DtDECLARE_BOOL_ACCESSOR_MUTATOR ( theObjectClassRelevanceAdvisorySwitchName  ,
objectClassRelevanceAdvisorySwitch  ,
setObjectClassRelevanceAdvisorySwitch
)

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch DtRIDParameters::DtDECLARE_BOOL_ACCESSOR_MUTATOR ( theServiceReportingSwitchName  ,
serviceReportingSwitch  ,
setServiceReportingSwitch
)

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch DtRIDParameters::DtDECLARE_BOOL_ACCESSOR_MUTATOR ( theDelaySubscriptionEvaluationSwitchName  ,
delaySubscriptionEvaluationSwitch  ,
setDelaySubscriptionEvaluationSwitch
)

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation setDeleteOrphans setDetachNotifyLevelFromStdOut setDiscoveryMsgBundlingDelay setDistributedUdpForwarderMode setDistributeFedFile DtRIDParameters::DtDECLARE_BOOL_ACCESSOR_MUTATOR ( theFullFedFileDistributionName  ,
fullFedFileDistribution  ,
setFullFedFileDistribution
)

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation setDeleteOrphans setDetachNotifyLevelFromStdOut setDiscoveryMsgBundlingDelay setDistributedUdpForwarderMode setDistributeFedFile setDualTransmitFirstInteractionRegions setDumpRid DtRIDParameters::DtDECLARE_BOOL_ACCESSOR_MUTATOR ( theAutomaticNameReserveEnabledRidName  ,
automaticNameReserveEnabled  ,
setAutomaticNameReserveEnabled
)

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation setDeleteOrphans setDetachNotifyLevelFromStdOut setDiscoveryMsgBundlingDelay setDistributedUdpForwarderMode setDistributeFedFile setDualTransmitFirstInteractionRegions setDumpRid setEnableBestEffortSendRetry DtRIDParameters::DtDECLARE_BOOL_ACCESSOR_MUTATOR ( theEnableCheckVersionRidName  ,
enableCheckVersion  ,
setEnableCheckVersion
)

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation setDeleteOrphans setDetachNotifyLevelFromStdOut setDiscoveryMsgBundlingDelay setDistributedUdpForwarderMode setDistributeFedFile setDualTransmitFirstInteractionRegions setDumpRid setEnableBestEffortSendRetry setEnableFederateHeartbeat DtRIDParameters::DtDECLARE_BOOL_ACCESSOR_MUTATOR ( theEnableFedexMsgRoutingRidName  ,
enableFedexMsgRouting  ,
setEnableFedexMsgRouting
)

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation setDeleteOrphans setDetachNotifyLevelFromStdOut setDiscoveryMsgBundlingDelay setDistributedUdpForwarderMode setDistributeFedFile setDualTransmitFirstInteractionRegions setDumpRid setEnableBestEffortSendRetry setEnableFederateHeartbeat setEnableFomBackwardsCompatibility DtRIDParameters::DtDECLARE_BOOL_ACCESSOR_MUTATOR ( theEnableHlaObjectNamePrefixRidName  ,
enableHlaObjectNamePrefix  ,
setEnableHlaObjectNamePrefix
)

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation setDeleteOrphans setDetachNotifyLevelFromStdOut setDiscoveryMsgBundlingDelay setDistributedUdpForwarderMode setDistributeFedFile setDualTransmitFirstInteractionRegions setDumpRid setEnableBestEffortSendRetry setEnableFederateHeartbeat setEnableFomBackwardsCompatibility setEnableMessageThrottling DtRIDParameters::DtDECLARE_BOOL_ACCESSOR_MUTATOR ( theEnableNameReservationRidName  ,
enableNameReservation  ,
setEnableNameReservation
)

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation setDeleteOrphans setDetachNotifyLevelFromStdOut setDiscoveryMsgBundlingDelay setDistributedUdpForwarderMode setDistributeFedFile setDualTransmitFirstInteractionRegions setDumpRid setEnableBestEffortSendRetry setEnableFederateHeartbeat setEnableFomBackwardsCompatibility setEnableMessageThrottling setLrcNetworkStatisticsMonitoringEnabled DtRIDParameters::DtDECLARE_BOOL_ACCESSOR_MUTATOR ( theEnableNetworkTestingRidName  ,
enableNetworkTesting  ,
setEnableNetworkTesting
)

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation setDeleteOrphans setDetachNotifyLevelFromStdOut setDiscoveryMsgBundlingDelay setDistributedUdpForwarderMode setDistributeFedFile setDualTransmitFirstInteractionRegions setDumpRid setEnableBestEffortSendRetry setEnableFederateHeartbeat setEnableFomBackwardsCompatibility setEnableMessageThrottling setLrcNetworkStatisticsMonitoringEnabled setEnablePacketBundling DtRIDParameters::DtDECLARE_BOOL_ACCESSOR_MUTATOR ( theEnableSaveRestoreWhenUsingRtiexecRidName  ,
enableSaveRestoreWhenUsingRtiexec  ,
setEnableSaveRestoreWhenUsingRtiexec
)

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation setDeleteOrphans setDetachNotifyLevelFromStdOut setDiscoveryMsgBundlingDelay setDistributedUdpForwarderMode setDistributeFedFile setDualTransmitFirstInteractionRegions setDumpRid setEnableBestEffortSendRetry setEnableFederateHeartbeat setEnableFomBackwardsCompatibility setEnableMessageThrottling setLrcNetworkStatisticsMonitoringEnabled setEnablePacketBundling setEnableSharedMemoryExecEventLog DtRIDParameters::DtDECLARE_BOOL_ACCESSOR_MUTATOR ( theEnableTcpCompressionRidName  ,
isTcpCompressionEnabled  ,
setTcpCompressionEnabled
)

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation setDeleteOrphans setDetachNotifyLevelFromStdOut setDiscoveryMsgBundlingDelay setDistributedUdpForwarderMode setDistributeFedFile setDualTransmitFirstInteractionRegions setDumpRid setEnableBestEffortSendRetry setEnableFederateHeartbeat setEnableFomBackwardsCompatibility setEnableMessageThrottling setLrcNetworkStatisticsMonitoringEnabled setEnablePacketBundling setEnableSharedMemoryExecEventLog setTcpSmartForwardingEnabled DtRIDParameters::DtDECLARE_BOOL_ACCESSOR_MUTATOR ( theEnableUdpCompressionRidName  ,
isUdpCompressionEnabled  ,
setUdpCompressionEnabled
)

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation setDeleteOrphans setDetachNotifyLevelFromStdOut setDiscoveryMsgBundlingDelay setDistributedUdpForwarderMode setDistributeFedFile setDualTransmitFirstInteractionRegions setDumpRid setEnableBestEffortSendRetry setEnableFederateHeartbeat setEnableFomBackwardsCompatibility setEnableMessageThrottling setLrcNetworkStatisticsMonitoringEnabled setEnablePacketBundling setEnableSharedMemoryExecEventLog setTcpSmartForwardingEnabled setUdpSmartForwardingEnabled DtRIDParameters::DtDECLARE_BOOL_ACCESSOR_MUTATOR ( theEnableUpdateRateReductionRidName  ,
enableUpdateRateReduction  ,
setEnableUpdateRateReduction
)

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString DtRIDParameters::DtDECLARE_BOOL_ACCESSOR_MUTATOR ( theMcastDiscoveryEnabledRidName  ,
mcastDiscoveryEnabled  ,
setMcastDiscoveryEnabled
)

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance DtRIDParameters::DtDECLARE_BOOL_ACCESSOR_MUTATOR ( theReconnectEnabledRidName  ,
reconnectEnabled  ,
setReconnectEnabled
)

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance setResignResponseEnabled setReuseLogFile setRouteToAllByDefault setRtiExecPerformsLicensing setRtiForwarderLogFileName setSaveRestoreTimeout setSendDiscoveredClass setSharedMemMgrMaxWait setSharedMemName setSingleCallbackPerTick setSmartForwardingLevel setStrictFomChecking setStrictHLA1516eAttributeOwnershipUnavailableCallback DtRIDParameters::DtDECLARE_BOOL_ACCESSOR_MUTATOR ( theWaitIOPeriodForBundlingRidName  ,
waitIOPeriodForBundling  ,
setWaitIOPeriodForBundling
)

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance setResignResponseEnabled setReuseLogFile setRouteToAllByDefault setRtiExecPerformsLicensing setRtiForwarderLogFileName setSaveRestoreTimeout setSendDiscoveredClass setSharedMemMgrMaxWait setSharedMemName setSingleCallbackPerTick setSmartForwardingLevel setStrictFomChecking setStrictHLA1516eAttributeOwnershipUnavailableCallback setTcpBufferSize setTcpNoDelay DtRIDParameters::DtDECLARE_BOOL_ACCESSOR_MUTATOR ( theThrowExceptionForDisabledServiceRidName  ,
throwExceptionForDisabledService  ,
setThrowExceptionForDisabledService
)

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance setResignResponseEnabled setReuseLogFile setRouteToAllByDefault setRtiExecPerformsLicensing setRtiForwarderLogFileName setSaveRestoreTimeout setSendDiscoveredClass setSharedMemMgrMaxWait setSharedMemName setSingleCallbackPerTick setSmartForwardingLevel setStrictFomChecking setStrictHLA1516eAttributeOwnershipUnavailableCallback setTcpBufferSize setTcpNoDelay setThrowExceptionOnConcurrentAccess DtRIDParameters::DtDECLARE_BOOL_ACCESSOR_MUTATOR ( theThrowExceptionCallNotAllowedFromWithinCallbackRidName  ,
throwExceptionCallNotAllowedFromWithinCallback  ,
setThrowExceptionCallNotAllowedFromWithinCallback
)

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance setResignResponseEnabled setReuseLogFile setRouteToAllByDefault setRtiExecPerformsLicensing setRtiForwarderLogFileName setSaveRestoreTimeout setSendDiscoveredClass setSharedMemMgrMaxWait setSharedMemName setSingleCallbackPerTick setSmartForwardingLevel setStrictFomChecking setStrictHLA1516eAttributeOwnershipUnavailableCallback setTcpBufferSize setTcpNoDelay setThrowExceptionOnConcurrentAccess setEnableWarningsForDisabledServices setTimeMgmt setTransmitRate setUdpPort setUse32BitsForValueSize setUseRandomNumberForFedHandle DtRIDParameters::DtDECLARE_BOOL_ACCESSOR_MUTATOR ( theUseRtiExecRidName  ,
useRtiExec  ,
setUseRtiExec
)

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay DtRIDParameters::DtDECLARE_FLOAT_ACCESSOR_MUTATOR ( theAutoProvideDelayRidName  ,
autoProvideDelay  ,
setAutoProvideDelay
)

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation setDeleteOrphans setDetachNotifyLevelFromStdOut setDiscoveryMsgBundlingDelay setDistributedUdpForwarderMode setDistributeFedFile setDualTransmitFirstInteractionRegions setDumpRid setEnableBestEffortSendRetry setEnableFederateHeartbeat setEnableFomBackwardsCompatibility setEnableMessageThrottling setLrcNetworkStatisticsMonitoringEnabled setEnablePacketBundling setEnableSharedMemoryExecEventLog setTcpSmartForwardingEnabled setUdpSmartForwardingEnabled setExecMcastDiscoveryDelay setFederateHeartbeatInterval setFederateTimeoutInterval DtRIDParameters::DtDECLARE_FLOAT_ACCESSOR_MUTATOR ( theFlushTimeoutIntervalRidName  ,
flushTimeoutInterval  ,
setFlushTimeoutInterval
)

RID Parameters Declarations.

DtRIDParameters::DtDECLARE_FLOAT_ACCESSOR_MUTATOR ( theTickWaitPeriodRidName  ,
tickWaitPeriod  ,
setTickWaitPeriod
)

RID Parameters Declarations.

setLogFileName DtRIDParameters::DtDECLARE_FLOAT_ACCESSOR_MUTATOR ( theLrcMcastDiscoveryDelayRidName  ,
lrcMcastDiscoveryDelay  ,
setLrcMcastDiscoveryDelay
)

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance setResignResponseEnabled DtRIDParameters::DtDECLARE_FLOAT_ACCESSOR_MUTATOR ( theResponseIntervalRidName  ,
responseInterval  ,
setResponseInterval
)

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance setResignResponseEnabled setReuseLogFile setRouteToAllByDefault setRtiExecPerformsLicensing setRtiForwarderLogFileName setSaveRestoreTimeout setSendDiscoveredClass setSharedMemMgrMaxWait setSharedMemName setSingleCallbackPerTick setSmartForwardingLevel setStrictFomChecking setStrictHLA1516eAttributeOwnershipUnavailableCallback setTcpBufferSize setTcpNoDelay setThrowExceptionOnConcurrentAccess setEnableWarningsForDisabledServices setTimeMgmt DtRIDParameters::DtDECLARE_FLOAT_ACCESSOR_MUTATOR ( theTransmitDelayRidName  ,
transmitDelay  ,
setTransmitDelay
)

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed DtRIDParameters::DtDECLARE_INT_ACCESSOR_MUTATOR ( theBestEffortSendRetriesRidName  ,
bestEffortSendRetries  ,
setBestEffortSendRetries
)

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec DtRIDParameters::DtDECLARE_INT_ACCESSOR_MUTATOR ( theCatchFedAmbExceptionsRidName  ,
catchFedAmbExceptions  ,
setCatchFedAmbExceptions
)

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking DtRIDParameters::DtDECLARE_INT_ACCESSOR_MUTATOR ( theConveyOnlyAvailableDimensionsRidName  ,
conveyOnlyAvailableDimensions  ,
setConveyOnlyAvailableDimensions
)

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile DtRIDParameters::DtDECLARE_INT_ACCESSOR_MUTATOR ( theDataDistMgmtRidName  ,
dataDistMgmt  ,
setDataDistMgmt
)

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename DtRIDParameters::DtDECLARE_INT_ACCESSOR_MUTATOR ( theDdmFixedGridRidName  ,
ddmFixedGrid  ,
setDdmFixedGrid
)

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation setDeleteOrphans setDetachNotifyLevelFromStdOut DtRIDParameters::DtDECLARE_INT_ACCESSOR_MUTATOR ( theDisableUnlicensedForTwoRidName  ,
disableUnlicensedForTwo  ,
setDisableUnlicensedForTwo
)

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation setDeleteOrphans setDetachNotifyLevelFromStdOut setDiscoveryMsgBundlingDelay DtRIDParameters::DtDECLARE_INT_ACCESSOR_MUTATOR ( theDistributedForwarderPortRidName  ,
distributedForwarderPort  ,
setDistributedForwarderPort
)

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation setDeleteOrphans setDetachNotifyLevelFromStdOut setDiscoveryMsgBundlingDelay setDistributedUdpForwarderMode DtRIDParameters::DtDECLARE_INT_ACCESSOR_MUTATOR ( theDistributeFedFileAsynchronouslyRidName  ,
distributeFedFileAsynchronously  ,
setDistributeFedFileAsynchronously
)

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation setDeleteOrphans setDetachNotifyLevelFromStdOut setDiscoveryMsgBundlingDelay setDistributedUdpForwarderMode setDistributeFedFile setDualTransmitFirstInteractionRegions DtRIDParameters::DtDECLARE_INT_ACCESSOR_MUTATOR ( theDumpFedRidName  ,
dumpFed  ,
setDumpFed
)

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation setDeleteOrphans setDetachNotifyLevelFromStdOut setDiscoveryMsgBundlingDelay setDistributedUdpForwarderMode setDistributeFedFile setDualTransmitFirstInteractionRegions setDumpRid setEnableBestEffortSendRetry setEnableFederateHeartbeat setEnableFomBackwardsCompatibility setEnableMessageThrottling setLrcNetworkStatisticsMonitoringEnabled setEnablePacketBundling setEnableSharedMemoryExecEventLog setTcpSmartForwardingEnabled setUdpSmartForwardingEnabled setExecMcastDiscoveryDelay DtRIDParameters::DtDECLARE_INT_ACCESSOR_MUTATOR ( theExtend13and1516interopRidName  ,
extend13and1516interop  ,
setExtend13and1516interop
)

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation setDeleteOrphans setDetachNotifyLevelFromStdOut setDiscoveryMsgBundlingDelay setDistributedUdpForwarderMode setDistributeFedFile setDualTransmitFirstInteractionRegions setDumpRid setEnableBestEffortSendRetry setEnableFederateHeartbeat setEnableFomBackwardsCompatibility setEnableMessageThrottling setLrcNetworkStatisticsMonitoringEnabled setEnablePacketBundling setEnableSharedMemoryExecEventLog setTcpSmartForwardingEnabled setUdpSmartForwardingEnabled setExecMcastDiscoveryDelay setFederateHeartbeatInterval DtRIDParameters::DtDECLARE_INT_ACCESSOR_MUTATOR ( theFederateReconnectPauseRidName  ,
federateReconnectPause  ,
setFederateReconnectPause
)

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation setDeleteOrphans setDetachNotifyLevelFromStdOut setDiscoveryMsgBundlingDelay setDistributedUdpForwarderMode setDistributeFedFile setDualTransmitFirstInteractionRegions setDumpRid setEnableBestEffortSendRetry setEnableFederateHeartbeat setEnableFomBackwardsCompatibility setEnableMessageThrottling setLrcNetworkStatisticsMonitoringEnabled setEnablePacketBundling setEnableSharedMemoryExecEventLog setTcpSmartForwardingEnabled setUdpSmartForwardingEnabled setExecMcastDiscoveryDelay setFederateHeartbeatInterval setFederateTimeoutInterval setFomDataTransportTypeControl DtRIDParameters::DtDECLARE_INT_ACCESSOR_MUTATOR ( theFomModuleMergingRidName  ,
fomModuleMerging  ,
setFomModuleMerging
)

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation setDeleteOrphans setDetachNotifyLevelFromStdOut setDiscoveryMsgBundlingDelay setDistributedUdpForwarderMode setDistributeFedFile setDualTransmitFirstInteractionRegions setDumpRid setEnableBestEffortSendRetry setEnableFederateHeartbeat setEnableFomBackwardsCompatibility setEnableMessageThrottling setLrcNetworkStatisticsMonitoringEnabled setEnablePacketBundling setEnableSharedMemoryExecEventLog setTcpSmartForwardingEnabled setUdpSmartForwardingEnabled setExecMcastDiscoveryDelay setFederateHeartbeatInterval setFederateTimeoutInterval setFomDataTransportTypeControl setForceFullCompliance DtRIDParameters::DtDECLARE_INT_ACCESSOR_MUTATOR ( theForceUnlicensedForTwoRidName  ,
forceUnlicensedForTwo  ,
setForceUnlicensedForTwo
)

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation setDeleteOrphans setDetachNotifyLevelFromStdOut setDiscoveryMsgBundlingDelay setDistributedUdpForwarderMode setDistributeFedFile setDualTransmitFirstInteractionRegions setDumpRid setEnableBestEffortSendRetry setEnableFederateHeartbeat setEnableFomBackwardsCompatibility setEnableMessageThrottling setLrcNetworkStatisticsMonitoringEnabled setEnablePacketBundling setEnableSharedMemoryExecEventLog setTcpSmartForwardingEnabled setUdpSmartForwardingEnabled setExecMcastDiscoveryDelay setFederateHeartbeatInterval setFederateTimeoutInterval setFomDataTransportTypeControl setForceFullCompliance setForwardingDelay setInternalMsgReliableWhenUsingRtiexec DtRIDParameters::DtDECLARE_INT_ACCESSOR_MUTATOR ( theInternalMsgSmartForwardingWhenUsingRtiexecRidName  ,
internalMsgSmartForwardingWhenUsingRtiexec  ,
setInternalMsgSmartForwardingWhenUsingRtiexec
)

RID Parameters Declarations.

setLogFileName setMaxChannelAddr DtRIDParameters::DtDECLARE_INT_ACCESSOR_MUTATOR ( theMaxForwarderQueueRidName  ,
maxForwarderQueue  ,
setMaxForwarderQueue
)

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount DtRIDParameters::DtDECLARE_INT_ACCESSOR_MUTATOR ( theMaxIOQueueRidName  ,
maxIOQueue  ,
setMaxIOQueue
)

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates DtRIDParameters::DtDECLARE_INT_ACCESSOR_MUTATOR ( theMaxUdpPacketSizeRidName  ,
maxUdpPacketSize  ,
setMaxUdpPacketSize
)

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort DtRIDParameters::DtDECLARE_INT_ACCESSOR_MUTATOR ( theMcastDiscoveryTriesRidName  ,
mcastDiscoveryTries  ,
setMcastDiscoveryTries
)

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging DtRIDParameters::DtDECLARE_INT_ACCESSOR_MUTATOR ( theMomFederateUpdateIntervalRidName  ,
momFederateUpdateInterval  ,
setMomFederateUpdateInterval
)

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName DtRIDParameters::DtDECLARE_INT_ACCESSOR_MUTATOR ( theMomServiceAvailableRidName  ,
momServiceAvailable  ,
setMomServiceAvailable
)

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel DtRIDParameters::DtDECLARE_INT_ACCESSOR_MUTATOR ( thePacketBundlingSizeRidName  ,
packetBundlingSize  ,
setPacketBundlingeSize
)

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules DtRIDParameters::DtDECLARE_INT_ACCESSOR_MUTATOR ( theProcessUnknownUpdatesForDiscoveryRidName  ,
processUnknownUpdatesForDiscovery  ,
setProcessUnknownUpdatesForDiscovery
)

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance setResignResponseEnabled setReuseLogFile DtRIDParameters::DtDECLARE_INT_ACCESSOR_MUTATOR ( theReuseReleasedObjectHandlesRidName  ,
reuseReleasedObjectHandles  ,
setReuseReleasedObjectHandles
)

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance setResignResponseEnabled setReuseLogFile setRouteToAllByDefault setRtiExecPerformsLicensing DtRIDParameters::DtDECLARE_INT_ACCESSOR_MUTATOR ( theRtiExecReconnectPauseRidName  ,
rtiExecReconnectPause  ,
setRtiExecReconnectPause
)

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance setResignResponseEnabled setReuseLogFile setRouteToAllByDefault setRtiExecPerformsLicensing setRtiForwarderLogFileName setSaveRestoreTimeout DtRIDParameters::DtDECLARE_INT_ACCESSOR_MUTATOR ( theSaveTransientMessagesRidName  ,
saveTransientMessages  ,
setSaveTransientMessages
)

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance setResignResponseEnabled setReuseLogFile setRouteToAllByDefault setRtiExecPerformsLicensing setRtiForwarderLogFileName setSaveRestoreTimeout setSendDiscoveredClass setSharedMemMgrMaxWait DtRIDParameters::DtDECLARE_INT_ACCESSOR_MUTATOR ( theSharedMemoryModeRidName  ,
useSharedMem  ,
setSharedMemoryMode
)

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance setResignResponseEnabled setReuseLogFile setRouteToAllByDefault setRtiExecPerformsLicensing setRtiForwarderLogFileName setSaveRestoreTimeout setSendDiscoveredClass setSharedMemMgrMaxWait setSharedMemName DtRIDParameters::DtDECLARE_INT_ACCESSOR_MUTATOR ( theSharedMemoryQueueLengthRidName  ,
sharedMemLength  ,
setSharedMemLength
)

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance setResignResponseEnabled setReuseLogFile setRouteToAllByDefault setRtiExecPerformsLicensing setRtiForwarderLogFileName setSaveRestoreTimeout setSendDiscoveredClass setSharedMemMgrMaxWait setSharedMemName setSingleCallbackPerTick DtRIDParameters::DtDECLARE_INT_ACCESSOR_MUTATOR ( theSocketReceiveBufferSizeRidName  ,
socketReceiveBufferSize  ,
setSocketReceiveBufferSize
)

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance setResignResponseEnabled setReuseLogFile setRouteToAllByDefault setRtiExecPerformsLicensing setRtiForwarderLogFileName setSaveRestoreTimeout setSendDiscoveredClass setSharedMemMgrMaxWait setSharedMemName setSingleCallbackPerTick setSmartForwardingLevel DtRIDParameters::DtDECLARE_INT_ACCESSOR_MUTATOR ( theSocketSendBufferSizeRidName  ,
socketSendBufferSize  ,
setSocketSendBufferSize
)

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance setResignResponseEnabled setReuseLogFile setRouteToAllByDefault setRtiExecPerformsLicensing setRtiForwarderLogFileName setSaveRestoreTimeout setSendDiscoveredClass setSharedMemMgrMaxWait setSharedMemName setSingleCallbackPerTick setSmartForwardingLevel setStrictFomChecking DtRIDParameters::DtDECLARE_INT_ACCESSOR_MUTATOR ( theStrictNameReservationRidName  ,
strictNameReservation  ,
setStrictNameReservation
)

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance setResignResponseEnabled setReuseLogFile setRouteToAllByDefault setRtiExecPerformsLicensing setRtiForwarderLogFileName setSaveRestoreTimeout setSendDiscoveredClass setSharedMemMgrMaxWait setSharedMemName setSingleCallbackPerTick setSmartForwardingLevel setStrictFomChecking setStrictHLA1516eAttributeOwnershipUnavailableCallback setTcpBufferSize DtRIDParameters::DtDECLARE_INT_ACCESSOR_MUTATOR ( theTcpCompressionLevelRidName  ,
tcpCompressionLevel  ,
setTcpCompressionLevel
)

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance setResignResponseEnabled setReuseLogFile setRouteToAllByDefault setRtiExecPerformsLicensing setRtiForwarderLogFileName setSaveRestoreTimeout setSendDiscoveredClass setSharedMemMgrMaxWait setSharedMemName setSingleCallbackPerTick setSmartForwardingLevel setStrictFomChecking setStrictHLA1516eAttributeOwnershipUnavailableCallback setTcpBufferSize setTcpNoDelay setThrowExceptionOnConcurrentAccess setEnableWarningsForDisabledServices DtRIDParameters::DtDECLARE_INT_ACCESSOR_MUTATOR ( theTickFavorsNetworkRidName  ,
tickFavorsNetwork  ,
setTickFavorsNetwork
)

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance setResignResponseEnabled setReuseLogFile setRouteToAllByDefault setRtiExecPerformsLicensing setRtiForwarderLogFileName setSaveRestoreTimeout setSendDiscoveredClass setSharedMemMgrMaxWait setSharedMemName setSingleCallbackPerTick setSmartForwardingLevel setStrictFomChecking setStrictHLA1516eAttributeOwnershipUnavailableCallback setTcpBufferSize setTcpNoDelay setThrowExceptionOnConcurrentAccess setEnableWarningsForDisabledServices setTimeMgmt setTransmitRate DtRIDParameters::DtDECLARE_INT_ACCESSOR_MUTATOR ( theUdpCompressionLevelRidName  ,
udpCompressionLevel  ,
setUdpCompressionLevel
)

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance setResignResponseEnabled setReuseLogFile setRouteToAllByDefault setRtiExecPerformsLicensing setRtiForwarderLogFileName setSaveRestoreTimeout setSendDiscoveredClass setSharedMemMgrMaxWait setSharedMemName setSingleCallbackPerTick setSmartForwardingLevel setStrictFomChecking setStrictHLA1516eAttributeOwnershipUnavailableCallback setTcpBufferSize setTcpNoDelay setThrowExceptionOnConcurrentAccess setEnableWarningsForDisabledServices setTimeMgmt setTransmitRate setUdpPort DtRIDParameters::DtDECLARE_INT_ACCESSOR_MUTATOR ( theTcpPortRidName  ,
tcpPort  ,
setTcpPort
)

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance setResignResponseEnabled setReuseLogFile setRouteToAllByDefault setRtiExecPerformsLicensing setRtiForwarderLogFileName setSaveRestoreTimeout setSendDiscoveredClass setSharedMemMgrMaxWait setSharedMemName setSingleCallbackPerTick setSmartForwardingLevel setStrictFomChecking setStrictHLA1516eAttributeOwnershipUnavailableCallback setTcpBufferSize setTcpNoDelay setThrowExceptionOnConcurrentAccess setEnableWarningsForDisabledServices setTimeMgmt setTransmitRate setUdpPort setUse32BitsForValueSize DtRIDParameters::DtDECLARE_INT_ACCESSOR_MUTATOR ( theUseBusyWaitForTickMinMaxRidName  ,
useBusyWaitForTickMinMax  ,
setUseBusyWaitForTickMinMax
)

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance setResignResponseEnabled setReuseLogFile setRouteToAllByDefault setRtiExecPerformsLicensing setRtiForwarderLogFileName setSaveRestoreTimeout setSendDiscoveredClass setSharedMemMgrMaxWait setSharedMemName setSingleCallbackPerTick setSmartForwardingLevel setStrictFomChecking setStrictHLA1516eAttributeOwnershipUnavailableCallback setTcpBufferSize setTcpNoDelay setThrowExceptionOnConcurrentAccess setEnableWarningsForDisabledServices setTimeMgmt setTransmitRate setUdpPort setUse32BitsForValueSize setUseRandomNumberForFedHandle setConfigureConnectionWithRid DtRIDParameters::DtDECLARE_INT_ACCESSOR_MUTATOR ( theMomVerboseLevelRidName  ,
momVerboseLevel  ,
setMomVerboseLevel
)

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation DtRIDParameters::DtDECLARE_STRING_ACCESSOR_MUTATOR ( theDefaultFedFileRidName  ,
defaultFedFile  ,
setDefaultFedFile
)

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation setDeleteOrphans DtRIDParameters::DtDECLARE_STRING_ACCESSOR_MUTATOR ( theDestAddrStringRidName  ,
destAddrString  ,
setDestAddrString
)

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation setDeleteOrphans setDetachNotifyLevelFromStdOut setDiscoveryMsgBundlingDelay setDistributedUdpForwarderMode setDistributeFedFile setDualTransmitFirstInteractionRegions setDumpRid setEnableBestEffortSendRetry setEnableFederateHeartbeat setEnableFomBackwardsCompatibility setEnableMessageThrottling setLrcNetworkStatisticsMonitoringEnabled setEnablePacketBundling setEnableSharedMemoryExecEventLog setTcpSmartForwardingEnabled setUdpSmartForwardingEnabled setExecMcastDiscoveryDelay setFederateHeartbeatInterval setFederateTimeoutInterval setFomDataTransportTypeControl setForceFullCompliance setForwardingDelay DtRIDParameters::DtDECLARE_STRING_ACCESSOR_MUTATOR ( theImplicitDdmParamsFileRidName  ,
implicitDdmParamsFile  ,
setImplicitDdmParamsFile
)

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation setDeleteOrphans setDetachNotifyLevelFromStdOut setDiscoveryMsgBundlingDelay setDistributedUdpForwarderMode setDistributeFedFile setDualTransmitFirstInteractionRegions setDumpRid setEnableBestEffortSendRetry setEnableFederateHeartbeat setEnableFomBackwardsCompatibility setEnableMessageThrottling setLrcNetworkStatisticsMonitoringEnabled setEnablePacketBundling setEnableSharedMemoryExecEventLog setTcpSmartForwardingEnabled setUdpSmartForwardingEnabled setExecMcastDiscoveryDelay setFederateHeartbeatInterval setFederateTimeoutInterval setFomDataTransportTypeControl setForceFullCompliance setForwardingDelay setInternalMsgReliableWhenUsingRtiexec setIOPeriod DtRIDParameters::DtDECLARE_STRING_ACCESSOR_MUTATOR ( theLogFileDirectoryName  ,
logFileDirectory  ,
setLogFileDirectoryName
)

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl DtRIDParameters::DtDECLARE_STRING_ACCESSOR_MUTATOR ( theMinChannelAddrRidName  ,
minChannelAddr  ,
setMinChannelAddr
)

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance setResignResponseEnabled setReuseLogFile setRouteToAllByDefault DtRIDParameters::DtDECLARE_STRING_ACCESSOR_MUTATOR ( theRtiExecLogFileNameRidName  ,
rtiExecLogFileName  ,
setRtiExecLogFileName
)

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance setResignResponseEnabled setReuseLogFile setRouteToAllByDefault setRtiExecPerformsLicensing setRtiForwarderLogFileName DtRIDParameters::DtDECLARE_STRING_ACCESSOR_MUTATOR ( theSaveRestoreDirectoryRidName  ,
saveRestoreDirectory  ,
setSaveRestoreDirectory
)

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance setResignResponseEnabled setReuseLogFile setRouteToAllByDefault setRtiExecPerformsLicensing setRtiForwarderLogFileName setSaveRestoreTimeout setSendDiscoveredClass DtRIDParameters::DtDECLARE_STRING_ACCESSOR_MUTATOR ( theSharedMemExecLogFileNameRidName  ,
sharedMemExecLogFileName  ,
setSharedMemExecLogFileName
)

RID Parameters Declarations.

int DtRIDParameters::enableBigMessage ( ) const

deprecated.

Declaring as a private rid variable.

void DtRIDParameters::extractRidExpressions ( const std::vector< MAKRti::DtString > &  ridExpressions)
protected

Parses supplied strings and extracts RID expressions.

Expressions are processed after RID file is processed. Entry may contain RID file name directive at beginning, in which case, remainder of entry is processed as an expression.

bool DtRIDParameters::extractRidFileName ( const MAKRti::DtString &  arg)
protected

Parses string for RID file name directive (must be at beginning of string).

If found, extracts file name and sets it as the file name to open. Return bool: directive found?

MAKRti::DtFilename DtRIDParameters::findLispFile ( )
protected

lookup the RID file base on args passed to createRTIAmbassador (1516 only) working directory and env.

variables: RTI_RID_FILE and RTI_CONFIG and set myName and myFullPathToRidFile Returns "" if file not found (ie - using default params) on return, restOfArgs will point to char* representation of lisp expressions that were (possibly) input to createRTIAmbassador (again 1516 only).

DtFixedGridConfiguration* DtRIDParameters::fixedGridConfiguration ( ) const

Get the DDM fixed grid configuration Returns NULL if not initialized.

const std::map<MAKRti::DtString, DtFloatRidParameter>& DtRIDParameters::floatRidParameters ( ) const

Return the map of float parameters.

void DtRIDParameters::forceParametersToCompliance ( )

Forces all parameters required for compliance to their compliant settings.

const DtInetAddrAndPortSet& DtRIDParameters::forwarderGroupAddrs ( ) const

Return the list of forwarder group addresses.

unsigned int DtRIDParameters::forwarderGroupSize ( )

Return the size of the forwarder group list.

const MAKRti::DtFilename DtRIDParameters::forwarderRoutesFile ( ) const

Returns the forwarder routes file name.

void DtRIDParameters::fullyCompliantParameters ( std::map< MAKRti::DtString, int > &  parameters) const

Caller passes fullyCompliantParameters an empty map which will be populated with the compliance parameters and their compliant settings.

Map will be emptied if it isn't already.

const std::string& DtRIDParameters::getCreationFileName ( ) const

returns reference to member myCreationFileName.

const MAKRti::DtString& DtRIDParameters::getCreationLispExprs ( ) const

returns reference to member myCreationLispExprs

MAKRti::DtFilename DtRIDParameters::getFullPathToRidFile ( ) const

returns full working path to rid file, either absolutely or relatively.

virtual bool DtRIDParameters::getParameter ( const MAKRti::DtString &  name,
MAKRti::DtString &  value,
std::map< MAKRti::DtString, DtStringRidParameter >::const_iterator &  iter
) const
virtual

Get the string value for the given parameter name Returns boolean: got value successfully?

virtual bool DtRIDParameters::getParameter ( const MAKRti::DtString &  name,
MAKRti::DtString &  value
) const
virtual
virtual bool DtRIDParameters::getParameter ( const MAKRti::DtString &  name,
int &  value,
std::map< MAKRti::DtString, DtIntRidParameter >::const_iterator &  iter
) const
virtual

Get the integer value for the given parameter name Returns boolean: got value successfully?

virtual bool DtRIDParameters::getParameter ( const MAKRti::DtString &  name,
int &  value
) const
virtual
virtual bool DtRIDParameters::getParameter ( const MAKRti::DtString &  name,
float &  value,
std::map< MAKRti::DtString, DtFloatRidParameter >::const_iterator &  iter
) const
virtual

Get the float value for the given parameter name Returns boolean: got value successfully?

virtual bool DtRIDParameters::getParameter ( const MAKRti::DtString &  name,
float &  value
) const
virtual
void DtRIDParameters::initializeDestAddrs ( )
protected

Build list of Dest Addrs.

void DtRIDParameters::initializeFixedGrid ( )
protected

Build and print the Fixed DDM Grid.

void DtRIDParameters::initializeForwarderGroups ( )
protected

Build list of Forwarder Groups.

void DtRIDParameters::initializeParameters ( bool  forceEnableRtiExec,
const MAKRti::DtString &  expression = MAKRti::DtString::nullString()
)
protected

Used to initialize RID parameters from disk, or from the given expression.

Serves to make the RID internally consistent and valid.

void DtRIDParameters::initializeUpdateRates ( )
protected

Build update Rates table.

const DtDMFilterList& DtRIDParameters::interactionMulticastDefinitions ( ) const

Return the interaction class definitions for DM mulitcast filtering.

const std::map<MAKRti::DtString, DtIntRidParameter>& DtRIDParameters::intRidParameters ( ) const

Return the map of integer parameters.

bool DtRIDParameters::isFloatParameter ( const MAKRti::DtString &  ) const

Does the given parameter have a float value?

bool DtRIDParameters::isFullyCompliant ( ) const

Is this RID Params object fully compliant?

bool DtRIDParameters::isIntParameter ( const MAKRti::DtString &  ) const

Does the given parameter have an integer value?

bool DtRIDParameters::isStringParameter ( const MAKRti::DtString &  ) const

Does the given parameter have a string value?

const DtStringList& DtRIDParameters::joinFomModules ( ) const

Return the names of join FOM modules.

void DtRIDParameters::loadLispExpressions ( )
protected

loads the expressions for function rid parameters

void DtRIDParameters::loadLispFile ( )
protected

loads rid.mtl

MAKRti::DtInetAddr DtRIDParameters::maxChannel ( ) const

Get the Maximum DDM multicast address as a network address (versus string representation).

int DtRIDParameters::maxObjectsPerFederate ( ) const

Return maximum number of objects allowed in a federation.

MAKRti::DtString DtRIDParameters::mcastDevAddrString ( ) const

deprecated.

Declaring as a private rid variable.

MAKRti::DtInetAddr DtRIDParameters::mcastDiscoveryAddr ( ) const

Get the multicast discovery address as a network address (versus string representation).

MAKRti::DtInetAddr DtRIDParameters::minChannel ( ) const

Get the minimum DDM multicast address as a network address (versus string representation).

const MAKRti::DtMtlEnvironment& DtRIDParameters::mtlEnvironment ( ) const

returns mtl environment

MAKRti::DtMtlEnvironment& DtRIDParameters::mtlEnvironment ( )
protected

returns mtl environment

virtual void DtRIDParameters::mutatorError ( const char *  parameterName) const
protectedvirtual

Handle error when mutator fails.

MAKRti::DtInetAddr DtRIDParameters::networkInterfaceAddr ( ) const

Get the multicast network interface address as a network address (versus string representation).

MAKRti::DtString DtRIDParameters::networkInterfaceAddrString ( ) const

get networkInterfaceAddr

const DtDMFilterList& DtRIDParameters::objectMulticastDefinitions ( ) const

Return the object class definitions for DM mulitcast filtering.

static void DtRIDParameters::overrideRidParameters ( const std::map< std::string, std::string > &  params)
static

Sets the the RID parameters to be overridden after the RID file is loaded.

Must be called prior to instantiation of the DtRIDParameters object. Takes a map of RID parameter names to values.

void DtRIDParameters::populateRidGroups ( )
protected

Populate the compliant, federation, LRC, etc. lists.

void DtRIDParameters::printParameters ( )

Prints all RID parameters.

DtAsynchronousIOModeEnum DtRIDParameters::processingModel ( ) const

Return processing mode value.

void DtRIDParameters::registerParameters ( )
protected

(called from constructor) registers all MTL parameters

bool DtRIDParameters::requiredComplianceParameter ( const MAKRti::DtString &  parameter) const

Is this parameter required for compliance.

MAKRti::DtString DtRIDParameters::resolveAbsoluteFileLocation ( MAKRti::DtString  path,
MAKRti::DtString  fileName
)

Returns the absolute file location.

void DtRIDParameters::revertComplianceParametersToOriginalSettings ( )

Forces all compliant parameters back to their original values.

DtInconsistentRidReaction DtRIDParameters::ridConsistencyChecking ( ) const

Returns value of RID consistency checking variable.

0 == no RID consistency checking. 1 == correct inconsistent variables 2 == federate throws exception if rid is inconsistent.

virtual bool DtRIDParameters::ridMapFromLispString ( const MAKRti::DtString &  inputString,
std::map< MAKRti::DtString, int > &  intMap,
std::map< MAKRti::DtString, float > &  floatMap,
std::map< MAKRti::DtString, MAKRti::DtString > &  stringMap
) const
virtual

Populate the maps with rid parameters (names and values) for each parameter name found in the given input string.

const MAKRti::DtFilename& DtRIDParameters::ridName ( ) const

Returns the RID file name.

virtual MAKRti::DtString DtRIDParameters::ridsToConsistencyCheck ( )
virtual

Consistency checking is performed on a subset of RID parameters Returns a string containing the names of those parameters that should be consistency checked.

void DtRIDParameters::sanityCheckAddressFamily ( )

Sanity checks to ensure all IP addresses use the same address family.

void DtRIDParameters::sanityCheckReliableConnRIDParameters ( )

Specific sanity checks for reliable connection parameters.

void DtRIDParameters::sanityCheckRIDParameters ( )

Some RID parameters have dependent settings.

If the dependent settings are not set, disable the depending parameter.

void DtRIDParameters::sanityCheckTcpAddressFamily ( )

Sanity checks to ensure all IP addresses use the same address family.

void DtRIDParameters::sanityCheckUdpAddressFamily ( )

Sanity checks to ensure all IP addresses use the same address family.

void DtRIDParameters::saveOriginalCompliantSettings ( )

Saves the current settings of the compliance parameters as the original settings.

MAKRti::DtFilename DtRIDParameters::saveRestoreDirectoryPath ( )

Return the directory with an appended path separator.

void DtRIDParameters::setForwarderRoutesFile ( MAKRti::DtFilename  file)

Set the forwarder routes file name.

void DtRIDParameters::setMaxObjectsPerFederate ( int  val)

Set maximum number of objects allowed in a federation.

void DtRIDParameters::setNetworkInterfaceAddr ( const MAKRti::DtString &  networkIFace)

set networkInt

bool DtRIDParameters::setParameter ( const MAKRti::DtString &  name,
const MAKRti::DtString &  val
)

Set the string value for the given parameter name Returns boolean: set value successfully?

bool DtRIDParameters::setParameter ( const MAKRti::DtString &  name,
int  val
)

Set the integer value for the given parameter name Returns boolean: set value successfully?

bool DtRIDParameters::setParameter ( const MAKRti::DtString &  name,
float  val
)

Set the float value for the given parameter name Returns boolean: set value successfully?

void DtRIDParameters::setProcessingModel ( DtAsynchronousIOModeEnum  value)

Set processing mode value.

void DtRIDParameters::setRidConsistencyChecking ( DtInconsistentRidReaction  value)

Set value of RID consistency checking variable.

void DtRIDParameters::setTcpForwarderAddr ( const MAKRti::DtString &  addr)

set tcpForwarder Addr String

void DtRIDParameters::setTransmitLaggardLBTS ( int  yesNo)

Set the indicator to transmit laggard LBTS value.

void DtRIDParameters::setUseRoutesFile ( bool  fileShouldBeUsed)
const std::map<MAKRti::DtString, DtStringRidParameter>& DtRIDParameters::stringRidParameters ( ) const

Return the map of string parameters.

MAKRti::DtInetAddr DtRIDParameters::tcpForwarderAddr ( ) const

Get the TCP Forwarder address as a network address (versus string representation).

MAKRti::DtString DtRIDParameters::tcpForwarderAddrString ( ) const

get tcpForwarderAddr String

virtual void DtRIDParameters::toLispString ( MAKRti::DtString &  lispString)
virtual

Converts the RID parameters to a lisp string.

int DtRIDParameters::transmitLaggardLBTS ( ) const

Return the indicator to transmit laggard LBTS value.

DtUpdateNameRateMap const& DtRIDParameters::updateRates ( ) const

Return the map between update rate names and values.

const std::vector<DtUpdateRateSubscriptionStruct>& DtRIDParameters::updateRateSubscriptions ( ) const

Return the update rate subscription definitions.

bool DtRIDParameters::useDMFiltering ( ) const

Returns true if we should use DM filtering.

bool DtRIDParameters::useGroupSocket ( ) const

Returns true if we should use a group socket; 0 otherwise.

bool DtRIDParameters::useRoutesFile ( ) const

Set/Get routes file control.

void DtRIDParameters::verifyIpAddress ( const MAKRti::DtString &  ip,
const MAKRti::DtString &  name = MAKRti::DtString::nullString()
) const
protected

Check the validity of a single IP address. Throws if invalid.

void DtRIDParameters::verifyIpAddresses ( ) const
protected

Check all IP addresses in RID for validity. Throws if they are not.

void DtRIDParameters::verifyPortsAreUnique ( ) const
protected

Check and validate uniqueness of all ports in the RID.

Throws if multiple params attempt to use the same port (ie - this is an invalid RID).

Member Data Documentation

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch DtRIDParameters::addressDelay

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay DtRIDParameters::allProvideUpdateRequestsDelayed

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch DtRIDParameters::attributeRelevanceAdvisorySwitch

RID Parameters Declarations.

DtRIDParameters::autoProvideSwitch

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed DtRIDParameters::bestEffortSendRetryWaitUsec

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance setResignResponseEnabled setReuseLogFile setRouteToAllByDefault setRtiExecPerformsLicensing setRtiForwarderLogFileName setSaveRestoreTimeout setSendDiscoveredClass setSharedMemMgrMaxWait setSharedMemName setSingleCallbackPerTick setSmartForwardingLevel setStrictFomChecking setStrictHLA1516eAttributeOwnershipUnavailableCallback setTcpBufferSize setTcpNoDelay setThrowExceptionOnConcurrentAccess setEnableWarningsForDisabledServices setTimeMgmt setTransmitRate setUdpPort setUse32BitsForValueSize setUseRandomNumberForFedHandle DtRIDParameters::configureConnectionWithRid

RID Parameters Declarations.

setAutoProvideSwitch DtRIDParameters::conveyProducingFederateSwitch

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking DtRIDParameters::crcCheckFedFile

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile DtRIDParameters::ddmFixedGridFilename

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename DtRIDParameters::defaultTimeImplementation

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation DtRIDParameters::deleteOrphans

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation setDeleteOrphans DtRIDParameters::detachNotifyLevelFromStdOut

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation setDeleteOrphans setDetachNotifyLevelFromStdOut DtRIDParameters::discoveryMsgBundlingDelay

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation setDeleteOrphans setDetachNotifyLevelFromStdOut setDiscoveryMsgBundlingDelay DtRIDParameters::distributedUdpForwarderMode

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation setDeleteOrphans setDetachNotifyLevelFromStdOut setDiscoveryMsgBundlingDelay setDistributedUdpForwarderMode DtRIDParameters::distributeFedFile

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation setDeleteOrphans setDetachNotifyLevelFromStdOut setDiscoveryMsgBundlingDelay setDistributedUdpForwarderMode setDistributeFedFile DtRIDParameters::dualTransmitFirstInteractionRegions

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation setDeleteOrphans setDetachNotifyLevelFromStdOut setDiscoveryMsgBundlingDelay setDistributedUdpForwarderMode setDistributeFedFile setDualTransmitFirstInteractionRegions DtRIDParameters::dumpRid

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation setDeleteOrphans setDetachNotifyLevelFromStdOut setDiscoveryMsgBundlingDelay setDistributedUdpForwarderMode setDistributeFedFile setDualTransmitFirstInteractionRegions setDumpRid DtRIDParameters::enableBestEffortSendRetry

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation setDeleteOrphans setDetachNotifyLevelFromStdOut setDiscoveryMsgBundlingDelay setDistributedUdpForwarderMode setDistributeFedFile setDualTransmitFirstInteractionRegions setDumpRid setEnableBestEffortSendRetry DtRIDParameters::enableFederateHeartbeat

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation setDeleteOrphans setDetachNotifyLevelFromStdOut setDiscoveryMsgBundlingDelay setDistributedUdpForwarderMode setDistributeFedFile setDualTransmitFirstInteractionRegions setDumpRid setEnableBestEffortSendRetry setEnableFederateHeartbeat DtRIDParameters::enableFomBackwardsCompatibility

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation setDeleteOrphans setDetachNotifyLevelFromStdOut setDiscoveryMsgBundlingDelay setDistributedUdpForwarderMode setDistributeFedFile setDualTransmitFirstInteractionRegions setDumpRid setEnableBestEffortSendRetry setEnableFederateHeartbeat setEnableFomBackwardsCompatibility DtRIDParameters::enableMessageThrottling

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation setDeleteOrphans setDetachNotifyLevelFromStdOut setDiscoveryMsgBundlingDelay setDistributedUdpForwarderMode setDistributeFedFile setDualTransmitFirstInteractionRegions setDumpRid setEnableBestEffortSendRetry setEnableFederateHeartbeat setEnableFomBackwardsCompatibility setEnableMessageThrottling setLrcNetworkStatisticsMonitoringEnabled DtRIDParameters::enablePacketBundling

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation setDeleteOrphans setDetachNotifyLevelFromStdOut setDiscoveryMsgBundlingDelay setDistributedUdpForwarderMode setDistributeFedFile setDualTransmitFirstInteractionRegions setDumpRid setEnableBestEffortSendRetry setEnableFederateHeartbeat setEnableFomBackwardsCompatibility setEnableMessageThrottling setLrcNetworkStatisticsMonitoringEnabled setEnablePacketBundling DtRIDParameters::enableSharedMemoryExecEventLog

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance setResignResponseEnabled setReuseLogFile setRouteToAllByDefault setRtiExecPerformsLicensing setRtiForwarderLogFileName setSaveRestoreTimeout setSendDiscoveredClass setSharedMemMgrMaxWait setSharedMemName setSingleCallbackPerTick setSmartForwardingLevel setStrictFomChecking setStrictHLA1516eAttributeOwnershipUnavailableCallback setTcpBufferSize setTcpNoDelay setThrowExceptionOnConcurrentAccess DtRIDParameters::enableWarningsForDisabledServices

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec DtRIDParameters::errorChecking

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch DtRIDParameters::exceptionReportingSwitch

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation setDeleteOrphans setDetachNotifyLevelFromStdOut setDiscoveryMsgBundlingDelay setDistributedUdpForwarderMode setDistributeFedFile setDualTransmitFirstInteractionRegions setDumpRid setEnableBestEffortSendRetry setEnableFederateHeartbeat setEnableFomBackwardsCompatibility setEnableMessageThrottling setLrcNetworkStatisticsMonitoringEnabled setEnablePacketBundling setEnableSharedMemoryExecEventLog setTcpSmartForwardingEnabled setUdpSmartForwardingEnabled DtRIDParameters::execMcastDiscoveryDelay

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation setDeleteOrphans setDetachNotifyLevelFromStdOut setDiscoveryMsgBundlingDelay setDistributedUdpForwarderMode setDistributeFedFile setDualTransmitFirstInteractionRegions setDumpRid setEnableBestEffortSendRetry setEnableFederateHeartbeat setEnableFomBackwardsCompatibility setEnableMessageThrottling setLrcNetworkStatisticsMonitoringEnabled setEnablePacketBundling setEnableSharedMemoryExecEventLog setTcpSmartForwardingEnabled setUdpSmartForwardingEnabled setExecMcastDiscoveryDelay DtRIDParameters::federateHeartbeatInterval

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation setDeleteOrphans setDetachNotifyLevelFromStdOut setDiscoveryMsgBundlingDelay setDistributedUdpForwarderMode setDistributeFedFile setDualTransmitFirstInteractionRegions setDumpRid setEnableBestEffortSendRetry setEnableFederateHeartbeat setEnableFomBackwardsCompatibility setEnableMessageThrottling setLrcNetworkStatisticsMonitoringEnabled setEnablePacketBundling setEnableSharedMemoryExecEventLog setTcpSmartForwardingEnabled setUdpSmartForwardingEnabled setExecMcastDiscoveryDelay setFederateHeartbeatInterval DtRIDParameters::federateTimeoutInterval

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation setDeleteOrphans setDetachNotifyLevelFromStdOut setDiscoveryMsgBundlingDelay setDistributedUdpForwarderMode setDistributeFedFile setDualTransmitFirstInteractionRegions setDumpRid setEnableBestEffortSendRetry setEnableFederateHeartbeat setEnableFomBackwardsCompatibility setEnableMessageThrottling setLrcNetworkStatisticsMonitoringEnabled setEnablePacketBundling setEnableSharedMemoryExecEventLog setTcpSmartForwardingEnabled setUdpSmartForwardingEnabled setExecMcastDiscoveryDelay setFederateHeartbeatInterval setFederateTimeoutInterval DtRIDParameters::fomDataTransportTypeControl

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation setDeleteOrphans setDetachNotifyLevelFromStdOut setDiscoveryMsgBundlingDelay setDistributedUdpForwarderMode setDistributeFedFile setDualTransmitFirstInteractionRegions setDumpRid setEnableBestEffortSendRetry setEnableFederateHeartbeat setEnableFomBackwardsCompatibility setEnableMessageThrottling setLrcNetworkStatisticsMonitoringEnabled setEnablePacketBundling setEnableSharedMemoryExecEventLog setTcpSmartForwardingEnabled setUdpSmartForwardingEnabled setExecMcastDiscoveryDelay setFederateHeartbeatInterval setFederateTimeoutInterval setFomDataTransportTypeControl DtRIDParameters::forceFullCompliance

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation setDeleteOrphans setDetachNotifyLevelFromStdOut setDiscoveryMsgBundlingDelay setDistributedUdpForwarderMode setDistributeFedFile setDualTransmitFirstInteractionRegions setDumpRid setEnableBestEffortSendRetry setEnableFederateHeartbeat setEnableFomBackwardsCompatibility setEnableMessageThrottling setLrcNetworkStatisticsMonitoringEnabled setEnablePacketBundling setEnableSharedMemoryExecEventLog setTcpSmartForwardingEnabled setUdpSmartForwardingEnabled setExecMcastDiscoveryDelay setFederateHeartbeatInterval setFederateTimeoutInterval setFomDataTransportTypeControl setForceFullCompliance DtRIDParameters::forwardingDelay

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch DtRIDParameters::interactionRelevanceAdvisorySwitch

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation setDeleteOrphans setDetachNotifyLevelFromStdOut setDiscoveryMsgBundlingDelay setDistributedUdpForwarderMode setDistributeFedFile setDualTransmitFirstInteractionRegions setDumpRid setEnableBestEffortSendRetry setEnableFederateHeartbeat setEnableFomBackwardsCompatibility setEnableMessageThrottling setLrcNetworkStatisticsMonitoringEnabled setEnablePacketBundling setEnableSharedMemoryExecEventLog setTcpSmartForwardingEnabled setUdpSmartForwardingEnabled setExecMcastDiscoveryDelay setFederateHeartbeatInterval setFederateTimeoutInterval setFomDataTransportTypeControl setForceFullCompliance setForwardingDelay DtRIDParameters::internalMsgReliableWhenUsingRtiexec

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation setDeleteOrphans setDetachNotifyLevelFromStdOut setDiscoveryMsgBundlingDelay setDistributedUdpForwarderMode setDistributeFedFile setDualTransmitFirstInteractionRegions setDumpRid setEnableBestEffortSendRetry setEnableFederateHeartbeat setEnableFomBackwardsCompatibility setEnableMessageThrottling setLrcNetworkStatisticsMonitoringEnabled setEnablePacketBundling setEnableSharedMemoryExecEventLog setTcpSmartForwardingEnabled setUdpSmartForwardingEnabled setExecMcastDiscoveryDelay setFederateHeartbeatInterval setFederateTimeoutInterval setFomDataTransportTypeControl setForceFullCompliance setForwardingDelay setInternalMsgReliableWhenUsingRtiexec DtRIDParameters::IOPeriod

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation setDeleteOrphans setDetachNotifyLevelFromStdOut setDiscoveryMsgBundlingDelay setDistributedUdpForwarderMode setDistributeFedFile setDualTransmitFirstInteractionRegions setDumpRid setEnableBestEffortSendRetry setEnableFederateHeartbeat setEnableFomBackwardsCompatibility setEnableMessageThrottling setLrcNetworkStatisticsMonitoringEnabled setEnablePacketBundling setEnableSharedMemoryExecEventLog DtRIDParameters::isTcpSmartForwardingEnabled

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation setDeleteOrphans setDetachNotifyLevelFromStdOut setDiscoveryMsgBundlingDelay setDistributedUdpForwarderMode setDistributeFedFile setDualTransmitFirstInteractionRegions setDumpRid setEnableBestEffortSendRetry setEnableFederateHeartbeat setEnableFomBackwardsCompatibility setEnableMessageThrottling setLrcNetworkStatisticsMonitoringEnabled setEnablePacketBundling setEnableSharedMemoryExecEventLog setTcpSmartForwardingEnabled DtRIDParameters::isUdpSmartForwardingEnabled

RID Parameters Declarations.

DtRIDParameters::logFileName

RID Parameters Declarations.

setAutoProvideSwitch setConveyProducingFederateSwitch setAttributeRelevanceAdvisorySwitch setInteractionRelevanceAdvisorySwitch setExceptionReportingSwitch setAddressDelay setAllProvideUpdateRequestsDelayed setBestEffortSendRetryWaitUsec setErrorChecking setCrcCheckFedFile setDdmFixedGridFilename setDefaultTimeImplementation setDeleteOrphans setDetachNotifyLevelFromStdOut setDiscoveryMsgBundlingDelay setDistributedUdpForwarderMode setDistributeFedFile setDualTransmitFirstInteractionRegions setDumpRid setEnableBestEffortSendRetry setEnableFederateHeartbeat setEnableFomBackwardsCompatibility setEnableMessageThrottling DtRIDParameters::lrcNetworkStatisticsMonitoringEnabled

RID Parameters Declarations.

setLogFileName DtRIDParameters::maxChannelAddr

RID Parameters Declarations.

setLogFileName setMaxChannelAddr DtRIDParameters::maxIOCount

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount DtRIDParameters::maxNumFederates

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates DtRIDParameters::mcastDiscoveryAddrString

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString DtRIDParameters::mcastDiscoveryPort

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort DtRIDParameters::mcastTtl

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl DtRIDParameters::momExceptionLogging

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging DtRIDParameters::momModuleExtensionFileName

RID Parameters Declarations.

DtStringList DtRIDParameters::myCreateFedExFomModules
protected

The list of create FOM modules.

std::string DtRIDParameters::myCreationFileName
protected

The RID file name found in the creation arguments (if present)

MAKRti::DtString DtRIDParameters::myCreationLispExprs
protected

The expressions found in the creation arguments (if any)

DtInetAddrList DtRIDParameters::myDestAddr
protected

Group socket configuration.

MAKRti::DtMtlEnvironment* DtRIDParameters::myEnv
protected

The MTL environment used to process RID parameters.

DtFixedGridConfiguration* DtRIDParameters::myFixedGridConfiguration
protected

Fixed grid configuration.

std::map<MAKRti::DtString, DtFloatRidParameter> DtRIDParameters::myFloatRidParameterDefaults
protected

The default values for float RID parameters.

DtInetAddrAndPortSet DtRIDParameters::myForwarderGroupAddrs
protected

The forwarder group addresses.

MAKRti::DtFilename DtRIDParameters::myForwarderRoutesFile
protected

The forwarder routes file name.

MAKRti::DtFilename DtRIDParameters::myFullPathToRidFile
protected

The path to the loaded file.

std::map<MAKRti::DtString, std::pair<int, int> > DtRIDParameters::myFullyCompliantParameters
protected

The list of parameters that effect compliance, their fully compliant setting, and their original setting (as read from the RID file)

DtDMFilterList DtRIDParameters::myIntMulticastDefinition
protected

DM object class configuration.

std::map<MAKRti::DtString, DtIntRidParameter> DtRIDParameters::myIntRidParameterDefaults
protected

The default values for integer RID parameters.

DtStringList DtRIDParameters::myJoinFedExFomModules
protected

The list of join FOM modules.

const int DtRIDParameters::myMaxObjectsCap
protected

The maximum number of objects a single federate may register.

MAKRti::DtFilename DtRIDParameters::myName
protected

The RID file name.

DtDMFilterList DtRIDParameters::myObjMulticastDefinition
protected

DM interaction class configuration.

DtStringList DtRIDParameters::myPluginNames
protected

Plugin names configuration.

DtRidFileSearchStatus DtRIDParameters::myRidFileSearchStatus
protected

The status of the file search of the RID file.

std::map<MAKRti::DtString, DtStringRidParameter> DtRIDParameters::myStringRidParameterDefaults
protected

The default values for string RID parameters.

DtUpdateNameRateMap DtRIDParameters::myUpdateRates
protected

Pre-Evolved way to set the list of (name rate) Map from update rate name to value.

std::vector<DtUpdateRateSubscriptionStruct> DtRIDParameters::myUpdateRateSubscriptions
protected

Update rate subscriptions.

bool DtRIDParameters::myUseRoutesFile
protected

Controls whether routes file should be used (set internally)

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance setResignResponseEnabled setReuseLogFile setRouteToAllByDefault setRtiExecPerformsLicensing setRtiForwarderLogFileName setSaveRestoreTimeout setSendDiscoveredClass setSharedMemMgrMaxWait setSharedMemName setSingleCallbackPerTick setSmartForwardingLevel setStrictFomChecking setStrictHLA1516eAttributeOwnershipUnavailableCallback setTcpBufferSize setTcpNoDelay setThrowExceptionOnConcurrentAccess setEnableWarningsForDisabledServices setTimeMgmt setTransmitRate setUdpPort setUse32BitsForValueSize setUseRandomNumberForFedHandle setConfigureConnectionWithRid DtRIDParameters::nextEventRequestAndRetractServiceEnabled

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName DtRIDParameters::notifyLevel

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel DtRIDParameters::preferLocalFomModules

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules DtRIDParameters::receiveTolerance

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance DtRIDParameters::resignResponseEnabled

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance setResignResponseEnabled DtRIDParameters::reuseLogFile

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance setResignResponseEnabled setReuseLogFile DtRIDParameters::routeToAllByDefault

RID Parameters Declarations.

int DtRIDParameters::RTI_asynchronousCallbacks
protected

Deprecated RID parameters.

int DtRIDParameters::RTI_asynchronousIO
protected

Deprecated RID parameters.

int DtRIDParameters::RTI_asynchronousProcessMessage
protected

Deprecated RID parameters.

int DtRIDParameters::RTI_enableBigMessage
protected

Deprecated RID parameters.

int DtRIDParameters::RTI_maxObjectsPerFederate
protected

Deprecated RID parameters.

MAKRti::DtString DtRIDParameters::RTI_mcastDevAddrString
protected

Deprecated RID parameters.

int DtRIDParameters::RTI_transmitLaggardLBTS
protected

Deprecated RID parameters.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance setResignResponseEnabled setReuseLogFile setRouteToAllByDefault DtRIDParameters::rtiExecPerformsLicensing

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance setResignResponseEnabled setReuseLogFile setRouteToAllByDefault setRtiExecPerformsLicensing DtRIDParameters::rtiForwarderLogFileName

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance setResignResponseEnabled setReuseLogFile setRouteToAllByDefault setRtiExecPerformsLicensing setRtiForwarderLogFileName DtRIDParameters::saveRestoreTimeout

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance setResignResponseEnabled setReuseLogFile setRouteToAllByDefault setRtiExecPerformsLicensing setRtiForwarderLogFileName setSaveRestoreTimeout DtRIDParameters::sendDiscoveredClass

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance setResignResponseEnabled setReuseLogFile setRouteToAllByDefault setRtiExecPerformsLicensing setRtiForwarderLogFileName setSaveRestoreTimeout setSendDiscoveredClass DtRIDParameters::sharedMemMgrMaxWait

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance setResignResponseEnabled setReuseLogFile setRouteToAllByDefault setRtiExecPerformsLicensing setRtiForwarderLogFileName setSaveRestoreTimeout setSendDiscoveredClass setSharedMemMgrMaxWait DtRIDParameters::sharedMemName

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance setResignResponseEnabled setReuseLogFile setRouteToAllByDefault setRtiExecPerformsLicensing setRtiForwarderLogFileName setSaveRestoreTimeout setSendDiscoveredClass setSharedMemMgrMaxWait setSharedMemName DtRIDParameters::singleCallbackPerTick

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance setResignResponseEnabled setReuseLogFile setRouteToAllByDefault setRtiExecPerformsLicensing setRtiForwarderLogFileName setSaveRestoreTimeout setSendDiscoveredClass setSharedMemMgrMaxWait setSharedMemName setSingleCallbackPerTick DtRIDParameters::smartForwardingLevel

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance setResignResponseEnabled setReuseLogFile setRouteToAllByDefault setRtiExecPerformsLicensing setRtiForwarderLogFileName setSaveRestoreTimeout setSendDiscoveredClass setSharedMemMgrMaxWait setSharedMemName setSingleCallbackPerTick setSmartForwardingLevel DtRIDParameters::strictFomChecking

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance setResignResponseEnabled setReuseLogFile setRouteToAllByDefault setRtiExecPerformsLicensing setRtiForwarderLogFileName setSaveRestoreTimeout setSendDiscoveredClass setSharedMemMgrMaxWait setSharedMemName setSingleCallbackPerTick setSmartForwardingLevel setStrictFomChecking DtRIDParameters::strictHLA1516eAttributeOwnershipUnavailableCallback

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance setResignResponseEnabled setReuseLogFile setRouteToAllByDefault setRtiExecPerformsLicensing setRtiForwarderLogFileName setSaveRestoreTimeout setSendDiscoveredClass setSharedMemMgrMaxWait setSharedMemName setSingleCallbackPerTick setSmartForwardingLevel setStrictFomChecking setStrictHLA1516eAttributeOwnershipUnavailableCallback DtRIDParameters::tcpBufferSize

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance setResignResponseEnabled setReuseLogFile setRouteToAllByDefault setRtiExecPerformsLicensing setRtiForwarderLogFileName setSaveRestoreTimeout setSendDiscoveredClass setSharedMemMgrMaxWait setSharedMemName setSingleCallbackPerTick setSmartForwardingLevel setStrictFomChecking setStrictHLA1516eAttributeOwnershipUnavailableCallback setTcpBufferSize DtRIDParameters::tcpNoDelay

RID Parameters Declarations.

const MAKRti::DtString DtRIDParameters::theAddressDelayRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theAdvancedNetworkingGroupName
staticprotected

The strings that represent the RID parameter groups RID Group names.

const MAKRti::DtString DtRIDParameters::theAdvisoriesGroupName
staticprotected

The strings that represent the RID parameter groups RID Group names.

const MAKRti::DtString DtRIDParameters::theAllProvideUpdateRequestsDelayedRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theAsynchGroupName
staticprotected

The strings that represent the RID parameter groups RID Group names.

const MAKRti::DtString DtRIDParameters::theAttributeRelevanceAdvisorySwitchName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theAttributeScopeAdvisorySwitchName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theAutomaticNameReserveEnabledRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theAutoProvideDelayRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theAutoProvideSwitchName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theBestEffortSendRetriesRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theBestEffortSendRetryWaitUsecRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theCatchFedAmbExceptionsRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theCheckFlagRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theCommunicationsGroupName
staticprotected

The strings that represent the RID parameter groups RID Group names.

const int DtRIDParameters::theCompliantCheckFlag
staticprotected

The parameter values that make configuration compliant.

const int DtRIDParameters::theCompliantDataDistMgmt
staticprotected

The parameter values that make configuration compliant.

const int DtRIDParameters::theCompliantDistributeFedFile
staticprotected

The parameter values that make configuration compliant.

const int DtRIDParameters::theCompliantDualTransmitFirstInteractionRegions
staticprotected

The parameter values that make configuration compliant.

const int DtRIDParameters::theCompliantEnableHlaObjectNamePrefix
staticprotected

The parameter values that make configuration compliant.

const int DtRIDParameters::theCompliantEnableNameReservation
staticprotected

The parameter values that make configuration compliant.

const int DtRIDParameters::theCompliantEnableSaveRestoreWhenUsingRtiexec
staticprotected

The parameter values that make configuration compliant.

const int DtRIDParameters::theCompliantEnableUpdateRateReduction
staticprotected

The parameter values that make configuration compliant.

const int DtRIDParameters::theCompliantExtend13and1516interop
staticprotected

The parameter values that make configuration compliant.

const int DtRIDParameters::theCompliantFomDataTransportTypeControl
staticprotected

The parameter values that make configuration compliant.

const int DtRIDParameters::theCompliantFomModuleMerging
staticprotected

The parameter values that make configuration compliant.

const int DtRIDParameters::theCompliantInternalMsgReliableWhenUsingRtiexec
staticprotected

The parameter values that make configuration compliant.

const int DtRIDParameters::theCompliantMomFederateUpdateInterval
staticprotected

The parameter values that make configuration compliant.

const int DtRIDParameters::theCompliantMomServiceAvailable
staticprotected

The parameter values that make configuration compliant.

const int DtRIDParameters::theCompliantNextEventRequestAndRetractServiceEnabled
staticprotected

The parameter values that make configuration compliant.

const int DtRIDParameters::theCompliantPreferRidToFedSwitchTable
staticprotected

The parameter values that make configuration compliant.

const int DtRIDParameters::theCompliantProcessUnknownUpdatesForDiscovery
staticprotected

The parameter values that make configuration compliant.

const int DtRIDParameters::theCompliantSendDiscoveredClass
staticprotected

The parameter values that make configuration compliant.

const int DtRIDParameters::theCompliantStrictFomChecking
staticprotected

The parameter values that make configuration compliant.

const int DtRIDParameters::theCompliantStrictHLA1516eAttributeOwnershipUnavailableCallback
staticprotected

The parameter values that make configuration compliant.

const int DtRIDParameters::theCompliantThrowExceptionCallNotAllowedFromWithinCallback
staticprotected

The parameter values that make configuration compliant.

const int DtRIDParameters::theCompliantTimeMgmt
staticprotected

The parameter values that make configuration compliant.

const int DtRIDParameters::theCompliantUse32BitsForValueSize
staticprotected

The parameter values that make configuration compliant.

const int DtRIDParameters::theCompliantUseRtiExec
staticprotected

The parameter values that make configuration compliant.

const MAKRti::DtString DtRIDParameters::theCompressionGroupName
staticprotected

The strings that represent the RID parameter groups RID Group names.

const MAKRti::DtString DtRIDParameters::theConfigureConnectionWithRidRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theConveyOnlyAvailableDimensionsRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theConveyProducingFederateSwitchName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theConveyRegionDesignatorSwitchName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theCrcCheckFedFileRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theDataDistMgmtRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theDdmFixedGridFilenameRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theDdmFixedGridRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theDdmGroupName
staticprotected

The strings that represent the RID parameter groups RID Group names.

const MAKRti::DtString DtRIDParameters::theDefaultFedFileRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theDefaultIpv4DestAddr
staticprotected

Default destination address strings for IPv4 and IPv6.

const MAKRti::DtString DtRIDParameters::theDefaultIpv4MaxChannelAddr
staticprotected

DDM channel addresses to be used if none are specified in the RID.

const MAKRti::DtString DtRIDParameters::theDefaultIpv4MinChannelAddr
staticprotected

DDM channel addresses to be used if none are specified in the RID.

const MAKRti::DtString DtRIDParameters::theDefaultIpv6DestAddr
staticprotected

Default destination address strings for IPv4 and IPv6.

const MAKRti::DtString DtRIDParameters::theDefaultIpv6MaxChannelAddr
staticprotected

DDM channel addresses to be used if none are specified in the RID.

const MAKRti::DtString DtRIDParameters::theDefaultIpv6MinChannelAddr
staticprotected

DDM channel addresses to be used if none are specified in the RID.

const MAKRti::DtString DtRIDParameters::theDefaultTimeImplementationRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theDelaySubscriptionEvaluationSwitchName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theDeleteOrphansRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theDeprecatedAsynchronousCallbacksRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theDeprecatedAsynchronousIORidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theDeprecatedAsynchronousProcessMessageRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theDeprecatedEnableBigMessageRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theDeprecatedMcastDevAddrStringRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theDestAddrStringRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theDetachNotifyLevelFromStdOutRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theDiagnosticGroupName
staticprotected

The strings that represent the RID parameter groups RID Group names.

const MAKRti::DtString DtRIDParameters::theDisableUnlicensedForTwoRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theDiscoveryMsgBundlingDelayRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theDistributedForwarderPortRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theDistributedUdpForwarderModeRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theDistributeFedFileAsynchronouslyRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theDistributeFedFileRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theDualTransmitFirstInteractionRegionsRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theDumpFedRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theDumpRidRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theEnableBestEffortSendRetryRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theEnableCheckVersionRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theEnableFederateHeartbeatRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theEnableFedexMsgRoutingRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theEnableFomBackwardsCompatibilityRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theEnableHlaObjectNamePrefixRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theEnableLRCNetworkStatisticsMonitoringRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theEnableMessageThrottlingRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theEnableNameReservationRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theEnableNetworkTestingRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theEnablePacketBundlingRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theEnableSaveRestoreWhenUsingRtiexecRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theEnableSharedMemoryExecEventLogRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theEnableTcpCompressionRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theEnableTcpSmartForwardingRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theEnableUdpCompressionRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theEnableUdpSmartForwardingRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theEnableUpdateRateReductionRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theEnableWarningsForDisabledServicesRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theExceptionReportingSwitchName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theExecMcastDiscoveryDelayRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theExtend13and1516interopRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theFaultToleranceGroupName
staticprotected

The strings that represent the RID parameter groups RID Group names.

const MAKRti::DtString DtRIDParameters::theFederateHeartbeatIntervalRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theFederateReconnectPauseRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theFederateTimeoutIntervalRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theFlushTimeoutIntervalRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theFomDataTransportTypeControlRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theFomGroupName
staticprotected

The strings that represent the RID parameter groups RID Group names.

const MAKRti::DtString DtRIDParameters::theFomModuleMergingRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theForceFullComplianceRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theForceUnlicensedForTwoRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theForwarderGroupName
staticprotected

The strings that represent the RID parameter groups RID Group names.

const MAKRti::DtString DtRIDParameters::theForwarderRoutesFileRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance setResignResponseEnabled setReuseLogFile setRouteToAllByDefault setRtiExecPerformsLicensing setRtiForwarderLogFileName setSaveRestoreTimeout setSendDiscoveredClass setSharedMemMgrMaxWait setSharedMemName setSingleCallbackPerTick setSmartForwardingLevel setStrictFomChecking setStrictHLA1516eAttributeOwnershipUnavailableCallback setTcpBufferSize setTcpNoDelay setThrowExceptionOnConcurrentAccess setEnableWarningsForDisabledServices setTimeMgmt setTransmitRate setUdpPort setUse32BitsForValueSize setUseRandomNumberForFedHandle setConfigureConnectionWithRid setNextEventRequestAndRetractServiceEnabled bool DtRIDParameters::theForwarderRoutesFileRidNameInitialized
mutable
const MAKRti::DtString DtRIDParameters::theForwardingDelayRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theFullFedFileDistributionName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theImplicitDdmParamsFileRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theInteractionRelevanceAdvisorySwitchName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theInternalMsgReliableWhenUsingRtiexecRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theInternalMsgSmartForwardingWhenUsingRtiexecRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theIOPeriodRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theLicensingGroupName
staticprotected

The strings that represent the RID parameter groups RID Group names.

const MAKRti::DtString DtRIDParameters::theLogFileDirectoryName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theLogFileNameRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theLrcMcastDiscoveryDelayRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theMaxChannelAddrRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theMaxForwarderQueueRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theMaxIOCountRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theMaxIOQueueRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theMaxNumFederatesRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theMaxObjectsPerFederateRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

bool DtRIDParameters::theMaxObjectsPerFederateRidNameInitialized
mutable
const MAKRti::DtString DtRIDParameters::theMaxUdpPacketSizeRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theMcastDiscoveryAddrStringRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theMcastDiscoveryEnabledRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theMcastDiscoveryPortRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theMcastDiscoveryTriesRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theMcastTtlRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theMinChannelAddrRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theMomExceptionLoggingRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theMomFederateUpdateIntervalRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theMomGroupName
staticprotected

The strings that represent the RID parameter groups RID Group names.

const MAKRti::DtString DtRIDParameters::theMomModuleExtensionFileNameRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theMomServiceAvailableRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theMomVerboseLevelRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theMulticastDiscoveryGroupName
staticprotected

The strings that represent the RID parameter groups RID Group names.

const MAKRti::DtString DtRIDParameters::theNameReservationGroupName
staticprotected

The strings that represent the RID parameter groups RID Group names.

const MAKRti::DtString DtRIDParameters::theNetworkInterfaceAddrRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

bool DtRIDParameters::theNetworkInterfaceAddrRidNameInitialized
mutable
const MAKRti::DtString DtRIDParameters::theNextEventRequestAndRetractServiceEnabledRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theNotifyLevelRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theObjectClassRelevanceAdvisorySwitchName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theOptionalServicesGroupName
staticprotected

The strings that represent the RID parameter groups RID Group names.

std::map<MAKRti::DtString, MAKRti::DtString> DtRIDParameters::theOverrideParameters
staticprotected

Overridden RID parameters.

const MAKRti::DtString DtRIDParameters::thePacketBundlingSizeRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::thePreferLocalFomModulesRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::thePreferRidToFedSwitchTableName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theProcessingModelRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

bool DtRIDParameters::theProcessingModelRidNameInitialized
mutable
const MAKRti::DtString DtRIDParameters::theProcessUnknownUpdatesForDiscoveryRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theReceiveToleranceRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theReconnectEnabledRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const int DtRIDParameters::theResignResponseEnabled
staticprotected

The parameter values that make configuration compliant.

const MAKRti::DtString DtRIDParameters::theResignResponseEnabledRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theResponseIntervalRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theReuseLogFileRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theReuseReleasedObjectHandlesRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theRidConsistencyCheckingRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

bool DtRIDParameters::theRidConsistencyCheckingRidNameInitialized
mutable
const MAKRti::DtString DtRIDParameters::theRouteToAllByDefaultRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theRtiExecLogFileNameRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theRtiExecPerformsLicensingRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theRtiExecReconnectPauseRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theRtiForwarderLogFileNameRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theRtiSpyGroupName
staticprotected

The strings that represent the RID parameter groups RID Group names.

const MAKRti::DtString DtRIDParameters::theSaveRestoreDirectoryRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theSaveRestoreGroupName
staticprotected

The strings that represent the RID parameter groups RID Group names.

const MAKRti::DtString DtRIDParameters::theSaveRestoreTimeoutRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theSaveTransientMessagesRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theSendDiscoveredClassRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theServiceImplGroupName
staticprotected

The strings that represent the RID parameter groups RID Group names.

const MAKRti::DtString DtRIDParameters::theServiceReportingSwitchName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theSharedMemExecLogFileNameRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theSharedMemoryGroupName
staticprotected

The strings that represent the RID parameter groups RID Group names.

const MAKRti::DtString DtRIDParameters::theSharedMemoryMgrMaxWaitRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theSharedMemoryModeRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theSharedMemoryNameRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theSharedMemoryQueueLengthRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theSingleCallbackPerTickRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theSmartForwardingLevelRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theSocketReceiveBufferSizeRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theSocketSendBufferSizeRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theStrictFomCheckingRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theStrictHLA1516eAttributeOwnershipUnavailableCallbackRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theStrictNameReservationRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theTcpBufferSizeRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theTcpCompressionLevelRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theTcpForwarderAddrRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

bool DtRIDParameters::theTcpForwarderAddrRidNameInitialized
mutable
const MAKRti::DtString DtRIDParameters::theTcpNoDelayRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theTcpPortRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theThrowExceptionCallNotAllowedFromWithinCallbackRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theThrowExceptionForDisabledServiceRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theThrowExceptionOnConcurrentAccessRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theTickFavorsNetworkRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theTickWaitPeriodRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theTimeMgmtRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theTransmitDelayRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theTransmitLaggardLBTSRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

bool DtRIDParameters::theTransmitLaggardLBTSRidNameInitialized
mutable
const MAKRti::DtString DtRIDParameters::theTransmitRateRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theUdpCompressionLevelRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theUdpPortRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theUse32BitsForValueSizeRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theUseBusyWaitForTickMinMaxRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theUseRandomNumberForFedHandleRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theUseRtiExecRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

const MAKRti::DtString DtRIDParameters::theUseTheDefaultChannelAddrStr
staticprotected

DDM channel addresses to be used if none are specified in the RID.

const MAKRti::DtString DtRIDParameters::theWaitIOPeriodForBundlingRidName
staticprotected

The strings that represent the RID parameter groups RID Parameter names.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance setResignResponseEnabled setReuseLogFile setRouteToAllByDefault setRtiExecPerformsLicensing setRtiForwarderLogFileName setSaveRestoreTimeout setSendDiscoveredClass setSharedMemMgrMaxWait setSharedMemName setSingleCallbackPerTick setSmartForwardingLevel setStrictFomChecking setStrictHLA1516eAttributeOwnershipUnavailableCallback setTcpBufferSize setTcpNoDelay DtRIDParameters::throwExceptionOnConcurrentAccess

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance setResignResponseEnabled setReuseLogFile setRouteToAllByDefault setRtiExecPerformsLicensing setRtiForwarderLogFileName setSaveRestoreTimeout setSendDiscoveredClass setSharedMemMgrMaxWait setSharedMemName setSingleCallbackPerTick setSmartForwardingLevel setStrictFomChecking setStrictHLA1516eAttributeOwnershipUnavailableCallback setTcpBufferSize setTcpNoDelay setThrowExceptionOnConcurrentAccess setEnableWarningsForDisabledServices DtRIDParameters::timeMgmt

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance setResignResponseEnabled setReuseLogFile setRouteToAllByDefault setRtiExecPerformsLicensing setRtiForwarderLogFileName setSaveRestoreTimeout setSendDiscoveredClass setSharedMemMgrMaxWait setSharedMemName setSingleCallbackPerTick setSmartForwardingLevel setStrictFomChecking setStrictHLA1516eAttributeOwnershipUnavailableCallback setTcpBufferSize setTcpNoDelay setThrowExceptionOnConcurrentAccess setEnableWarningsForDisabledServices setTimeMgmt DtRIDParameters::transmitRate

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance setResignResponseEnabled setReuseLogFile setRouteToAllByDefault setRtiExecPerformsLicensing setRtiForwarderLogFileName setSaveRestoreTimeout setSendDiscoveredClass setSharedMemMgrMaxWait setSharedMemName setSingleCallbackPerTick setSmartForwardingLevel setStrictFomChecking setStrictHLA1516eAttributeOwnershipUnavailableCallback setTcpBufferSize setTcpNoDelay setThrowExceptionOnConcurrentAccess setEnableWarningsForDisabledServices setTimeMgmt setTransmitRate DtRIDParameters::udpPort

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance setResignResponseEnabled setReuseLogFile setRouteToAllByDefault setRtiExecPerformsLicensing setRtiForwarderLogFileName setSaveRestoreTimeout setSendDiscoveredClass setSharedMemMgrMaxWait setSharedMemName setSingleCallbackPerTick setSmartForwardingLevel setStrictFomChecking setStrictHLA1516eAttributeOwnershipUnavailableCallback setTcpBufferSize setTcpNoDelay setThrowExceptionOnConcurrentAccess setEnableWarningsForDisabledServices setTimeMgmt setTransmitRate setUdpPort DtRIDParameters::use32BitsForValueSize

RID Parameters Declarations.

setLogFileName setMaxChannelAddr setMaxIOCount setMaxNumFederates setMcastDiscoveryAddrString setMcastDiscoveryPort setMcastTtl setMomExceptionLogging setMomModuleExtensionFileName setNotifyLevel setPreferLocalFomModules setReceiveTolerance setResignResponseEnabled setReuseLogFile setRouteToAllByDefault setRtiExecPerformsLicensing setRtiForwarderLogFileName setSaveRestoreTimeout setSendDiscoveredClass setSharedMemMgrMaxWait setSharedMemName setSingleCallbackPerTick setSmartForwardingLevel setStrictFomChecking setStrictHLA1516eAttributeOwnershipUnavailableCallback setTcpBufferSize setTcpNoDelay setThrowExceptionOnConcurrentAccess setEnableWarningsForDisabledServices setTimeMgmt setTransmitRate setUdpPort setUse32BitsForValueSize DtRIDParameters::useRandomNumberForFedHandle

RID Parameters Declarations.

The documentation for this class was generated from the following file:
Document ID: Generated on Mon Mar 21 09:41:37 EDT 2016 from SVN revision 163228
Copyright © 2005-2015 VT MÄK Inc. All Rights Reserved (www.mak.com)
