DtRtiObject Class Reference

The RTI object maintains the internal RTI object state. More...

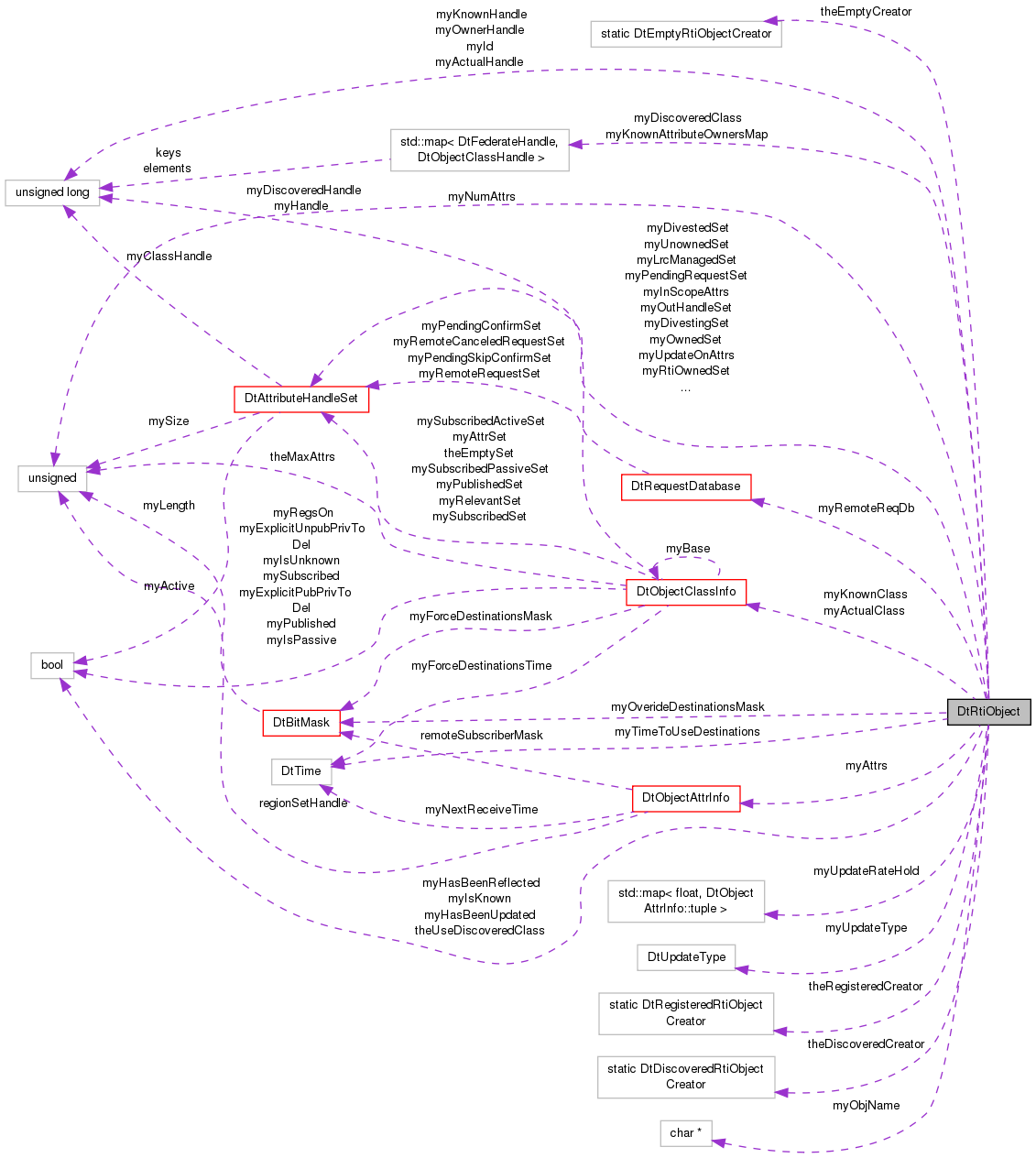

Collaboration diagram for DtRtiObject:

Public Member Functions
virtual	~DtRtiObject ()
	Destructor.
	DtRtiObject (const DtRtiObject &orig)
	Copy constructor Copies object state only!
const DtRtiObject &	operator= (const DtRtiObject &orig)
	assignment operator Assigned object state only!
void	initUpdateRates (const MAKRti::DtUpdateRateSetT rates)
	push update rates into each object attribute
virtual const char *	objName () const
	Set/Get my name.
virtual void	setObjName (const char *name)
virtual DtObjectClassHandle	actualClassHandle () const
	Returns class handle of the object.
virtual DtObjectClassHandle	knownClassHandle () const
	Returns class handle indicating class by which the federate knows the object.
virtual void	setKnownClass (DtObjectClassInfo *classInfo)
	Set the known class.
virtual DtObjectClassInfo *	knownClass ()
	Returns the known class of the object.
virtual DtObjectClassInfo *	actualClass ()
	Returns the actual (registered) class of the object.
virtual int	owned (DtAttributeHandle handle) const
	Returns 1 if handle is owned by the object, 0 otherwise.
virtual bool	ownPriviledgeToDelete ()
	Returns true if the priviledgeToDelete attribute is locally owned, false otherwise.
virtual DtFederateHandle	ownerHandle () const
	Set/Get the federate who owns the priviledgeToDelete attribute.
virtual void	setOwnerHandle (DtFederateHandle handle)
virtual void	setIsKnown (bool isKnownValue)
	Set/Get known status of object This status can not be determined by status of attributes.
virtual bool	isKnown () const
DtUpdateType	updateType () const
	Return the object's update type.
virtual void	setDiscoveredClass (DtFederateHandle remoteFedHandle, DtObjectClassInfo const &classInfo)
	Set the discovery class for the remote federate As a result, the remote federates subscription information is reset with this class and attribute advisory status may change.
virtual void	removeDiscoveredClass (DtFederateHandle remoteFedHandle)
	Remove the discovery class for the remote federate As a result, the remote federates subscription information is removed and attribute advisory status may change.
virtual DtObjectClassHandle	discoveredClass (DtFederateHandle remoteFedHandle)
	Get the discovery class for the remote federate.
virtual bool	isDiscovered (DtFederateHandle remoteFedHandle)
	Return bool: is object discovered by federate?
virtual bool	hasBeenUpdated () const
	Returns bool: has object been updated by this federate.
virtual void	markAsUpdated ()
	Mark object as having been updated by this federate.
virtual bool	hasBeenReflected () const
	Returns bool: has object been reflected by this federate.
virtual void	markAsReflected ()
	Mark object as having been reflected by this federate.
virtual int	rtiOwned (DtAttributeHandle handle) const
	Returns 1 if handle is owned by the RTI, 0 otherwise.
virtual int	lrcManaged (DtAttributeHandle handle) const
	Returns 1 if handle is unowned, and managed by the LRC, 0 otherwise.
virtual void	takeFromLrc (const DtAttributeHandleSet &set)
	Transfer ownership from local LRC to local federate.
virtual void	giveToLrc (const DtAttributeHandleSet &set)
	Transfer attributes from local federate to local LRC as unowned.
virtual void	divestToLrc (const DtAttributeHandleSet &set)
	Transfer attributes from local federate to local LRC as divested.
virtual void	giveToRti (const DtAttributeHandleSet &set)
	Transfer ownership to local RTI.
virtual void	lrcUnmanage (const DtAttributeHandleSet &set)
	Remove the elements of set from the set of attributes managed by the local LRC.
virtual void	addRemoteRequest (const DtAttributeHandleSet &requestSet, DtFederateHandle fed)
	Call to indicate that a remote federate has requested ownership of requestSet.
virtual void	removeRemoteRequest (const DtAttributeHandleSet &requestSet, DtFederateHandle fed)
	Call to indicate that the local federate has denied ownership of requestSet.
virtual void	addSkipPendingConfirm (const DtAttributeHandleSet &requestSet, DtFederateHandle fed)
virtual void	removeSkipPendingConfirm (const DtAttributeHandleSet &requestSet, DtFederateHandle fed)
virtual DtFederateHandle	pendingSkipConfirm (DtAttributeHandle hand) const
virtual DtAttributeHandleSet const &	pendingSkipConfirmAttributes () const
virtual DtAttributeHandleSet	pendingSkipConfirmByFed (DtFederateHandle fed) const
virtual void	removePendingSkipConfirm (const DtAttributeHandleSet &set)
virtual void	cancelDivest (const DtAttributeHandleSet &set)
	Cancel a divest.
virtual void	cancelRemoteRequest (const DtAttributeHandleSet &requestSet, DtFederateHandle fed)
	Cancel the remote request.
virtual void	cancelAllRemoteRequests (const DtAttributeHandleSet &requestSet)
	Cancel all remote requests for supplied attributes.
virtual void	removeCanceledRequests (DtAttributeHandleSet const &requestSet)
	Get the cancelled request set.
virtual DtAttributeHandleSet	canceledRequestSet () const
	Get the cancelled request set.
virtual bool	isRequestCanceled (DtAttributeHandle hand)
	Returns boolean: is there a canceled request for the attribute for which the federate has not responded?
virtual int	requestCount () const
	Returns the number of request by all federates.
virtual DtAttributeHandleSet const &	requestedAttributes () const
	Return the set of requested attributes.
virtual int	confirmCount () const
	Returns the number of attributes pending divestiture confirmation.
virtual DtAttributeHandleSet const &	pendingConfirmAttributes () const
	Return the set of pedning confirmed attributes.
virtual DtFederateHandle	pendingRemoteRequest (DtAttributeHandle hand)
	Returns the handle of the federate that has most recently requested ownership of this attribute.
virtual DtFederateHandle	pendingConfirm (DtAttributeHandle hand) const
	Returns the handle of the federate that will get ownership of attribute when confirmed.
virtual DtFederateHandle	releaseRequested (const DtAttributeHandleSet &inSet, DtAttributeHandleSet *releasedSet, bool keepForConfirm)
	Calls to this method with the attributes provided in inSet will release and return in releaseSet any matching requested attributes from a single requesting federate, whose handle is the return argument.
virtual DtFederateHandle	releaseConfirm (const DtAttributeHandleSet &inSet, DtAttributeHandleSet *releasedSet)
	Calls to this method with the attributes provided in inSet will release and return in releaseSet any matching pending confirm attributes assigned to a single requesting federate, whose handle is the return argument.
virtual DtAttributeHandleSet	requestedByFed (DtFederateHandle fed, bool includePendingConfirm=false)
	Returns the set of attributes most recently requested by fed.
virtual DtAttributeHandleSet	pendingConfirmByFed (DtFederateHandle fed) const
	Returns only the current set of attributes that are pending confirm for fed.
virtual DtFederateHandle	unavailablePendingRequests (DtAttributeHandleSet *invalidatedSet)
	Get the next federate with requests that have become unavailable and the invalidated attrs.
virtual void	releaseAttrs (const DtAttributeHandleSet &releaseSet)
	Release ownership of these attributes.
virtual void	takeAttrs (const DtAttributeHandleSet &takeSet)
	Take ownership of these attributes.
virtual bool	okToReceive (DtHandle attrHandle, float tolerance)
	Update Rate Reduction receive-side test.
virtual unsigned int	computeAttrOffset (DtHandle attrHandle)
	Compute Update Rate Reduction send-side mcast destination address.
virtual const DtAttributeHandleSet &	filterOwned (const DtAttributeHandleSet &inSet) const
	Returns a set that contains those members of inSet that are owned by the federate.
virtual int	expectedCount (const DtAhvps &inSet, DtHandle regSetHandle) const
	Returns the number of attributes in inSet that are expected (subscribed) by the federate.
virtual void	selectExpected (DtAhvps &outSet, const DtAhvps &inSet, DtHandle regSetHandle) const
	Fills the outSet with the attributes in inSet that are expected (subscribed) by the federate.
virtual void	removeUnexpected (DtAhvps &attrSet, DtHandle regSetHandle) const
	Remove those members of attrSet that are not expected (subscribed) by the federate.
virtual int	isOfActualClass (DtAttributeHandle handle) const
	Return 1 if the object is of actualclass handle, or is of a class that's a subclass of handle.
virtual int	isOfKnownClass (DtAttributeHandle handle) const
	Return 1 if the object is of known class handle, or is of a class that's a subclass of handle.
virtual int	expecting (DtAttributeHandle handle, DtHandle regSetHandle) const
	Returns 1 if we are expected (subscribed to) this attribute, else 0.
virtual const DtAttributeHandleSet &	lrcManagedAttrs ()
	Returns the set of unowned attributes managed by our LRC.
virtual const DtAttributeHandleSet &	ownedAttrs ()
	Returns the set of owned attributes managed by our LRC.
virtual const DtAttributeHandleSet &	rtiOwnedAttrs ()
	Returns the set of rti owned attributes managed by our LRC.
virtual const DtAttributeHandleSet &	divestingAttrs ()
	Returns the set of attributes currently being divested.
virtual const DtAttributeHandleSet &	divestedAttrs ()
	Returns the set of attributes unconditionaly divested and managed by LRC.
virtual const DtAttributeHandleSet &	uncondRequestedAttrs ()
	Returns the set of attributes currently being unconditionally requested.
virtual const DtAttributeHandleSet &	ifAvailRequestedAttrs ()
	Returns the set of attributes currently being if available requested.
virtual int	inScope (DtAttributeHandle handle) const
	Returns boolean: is attribute in scope?
virtual const DtAttributeHandleSet &	inScopeAttrs ()
	Returns the set of attributes that are in scope.
virtual bool	inScope () const
	Returns boolean: is any attribute in scope?
virtual void	addToScope (DtAttributeHandle handle)
	Add the attributes to scope.
virtual void	addToScope (const DtAttributeHandleSet &attrs)
	Add the attributes to scope.
virtual void	removeFromScope (DtAttributeHandle handle)
	Remove the attributes from scope.
virtual void	removeFromScope (const DtAttributeHandleSet &attrs)
	Remove the attributes from scope.
virtual void	acquireRemoteSubscriptions (const DtAttributeHandleSet &attrs, DtFomClassMgr *fom)
	Collect the remote subscriptions that match these acquired attributes.
virtual void	getBaseClassDestinations (DtBitMask &dest, const DtAhvpBase &attrs, DtObjectClassInfo *baseClass) const
	Updates the destinations given with the base class subscriptions This will continue to update until the base class is NULL.
virtual void	overrideDestinations (DtBitMask const &mask)
	Override the destinations with this mask.
virtual void	setAllDestinations ()
	Adds all destinations to all attributes.
virtual void	divestRemoteSubscriptions (const DtAttributeHandleSet &attrs)
	Remove the remote subscription status for each of these divested attrs.
virtual bool	isUpdateOn (DtAttributeHandle handle) const
	Returns boolean: is attribute update on?
virtual DtAttributeHandleSet	updateOnAttrs () const
	Returns the set of owned attributes that are turned on.
virtual DtAttributeHandleSet	updateOffAttrs () const
	Returns the set of owned attributes that are turned off.
virtual bool	isUpdateOn () const
	Returns boolean: is any attribute turned on?
virtual MAKRti::DtTransportType	attrTransport (DtAttributeHandle theHandle)
	Get attribute transport type from handle.
virtual MAKRti::DtOrderType	attrOrder (DtAttributeHandle theHandle)
	Get attribute order from handle.
virtual void	setAttrTransport (DtAttributeHandle theHandle, MAKRti::DtTransportType transport)
	Set attribute transport type from handle.
virtual void	setAttrOrder (DtAttributeHandle theHandle, MAKRti::DtOrderType order)
	Set attribute order from handle.
virtual bool	attrHasDimensions (DtAttributeHandle attrHandle) const
	Return bool: attribute has associated DDM dimensions (where DM default region has all dimensions)?
virtual bool	decode (const char *buff, DtFomClassMgr *fom)
	Decode object data for restore Return: data successfully decoded?
void	setTimeToUseDestinations (MAKRti::DtTime timeVal)
	Set time to use attribute destinations.
MAKRti::DtTime	timeToUseDestinations () const
	Get time to use attribute destinations.
void	addAttributeOwner (DtFederateHandle fedHandle, const DtAttributeHandleSet &attrs)
	add Attribute Owners (in response to acquires)
virtual DtBitMask *	getAttributeOwnerDestinationMask (DtBitMask *bitMask=NULL) const
	Get the destination mask for owners of the objects attributes.
virtual void	setObjHandle (DtObjectInstanceHandle handle)
	Set/Get my object handle.
virtual DtObjectInstanceHandle	objHandle () const
	Set/Get my object handle.
virtual DtObjectInstanceHandle	id () const
	Set/Get my object handle.
virtual void	addRequest (const DtAttributeHandleSet &requestSet, bool ifAvail)
	Add/Remove these to the set of attributes that we have requested, where the request is pending.
virtual void	removeRequest (const DtAttributeHandleSet &set)
	Add/Remove these to the set of attributes that we have requested, where the request is pending.
virtual void	addDivesting (const DtAttributeHandleSet &divestSet)
	Add/Remove these to the set of attributes for which a divest is pending.
virtual void	removeDivesting (const DtAttributeHandleSet &set)
	Add/Remove these to the set of attributes for which a divest is pending.
virtual void	addPendingConfirm (const DtAttributeHandleSet &attrs, DtFederateHandle fed)
	Add/Remove these to the set of attributes for which a confirm divest is pending.
virtual void	removePendingConfirm (const DtAttributeHandleSet &requestSet, DtFederateHandle fed)
	Add/Remove these to the set of attributes for which a confirm divest is pending.
virtual void	removePendingConfirm (const DtAttributeHandleSet &set)
	Add/Remove these to the set of attributes for which a confirm divest is pending.
virtual bool	pendingUncondRequest (DtAttributeHandle hand)
	Returns true if there's already a request pending that we've made for this attribute.
virtual bool	pendingRequestIfAvail (DtAttributeHandle hand)
	Returns true if there's already a request pending that we've made for this attribute.
virtual void	remoteSubscribe (DtFederateHandle fedHandle, const DtAttributeHandleSet &attrs)
	Add remote DM subscriptions.
virtual void	remoteSubscribe (DtFederateHandle fedHandle, DtAttributeHandle attributeHandle)
	Add remote DM subscriptions.
virtual void	remotePassiveSubscribe (DtFederateHandle fedHandle, DtAttributeHandle attrHandle)
	Add remote DM passive subscriptions.
virtual void	remotePassiveSubscribe (DtFederateHandle fedHandle, const DtAttributeHandleSet &attrs)
	Add remote DM passive subscriptions.
virtual void	remoteUnsubscribe (DtFederateHandle fedHandle, DtAttributeHandle attrHandle)
	Remove remote DM subscriptions.
virtual void	remoteUnsubscribe (DtFederateHandle fedHandle, const DtAttributeHandleSet &attrs)
	Remove remote DM subscriptions.
virtual void	remoteUnsubscribe (DtFederateHandle fedHandle)
	Remove remote DM subscriptions.
virtual DtBitMask	getDestinations () const
	Get the list of remote subscribers to the class = update destinations.
virtual DtBitMask	getDestinations (const DtAttributeHandleSet &attrs) const
	Get the list of remote subscribers to the class = update destinations.
virtual DtBitMask	getDestinations (const DtAhvpBase &attrs) const
	Get the list of remote subscribers to the class = update destinations.
virtual void	turnUpdateOn (DtAttributeHandle handle)
	Turn update on for given attribute(s)
virtual void	turnUpdateOn (const DtAttributeHandleSet &attrs)
	Turn update on for given attribute(s)
virtual void	turnUpdateOff (DtAttributeHandle handle)
	Turn update off for given attribute(s)
virtual void	turnUpdateOff (const DtAttributeHandleSet &attrs)
	Turn update off for given attribute(s)
virtual DtHandle	regionSetHandle (DtAttributeHandle attrHandle)
virtual unsigned int	encodedLength () const
	Encode object for save.
virtual void	encode (const char *buff)
	Encode object for save.

Static Public Member Functions
static DtRtiObject *	createEmptyObject ()
	Creator for Empty Object.
static DtRtiObject *	createRegisteredObject (DtObjectInstanceHandle id, const char *name, DtObjectClassInfo *classDesc, DtUpdateType updateType=DtUpdateFederateObject)
	Creator for Registered Object.
static DtRtiObject *	createDiscoveredObject (DtObjectInstanceHandle id, const char *name, DtObjectClassInfo *classDesc, DtObjectClassInfo *discoveredClass, DtUpdateType updateType=DtUpdateFederateObject)
	Creator for Discovered Object.
static void	setEmptyCreatorFunction (DtEmptyRtiObjectCreator fn)
	Used to override the default Empty Creator Function.
static void	setRegisteredCreatorFunction (DtRegisteredRtiObjectCreator fn)
	Used to override the default Registered Creator Function.
static void	setDiscoveredCreatorFunction (DtDiscoveredRtiObjectCreator fn)
	Used to override the deafult Discovered Creator Function.
static void	setUseDiscoveredClass (bool yesNo)
	Set to false when not exchanging discovered class information The object will return the known class instead.

Protected Member Functions
	DtRtiObject ()
	Constructors are now protected.
	DtRtiObject (DtObjectInstanceHandle id, const char *name, DtObjectClassInfo *classDesc, DtUpdateType updateType=DtUpdateFederateObject)
	Constructor for registered objects.
	DtRtiObject (DtObjectInstanceHandle id, const char *objName, DtObjectClassInfo *actualClass, DtObjectClassInfo *discoveredClass, DtUpdateType updateType=DtUpdateFederateObject)
	Constructor for discovered objects.
DtRtiObject *	self () const
	Casts away const-ness.
virtual void	addRemoteSubscribe (DtFederateHandle fedHandle, DtAttributeHandle attrHandle)
	Add the remote subscription of the given attribute by the given federate.
virtual void	removeRemoteSubscribe (DtFederateHandle fedHandle, DtAttributeHandle attrHandle)
	Remove the remote subscription of the given attribute by the given federate.

Protected Attributes
DtObjectInstanceHandle	myId
	The object instance handle.
DtObjectClassHandle	myActualHandle
	The actual object class handle.
DtObjectClassHandle	myKnownHandle
	The federate knows the object as this class.
char *	myObjName
	The object instance name.
DtAttributeHandleSet	myOwnedSet
	The set of attributes owned by this federate.
DtAttributeHandleSet	myOutHandleSet
	Temporary set holds owned attributes of a given set.
bool	myIsKnown
	Indicates if the federate knows about this object.
DtFederateHandle	myOwnerHandle
	The federate who owns the privilege to delete.
bool	myHasBeenUpdated
	Indicates if this object has been updated.
bool	myHasBeenReflected
	Indicates if this object has been reflected.
DtUpdateType	myUpdateType
	Indicates the update type.
DtAttributeHandleSet	myLrcManagedSet
	Union of attributes that are not owned by anyone and managed by LRC.
DtAttributeHandleSet	myUnownedSet
	Attributes never owned or divested through unpublish and managed by LRC.
DtAttributeHandleSet	myDivestedSet
	Attributes unconditionally divested and managed by LRC These attributes must be actively divested by the RTI.
DtAttributeHandleSet	myRtiOwnedSet
	Attributes owned by the RTI (MOM attributes)
DtAttributeHandleSet	myPendingRequestSet
	Attributes that we've requested, whose requests are pending.
DtAttributeHandleSet	myPendingReqIfAvailSet
DtAttributeHandleSet	myDivestingSet
	Attributes for which we have initiated a negotiated divestiture.
DtRequestDatabase	myRemoteReqDb
	Database of remote request information. These attributes are owned.
DtObjectClassInfo *	myActualClass
	Actual class info.
DtObjectClassInfo *	myKnownClass
	Known class info.
DtAttributeHandleSet	myInScopeAttrs
	Attribute in scope advisory status.
DtAttributeHandleSet	myUpdateOnAttrs
	Attribute update on advisory status.
std::map< DtFederateHandle, DtObjectClassHandle >	myDiscoveredClass
	For each remote federate that discovered this object, contains the discovery class handle.
DtBitMask *	myOverideDestinationsMask
	Create this bit mask to override remote subscrbie destinations.
DtObjectAttrInfo *	myAttrs
	List of attributes and information about them.
unsigned	myNumAttrs
	Number of attributes.
MAKRti::DtTime	myTimeToUseDestinations
	Time that smart forwarding destinations should take effect Before this time, RTI is waiting for discovery updates to determine destinations.
DtObjectClassHandleByFederateHandleMap	myKnownAttributeOwnersMap
	This contains attribute owner information.
std::map< float, DtObjectAttrInfo::tuple >	myUpdateRateHold
	Helper class for calculating update rate reduction values. Kept here for performance reasons.

Static Protected Attributes
static bool	theUseDiscoveredClass
	Indicates if discovered class should be used.
static DtEmptyRtiObjectCreator	theEmptyCreator
	Static Creator Method for Empty RTI Objects.
static DtRegisteredRtiObjectCreator	theRegisteredCreator
	Static Creator Method for Registered RTI Objects.
static DtDiscoveredRtiObjectCreator	theDiscoveredCreator
	Static Creator Method for Discovered RTI Objects.

Detailed Description

The RTI object maintains the internal RTI object state.

The RTI object maintains information about instance handle, instance name, registered/discovered class, attribute ownership/transport/order, advisories, etc.

Constructor & Destructor Documentation

DtRtiObject::DtRtiObject ( )

protected

Constructors are now protected.

New RTI objects will be created through creator functions. Constructor

DtRtiObject::DtRtiObject ( DtObjectInstanceHandle  id, const char *  name, DtObjectClassInfo *  classDesc, DtUpdateType  updateType = DtUpdateFederateObject  )

protected

Constructor for registered objects.

Set of owned attributes is initialized to the set of published attributes.

DtRtiObject::DtRtiObject ( DtObjectInstanceHandle  id, const char *  objName, DtObjectClassInfo *  actualClass, DtObjectClassInfo *  discoveredClass, DtUpdateType  updateType = DtUpdateFederateObject  )

protected

Constructor for discovered objects.

virtual DtRtiObject::~DtRtiObject ( )

virtual

Destructor.

DtRtiObject::DtRtiObject

(

const DtRtiObject &

orig

)

Copy constructor Copies object state only!

Member Function Documentation

virtual void DtRtiObject::acquireRemoteSubscriptions ( const DtAttributeHandleSet &  attrs, DtFomClassMgr *  fom  )

virtual

Collect the remote subscriptions that match these acquired attributes.

virtual DtObjectClassInfo* DtRtiObject::actualClass ( )

virtual

Returns the actual (registered) class of the object.

virtual DtObjectClassHandle DtRtiObject::actualClassHandle ( ) const

virtual

Returns class handle of the object.

void DtRtiObject::addAttributeOwner	(	DtFederateHandle	fedHandle,
		const DtAttributeHandleSet &	attrs
	)

add Attribute Owners (in response to acquires)

virtual void DtRtiObject::addDivesting ( const DtAttributeHandleSet &  divestSet )

virtual

Add/Remove these to the set of attributes for which a divest is pending.

virtual void DtRtiObject::addPendingConfirm ( const DtAttributeHandleSet &  attrs, DtFederateHandle  fed  )

virtual

Add/Remove these to the set of attributes for which a confirm divest is pending.

virtual void DtRtiObject::addRemoteRequest ( const DtAttributeHandleSet &  requestSet, DtFederateHandle  fed  )

virtual

Call to indicate that a remote federate has requested ownership of requestSet.

If an attribute is passed to this function more than once, the more recent request takes precedence. That is, when it's time to divest, we will divest the attribute to the most recent requesting federate.

virtual void DtRtiObject::addRemoteSubscribe ( DtFederateHandle  fedHandle, DtAttributeHandle  attrHandle  )

protectedvirtual

Add the remote subscription of the given attribute by the given federate.

virtual void DtRtiObject::addRequest ( const DtAttributeHandleSet &  requestSet, bool  ifAvail  )

virtual

Add/Remove these to the set of attributes that we have requested, where the request is pending.

virtual void DtRtiObject::addSkipPendingConfirm ( const DtAttributeHandleSet &  requestSet, DtFederateHandle  fed  )

virtual

virtual void DtRtiObject::addToScope ( DtAttributeHandle  handle )

virtual

Add the attributes to scope.

virtual void DtRtiObject::addToScope ( const DtAttributeHandleSet &  attrs )

virtual

Add the attributes to scope.

virtual bool DtRtiObject::attrHasDimensions ( DtAttributeHandle  attrHandle ) const

virtual

Return bool: attribute has associated DDM dimensions (where DM default region has all dimensions)?

virtual MAKRti::DtOrderType DtRtiObject::attrOrder ( DtAttributeHandle  theHandle )

virtual

Get attribute order from handle.

virtual MAKRti::DtTransportType DtRtiObject::attrTransport ( DtAttributeHandle  theHandle )

virtual

Get attribute transport type from handle.

virtual void DtRtiObject::cancelAllRemoteRequests ( const DtAttributeHandleSet &  requestSet )

virtual

Cancel all remote requests for supplied attributes.

virtual void DtRtiObject::cancelDivest ( const DtAttributeHandleSet &  set )

virtual

Cancel a divest.

virtual DtAttributeHandleSet DtRtiObject::canceledRequestSet ( ) const

virtual

Get the cancelled request set.

virtual void DtRtiObject::cancelRemoteRequest ( const DtAttributeHandleSet &  requestSet, DtFederateHandle  fed  )

virtual

Cancel the remote request.

virtual unsigned int DtRtiObject::computeAttrOffset ( DtHandle  attrHandle )

virtual

Compute Update Rate Reduction send-side mcast destination address.

virtual int DtRtiObject::confirmCount ( ) const

virtual

Returns the number of attributes pending divestiture confirmation.

static DtRtiObject* DtRtiObject::createDiscoveredObject ( DtObjectInstanceHandle  id, const char *  name, DtObjectClassInfo *  classDesc, DtObjectClassInfo *  discoveredClass, DtUpdateType  updateType = DtUpdateFederateObject  )

static

Creator for Discovered Object.

static DtRtiObject* DtRtiObject::createEmptyObject ( )

static

Creator for Empty Object.

Is used to create empty object for restore, then decode is called on the object.

static DtRtiObject* DtRtiObject::createRegisteredObject ( DtObjectInstanceHandle  id, const char *  name, DtObjectClassInfo *  classDesc, DtUpdateType  updateType = DtUpdateFederateObject  )

static

Creator for Registered Object.

virtual bool DtRtiObject::decode ( const char *  buff, DtFomClassMgr *  fom  )

virtual

Decode object data for restore Return: data successfully decoded?

virtual DtObjectClassHandle DtRtiObject::discoveredClass ( DtFederateHandle  remoteFedHandle )

virtual

Get the discovery class for the remote federate.

virtual const DtAttributeHandleSet& DtRtiObject::divestedAttrs ( )

virtual

Returns the set of attributes unconditionaly divested and managed by LRC.

virtual const DtAttributeHandleSet& DtRtiObject::divestingAttrs ( )

virtual

Returns the set of attributes currently being divested.

virtual void DtRtiObject::divestRemoteSubscriptions ( const DtAttributeHandleSet &  attrs )

virtual

Remove the remote subscription status for each of these divested attrs.

virtual void DtRtiObject::divestToLrc ( const DtAttributeHandleSet &  set )

virtual

Transfer attributes from local federate to local LRC as divested.

virtual void DtRtiObject::encode ( const char *  buff )

virtual

Encode object for save.

virtual unsigned int DtRtiObject::encodedLength ( ) const

virtual

Encode object for save.

virtual int DtRtiObject::expectedCount ( const DtAhvps &  inSet, DtHandle  regSetHandle  ) const

virtual

Returns the number of attributes in inSet that are expected (subscribed) by the federate.

virtual int DtRtiObject::expecting ( DtAttributeHandle  handle, DtHandle  regSetHandle  ) const

virtual

Returns 1 if we are expected (subscribed to) this attribute, else 0.

virtual const DtAttributeHandleSet& DtRtiObject::filterOwned ( const DtAttributeHandleSet &  inSet ) const

virtual

Returns a set that contains those members of inSet that are owned by the federate.

virtual DtBitMask* DtRtiObject::getAttributeOwnerDestinationMask ( DtBitMask *  bitMask = NULL ) const

virtual

Get the destination mask for owners of the objects attributes.

virtual void DtRtiObject::getBaseClassDestinations ( DtBitMask &  dest, const DtAhvpBase &  attrs, DtObjectClassInfo *  baseClass  ) const

virtual

Updates the destinations given with the base class subscriptions This will continue to update until the base class is NULL.

virtual DtBitMask DtRtiObject::getDestinations ( ) const

virtual

Get the list of remote subscribers to the class = update destinations.

virtual DtBitMask DtRtiObject::getDestinations ( const DtAttributeHandleSet &  attrs ) const

virtual

Get the list of remote subscribers to the class = update destinations.

virtual DtBitMask DtRtiObject::getDestinations ( const DtAhvpBase &  attrs ) const

virtual

Get the list of remote subscribers to the class = update destinations.

virtual void DtRtiObject::giveToLrc ( const DtAttributeHandleSet &  set )

virtual

Transfer attributes from local federate to local LRC as unowned.

virtual void DtRtiObject::giveToRti ( const DtAttributeHandleSet &  set )

virtual

Transfer ownership to local RTI.

virtual bool DtRtiObject::hasBeenReflected ( ) const

virtual

Returns bool: has object been reflected by this federate.

virtual bool DtRtiObject::hasBeenUpdated ( ) const

virtual

Returns bool: has object been updated by this federate.

virtual DtObjectInstanceHandle DtRtiObject::id ( ) const

virtual

Set/Get my object handle.

virtual const DtAttributeHandleSet& DtRtiObject::ifAvailRequestedAttrs ( )

virtual

Returns the set of attributes currently being if available requested.

void DtRtiObject::initUpdateRates

(

const MAKRti::DtUpdateRateSetT

rates

)

push update rates into each object attribute

virtual int DtRtiObject::inScope ( DtAttributeHandle  handle ) const

virtual

Returns boolean: is attribute in scope?

virtual bool DtRtiObject::inScope ( ) const

virtual

Returns boolean: is any attribute in scope?

virtual const DtAttributeHandleSet& DtRtiObject::inScopeAttrs ( )

virtual

Returns the set of attributes that are in scope.

virtual bool DtRtiObject::isDiscovered ( DtFederateHandle  remoteFedHandle )

virtual

Return bool: is object discovered by federate?

virtual bool DtRtiObject::isKnown ( ) const

virtual

virtual int DtRtiObject::isOfActualClass ( DtAttributeHandle  handle ) const

virtual

Return 1 if the object is of actualclass handle, or is of a class that's a subclass of handle.

virtual int DtRtiObject::isOfKnownClass ( DtAttributeHandle  handle ) const

virtual

Return 1 if the object is of known class handle, or is of a class that's a subclass of handle.

virtual bool DtRtiObject::isRequestCanceled ( DtAttributeHandle  hand )

virtual

Returns boolean: is there a canceled request for the attribute for which the federate has not responded?

virtual bool DtRtiObject::isUpdateOn ( DtAttributeHandle  handle ) const

virtual

Returns boolean: is attribute update on?

virtual bool DtRtiObject::isUpdateOn ( ) const

virtual

Returns boolean: is any attribute turned on?

virtual DtObjectClassInfo* DtRtiObject::knownClass ( )

virtual

Returns the known class of the object.

virtual DtObjectClassHandle DtRtiObject::knownClassHandle ( ) const

virtual

Returns class handle indicating class by which the federate knows the object.

virtual int DtRtiObject::lrcManaged ( DtAttributeHandle  handle ) const

virtual

Returns 1 if handle is unowned, and managed by the LRC, 0 otherwise.

virtual const DtAttributeHandleSet& DtRtiObject::lrcManagedAttrs ( )

virtual

Returns the set of unowned attributes managed by our LRC.

virtual void DtRtiObject::lrcUnmanage ( const DtAttributeHandleSet &  set )

virtual

Remove the elements of set from the set of attributes managed by the local LRC.

virtual void DtRtiObject::markAsReflected ( )

virtual

Mark object as having been reflected by this federate.

virtual void DtRtiObject::markAsUpdated ( )

virtual

Mark object as having been updated by this federate.

virtual DtObjectInstanceHandle DtRtiObject::objHandle ( ) const

virtual

Set/Get my object handle.

virtual const char* DtRtiObject::objName ( ) const

virtual

Set/Get my name.

virtual bool DtRtiObject::okToReceive ( DtHandle  attrHandle, float  tolerance  )

virtual

Update Rate Reduction receive-side test.

const DtRtiObject& DtRtiObject::operator=

(

const DtRtiObject &

orig

)

assignment operator Assigned object state only!

virtual void DtRtiObject::overrideDestinations ( DtBitMask const &  mask )

virtual

Override the destinations with this mask.

virtual int DtRtiObject::owned ( DtAttributeHandle  handle ) const

virtual

Returns 1 if handle is owned by the object, 0 otherwise.

virtual const DtAttributeHandleSet& DtRtiObject::ownedAttrs ( )

virtual

Returns the set of owned attributes managed by our LRC.

virtual DtFederateHandle DtRtiObject::ownerHandle ( ) const

virtual

Set/Get the federate who owns the priviledgeToDelete attribute.

virtual bool DtRtiObject::ownPriviledgeToDelete ( )

virtual

Returns true if the priviledgeToDelete attribute is locally owned, false otherwise.

virtual DtFederateHandle DtRtiObject::pendingConfirm ( DtAttributeHandle  hand ) const

virtual

Returns the handle of the federate that will get ownership of attribute when confirmed.

virtual DtAttributeHandleSet const& DtRtiObject::pendingConfirmAttributes ( ) const

virtual

Return the set of pedning confirmed attributes.

virtual DtAttributeHandleSet DtRtiObject::pendingConfirmByFed ( DtFederateHandle  fed ) const

virtual

Returns only the current set of attributes that are pending confirm for fed.

virtual DtFederateHandle DtRtiObject::pendingRemoteRequest ( DtAttributeHandle  hand )

virtual

Returns the handle of the federate that has most recently requested ownership of this attribute.

virtual bool DtRtiObject::pendingRequestIfAvail ( DtAttributeHandle  hand )

virtual

Returns true if there's already a request pending that we've made for this attribute.

virtual DtFederateHandle DtRtiObject::pendingSkipConfirm ( DtAttributeHandle  hand ) const

virtual

virtual DtAttributeHandleSet const& DtRtiObject::pendingSkipConfirmAttributes ( ) const

virtual

virtual DtAttributeHandleSet DtRtiObject::pendingSkipConfirmByFed ( DtFederateHandle  fed ) const

virtual

virtual bool DtRtiObject::pendingUncondRequest ( DtAttributeHandle  hand )

virtual

Returns true if there's already a request pending that we've made for this attribute.

virtual DtHandle DtRtiObject::regionSetHandle ( DtAttributeHandle  attrHandle )

virtual

virtual void DtRtiObject::releaseAttrs ( const DtAttributeHandleSet &  releaseSet )

virtual

Release ownership of these attributes.

virtual DtFederateHandle DtRtiObject::releaseConfirm ( const DtAttributeHandleSet &  inSet, DtAttributeHandleSet *  releasedSet  )

virtual

Calls to this method with the attributes provided in inSet will release and return in releaseSet any matching pending confirm attributes assigned to a single requesting federate, whose handle is the return argument.

The method should be called repeatedly until it returns 0 to release all the matching attributes. Not all the attributes may match a pending confirm.

virtual DtFederateHandle DtRtiObject::releaseRequested ( const DtAttributeHandleSet &  inSet, DtAttributeHandleSet *  releasedSet, bool  keepForConfirm  )

virtual

Calls to this method with the attributes provided in inSet will release and return in releaseSet any matching requested attributes from a single requesting federate, whose handle is the return argument.

The method should be called repeatedly until it returns 0 to release all the matching attributes. In 1516 negotiated divest, these attributes are not fully released. Set the bool value to move them to a pending confirm status (see releaseConfirm below). Not all the attributes may match a request.

virtual void DtRtiObject::remotePassiveSubscribe ( DtFederateHandle  fedHandle, DtAttributeHandle  attrHandle  )

virtual

Add remote DM passive subscriptions.

virtual void DtRtiObject::remotePassiveSubscribe ( DtFederateHandle  fedHandle, const DtAttributeHandleSet &  attrs  )

virtual

Add remote DM passive subscriptions.

virtual void DtRtiObject::remoteSubscribe ( DtFederateHandle  fedHandle, const DtAttributeHandleSet &  attrs  )

virtual

Add remote DM subscriptions.

virtual void DtRtiObject::remoteSubscribe ( DtFederateHandle  fedHandle, DtAttributeHandle  attributeHandle  )

virtual

Add remote DM subscriptions.

virtual void DtRtiObject::remoteUnsubscribe ( DtFederateHandle  fedHandle, DtAttributeHandle  attrHandle  )

virtual

Remove remote DM subscriptions.

virtual void DtRtiObject::remoteUnsubscribe ( DtFederateHandle  fedHandle, const DtAttributeHandleSet &  attrs  )

virtual

Remove remote DM subscriptions.

virtual void DtRtiObject::remoteUnsubscribe ( DtFederateHandle  fedHandle )

virtual

Remove remote DM subscriptions.

virtual void DtRtiObject::removeCanceledRequests ( DtAttributeHandleSet const &  requestSet )

virtual

Get the cancelled request set.

virtual void DtRtiObject::removeDiscoveredClass ( DtFederateHandle  remoteFedHandle )

virtual

Remove the discovery class for the remote federate As a result, the remote federates subscription information is removed and attribute advisory status may change.

virtual void DtRtiObject::removeDivesting ( const DtAttributeHandleSet &  set )

virtual

Add/Remove these to the set of attributes for which a divest is pending.

virtual void DtRtiObject::removeFromScope ( DtAttributeHandle  handle )

virtual

Remove the attributes from scope.

virtual void DtRtiObject::removeFromScope ( const DtAttributeHandleSet &  attrs )

virtual

Remove the attributes from scope.

virtual void DtRtiObject::removePendingConfirm ( const DtAttributeHandleSet &  requestSet, DtFederateHandle  fed  )

virtual

Add/Remove these to the set of attributes for which a confirm divest is pending.

virtual void DtRtiObject::removePendingConfirm ( const DtAttributeHandleSet &  set )

virtual

Add/Remove these to the set of attributes for which a confirm divest is pending.

virtual void DtRtiObject::removePendingSkipConfirm ( const DtAttributeHandleSet &  set )

virtual

virtual void DtRtiObject::removeRemoteRequest ( const DtAttributeHandleSet &  requestSet, DtFederateHandle  fed  )

virtual

Call to indicate that the local federate has denied ownership of requestSet.

This should only be called in response to attribute ownership release denied service call.

virtual void DtRtiObject::removeRemoteSubscribe ( DtFederateHandle  fedHandle, DtAttributeHandle  attrHandle  )

protectedvirtual

Remove the remote subscription of the given attribute by the given federate.

virtual void DtRtiObject::removeRequest ( const DtAttributeHandleSet &  set )

virtual

Add/Remove these to the set of attributes that we have requested, where the request is pending.

virtual void DtRtiObject::removeSkipPendingConfirm ( const DtAttributeHandleSet &  requestSet, DtFederateHandle  fed  )

virtual

virtual void DtRtiObject::removeUnexpected ( DtAhvps &  attrSet, DtHandle  regSetHandle  ) const

virtual

Remove those members of attrSet that are not expected (subscribed) by the federate.

virtual int DtRtiObject::requestCount ( ) const

virtual

Returns the number of request by all federates.

virtual DtAttributeHandleSet const& DtRtiObject::requestedAttributes ( ) const

virtual

Return the set of requested attributes.

virtual DtAttributeHandleSet DtRtiObject::requestedByFed ( DtFederateHandle  fed, bool  includePendingConfirm = false  )

virtual

Returns the set of attributes most recently requested by fed.

virtual int DtRtiObject::rtiOwned ( DtAttributeHandle  handle ) const

virtual

Returns 1 if handle is owned by the RTI, 0 otherwise.

virtual const DtAttributeHandleSet& DtRtiObject::rtiOwnedAttrs ( )

virtual

Returns the set of rti owned attributes managed by our LRC.

virtual void DtRtiObject::selectExpected ( DtAhvps &  outSet, const DtAhvps &  inSet, DtHandle  regSetHandle  ) const

virtual

Fills the outSet with the attributes in inSet that are expected (subscribed) by the federate.

DtRtiObject* DtRtiObject::self ( ) const

inlineprotected

Casts away const-ness.

virtual void DtRtiObject::setAllDestinations ( )

virtual

Adds all destinations to all attributes.

virtual void DtRtiObject::setAttrOrder ( DtAttributeHandle  theHandle, MAKRti::DtOrderType  order  )

virtual

Set attribute order from handle.

virtual void DtRtiObject::setAttrTransport ( DtAttributeHandle  theHandle, MAKRti::DtTransportType  transport  )

virtual

Set attribute transport type from handle.

virtual void DtRtiObject::setDiscoveredClass ( DtFederateHandle  remoteFedHandle, DtObjectClassInfo const &  classInfo  )

virtual

Set the discovery class for the remote federate As a result, the remote federates subscription information is reset with this class and attribute advisory status may change.

static void DtRtiObject::setDiscoveredCreatorFunction ( DtDiscoveredRtiObjectCreator  fn )

static

Used to override the deafult Discovered Creator Function.

static void DtRtiObject::setEmptyCreatorFunction ( DtEmptyRtiObjectCreator  fn )

static

Used to override the default Empty Creator Function.

virtual void DtRtiObject::setIsKnown ( bool  isKnownValue )

virtual

Set/Get known status of object This status can not be determined by status of attributes.

virtual void DtRtiObject::setKnownClass ( DtObjectClassInfo *  classInfo )

virtual

Set the known class.

virtual void DtRtiObject::setObjHandle ( DtObjectInstanceHandle  handle )

virtual

Set/Get my object handle.

virtual void DtRtiObject::setObjName ( const char *  name )

virtual

virtual void DtRtiObject::setOwnerHandle ( DtFederateHandle  handle )

virtual

static void DtRtiObject::setRegisteredCreatorFunction ( DtRegisteredRtiObjectCreator  fn )

static

Used to override the default Registered Creator Function.

void DtRtiObject::setTimeToUseDestinations

(

MAKRti::DtTime

timeVal

)

Set time to use attribute destinations.

static void DtRtiObject::setUseDiscoveredClass ( bool  yesNo )

static

Set to false when not exchanging discovered class information The object will return the known class instead.

virtual void DtRtiObject::takeAttrs ( const DtAttributeHandleSet &  takeSet )

virtual

Take ownership of these attributes.

virtual void DtRtiObject::takeFromLrc ( const DtAttributeHandleSet &  set )

virtual

Transfer ownership from local LRC to local federate.

MAKRti::DtTime DtRtiObject::timeToUseDestinations

(

)

const

Get time to use attribute destinations.

virtual void DtRtiObject::turnUpdateOff ( DtAttributeHandle  handle )

virtual

Turn update off for given attribute(s)

virtual void DtRtiObject::turnUpdateOff ( const DtAttributeHandleSet &  attrs )

virtual

Turn update off for given attribute(s)

virtual void DtRtiObject::turnUpdateOn ( DtAttributeHandle  handle )

virtual

Turn update on for given attribute(s)

virtual void DtRtiObject::turnUpdateOn ( const DtAttributeHandleSet &  attrs )

virtual

Turn update on for given attribute(s)

virtual DtFederateHandle DtRtiObject::unavailablePendingRequests ( DtAttributeHandleSet *  invalidatedSet )

virtual

Get the next federate with requests that have become unavailable and the invalidated attrs.

virtual const DtAttributeHandleSet& DtRtiObject::uncondRequestedAttrs ( )

virtual

Returns the set of attributes currently being unconditionally requested.

virtual DtAttributeHandleSet DtRtiObject::updateOffAttrs ( ) const

virtual

Returns the set of owned attributes that are turned off.

virtual DtAttributeHandleSet DtRtiObject::updateOnAttrs ( ) const

virtual

Returns the set of owned attributes that are turned on.

DtUpdateType DtRtiObject::updateType

(

)

const

Return the object's update type.

Member Data Documentation

DtObjectClassInfo* DtRtiObject::myActualClass

protected

Actual class info.

DtObjectClassHandle DtRtiObject::myActualHandle

protected

The actual object class handle.

DtObjectAttrInfo* DtRtiObject::myAttrs

protected

List of attributes and information about them.

std::map<DtFederateHandle, DtObjectClassHandle> DtRtiObject::myDiscoveredClass

protected

For each remote federate that discovered this object, contains the discovery class handle.

DtAttributeHandleSet DtRtiObject::myDivestedSet

protected

Attributes unconditionally divested and managed by LRC These attributes must be actively divested by the RTI.

DtAttributeHandleSet DtRtiObject::myDivestingSet

protected

Attributes for which we have initiated a negotiated divestiture.

These attributes are still owned, though.

bool DtRtiObject::myHasBeenReflected

protected

Indicates if this object has been reflected.

bool DtRtiObject::myHasBeenUpdated

protected

Indicates if this object has been updated.

DtObjectInstanceHandle DtRtiObject::myId

protected

The object instance handle.

DtAttributeHandleSet DtRtiObject::myInScopeAttrs

protected

Attribute in scope advisory status.

bool DtRtiObject::myIsKnown

protected

Indicates if the federate knows about this object.

DtObjectClassHandleByFederateHandleMap DtRtiObject::myKnownAttributeOwnersMap

protected

This contains attribute owner information.

Note that any attribute that is not a key in the map means that it shares the same owner as the myOwnerHandle

DtObjectClassInfo* DtRtiObject::myKnownClass

protected

Known class info.

DtObjectClassHandle DtRtiObject::myKnownHandle

protected

The federate knows the object as this class.

DtAttributeHandleSet DtRtiObject::myLrcManagedSet

protected

Union of attributes that are not owned by anyone and managed by LRC.

unsigned DtRtiObject::myNumAttrs

protected

Number of attributes.

char* DtRtiObject::myObjName

protected

The object instance name.

DtAttributeHandleSet DtRtiObject::myOutHandleSet

protected

Temporary set holds owned attributes of a given set.

DtBitMask* DtRtiObject::myOverideDestinationsMask

protected

Create this bit mask to override remote subscrbie destinations.

DtAttributeHandleSet DtRtiObject::myOwnedSet

protected

The set of attributes owned by this federate.

DtFederateHandle DtRtiObject::myOwnerHandle

protected

The federate who owns the privilege to delete.

DtAttributeHandleSet DtRtiObject::myPendingReqIfAvailSet

protected

DtAttributeHandleSet DtRtiObject::myPendingRequestSet

protected

Attributes that we've requested, whose requests are pending.

All members are unowned.

DtRequestDatabase DtRtiObject::myRemoteReqDb

protected

Database of remote request information. These attributes are owned.

DtAttributeHandleSet DtRtiObject::myRtiOwnedSet

protected

Attributes owned by the RTI (MOM attributes)

MAKRti::DtTime DtRtiObject::myTimeToUseDestinations

protected

Time that smart forwarding destinations should take effect Before this time, RTI is waiting for discovery updates to determine destinations.

DtAttributeHandleSet DtRtiObject::myUnownedSet

protected

Attributes never owned or divested through unpublish and managed by LRC.

DtAttributeHandleSet DtRtiObject::myUpdateOnAttrs

protected

Attribute update on advisory status.

std::map<float,DtObjectAttrInfo::tuple> DtRtiObject::myUpdateRateHold

protected

Helper class for calculating update rate reduction values. Kept here for performance reasons.

DtUpdateType DtRtiObject::myUpdateType

protected

Indicates the update type.

DtDiscoveredRtiObjectCreator DtRtiObject::theDiscoveredCreator

staticprotected

Static Creator Method for Discovered RTI Objects.

DtEmptyRtiObjectCreator DtRtiObject::theEmptyCreator

staticprotected

Static Creator Method for Empty RTI Objects.

DtRegisteredRtiObjectCreator DtRtiObject::theRegisteredCreator

staticprotected

Static Creator Method for Registered RTI Objects.

bool DtRtiObject::theUseDiscoveredClass

staticprotected

Indicates if discovered class should be used.

---

The documentation for this class was generated from the following file:

• rtiObject.h
