DtRtiExec Class Reference

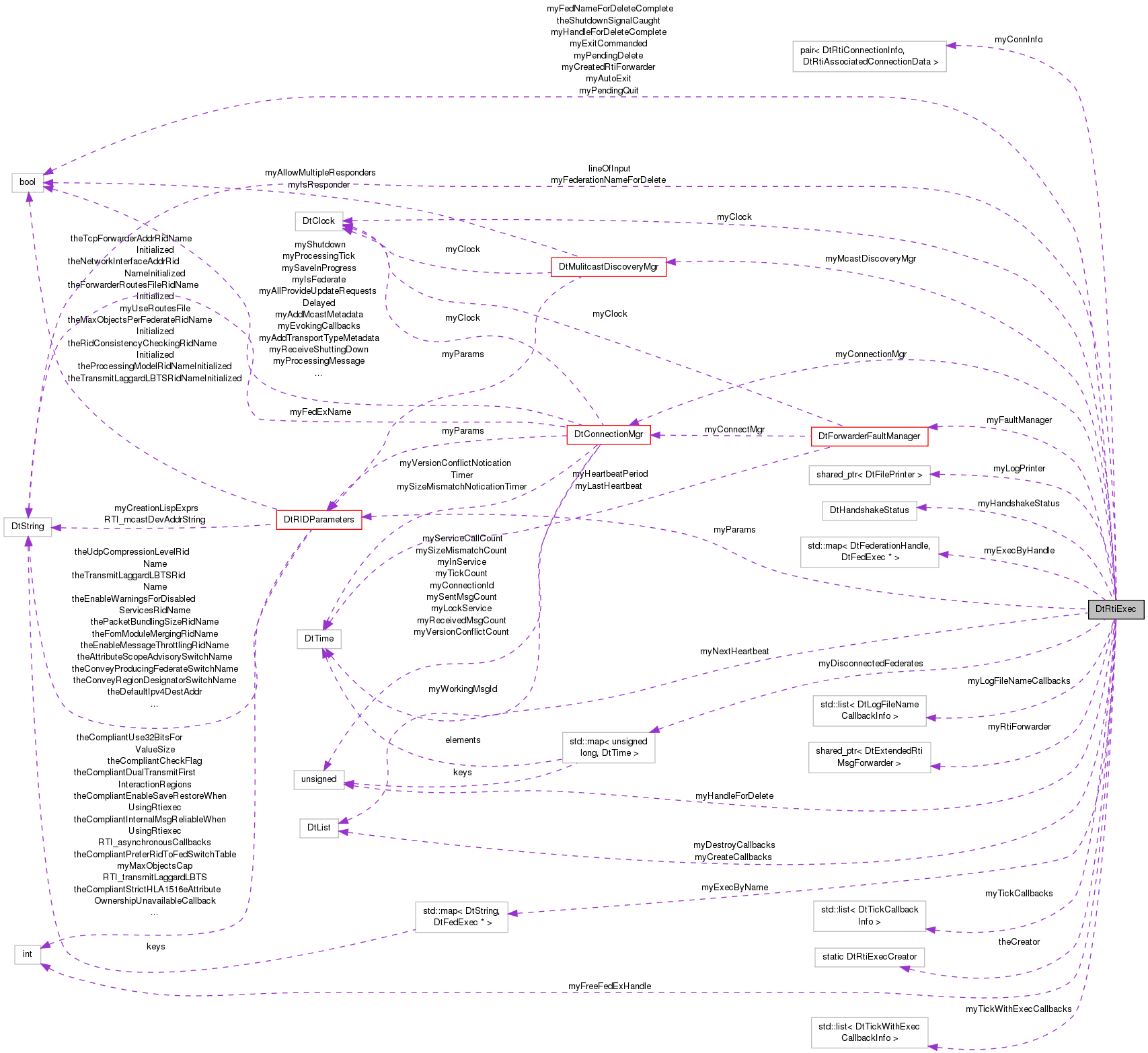

Collaboration diagram for DtRtiExec:

Public Member Functions
virtual	~DtRtiExec ()
	Destructor.
virtual void	shutdownForwarderIfCreated ()
virtual void	checkVersion (const DtString &version) const
	Called by the exec application to make sure that the RTI Version matches.
virtual void	processCreate (const DtCreateMsg &msg)
	Called when a createFedEx message is received.
virtual void	processDestroy (const DtDestroyMsg &msg)
	Called when a destroyFedEx message is received.
virtual void	processListFederations (const DtListFederationsMsg &msg)
	Called when a list federations message is received.
virtual void	processJoin (const DtJoinMsg &msg)
	Called when a Join message is received.
virtual void	processDisconnect (const DtDisconnectMsg &msg)
	Called when a disconnect message is received Actually used to capture broken connection.
virtual void	processQueueFull (const DtQueueFullMsg &msg)
	Called when a queue full message is received.
virtual void	processReconnect (const DtReconnectMsg &msg)
	Called when a reconnect message is received Actually used to recover from a broken connection.
virtual DtFedExec *	createFedEx (DtConnectionMgr *connMgr, const std::vector< unsigned int > &crcs, const char *fedExName, std::string const &timeImplName, MAKRti::DtFomType fedType, const std::vector< DtString > &fedFileName, const DtString &momModuleName, int fedExHandle, DtRIDParameters *params, unsigned int momModuleCrc)
	Returns a new fed ex instance, Override this function to replace the default federation execution object.
DtConnectionMgr *	connectMgr ()
	Returns the connection manager Not virtual because referenced in both ctors and dtors.
virtual bool	exists (const DtString &fedExName)
	Returns true if the name fedex exists, false otherwise.
virtual void	destroyFederationByName (const DtString &fullFedexName, bool sendDestroyResponse=true, bool forceDestroy=false)
	Attempt to destroy a federation.
int	processQuit ()
	User request to quit is processed.
virtual void	listFederates ()
	Respond to a request to list federates through interactive input.
virtual void	parseDeleteCommand (const DtString &command, unsigned int &handle, DtString &federationName) const
	Respond to a request to delete a federate through interactive input.
virtual int	deleteFederate (unsigned int handle, const DtString &federationName)
virtual void	processUpdateNotifyLevel (DtNotifyLevelType level)
	Updates the rtiexec notify level.
virtual void	exit ()
	Causes the rtiexec to exit.
virtual void	enableLogging ()
	Enables logging.
DtFedExec *	fedExec (const DtString &fedExName)
	Search for a fed executive by name.
const DtFedExec *	fedExec (const DtString &fedExName) const
const std::map< DtString, DtFedExec * > &	fedExecs () const
	Returns a reference to the entire map of federations.
const DtRIDParameters &	params () const
	Returns a handle to the current RID Params.
virtual void	run ()
	main loop
virtual bool	tick (bool noCallbacks=false)
	Work performed here for each cycle in main loop.
virtual void	wait (DtTime intervalInSeconds)
	Wait for input or until the the given interval expires.
virtual void	addFedExCreatedCallback (DtFedExCbFn fn, void *usr)
	Register a callback to be triggered whenever a new federation execution is created.
virtual void	removeFedExCreatedCallback (DtFedExCbFn fn, void *usr)
virtual void	addFedExDestroyedCallback (DtFedExCbFn fn, void *usr)
	Register a callback to be triggered whenever an existing federation execution is destroyed.
virtual void	removeFedExDestroyedCallback (DtFedExCbFn fn, void *usr)
virtual void	addLogFileNameUpdatedCallback (DtLogFileNameCbFn fn, void *usr)
	Register a callback to be triggered whenever the log file name for the rtiexec is updated.
virtual void	removeLogFileNameUpdatedCallback (DtLogFileNameCbFn fn, void *usr)
virtual void	addTickCallback (DtTickCbFn fn, void *usr, DtTime interval)
	Register a callback to be called during tick, but only at the given interval.
virtual void	removeTickCallback (DtTickCbFn fn, void *usr)
virtual void	addTickCallback (DtTickWithExecCbFn fn, void *usr, DtTime interval)
	Register a callback to be called during tick, but only at the given interval.
virtual void	removeTickCallback (DtTickWithExecCbFn fn, void *usr)
virtual void	sendCreateResponseMsg (const unsigned long destinationID, DtCreateResponseFlag flag, MAKRti::DtString const &errorString)
	Send RTI messages.
virtual void	sendDestroyResponseMsg (const char *fedExName, DtDestroyResponseFlag flag)
virtual void	sendReportFederationsMsg (unsigned long destId, const std::vector< DtString > &federationNames, const std::vector< DtString > &timeImplNames)
virtual void	sendJoinResponseMsg (unsigned long destinationIDValue, unsigned short requestID, unsigned int crc, DtFederateHandle handle, const char *fedName, int fedExHandle, const char *fedExName, const DtString &momModule, const std::vector< DtString > &fedFileName, unsigned long flags, bool allowNetworkTesting, MAKRti::DtString const &errorString, DtJoinResponseMsg::errorCodes errorValue=DtJoinResponseMsg::DT_NO_ERROR)
virtual void	ridRequestCb (const DtRidTestRequestMsg &msg)
	The RID request callback is processed by the RTI in response to a ridTestRequest.

Static Public Member Functions
static DtRtiExec *	create (DtRIDParameters *p, DtBoost::shared_ptr< DtFilePrinter > logPrinter, bool autoExit=false, const DtRtiConnectionInfoDataPair &connInfo=DtRtiConnectionInfoDataPair())
	Creates an instance of a DtRtiExec;.
static void	setCreatorFunction (DtRtiExecCreator fn)
	Call this function to set an alternate creator function With this function, users can replace this DtRtiExec with their own derived class.
static void	processRtiExecHandshakeMsg (const DtRtiExecHandshakeMsg &msg, void *usr)
	Handshake message callback.
static void	processCreate (const DtCreateMsg &msg, void *usr)
	Callback on the createFedEx message.
static void	processDestroy (const DtDestroyMsg &msg, void *usr)
	Callback on the destroyFedEx message.
static void	processListFederations (const DtListFederationsMsg &msg, void *usr)
	Callback on the list federations message.
static void	processJoin (const DtJoinMsg &msg, void *usr)
	Callback on the Join message.
static void	processDisconnect (const DtDisconnectMsg &msg, void *usr)
	Callback on the Disconnect message.
static void	processQueueFull (const DtQueueFullMsg &msg, void *usr)
	Callback on the Queue Full message.
static void	processReconnect (const DtReconnectMsg &msg, void *usr)
	Callback on the Reconnect message.
static void	ridRequestCb (const DtRidTestRequestMsg &msg, void *usr)
	RID File Received callback.
static bool	shutdownSignalCaught ()
static void	caughtShutdownSignal ()

Protected Types
enum	DtStartRtiForwarderResult { ForwarderSuccessfullyStarted, RetryStartingForwarder, ForwarderStartupFailed }
typedef std::map< unsigned long, DtTime >	DtConnIdToTimeMap

Protected Member Functions
	DtRtiExec (DtRIDParameters *p, DtBoost::shared_ptr< DtFilePrinter > logPrinter, bool autoExit, const DtRtiConnectionInfoDataPair &connInfo)
	Constructor.
void	cleanupConstructorException ()
	Clean up before constructor throws an exception Not virtual since it is called by constructor.
virtual void	rtiExecToForwarderHandshake ()
	Inform RTI Forwarder that Exec is connected, and verify that this is the ONLY Exec connected.
virtual void	sendRtiExecHandshakeMsg (DtHandle destId, DtRtiExecHandshakeMsg::DtHandshakeStatus status)
	Send RTI Forwarder connection response msg.
virtual void	processRtiExecHandshakeMsg (const DtRtiExecHandshakeMsg &msg)
	Process the RTI Forwarder's Handshake response.
virtual void	performMulticastDiscovery (bool reliableTransportDisabled)
	Attempt to discover either the RTI Forwarder or other rtiexecs.
virtual void	removeDroppedFederateConnections ()
	Force resign a federate.
virtual DtStartRtiForwarderResult	startRtiForwarder (const DtRIDParameters *params)
	Starts forwarder if the exec is configured to do so.

Protected Attributes
DtConnectionMgr *	myConnectionMgr
std::map< DtString, DtFedExec * >	myExecByName
std::map< DtFederationHandle, DtFedExec * >	myExecByHandle
DtString	lineOfInput
bool	myHandleForDeleteComplete
bool	myFedNameForDeleteComplete
DtString	myFederationNameForDelete
unsigned int	myHandleForDelete
bool	myCreatedRtiForwarder
bool	myPendingDelete
bool	myPendingQuit
int	myFreeFedExHandle
DtList	myCreateCallbacks
DtList	myDestroyCallbacks
std::list< DtTickCallbackInfo >	myTickCallbacks
	List of tick callbacks.
std::list < DtTickWithExecCallbackInfo >	myTickWithExecCallbacks
	List of tick callbacks with DtRtiExec reference.
std::list < DtLogFileNameCallbackInfo >	myLogFileNameCallbacks
	List of log file name update callbacks.
DtClock	myClock
DtRtiExecHandshakeMsg::DtHandshakeStatus	myHandshakeStatus
DtTime	myNextHeartbeat
DtRtiMsgForwarderSP	myRtiForwarder
DtForwarderFaultManager *	myFaultManager
DtMulitcastDiscoveryMgr *	myMcastDiscoveryMgr
DtConnIdToTimeMap	myDisconnectedFederates
	Map of dropped Federate to timestamp of drop.
DtRIDParameters *	myParams
bool	myAutoExit
bool	myExitCommanded
	Flag indicating that an exit command was received.
DtBoost::shared_ptr < DtFilePrinter >	myLogPrinter
	Printer which prints output to a log file.
DtRtiConnectionInfoDataPair	myConnInfo

Static Protected Attributes
static bool	theShutdownSignalCaught
static DtRtiExecCreator	theCreator

Member Typedef Documentation

typedef std::map< unsigned long, DtTime > DtRtiExec::DtConnIdToTimeMap

protected

Member Enumeration Documentation

enum DtRtiExec::DtStartRtiForwarderResult

protected

Enumerator:

ForwarderSuccessfullyStarted
RetryStartingForwarder
ForwarderStartupFailed

Constructor & Destructor Documentation

DtRtiExec::DtRtiExec ( DtRIDParameters *  p, DtBoost::shared_ptr< DtFilePrinter >  logPrinter, bool  autoExit, const DtRtiConnectionInfoDataPair &  connInfo  )

protected

Constructor.

virtual DtRtiExec::~DtRtiExec ( )

virtual

Destructor.

Member Function Documentation

virtual void DtRtiExec::addFedExCreatedCallback ( DtFedExCbFn  fn, void *  usr  )

virtual

Register a callback to be triggered whenever a new federation execution is created.

virtual void DtRtiExec::addFedExDestroyedCallback ( DtFedExCbFn  fn, void *  usr  )

virtual

Register a callback to be triggered whenever an existing federation execution is destroyed.

virtual void DtRtiExec::addLogFileNameUpdatedCallback ( DtLogFileNameCbFn  fn, void *  usr  )

virtual

Register a callback to be triggered whenever the log file name for the rtiexec is updated.

virtual void DtRtiExec::addTickCallback ( DtTickCbFn  fn, void *  usr, DtTime  interval  )

virtual

Register a callback to be called during tick, but only at the given interval.

virtual void DtRtiExec::addTickCallback ( DtTickWithExecCbFn  fn, void *  usr, DtTime  interval  )

virtual

Register a callback to be called during tick, but only at the given interval.

For callbacks which will be passed a reference to the calling DtRtiExec.

static void DtRtiExec::caughtShutdownSignal ( )

static

virtual void DtRtiExec::checkVersion ( const DtString &  version ) const

virtual

Called by the exec application to make sure that the RTI Version matches.

void DtRtiExec::cleanupConstructorException ( )

protected

Clean up before constructor throws an exception Not virtual since it is called by constructor.

DtConnectionMgr * DtRtiExec::connectMgr ( )

inline

Returns the connection manager Not virtual because referenced in both ctors and dtors.

References myConnectionMgr.

static DtRtiExec* DtRtiExec::create ( DtRIDParameters *  p, DtBoost::shared_ptr< DtFilePrinter >  logPrinter, bool  autoExit = false, const DtRtiConnectionInfoDataPair &  connInfo = DtRtiConnectionInfoDataPair()  )

static

Creates an instance of a DtRtiExec;.

virtual DtFedExec* DtRtiExec::createFedEx ( DtConnectionMgr *  connMgr, const std::vector< unsigned int > &  crcs, const char *  fedExName, std::string const &  timeImplName, MAKRti::DtFomType  fedType, const std::vector< DtString > &  fedFileName, const DtString &  momModuleName, int  fedExHandle, DtRIDParameters *  params, unsigned int  momModuleCrc  )

virtual

Returns a new fed ex instance, Override this function to replace the default federation execution object.

virtual int DtRtiExec::deleteFederate ( unsigned int  handle, const DtString &  federationName  )

virtual

virtual void DtRtiExec::destroyFederationByName ( const DtString &  fullFedexName, bool  sendDestroyResponse = true, bool  forceDestroy = false  )

virtual

Attempt to destroy a federation.

By default, if destruction fails, a destroy response is sent. If this is being called in response to a command at the rtiexec GUI, then no response needs to be sent. If forceDestroy is set, federation is destroyed regardless of whether it has joined federates.

virtual void DtRtiExec::enableLogging ( )

virtual

Enables logging.

virtual bool DtRtiExec::exists ( const DtString &  fedExName )

virtual

Returns true if the name fedex exists, false otherwise.

virtual void DtRtiExec::exit ( )

virtual

Causes the rtiexec to exit.

DtFedExec* DtRtiExec::fedExec

(

const DtString &

fedExName

)

Search for a fed executive by name.

Returns NULL if none are found.

const DtFedExec* DtRtiExec::fedExec

(

const DtString &

fedExName

)

const

const std::map<DtString, DtFedExec*>& DtRtiExec::fedExecs

(

)

const

Returns a reference to the entire map of federations.

virtual void DtRtiExec::listFederates ( )

virtual

Respond to a request to list federates through interactive input.

const DtRIDParameters & DtRtiExec::params ( ) const

inline

Returns a handle to the current RID Params.

References myParams.

virtual void DtRtiExec::parseDeleteCommand ( const DtString &  command, unsigned int &  handle, DtString &  federationName  ) const

virtual

Respond to a request to delete a federate through interactive input.

virtual void DtRtiExec::performMulticastDiscovery ( bool  reliableTransportDisabled )

protectedvirtual

Attempt to discover either the RTI Forwarder or other rtiexecs.

virtual void DtRtiExec::processCreate ( const DtCreateMsg &  msg )

virtual

Called when a createFedEx message is received.

static void DtRtiExec::processCreate ( const DtCreateMsg &  msg, void *  usr  )

static

Callback on the createFedEx message.

virtual void DtRtiExec::processDestroy ( const DtDestroyMsg &  msg )

virtual

Called when a destroyFedEx message is received.

static void DtRtiExec::processDestroy ( const DtDestroyMsg &  msg, void *  usr  )

static

Callback on the destroyFedEx message.

virtual void DtRtiExec::processDisconnect ( const DtDisconnectMsg &  msg )

virtual

Called when a disconnect message is received Actually used to capture broken connection.

static void DtRtiExec::processDisconnect ( const DtDisconnectMsg &  msg, void *  usr  )

static

Callback on the Disconnect message.

virtual void DtRtiExec::processJoin ( const DtJoinMsg &  msg )

virtual

Called when a Join message is received.

static void DtRtiExec::processJoin ( const DtJoinMsg &  msg, void *  usr  )

static

Callback on the Join message.

virtual void DtRtiExec::processListFederations ( const DtListFederationsMsg &  msg )

virtual

Called when a list federations message is received.

static void DtRtiExec::processListFederations ( const DtListFederationsMsg &  msg, void *  usr  )

static

Callback on the list federations message.

virtual void DtRtiExec::processQueueFull ( const DtQueueFullMsg &  msg )

virtual

Called when a queue full message is received.

static void DtRtiExec::processQueueFull ( const DtQueueFullMsg &  msg, void *  usr  )

static

Callback on the Queue Full message.

int DtRtiExec::processQuit

(

)

User request to quit is processed.

If there are no federations, quit is granted immediately. Otherwise, a pending quit status is set to true and the user is prompted to confirm the quit request. Return -1 if quit should be granted immediately.

virtual void DtRtiExec::processReconnect ( const DtReconnectMsg &  msg )

virtual

Called when a reconnect message is received Actually used to recover from a broken connection.

static void DtRtiExec::processReconnect ( const DtReconnectMsg &  msg, void *  usr  )

static

Callback on the Reconnect message.

static void DtRtiExec::processRtiExecHandshakeMsg ( const DtRtiExecHandshakeMsg &  msg, void *  usr  )

static

Handshake message callback.

virtual void DtRtiExec::processRtiExecHandshakeMsg ( const DtRtiExecHandshakeMsg &  msg )

protectedvirtual

Process the RTI Forwarder's Handshake response.

virtual void DtRtiExec::processUpdateNotifyLevel ( DtNotifyLevelType  level )

virtual

Updates the rtiexec notify level.

virtual void DtRtiExec::removeDroppedFederateConnections ( )

protectedvirtual

Force resign a federate.

virtual void DtRtiExec::removeFedExCreatedCallback ( DtFedExCbFn  fn, void *  usr  )

virtual

virtual void DtRtiExec::removeFedExDestroyedCallback ( DtFedExCbFn  fn, void *  usr  )

virtual

virtual void DtRtiExec::removeLogFileNameUpdatedCallback ( DtLogFileNameCbFn  fn, void *  usr  )

virtual

virtual void DtRtiExec::removeTickCallback ( DtTickCbFn  fn, void *  usr  )

virtual

virtual void DtRtiExec::removeTickCallback ( DtTickWithExecCbFn  fn, void *  usr  )

virtual

virtual void DtRtiExec::ridRequestCb ( const DtRidTestRequestMsg &  msg )

virtual

The RID request callback is processed by the RTI in response to a ridTestRequest.

It fills up a ridResponse with the number of RID parameters that it wants consistent and sends the response back to the federate that requested it.

static void DtRtiExec::ridRequestCb ( const DtRidTestRequestMsg &  msg, void *  usr  )

static

RID File Received callback.

virtual void DtRtiExec::rtiExecToForwarderHandshake ( )

protectedvirtual

Inform RTI Forwarder that Exec is connected, and verify that this is the ONLY Exec connected.

virtual void DtRtiExec::run ( )

virtual

main loop

virtual void DtRtiExec::sendCreateResponseMsg ( const unsigned long  destinationID, DtCreateResponseFlag  flag, MAKRti::DtString const &  errorString  )

virtual

Send RTI messages.

virtual void DtRtiExec::sendDestroyResponseMsg ( const char *  fedExName, DtDestroyResponseFlag  flag  )

virtual

virtual void DtRtiExec::sendJoinResponseMsg ( unsigned long  destinationIDValue, unsigned short  requestID, unsigned int  crc, DtFederateHandle  handle, const char *  fedName, int  fedExHandle, const char *  fedExName, const DtString &  momModule, const std::vector< DtString > &  fedFileName, unsigned long  flags, bool  allowNetworkTesting, MAKRti::DtString const &  errorString, DtJoinResponseMsg::errorCodes  errorValue = DtJoinResponseMsg::DT_NO_ERROR  )

virtual

virtual void DtRtiExec::sendReportFederationsMsg ( unsigned long  destId, const std::vector< DtString > &  federationNames, const std::vector< DtString > &  timeImplNames  )

virtual

virtual void DtRtiExec::sendRtiExecHandshakeMsg ( DtHandle  destId, DtRtiExecHandshakeMsg::DtHandshakeStatus  status  )

protectedvirtual

Send RTI Forwarder connection response msg.

static void DtRtiExec::setCreatorFunction ( DtRtiExecCreator  fn )

static

Call this function to set an alternate creator function With this function, users can replace this DtRtiExec with their own derived class.

virtual void DtRtiExec::shutdownForwarderIfCreated ( )

virtual

static bool DtRtiExec::shutdownSignalCaught ( )

static

virtual DtStartRtiForwarderResult DtRtiExec::startRtiForwarder ( const DtRIDParameters *  params )

protectedvirtual

Starts forwarder if the exec is configured to do so.

return zero on error.

virtual bool DtRtiExec::tick ( bool  noCallbacks = false )

virtual

Work performed here for each cycle in main loop.

Primarily processing messages and ticking each federation execution. Returns boolean: tick processed a message? If noCallbacks is true, no tick callbacks will be called

virtual void DtRtiExec::wait ( DtTime  intervalInSeconds )

virtual

Wait for input or until the the given interval expires.

Member Data Documentation

DtString DtRtiExec::lineOfInput

protected

bool DtRtiExec::myAutoExit

protected

DtClock DtRtiExec::myClock

protected

DtConnectionMgr* DtRtiExec::myConnectionMgr

protected

Referenced by connectMgr().

DtRtiConnectionInfoDataPair DtRtiExec::myConnInfo

protected

DtList DtRtiExec::myCreateCallbacks

protected

bool DtRtiExec::myCreatedRtiForwarder

protected

DtList DtRtiExec::myDestroyCallbacks

protected

DtConnIdToTimeMap DtRtiExec::myDisconnectedFederates

protected

Map of dropped Federate to timestamp of drop.

• If connection is not re-established before timeout, Then federate must be resigned.

std::map<DtFederationHandle, DtFedExec*> DtRtiExec::myExecByHandle

protected

std::map<DtString, DtFedExec*> DtRtiExec::myExecByName

protected

bool DtRtiExec::myExitCommanded

protected

Flag indicating that an exit command was received.

DtForwarderFaultManager* DtRtiExec::myFaultManager

protected

DtString DtRtiExec::myFederationNameForDelete

protected

bool DtRtiExec::myFedNameForDeleteComplete

protected

int DtRtiExec::myFreeFedExHandle

protected

unsigned int DtRtiExec::myHandleForDelete

protected

bool DtRtiExec::myHandleForDeleteComplete

protected

DtRtiExecHandshakeMsg::DtHandshakeStatus DtRtiExec::myHandshakeStatus

protected

std::list<DtLogFileNameCallbackInfo> DtRtiExec::myLogFileNameCallbacks

protected

List of log file name update callbacks.

DtBoost::shared_ptr<DtFilePrinter> DtRtiExec::myLogPrinter

protected

Printer which prints output to a log file.

DtMulitcastDiscoveryMgr* DtRtiExec::myMcastDiscoveryMgr

protected

DtTime DtRtiExec::myNextHeartbeat

protected

DtRIDParameters* DtRtiExec::myParams

protected

Referenced by params().

bool DtRtiExec::myPendingDelete

protected

bool DtRtiExec::myPendingQuit

protected

DtRtiMsgForwarderSP DtRtiExec::myRtiForwarder

protected

std::list<DtTickCallbackInfo> DtRtiExec::myTickCallbacks

protected

List of tick callbacks.

std::list<DtTickWithExecCallbackInfo> DtRtiExec::myTickWithExecCallbacks

protected

List of tick callbacks with DtRtiExec reference.

DtRtiExecCreator DtRtiExec::theCreator

staticprotected

bool DtRtiExec::theShutdownSignalCaught

staticprotected

---

The documentation for this class was generated from the following file:

• exec.h
