Processes information on each local RTI component that is connected to this Assistant. More...

Inheritance diagram for DtAssistantComponentMgr:

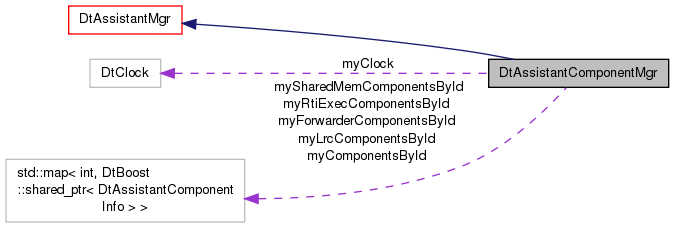

Collaboration diagram for DtAssistantComponentMgr:

Public Slots
virtual void	updateComponent (int compId, const DtAssistantComponentInfo &comp)
	Updates the component with the given ID.
Public Slots inherited from DtAssistantMgr
void	displayWarningDialogs ()
	Displays all warning dialogs.

Signals
void	localFederateJoined (const DtAssistantComponentInfo *, const MAKRti::DtString &federateType, const MAKRti::DtString &federateName, unsigned federateHandle, const MAKRti::DtString &federationName, unsigned federationHandle, DtHlaVersionId hlaVersion)
	Emitted when a local federate joins a federation.
void	localFederateResigned (const DtAssistantComponentInfo *)
	Emitted when a local federate resigns from a federation.
void	forwarderHasRtiexec (const DtAssistantComponentInfo *)
	Emitted when a local forwarder connects with an rtiexec.
void	forwarderHasNoRtiexec (const DtAssistantComponentInfo *)
	Emitted when a local forwarder disconnects with an rtiexec.
Component added signals
Emitted when a new local RTI component is added
void	lrcComponentAdded (const DtAssistantComponentInfo *)
void	rtiexecComponentAdded (const DtAssistantComponentInfo *)
void	forwarderComponentAdded (const DtAssistantComponentInfo *)
void	sharedMemComponentAdded (const DtAssistantComponentInfo *)
Component removed signals
Emitted when a local RTI component is removed
void	lrcComponentRemoved (const DtAssistantComponentInfo *)
void	rtiexecComponentRemoved (const DtAssistantComponentInfo *)
void	forwarderComponentRemoved (const DtAssistantComponentInfo *)
void	sharedMemComponentRemoved (const DtAssistantComponentInfo *)
Component removed unexpectedly signals
Emitted when a local RTI component is removed unexpectedly
void	lrcComponentRemovedUnexpectedly (const DtAssistantComponentInfo *)
void	rtiexecComponentRemovedUnexpectedly (const DtAssistantComponentInfo *)
void	forwarderComponentRemovedUnexpectedly (const DtAssistantComponentInfo *)
void	sharedMemComponentRemovedUnexpectedly (const DtAssistantComponentInfo *)
Component renamed signals
Emitted when a local RTI component is renamed
void	lrcComponentRenamed (const DtAssistantComponentInfo *)
void	rtiexecComponentRenamed (const DtAssistantComponentInfo *)
void	forwarderComponentRenamed (const DtAssistantComponentInfo *)
void	sharedMemComponentRenamed (const DtAssistantComponentInfo *)
Component connected signals
Emitted when a local RTI component disconnects its RTI connection
void	lrcComponentConnected (const DtAssistantComponentInfo *)
void	rtiexecComponentConnected (const DtAssistantComponentInfo *)
void	forwarderComponentConnected (const DtAssistantComponentInfo *)
void	lrcComponentDisconnected (const DtAssistantComponentInfo *)
void	rtiexecComponentDisconnected (const DtAssistantComponentInfo *)
void	forwarderComponentDisconnected (const DtAssistantComponentInfo *)
Component updated signals
Emitted when a local RTI component is updated
void	lrcComponentUpdated (const DtAssistantComponentInfo *)
void	rtiexecComponentUpdated (const DtAssistantComponentInfo *)
void	forwarderComponentUpdated (const DtAssistantComponentInfo *)
void	sharedMemComponentUpdated (const DtAssistantComponentInfo *)
Signals inherited from DtAssistantMgr
void	warningDialogDisplayed ()
	Emitted when a warning dialog is displayed.
void	warningDialogDismissed ()
	Emitted when a warning dialog is dismissed.
void	popupRequested (const MAKRti::DtString &text, int sourceCompId, const MAKRti::DtString &advancedText)
	Emitted when a popup dialog should be displayed.
void	popupRequested (const MAKRti::DtString &text, const MAKRti::DtString &source, const MAKRti::DtString &advancedText)
	Emitted when a popup dialog should be displayed.
void	notificationRequested (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, int sourceCompId, bool logOnly)
	Emitted when a notification should be displayed.
void	notificationRequested (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, const MAKRti::DtString &source, bool logOnly)
	Emitted when a notification should be displayed.

Public Member Functions
	DtAssistantComponentMgr (DtBoost::shared_ptr< DtRtiAssistantServer > server, DtBoost::shared_ptr< DtRtiAssistantPeer > peer, DtAssistantSignalRouter &signalRouter)
	Constructor.
virtual	~DtAssistantComponentMgr ()
	Destructor.
virtual const DtAssistantComponentInfo *	componentInfo (int compId) const
	Returns a reference to the information for the component with the given component ID.
virtual const DtIdToComponentInfoMap &	components () const
	Returns components the assistant is connected to.
virtual const DtIdToComponentInfoMap &	rtiexecComponents () const
	Returns rtiexec components the assistant is connected to.
virtual const DtIdToComponentInfoMap &	lrcComponents () const
	Returns LRC components the assistant is connected to.
virtual const DtIdToComponentInfoMap &	forwarderComponents () const
	Returns forwarder components the assistant is connected to.
virtual const DtIdToComponentInfoMap &	sharedMemComponents () const
	Returns shared memory queue components the assistant is connected to.
virtual MAKRti::DtString	printLocalComponentList () const
	Print list of local components.
virtual MAKRti::DtString	printFederationList (const DtAssistantExecStateMsg &msg)
	Print formatted federation info.
virtual MAKRti::DtString	printRtiExecComponentsList (std::map< int, MAKRti::DtString > &data) const
	Print list of rtiExec Components.
virtual MAKRti::DtString	printForwarderComponentsList (const std::map< int, MAKRti::DtString > &data) const
	Print list of Forwarder Components.
Public Member Functions inherited from DtAssistantMgr
	DtAssistantMgr (DtBoost::shared_ptr< DtRtiAssistantServer > server, DtBoost::shared_ptr< DtRtiAssistantPeer > peer, DtAssistantSignalRouter &signalRouter)
	Constructor.
virtual	~DtAssistantMgr ()
	Destructor.
virtual void	initialize ()
	Initializes this manager just prior to beginning assistant processing.
virtual void	tick ()
	Performs tasks that need to be completed periodically.
virtual void	startShutdown ()
	Performs any necessary processing at the start of shutdown.
virtual bool	dialogsVisible () const
	Determines if there are any visible dialogs for which this manager is responsible.
virtual void	configWidget (DtAssistantConfigWidget **widget, QIcon &icon, QString &name, DtPreferencesPage &pageId)
	Retrieves a widget which will be placed in the configuration dialog for configuring user preferences.
virtual void	updateConfigWidget ()
	Forces the configuration widget to be updated.
virtual void	processConfigWidgetAccept ()
	Process the changes that were accepted in the configuration widget.

Protected Member Functions
virtual void	processSocketRemoval (int compId, const MAKRti::DtString &reason)
	Called by the callback function to process the removal of a socket.
Protected Member Functions inherited from DtAssistantMgr
void	startDialog (QDialog *dlg, bool inTaskbar, bool warningDialog)
	Sets up the given widget as a dialog.
void	finishDialog (QDialog *dlg)
	Should be called prior to deleting any dialog started with startDialog.
void	showDialog (QDialog *dlg)
	Shows the dialog.
void	startMainWindow (QMainWindow *dlg)
	Sets up a main window dialog.
void	finishMainWindow (QMainWindow *dlg)
	Should be called prior to deleting any dialog started with startMainWindow.
void	showMainWindow (QMainWindow *dlg)
	Shows the dialog.
void	showPopup (const MAKRti::DtString &text, int sourceCompId=-1, const MAKRti::DtString &advancedText=MAKRti::DtString::nullString())
	Displays a popup message with the given text, advanced text, and name of the given source component.
void	showPopup (const MAKRti::DtString &text, const MAKRti::DtString &source, const MAKRti::DtString &advancedText=MAKRti::DtString::nullString())
	Displays a popup message with the given text, advanced text, and source name.
void	displayNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, int sourceCompId=-1)
	Displays and logs a notification from the given component.
void	displayNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, const MAKRti::DtString &source)
	Displays and logs notification with the given component name.
void	logNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, int sourceCompId=-1)
	Logs a notification from the given component, does not display.
void	logNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, const MAKRti::DtString &source)
	Logs a notification with the given component name, does not display.
virtual DtAssistantInfo	assistantInfoFromAssistantMsg (const DtAssistantMsg &assistantMsg, DtInetAddrSet *interfaces=0)

Static Protected Member Functions
static void	processSocketRemoval (int compId, const MAKRti::DtString &reason, void *usr)
	Callback to process the removal of a socket connection.

Protected Attributes
DtClock	myClock
	The clock.

DtIdToComponentInfoMap	myComponentsById
	Map containing the information on all connected components indexed by component ID.
DtIdToComponentInfoMap	myRtiExecComponentsById
	Map containing the information on all connected components indexed by component ID.
DtIdToComponentInfoMap	myLrcComponentsById
	Map containing the information on all connected components indexed by component ID.
DtIdToComponentInfoMap	myForwarderComponentsById
	Map containing the information on all connected components indexed by component ID.
DtIdToComponentInfoMap	mySharedMemComponentsById
	Map containing the information on all connected components indexed by component ID.
Protected Attributes inherited from DtAssistantMgr
DtBoost::shared_ptr < DtRtiAssistantServer >	myServer
	The Assistant server from which new messages will arrive from local RTI components.
DtBoost::shared_ptr < DtRtiAssistantPeer >	myPeer
	The Assistant peer which communicates with other Assistants.
std::set< QDialog * >	myUnparentedDialogs
	All unparented dialogs that are created by the GUI should be added to this set.
std::set< QMainWindow * >	myMainWindows
	All main windows that are created by the GUI should be added to this set.
std::set< QDialog * >	myWarningDialogs
	Set of the popup dialogs, either parented or unparented, which, when active, should cause a warning icon to be displayed.

Private Member Functions
	DtAssistantComponentMgr (DtAssistantComponentMgr const &)
	Copy Constructor not implemented – Copy Not Allowed!
DtAssistantComponentMgr &	operator= (DtAssistantComponentMgr const &)
	Assignment not implemented – Assignment Not Allowed!

Message Callbacks
Callbacks for component information messages
static void	processConnMsg (const DtAssistantConnMsg &msg, void *usr)
	Callback to process a connection update message from a component.
static void	processLrcCompInfoMsg (const DtAssistantLrcCompInfoMsg &msg, void *usr)
	Callback to process a component information message from an LRC.
static void	processRtiexecCompInfoMsg (const DtAssistantRtiexecCompInfoMsg &msg, void *usr)
	Callback to process a component information message from an rtiexec.
static void	processRtiForwarderCompInfoMsg (const DtAssistantRtiForwarderCompInfoMsg &msg, void *usr)
	Callback to process a component information message from an RTI Forwarder.
virtual void	processConnMsg (const DtAssistantConnMsg &msg)
	Called by the callback function to process connection messages.
virtual void	processNewConnMsg (const DtAssistantConnMsg &msg)
	Processes a connection message for a new connection.
virtual void	processCloseConnMsg (const DtAssistantConnMsg &msg)
	Processes a connection message for a connection which is closing.
virtual void	processLrcCompInfoMsg (const DtAssistantLrcCompInfoMsg &msg)
	Called by the callback function to process LRC component information messages.
virtual void	processRtiexecCompInfoMsg (const DtAssistantRtiexecCompInfoMsg &msg)
	Called by the callback function to process rtiexec component information messages.
virtual void	processRtiForwarderCompInfoMsg (const DtAssistantRtiForwarderCompInfoMsg &msg)
	Called by the callback function to process RTI Forwarder component information messages.

Additional Inherited Members
Static Protected Attributes inherited from DtAssistantMgr
static QIcon	theRtiIcon
	The icons used by the RTI Assistant.
static QIcon	theSmallRtiIcon
static QIcon	theWebIcon
static QIcon	theNotifyRtiIcon
static QIcon	theWarningRtiIcon
static QIcon	thePreferencesIcon
static QIcon	theAboutIcon
static QIcon	theHelpIcon
static bool	theIconsAreLoaded
	Whether or not the icons have yet been loaded.

Detailed Description

Processes information on each local RTI component that is connected to this Assistant.

This information is stored so that it may be retrieved by other assistant managers as needed. Emits signals to notify other classes when information has been updated.

Constructor & Destructor Documentation

DtAssistantComponentMgr::DtAssistantComponentMgr	(	DtBoost::shared_ptr< DtRtiAssistantServer >	server,
		DtBoost::shared_ptr< DtRtiAssistantPeer >	peer,
		DtAssistantSignalRouter &	signalRouter
	)

Constructor.

virtual DtAssistantComponentMgr::~DtAssistantComponentMgr ( )

virtual

Destructor.

DtAssistantComponentMgr::DtAssistantComponentMgr ( DtAssistantComponentMgr const & )

private

Copy Constructor not implemented – Copy Not Allowed!

Member Function Documentation

virtual const DtAssistantComponentInfo* DtAssistantComponentMgr::componentInfo ( int compId ) const

virtual

Returns a reference to the information for the component with the given component ID.

Returns a null pointer if the component could not be found.

virtual const DtIdToComponentInfoMap& DtAssistantComponentMgr::components ( ) const

virtual

Returns components the assistant is connected to.

void DtAssistantComponentMgr::forwarderComponentAdded ( const DtAssistantComponentInfo * )

signal

void DtAssistantComponentMgr::forwarderComponentConnected ( const DtAssistantComponentInfo * )

signal

void DtAssistantComponentMgr::forwarderComponentDisconnected ( const DtAssistantComponentInfo * )

signal

void DtAssistantComponentMgr::forwarderComponentRemoved ( const DtAssistantComponentInfo * )

signal

void DtAssistantComponentMgr::forwarderComponentRemovedUnexpectedly ( const DtAssistantComponentInfo * )

signal

void DtAssistantComponentMgr::forwarderComponentRenamed ( const DtAssistantComponentInfo * )

signal

virtual const DtIdToComponentInfoMap& DtAssistantComponentMgr::forwarderComponents ( ) const

virtual

Returns forwarder components the assistant is connected to.

void DtAssistantComponentMgr::forwarderComponentUpdated ( const DtAssistantComponentInfo * )

signal

void DtAssistantComponentMgr::forwarderHasNoRtiexec ( const DtAssistantComponentInfo * )

signal

Emitted when a local forwarder disconnects with an rtiexec.

void DtAssistantComponentMgr::forwarderHasRtiexec ( const DtAssistantComponentInfo * )

signal

Emitted when a local forwarder connects with an rtiexec.

void DtAssistantComponentMgr::localFederateJoined	(	const DtAssistantComponentInfo *	,
		const MAKRti::DtString &	federateType,
		const MAKRti::DtString &	federateName,
		unsigned	federateHandle,
		const MAKRti::DtString &	federationName,
		unsigned	federationHandle,
		DtHlaVersionId	hlaVersion
	)

signal

Emitted when a local federate joins a federation.

void DtAssistantComponentMgr::localFederateResigned ( const DtAssistantComponentInfo * )

signal

Emitted when a local federate resigns from a federation.

void DtAssistantComponentMgr::lrcComponentAdded ( const DtAssistantComponentInfo * )

signal

void DtAssistantComponentMgr::lrcComponentConnected ( const DtAssistantComponentInfo * )

signal

void DtAssistantComponentMgr::lrcComponentDisconnected ( const DtAssistantComponentInfo * )

signal

void DtAssistantComponentMgr::lrcComponentRemoved ( const DtAssistantComponentInfo * )

signal

void DtAssistantComponentMgr::lrcComponentRemovedUnexpectedly ( const DtAssistantComponentInfo * )

signal

void DtAssistantComponentMgr::lrcComponentRenamed ( const DtAssistantComponentInfo * )

signal

virtual const DtIdToComponentInfoMap& DtAssistantComponentMgr::lrcComponents ( ) const

virtual

Returns LRC components the assistant is connected to.

void DtAssistantComponentMgr::lrcComponentUpdated ( const DtAssistantComponentInfo * )

signal

DtAssistantComponentMgr& DtAssistantComponentMgr::operator= ( DtAssistantComponentMgr const & )

private

Assignment not implemented – Assignment Not Allowed!

virtual MAKRti::DtString DtAssistantComponentMgr::printFederationList ( const DtAssistantExecStateMsg & msg )

virtual

Print formatted federation info.

virtual MAKRti::DtString DtAssistantComponentMgr::printForwarderComponentsList ( const std::map< int, MAKRti::DtString > & data ) const

virtual

Print list of Forwarder Components.

virtual MAKRti::DtString DtAssistantComponentMgr::printLocalComponentList ( ) const

virtual

Print list of local components.

virtual MAKRti::DtString DtAssistantComponentMgr::printRtiExecComponentsList ( std::map< int, MAKRti::DtString > & data ) const

virtual

Print list of rtiExec Components.

virtual void DtAssistantComponentMgr::processCloseConnMsg ( const DtAssistantConnMsg & msg )

protectedvirtual

Processes a connection message for a connection which is closing.

static void DtAssistantComponentMgr::processConnMsg	(	const DtAssistantConnMsg &	msg,
		void *	usr
	)

staticprotected

Callback to process a connection update message from a component.

virtual void DtAssistantComponentMgr::processConnMsg ( const DtAssistantConnMsg & msg )

protectedvirtual

Called by the callback function to process connection messages.

static void DtAssistantComponentMgr::processLrcCompInfoMsg	(	const DtAssistantLrcCompInfoMsg &	msg,
		void *	usr
	)

staticprotected

Callback to process a component information message from an LRC.

virtual void DtAssistantComponentMgr::processLrcCompInfoMsg ( const DtAssistantLrcCompInfoMsg & msg )

protectedvirtual

Called by the callback function to process LRC component information messages.

virtual void DtAssistantComponentMgr::processNewConnMsg ( const DtAssistantConnMsg & msg )

protectedvirtual

Processes a connection message for a new connection.

static void DtAssistantComponentMgr::processRtiexecCompInfoMsg	(	const DtAssistantRtiexecCompInfoMsg &	msg,
		void *	usr
	)

staticprotected

Callback to process a component information message from an rtiexec.

virtual void DtAssistantComponentMgr::processRtiexecCompInfoMsg ( const DtAssistantRtiexecCompInfoMsg & msg )

protectedvirtual

Called by the callback function to process rtiexec component information messages.

static void DtAssistantComponentMgr::processRtiForwarderCompInfoMsg	(	const DtAssistantRtiForwarderCompInfoMsg &	msg,
		void *	usr
	)

staticprotected

Callback to process a component information message from an RTI Forwarder.

virtual void DtAssistantComponentMgr::processRtiForwarderCompInfoMsg ( const DtAssistantRtiForwarderCompInfoMsg & msg )

protectedvirtual

Called by the callback function to process RTI Forwarder component information messages.

static void DtAssistantComponentMgr::processSocketRemoval	(	int	compId,
		const MAKRti::DtString &	reason,
		void *	usr
	)

staticprotected

Callback to process the removal of a socket connection.

virtual void DtAssistantComponentMgr::processSocketRemoval	(	int	compId,
		const MAKRti::DtString &	reason
	)

protectedvirtual

Called by the callback function to process the removal of a socket.

void DtAssistantComponentMgr::rtiexecComponentAdded ( const DtAssistantComponentInfo * )

signal

void DtAssistantComponentMgr::rtiexecComponentConnected ( const DtAssistantComponentInfo * )

signal

void DtAssistantComponentMgr::rtiexecComponentDisconnected ( const DtAssistantComponentInfo * )

signal

void DtAssistantComponentMgr::rtiexecComponentRemoved ( const DtAssistantComponentInfo * )

signal

void DtAssistantComponentMgr::rtiexecComponentRemovedUnexpectedly ( const DtAssistantComponentInfo * )

signal

void DtAssistantComponentMgr::rtiexecComponentRenamed ( const DtAssistantComponentInfo * )

signal

virtual const DtIdToComponentInfoMap& DtAssistantComponentMgr::rtiexecComponents ( ) const

virtual

Returns rtiexec components the assistant is connected to.

void DtAssistantComponentMgr::rtiexecComponentUpdated ( const DtAssistantComponentInfo * )

signal

void DtAssistantComponentMgr::sharedMemComponentAdded ( const DtAssistantComponentInfo * )

signal

void DtAssistantComponentMgr::sharedMemComponentRemoved ( const DtAssistantComponentInfo * )

signal

void DtAssistantComponentMgr::sharedMemComponentRemovedUnexpectedly ( const DtAssistantComponentInfo * )

signal

void DtAssistantComponentMgr::sharedMemComponentRenamed ( const DtAssistantComponentInfo * )

signal

virtual const DtIdToComponentInfoMap& DtAssistantComponentMgr::sharedMemComponents ( ) const

virtual

Returns shared memory queue components the assistant is connected to.

void DtAssistantComponentMgr::sharedMemComponentUpdated ( const DtAssistantComponentInfo * )

signal

virtual void DtAssistantComponentMgr::updateComponent	(	int	compId,
		const DtAssistantComponentInfo &	comp
	)

virtualslot

Updates the component with the given ID.

Member Data Documentation

DtClock DtAssistantComponentMgr::myClock

protected

The clock.

DtIdToComponentInfoMap DtAssistantComponentMgr::myComponentsById

protected
