DtAssistantMsgQueue Class Reference

Maintains a queue of RTI Assistant messages. More...

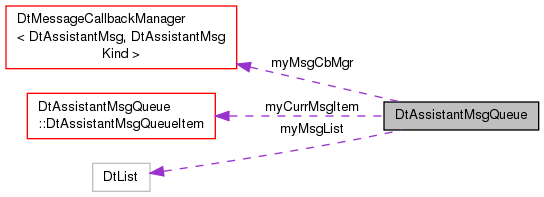

Collaboration diagram for DtAssistantMsgQueue:

Classes
struct	DtAssistantMsgQueueItem

Public Member Functions
	DtAssistantMsgQueue ()
	Constructor.
virtual	~DtAssistantMsgQueue ()
	Destructor.
virtual void	addMsgCallback (DtAssistantMsgKind msgKind, DtAssistantMsgCbMgr::DtCallbackFcn fcn, void *usr)
	Add message callback.
virtual void	removeMsgCallback (DtAssistantMsgKind msgKind, DtAssistantMsgCbMgr::DtCallbackFcn fcn, void *usr)
	Remove message callback.
virtual void	addMsg (const DtAssistantMsg &msg, int compId)
	Add message to queue.
virtual void	beginProcessMsg ()
	Begin processing for the next message, calling any registered callbacks.
virtual void	finishProcessMsg ()
	Finish processing for the current message.
virtual const DtAssistantMsg *	currMsg () const
	Get the current message being processed.
virtual int	currentCompId () const
	Get the component ID from which the current message being processed was received.

Protected Attributes
DtList	myMsgList
	List of messages in the queue.
DtAssistantMsgQueueItem *	myCurrMsgItem
	The item in the queue currently being processed.
DtAssistantMsgCbMgr	myMsgCbMgr
	Callback manager.

Private Member Functions
	DtAssistantMsgQueue (const DtAssistantMsgQueue &)
	Copy constructor not implemented.
DtAssistantMsgQueue &	operator= (const DtAssistantMsgQueue &)
	Assignment not implemented.

Detailed Description

Maintains a queue of RTI Assistant messages.

DtAssistantMsgQueue queues messages for later processing. Only one message from the queue may be processed at any given time. Callback functions may be registered with the queue to process messages.

Constructor & Destructor Documentation

DtAssistantMsgQueue::DtAssistantMsgQueue

(

)

Constructor.

virtual DtAssistantMsgQueue::~DtAssistantMsgQueue ( )

virtual

Destructor.

DtAssistantMsgQueue::DtAssistantMsgQueue ( const DtAssistantMsgQueue &  )

private

Copy constructor not implemented.

Member Function Documentation

virtual void DtAssistantMsgQueue::addMsg ( const DtAssistantMsg &  msg, int  compId  )

virtual

Add message to queue.

virtual void DtAssistantMsgQueue::addMsgCallback ( DtAssistantMsgKind  msgKind, DtAssistantMsgCbMgr::DtCallbackFcn  fcn, void *  usr  )

virtual

Add message callback.

virtual void DtAssistantMsgQueue::beginProcessMsg ( )

virtual

Begin processing for the next message, calling any registered callbacks.

Does nothing if another message is already being processed.

virtual int DtAssistantMsgQueue::currentCompId ( ) const

virtual

Get the component ID from which the current message being processed was received.

virtual const DtAssistantMsg* DtAssistantMsgQueue::currMsg ( ) const

virtual

Get the current message being processed.

virtual void DtAssistantMsgQueue::finishProcessMsg ( )

virtual

Finish processing for the current message.

Must be called before before beginProcessMsg will allow a new message to be processed.

DtAssistantMsgQueue& DtAssistantMsgQueue::operator= ( const DtAssistantMsgQueue &  )

private

Assignment not implemented.

virtual void DtAssistantMsgQueue::removeMsgCallback ( DtAssistantMsgKind  msgKind, DtAssistantMsgCbMgr::DtCallbackFcn  fcn, void *  usr  )

virtual

Remove message callback.

Member Data Documentation

DtAssistantMsgQueueItem* DtAssistantMsgQueue::myCurrMsgItem

protected

The item in the queue currently being processed.

DtAssistantMsgCbMgr DtAssistantMsgQueue::myMsgCbMgr

protected

Callback manager.

DtList DtAssistantMsgQueue::myMsgList

protected

List of messages in the queue.

---

The documentation for this class was generated from the following file:

• assistantMsgQueue.h
