DtAssistantNotifyDialog Class Reference

Dialog widget to display important notifications and events by the RTI Assistant. More...

Inheritance diagram for DtAssistantNotifyDialog:

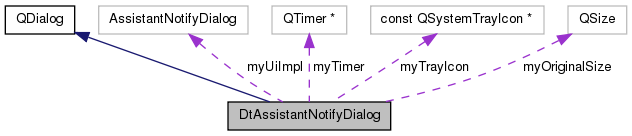

Collaboration diagram for DtAssistantNotifyDialog:

Public Slots
virtual void	fadeDialog ()
	Fades the dialog another step.
virtual void	hideDialog ()
	Clears and hides the dialog.

Signals
void	showHistorySelected ()
	Signal which is emitted if the user chooses to view the notification history.
void	faded ()
	Signal which is emitted if the dialog fades out without user acknowledgment.
void	dismissed ()
	Signal which is emitted if the dialog is actively dismissed by the user.

Public Member Functions
	DtAssistantNotifyDialog (QWidget *parent, const QSystemTrayIcon *trayIcon)
	Constructor.
virtual	~DtAssistantNotifyDialog ()
	Destructor.
virtual void	showNotification (const QString &notification, QColor color)
	Adds the notification text to the dialog and displays it if not currently visible.

Protected Member Functions
virtual void	positionDialog ()
	Repositions the dialog relative to the tray icon.

Protected Attributes
Ui::AssistantNotifyDialog	myUiImpl
	The GUI implementation of the widget.
QTimer *	myTimer
	Timer used to timeout dialog and perform fading.
const QSystemTrayIcon *	myTrayIcon
	The RTI Assistant tray icon is needed in order to determine the position of the notify dialog.
QSize	myOriginalSize
	The original size of the dialog.

Detailed Description

Dialog widget to display important notifications and events by the RTI Assistant.

DtAssistantNotifyDialog is used by the Assistant to display brief notifications which may be of interest to the user. These notifications will appear in a temporary dialog near the Assistant tray icon and will fade out after several seconds.

Constructor & Destructor Documentation

DtAssistantNotifyDialog::DtAssistantNotifyDialog	(	QWidget *	parent,
		const QSystemTrayIcon *	trayIcon
	)

Constructor.

virtual DtAssistantNotifyDialog::~DtAssistantNotifyDialog ( )

virtual

Destructor.

Member Function Documentation

void DtAssistantNotifyDialog::dismissed ( )

signal

Signal which is emitted if the dialog is actively dismissed by the user.

void DtAssistantNotifyDialog::faded ( )

signal

Signal which is emitted if the dialog fades out without user acknowledgment.

virtual void DtAssistantNotifyDialog::fadeDialog ( )

virtualslot

Fades the dialog another step.

Dialog is hidden and the text is cleared once it reaches full transparency.

virtual void DtAssistantNotifyDialog::hideDialog ( )

virtualslot

Clears and hides the dialog.

virtual void DtAssistantNotifyDialog::positionDialog ( )

protectedvirtual

Repositions the dialog relative to the tray icon.

void DtAssistantNotifyDialog::showHistorySelected ( )

signal

Signal which is emitted if the user chooses to view the notification history.

virtual void DtAssistantNotifyDialog::showNotification ( const QString &  notification, QColor  color  )

virtual

Adds the notification text to the dialog and displays it if not currently visible.

Member Data Documentation

QSize DtAssistantNotifyDialog::myOriginalSize

protected

The original size of the dialog.

QTimer* DtAssistantNotifyDialog::myTimer

protected

Timer used to timeout dialog and perform fading.

const QSystemTrayIcon* DtAssistantNotifyDialog::myTrayIcon

protected

The RTI Assistant tray icon is needed in order to determine the position of the notify dialog.

Ui::AssistantNotifyDialog DtAssistantNotifyDialog::myUiImpl

protected

The GUI implementation of the widget.

---

The documentation for this class was generated from the following file:

• notifyDialog.h
