DtGsRtiConnection Class Reference

The DtGsRtiConnection class extends the DtRtiConnection class to allow messages to be sent to multiple stored destination addresses. More...

Inheritance diagram for DtGsRtiConnection:

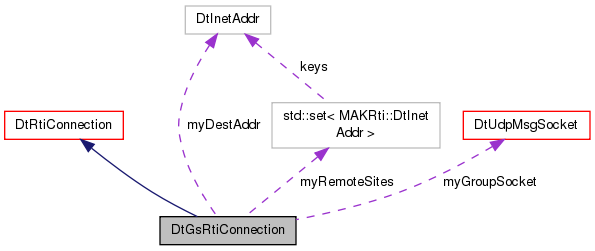

Collaboration diagram for DtGsRtiConnection:

Public Member Functions
	DtGsRtiConnection (DtUdpMsgSocket *skt, const MAKRti::DtInetAddr &destAddr)
	Constructor Accepts pre-created DtNetSocket (or subclass) and default destination address to use when sending and receiving.
virtual	~DtGsRtiConnection ()
	Destructor.
virtual int	send (const DtRtiMsg &msg, const MAKRti::DtInetAddr &destaddr)
	Send a message to the group socket destinations If the supplied destination is non zero, the message is sent to all destinations except the connection's default destination (if it happens to have been added as a destination to the group socket).
virtual void	removeAllRemoteSites ()
	Clear the list of remote sites.
virtual void	addRemoteSite (const MAKRti::DtInetAddr &addr)
	Add a destination address to the list.
virtual void	removeRemoteSite (const MAKRti::DtInetAddr &addr)
	Remove a destination address from the list.
Public Member Functions inherited from DtRtiConnection
	DtRtiConnection (DtMsgSocket *skt)
	Constructor.
virtual	~DtRtiConnection ()
	Destructor.
virtual void	setMsgFactory (DtRtiMsgFactory *fact)
	Set/Get the Message Factory used by this object.
virtual DtRtiMsgFactory *	rtiMsgFactory ()
virtual DtRtiMsg *	netRead (DtNetReadStatus *retCode=NULL)
	Note: netRead() creates a new DtRtiMsg using the message factory Caller is responsible for deleting it when through.
virtual bool	flush ()
	Send buffered messages.
virtual int	isOk ()
	Return true if the status of the connection is OK.
virtual void	setCheckVersion (bool enableCheckVersion)
	Set/get whether to check message version.
virtual bool	checkVersion () const
virtual void	disableCheckSize ()
	Disable message size check.
virtual void	enableCheckSize ()
	Enable message size check.
virtual void	setFedExName (const MAKRti::DtString &newFedExName)
	Set/Get federation execution name. NULL means "all".
virtual const MAKRti::DtString &	fedExName () const
virtual void	setFedExHandle (int handle)
	Set/Get federation execution handle. 0 means "all".
virtual int	fedExHandle () const
virtual void	setFederateHandle (DtFederationHandle handle)
	Set/Get federate handle.
virtual DtFederationHandle	federateHandle () const
virtual void	setConnId (unsigned long connId)
	Set/Get the connection ID assigned to the connection.
virtual unsigned long	connId () const
virtual DtMsgSocket *	socket ()
	Returns our socket.

Protected Member Functions
virtual int	sendToAllRemoteSites (caddr_t pkt, size_t size, const MAKRti::DtInetAddr &dwSkipAddr=MAKRti::DtInetAddr::inaddrAny())
	Send to all remote sites except dwSkipAddr.
Protected Member Functions inherited from DtRtiConnection
void	init (DtMsgSocket *s)

Protected Attributes
std::set< MAKRti::DtInetAddr >	myRemoteSites
	List of DtInetAddrs (which do not need to be deleted).
MAKRti::DtInetAddr	myDestAddr
	Default destination address. Should not be added to list of remote sites.
DtUdpMsgSocket *	myGroupSocket
	Pointer to DtNetSocket (or subclass) object associated with connection.
Protected Attributes inherited from DtRtiConnection
MAKRti::DtString	myFedExName
int	myFedExHandle
DtFederationHandle	myFedHandle
DtMsgSocket *	mySocket
DtRtiMsgFactory *	myMsgFact
unsigned long	myReceivedMsgCount
bool	myCheckSize
bool	myCheckVersion
unsigned int	myWaitEventIndex
unsigned long	myConnId
	Win32 only.

Private Member Functions
	DtGsRtiConnection (const DtGsRtiConnection &)
	Copy CTOR Not implemented – Copy Not Allowed!
DtGsRtiConnection &	operator= (const DtGsRtiConnection &)
	Assignment operator not implemented – Assignment Not Allowed!

Detailed Description

The DtGsRtiConnection class extends the DtRtiConnection class to allow messages to be sent to multiple stored destination addresses.

This class accepts any type of DtUdpMsgSocket object, including instances of DtGroupSocket and DtCompressionSocket objects. It duplicates some of the functionality of the DtGroupSocket class.

Constructor & Destructor Documentation

DtGsRtiConnection::DtGsRtiConnection	(	DtUdpMsgSocket *	skt,
		const MAKRti::DtInetAddr &	destAddr
	)

Constructor Accepts pre-created DtNetSocket (or subclass) and default destination address to use when sending and receiving.

virtual DtGsRtiConnection::~DtGsRtiConnection ( )

virtual

Destructor.

DtGsRtiConnection::DtGsRtiConnection ( const DtGsRtiConnection &  )

private

Copy CTOR Not implemented – Copy Not Allowed!

Member Function Documentation

virtual void DtGsRtiConnection::addRemoteSite ( const MAKRti::DtInetAddr &  addr )

virtual

Add a destination address to the list.

DtGsRtiConnection& DtGsRtiConnection::operator= ( const DtGsRtiConnection &  )

private

Assignment operator not implemented – Assignment Not Allowed!

virtual void DtGsRtiConnection::removeAllRemoteSites ( )

virtual

Clear the list of remote sites.

virtual void DtGsRtiConnection::removeRemoteSite ( const MAKRti::DtInetAddr &  addr )

virtual

Remove a destination address from the list.

virtual int DtGsRtiConnection::send ( const DtRtiMsg &  msg, const MAKRti::DtInetAddr &  destaddr  )

virtual

Send a message to the group socket destinations If the supplied destination is non zero, the message is sent to all destinations except the connection's default destination (if it happens to have been added as a destination to the group socket).

The message is then sent to the supplied destination address.

Reimplemented from DtRtiConnection.

virtual int DtGsRtiConnection::sendToAllRemoteSites ( caddr_t  pkt, size_t  size, const MAKRti::DtInetAddr &  dwSkipAddr = MAKRti::DtInetAddr::inaddrAny()  )

protectedvirtual

Send to all remote sites except dwSkipAddr.

Member Data Documentation

MAKRti::DtInetAddr DtGsRtiConnection::myDestAddr

protected

Default destination address. Should not be added to list of remote sites.

DtUdpMsgSocket* DtGsRtiConnection::myGroupSocket

protected

Pointer to DtNetSocket (or subclass) object associated with connection.

std::set<MAKRti::DtInetAddr> DtGsRtiConnection::myRemoteSites

protected

List of DtInetAddrs (which do not need to be deleted).

---

The documentation for this class was generated from the following file:

• gsConnection.h
