DtRtiSelectedNodeWidget Class Reference

Inheritance diagram for DtRtiSelectedNodeWidget:

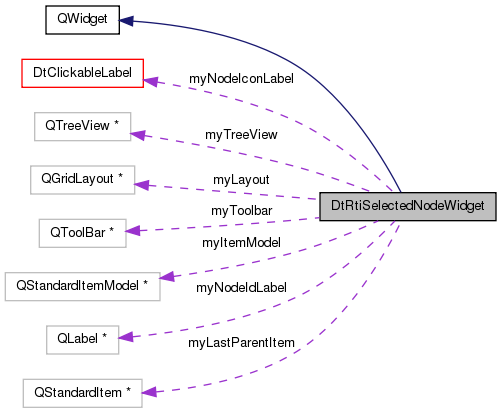

Collaboration diagram for DtRtiSelectedNodeWidget:

Signals
void	iconChangeRequested ()
	Emitted when the user attempts to select a new icon.

Public Member Functions
	DtRtiSelectedNodeWidget (QWidget *parent)
	Constructor.
virtual	~DtRtiSelectedNodeWidget ()
	Destructor.
virtual void	initialize ()
	Initialize.
virtual QSize	sizeHint () const
	Returns the recommended size for the widget.
virtual void	clearInformation ()
	Clear all displayed information.
virtual void	setNodeNameAndIcon (const MAKRti::DtString &name, const QPixmap &icon)
	Display new node name and icon.
virtual void	addItem (const QString &attribute, const QString &val, const QColor &colorValue=Qt::black)
	Add a new text item to the info panel optional text color.
virtual void	addItem (const QString &attribute, QWidget *w)
	Add a new widget item to the info panel.
virtual void	addSubItem (const QString &val, const QColor &colorValue=Qt::black)
	Add a new text sub-item to the info panel optional text color.
virtual void	removeItem (const QString &attribute)
	Removes any items with the matching attribute name.
virtual QAction *	addAction (const QString &name, const QIcon &icon)
	Add a new action to the toolbar.
virtual void	addAction (QAction *action)
	Add a new action to the toolbar.
virtual void	removeAction (QAction *action)
	Add a new action to the toolbar.
virtual void	copySelectionToClipboard ()
	Copy selection to clipboard.

Protected Attributes
QGridLayout *	myLayout
DtClickableLabel *	myNodeIconLabel
QLabel *	myNodeIdLabel
QTreeView *	myTreeView
QStandardItemModel *	myItemModel
QStandardItem *	myLastParentItem
QToolBar *	myToolbar

Private Member Functions
	DtRtiSelectedNodeWidget (const DtRtiSelectedNodeWidget &copy)
	Copy Constructor – NOT COPYABLE.
DtRtiSelectedNodeWidget &	operator= (const DtRtiSelectedNodeWidget &rhs)
	Assignment Operator – NOT COPYABLE.

Constructor & Destructor Documentation

DtRtiSelectedNodeWidget::DtRtiSelectedNodeWidget

(

QWidget *

parent

)

Constructor.

virtual DtRtiSelectedNodeWidget::~DtRtiSelectedNodeWidget ( )

virtual

Destructor.

DtRtiSelectedNodeWidget::DtRtiSelectedNodeWidget ( const DtRtiSelectedNodeWidget &  copy )

private

Copy Constructor – NOT COPYABLE.

Member Function Documentation

virtual QAction* DtRtiSelectedNodeWidget::addAction ( const QString &  name, const QIcon &  icon  )

virtual

Add a new action to the toolbar.

Creates the toolbar if it doesn't exist. Returns the QAction that was created so that the caller can install signals/slots.

virtual void DtRtiSelectedNodeWidget::addAction ( QAction *  action )

virtual

Add a new action to the toolbar.

Creates the toolbar if it doesn't exist.

virtual void DtRtiSelectedNodeWidget::addItem ( const QString &  attribute, const QString &  val, const QColor &  colorValue = Qt::black  )

virtual

Add a new text item to the info panel optional text color.

virtual void DtRtiSelectedNodeWidget::addItem ( const QString &  attribute, QWidget *  w  )

virtual

Add a new widget item to the info panel.

virtual void DtRtiSelectedNodeWidget::addSubItem ( const QString &  val, const QColor &  colorValue = Qt::black  )

virtual

Add a new text sub-item to the info panel optional text color.

Sub-items are added as children under the previously added item.

virtual void DtRtiSelectedNodeWidget::clearInformation ( )

virtual

Clear all displayed information.

virtual void DtRtiSelectedNodeWidget::copySelectionToClipboard ( )

virtual

Copy selection to clipboard.

void DtRtiSelectedNodeWidget::iconChangeRequested ( )

signal

Emitted when the user attempts to select a new icon.

virtual void DtRtiSelectedNodeWidget::initialize ( )

virtual

Initialize.

DtRtiSelectedNodeWidget& DtRtiSelectedNodeWidget::operator= ( const DtRtiSelectedNodeWidget &  rhs )

private

Assignment Operator – NOT COPYABLE.

virtual void DtRtiSelectedNodeWidget::removeAction ( QAction *  action )

virtual

Add a new action to the toolbar.

Creates the toolbar if it doesn't exist.

virtual void DtRtiSelectedNodeWidget::removeItem ( const QString &  attribute )

virtual

Removes any items with the matching attribute name.

virtual void DtRtiSelectedNodeWidget::setNodeNameAndIcon ( const MAKRti::DtString &  name, const QPixmap &  icon  )

virtual

Display new node name and icon.

virtual QSize DtRtiSelectedNodeWidget::sizeHint ( ) const

virtual

Returns the recommended size for the widget.

Member Data Documentation

QStandardItemModel* DtRtiSelectedNodeWidget::myItemModel

protected

QStandardItem* DtRtiSelectedNodeWidget::myLastParentItem

protected

QGridLayout* DtRtiSelectedNodeWidget::myLayout

protected

DtClickableLabel* DtRtiSelectedNodeWidget::myNodeIconLabel

protected

QLabel* DtRtiSelectedNodeWidget::myNodeIdLabel

protected

QToolBar* DtRtiSelectedNodeWidget::myToolbar

protected

QTreeView* DtRtiSelectedNodeWidget::myTreeView

protected

---

The documentation for this class was generated from the following file:

• rtiSelectedNodeWidget.h
