DtForwarderFaultManager Class Reference

The DtForwarderFaultManager class tracks federates and forwarders within the RTI's forwarding network. More...

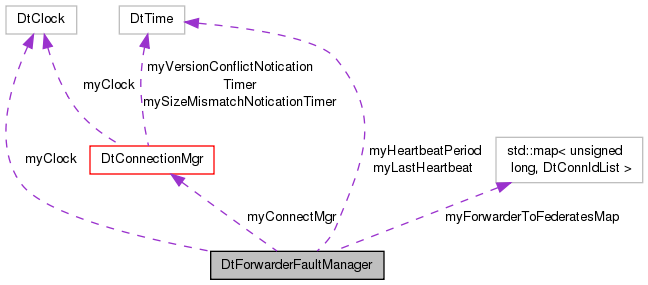

Collaboration diagram for DtForwarderFaultManager:

Public Member Functions
	DtForwarderFaultManager (DtConnectionMgr *connectMgr, MAKRti::DtTime heartbeatPeriod)
	Constructor.
virtual	~DtForwarderFaultManager ()
	Destructor.
virtual void	tick ()
	Tick - periodically heartbeat connected forwarders (otherwise faults will not be caught until a reliable msg is sent)

Static Public Member Functions
static void	processJoin (const DtJoinMsg &msg, void *usr)
	Callback on the Connect message.
static void	processConnectionLost (const DtForwarderConnectionLostMsg &msg, void *usr)
	Callback on the ForwarderConnectionLost message.
static void	processPing (const DtForwarderPingMsg &msg, void *usr)
	Callback on the ForwarderPing message.

Protected Types
typedef std::vector< unsigned long >	DtConnIdList
typedef std::map< unsigned long, DtConnIdList >	DtForwarderIdToConnIdsMap

Protected Member Functions
virtual void	processJoin (const DtJoinMsg &msg)
	Called when a Connect message is received Used to track forwarders and the federates connected to them.
virtual void	processConnectionLost (const DtForwarderConnectionLostMsg &msg)
	Callback on the ForwarderConnectionLost message Signals the start of a fault recovery cycle.
virtual void	processPing (const DtForwarderPingMsg &msg)
	Callback on the ForwarderPing message Used to identify faulty/normal forwarders.
virtual void	pingAllForwarders () const
	Send a ping to each known forwarder.
virtual void	pingForwarder (unsigned long forwarderId) const
	Send a ping message to the specified forwarder.
virtual void	resignForwarder (unsigned long forwarderId) const
	Send a resign message to the specified forwarder.
virtual void	disconnectFederates (const DtConnIdList &federates) const
	Send a disconnect for each federate in the list.

Protected Attributes
DtForwarderIdToConnIdsMap	myForwarderToFederatesMap
DtConnectionMgr *	myConnectMgr
MAKRti::DtClock	myClock
MAKRti::DtTime	myHeartbeatPeriod
MAKRti::DtTime	myLastHeartbeat

Private Member Functions
	DtForwarderFaultManager ()
	Default Ctor - unimplemented.

Detailed Description

The DtForwarderFaultManager class tracks federates and forwarders within the RTI's forwarding network.

In a distributed forwarder network the DtForwarderFaultManager is responsible for detecting and handling faults reported by the forwarders.

Member Typedef Documentation

typedef std::vector< unsigned long > DtForwarderFaultManager::DtConnIdList

protected

typedef std::map< unsigned long, DtConnIdList > DtForwarderFaultManager::DtForwarderIdToConnIdsMap

protected

Constructor & Destructor Documentation

DtForwarderFaultManager::DtForwarderFaultManager ( )

private

Default Ctor - unimplemented.

DtForwarderFaultManager::DtForwarderFaultManager	(	DtConnectionMgr *	connectMgr,
		MAKRti::DtTime	heartbeatPeriod
	)

Constructor.

virtual DtForwarderFaultManager::~DtForwarderFaultManager ( )

virtual

Destructor.

Member Function Documentation

virtual void DtForwarderFaultManager::disconnectFederates ( const DtConnIdList &  federates ) const

protectedvirtual

Send a disconnect for each federate in the list.

virtual void DtForwarderFaultManager::pingAllForwarders ( ) const

protectedvirtual

Send a ping to each known forwarder.

virtual void DtForwarderFaultManager::pingForwarder ( unsigned long  forwarderId ) const

protectedvirtual

Send a ping message to the specified forwarder.

static void DtForwarderFaultManager::processConnectionLost ( const DtForwarderConnectionLostMsg &  msg, void *  usr  )

static

Callback on the ForwarderConnectionLost message.

virtual void DtForwarderFaultManager::processConnectionLost ( const DtForwarderConnectionLostMsg &  msg )

protectedvirtual

Callback on the ForwarderConnectionLost message Signals the start of a fault recovery cycle.

static void DtForwarderFaultManager::processJoin ( const DtJoinMsg &  msg, void *  usr  )

static

Callback on the Connect message.

virtual void DtForwarderFaultManager::processJoin ( const DtJoinMsg &  msg )

protectedvirtual

Called when a Connect message is received Used to track forwarders and the federates connected to them.

static void DtForwarderFaultManager::processPing ( const DtForwarderPingMsg &  msg, void *  usr  )

static

Callback on the ForwarderPing message.

virtual void DtForwarderFaultManager::processPing ( const DtForwarderPingMsg &  msg )

protectedvirtual

Callback on the ForwarderPing message Used to identify faulty/normal forwarders.

virtual void DtForwarderFaultManager::resignForwarder ( unsigned long  forwarderId ) const

protectedvirtual

Send a resign message to the specified forwarder.

virtual void DtForwarderFaultManager::tick ( )

virtual

Tick - periodically heartbeat connected forwarders (otherwise faults will not be caught until a reliable msg is sent)

Member Data Documentation

MAKRti::DtClock DtForwarderFaultManager::myClock

protected

DtConnectionMgr* DtForwarderFaultManager::myConnectMgr

protected

DtForwarderIdToConnIdsMap DtForwarderFaultManager::myForwarderToFederatesMap

protected

MAKRti::DtTime DtForwarderFaultManager::myHeartbeatPeriod

protected

MAKRti::DtTime DtForwarderFaultManager::myLastHeartbeat

protected

---

The documentation for this class was generated from the following file:

• forwarderFaultManager.h
