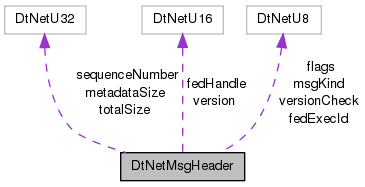

Collaboration diagram for DtNetMsgHeader:

Public Member Functions
bool	isForExec (const MAKRti::DtString &execName, unsigned short execHandle) const
	Returns true if the current message belongs to the indicated federation execution, false otherwise.
bool	versionMatches (int messageVersion) const
	Returns bool: given version matches version in header?
bool	metadataInMessage () const
	Accessor / Mutator for whether header indicates msg has metadata.
void	setMetadataInMessage (bool yesNo)
bool	isTestMgrMessage () const
	Accessor / Mutator for whether this is a test msg.
void	setIsTestMgrMessage (bool yesNo)
bool	isBundled () const
	Accessor / Mutator for whether this message is bundled.
void	setIsBundled (bool yesNo)
bool	isCompressed () const
	Accessor / Mutator for whether this message is compressed.
void	setIsCompressed (bool yesNo)

Public Attributes
DtNetU32	totalSize
DtNetU8	versionCheck
	Older versions had message kind here.
DtNetU8	msgKind
DtNetU8	flags
DtNetU8	fedExecId [DtNetExecNameSize]
	Five bytes representing either the first five characters of the execution name, or a zero byte followed by a four-byte execution handle.
DtNetU16	version
DtNetU16	fedHandle
DtNetU32	sequenceNumber
DtNetU32	metadataSize

Member Function Documentation

bool DtNetMsgHeader::isBundled ( ) const

Accessor / Mutator for whether this message is bundled.

bool DtNetMsgHeader::isCompressed ( ) const

Accessor / Mutator for whether this message is compressed.

bool DtNetMsgHeader::isForExec	(	const MAKRti::DtString &	execName,
		unsigned short	execHandle
	)		const

Returns true if the current message belongs to the indicated federation execution, false otherwise.

If you are not using an rtiexec, use a handle of zero.

bool DtNetMsgHeader::isTestMgrMessage ( ) const

Accessor / Mutator for whether this is a test msg.

bool DtNetMsgHeader::metadataInMessage ( ) const

Accessor / Mutator for whether header indicates msg has metadata.

void DtNetMsgHeader::setIsBundled ( bool yesNo )

void DtNetMsgHeader::setIsCompressed ( bool yesNo )

void DtNetMsgHeader::setIsTestMgrMessage ( bool yesNo )

void DtNetMsgHeader::setMetadataInMessage ( bool yesNo )

bool DtNetMsgHeader::versionMatches ( int messageVersion ) const

Returns bool: given version matches version in header?

Member Data Documentation

DtNetU8 DtNetMsgHeader::fedExecId[DtNetExecNameSize]

Five bytes representing either the first five characters of the execution name, or a zero byte followed by a four-byte execution handle.

DtNetU16 DtNetMsgHeader::fedHandle

DtNetU8 DtNetMsgHeader::flags

DtNetU32 DtNetMsgHeader::metadataSize

DtNetU8 DtNetMsgHeader::msgKind

DtNetU32 DtNetMsgHeader::sequenceNumber

DtNetU32 DtNetMsgHeader::totalSize

DtNetU16 DtNetMsgHeader::version

DtNetU8 DtNetMsgHeader::versionCheck

Older versions had message kind here.

Newer versions will put invalid message kind here.

The documentation for this class was generated from the following file:
