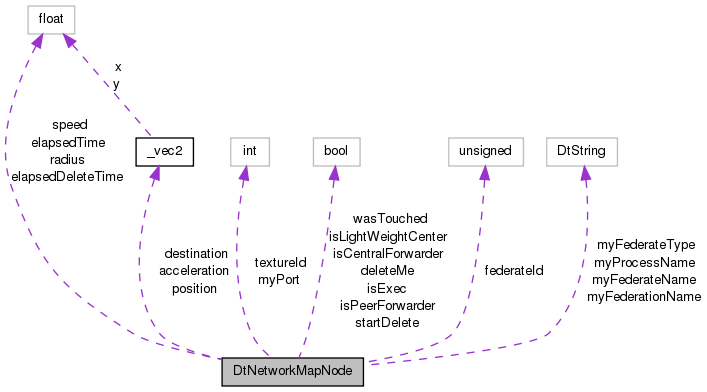

Collaboration diagram for DtNetworkMapNode:

Public Member Functions
	DtNetworkMapNode ()
	default Constructor
	DtNetworkMapNode (int fedId, const MAKRti::DtString &federationName, const MAKRti::DtString &processName, const MAKRti::DtString &federateType, const MAKRti::DtString &federateName, float radius)
	Constructor for Federate.
	DtNetworkMapNode (int compId, const MAKRti::DtString &forwarderName, int port, float radius)
	Constructor for Forwarder.
	DtNetworkMapNode (int compId, const MAKRti::DtString &execName, float radius)
	Constructor for rtiexec or central lightweight.
virtual	~DtNetworkMapNode ()
	Destructor.
void	setTextureId (int id)
	Sets the texture ID.
int	getTextureId ()
	gets the textureId
void	setRadius (float radius)
	sets the radius
float	getRadius ()
	returns the radius
int	getFederateId ()
	Returns the federate id.
void	update (float delta)
	Update function - does the animating.
void	setDestination (const _vec2 &dest)
	Sets the destination.
bool	isMoving () const
	Returns true if the node is currently moving.
const _vec2 &	getPosition () const
	Gets the position.
void	setPosition (const _vec2 &pos)
	Sets the position.
void	resetTextureId ()
	No warning / error texture.
void	showWarning ()
	Shows warning texture.
void	showError ()
	Show Error texture.
void	showDisconnect ()
bool	isDisconnected ()
void	showNotJoined ()
bool	isNotJoined ()
void	resetTouched ()
	rest whether we've been touched or not
void	clearTouched ()
	clear touched flag
bool	isTouched ()
	Have we been touched?
void	setIsCentralForwarder ()
	Sets this node to be the forwarder.
bool	IsCentralForwarder ()
	Gets whether this node is the forwarder.
void	setIsPeerForwarder ()
	Sets this node to be a peer forwarder.
bool	IsPeerForwarder ()
	Gets whether this node is a peer forwarder.
void	setIsExec ()
	Sets this node to be the exec.
bool	IsExec ()
	gets whether this node is the exec
void	setIsLightweightCenter ()
	Sets this node to be the center node for lightweight connections.
bool	IsLightweightCenter ()
	Gets whether this node is the forwarder.
bool	shouldBeDelete ()
	gets whether this node should be deleted
void	startShutdown ()
	Starts the shutdown/deletion process.
MAKRti::DtString &	getFederationName ()
	Get the federation name.
MAKRti::DtString &	getProcessName ()
MAKRti::DtString &	getFederateType ()
MAKRti::DtString &	getFederateName ()
int	getPort ()
MAKRti::DtString	getHostPort ()

Protected Attributes
int	textureId
unsigned int	federateId
bool	isExec
bool	isCentralForwarder
bool	isPeerForwarder
bool	isLightWeightCenter
bool	wasTouched
bool	deleteMe
bool	startDelete
float	radius
float	speed
float	elapsedTime
float	elapsedDeleteTime
_vec2	position
_vec2	acceleration
_vec2	destination
MAKRti::DtString	myFederationName
MAKRti::DtString	myProcessName
MAKRti::DtString	myFederateType
MAKRti::DtString	myFederateName
int	myPort

Constructor & Destructor Documentation

DtNetworkMapNode::DtNetworkMapNode ( )

default Constructor

DtNetworkMapNode::DtNetworkMapNode	(	int	fedId,
		const MAKRti::DtString &	federationName,
		const MAKRti::DtString &	processName,
		const MAKRti::DtString &	federateType,
		const MAKRti::DtString &	federateName,
		float	radius
	)

Constructor for Federate.

DtNetworkMapNode::DtNetworkMapNode	(	int	compId,
		const MAKRti::DtString &	forwarderName,
		int	port,
		float	radius
	)

Constructor for Forwarder.

DtNetworkMapNode::DtNetworkMapNode	(	int	compId,
		const MAKRti::DtString &	execName,
		float	radius
	)

Constructor for rtiexec or central lightweight.

virtual DtNetworkMapNode::~DtNetworkMapNode ( )

inlinevirtual

Destructor.

Member Function Documentation

void DtNetworkMapNode::clearTouched ( )

inline

clear touched flag

References wasTouched.

int DtNetworkMapNode::getFederateId ( )

inline

Returns the federate id.

References federateId.

MAKRti::DtString& DtNetworkMapNode::getFederateName ( )

inline

References myFederateName.

MAKRti::DtString& DtNetworkMapNode::getFederateType ( )

inline

References myFederateType.

MAKRti::DtString& DtNetworkMapNode::getFederationName ( )

inline

Get the federation name.

References myFederationName.

MAKRti::DtString DtNetworkMapNode::getHostPort ( )

inline

References myPort, and myProcessName.

int DtNetworkMapNode::getPort ( )

inline

References myPort.

const _vec2& DtNetworkMapNode::getPosition ( ) const

inline

Gets the position.

References position.

MAKRti::DtString& DtNetworkMapNode::getProcessName ( )

inline

References myProcessName.

float DtNetworkMapNode::getRadius ( )

inline

returns the radius

References radius.

int DtNetworkMapNode::getTextureId ( )

inline

gets the textureId

References textureId.

bool DtNetworkMapNode::IsCentralForwarder ( )

inline

Gets whether this node is the forwarder.

References isCentralForwarder.

bool DtNetworkMapNode::isDisconnected ( )

inline

References DtDisconnectedTexture, and textureId.

bool DtNetworkMapNode::IsExec ( )

inline

gets whether this node is the exec

References isExec.

bool DtNetworkMapNode::IsLightweightCenter ( )

inline

Gets whether this node is the forwarder.

References isLightWeightCenter.

bool DtNetworkMapNode::isMoving ( ) const

inline

Returns true if the node is currently moving.

References destination, position, RTI_NODE_DEST_RANGE, _vec2::x, and _vec2::y.

bool DtNetworkMapNode::isNotJoined ( )

inline

References DtNotJoinedTexture, and textureId.

bool DtNetworkMapNode::IsPeerForwarder ( )

inline

Gets whether this node is a peer forwarder.

References isPeerForwarder.

bool DtNetworkMapNode::isTouched ( )

inline

Have we been touched?

References wasTouched.

void DtNetworkMapNode::resetTextureId ( )

inline

No warning / error texture.

References textureId.

void DtNetworkMapNode::resetTouched ( )

inline

rest whether we've been touched or not

References wasTouched.

void DtNetworkMapNode::setDestination ( const _vec2 & dest )

inline

Sets the destination.

References destination, _vec2::x, and _vec2::y.

void DtNetworkMapNode::setIsCentralForwarder ( )

inline

Sets this node to be the forwarder.

References isCentralForwarder, isExec, isLightWeightCenter, and isPeerForwarder.

void DtNetworkMapNode::setIsExec ( )

inline

Sets this node to be the exec.

References isCentralForwarder, isExec, isLightWeightCenter, and isPeerForwarder.

void DtNetworkMapNode::setIsLightweightCenter ( )

inline

Sets this node to be the center node for lightweight connections.

References isCentralForwarder, isExec, isLightWeightCenter, and isPeerForwarder.

void DtNetworkMapNode::setIsPeerForwarder ( )

inline

Sets this node to be a peer forwarder.

References isCentralForwarder, isExec, isLightWeightCenter, and isPeerForwarder.

void DtNetworkMapNode::setPosition ( const _vec2 & pos )

inline

Sets the position.

References position, _vec2::x, and _vec2::y.

void DtNetworkMapNode::setRadius ( float radius )

inline

sets the radius

References radius.

void DtNetworkMapNode::setTextureId ( int id )

inline

Sets the texture ID.

References textureId.

bool DtNetworkMapNode::shouldBeDelete ( )

inline

gets whether this node should be deleted

References deleteMe.

void DtNetworkMapNode::showDisconnect ( )

inline

References DtDisconnectedTexture, and textureId.

void DtNetworkMapNode::showError ( )

inline

Show Error texture.

References DtErrorTexture, and textureId.

void DtNetworkMapNode::showNotJoined ( )

inline

References DtNotJoinedTexture, and textureId.

void DtNetworkMapNode::showWarning ( )

inline

Shows warning texture.

References DtWarningTexture, and textureId.

void DtNetworkMapNode::startShutdown ( )

inline

Starts the shutdown/deletion process.

References startDelete.

void DtNetworkMapNode::update ( float delta )

Update function - does the animating.

Member Data Documentation

_vec2 DtNetworkMapNode::acceleration

protected

bool DtNetworkMapNode::deleteMe

protected

Referenced by shouldBeDelete().

_vec2 DtNetworkMapNode::destination

protected

Referenced by isMoving(), and setDestination().

float DtNetworkMapNode::elapsedDeleteTime

protected

float DtNetworkMapNode::elapsedTime

protected

unsigned int DtNetworkMapNode::federateId

protected

Referenced by getFederateId().

bool DtNetworkMapNode::isCentralForwarder

protected

Referenced by IsCentralForwarder(), setIsCentralForwarder(), setIsExec(), setIsLightweightCenter(), and setIsPeerForwarder().

bool DtNetworkMapNode::isExec

protected

Referenced by IsExec(), setIsCentralForwarder(), setIsExec(), setIsLightweightCenter(), and setIsPeerForwarder().

bool DtNetworkMapNode::isLightWeightCenter

protected

Referenced by IsLightweightCenter(), setIsCentralForwarder(), setIsExec(), setIsLightweightCenter(), and setIsPeerForwarder().

bool DtNetworkMapNode::isPeerForwarder

protected

Referenced by IsPeerForwarder(), setIsCentralForwarder(), setIsExec(), setIsLightweightCenter(), and setIsPeerForwarder().

MAKRti::DtString DtNetworkMapNode::myFederateName

protected

Referenced by getFederateName().

MAKRti::DtString DtNetworkMapNode::myFederateType

protected

Referenced by getFederateType().

MAKRti::DtString DtNetworkMapNode::myFederationName

protected

Referenced by getFederationName().

int DtNetworkMapNode::myPort

protected

Referenced by getHostPort(), and getPort().

MAKRti::DtString DtNetworkMapNode::myProcessName

protected

Referenced by getHostPort(), and getProcessName().

_vec2 DtNetworkMapNode::position

protected

Referenced by getPosition(), isMoving(), and setPosition().

float DtNetworkMapNode::radius

protected

Referenced by getRadius(), and setRadius().

float DtNetworkMapNode::speed

protected

bool DtNetworkMapNode::startDelete

protected

Referenced by startShutdown().

int DtNetworkMapNode::textureId

protected

Referenced by getTextureId(), isDisconnected(), isNotJoined(), resetTextureId(), setTextureId(), showDisconnect(), showError(), showNotJoined(), and showWarning().

bool DtNetworkMapNode::wasTouched

protected

Referenced by clearTouched(), isTouched(), and resetTouched().

The documentation for this class was generated from the following file:

networkMapNode.h
