DtPropertyListView Class Reference

A class to display a list (properties) alternating the colors of the rows. More...

Inheritance diagram for DtPropertyListView:

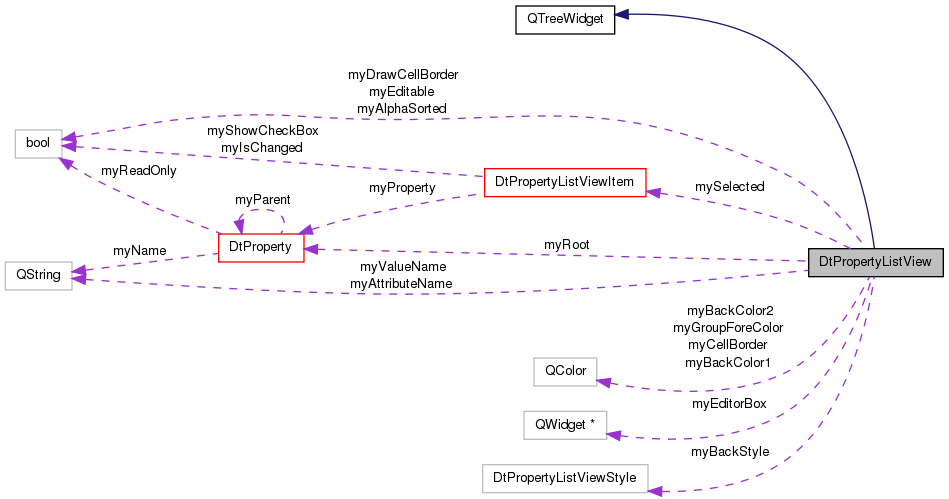

Collaboration diagram for DtPropertyListView:

Public Member Functions
	DtPropertyListView (QWidget *parent=0)
	DtPropertyListView (QColor, QColor, bool drawBorder=true, QWidget *parent=0)
	DtPropertyListView (const DtPropertyListView &orig)
virtual	~DtPropertyListView ()
virtual void	expandAll ()
virtual void	collapseAll ()
virtual DtPropertyListViewItem *	addProperty (const DtProperty &, QTreeWidgetItem *parentTree=0)
virtual DtPropertyListViewItem *	addToProperty (const DtProperty &)
virtual bool	setProperty (QString prop, QVariant value)
virtual bool	setProperty (QString prop, QString sub, QVariant value)
virtual bool	setProperty (QString prop, QString sub, QString sub2, QVariant value)
virtual DtProperty *	property (QString prop)
virtual DtProperty *	property (QString prop, QString sub)
virtual DtProperty *	property (QString prop, QString sub, QString sub2)
virtual QColor	backgroundColor1 () const
virtual QColor	backgroundColor2 () const
virtual QColor	groupForegroundColor () const
virtual void	setGroupForegroundColor (const QColor &color)
virtual DtPropertyListViewStyle	backgroundStyle () const
virtual void	setBackgroundStyle (const DtPropertyListViewStyle &style)
virtual bool	drawCellBorder ()
virtual QColor	cellBorderColor () const
virtual void	setCellBorderColor (const QColor &color)
virtual QWidget *	editorBox ()
virtual bool	alphaSorted () const
int	attributeNameColumn () const
int	attributeValueColumn () const

Protected Slots
virtual void	headerClicked (int column)
virtual void	headerSizeChanged ()

Protected Member Functions
virtual void	init ()
virtual void	resizeEvent (QResizeEvent *)
virtual void	resizeValueColumn (QSize size)

Protected Attributes
QColor	myBackColor1
QColor	myBackColor2
QColor	myCellBorder
QColor	myGroupForeColor
bool	myAlphaSorted
bool	myDrawCellBorder
bool	myEditable
QWidget *	myEditorBox
const QString	myAttributeName
const QString	myValueName
DtProperty	myRoot
DtPropertyListViewItem *	mySelected
DtPropertyListViewStyle	myBackStyle

Properties
QColor	cellBorderColor
QColor	backgroundColor1
QColor	backgroundColor2
QColor	groupForegroundColor

Detailed Description

A class to display a list (properties) alternating the colors of the rows.

A class that displays a list (properties) alternating the colors of the rows. The information displayed is query-able, settable, and sortable. NOTE that the property sheet UI pattern only allows for top-level properties and one level of sub-property children (see the Qt 3.X Designer for an example) and the API to this class reflects that.

Constructor & Destructor Documentation

DtPropertyListView::DtPropertyListView

(

QWidget *

parent = 0

)

DtPropertyListView::DtPropertyListView	(	QColor	,
		QColor	,
		bool	drawBorder = true,
		QWidget *	parent = 0
	)

DtPropertyListView::DtPropertyListView

(

const DtPropertyListView &

orig

)

virtual DtPropertyListView::~DtPropertyListView ( )

virtual

Member Function Documentation

virtual DtPropertyListViewItem* DtPropertyListView::addProperty ( const DtProperty &  , QTreeWidgetItem *  parentTree = 0  )

virtual

virtual DtPropertyListViewItem* DtPropertyListView::addToProperty ( const DtProperty &  )

virtual

virtual bool DtPropertyListView::alphaSorted ( ) const

virtual

int DtPropertyListView::attributeNameColumn

(

)

const

int DtPropertyListView::attributeValueColumn

(

)

const

virtual QColor DtPropertyListView::backgroundColor1 ( ) const

inlinevirtual

virtual QColor DtPropertyListView::backgroundColor2 ( ) const

inlinevirtual

virtual DtPropertyListViewStyle DtPropertyListView::backgroundStyle ( ) const

virtual

virtual QColor DtPropertyListView::cellBorderColor ( ) const

virtual

virtual void DtPropertyListView::collapseAll ( )

virtual

virtual bool DtPropertyListView::drawCellBorder ( )

inlinevirtual

virtual QWidget* DtPropertyListView::editorBox ( )

inlinevirtual

virtual void DtPropertyListView::expandAll ( )

virtual

virtual QColor DtPropertyListView::groupForegroundColor ( ) const

virtual

virtual void DtPropertyListView::headerClicked ( int  column )

protectedvirtualslot

virtual void DtPropertyListView::headerSizeChanged ( )

protectedvirtualslot

virtual void DtPropertyListView::init ( )

protectedvirtual

Reimplemented in DtPropertyEditView, and DtConfigurablePropertyEditView.

virtual DtProperty* DtPropertyListView::property ( QString  prop )

virtual

virtual DtProperty* DtPropertyListView::property ( QString  prop, QString  sub  )

virtual

virtual DtProperty* DtPropertyListView::property ( QString  prop, QString  sub, QString  sub2  )

virtual

virtual void DtPropertyListView::resizeEvent ( QResizeEvent *  )

protectedvirtual

virtual void DtPropertyListView::resizeValueColumn ( QSize  size )

protectedvirtual

virtual void DtPropertyListView::setBackgroundStyle ( const DtPropertyListViewStyle &  style )

virtual

virtual void DtPropertyListView::setCellBorderColor ( const QColor &  color )

virtual

virtual void DtPropertyListView::setGroupForegroundColor ( const QColor &  color )

virtual

virtual bool DtPropertyListView::setProperty ( QString  prop, QVariant  value  )

virtual

virtual bool DtPropertyListView::setProperty ( QString  prop, QString  sub, QVariant  value  )

virtual

virtual bool DtPropertyListView::setProperty ( QString  prop, QString  sub, QString  sub2, QVariant  value  )

virtual

Member Data Documentation

bool DtPropertyListView::myAlphaSorted

protected

const QString DtPropertyListView::myAttributeName

protected

QColor DtPropertyListView::myBackColor1

protected

QColor DtPropertyListView::myBackColor2

protected

DtPropertyListViewStyle DtPropertyListView::myBackStyle

protected

QColor DtPropertyListView::myCellBorder

protected

bool DtPropertyListView::myDrawCellBorder

protected

bool DtPropertyListView::myEditable

protected

Referenced by DtPropertyEditView::editable().

QWidget* DtPropertyListView::myEditorBox

protected

QColor DtPropertyListView::myGroupForeColor

protected

DtProperty DtPropertyListView::myRoot

protected

DtPropertyListViewItem* DtPropertyListView::mySelected

protected

const QString DtPropertyListView::myValueName

protected

Property Documentation

QColor DtPropertyListView::backgroundColor1

read

QColor DtPropertyListView::backgroundColor2

read

QColor DtPropertyListView::cellBorderColor

readwrite

QColor DtPropertyListView::groupForegroundColor

readwrite

---

The documentation for this class was generated from the following file:

• propertyListView.h
