DtRtiAssistantForwarderClient Class Reference

The client connection to the RTI Assistant for the an RTI Forwarder. More...

Inheritance diagram for DtRtiAssistantForwarderClient:

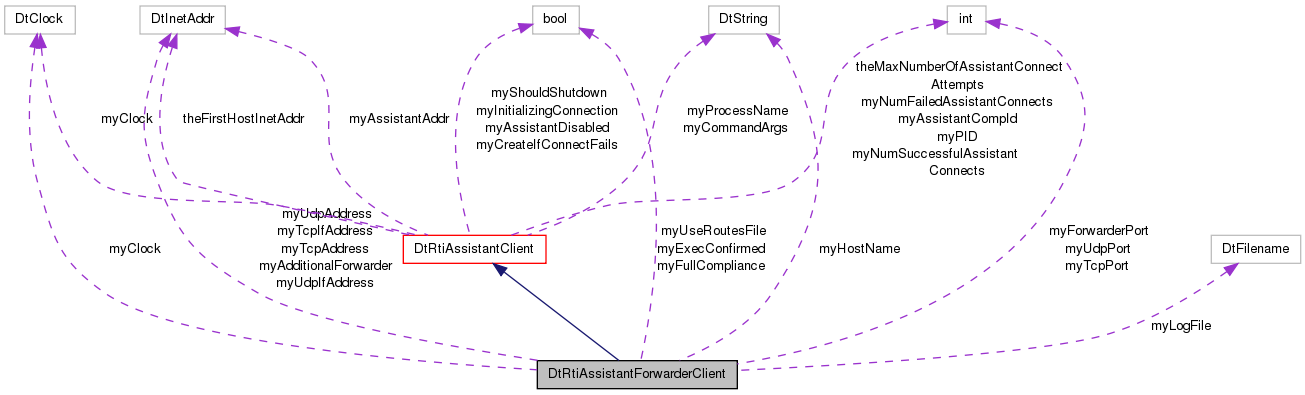

Collaboration diagram for DtRtiAssistantForwarderClient:

Public Member Functions
	DtRtiAssistantForwarderClient (DtAssistantComponentType type, int port=DtASSISTANT_DEFAULT_PORT)
	Constructor.
virtual	~DtRtiAssistantForwarderClient ()
	Destructor.
virtual void	updateForwarderInfo (const MAKRti::DtInetAddr &tcpAddr, int tcpPort, const DtInetAddr &tcpNetworkIfAddr, const MAKRti::DtInetAddr &udpAddr, int udpPort, const DtInetAddr &udpNetworkIfAddr, bool fullCompliance, const MAKRti::DtInetAddr &additionalForwarder, int forwarderPort, bool useRoutesFile)
	Updates the forwarder connection info to be sent to the Assistant.
virtual void	updateLogFile (const MAKRti::DtFilename &file)
	Updates the log file name used by this forwarder.
virtual void	updateExecConfirmed (bool confirmed, bool fullyCompliant)
	Updates whether or not there is an rtiexec confirmed in order to be sent to the Assistant.
virtual void	sendClientInfo ()
	Send forwarder address and port to the Assistant.
virtual void	sendFullForwarderInfo (unsigned int numForwarderToForwarderConns, const std::vector< MAKRti::DtString > &forwarderIdentifiers, const std::vector< MAKRti::DtString > &forwarderConnectionNames, const std::vector< MAKRti::DtString > &forwarderConnectionHostNames, const std::vector< std::pair< MAKRti::DtInetAddr, MAKRti::DtInetAddr > > &forwarderConnectionAddrs, const std::vector< int > &forwarderConnectionPorts, unsigned int numForwarderExecConns, unsigned int numForwarderClientConns, const std::vector< MAKRti::DtString > &clientConnectionNames, const std::vector< MAKRti::DtString > &clientConnectionTypeNames, const std::vector< DtString > &clientConnectionProcessNames, const std::vector< DtString > &clientConnectionPIDs, const std::vector< DtString > &clientConnectionCommandArgs, const std::vector< MAKRti::DtString > &clientConnectionHostNames, const std::vector< MAKRti::DtInetAddr > &clientConnectionAddrs, const std::vector< MAKRti::DtString > &clientConnectionFederationNames, const std::vector< int > &clientFederateHandles, const std::vector< unsigned > &clientConnIds, const std::vector< int > &clientConnectionQueueStatus, const std::vector< DtHlaVersionId > &clientHlaVersions, const std::vector< DtAssistantMsgFederateStatus > &clientConnectionFederateStatus)
	Sends information on this forwarder and all of its connected components.
virtual void	sendWaitingForForwarders (bool isWaiting, const DtNeededFwConnMap &neededFws)
	Sends information regarding what forwarder connections we are currently waiting for.
Public Member Functions inherited from DtRtiAssistantClient
	DtRtiAssistantClient (DtAssistantComponentType type, int port=DtASSISTANT_DEFAULT_PORT)
	Constructor.
virtual	~DtRtiAssistantClient ()
	Destructor.
virtual bool	tick (unsigned int timeout=0)
	Do the actual message processing.
virtual bool	isConnected ()
	Returns true if the socket is connected.
virtual bool	isDisabled ()
	Returns true if the socket is disabled.
virtual void	addMsgCallback (DtAssistantMsgKind msgKind, DtAssistantMsgCbMgr::DtCallbackFcn fcn, void *usr)
	Message Callbacks These callback functions operate on all of the connections.
virtual void	removeMsgCallback (DtAssistantMsgKind msgKind, DtAssistantMsgCbMgr::DtCallbackFcn fcn, void *usr)
virtual void	addWildcardMsgCallback (DtAssistantMsgCbMgr::DtCallbackFcn fcn, void *usr)
virtual void	removeWildcardMsgCallback (DtAssistantMsgCbMgr::DtCallbackFcn fcn, void *usr)
virtual void	addDisconnectCallback (DtAssistantDisconnectCb cb, void *usr)
	These functions add callbacks for notification of a socket disconnect.
virtual void	removeDisconnectCallback (DtAssistantDisconnectCb cb, void *usr)
virtual bool	sendLRCConnQueryMsg (bool error, MAKRti::DtString &connectionName, bool &ridIsPreconfigured, MAKRti::DtString &ridConfig, MAKRti::DtInetAddr &tcpAddr, int &tcpPort, MAKRti::DtInetAddr &tcpIntf, MAKRti::DtInetAddr &udpAddr, int &udpPort, MAKRti::DtInetAddr &udpIntf, int &forwarderPort, bool &useRtiexec, bool &forceFullCompliance)
	Send a message querying for the connection parameters.
virtual bool	sendForwardingComponentConnQueryMsg (bool error, MAKRti::DtString &connectionName, bool &ridIsPreconfigured, MAKRti::DtString &ridConfig, MAKRti::DtInetAddr &tcpAddr, int &tcpPort, MAKRti::DtInetAddr &tcpIntf, MAKRti::DtInetAddr &udpAddr, int &udpPort, MAKRti::DtInetAddr &udpIntf, MAKRti::DtInetAddr &forwarderToConnectTo, int &forwarderPort, bool &forceFullCompliance)
	Send a message querying for the rtiexec connection parameters.
virtual void	sendLatencyTestMsg (const DtAssistantLatencyReportMsg &msg)
	Send a message to the assistant with latency test measurements.
virtual void	sendLatencyTestStatusMsg (const DtAssistantTestMgrStatusMsg &msg)
	Send an updated latency test status message to the assistant.
virtual bool	getNewLicenseServerFromAssistant (bool allowUnlicensed, bool &runUnlicensed, MAKRti::DtString &serverName, const MAKRti::DtString &featToCheck)
	Send a message to the assistant to query the user for an alternate license server.
virtual void	sendNotifyMsg (const MAKRti::DtString &text, DtNotifyLevelType notifyLevel)
	Send a message to display a pop up notification above the tray icon.
virtual void	sendSignalTickedMsg ()
	Send a signal ticked message to the assistant.
virtual void	sendDialogBoxMsg (const MAKRti::DtString &text, const MAKRti::DtString &advancedText)
	Send a message to display a dialog notification.
virtual void	sendClose ()
	Send connection closed message to Assistant.
virtual void	sendRidParamsMsg (const MAKRti::DtString &params, const MAKRti::DtFilename &filename, const MAKRti::DtString &federation=MAKRti::DtString::nullString(), unsigned federateHdl=0)
	Send the RID parameters.
virtual void	setMsgFactory (DtAssistantMessageFactory *fact)
	Get/Set the message factory.
virtual DtAssistantMessageFactory *	msgFactory () const
virtual void	shutDownConnection ()
	AssistantClientOwner should call this function when it processes an assistantExitMsg.
virtual MAKRti::DtString	getProcessName () const
	get the process name
virtual int	getPID () const
	get the PID
virtual MAKRti::DtString	getCommandArgs () const
	get the command args
bool	testConnectionStatus ()
	test the connection
virtual int	componentId () const
	Returns the component ID assigned by the assistant.

Protected Attributes
MAKRti::DtString	myHostName
	The host name for the forwarder.
MAKRti::DtInetAddr	myTcpAddress
	The host address for the forwarder.
int	myTcpPort
	The TCP port for the forwarder.
MAKRti::DtInetAddr	myTcpIfAddress
	The forwarder's TCP network interface address.
MAKRti::DtInetAddr	myUdpAddress
	The best effort address for the forwarder.
int	myUdpPort
	The UDP port for the forwarder.
MAKRti::DtInetAddr	myUdpIfAddress
	The forwarder's UDP network interface address.
bool	myFullCompliance
	Whether full compliance is enabled.
MAKRti::DtInetAddr	myAdditionalForwarder
	The IP address of an optional additional forwarder that this forwarder attempted to connect to.
int	myForwarderPort
	The port used to connect to other forwarders.
bool	myUseRoutesFile
	Whether or not to use routes file.
bool	myExecConfirmed
	Whether an exec has connected to this forwarder or in the distributed forwarder network.
MAKRti::DtFilename	myLogFile
	The name and full path of the log file.
DtClock	myClock
Protected Attributes inherited from DtRtiAssistantClient
bool	myAssistantDisabled
	Set to true if the Assistant is disabled.
MAKRti::DtInetAddr	myAssistantAddr
	The IP address of the Assistant.
unsigned int	myAssistantPort
	The port on which the RTI Assistant listens for connections.
DtTcpMsgSocket *	mySocket
	The socket to the RTI Assistant.
bool	myCreateIfConnectFails
	Indicates whether an Assistant should be created if a connection cannot be established.
DtAssistantConnectionStatus	myConnStatus
	The current connection status.
bool	myInitializingConnection
	Is connection being initialized.
MAKRti::DtU32	mySockOpts
	The socket options to be used when connecting to the Assistant.
DtAssistantMessageFactory *	myMessageFactory
	The message factory.
DtAssistantDfltMsgFactory	myDefaultMessageFactory
	Default message factory.
DtAssistantComponentType	myComponentType
	The component type. (LRC, rtiexec, etc.)
MAKRti::DtClock	myClock
	Clock for timeouts.
MAKRti::DtTime	myConnTestInterval
	Interval at which connection should be tested.
MAKRti::DtTime	myTimeToTestConnection
	Next time to test connection.
DtAssistantMsgCbMgr	myMsgCbMgr
	Message callback manager.
std::auto_ptr< DtAssistantMsg >	myRespMsg
	The last response message to be received.
std::list < DtAssistantDisconnectCbInfo * >	myDisconnectCallbacks
	Lists of pointers to socket disconnect callbacks.
MAKRti::DtMutex *	mySocketMutex
	locks access to the socket connection.
bool	myShouldShutdown
	should be set when assistant exit msg has been received.
int	myNumFailedAssistantConnects
	How many assistant restarts have we attempted.
int	myNumSuccessfulAssistantConnects
	How many assistant reconnects occurred.
int	myPID
	the Process ID ( PID )
MAKRti::DtString	myProcessName
	the Process Name
MAKRti::DtString	myCommandArgs
	the command line arguments
int	myAssistantCompId
	The assistant assigned component ID.
unsigned long	mySequence
	Message sequence number.

Additional Inherited Members
Protected Member Functions inherited from DtRtiAssistantClient
virtual bool	initialize ()
	Attempts to connect to the RTI Assistant.
virtual DtAssistantConnectionStatus	connectToAssistant ()
	Attempt to open a connection and handshake with the Assistant.
virtual DtAssistantConnectionStatus	makeSingleConnectionAttempt ()
virtual bool	startAssistant ()
	Attempt to start a new Assistant.
virtual bool	readAndProcess (MAKRti::DtTime maxTime)
	Read and process any messages on the socket for up to the maxTime.
virtual bool	sendMsg (const DtAssistantMsg &msg)
	Send a message to the RTI Assistant.
virtual DtAssistantMsg *	sendMsgAndWait (const DtAssistantMsg &msg, DtAssistantMsgKind respKind, unsigned int waitSecs=0)
	Send a message to the RTI Assistant and wait for response of the specified kind.
virtual DtAssistantConnectionStatus	sendConnectMsg ()
	Send basic component information to the Assistant for a new connection.
virtual void	processRespMsg (const DtAssistantMsg &respMsg)
virtual void	processNtfyLvlUpdateMsg (const DtAssistantNtfyLvlUpdateMsg &updateMsg)
virtual void	processAssistantExitMsg (const DtAssistantExitMsg &inter)
virtual void	processDisconnect ()
	Process Assistant socket disconnect.
virtual std::auto_ptr < DtAssistantMsg >	netRead (int *retCode) const
	Attempt to read a new message from the socket.
virtual bool	sendLicQueryMsg (bool allowUnlicensed, bool &runUnlicensed, MAKRti::DtString &licServer)
	Send a message querying for the license server.
Static Protected Member Functions inherited from DtRtiAssistantClient
static void	processRespMsg (const DtAssistantMsg &respMsg, void *usr)
	Response message callback.
static void	processNtfyLvlUpdateMsg (const DtAssistantNtfyLvlUpdateMsg &updateMsg, void *usr)
	Notify level update message callback.
static void	processAssistantExitMsg (const DtAssistantExitMsg &inter, void *usr)
	Process the assistant exit message. The assistant is commanding us to exit.
Static Protected Attributes inherited from DtRtiAssistantClient
static const int	theMaxNumberOfAssistantConnectAttempts
	either starting up or reconnecting, how many assistant restarts do we tolerate before giving up.
static const MAKRti::DtTime	theSleepBetweenAssistantConnectAttempts
	When attempting to connect, this is the number of seconds.
static const MAKRti::DtInetAddr	theFirstHostInetAddr
	The first InetAddr when the federate was launched.

Detailed Description

The client connection to the RTI Assistant for the an RTI Forwarder.

That RTI forwarder can be a thread of the RtiExec or a stand along Forwarder. DtRtiAssistantForwarderClient manages the client connection of the forwarder to the RTI Assistant. Provides routines to create and send messages to the Assistant.

Constructor & Destructor Documentation

DtRtiAssistantForwarderClient::DtRtiAssistantForwarderClient	(	DtAssistantComponentType	type,
		int	port = DtASSISTANT_DEFAULT_PORT
	)

Constructor.

virtual DtRtiAssistantForwarderClient::~DtRtiAssistantForwarderClient ( )

virtual

Destructor.

Member Function Documentation

virtual void DtRtiAssistantForwarderClient::sendClientInfo ( )

virtual

Send forwarder address and port to the Assistant.

Reimplemented from DtRtiAssistantClient.

Reimplemented in DtRtiAssistantExecClient.

virtual void DtRtiAssistantForwarderClient::sendFullForwarderInfo ( unsigned int  numForwarderToForwarderConns, const std::vector< MAKRti::DtString > &  forwarderIdentifiers, const std::vector< MAKRti::DtString > &  forwarderConnectionNames, const std::vector< MAKRti::DtString > &  forwarderConnectionHostNames, const std::vector< std::pair< MAKRti::DtInetAddr, MAKRti::DtInetAddr > > &  forwarderConnectionAddrs, const std::vector< int > &  forwarderConnectionPorts, unsigned int  numForwarderExecConns, unsigned int  numForwarderClientConns, const std::vector< MAKRti::DtString > &  clientConnectionNames, const std::vector< MAKRti::DtString > &  clientConnectionTypeNames, const std::vector< DtString > &  clientConnectionProcessNames, const std::vector< DtString > &  clientConnectionPIDs, const std::vector< DtString > &  clientConnectionCommandArgs, const std::vector< MAKRti::DtString > &  clientConnectionHostNames, const std::vector< MAKRti::DtInetAddr > &  clientConnectionAddrs, const std::vector< MAKRti::DtString > &  clientConnectionFederationNames, const std::vector< int > &  clientFederateHandles, const std::vector< unsigned > &  clientConnIds, const std::vector< int > &  clientConnectionQueueStatus, const std::vector< DtHlaVersionId > &  clientHlaVersions, const std::vector< DtAssistantMsgFederateStatus > &  clientConnectionFederateStatus  )

virtual

Sends information on this forwarder and all of its connected components.

virtual void DtRtiAssistantForwarderClient::sendWaitingForForwarders ( bool  isWaiting, const DtNeededFwConnMap &  neededFws  )

virtual

Sends information regarding what forwarder connections we are currently waiting for.

virtual void DtRtiAssistantForwarderClient::updateExecConfirmed ( bool  confirmed, bool  fullyCompliant  )

virtual

Updates whether or not there is an rtiexec confirmed in order to be sent to the Assistant.

Note that this method does not send the data to the assistant, just stores it to be sent when sendClientInfo is called.

virtual void DtRtiAssistantForwarderClient::updateForwarderInfo ( const MAKRti::DtInetAddr &  tcpAddr, int  tcpPort, const DtInetAddr &  tcpNetworkIfAddr, const MAKRti::DtInetAddr &  udpAddr, int  udpPort, const DtInetAddr &  udpNetworkIfAddr, bool  fullCompliance, const MAKRti::DtInetAddr &  additionalForwarder, int  forwarderPort, bool  useRoutesFile  )

virtual

Updates the forwarder connection info to be sent to the Assistant.

Note that this method does not send the data to the assistant, just stores it to be sent when sendClientInfo is called.

virtual void DtRtiAssistantForwarderClient::updateLogFile ( const MAKRti::DtFilename &  file )

virtual

Updates the log file name used by this forwarder.

This is sent to the Assistant so that it may display the log to interested users. Note that this method does not send the message to the assistant, just stores the name to be sent when sendClientInfo is called.

Member Data Documentation

MAKRti::DtInetAddr DtRtiAssistantForwarderClient::myAdditionalForwarder

protected

The IP address of an optional additional forwarder that this forwarder attempted to connect to.

DtClock DtRtiAssistantForwarderClient::myClock

protected

bool DtRtiAssistantForwarderClient::myExecConfirmed

protected

Whether an exec has connected to this forwarder or in the distributed forwarder network.

int DtRtiAssistantForwarderClient::myForwarderPort

protected

The port used to connect to other forwarders.

bool DtRtiAssistantForwarderClient::myFullCompliance

protected

Whether full compliance is enabled.

MAKRti::DtString DtRtiAssistantForwarderClient::myHostName

protected

The host name for the forwarder.

MAKRti::DtFilename DtRtiAssistantForwarderClient::myLogFile

protected

The name and full path of the log file.

MAKRti::DtInetAddr DtRtiAssistantForwarderClient::myTcpAddress

protected

The host address for the forwarder.

MAKRti::DtInetAddr DtRtiAssistantForwarderClient::myTcpIfAddress

protected

The forwarder's TCP network interface address.

int DtRtiAssistantForwarderClient::myTcpPort

protected

The TCP port for the forwarder.

MAKRti::DtInetAddr DtRtiAssistantForwarderClient::myUdpAddress

protected

The best effort address for the forwarder.

MAKRti::DtInetAddr DtRtiAssistantForwarderClient::myUdpIfAddress

protected

The forwarder's UDP network interface address.

int DtRtiAssistantForwarderClient::myUdpPort

protected

The UDP port for the forwarder.

bool DtRtiAssistantForwarderClient::myUseRoutesFile

protected

Whether or not to use routes file.

Forwarders using routes files cannot dynamically connect to other forwarders.

---

The documentation for this class was generated from the following file:

• rtiAssistantForwarderClient.h
