DtRtiMetadata Class Reference

DtRtiMetadata is added to some RTI messages depending on the configuration of the RTI. More...

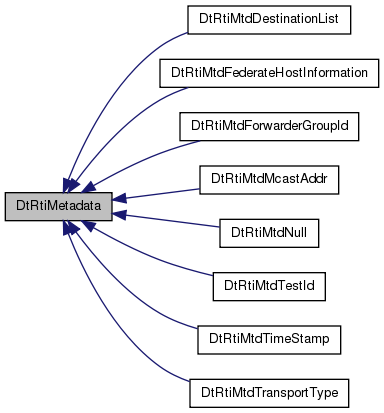

Inheritance diagram for DtRtiMetadata:

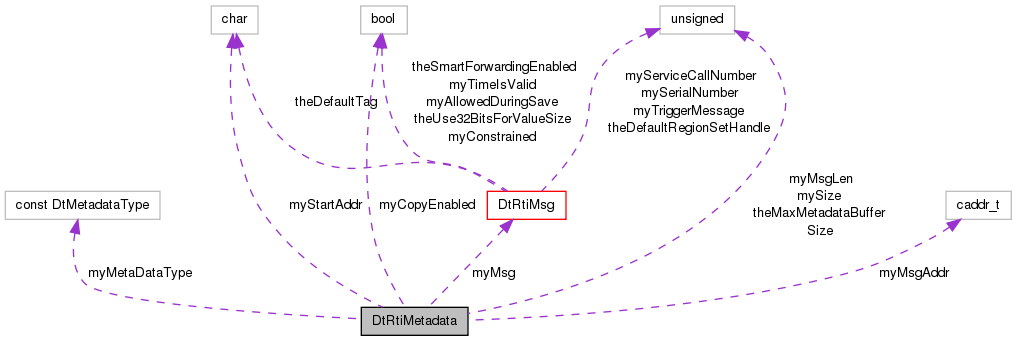

Collaboration diagram for DtRtiMetadata:

Public Member Functions
	DtRtiMetadata (caddr_t msg, DtMetadataType type)
	Constructor.
	DtRtiMetadata (DtRtiMsg *msg, DtMetadataType type)
virtual	~DtRtiMetadata ()
	Destructor.
virtual bool	locate (void **mdVal, unsigned int &size) const
	Traverse metadata headers of attached message to find this instance's metadata type.
virtual bool	nullify ()
	Find specified type and change type field in header to DtMetadataTypeNull but don't remove from message buffer.
virtual unsigned int	remove ()
	Find specified type and remove from buffer, relocating metadata that remains and adjusting reported size of buffer.
virtual unsigned int	purge ()
	Traverse metadata headers to find all nullified blocks and remove them from buffer, relocating metadata that remains and adjusting reported size of buffer.
virtual bool	isCopyEnabled ()
	Set/Get the 'copy' bit in the specified metadata header.
virtual void	setCopyEnable (bool copyEnable)
virtual bool	setLengthAsValue (unsigned int value)
	Set an integer value to be transmitted without using an actual payload.
virtual bool	getLengthAsValue (unsigned int &value) const
	Get an integer payload value from the payload length.
virtual void	print (MAKRti::DtOutputStream &stream=MAKRti::DtDebug)
	Print this Metadata.
virtual DtNetMsgHeader *	netMessageHeader ()
	Get the net header of the message.

Static Public Member Functions
static unsigned int	metadataMaxSize ()
	Report maximum size of metadata buffer.

Protected Types
typedef std::list < DtMetadataNetHeader * >	DtMetadataHeaderList

Protected Member Functions
virtual DtMetadataNetHeader *	getFirstHeader () const
virtual DtMetadataNetHeader *	getHeaderByType () const
virtual DtU16	compactMetadata (char *dst, DtMetadataHeaderList &retentionPool, bool newFinal)

Static Protected Member Functions
static bool	locate (char const *msg, DtMetadataType type, void **mdVal, unsigned int &size)
	Traverse metadata headers of the given message to find the given metadata type.
static bool	typeIsPresent (char const *msg, DtMetadataType type)
	Determines whether metadata type is present in msg.
static DtMetadataNetHeader *	getFirstHeader (char const *msg)
static DtMetadataNetHeader *	getNextHeader (DtMetadataNetHeader *hdr)
static DtMetadataNetHeader *	getHeaderByType (char const *msg, DtMetadataType type)
static void	transmogrifyHeader (DtMetadataNetHeader &src, DtMetadataNetHeader &dest)
	Transform from network to host format.
static void	reverseTransmogrifyHeader (DtMetadataNetHeader &src, DtMetadataNetHeader &dest)
	Transform from host format to network format.
static unsigned int	metadataSize (DtMetadataNetHeader &hdr)
static unsigned int	metadataPayloadSize (DtMetadataNetHeader &hdr)

Protected Attributes
DtRtiMsg *	myMsg
caddr_t	myMsgAddr
unsigned int	myMsgLen
char *	myStartAddr
unsigned int	mySize
	address returned by DtRtiMsg::addMetadata()
bool	myCopyEnabled
const DtMetadataType	myMetaDataType

Static Protected Attributes
static unsigned int	theMaxMetadataBufferSize

Private Member Functions
	DtRtiMetadata (const DtRtiMetadata &)
	Copy CTOR Not Implemented – Copy Not Allowed!
DtRtiMetadata &	operator= (const DtRtiMetadata &)
	Assignment Operator Not Implemented – Assignment Not Allowed!

Detailed Description

DtRtiMetadata is added to some RTI messages depending on the configuration of the RTI.

Member Typedef Documentation

typedef std::list< DtMetadataNetHeader* > DtRtiMetadata::DtMetadataHeaderList

protected

Constructor & Destructor Documentation

DtRtiMetadata::DtRtiMetadata	(	caddr_t	msg,
		DtMetadataType	type
	)

Constructor.

DtRtiMetadata::DtRtiMetadata	(	DtRtiMsg *	msg,
		DtMetadataType	type
	)

virtual DtRtiMetadata::~DtRtiMetadata ( )

virtual

Destructor.

DtRtiMetadata::DtRtiMetadata ( const DtRtiMetadata &  )

private

Copy CTOR Not Implemented – Copy Not Allowed!

Member Function Documentation

virtual DtU16 DtRtiMetadata::compactMetadata ( char *  dst, DtMetadataHeaderList &  retentionPool, bool  newFinal  )

protectedvirtual

virtual DtMetadataNetHeader* DtRtiMetadata::getFirstHeader ( ) const

protectedvirtual

static DtMetadataNetHeader* DtRtiMetadata::getFirstHeader ( char const *  msg )

staticprotected

virtual DtMetadataNetHeader* DtRtiMetadata::getHeaderByType ( ) const

protectedvirtual

static DtMetadataNetHeader* DtRtiMetadata::getHeaderByType ( char const *  msg, DtMetadataType  type  )

staticprotected

virtual bool DtRtiMetadata::getLengthAsValue ( unsigned int &  value ) const

virtual

Get an integer payload value from the payload length.

Return boolean: metadata was found and value retrieved?

static DtMetadataNetHeader* DtRtiMetadata::getNextHeader ( DtMetadataNetHeader *  hdr )

staticprotected

virtual bool DtRtiMetadata::isCopyEnabled ( )

virtual

Set/Get the 'copy' bit in the specified metadata header.

virtual bool DtRtiMetadata::locate ( void **  mdVal, unsigned int &  size  ) const

virtual

Traverse metadata headers of attached message to find this instance's metadata type.

The address and size of the payload are returned in the supplied parameters. Returns boolean: type was found?

static bool DtRtiMetadata::locate ( char const *  msg, DtMetadataType  type, void **  mdVal, unsigned int &  size  )

staticprotected

Traverse metadata headers of the given message to find the given metadata type.

The address and size of the payload are returned in the supplied parameters.

static unsigned int DtRtiMetadata::metadataMaxSize ( )

static

Report maximum size of metadata buffer.

static unsigned int DtRtiMetadata::metadataPayloadSize ( DtMetadataNetHeader &  hdr )

staticprotected

static unsigned int DtRtiMetadata::metadataSize ( DtMetadataNetHeader &  hdr )

staticprotected

virtual DtNetMsgHeader* DtRtiMetadata::netMessageHeader ( )

virtual

Get the net header of the message.

virtual bool DtRtiMetadata::nullify ( )

virtual

Find specified type and change type field in header to DtMetadataTypeNull but don't remove from message buffer.

Returns true if specified type found, false otherwise.

DtRtiMetadata& DtRtiMetadata::operator= ( const DtRtiMetadata &  )

private

Assignment Operator Not Implemented – Assignment Not Allowed!

virtual void DtRtiMetadata::print ( MAKRti::DtOutputStream &  stream = MAKRti::DtDebug )

virtual

Print this Metadata.

Reimplemented in DtRtiMtdDestinationList.

virtual unsigned int DtRtiMetadata::purge ( )

virtual

Traverse metadata headers to find all nullified blocks and remove them from buffer, relocating metadata that remains and adjusting reported size of buffer.

Returns number of metadata bytes purged.

virtual unsigned int DtRtiMetadata::remove ( )

virtual

Find specified type and remove from buffer, relocating metadata that remains and adjusting reported size of buffer.

Returns number of metadata bytes removed, including changes in padding.

static void DtRtiMetadata::reverseTransmogrifyHeader ( DtMetadataNetHeader &  src, DtMetadataNetHeader &  dest  )

staticprotected

Transform from host format to network format.

Contents of src parameter is in host format and result is assigned to contents of dest parameter

virtual void DtRtiMetadata::setCopyEnable ( bool  copyEnable )

virtual

virtual bool DtRtiMetadata::setLengthAsValue ( unsigned int  value )

virtual

Set an integer value to be transmitted without using an actual payload.

The payload length/padding data area is used (DtU16 size). This metadata value can be modified if it already exists in the message; however, it can only be added if the metadata is attached to a message. A message can allocate the space for the metadata whereas a buffer cannot. Return boolean: value was set successfully? /warning Not to be used if metadata contains actual payload data.

static void DtRtiMetadata::transmogrifyHeader ( DtMetadataNetHeader &  src, DtMetadataNetHeader &  dest  )

staticprotected

Transform from network to host format.

Contents of src parameter is in network format and result is assigned to contents of dest parameter

static bool DtRtiMetadata::typeIsPresent ( char const *  msg, DtMetadataType  type  )

staticprotected

Determines whether metadata type is present in msg.

Member Data Documentation

bool DtRtiMetadata::myCopyEnabled

protected

const DtMetadataType DtRtiMetadata::myMetaDataType

protected

DtRtiMsg* DtRtiMetadata::myMsg

protected

caddr_t DtRtiMetadata::myMsgAddr

protected

unsigned int DtRtiMetadata::myMsgLen

mutableprotected

unsigned int DtRtiMetadata::mySize

protected

address returned by DtRtiMsg::addMetadata()

char* DtRtiMetadata::myStartAddr

protected

unsigned int DtRtiMetadata::theMaxMetadataBufferSize

staticprotected

---

The documentation for this class was generated from the following file:

• metadata.h
