DtSortedList Class Reference

A DtSortedList is a list of elements of arbitrary type. More...

Inheritance diagram for DtSortedList:

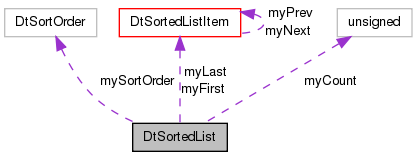

Collaboration diagram for DtSortedList:

Public Member Functions
	DtSortedList (DtSortOrder sortOrderVal=DtSortOrderAscending)
	Constructor.
virtual	~DtSortedList ()
	Destructor - does NOT free memory of data associated with the items.
	DtSortedList (const DtSortedList &orig)
	Copy constructor.
DtSortedList &	operator= (const DtSortedList &orig)
	Assignment operator.
virtual void	setSortOrder (DtSortOrder sortOrderValue)
	Set/Get sort order.
virtual DtSortOrder	sortOrder () const
virtual DtSortedListItem *	first () const
	Return first and last item on the list.
virtual DtSortedListItem *	last () const
unsigned	count () const
	Returns the number of elements in the list.
virtual bool	compareItems (const DtSortedListItem &firstItem, const DtSortedListItem &secondItem) const
	Compare the two items based on sort order and return true if first comes first in order to second.
virtual DtSortedListItem *	add (void *data)
	Add element to the list in sorted order.
virtual void *	remove (DtSortedListItem *item)
	Remove an element from the list.
virtual void	removeAll ()
	Calls remove for all elements in the list.
virtual DtSortedListItem *	itemLookup (void *data) const
	Returns the DtSortedListItem envelope object containing the indicated data element.
virtual void	reverseSortOrder ()
	Reverses sort order of list.
virtual void	printData (DtSortOrder order=DtSortOrderAscending)
	Print the list.

Protected Member Functions
virtual DtSortedListItem *	newItem (void *data)
	Create a new sorted list item envelope for the data to be inserted into the list.
virtual void	addToList (DtSortedListItem *item, DtSortedListItem *before)
	Add first item to the list before second.
virtual void	removeFromList (DtSortedListItem *item)
	Remove item from the list. Does NOT delete the data contained in item.
virtual void	reposition (DtSortedListItem *item)
	An item's data for sorting has changed. Reposition it within the list.
virtual void	repositionForward (DtSortedListItem *item, DtSortedListItem *positionItem)
	An item's data for sorting has changed.
virtual void	repositionBackward (DtSortedListItem *item, DtSortedListItem *positionItem)
	An item's data for sorting has changed.
virtual void	insertBefore (DtSortedListItem *item, DtSortedListItem *positionItem)
	Insert the first item before the second.
virtual void	insertAfter (DtSortedListItem *item, DtSortedListItem *positionItem)
	Insert the first item after the second.

Protected Attributes
DtSortedListItem *	myFirst
DtSortedListItem *	myLast
unsigned	myCount
DtSortOrder	mySortOrder

Detailed Description

A DtSortedList is a list of elements of arbitrary type.

Data elements are added to, and extracted from a DtSortedList as void*. DtSortedList encloses each element in a DtSortedListItem object. You can iterate through the elements in a DtSortedList like this Example:

for (DtSortedListItem* item = list.first(); item; item = item->next())
{
   void* dataElement = item->data();
}

Constructor & Destructor Documentation

DtSortedList::DtSortedList

(

DtSortOrder

sortOrderVal = DtSortOrderAscending

)

Constructor.

virtual DtSortedList::~DtSortedList ( )

virtual

Destructor - does NOT free memory of data associated with the items.

It only frees the items.

DtSortedList::DtSortedList

(

const DtSortedList &

orig

)

Copy constructor.

Shallow copy. Copies the pointers you've added to the list, but not the items that are pointed to.

Member Function Documentation

virtual DtSortedListItem* DtSortedList::add ( void *  data )

virtual

Add element to the list in sorted order.

Returns the DtSortedListItem envelope object that contains the new element.

Reimplemented in DtRtiMsgQueue.

virtual void DtSortedList::addToList ( DtSortedListItem *  item, DtSortedListItem *  before  )

protectedvirtual

Add first item to the list before second.

If second item is NULL, item is added to end of list.

bool DtSortedList::compareItems ( const DtSortedListItem &  firstItem, const DtSortedListItem &  secondItem  ) const

inlinevirtual

Compare the two items based on sort order and return true if first comes first in order to second.

References DtSortOrderAscending, and mySortOrder.

unsigned DtSortedList::count ( ) const

inline

Returns the number of elements in the list.

References myCount.

DtSortedListItem * DtSortedList::first ( ) const

inlinevirtual

Return first and last item on the list.

DtSortedListItem is an envelope for your data. The data can be obtained using DtSortedListItem::data().

References myFirst.

virtual void DtSortedList::insertAfter ( DtSortedListItem *  item, DtSortedListItem *  positionItem  )

protectedvirtual

Insert the first item after the second.

If second item is NULL, first item is placed at end of list.

virtual void DtSortedList::insertBefore ( DtSortedListItem *  item, DtSortedListItem *  positionItem  )

protectedvirtual

Insert the first item before the second.

If second item is NULL, first item is placed at beginning of list.

virtual DtSortedListItem* DtSortedList::itemLookup ( void *  data ) const

virtual

Returns the DtSortedListItem envelope object containing the indicated data element.

DtSortedListItem * DtSortedList::last ( ) const

inlinevirtual

References myLast.

virtual DtSortedListItem* DtSortedList::newItem ( void *  data )

protectedvirtual

Create a new sorted list item envelope for the data to be inserted into the list.

Reimplemented in DtRtiMsgQueue.

DtSortedList& DtSortedList::operator=

(

const DtSortedList &

orig

)

Assignment operator.

Shallow copy. Copies the pointers you've added to the list, but not the items that are pointed to. Old list items are removed from the list, and the elements they contain are not deleted.

virtual void DtSortedList::printData ( DtSortOrder  order = DtSortOrderAscending )

virtual

Print the list.

virtual void* DtSortedList::remove ( DtSortedListItem *  item )

virtual

Remove an element from the list.

Item is the envelope containing the data element you would like to remove. Note: remove does not free memory of data associated with the item. It only frees the item. The data is returned to the caller for deletion if required.

virtual void DtSortedList::removeAll ( )

virtual

Calls remove for all elements in the list.

It does NOT delete the data in the list. Merely removes the data from the list.

virtual void DtSortedList::removeFromList ( DtSortedListItem *  item )

protectedvirtual

Remove item from the list. Does NOT delete the data contained in item.

virtual void DtSortedList::reposition ( DtSortedListItem *  item )

protectedvirtual

An item's data for sorting has changed. Reposition it within the list.

virtual void DtSortedList::repositionBackward ( DtSortedListItem *  item, DtSortedListItem *  positionItem  )

protectedvirtual

An item's data for sorting has changed.

Reposition it backward within the list relative to position of the second item. If the second item is NULL, start at last()

virtual void DtSortedList::repositionForward ( DtSortedListItem *  item, DtSortedListItem *  positionItem  )

protectedvirtual

An item's data for sorting has changed.

Reposition it forward within the list relative to position of the second item. If the second item is NULL, start at first()

virtual void DtSortedList::reverseSortOrder ( )

virtual

Reverses sort order of list.

virtual void DtSortedList::setSortOrder ( DtSortOrder  sortOrderValue )

virtual

Set/Get sort order.

Changing the sort order will result in a reordering of the list elements.

DtSortOrder DtSortedList::sortOrder ( ) const

inlinevirtual

References mySortOrder.

Member Data Documentation

unsigned DtSortedList::myCount

protected

Referenced by count().

DtSortedListItem* DtSortedList::myFirst

protected

Referenced by first().

DtSortedListItem* DtSortedList::myLast

protected

Referenced by last().

DtSortOrder DtSortedList::mySortOrder

protected

Referenced by compareItems(), and sortOrder().

---

The documentation for this class was generated from the following file:

• sortedList.h
