DtForwarderPort Class Reference

The DtForwarderPort is an Abstract Base Class which provides the interface to a collection of connections from which messages may be read and to which messages may be sent. More...

Inheritance diagram for DtForwarderPort:

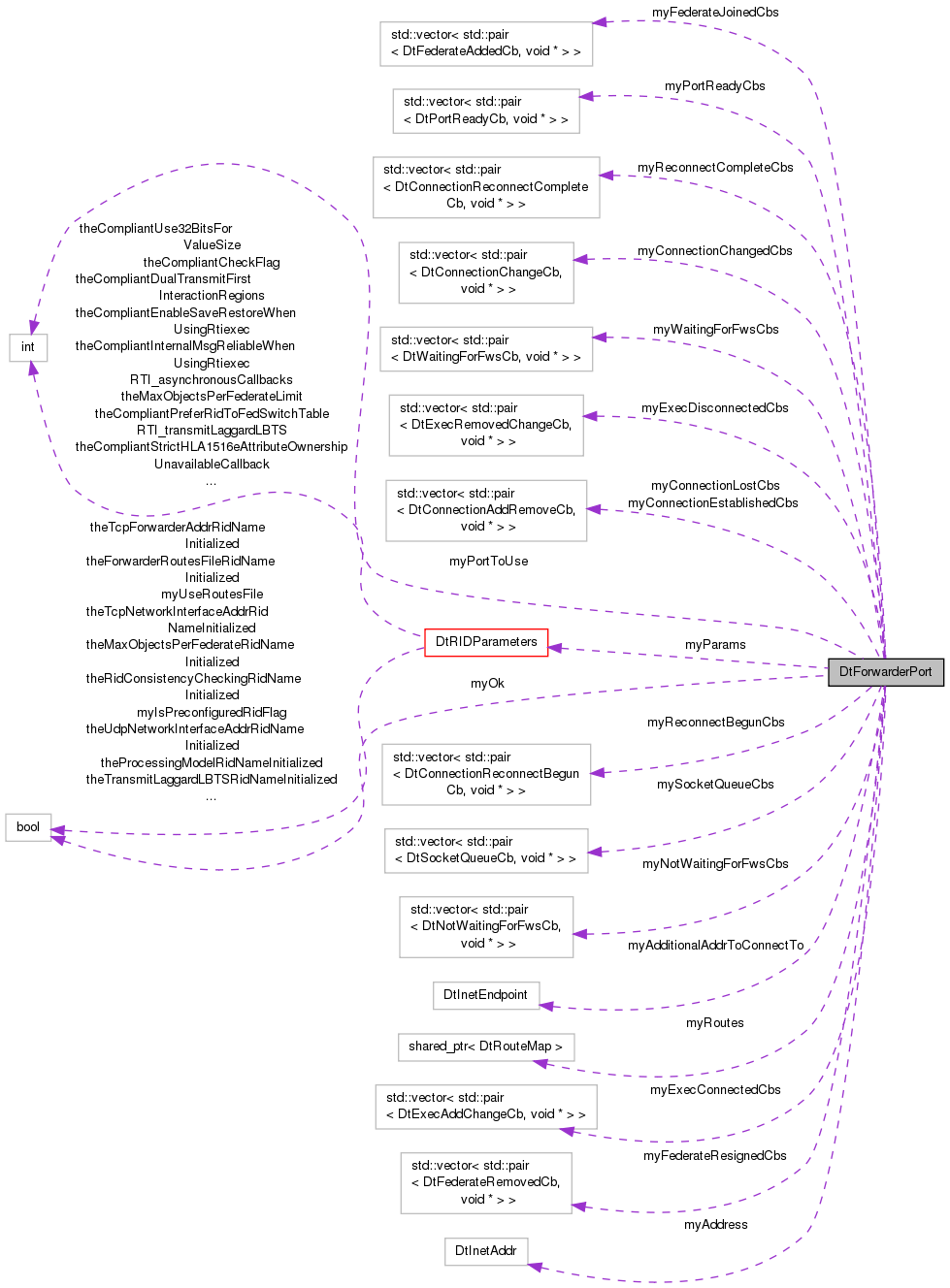

Collaboration diagram for DtForwarderPort:

Classes
struct	DtForwarderMsg

Public Types
typedef DtForwarderPort *(*	DtForwarderPortCreatorFcn )(const DtRIDParameters *, const DtBoost::shared_ptr< DtRouteMap >, const MAKRti::DtInetAddr &, int, const MAKRti::DtInetEndpoint &)
	DtForwarderPort creator signature.
typedef DtRouteMap::DtAddressPortList	DtAddressPortList
typedef DtRouteMap::DtAddressList	DtAddressList
typedef DtRouteMap::DtInterfaceAddrSet	DtInterfaceAddrSet
typedef std::vector < DtTcpMsgSocket * >	DtSocketList
typedef std::set < DtTcpMsgSocket * >	DtSocketSet
typedef std::pair < DtInetAddrAndPort, DtForwarderMsg >	DtAddressMsgPair
typedef std::pair < DtTcpMsgSocket *, DtForwarderMsg >	DtSockMsgPair
typedef std::map < DtInetAddrAndPort, DtTcpMsgSocket * >	DtAddrToConnMap
typedef std::map < DtInetAddrAndPort, MAKRti::DtString >	DtConnAndNameMap
typedef int(*	DtConnectionAddRemoveCb )(const MAKRti::DtString &, const MAKRti::DtString &, unsigned int, const std::pair< DtInetAddrAndPort, DtInetAddrAndPort > &, void *)
typedef int(*	DtConnectionReconnectBegunCb )(const MAKRti::DtString &, const MAKRti::DtString &, unsigned int, const DtInetAddrAndPort &, void *)
typedef int(*	DtConnectionReconnectCompleteCb )(const MAKRti::DtString &, const MAKRti::DtString &, unsigned int, const DtInetAddrAndPort &, bool, void *)
typedef int(*	DtConnectionChangeCb )(const MAKRti::DtString &, const MAKRti::DtString &, unsigned int, unsigned int, const DtInetAddrAndPort &, void *)
typedef void(*	DtFederateAddedCb )(const MAKRti::DtString &, const MAKRti::DtString &, const MAKRti::DtString &, unsigned int, unsigned int, const DtInetAddrAndPort &, const MAKRti::DtString &, unsigned int, const MAKRti::DtString &, const MAKRti::DtString &, DtHlaVersionId, void *)
typedef void(*	DtFederateRemovedCb )(const MAKRti::DtString &, const MAKRti::DtString &, unsigned int, unsigned int, const DtInetAddrAndPort &, void *)
typedef void(*	DtPortReadyCb )(unsigned long, void *)
typedef int(*	DtExecAddChangeCb )(const MAKRti::DtString &, unsigned int, const DtInetAddrAndPort &, const MAKRti::DtString &, bool, void *)
typedef int(*	DtExecRemovedChangeCb )(const MAKRti::DtString &, unsigned int, const DtInetAddrAndPort &, void *)
typedef int(*	DtSocketQueueCb )(unsigned int, int, void *)
typedef void(*	DtWaitingForFwsCb )(const DtConnAndNameMap &, const DtConnAndNameMap &, void *)
typedef void(*	DtNotWaitingForFwsCb )(void *)
typedef std::vector< std::pair < DtConnectionAddRemoveCb, void * > >	DtConnectionAddRemoveCallbackList
typedef std::vector< std::pair < DtConnectionReconnectBegunCb, void * > >	DtConnectionReconnectBegunCallbackList
typedef std::vector< std::pair < DtConnectionReconnectCompleteCb, void * > >	DtConnectionReconnectCompleteCallbackList
typedef std::vector< std::pair < DtConnectionChangeCb, void * > >	DtConnectionChangeCallbackList
typedef std::vector< std::pair < DtFederateAddedCb, void * > >	DtFederateAddedCallbackList
typedef std::vector< std::pair < DtFederateRemovedCb, void * > >	DtFederateRemovedCallbackList
typedef std::vector< std::pair < DtPortReadyCb, void * > >	DtPortReadyCallbackList
typedef std::vector< std::pair < DtExecAddChangeCb, void * > >	DtExecAddedCallbackList
typedef std::vector< std::pair < DtExecRemovedChangeCb, void * > >	DtExecRemovedCallbackList
typedef std::vector< std::pair < DtSocketQueueCb, void * > >	DtSocketQueueCallbackList
typedef std::vector< std::pair < DtWaitingForFwsCb, void * > >	DtWaitingForFwsCallbackList
typedef std::vector< std::pair < DtNotWaitingForFwsCb, void * > >	DtNotWaitingForFwsCallbackList

Public Member Functions
virtual	~DtForwarderPort ()
virtual bool	isOk () const
	Is the Port still alive?
virtual bool	isReady () const =0
	Is the Port fully usable and available?
virtual DtAddressMsgPair	getNextMsg ()=0
	Get the next message to forward and the source connection.
virtual void	sendByTransport (const DtForwarderMsg &msg) const =0
	Check transport metadata and send message to appropriate socket(s)
virtual void	sendToAllReliable (const DtForwarderMsg &msg) const =0
	Send a message to all available destinations.
virtual void	sendToListReliable (const DtForwarderMsg &msg, const DtRouteMap::DtAddressPortList &destinations) const =0
	Send a message to the specified list of destinations excluding the list of filtered destinations.
virtual bool	flush ()
	Flush any unsent/buffered packets; return true if flush sent data.
virtual void	selectParams (MAKRti::DtSelectParamWithWrite &selectParams)=0
	Add this port's current select() notification set to the passed set.
virtual void	updateRoutes ()=0
	Handle changes to the Routing map.
virtual int	checkConnectionStatus (const DtInetAddrAndPort *target=0)=0
	Test for lost connections - returns true if targeted connection is active or, if no target specified, returns false if at least one drop detected.
virtual void	clearNeededConnections ()=0
	Clear the list of connections that this forwarder needs to establish.
virtual unsigned int	abortPendingConnections ()=0
	Abort any embryonic connections.
virtual unsigned int	pendingConnectionsAborted ()=0
	Return count of aborted connections.
virtual DtAddressPortList	connections () const =0
	Get the list of all current connections to this port.
virtual bool	updateFederateConnectionId (unsigned long orig, unsigned long final)=0
	Update locally connected federate connection ID (LAN-port-only)
virtual void	setForwarderId (unsigned long id)
	Set forwarder ID.
virtual void	listenToMulticastGroup (const MAKRti::DtInetAddr &mcastAddr)=0
	Listen / drop multicast groups (LAN-port-only)
virtual void	dropMulticastGroup (const MAKRti::DtInetAddr &mcastAddr)=0
	Listen / drop multicast groups (LAN-port-only)
virtual void	addConnectionEstablishedCb (DtConnectionAddRemoveCb callback, void *usr)
	Register/Unregister callback for addition/removal/change of connections.
virtual void	removeConnectionEstablishedCb (DtConnectionAddRemoveCb callback, void *usr)
	Register/Unregister callback for addition/removal/change of connections.
virtual void	addConnectionLostCb (DtConnectionAddRemoveCb callback, void *usr)
	Register/Unregister callback for addition/removal/change of connections.
virtual void	removeConnectionLostCb (DtConnectionAddRemoveCb callback, void *usr)
	Register/Unregister callback for addition/removal/change of connections.
virtual void	addConnectionChangedCb (DtConnectionChangeCb callback, void *usr)
	Register/Unregister callback for addition/removal/change of connections.
virtual void	removeConnectionChangedCb (DtConnectionChangeCb callback, void *usr)
	Register/Unregister callback for addition/removal/change of connections.
virtual void	addReconnectBegun (DtConnectionReconnectBegunCb callback, void *usr)
	Register/Unregister callback for addition/removal/change of connections.
virtual void	removeReconnectBegun (DtConnectionReconnectBegunCb callback, void *usr)
	Register/Unregister callback for addition/removal/change of connections.
virtual void	addReconnectComplete (DtConnectionReconnectCompleteCb callback, void *usr)
	Register/Unregister callback for addition/removal/change of connections.
virtual void	removeReconnectComplete (DtConnectionReconnectCompleteCb callback, void *usr)
	Register/Unregister callback for addition/removal/change of connections.
virtual void	addForwarderPortReadyCb (DtPortReadyCb callback, void *usr)
	Register/Unregister callback for event - forwarder port becomes ready.
virtual void	removeForwarderPortReadyCb (DtPortReadyCb callback, void *usr)
	Register/Unregister callback for event - forwarder port becomes ready.
virtual void	addFederateJoinedCb (DtFederateAddedCb callback, void *usr)
	Register/Unregister callback for event - federate join/resign.
virtual void	removeFederateJoinedCb (DtFederateAddedCb callback, void *usr)
	Register/Unregister callback for event - federate join/resign.
virtual void	addFederateResignedCb (DtFederateRemovedCb callback, void *usr)
	Register/Unregister callback for event - federate join/resign.
virtual void	removeFederateResignedCb (DtFederateRemovedCb callback, void *usr)
	Register/Unregister callback for event - federate join/resign.
virtual void	addSocketQueueCb (DtSocketQueueCb callback, void *usr)
	Register/Unregister callback for event - socket queue status changes.
virtual void	removeSocketQueueCb (DtSocketQueueCb callback, void *usr)
	Register/Unregister callback for event - socket queue status changes.
virtual void	addWaitingForForwarderConnectionsCb (DtWaitingForFwsCb callback, void *usr)
	Register/Unregister callback for event - entrance/exit the "waiting for forwarder connections" state.
virtual void	removeWaitingForForwarderConnectionsCb (DtWaitingForFwsCb callback, void *usr)
	Register/Unregister callback for event - entrance/exit the "waiting for forwarder connections" state.
virtual void	addNotWaitingForForwarderConnectionsCb (DtNotWaitingForFwsCb callback, void *usr)
	Register/Unregister callback for event - entrance/exit the "waiting for forwarder connections" state.
virtual void	removeNotWaitingForForwarderConnectionsCb (DtNotWaitingForFwsCb callback, void *usr)
	Register/Unregister callback for event - entrance/exit the "waiting for forwarder connections" state.
virtual void	addExecConnectionEstablishedCb (DtExecAddChangeCb callback, void *usr)
	Register/Unregister callback for event - exec connected/disconnected.
virtual void	removeExecConnectionEstablishedCb (DtExecAddChangeCb callback, void *usr)
	Register/Unregister callback for event - exec connected/disconnected.
virtual void	addExecDisconnectedCb (DtExecRemovedChangeCb callback, void *usr)
	Register/Unregister callback for event - exec connected/disconnected.
virtual void	removeExecDisconnectedCb (DtExecRemovedChangeCb callback, void *usr)
	Register/Unregister callback for event - exec connected/disconnected.
virtual int	execConnected (const MAKRti::DtString &connName, unsigned int connID, const DtInetAddrAndPort &addr, const MAKRti::DtString &hostName, bool fullyCompliant)
	Called when the exec connects/disconnects.
virtual int	execDisconnected (const MAKRti::DtString &connName, unsigned int connID, const DtInetAddrAndPort &addr)
	Called when the exec connects/disconnects.

Protected Member Functions
	DtForwarderPort (const DtRIDParameters *params, DtBoost::shared_ptr< DtRouteMap > routes, MAKRti::DtInetAddr host, int forwarderPort, MAKRti::DtInetEndpoint addnlConnection)
virtual void	forwarderNodeIsReady (unsigned long id)
	Called when the forwarder port is known and node becomes ready.
virtual int	socketQueueStatus (unsigned int connId, int connQueueStatus)
	Called when the socket queue status changes.
virtual void	waitingForForwarderConnections (const DtConnAndNameMap &allNeededFws, const DtConnAndNameMap &stillNeededFws)
	Specifies that this port is waiting for other forwarder connections.
virtual void	notWaitingForForwarderConnections ()
	Called when exiting from the waiting for forwarder connections state.
virtual int	connectionEstablished (const MAKRti::DtString &connName, const MAKRti::DtString &hostName, unsigned int connID, const std::pair< DtInetAddrAndPort, DtInetAddrAndPort > &addr)
	Call when connection is added/removed/changed Invokes callbacks registered for this event.
virtual int	connectionLost (const MAKRti::DtString &connName, const MAKRti::DtString &hostName, unsigned int connID, const std::pair< DtInetAddrAndPort, DtInetAddrAndPort > &addr)
	Call when connection is added/removed/changed Invokes callbacks registered for this event.
virtual int	connectionChanged (const MAKRti::DtString &connName, const MAKRti::DtString &hostName, unsigned int oldConnID, unsigned int newConnID, const DtInetAddrAndPort &addr)
	Call when connection is added/removed/changed Invokes callbacks registered for this event.
int	reconnectBegun (const MAKRti::DtString &connName, const MAKRti::DtString &hostName, unsigned int connID, const DtInetAddrAndPort &addr)
	Call when connection is added/removed/changed Invokes callbacks registered for this event.
int	reconnectComplete (const MAKRti::DtString &connName, const MAKRti::DtString &hostName, unsigned int connID, const DtInetAddrAndPort &addr, bool wasSuccessful)
	Call when connection is added/removed/changed Invokes callbacks registered for this event.
virtual void	federateResigned (const MAKRti::DtString &connName, const MAKRti::DtString &connType, unsigned int connID, unsigned int fedHandle, const DtInetAddrAndPort &addr)
	Called when the federate joins/resigns.
virtual void	federateJoined (const MAKRti::DtString &connName, const MAKRti::DtString &connType, const MAKRti::DtString &federationName, unsigned int connID, unsigned int fedHandle, const DtInetAddrAndPort &addr, const MAKRti::DtString &hostName, unsigned int processId, const MAKRti::DtString &processName, const MAKRti::DtString &commandArgs, DtHlaVersionId hlaVersion)
	Called when the federate joins/resigns.

Static Protected Member Functions
static int	socketQueueStatus (unsigned int connId, int connQueueStatus, void *usr)
	Callback function registered to be called when socket queue status changes.
static void	forwarderNodeIsReady (unsigned long id, void *usr)
	Callback function registered to be called when forwarder node is ready (port is known)
static int	connectionEstablished (const MAKRti::DtString &connName, const MAKRti::DtString &hostName, unsigned int connID, const std::pair< DtInetAddrAndPort, DtInetAddrAndPort > &addr, void *usr)
	Callback function registered to be called when connection is added/removed/changed.
static int	connectionLost (const MAKRti::DtString &connName, const MAKRti::DtString &hostName, unsigned int connID, const std::pair< DtInetAddrAndPort, DtInetAddrAndPort > &addr, void *usr)
	Callback function registered to be called when connection is added/removed/changed.
static int	connectionChanged (const MAKRti::DtString &connName, const MAKRti::DtString &hostName, unsigned int oldConnID, unsigned int newConnID, const DtInetAddrAndPort &addr, void *usr)
	Callback function registered to be called when connection is added/removed/changed.
static void	federateJoined (const MAKRti::DtString &connName, const MAKRti::DtString &connType, const MAKRti::DtString &federationName, unsigned int connID, unsigned int fedHandle, const DtInetAddrAndPort &addr, const MAKRti::DtString &hostName, unsigned int processId, const MAKRti::DtString &processName, const MAKRti::DtString &commandArgs, DtHlaVersionId hlaVersion, void *usr)
	Callback function registered to be called when federate joins/resigns.
static void	federateResigned (const MAKRti::DtString &connName, const MAKRti::DtString &connType, unsigned int connID, unsigned int fedHandle, const DtInetAddrAndPort &addr, void *usr)
	Callback function registered to be called when federate joins/resigns.
static int	execConnected (const MAKRti::DtString &connName, unsigned int connID, const DtInetAddrAndPort &addr, const MAKRti::DtString &hostName, bool fullyCompliant, void *usr)
	Callback function registered to be called when exec connects/disconnects.
static int	execDisconnected (const MAKRti::DtString &connName, unsigned int connID, const DtInetAddrAndPort &addr, void *usr)
	Callback function registered to be called when exec connects/disconnects.

Protected Attributes
const DtRIDParameters *	myParams
DtBoost::shared_ptr< DtRouteMap >	myRoutes
const MAKRti::DtInetAddr	myAddress
bool	myOk
int	myPortToUse
MAKRti::DtInetEndpoint	myAdditionalAddrToConnectTo
DtConnectionAddRemoveCallbackList	myConnectionEstablishedCbs
DtConnectionAddRemoveCallbackList	myConnectionLostCbs
DtConnectionReconnectBegunCallbackList	myReconnectBegunCbs
DtConnectionReconnectCompleteCallbackList	myReconnectCompleteCbs
DtConnectionChangeCallbackList	myConnectionChangedCbs
DtFederateAddedCallbackList	myFederateJoinedCbs
DtFederateRemovedCallbackList	myFederateResignedCbs
DtPortReadyCallbackList	myPortReadyCbs
DtExecAddedCallbackList	myExecConnectedCbs
DtExecRemovedCallbackList	myExecDisconnectedCbs
DtSocketQueueCallbackList	mySocketQueueCbs
DtWaitingForFwsCallbackList	myWaitingForFwsCbs
DtNotWaitingForFwsCallbackList	myNotWaitingForFwsCbs

Detailed Description

The DtForwarderPort is an Abstract Base Class which provides the interface to a collection of connections from which messages may be read and to which messages may be sent.

Member Typedef Documentation

typedef DtRouteMap::DtAddressList DtForwarderPort::DtAddressList

typedef std::pair< DtInetAddrAndPort, DtForwarderMsg > DtForwarderPort::DtAddressMsgPair

typedef DtRouteMap::DtAddressPortList DtForwarderPort::DtAddressPortList

typedef std::map< DtInetAddrAndPort, DtTcpMsgSocket* > DtForwarderPort::DtAddrToConnMap

typedef std::map<DtInetAddrAndPort, MAKRti::DtString> DtForwarderPort::DtConnAndNameMap

typedef std::vector< std::pair< DtConnectionAddRemoveCb, void* > > DtForwarderPort::DtConnectionAddRemoveCallbackList

typedef int(* DtForwarderPort::DtConnectionAddRemoveCb)(const MAKRti::DtString &, const MAKRti::DtString &, unsigned int, const std::pair< DtInetAddrAndPort, DtInetAddrAndPort > &, void *)

typedef std::vector< std::pair< DtConnectionChangeCb, void* > > DtForwarderPort::DtConnectionChangeCallbackList

typedef int(* DtForwarderPort::DtConnectionChangeCb)(const MAKRti::DtString &, const MAKRti::DtString &, unsigned int, unsigned int, const DtInetAddrAndPort &, void *)

typedef std::vector< std::pair< DtConnectionReconnectBegunCb, void* > > DtForwarderPort::DtConnectionReconnectBegunCallbackList

typedef int(* DtForwarderPort::DtConnectionReconnectBegunCb)(const MAKRti::DtString &, const MAKRti::DtString &, unsigned int, const DtInetAddrAndPort &, void *)

typedef std::vector< std::pair< DtConnectionReconnectCompleteCb, void* > > DtForwarderPort::DtConnectionReconnectCompleteCallbackList

typedef int(* DtForwarderPort::DtConnectionReconnectCompleteCb)(const MAKRti::DtString &, const MAKRti::DtString &, unsigned int, const DtInetAddrAndPort &, bool, void *)

typedef int(* DtForwarderPort::DtExecAddChangeCb)(const MAKRti::DtString &, unsigned int, const DtInetAddrAndPort &, const MAKRti::DtString &, bool, void *)

typedef std::vector< std::pair< DtExecAddChangeCb, void* > > DtForwarderPort::DtExecAddedCallbackList

typedef std::vector< std::pair< DtExecRemovedChangeCb, void* > > DtForwarderPort::DtExecRemovedCallbackList

typedef int(* DtForwarderPort::DtExecRemovedChangeCb)(const MAKRti::DtString &, unsigned int, const DtInetAddrAndPort &, void *)

typedef std::vector< std::pair< DtFederateAddedCb, void* > > DtForwarderPort::DtFederateAddedCallbackList

typedef void(* DtForwarderPort::DtFederateAddedCb)(const MAKRti::DtString &, const MAKRti::DtString &, const MAKRti::DtString &, unsigned int, unsigned int, const DtInetAddrAndPort &, const MAKRti::DtString &, unsigned int, const MAKRti::DtString &, const MAKRti::DtString &, DtHlaVersionId, void *)

typedef std::vector< std::pair< DtFederateRemovedCb, void* > > DtForwarderPort::DtFederateRemovedCallbackList

typedef void(* DtForwarderPort::DtFederateRemovedCb)(const MAKRti::DtString &, const MAKRti::DtString &, unsigned int, unsigned int, const DtInetAddrAndPort &, void *)

typedef DtForwarderPort*(* DtForwarderPort::DtForwarderPortCreatorFcn)(const DtRIDParameters *, const DtBoost::shared_ptr< DtRouteMap >, const MAKRti::DtInetAddr &, int, const MAKRti::DtInetEndpoint &)

DtForwarderPort creator signature.

typedef DtRouteMap::DtInterfaceAddrSet DtForwarderPort::DtInterfaceAddrSet

typedef std::vector< std::pair< DtNotWaitingForFwsCb, void* > > DtForwarderPort::DtNotWaitingForFwsCallbackList

typedef void(* DtForwarderPort::DtNotWaitingForFwsCb)(void *)

typedef std::vector< std::pair< DtPortReadyCb, void*> > DtForwarderPort::DtPortReadyCallbackList

typedef void(* DtForwarderPort::DtPortReadyCb)(unsigned long, void *)

typedef std::vector<DtTcpMsgSocket*> DtForwarderPort::DtSocketList

typedef std::vector< std::pair< DtSocketQueueCb, void* > > DtForwarderPort::DtSocketQueueCallbackList

typedef int(* DtForwarderPort::DtSocketQueueCb)(unsigned int, int, void *)

typedef std::set<DtTcpMsgSocket*> DtForwarderPort::DtSocketSet

typedef std::pair<DtTcpMsgSocket*, DtForwarderMsg> DtForwarderPort::DtSockMsgPair

typedef std::vector< std::pair< DtWaitingForFwsCb, void* > > DtForwarderPort::DtWaitingForFwsCallbackList

typedef void(* DtForwarderPort::DtWaitingForFwsCb)(const DtConnAndNameMap &, const DtConnAndNameMap &, void *)

Constructor & Destructor Documentation

DtForwarderPort::DtForwarderPort ( const DtRIDParameters *  params, DtBoost::shared_ptr< DtRouteMap >  routes, MAKRti::DtInetAddr  host, int  forwarderPort, MAKRti::DtInetEndpoint  addnlConnection  )

inlineprotected

virtual DtForwarderPort::~DtForwarderPort ( )

inlinevirtual

Member Function Documentation

virtual unsigned int DtForwarderPort::abortPendingConnections ( )

pure virtual

Abort any embryonic connections.

Implemented in DtInOutForwarderPort, and DtLanForwarderPort.

void DtForwarderPort::addConnectionChangedCb ( DtConnectionChangeCb  callback, void *  usr  )

inlinevirtual

Register/Unregister callback for addition/removal/change of connections.

References myConnectionChangedCbs.

void DtForwarderPort::addConnectionEstablishedCb ( DtConnectionAddRemoveCb  callback, void *  usr  )

inlinevirtual

Register/Unregister callback for addition/removal/change of connections.

References myConnectionEstablishedCbs.

void DtForwarderPort::addConnectionLostCb ( DtConnectionAddRemoveCb  callback, void *  usr  )

inlinevirtual

Register/Unregister callback for addition/removal/change of connections.

References myConnectionLostCbs.

void DtForwarderPort::addExecConnectionEstablishedCb ( DtExecAddChangeCb  callback, void *  usr  )

inlinevirtual

Register/Unregister callback for event - exec connected/disconnected.

References myExecConnectedCbs.

void DtForwarderPort::addExecDisconnectedCb ( DtExecRemovedChangeCb  callback, void *  usr  )

inlinevirtual

Register/Unregister callback for event - exec connected/disconnected.

References myExecDisconnectedCbs.

void DtForwarderPort::addFederateJoinedCb ( DtFederateAddedCb  callback, void *  usr  )

inlinevirtual

Register/Unregister callback for event - federate join/resign.

References myFederateJoinedCbs.

void DtForwarderPort::addFederateResignedCb ( DtFederateRemovedCb  callback, void *  usr  )

inlinevirtual

Register/Unregister callback for event - federate join/resign.

References myFederateResignedCbs.

void DtForwarderPort::addForwarderPortReadyCb ( DtPortReadyCb  callback, void *  usr  )

inlinevirtual

Register/Unregister callback for event - forwarder port becomes ready.

References myPortReadyCbs.

void DtForwarderPort::addNotWaitingForForwarderConnectionsCb ( DtNotWaitingForFwsCb  callback, void *  usr  )

inlinevirtual

Register/Unregister callback for event - entrance/exit the "waiting for forwarder connections" state.

References myNotWaitingForFwsCbs.

void DtForwarderPort::addReconnectBegun ( DtConnectionReconnectBegunCb  callback, void *  usr  )

inlinevirtual

Register/Unregister callback for addition/removal/change of connections.

References myReconnectBegunCbs.

void DtForwarderPort::addReconnectComplete ( DtConnectionReconnectCompleteCb  callback, void *  usr  )

inlinevirtual

Register/Unregister callback for addition/removal/change of connections.

References myReconnectCompleteCbs.

void DtForwarderPort::addSocketQueueCb ( DtSocketQueueCb  callback, void *  usr  )

inlinevirtual

Register/Unregister callback for event - socket queue status changes.

References mySocketQueueCbs.

void DtForwarderPort::addWaitingForForwarderConnectionsCb ( DtWaitingForFwsCb  callback, void *  usr  )

inlinevirtual

Register/Unregister callback for event - entrance/exit the "waiting for forwarder connections" state.

References myWaitingForFwsCbs.

virtual int DtForwarderPort::checkConnectionStatus ( const DtInetAddrAndPort *  target = 0 )

pure virtual

Test for lost connections - returns true if targeted connection is active or, if no target specified, returns false if at least one drop detected.

Implemented in DtInOutForwarderPort, and DtLanForwarderPort.

virtual void DtForwarderPort::clearNeededConnections ( )

pure virtual

Clear the list of connections that this forwarder needs to establish.

Implemented in DtInOutForwarderPort, and DtLanForwarderPort.

int DtForwarderPort::connectionChanged ( const MAKRti::DtString &  connName, const MAKRti::DtString &  hostName, unsigned int  oldConnID, unsigned int  newConnID, const DtInetAddrAndPort &  addr  )

inlineprotectedvirtual

Call when connection is added/removed/changed Invokes callbacks registered for this event.

References myConnectionChangedCbs.

int DtForwarderPort::connectionChanged ( const MAKRti::DtString &  connName, const MAKRti::DtString &  hostName, unsigned int  oldConnID, unsigned int  newConnID, const DtInetAddrAndPort &  addr, void *  usr  )

inlinestaticprotected

Callback function registered to be called when connection is added/removed/changed.

int DtForwarderPort::connectionEstablished ( const MAKRti::DtString &  connName, const MAKRti::DtString &  hostName, unsigned int  connID, const std::pair< DtInetAddrAndPort, DtInetAddrAndPort > &  addr  )

inlineprotectedvirtual

Call when connection is added/removed/changed Invokes callbacks registered for this event.

References myConnectionEstablishedCbs.

int DtForwarderPort::connectionEstablished ( const MAKRti::DtString &  connName, const MAKRti::DtString &  hostName, unsigned int  connID, const std::pair< DtInetAddrAndPort, DtInetAddrAndPort > &  addr, void *  usr  )

inlinestaticprotected

Callback function registered to be called when connection is added/removed/changed.

int DtForwarderPort::connectionLost ( const MAKRti::DtString &  connName, const MAKRti::DtString &  hostName, unsigned int  connID, const std::pair< DtInetAddrAndPort, DtInetAddrAndPort > &  addr  )

inlineprotectedvirtual

Call when connection is added/removed/changed Invokes callbacks registered for this event.

References myConnectionLostCbs.

int DtForwarderPort::connectionLost ( const MAKRti::DtString &  connName, const MAKRti::DtString &  hostName, unsigned int  connID, const std::pair< DtInetAddrAndPort, DtInetAddrAndPort > &  addr, void *  usr  )

inlinestaticprotected

Callback function registered to be called when connection is added/removed/changed.

virtual DtAddressPortList DtForwarderPort::connections ( ) const

pure virtual

Get the list of all current connections to this port.

Implemented in DtInOutForwarderPort, and DtLanForwarderPort.

virtual void DtForwarderPort::dropMulticastGroup ( const MAKRti::DtInetAddr &  mcastAddr )

pure virtual

Listen / drop multicast groups (LAN-port-only)

Implemented in DtInOutForwarderPort, and DtLanForwarderPort.

int DtForwarderPort::execConnected ( const MAKRti::DtString &  connName, unsigned int  connID, const DtInetAddrAndPort &  addr, const MAKRti::DtString &  hostName, bool  fullyCompliant  )

inlinevirtual

Called when the exec connects/disconnects.

Invokes callbacks registered for this event.

References myExecConnectedCbs.

int DtForwarderPort::execConnected ( const MAKRti::DtString &  connName, unsigned int  connID, const DtInetAddrAndPort &  addr, const MAKRti::DtString &  hostName, bool  fullyCompliant, void *  usr  )

inlinestaticprotected

Callback function registered to be called when exec connects/disconnects.

int DtForwarderPort::execDisconnected ( const MAKRti::DtString &  connName, unsigned int  connID, const DtInetAddrAndPort &  addr  )

inlinevirtual

Called when the exec connects/disconnects.

Invokes callbacks registered for this event.

References myExecDisconnectedCbs.

int DtForwarderPort::execDisconnected ( const MAKRti::DtString &  connName, unsigned int  connID, const DtInetAddrAndPort &  addr, void *  usr  )

inlinestaticprotected

Callback function registered to be called when exec connects/disconnects.

void DtForwarderPort::federateJoined ( const MAKRti::DtString &  connName, const MAKRti::DtString &  connType, const MAKRti::DtString &  federationName, unsigned int  connID, unsigned int  fedHandle, const DtInetAddrAndPort &  addr, const MAKRti::DtString &  hostName, unsigned int  processId, const MAKRti::DtString &  processName, const MAKRti::DtString &  commandArgs, DtHlaVersionId  hlaVersion  )

inlineprotectedvirtual

Called when the federate joins/resigns.

Invokes callbacks registered for this event.

References myFederateJoinedCbs.

void DtForwarderPort::federateJoined ( const MAKRti::DtString &  connName, const MAKRti::DtString &  connType, const MAKRti::DtString &  federationName, unsigned int  connID, unsigned int  fedHandle, const DtInetAddrAndPort &  addr, const MAKRti::DtString &  hostName, unsigned int  processId, const MAKRti::DtString &  processName, const MAKRti::DtString &  commandArgs, DtHlaVersionId  hlaVersion, void *  usr  )

inlinestaticprotected

Callback function registered to be called when federate joins/resigns.

void DtForwarderPort::federateResigned ( const MAKRti::DtString &  connName, const MAKRti::DtString &  connType, unsigned int  connID, unsigned int  fedHandle, const DtInetAddrAndPort &  addr  )

inlineprotectedvirtual

Called when the federate joins/resigns.

Invokes callbacks registered for this event.

References myFederateResignedCbs.

void DtForwarderPort::federateResigned ( const MAKRti::DtString &  connName, const MAKRti::DtString &  connType, unsigned int  connID, unsigned int  fedHandle, const DtInetAddrAndPort &  addr, void *  usr  )

inlinestaticprotected

Callback function registered to be called when federate joins/resigns.

bool DtForwarderPort::flush ( )

inlinevirtual

Flush any unsent/buffered packets; return true if flush sent data.

Reimplemented in DtInOutForwarderPort, and DtLanForwarderPort.

void DtForwarderPort::forwarderNodeIsReady ( unsigned long  id )

inlineprotectedvirtual

Called when the forwarder port is known and node becomes ready.

Invokes callbacks registered for this event.

References myPortReadyCbs.

void DtForwarderPort::forwarderNodeIsReady ( unsigned long  id, void *  usr  )

inlinestaticprotected

Callback function registered to be called when forwarder node is ready (port is known)

virtual DtAddressMsgPair DtForwarderPort::getNextMsg ( )

pure virtual

Get the next message to forward and the source connection.

Implemented in DtInOutForwarderPort, and DtLanForwarderPort.

virtual bool DtForwarderPort::isOk ( ) const

inlinevirtual

Is the Port still alive?

virtual bool DtForwarderPort::isReady ( ) const

pure virtual

Is the Port fully usable and available?

Implemented in DtInOutForwarderPort, and DtLanForwarderPort.

virtual void DtForwarderPort::listenToMulticastGroup ( const MAKRti::DtInetAddr &  mcastAddr )

pure virtual

Listen / drop multicast groups (LAN-port-only)

Implemented in DtInOutForwarderPort, and DtLanForwarderPort.

void DtForwarderPort::notWaitingForForwarderConnections ( )

inlineprotectedvirtual

Called when exiting from the waiting for forwarder connections state.

Invokes callbacks registered for this event.

References myNotWaitingForFwsCbs.

virtual unsigned int DtForwarderPort::pendingConnectionsAborted ( )

pure virtual

Return count of aborted connections.

Implemented in DtInOutForwarderPort, and DtLanForwarderPort.

int DtForwarderPort::reconnectBegun ( const MAKRti::DtString &  connName, const MAKRti::DtString &  hostName, unsigned int  connID, const DtInetAddrAndPort &  addr  )

inlineprotected

Call when connection is added/removed/changed Invokes callbacks registered for this event.

References myReconnectBegunCbs.

int DtForwarderPort::reconnectComplete ( const MAKRti::DtString &  connName, const MAKRti::DtString &  hostName, unsigned int  connID, const DtInetAddrAndPort &  addr, bool  wasSuccessful  )

inlineprotected

Call when connection is added/removed/changed Invokes callbacks registered for this event.

References myReconnectCompleteCbs.

void DtForwarderPort::removeConnectionChangedCb ( DtConnectionChangeCb  callback, void *  usr  )

inlinevirtual

Register/Unregister callback for addition/removal/change of connections.

References myConnectionChangedCbs.

void DtForwarderPort::removeConnectionEstablishedCb ( DtConnectionAddRemoveCb  callback, void *  usr  )

inlinevirtual

Register/Unregister callback for addition/removal/change of connections.

References myConnectionEstablishedCbs.

void DtForwarderPort::removeConnectionLostCb ( DtConnectionAddRemoveCb  callback, void *  usr  )

inlinevirtual

Register/Unregister callback for addition/removal/change of connections.

References myConnectionLostCbs.

void DtForwarderPort::removeExecConnectionEstablishedCb ( DtExecAddChangeCb  callback, void *  usr  )

inlinevirtual

Register/Unregister callback for event - exec connected/disconnected.

References myExecConnectedCbs.

void DtForwarderPort::removeExecDisconnectedCb ( DtExecRemovedChangeCb  callback, void *  usr  )

inlinevirtual

Register/Unregister callback for event - exec connected/disconnected.

References myExecDisconnectedCbs.

void DtForwarderPort::removeFederateJoinedCb ( DtFederateAddedCb  callback, void *  usr  )

inlinevirtual

Register/Unregister callback for event - federate join/resign.

References myFederateJoinedCbs.

void DtForwarderPort::removeFederateResignedCb ( DtFederateRemovedCb  callback, void *  usr  )

inlinevirtual

Register/Unregister callback for event - federate join/resign.

References myFederateResignedCbs.

void DtForwarderPort::removeForwarderPortReadyCb ( DtPortReadyCb  callback, void *  usr  )

inlinevirtual

Register/Unregister callback for event - forwarder port becomes ready.

References myPortReadyCbs.

void DtForwarderPort::removeNotWaitingForForwarderConnectionsCb ( DtNotWaitingForFwsCb  callback, void *  usr  )

inlinevirtual

Register/Unregister callback for event - entrance/exit the "waiting for forwarder connections" state.

References myNotWaitingForFwsCbs.

void DtForwarderPort::removeReconnectBegun ( DtConnectionReconnectBegunCb  callback, void *  usr  )

inlinevirtual

Register/Unregister callback for addition/removal/change of connections.

References myReconnectBegunCbs.

void DtForwarderPort::removeReconnectComplete ( DtConnectionReconnectCompleteCb  callback, void *  usr  )

inlinevirtual

Register/Unregister callback for addition/removal/change of connections.

References myReconnectCompleteCbs.

void DtForwarderPort::removeSocketQueueCb ( DtSocketQueueCb  callback, void *  usr  )

inlinevirtual

Register/Unregister callback for event - socket queue status changes.

References mySocketQueueCbs.

void DtForwarderPort::removeWaitingForForwarderConnectionsCb ( DtWaitingForFwsCb  callback, void *  usr  )

inlinevirtual

Register/Unregister callback for event - entrance/exit the "waiting for forwarder connections" state.

References myWaitingForFwsCbs.

virtual void DtForwarderPort::selectParams ( MAKRti::DtSelectParamWithWrite &  selectParams )

pure virtual

Add this port's current select() notification set to the passed set.

Implemented in DtInOutForwarderPort, and DtLanForwarderPort.

virtual void DtForwarderPort::sendByTransport ( const DtForwarderMsg &  msg ) const

pure virtual

Check transport metadata and send message to appropriate socket(s)

Implemented in DtInOutForwarderPort, and DtLanForwarderPort.

virtual void DtForwarderPort::sendToAllReliable ( const DtForwarderMsg &  msg ) const

pure virtual

Send a message to all available destinations.

Implemented in DtInOutForwarderPort, and DtLanForwarderPort.

virtual void DtForwarderPort::sendToListReliable ( const DtForwarderMsg &  msg, const DtRouteMap::DtAddressPortList &  destinations  ) const

pure virtual

Send a message to the specified list of destinations excluding the list of filtered destinations.

Implemented in DtInOutForwarderPort, and DtLanForwarderPort.

void DtForwarderPort::setForwarderId ( unsigned long  id )

inlinevirtual

Set forwarder ID.

When forwarder is configured via routes files, forwarderID is known at construction, but when configured dynamically it is determined by interactions between peer forwarders and must be set.

Reimplemented in DtLanForwarderPort.

int DtForwarderPort::socketQueueStatus ( unsigned int  connId, int  connQueueStatus  )

inlineprotectedvirtual

Called when the socket queue status changes.

Invokes callbacks registered for this event.

References mySocketQueueCbs.

int DtForwarderPort::socketQueueStatus ( unsigned int  connId, int  connQueueStatus, void *  usr  )

inlinestaticprotected

Callback function registered to be called when socket queue status changes.

virtual bool DtForwarderPort::updateFederateConnectionId ( unsigned long  orig, unsigned long  final  )

pure virtual

Update locally connected federate connection ID (LAN-port-only)

Implemented in DtInOutForwarderPort, and DtLanForwarderPort.

virtual void DtForwarderPort::updateRoutes ( )

pure virtual

Handle changes to the Routing map.

Implemented in DtInOutForwarderPort, and DtLanForwarderPort.

void DtForwarderPort::waitingForForwarderConnections ( const DtConnAndNameMap &  allNeededFws, const DtConnAndNameMap &  stillNeededFws  )

inlineprotectedvirtual

Specifies that this port is waiting for other forwarder connections.

Lists the full set of expected forwarders, and the set we are still waiting for. Invokes callbacks registered for this event.

References myWaitingForFwsCbs.

Member Data Documentation

MAKRti::DtInetEndpoint DtForwarderPort::myAdditionalAddrToConnectTo

protected

const MAKRti::DtInetAddr DtForwarderPort::myAddress

protected

DtConnectionChangeCallbackList DtForwarderPort::myConnectionChangedCbs

protected

Referenced by addConnectionChangedCb(), connectionChanged(), and removeConnectionChangedCb().

DtConnectionAddRemoveCallbackList DtForwarderPort::myConnectionEstablishedCbs

protected

Referenced by addConnectionEstablishedCb(), connectionEstablished(), and removeConnectionEstablishedCb().

DtConnectionAddRemoveCallbackList DtForwarderPort::myConnectionLostCbs

protected

Referenced by addConnectionLostCb(), connectionLost(), and removeConnectionLostCb().

DtExecAddedCallbackList DtForwarderPort::myExecConnectedCbs

protected

Referenced by addExecConnectionEstablishedCb(), execConnected(), and removeExecConnectionEstablishedCb().

DtExecRemovedCallbackList DtForwarderPort::myExecDisconnectedCbs

protected

Referenced by addExecDisconnectedCb(), execDisconnected(), and removeExecDisconnectedCb().

DtFederateAddedCallbackList DtForwarderPort::myFederateJoinedCbs

protected

Referenced by addFederateJoinedCb(), federateJoined(), and removeFederateJoinedCb().

DtFederateRemovedCallbackList DtForwarderPort::myFederateResignedCbs

protected

Referenced by addFederateResignedCb(), federateResigned(), and removeFederateResignedCb().

DtNotWaitingForFwsCallbackList DtForwarderPort::myNotWaitingForFwsCbs

protected

Referenced by addNotWaitingForForwarderConnectionsCb(), notWaitingForForwarderConnections(), and removeNotWaitingForForwarderConnectionsCb().

bool DtForwarderPort::myOk

protected

const DtRIDParameters* DtForwarderPort::myParams

protected

DtPortReadyCallbackList DtForwarderPort::myPortReadyCbs

protected

Referenced by addForwarderPortReadyCb(), forwarderNodeIsReady(), and removeForwarderPortReadyCb().

int DtForwarderPort::myPortToUse

protected

DtConnectionReconnectBegunCallbackList DtForwarderPort::myReconnectBegunCbs

protected

Referenced by addReconnectBegun(), reconnectBegun(), and removeReconnectBegun().

DtConnectionReconnectCompleteCallbackList DtForwarderPort::myReconnectCompleteCbs

protected

Referenced by addReconnectComplete(), reconnectComplete(), and removeReconnectComplete().

DtBoost::shared_ptr<DtRouteMap> DtForwarderPort::myRoutes

protected

DtSocketQueueCallbackList DtForwarderPort::mySocketQueueCbs

protected

Referenced by addSocketQueueCb(), removeSocketQueueCb(), and socketQueueStatus().

DtWaitingForFwsCallbackList DtForwarderPort::myWaitingForFwsCbs

protected

Referenced by addWaitingForForwarderConnectionsCb(), removeWaitingForForwarderConnectionsCb(), and waitingForForwarderConnections().

---

The documentation for this class was generated from the following file:

• forwarderPort.h
