Dialog which displays the results of network latency testing for a particular initiating federate. More...

Inheritance diagram for DtLatencyTestDialog:

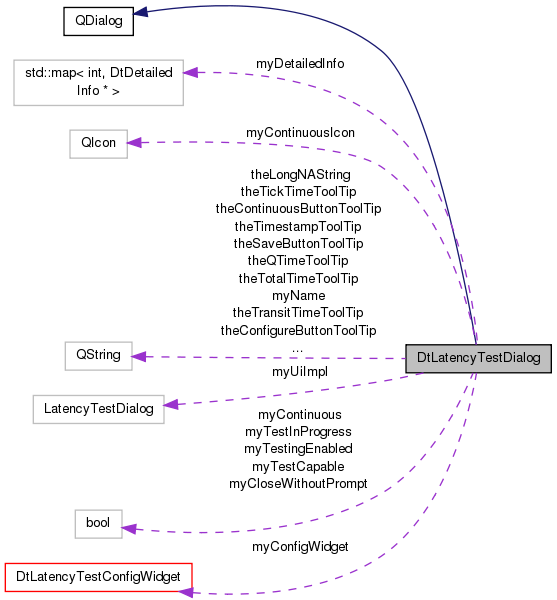

Collaboration diagram for DtLatencyTestDialog:

Classes
struct	DtDetailedInfo
	Structure to store detailed information. More...

Public Slots
virtual void	processRun ()
	Process the pressing of the run button.
virtual void	processContinuous ()
	Process the pressing of the continuous button.
virtual void	processStop ()
	Process the pressing of the stop button.
virtual void	processSave ()
	Process the pressing of the save button.
virtual void	processSelectionChange ()
	Process the selection of a new item in the table.
virtual void	setTestConfig (unsigned int interactionPeriod, unsigned int numInteractions, unsigned int payloadBytes)
	Set test configuration values.

Signals
void	run ()
	Signal emitted when run button is pressed.
void	runContinuous ()
	Signal emitted when run button is pressed in continuous mode.
void	stopRunning ()
	Signal emitted when stop button is pressed.
void	dismiss ()
	Signal emitted when the dialog is closed or dismissed.
void	updateTestConfig (unsigned int interactionPeriod, unsigned int numInteractions, unsigned int payloadBytes)
	Signal emitted when test configuration is updated.
void	observing ()
	Signal emitted when the dialog is ready to receive test reports.

Public Member Functions
	DtLatencyTestDialog (QWidget *parent=0, Qt::WindowFlags f=0)
	Constructor.
virtual	~DtLatencyTestDialog ()
	Destructor.
virtual void	clearResults ()
	Clears the displayed results.
virtual void	addResult (const QString &initName, unsigned int initHandle, const QString &recipName, unsigned int recipHandle, DtRIDParameters::DtAsynchronousIOModeEnum initProcModel, DtRIDParameters::DtAsynchronousIOModeEnum recipProcModel, unsigned int initTickTime, unsigned int recipTickTime, unsigned int bestEffortRoundTripTime, unsigned int reliableRoundTripTime, int initBestEffortQTime, int recipBestEffortQTime, int initReliableQTime, int recipReliableQTime)
	Adds a new test result.
virtual void	addTimeoutResult (const QString &recipName, unsigned int recipHandle)
	Adds a new timeout test result.
virtual void	setName (const QString &name)
	Renames the component.
virtual void	updateStatus (bool enabled, bool capable, bool continuous, bool inProgress)
	Updates the testing status.
virtual void	indicateFederateResigned ()
	Indicate on the dialog that federate has resigned.
virtual void	indicateRtiexecShutdown ()
	Indicate on the dialog that rtiexec has shutdown.
virtual bool	isTestInProgress ()
	Returns true if a test is currently in progress.
virtual void	closeWithoutPrompt ()
	Closes the dialog without displaying a prompt, even if a test is in progress.

Protected Types
enum	DtResultsTableCol { RecipientCol, TransitTimeCol, TimeWaitingCol, TotalTimeCol }
	Enumeration for the table columns. More...
typedef std::map< int, DtDetailedInfo * >	DtHandleToDetailedInfoMap
	Typedef for map of recipient handle to detailed info.

Protected Member Functions
virtual void	getWidgetsToUpdate (unsigned int recipHandle, QTableWidgetItem &recipItem, QTableWidgetItem &timeWaitingItem, QTableWidgetItem &transitTimeItem, QTableWidgetItem &totalTimeItem, DtDetailedInfo *&details)
	Gets the widgets in the dialog that should be updated to display the test results for the given recipient name.
virtual QString	federateNameToDisplay (unsigned int handle, const QString &name=QString::null)
	Creates the string to be used in the GUI display for the given federate.
virtual unsigned int	handleFromDisplayName (const QString &name)
	Returns the handle from the displayed federate name.
virtual QString	procModelString (DtRIDParameters::DtAsynchronousIOModeEnum procModel)
	Converts the processing model value to a string.
virtual void	clearDetailsDisplay ()
	Clears the detailed information display.
virtual void	setTitle ()
	Updates the title of the dialog.
virtual void	closeEvent (QCloseEvent *event)
	Handles the closing of the window.
virtual void	showEvent (QShowEvent *event)
	Prepare the dialog to be shown.

virtual void	convertToMsString (unsigned int usec, QString &result, const QString &notAvailableString=theLongNAString, bool zeroIsNotAvailable=true)
	Converts from usec to a string displaying msec.
virtual void	convertToMsString (int usec, QString &result, const QString &notAvailableString=theLongNAString, bool zeroIsNotAvailable=true)
	Converts from usec to a string displaying msec.

Protected Attributes
Ui::LatencyTestDialog	myUiImpl
QString	myName
	Name of the initiating federate.
QString	myStatusText
	Text which displays the current status.
DtHandleToDetailedInfoMap	myDetailedInfo
	Map of recipient handles to more detailed information.
DtLatencyTestConfigWidget *	myConfigWidget
	The widget which configures latency test parameters.
bool	myTestingEnabled
	Stores whether or not testing is enabled.
bool	myTestCapable
	Stores whether or not the LRC is currently capable of running a test.
bool	myTestInProgress
	Stores whether or not a test is in progress.
bool	myContinuous
	Stores whether or not the current test is continuous.
QIcon	myContinuousIcon
	Icon for the continuous button when it is not depressed.
QString	mySavedFile
	The previously saved file.
bool	myCloseWithoutPrompt
	Indicates that no prompt should be displayed when the dialog is closed.

Static Protected Attributes
static const QString	theShortNAString
	Short string used to indicate metric is not available.
static const QString	theLongNAString
	Longer string used to indicate metric is not available.

static const QString	theInitiatorToolTip
	Tool tip text for the displayed information.
static const QString	theRecipientToolTip
	Tool tip text for the displayed information.
static const QString	theTimeWaitingToolTip
	Tool tip text for the displayed information.
static const QString	theTransitTimeToolTip
	Tool tip text for the displayed information.
static const QString	theTotalTimeToolTip
	Tool tip text for the displayed information.
static const QString	theTimestampToolTip
	Tool tip text for the displayed information.
static const QString	theProcModelToolTip
	Tool tip text for the displayed information.
static const QString	theTickTimeToolTip
	Tool tip text for the displayed information.
static const QString	theQTimeToolTip
	Tool tip text for the displayed information.

static const QString	theRunButtonToolTip
	Tool tip text for the dialog buttons.
static const QString	theStopButtonToolTip
	Tool tip text for the dialog buttons.
static const QString	theContinuousButtonToolTip
	Tool tip text for the dialog buttons.
static const QString	theConfigureButtonToolTip
	Tool tip text for the dialog buttons.
static const QString	theSaveButtonToolTip
	Tool tip text for the dialog buttons.

Detailed Description

Dialog which displays the results of network latency testing for a particular initiating federate.

Member Typedef Documentation

typedef std::map< int, DtDetailedInfo* > DtLatencyTestDialog::DtHandleToDetailedInfoMap

protected

Typedef for map of recipient handle to detailed info.

Member Enumeration Documentation

enum DtLatencyTestDialog::DtResultsTableCol

protected

Enumeration for the table columns.

Enumerator:

RecipientCol
TransitTimeCol
TimeWaitingCol
TotalTimeCol

Constructor & Destructor Documentation

DtLatencyTestDialog::DtLatencyTestDialog	(	QWidget *	parent = `0`,
		Qt::WindowFlags	f = `0`
	)

Constructor.

virtual DtLatencyTestDialog::~DtLatencyTestDialog ( )

virtual

Destructor.

Member Function Documentation

virtual void DtLatencyTestDialog::addResult	(	const QString &	initName,
		unsigned int	initHandle,
		const QString &	recipName,
		unsigned int	recipHandle,
		DtRIDParameters::DtAsynchronousIOModeEnum	initProcModel,
		DtRIDParameters::DtAsynchronousIOModeEnum	recipProcModel,
		unsigned int	initTickTime,
		unsigned int	recipTickTime,
		unsigned int	bestEffortRoundTripTime,
		unsigned int	reliableRoundTripTime,
		int	initBestEffortQTime,
		int	recipBestEffortQTime,
		int	initReliableQTime,
		int	recipReliableQTime
	)

virtual

Adds a new test result.

virtual void DtLatencyTestDialog::addTimeoutResult	(	const QString &	recipName,
		unsigned int	recipHandle
	)

virtual

Adds a new timeout test result.

virtual void DtLatencyTestDialog::clearDetailsDisplay ( )

protectedvirtual

Clears the detailed information display.

virtual void DtLatencyTestDialog::clearResults ( )

virtual

Clears the displayed results.

virtual void DtLatencyTestDialog::closeEvent ( QCloseEvent * event )

protectedvirtual

Handles the closing of the window.

virtual void DtLatencyTestDialog::closeWithoutPrompt ( )

virtual

Closes the dialog without displaying a prompt, even if a test is in progress.

virtual void DtLatencyTestDialog::convertToMsString	(	unsigned int	usec,
		QString &	result,
		const QString &	notAvailableString = `theLongNAString`,
		bool	zeroIsNotAvailable = `true`
	)

protectedvirtual

Converts from usec to a string displaying msec.

virtual void DtLatencyTestDialog::convertToMsString	(	int	usec,
		QString &	result,
		const QString &	notAvailableString = `theLongNAString`,
		bool	zeroIsNotAvailable = `true`
	)

protectedvirtual

Converts from usec to a string displaying msec.

void DtLatencyTestDialog::dismiss ( )

signal

Signal emitted when the dialog is closed or dismissed.

virtual QString DtLatencyTestDialog::federateNameToDisplay	(	unsigned int	handle,
		const QString &	name = `QString::null`
	)

protectedvirtual

Creates the string to be used in the GUI display for the given federate.

virtual void DtLatencyTestDialog::getWidgetsToUpdate	(	unsigned int	recipHandle,
		QTableWidgetItem *&	recipItem,
		QTableWidgetItem *&	timeWaitingItem,
		QTableWidgetItem *&	transitTimeItem,
		QTableWidgetItem *&	totalTimeItem,
		DtDetailedInfo *&	details
	)

protectedvirtual

Gets the widgets in the dialog that should be updated to display the test results for the given recipient name.

virtual unsigned int DtLatencyTestDialog::handleFromDisplayName ( const QString & name )

protectedvirtual

Returns the handle from the displayed federate name.

virtual void DtLatencyTestDialog::indicateFederateResigned ( )

virtual

Indicate on the dialog that federate has resigned.

virtual void DtLatencyTestDialog::indicateRtiexecShutdown ( )

virtual

Indicate on the dialog that rtiexec has shutdown.

virtual bool DtLatencyTestDialog::isTestInProgress ( )

virtual

Returns true if a test is currently in progress.

void DtLatencyTestDialog::observing ( )

signal

Signal emitted when the dialog is ready to receive test reports.

virtual void DtLatencyTestDialog::processContinuous ( )

virtualslot

Process the pressing of the continuous button.

virtual void DtLatencyTestDialog::processRun ( )

virtualslot

Process the pressing of the run button.

virtual void DtLatencyTestDialog::processSave ( )

virtualslot

Process the pressing of the save button.

virtual void DtLatencyTestDialog::processSelectionChange ( )

virtualslot

Process the selection of a new item in the table.

virtual void DtLatencyTestDialog::processStop ( )

virtualslot

Process the pressing of the stop button.

virtual QString DtLatencyTestDialog::procModelString ( DtRIDParameters::DtAsynchronousIOModeEnum procModel )

protectedvirtual

Converts the processing model value to a string.

void DtLatencyTestDialog::run ( )

signal

Signal emitted when run button is pressed.

void DtLatencyTestDialog::runContinuous ( )

signal

Signal emitted when run button is pressed in continuous mode.

virtual void DtLatencyTestDialog::setName ( const QString & name )

virtual

Renames the component.

virtual void DtLatencyTestDialog::setTestConfig	(	unsigned int	interactionPeriod,
		unsigned int	numInteractions,
		unsigned int	payloadBytes
	)

virtualslot

Set test configuration values.

virtual void DtLatencyTestDialog::setTitle ( )

protectedvirtual

Updates the title of the dialog.

virtual void DtLatencyTestDialog::showEvent ( QShowEvent * event )

protectedvirtual

Prepare the dialog to be shown.

void DtLatencyTestDialog::stopRunning ( )

signal

Signal emitted when stop button is pressed.

virtual void DtLatencyTestDialog::updateStatus	(	bool	enabled,
		bool	capable,
		bool	continuous,
		bool	inProgress
	)

virtual

Updates the testing status.

void DtLatencyTestDialog::updateTestConfig	(	unsigned int	interactionPeriod,
		unsigned int	numInteractions,
		unsigned int	payloadBytes
	)

signal

Signal emitted when test configuration is updated.

Member Data Documentation

bool DtLatencyTestDialog::myCloseWithoutPrompt

protected

Indicates that no prompt should be displayed when the dialog is closed.

DtLatencyTestConfigWidget* DtLatencyTestDialog::myConfigWidget

protected

The widget which configures latency test parameters.

bool DtLatencyTestDialog::myContinuous

protected

Stores whether or not the current test is continuous.

QIcon DtLatencyTestDialog::myContinuousIcon

protected

Icon for the continuous button when it is not depressed.

DtHandleToDetailedInfoMap DtLatencyTestDialog::myDetailedInfo

protected

Map of recipient handles to more detailed information.

QString DtLatencyTestDialog::myName

protected

Name of the initiating federate.

QString DtLatencyTestDialog::mySavedFile

protected

The previously saved file.

QString DtLatencyTestDialog::myStatusText

protected

Text which displays the current status.

bool DtLatencyTestDialog::myTestCapable

protected

Stores whether or not the LRC is currently capable of running a test.

bool DtLatencyTestDialog::myTestingEnabled

protected

Stores whether or not testing is enabled.

bool DtLatencyTestDialog::myTestInProgress

protected

Stores whether or not a test is in progress.

Ui::LatencyTestDialog DtLatencyTestDialog::myUiImpl

protected

const QString DtLatencyTestDialog::theConfigureButtonToolTip

staticprotected

Tool tip text for the dialog buttons.

const QString DtLatencyTestDialog::theContinuousButtonToolTip

staticprotected

Tool tip text for the dialog buttons.

const QString DtLatencyTestDialog::theInitiatorToolTip

staticprotected

Tool tip text for the displayed information.

const QString DtLatencyTestDialog::theLongNAString

staticprotected

Longer string used to indicate metric is not available.

const QString DtLatencyTestDialog::theProcModelToolTip

staticprotected

Tool tip text for the displayed information.

const QString DtLatencyTestDialog::theQTimeToolTip

staticprotected

Tool tip text for the displayed information.

const QString DtLatencyTestDialog::theRecipientToolTip

staticprotected

Tool tip text for the displayed information.

const QString DtLatencyTestDialog::theRunButtonToolTip

staticprotected

Tool tip text for the dialog buttons.

const QString DtLatencyTestDialog::theSaveButtonToolTip

staticprotected

Tool tip text for the dialog buttons.

const QString DtLatencyTestDialog::theShortNAString

staticprotected

Short string used to indicate metric is not available.

const QString DtLatencyTestDialog::theStopButtonToolTip

staticprotected

Tool tip text for the dialog buttons.

const QString DtLatencyTestDialog::theTickTimeToolTip

staticprotected

Tool tip text for the displayed information.

const QString DtLatencyTestDialog::theTimestampToolTip

staticprotected

Tool tip text for the displayed information.

const QString DtLatencyTestDialog::theTimeWaitingToolTip

staticprotected

Tool tip text for the displayed information.

const QString DtLatencyTestDialog::theTotalTimeToolTip

staticprotected

Tool tip text for the displayed information.

const QString DtLatencyTestDialog::theTransitTimeToolTip

staticprotected

Tool tip text for the displayed information.

The documentation for this class was generated from the following file:

latencyTestDialog.h

Classes

Public Slots

Signals

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
