DtRtiConnectionInfo Class Reference

Stores the information on an RTI connection known by the Assistant. More...

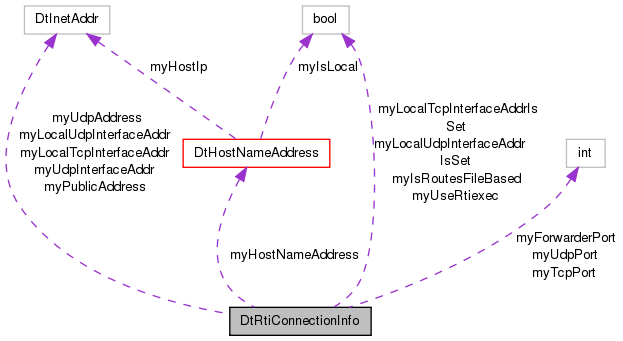

Collaboration diagram for DtRtiConnectionInfo:

Public Member Functions
	DtRtiConnectionInfo ()
	Constructor.
	DtRtiConnectionInfo (const MAKRti::DtString &hostname, const MAKRti::DtInetAddr &publicAddr, const MAKRti::DtInetAddr &tcpAddress, int tcpPort, const MAKRti::DtInetAddr &udpAddress, int udpPort, const MAKRti::DtInetAddr &udpInterfaceAddr, int forwarderPort)
	rtiexec connection constructors
	DtRtiConnectionInfo (const MAKRti::DtInetAddr &publicAddr, const MAKRti::DtInetAddr &tcpAddress, int tcpPort, const MAKRti::DtInetAddr &udpAddress, int udpPort, const MAKRti::DtInetAddr &udpInterfaceAddr, int forwarderPort)
	DtRtiConnectionInfo (const MAKRti::DtInetAddr &publicAddr, const MAKRti::DtInetAddr &udpAddress, int port, const MAKRti::DtInetAddr &udpInterfaceAddr)
	Lightweight connection constructor.
	DtRtiConnectionInfo (const DtHostNameAddress &host, const MAKRti::DtInetAddr &publicAddr, int tcpPort, const MAKRti::DtInetAddr &udpAddress, int udpPort, const MAKRti::DtInetAddr &udpInterfaceAddr, bool useRtiexec, int forwarderPort)
	Constructor to set all values explicitly.
virtual	~DtRtiConnectionInfo ()
	Destructor.
virtual bool	operator< (const DtRtiConnectionInfo &other) const
	Less than operator.
virtual bool	operator== (const DtRtiConnectionInfo &other) const
	Equals operator.
virtual bool	operator!= (const DtRtiConnectionInfo &other) const
	Not equals operator.
virtual DtRtiConnectionInfo &	operator= (const DtRtiConnectionInfo &other)
	Assignment operator.
virtual bool	isEquivalentHost (const DtRtiConnectionInfo &other) const
	Determines if another connection has an equivalent host, based on the IP address and host name and network interface address.
virtual bool	isEquivalentHostAllInterfaces (const DtRtiConnectionInfo &other) const
	Determines if another connection has an equivalent host, based on the IP address and host name, assuming the host is bound on all interfaces.
virtual bool	isEquivalentLightweight (const DtRtiConnectionInfo &other) const
	Determines if another connection has equivalent UDP address and port.
virtual bool	isLocalHost () const
	Determines if the host for this connection is the local machine, based on the IP address and host name.
virtual bool	conflictsWith (const DtRtiConnectionInfo &other, MAKRti::DtString &reason) const
	Returns true if the connection conflicts with this connection and sets a description of the reason for the conflict.
virtual MAKRti::DtString	defaultName () const
	Default name for this connection.
virtual MAKRti::DtString	description () const
	Returns a text description of this connection.
virtual MAKRti::DtString	hostName () const
	Returns host name.
virtual void	setHostName (const MAKRti::DtString &host, bool skipLookup=false)
	Sets the host name.
virtual void	setHostName (const MAKRti::DtString &host, const DtInetAddr &newIp)
	Sets the hostname and IP without using a resolver (lookup)
virtual const DtHostNameAddress &	hostNameAddress () const
	Return the host name and address (TCP IP address)
virtual const MAKRti::DtInetAddr &	tcpAddress () const
	Returns TCP IP address for reliable communication.
virtual void	setTcpAddress (const MAKRti::DtInetAddr &ip)
	Sets the TCP IP address for reliable communication.
virtual int	tcpPort () const
	Returns TCP port.
virtual void	setTcpPort (int port)
	Sets the TCP port.
virtual const MAKRti::DtInetAddr &	udpAddress () const
	Returns UDP IP address for best effort communication.
virtual void	setUdpAddress (const MAKRti::DtInetAddr &ip)
	Sets the UDP IP address for best effort communication.
virtual int	udpPort () const
	Returns UDP port.
virtual void	setUdpPort (int port)
	Sets the UDP port.
virtual const MAKRti::DtInetAddr &	udpInterfaceAddr () const
	Returns the UDP interface address to use for this connection.
virtual void	setUdpInterfaceAddr (const MAKRti::DtInetAddr &addr)
	Sets the UDP interface address to use for this connection.
virtual bool	useRtiexec () const
	Returns whether this connection uses an rtiexec.
virtual void	setUseRtiexec (bool useExec)
	Sets whether this connection uses an rtiexec.
virtual int	forwarderPort () const
	Returns the forwarder port.
virtual void	setForwarderPort (int port)
	Sets the port.
virtual bool	isValid () const
	Returns true if this connection info passes a basic validity check.
virtual MAKRti::DtString	hostPort () const
	Get a string containing the host:forwarderPort.
virtual const MAKRti::DtInetAddr &	localTcpInterfaceAddr () const
	Returns the local TCP interface address to use for this connection.
virtual void	setLocalTcpInterfaceAddr (const MAKRti::DtInetAddr &addr)
	Sets the TCP interface address to use for this connection.
virtual const MAKRti::DtInetAddr &	localUdpInterfaceAddr () const
	Returns the local UDP interface address to use for this connection.
virtual void	setLocalUdpInterfaceAddr (const MAKRti::DtInetAddr &addr)
	Sets the UDP interface address to use for this connection.
virtual void	setIsRoutesFileBased (bool val)
virtual bool	isRoutesFileBased () const
virtual void	print (DtOutputStream &os=DtInfo) const
	Print the contents of this instance.
virtual void	setPublicAddress (const MAKRti::DtInetAddr &publicAddr)
	Sets the public address.
virtual const MAKRti::DtInetAddr &	publicAddress () const
	Returns the public address.

Static Public Member Functions
static const DtRtiConnectionInfo &	invalidConn ()
	Returns an invalid connection.
static void	setLocalIpAddresses (bool reset=false)
	Sets the list of recognized local IP addresses.
static const DtInetAddrSet &	localIpAddresses ()
	Returns list of local IP addresses.
static bool	localSupportsIPv4 (bool reset=false)
	Returns whether any of the local interfaces support IPv4.
static bool	localSupportsIPv6 (bool reset=false)
	Returns whether any of the local interfaces support IPv6.
static MAKRti::DtString	constructConnName (const DtHostNameAddress &hostAddr, int tcpPort, const MAKRti::DtInetAddr &udpAddress, int udpPort, const MAKRti::DtInetAddr &udpInterfaceAddr, bool useRtiexec, int forwarderPort)
	Constructs the default connection name using the given parameters.
static MAKRti::DtString	constructConnDescription (const DtHostNameAddress &hostAddr, int tcpPort, const MAKRti::DtInetAddr &udpAddress, int udpPort, const MAKRti::DtInetAddr &udpInterfaceAddr, bool useRtiexec, int forwarderPort, const MAKRti::DtInetAddr &localTcpInterfaceAddr, const MAKRti::DtInetAddr &localUdpInterfaceAddr)
	Constructs the connection description text using the given parameters.
static MAKRti::DtString	hostPort (const MAKRti::DtString &host, int port)
	Construct a host:port string.
static const MAKRti::DtInetAddr &	defaultTcpAddress ()
	Returns the default parameters.
static const MAKRti::DtInetAddr &	defaultUdpAddress ()
	Returns the default parameters.
static int	defaultLightweightPort ()
	Returns the default parameters.
static int	defaultRtiexecPort ()
	Returns the default parameters.
static const MAKRti::DtString &	defaultHostName ()
	Returns the default parameters.
static const MAKRti::DtInetAddr &	defaultTcpInterfaceAddr ()
	Returns the default parameters.
static const MAKRti::DtInetAddr &	defaultUdpInterfaceAddr ()
	Returns the default parameters.
static int	defaultForwarderPort ()
	Returns the default parameters.

Static Protected Member Functions
static DtInetAddrSet &	theLocalIpAddresses ()
	Returns a reference to a static map of local IP addresses to netmasks.

Protected Attributes
DtHostNameAddress	myHostNameAddress
	Host of the rtiexec or forwarder (TCP IP)
int	myTcpPort
	TCP port for the connection.
MAKRti::DtInetAddr	myUdpAddress
	UDP IP address for best effort transport.
int	myUdpPort
	UDP port for the connection.
MAKRti::DtInetAddr	myUdpInterfaceAddr
	UDP interface address to use for this connection on host machine.
MAKRti::DtInetAddr	myLocalTcpInterfaceAddr
	TCP interface address to use for this connection on local machine.
bool	myLocalTcpInterfaceAddrIsSet
MAKRti::DtInetAddr	myLocalUdpInterfaceAddr
	UDP interface address to use for this connection on local machine.
bool	myLocalUdpInterfaceAddrIsSet
bool	myUseRtiexec
	Whether or not an rtiexec should be used.
int	myForwarderPort
	The port used by the forwarder to connect to other forwarders.
bool	myIsRoutesFileBased
MAKRti::DtInetAddr	myPublicAddress
	Public IP address.

Detailed Description

Stores the information on an RTI connection known by the Assistant.

Constructor & Destructor Documentation

DtRtiConnectionInfo::DtRtiConnectionInfo

(

)

Constructor.

DtRtiConnectionInfo::DtRtiConnectionInfo	(	const MAKRti::DtString &	hostname,
		const MAKRti::DtInetAddr &	publicAddr,
		const MAKRti::DtInetAddr &	tcpAddress,
		int	tcpPort,
		const MAKRti::DtInetAddr &	udpAddress,
		int	udpPort,
		const MAKRti::DtInetAddr &	udpInterfaceAddr,
		int	forwarderPort
	)

rtiexec connection constructors

DtRtiConnectionInfo::DtRtiConnectionInfo	(	const MAKRti::DtInetAddr &	publicAddr,
		const MAKRti::DtInetAddr &	tcpAddress,
		int	tcpPort,
		const MAKRti::DtInetAddr &	udpAddress,
		int	udpPort,
		const MAKRti::DtInetAddr &	udpInterfaceAddr,
		int	forwarderPort
	)

DtRtiConnectionInfo::DtRtiConnectionInfo	(	const MAKRti::DtInetAddr &	publicAddr,
		const MAKRti::DtInetAddr &	udpAddress,
		int	port,
		const MAKRti::DtInetAddr &	udpInterfaceAddr
	)

Lightweight connection constructor.

DtRtiConnectionInfo::DtRtiConnectionInfo	(	const DtHostNameAddress &	host,
		const MAKRti::DtInetAddr &	publicAddr,
		int	tcpPort,
		const MAKRti::DtInetAddr &	udpAddress,
		int	udpPort,
		const MAKRti::DtInetAddr &	udpInterfaceAddr,
		bool	useRtiexec,
		int	forwarderPort
	)

Constructor to set all values explicitly.

virtual DtRtiConnectionInfo::~DtRtiConnectionInfo ( )

virtual

Destructor.

Member Function Documentation

virtual bool DtRtiConnectionInfo::conflictsWith ( const DtRtiConnectionInfo &  other, MAKRti::DtString &  reason  ) const

virtual

Returns true if the connection conflicts with this connection and sets a description of the reason for the conflict.

static MAKRti::DtString DtRtiConnectionInfo::constructConnDescription ( const DtHostNameAddress &  hostAddr, int  tcpPort, const MAKRti::DtInetAddr &  udpAddress, int  udpPort, const MAKRti::DtInetAddr &  udpInterfaceAddr, bool  useRtiexec, int  forwarderPort, const MAKRti::DtInetAddr &  localTcpInterfaceAddr, const MAKRti::DtInetAddr &  localUdpInterfaceAddr  )

static

Constructs the connection description text using the given parameters.

static MAKRti::DtString DtRtiConnectionInfo::constructConnName ( const DtHostNameAddress &  hostAddr, int  tcpPort, const MAKRti::DtInetAddr &  udpAddress, int  udpPort, const MAKRti::DtInetAddr &  udpInterfaceAddr, bool  useRtiexec, int  forwarderPort  )

static

Constructs the default connection name using the given parameters.

static int DtRtiConnectionInfo::defaultForwarderPort ( )

static

Returns the default parameters.

static const MAKRti::DtString& DtRtiConnectionInfo::defaultHostName ( )

static

Returns the default parameters.

static int DtRtiConnectionInfo::defaultLightweightPort ( )

static

Returns the default parameters.

virtual MAKRti::DtString DtRtiConnectionInfo::defaultName ( ) const

virtual

Default name for this connection.

static int DtRtiConnectionInfo::defaultRtiexecPort ( )

static

Returns the default parameters.

static const MAKRti::DtInetAddr& DtRtiConnectionInfo::defaultTcpAddress ( )

static

Returns the default parameters.

static const MAKRti::DtInetAddr& DtRtiConnectionInfo::defaultTcpInterfaceAddr ( )

static

Returns the default parameters.

static const MAKRti::DtInetAddr& DtRtiConnectionInfo::defaultUdpAddress ( )

static

Returns the default parameters.

static const MAKRti::DtInetAddr& DtRtiConnectionInfo::defaultUdpInterfaceAddr ( )

static

Returns the default parameters.

virtual MAKRti::DtString DtRtiConnectionInfo::description ( ) const

virtual

Returns a text description of this connection.

virtual int DtRtiConnectionInfo::forwarderPort ( ) const

virtual

Returns the forwarder port.

Referenced by DtAssistantFederationsInfoMgr::cmpConnectionWithoutLocalIntf::operator()().

virtual MAKRti::DtString DtRtiConnectionInfo::hostName ( ) const

virtual

Returns host name.

virtual const DtHostNameAddress& DtRtiConnectionInfo::hostNameAddress ( ) const

virtual

Return the host name and address (TCP IP address)

Referenced by DtAssistantFederationsInfoMgr::cmpConnectionWithoutLocalIntf::operator()().

virtual MAKRti::DtString DtRtiConnectionInfo::hostPort ( ) const

virtual

Get a string containing the host:forwarderPort.

static MAKRti::DtString DtRtiConnectionInfo::hostPort ( const MAKRti::DtString &  host, int  port  )

static

Construct a host:port string.

static const DtRtiConnectionInfo& DtRtiConnectionInfo::invalidConn ( )

static

Returns an invalid connection.

virtual bool DtRtiConnectionInfo::isEquivalentHost ( const DtRtiConnectionInfo &  other ) const

virtual

Determines if another connection has an equivalent host, based on the IP address and host name and network interface address.

virtual bool DtRtiConnectionInfo::isEquivalentHostAllInterfaces ( const DtRtiConnectionInfo &  other ) const

virtual

Determines if another connection has an equivalent host, based on the IP address and host name, assuming the host is bound on all interfaces.

virtual bool DtRtiConnectionInfo::isEquivalentLightweight ( const DtRtiConnectionInfo &  other ) const

virtual

Determines if another connection has equivalent UDP address and port.

virtual bool DtRtiConnectionInfo::isLocalHost ( ) const

virtual

Determines if the host for this connection is the local machine, based on the IP address and host name.

virtual bool DtRtiConnectionInfo::isRoutesFileBased ( ) const

inlinevirtual

virtual bool DtRtiConnectionInfo::isValid ( ) const

virtual

Returns true if this connection info passes a basic validity check.

const DtInetAddrSet & DtRtiConnectionInfo::localIpAddresses ( )

inlinestatic

Returns list of local IP addresses.

References theLocalIpAddresses().

static bool DtRtiConnectionInfo::localSupportsIPv4 ( bool  reset = false )

static

Returns whether any of the local interfaces support IPv4.

static bool DtRtiConnectionInfo::localSupportsIPv6 ( bool  reset = false )

static

Returns whether any of the local interfaces support IPv6.

virtual const MAKRti::DtInetAddr& DtRtiConnectionInfo::localTcpInterfaceAddr ( ) const

virtual

Returns the local TCP interface address to use for this connection.

virtual const MAKRti::DtInetAddr& DtRtiConnectionInfo::localUdpInterfaceAddr ( ) const

virtual

Returns the local UDP interface address to use for this connection.

virtual bool DtRtiConnectionInfo::operator!= ( const DtRtiConnectionInfo &  other ) const

virtual

Not equals operator.

virtual bool DtRtiConnectionInfo::operator< ( const DtRtiConnectionInfo &  other ) const

virtual

Less than operator.

Comparisons are based on the following parameters in the order listed: 1) Lightweight connections are "less than" rtiexec connections 2) For lightweight connections: UDP IP and port 3) For rtiexec connections: host name or IP address (host name is used if available, though it is resolved to an IP and that is used as the actual value for comparison), TCP port, UDP port, UDP IP, forwarder port

virtual DtRtiConnectionInfo& DtRtiConnectionInfo::operator= ( const DtRtiConnectionInfo &  other )

virtual

Assignment operator.

If the connections have equivalent hosts and the host name is already set, it will not be overwritten.

virtual bool DtRtiConnectionInfo::operator== ( const DtRtiConnectionInfo &  other ) const

virtual

Equals operator.

virtual void DtRtiConnectionInfo::print ( DtOutputStream &  os = DtInfo ) const

virtual

Print the contents of this instance.

virtual const MAKRti::DtInetAddr& DtRtiConnectionInfo::publicAddress ( ) const

virtual

Returns the public address.

virtual void DtRtiConnectionInfo::setForwarderPort ( int  port )

virtual

Sets the port.

virtual void DtRtiConnectionInfo::setHostName ( const MAKRti::DtString &  host, bool  skipLookup = false  )

virtual

Sets the host name.

virtual void DtRtiConnectionInfo::setHostName ( const MAKRti::DtString &  host, const DtInetAddr &  newIp  )

virtual

Sets the hostname and IP without using a resolver (lookup)

virtual void DtRtiConnectionInfo::setIsRoutesFileBased ( bool  val )

inlinevirtual

static void DtRtiConnectionInfo::setLocalIpAddresses ( bool  reset = false )

static

Sets the list of recognized local IP addresses.

If the set of local IP addresses has already been created it will not be reset unless the reset flag is true.

virtual void DtRtiConnectionInfo::setLocalTcpInterfaceAddr ( const MAKRti::DtInetAddr &  addr )

virtual

Sets the TCP interface address to use for this connection.

virtual void DtRtiConnectionInfo::setLocalUdpInterfaceAddr ( const MAKRti::DtInetAddr &  addr )

virtual

Sets the UDP interface address to use for this connection.

virtual void DtRtiConnectionInfo::setPublicAddress ( const MAKRti::DtInetAddr &  publicAddr )

virtual

Sets the public address.

virtual void DtRtiConnectionInfo::setTcpAddress ( const MAKRti::DtInetAddr &  ip )

virtual

Sets the TCP IP address for reliable communication.

virtual void DtRtiConnectionInfo::setTcpPort ( int  port )

virtual

Sets the TCP port.

virtual void DtRtiConnectionInfo::setUdpAddress ( const MAKRti::DtInetAddr &  ip )

virtual

Sets the UDP IP address for best effort communication.

virtual void DtRtiConnectionInfo::setUdpInterfaceAddr ( const MAKRti::DtInetAddr &  addr )

virtual

Sets the UDP interface address to use for this connection.

virtual void DtRtiConnectionInfo::setUdpPort ( int  port )

virtual

Sets the UDP port.

virtual void DtRtiConnectionInfo::setUseRtiexec ( bool  useExec )

virtual

Sets whether this connection uses an rtiexec.

virtual const MAKRti::DtInetAddr& DtRtiConnectionInfo::tcpAddress ( ) const

virtual

Returns TCP IP address for reliable communication.

virtual int DtRtiConnectionInfo::tcpPort ( ) const

virtual

Returns TCP port.

Referenced by DtAssistantFederationsInfoMgr::cmpConnectionWithoutLocalIntf::operator()().

static DtInetAddrSet& DtRtiConnectionInfo::theLocalIpAddresses ( )

staticprotected

Returns a reference to a static map of local IP addresses to netmasks.

This is a shallow wrapper function which is provided to guarantee the std::map is initialized. Please note that this class is only used by the assistant, which is single threaded. If this class is ever used by a multithreaded application, this static member should be mutex protected.

Referenced by localIpAddresses().

virtual const MAKRti::DtInetAddr& DtRtiConnectionInfo::udpAddress ( ) const

virtual

Returns UDP IP address for best effort communication.

Referenced by DtAssistantFederationsInfoMgr::cmpConnectionWithoutLocalIntf::operator()().

virtual const MAKRti::DtInetAddr& DtRtiConnectionInfo::udpInterfaceAddr ( ) const

virtual

Returns the UDP interface address to use for this connection.

virtual int DtRtiConnectionInfo::udpPort ( ) const

virtual

Returns UDP port.

Referenced by DtAssistantFederationsInfoMgr::cmpConnectionWithoutLocalIntf::operator()().

virtual bool DtRtiConnectionInfo::useRtiexec ( ) const

virtual

Returns whether this connection uses an rtiexec.

Referenced by DtAssistantFederationsInfoMgr::cmpConnectionWithoutLocalIntf::operator()().

Member Data Documentation

int DtRtiConnectionInfo::myForwarderPort

protected

The port used by the forwarder to connect to other forwarders.

DtHostNameAddress DtRtiConnectionInfo::myHostNameAddress

protected

Host of the rtiexec or forwarder (TCP IP)

bool DtRtiConnectionInfo::myIsRoutesFileBased

protected

MAKRti::DtInetAddr DtRtiConnectionInfo::myLocalTcpInterfaceAddr

protected

TCP interface address to use for this connection on local machine.

bool DtRtiConnectionInfo::myLocalTcpInterfaceAddrIsSet

protected

MAKRti::DtInetAddr DtRtiConnectionInfo::myLocalUdpInterfaceAddr

protected

UDP interface address to use for this connection on local machine.

bool DtRtiConnectionInfo::myLocalUdpInterfaceAddrIsSet

protected

MAKRti::DtInetAddr DtRtiConnectionInfo::myPublicAddress

protected

Public IP address.

int DtRtiConnectionInfo::myTcpPort

protected

TCP port for the connection.

MAKRti::DtInetAddr DtRtiConnectionInfo::myUdpAddress

protected

UDP IP address for best effort transport.

MAKRti::DtInetAddr DtRtiConnectionInfo::myUdpInterfaceAddr

protected

UDP interface address to use for this connection on host machine.

int DtRtiConnectionInfo::myUdpPort

protected

UDP port for the connection.

bool DtRtiConnectionInfo::myUseRtiexec

protected

Whether or not an rtiexec should be used.

---

The documentation for this class was generated from the following file:

• assistantConnectionInfo.h
