Inheritance diagram for DtTcpMsgSocketMgr:

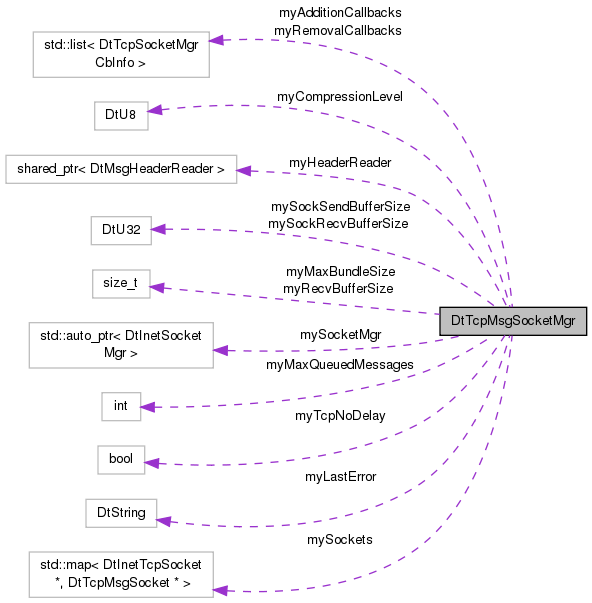

Collaboration diagram for DtTcpMsgSocketMgr:

Public Member Functions
	DtTcpMsgSocketMgr (DtBoost::shared_ptr< DtMsgHeaderReader > hdrReader, size_t recvBufferSize=20000, int maxQueuedMsgs=-1)
	Constructor. Will not open a server socket.
virtual	~DtTcpMsgSocketMgr ()
	Destructor.
virtual bool	openServerSocket (DtU16 localPort, DtInetDevice *hostIf=NULL, DtInetUtils::DtInetAddrFamily family=DtInetUtils::DtInetAddrFamily_IPv4, DtU32 flags=(DtDefaultSockOpts\|DtSockOptNonBlocking))
	Opens a server socket if not already open.
void	processNewConnections ()
virtual void	processConnections ()
	Check for incoming connection attempts.
virtual void	addSocket (DtTcpMsgSocket *sock)
	Add a new socket to be managed that was created and opened outside of this class.
bool	socketAdded (DtInetSocket *sock)
DtTcpMsgSocketMap::iterator	checkIfReconnecting (const DtInetTcpSocket *newSock)
bool	socketRemoved (DtInetSocket *sock)
virtual void	removeAndDelete (DtTcpMsgSocket *sock)
	Remove the specified socket from the list and delete it.
virtual void	enableBundling (size_t maxBundleSize)
	Enables message bundling and sets the maximum bundle size.
virtual void	disableBundling ()
	Disables message bundling.
virtual void	enableCompression (DtU8 compressionLevel)
	Enables message compression and sets the compression level.
virtual void	disableCompression ()
	Disables message compression.
virtual void	setTcpNoDelay (bool enable)
	Changes the setting of the TCP_NODELAY option.
virtual void	setSendBufferSize (DtU32 size)
	Sets the socket send buffer size.
virtual void	setRecvBufferSize (DtU32 size)
	Sets the socket receive buffer size.
virtual DtInetSockState	serverSocketState () const
	Returns the state of the server socket.
virtual DtU32	maxMsgSize () const
	Gets the maximum message size.
DtTcpMsgSocketMap &	socketSet ()
	Returns the list of sockets managed by this manager.
DtTcpMsgSocketMap::iterator	socketIter (DtTcpMsgSocket *sock)
	Returns the iterator for the given socket, if the socket is managed by this manager.
DtString	getLastError () const
	Get a description of the last error.
bool	isListening () const
	Returns true if the socket is open.
Add / Delete Socket Addition Callbacks
Add/remove socket addition callback to be invoked when a new socket connection is accepted.
virtual void	addSocketAdditionCallback (DtTcpSocketAdditionCallback cb, void *usr)
virtual void	removeSocketAdditionCallback (DtTcpSocketAdditionCallback cb, void *usr)
Add / Delete Socket Removal Callbacks
Add/remove socket removal callback to be invoked when a managed socket connection is removed.
virtual void	addSocketRemovalCallback (DtTcpSocketRemovalCallback cb, void *usr)
virtual void	removeSocketRemovalCallback (DtTcpSocketRemovalCallback cb, void *usr)

Static Public Member Functions
static bool	socketAdded (DtInetSocket sock, void usr)
	Callback handler for socket addition callbacks from DtInetSocketMgr.
static bool	socketRemoved (DtInetSocket sock, void usr)
	Callback handler for socket removal callbacks from DtInetSocketMgr.

Protected Attributes
std::auto_ptr< DtInetSocketMgr >	mySocketMgr
	The underlying socket manager.
DtTcpMsgSocketMap	mySockets
	List of sockets managed by this manager, mapped by the underlying DtInetTcpSocket.
DtBoost::shared_ptr < DtMsgHeaderReader >	myHeaderReader
	The message header reader to be used by all managed sockets.
int	myMaxQueuedMessages
	The maximum size the send queue for each socket is allowed to reach.
size_t	myRecvBufferSize
	The size of the sockets' receive buffers.
bool	myTcpNoDelay
	The sockets' TCP_NODELAY setting.
size_t	myMaxBundleSize
	The maximum size of outgoing message bundles.
MAKRti::DtU8	myCompressionLevel
	The maximum size of outgoing message bundles.
MAKRti::DtU32	mySockRecvBufferSize
	The receive buffer size for managed sockets.
MAKRti::DtU32	mySockSendBufferSize
	The send buffer size for managed sockets.
std::list< DtTcpSocketMgrCbInfo >	myAdditionCallbacks
	Socket addition callbacks.
std::list< DtTcpSocketMgrCbInfo >	myRemovalCallbacks
	Socket removal callbacks.
DtString	myLastError
	Description of the last error.

Private Member Functions
	DtTcpMsgSocketMgr (const DtTcpMsgSocketMgr &)
DtTcpMsgSocketMgr &	operator= (const DtTcpMsgSocketMgr &)

Constructor & Destructor Documentation

DtTcpMsgSocketMgr::DtTcpMsgSocketMgr	(	DtBoost::shared_ptr< DtMsgHeaderReader >	hdrReader,
		size_t	recvBufferSize = `20000`,
		int	maxQueuedMsgs = `-1`
	)

Constructor. Will not open a server socket.

virtual DtTcpMsgSocketMgr::~DtTcpMsgSocketMgr ( )

virtual

Destructor.

DtTcpMsgSocketMgr::DtTcpMsgSocketMgr ( const DtTcpMsgSocketMgr & )

private

Member Function Documentation

virtual void DtTcpMsgSocketMgr::addSocket ( DtTcpMsgSocket * sock )

virtual

Add a new socket to be managed that was created and opened outside of this class.

virtual void DtTcpMsgSocketMgr::addSocketAdditionCallback	(	DtTcpSocketAdditionCallback	cb,
		void *	usr
	)

virtual

virtual void DtTcpMsgSocketMgr::addSocketRemovalCallback	(	DtTcpSocketRemovalCallback	cb,
		void *	usr
	)

virtual

DtTcpMsgSocketMap::iterator DtTcpMsgSocketMgr::checkIfReconnecting ( const DtInetTcpSocket * newSock )

virtual void DtTcpMsgSocketMgr::disableBundling ( )

virtual

Disables message bundling.

virtual void DtTcpMsgSocketMgr::disableCompression ( )

virtual

Disables message compression.

virtual void DtTcpMsgSocketMgr::enableBundling ( size_t maxBundleSize )

virtual

Enables message bundling and sets the maximum bundle size.

virtual void DtTcpMsgSocketMgr::enableCompression ( DtU8 compressionLevel )

virtual

Enables message compression and sets the compression level.

DtString DtTcpMsgSocketMgr::getLastError ( ) const

inline

Get a description of the last error.

bool DtTcpMsgSocketMgr::isListening ( ) const

inline

Returns true if the socket is open.

virtual DtU32 DtTcpMsgSocketMgr::maxMsgSize ( ) const

virtual

Gets the maximum message size.

virtual bool DtTcpMsgSocketMgr::openServerSocket	(	DtU16	localPort,
		DtInetDevice *	hostIf = `NULL`,
		DtInetUtils::DtInetAddrFamily	family = `DtInetUtils::DtInetAddrFamily_IPv4`,
		DtU32	flags = `(DtDefaultSockOpts\|DtSockOptNonBlocking)`
	)

virtual

Opens a server socket if not already open.

Takes a port number to listen on, a pointer to the local network interface device the socket will be bound to, an address family indication (IPv4 or IPv6), socket option flags, and a trigger to open the socket immediately. If no host interface is specified the socket will be bound to INADDR_ANY (or IN6ADDR_ANY). Socket will be opened immediately. Returns false if unsuccessful.

DtTcpMsgSocketMgr& DtTcpMsgSocketMgr::operator= ( const DtTcpMsgSocketMgr & )

private

virtual void DtTcpMsgSocketMgr::processConnections ( )

virtual

Check for incoming connection attempts.

Any socket addition callbacks registered by the application will be invoked. The new connections will be automatically added to the list of managed connections if all socket addition callbacks return true.

Reimplemented in DtPeerToPeerTcpSockMgr.

void DtTcpMsgSocketMgr::processNewConnections ( )

virtual void DtTcpMsgSocketMgr::removeAndDelete ( DtTcpMsgSocket * sock )

virtual

Remove the specified socket from the list and delete it.

virtual void DtTcpMsgSocketMgr::removeSocketAdditionCallback	(	DtTcpSocketAdditionCallback	cb,
		void *	usr
	)

virtual

virtual void DtTcpMsgSocketMgr::removeSocketRemovalCallback	(	DtTcpSocketRemovalCallback	cb,
		void *	usr
	)

virtual

virtual DtInetSockState DtTcpMsgSocketMgr::serverSocketState ( ) const

virtual

Returns the state of the server socket.

virtual void DtTcpMsgSocketMgr::setRecvBufferSize ( DtU32 size )

virtual

Sets the socket receive buffer size.

virtual void DtTcpMsgSocketMgr::setSendBufferSize ( DtU32 size )

virtual

Sets the socket send buffer size.

virtual void DtTcpMsgSocketMgr::setTcpNoDelay ( bool enable )

virtual

Changes the setting of the TCP_NODELAY option.

static bool DtTcpMsgSocketMgr::socketAdded	(	DtInetSocket *	sock,
		void *	usr
	)

static

Callback handler for socket addition callbacks from DtInetSocketMgr.

bool DtTcpMsgSocketMgr::socketAdded ( DtInetSocket * sock )

DtTcpMsgSocketMap::iterator DtTcpMsgSocketMgr::socketIter ( DtTcpMsgSocket * sock )

inline

Returns the iterator for the given socket, if the socket is managed by this manager.

If not, the end of the set is returned.

References DtTcpMsgSocket::inetTcpSocket().

static bool DtTcpMsgSocketMgr::socketRemoved	(	DtInetSocket *	sock,
		void *	usr
	)

static

Callback handler for socket removal callbacks from DtInetSocketMgr.

bool DtTcpMsgSocketMgr::socketRemoved ( DtInetSocket * sock )

DtTcpMsgSocketMap & DtTcpMsgSocketMgr::socketSet ( )

inline

Returns the list of sockets managed by this manager.

Member Data Documentation

std::list<DtTcpSocketMgrCbInfo> DtTcpMsgSocketMgr::myAdditionCallbacks

protected

Socket addition callbacks.

MAKRti::DtU8 DtTcpMsgSocketMgr::myCompressionLevel

protected

The maximum size of outgoing message bundles.

DtBoost::shared_ptr<DtMsgHeaderReader> DtTcpMsgSocketMgr::myHeaderReader

protected

The message header reader to be used by all managed sockets.

DtString DtTcpMsgSocketMgr::myLastError

protected

Description of the last error.

size_t DtTcpMsgSocketMgr::myMaxBundleSize

protected

The maximum size of outgoing message bundles.

int DtTcpMsgSocketMgr::myMaxQueuedMessages

protected

The maximum size the send queue for each socket is allowed to reach.

size_t DtTcpMsgSocketMgr::myRecvBufferSize

protected

The size of the sockets' receive buffers.

std::list<DtTcpSocketMgrCbInfo> DtTcpMsgSocketMgr::myRemovalCallbacks

protected

Socket removal callbacks.

std::auto_ptr<DtInetSocketMgr> DtTcpMsgSocketMgr::mySocketMgr

protected

The underlying socket manager.

DtTcpMsgSocketMap DtTcpMsgSocketMgr::mySockets

protected

List of sockets managed by this manager, mapped by the underlying DtInetTcpSocket.

MAKRti::DtU32 DtTcpMsgSocketMgr::mySockRecvBufferSize

protected

The receive buffer size for managed sockets.

MAKRti::DtU32 DtTcpMsgSocketMgr::mySockSendBufferSize

protected

The send buffer size for managed sockets.

bool DtTcpMsgSocketMgr::myTcpNoDelay

protected

The sockets' TCP_NODELAY setting.

The documentation for this class was generated from the following file:

tcpMsgSocketMgr.h
