DtAssistantConnQueryWidget Class Reference

Widget used to request the user to provide new connection parameters when a component cannot establish an RTI connection. More...

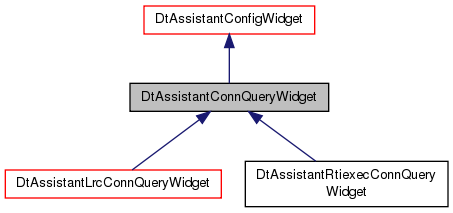

Inheritance diagram for DtAssistantConnQueryWidget:

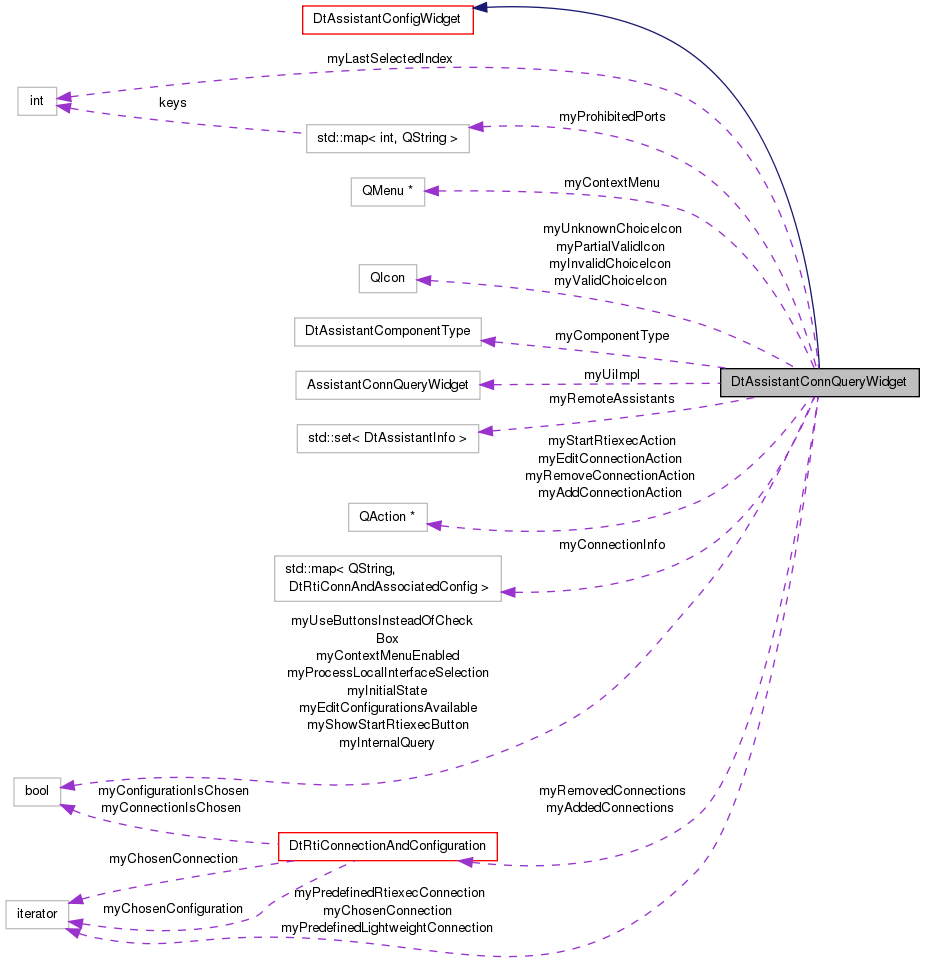

Collaboration diagram for DtAssistantConnQueryWidget:

Classes
struct	DtRtiConnAndAssociatedConfig

Public Slots
virtual void	processAdd ()
	Processes the pressing of the add connection button by the user.
virtual void	processRemove ()
	Processes the pressing of the remove connection button by the user.
virtual void	processEdit ()
	Processes the pressing of the edit connection button by the user.
virtual void	processSelectionChange (QTreeWidgetItem *item=0)
	Processes a selection change.
virtual void	configurationIndexChanged (int index)
	Processes selection change in the configuration combo box.
virtual void	processTcpInterfaceChange (int hostIndex)
	Process a selection change for the local TCP interface.
virtual void	processUdpInterfaceChange (int hostIndex)
	Process a selection change for the local UDP interface.
virtual void	showContextMenu (const QPoint &)
	Shows the context menu at the given location.

Signals
void	editRtiConfigurations ()
	Signal emitted when user chooses to edit configurations.
void	selectionAccepted ()
	Signal emitted when the selection is accepted.
void	acceptEnabled (bool)
	Signal that the accept button should be enabled/disabled.
void	connectionAdded (const DtRtiConnectionInfoDataPair &conn, DtAssistantConnQueryWidget *widget)
	Signal emitted when a new connection is added by a user (but not yet accepted).
Signals inherited from DtAssistantConfigWidget
void	enablePrefAccept ()
	Emitted to indicate that the accept button can be enabled.
void	disablePrefAccept ()
	Emitted to indicate that the accept button should be disabled.

Public Member Functions
	DtAssistantConnQueryWidget (QWidget *parent, Qt::WindowFlags f=0)
	Constructor.
virtual	~DtAssistantConnQueryWidget ()
	Destructor.
virtual void	setComponentType (DtAssistantComponentType type, bool internalQuery)
	Set the component type the dialog is handling.
virtual DtAssistantComponentType	componentType () const
	Get the component type the dialog handled.
virtual bool	internalQuery () const
	Get if this query originated from the Assistant or a component.
virtual void	useButtonsInsteadOfCheckBox (bool useButtons)
	Configure the widget to use radio buttons rather than a check box to set/unset the whether to use the chosen connection in the future.
virtual void	showStartRtiexecButton (bool show)
	Configure the widget to show the start rtiexec button.
virtual void	addKnownAssistant (const DtAssistantInfo &assistant)
	Adds an assistant to the list of known remote assistants.
virtual void	removeKnownAssistant (const DtAssistantInfo &assistant)
	Removes an assistant to the list of known remote assistants.
virtual const DtAssistantInfoSet &	knownAssistants () const
	The assistants known by this assistant.
virtual bool	isKnownAssistant (const DtRtiConnectionInfo &conn)
	Determine if this connection is an rtiexec connection on the same host as one of the known assistants.
virtual const DtAssistantInfo *	getAssistant (const MAKRti::DtInetAddr &ip)
	Get the first known assistant that matches the given IP Returns the matching assistant; otherwise, NULL.
virtual const DtAssistantInfo *	getAssistant (const MAKRti::DtString &hostName)
	Get the first known assistant that matches the given host name Returns the matching assistant; otherwise, NULL.
virtual void	setRidConfigurations (const DtAssistantRidConfigInfoMgr::RidConfigurationList &connConfig, bool preserveSelection)
	Sets the list of RID configurations.
virtual void	setConnections (const DtRtiConnectionAndConfiguration &connConfig, bool preserveSelection)
	Sets the list of connections.
virtual void	addConnections (const DtRtiConnectionAndConfiguration &conns)
	Adds a set of available connections to the list.
virtual void	removeConnections (const DtRtiConnectionAndConfiguration &conns)
	Removes a set of available connections from the list.
virtual void	getResults (DtRtiConnectionInfoDataPair &conn, DtRtiConnectionConfigurationInfo &config, bool &choose)
	Fills in the current chosen connection information settings.
virtual const DtRtiConnectionAndConfiguration &	userAddedConnections ()
	Returns the set of user added connections during this execution of the dialog.
virtual const DtRtiConnectionAndConfiguration &	userRemovedConnections ()
	Returns the set of user removed connections during this execution of the dialog.
virtual void	clearUserAddedAndRemoved ()
	Clears all connections added and removed by the user during this execution of the dialog.
virtual bool	selectConnection (const DtRtiConnectionInfo &conn)
	Sets which connection should be selected.
virtual void	reselectConnection ()
	Unselects and reselects the specified connection to update the state of the current buttons and dialog options.
virtual void	setSelectedConfiguration (const DtRtiConnectionConfigurationInfo *config)
	Populates full compliance checkbox and selected RID configuration per the given configuration.
virtual void	setSelectedRtiSetting (const MAKRti::DtString &name, bool isPreconfigured)
	Selects RTI Setting configuration.
virtual void	getSelectedConnection (DtRtiConnectionInfo &conn) const
	Get the currently selected connection.
virtual void	getSelectedConfiguration (DtRtiConnectionConfigurationInfo &config) const
	Get the currently selected configuration.
virtual void	addProhibitedPort (int port, const QString &reason)
	Add a port which is prohibited, along with a reason.
virtual void	removeProhibitedPort (int port)
	Remove a port which is prohibited.
virtual void	setInitialState (bool check)
	Set the initial state of the dialog when it is shown for the very first time.
virtual bool	isConnectionNameInUse (const QString &name) const
	Returns true if the given connection name is already in use by a known connection.
virtual void	getInterfaceList (const DtAssistantInfo &assistant, bool useIPv4, QStringList &interfaceAdddrList)
	Reloads the list of local network interfaces which can be selected for new connections.
Check Functions - PASS = return true; FAIL = error dialog, return false
virtual bool	checkForPortConflicts (int port1, int port2=0)
	Check if the port is prohibited and display an error if it is.
virtual bool	checkForValidAddr (const QString &addrStr, const MAKRti::DtInetAddr &ifAddr, MAKRti::DtInetAddr &addr)
	Check if the string is a valid address, as well as valid for the specified interface.
virtual bool	checkForConnNameConflict (const QString &name)
	Check if the new connection name is unique.
virtual bool	checkForDuplicateConn (const DtRtiConnectionInfo &conn)
	Check if the given connection is a duplicate of an existing connection.
Public Member Functions inherited from DtAssistantConfigWidget
	DtAssistantConfigWidget (QWidget *parent=0, Qt::WindowFlags f=0)
	Constructor.
virtual	~DtAssistantConfigWidget ()
	Destructor.
virtual QString	reasonForDisabledAccept () const
	If the widget has disabled the accept button, returns the reason why.

Protected Types
enum	DtConnQueryCol { ConnectionNameCol, StatusCol, SortCol }
typedef std::map< QString, DtRtiConnAndAssociatedConfig >	DtNameToConnInfoMap

Protected Member Functions
virtual bool	addConnection (const DtRtiConnectionInfoDataPair &conn, const DtRtiConfigurationInfoDataPair &config, DtNameToConnInfoMap::iterator &connIter)=0
	Adds an available connection to the list.
virtual void	removeConnection (const DtRtiConnectionInfoDataPair &conn)=0
	Removes an available connection from the list.
virtual bool	replaceConnection (const DtRtiConnAndAssociatedConfig &oldConn, DtRtiConnectionInfoDataPair &newConn, DtNameToConnInfoMap::iterator &connIter)
	Replace a connection on the list and pass back the iterator of the new item.
virtual void	refreshConnections (const DtAssistantInfo &assistant, bool isConnected)
	Refresh the list of connections with the connection status of the given assistant.
virtual void	clearAllConnections ()=0
	Clears the entire connection list.
virtual void	storeUserAddedConnection (const DtRtiConnectionInfoDataPair &conn)
	Store information on a connection that user requested to add.
virtual void	storeUserRemovedConnection (const DtRtiConnectionInfoDataPair &conn)
	Store information on a connection that user requested to remove.
virtual QTreeWidgetItem *	findConnInTree (const DtRtiConnectionInfo &conn, DtNameToConnInfoMap::iterator &connIter)=0
	Finds the connection item in the tree.
virtual void	setConnItemToolTip (QTreeWidgetItem *item, const DtRtiConnectionInfoDataPair &conn=std::make_pair(DtRtiConnectionInfo::invalidConn(), DtRtiAssociatedConnectionData()), const DtRtiConfigurationInfoDataPair &config=DtRtiConfigurationInfoDataPair())
	Set the tool tip for the given item.
virtual void	getConnStatusText (const QTreeWidgetItem *item, const DtRtiConnectionInfoDataPair &conn, const DtRtiConfigurationInfoDataPair &, QString &text)=0
	Gets the connection status text to be used in the tool tip for the given connection.
virtual void	evaluateConnections ()=0
	Evaluates connections for conflicts or invalid configuration.
virtual bool	promptUserForNewConnInfo (DtRtiConnectionInfoDataPair &conn)=0
	Prompts the user for new connection info.
virtual bool	promptUserToEditConnInfo (DtRtiConnectionInfoDataPair &conn)=0
	Prompts the user to edit connection info.
virtual void	setAcceptEnabledBasedOnConn (const DtRtiConnectionInfoDataPair *conn)=0
	Enables or disables the accept button based on the state of the given currently selected connection.
virtual void	updateDisplayedConnection (const QString &name, const DtRtiConnectionInfoDataPair &updatedConn, QTreeWidgetItem *connItem)=0
	Depending on the type of our current query connection, we update connItem based on updatedConn.
virtual void	setFullyCompliantStateBasedOnConn (const DtRtiConnAndAssociatedConfig *connConfig)
	Enables or disables and sets the fully compliant check box based on the state of the given currently selected connection and if active, its configuration .
virtual void	setRemoveEnabledBasedOnConn (const DtRtiConnectionInfoDataPair *conn)
	Enables or disables the remove button based on the state of the given currently selected connection.
virtual void	setEditEnabledBasedOnConn (const DtRtiConnectionInfoDataPair *conn)
	Enables or disables the edit button based on the state of the given currently selected connection.
virtual void	updateDialogBasedOnConn (const DtRtiConnectionInfoDataPair *conn, const DtRtiConfigurationInfoDataPair *config, bool isDisabled)
	Updates the dialog based on the state of the given currently selected connection and configuration.
virtual void	disableItem (QTreeWidgetItem *item, bool disable)
	Marks the item as disabled.
virtual bool	isItemDisabled (const QTreeWidgetItem *item) const
	Returns true if the item is marked as disabled.
virtual QString	reserveNameForConnection (const DtRtiConnectionInfoDataPair &conn)
	Reserves the name for the given connection.
virtual void	unreserveNameForConnection (const DtRtiConnectionInfoDataPair &conn)
	Unreserves the given connection name.
virtual void	setAcceptEnabled (bool enabled, const QString &reasonForDisable)
	Sets whether or not accept is enabled.
virtual bool	isAddressNotation (const QString &addrString) const
	Checks if the given string contains an address notation.
virtual void	setLocalInterfaces (const DtRtiConnectionInfo &connInfo)
	Initialize local interfaces from connection info.

Protected Attributes
Ui::AssistantConnQueryWidget	myUiImpl
DtAssistantComponentType	myComponentType
	The type of the current querying component.
bool	myInternalQuery
	Whether the query originated internally or from a component.
DtNameToConnInfoMap	myConnectionInfo
	The map of connection entries to detailed connection info.
DtAssistantInfoSet	myRemoteAssistants
	The set of known remote assistants.
DtRtiConnectionAndConfiguration	myAddedConnections
	Set of added connections.
DtRtiConnectionAndConfiguration	myRemovedConnections
	Set of added connections.
DtNameToConnInfoMap::iterator	myPredefinedLightweightConnection
	The predefined lightweight connection.
DtNameToConnInfoMap::iterator	myPredefinedRtiexecConnection
	The predefined rtiexec connection.
DtNameToConnInfoMap::iterator	myChosenConnection
	The connection chosen to be used without prompting.
std::map< int, QString >	myProhibitedPorts
	List of prohibited ports and reasons why.
QMenu *	myContextMenu
	Context Menu.
bool	myContextMenuEnabled
	Controls whether the context menu should be displayed on right clicks.
bool	myShowStartRtiexecButton
	Whether the start rtiexec button is displayed.
bool	myUseButtonsInsteadOfCheckBox
	Whether the radio buttons are used instead of the check box to set the selected connection to be used automatically in the future.
bool	myInitialState
	The dialog is being displayed for the first time ever and should be in its default initial state.
bool	myProcessLocalInterfaceSelection
	Indicates that dialog is being initialized and selections can be ignored.
int	myLastSelectedIndex
	Keeps track of the last selected configuration for restoration when choosing edit.
bool	myEditConfigurationsAvailable
	Indicates if "Edit Configurations..." is the final entry in the RTI Settings combo box.
Context menu actions
QAction *	myAddConnectionAction
QAction *	myRemoveConnectionAction
QAction *	myEditConnectionAction
QAction *	myStartRtiexecAction
Icons
QIcon	myValidChoiceIcon
QIcon	myUnknownChoiceIcon
QIcon	myInvalidChoiceIcon
QIcon	myPartialValidIcon

Private Member Functions
	DtAssistantConnQueryWidget (const DtAssistantConnQueryWidget &)
	Copy constructor not implemented.
DtAssistantConnQueryWidget &	operator= (const DtAssistantConnQueryWidget &)
	Assignment operator not implemented.

Detailed Description

Widget used to request the user to provide new connection parameters when a component cannot establish an RTI connection.

Member Typedef Documentation

typedef std::map< QString, DtRtiConnAndAssociatedConfig > DtAssistantConnQueryWidget::DtNameToConnInfoMap

protected

Member Enumeration Documentation

enum DtAssistantConnQueryWidget::DtConnQueryCol

protected

Enumerator:

ConnectionNameCol
StatusCol
SortCol

Constructor & Destructor Documentation

DtAssistantConnQueryWidget::DtAssistantConnQueryWidget	(	QWidget *	parent,
		Qt::WindowFlags	f = 0
	)

Constructor.

virtual DtAssistantConnQueryWidget::~DtAssistantConnQueryWidget ( )

virtual

Destructor.

DtAssistantConnQueryWidget::DtAssistantConnQueryWidget ( const DtAssistantConnQueryWidget &  )

private

Copy constructor not implemented.

Member Function Documentation

void DtAssistantConnQueryWidget::acceptEnabled ( bool  )

signal

Signal that the accept button should be enabled/disabled.

virtual bool DtAssistantConnQueryWidget::addConnection ( const DtRtiConnectionInfoDataPair &  conn, const DtRtiConfigurationInfoDataPair &  config, DtNameToConnInfoMap::iterator &  connIter  )

protectedpure virtual

Adds an available connection to the list.

Returns true if it was successfully added and sets the iterator to location in the map of the new connection.

Implemented in DtAssistantLrcConnQueryWidget, and DtAssistantRtiexecConnQueryWidget.

virtual void DtAssistantConnQueryWidget::addConnections ( const DtRtiConnectionAndConfiguration &  conns )

virtual

Adds a set of available connections to the list.

virtual void DtAssistantConnQueryWidget::addKnownAssistant ( const DtAssistantInfo &  assistant )

virtual

Adds an assistant to the list of known remote assistants.

Reimplemented in DtAssistantLrcConnQueryWidget, and DtAssistantRtiexecConnQueryWidget.

virtual void DtAssistantConnQueryWidget::addProhibitedPort ( int  port, const QString &  reason  )

virtual

Add a port which is prohibited, along with a reason.

virtual bool DtAssistantConnQueryWidget::checkForConnNameConflict ( const QString &  name )

virtual

Check if the new connection name is unique.

virtual bool DtAssistantConnQueryWidget::checkForDuplicateConn ( const DtRtiConnectionInfo &  conn )

virtual

Check if the given connection is a duplicate of an existing connection.

virtual bool DtAssistantConnQueryWidget::checkForPortConflicts ( int  port1, int  port2 = 0  )

virtual

Check if the port is prohibited and display an error if it is.

Checks one or two ports, and will make sure the two do not conflict with each other.

virtual bool DtAssistantConnQueryWidget::checkForValidAddr ( const QString &  addrStr, const MAKRti::DtInetAddr &  ifAddr, MAKRti::DtInetAddr &  addr  )

virtual

Check if the string is a valid address, as well as valid for the specified interface.

Return the constructed DtInetAddr.

virtual void DtAssistantConnQueryWidget::clearAllConnections ( )

protectedpure virtual

Clears the entire connection list.

Implemented in DtAssistantLrcConnQueryWidget, DtAssistantRtiexecConnQueryWidget, and DtAssistantConnConfigWidget.

virtual void DtAssistantConnQueryWidget::clearUserAddedAndRemoved ( )

virtual

Clears all connections added and removed by the user during this execution of the dialog.

virtual DtAssistantComponentType DtAssistantConnQueryWidget::componentType ( ) const

virtual

Get the component type the dialog handled.

virtual void DtAssistantConnQueryWidget::configurationIndexChanged ( int  index )

virtualslot

Processes selection change in the configuration combo box.

void DtAssistantConnQueryWidget::connectionAdded ( const DtRtiConnectionInfoDataPair &  conn, DtAssistantConnQueryWidget *  widget  )

signal

Signal emitted when a new connection is added by a user (but not yet accepted).

virtual void DtAssistantConnQueryWidget::disableItem ( QTreeWidgetItem *  item, bool  disable  )

protectedvirtual

Marks the item as disabled.

void DtAssistantConnQueryWidget::editRtiConfigurations ( )

signal

Signal emitted when user chooses to edit configurations.

virtual void DtAssistantConnQueryWidget::evaluateConnections ( )

protectedpure virtual

Evaluates connections for conflicts or invalid configuration.

Implemented in DtAssistantLrcConnQueryWidget, and DtAssistantRtiexecConnQueryWidget.

virtual QTreeWidgetItem* DtAssistantConnQueryWidget::findConnInTree ( const DtRtiConnectionInfo &  conn, DtNameToConnInfoMap::iterator &  connIter  )

protectedpure virtual

Finds the connection item in the tree.

Returns a pointer to the tree item as well as an iterator to its location in the map.

Implemented in DtAssistantLrcConnQueryWidget, and DtAssistantRtiexecConnQueryWidget.

virtual const DtAssistantInfo* DtAssistantConnQueryWidget::getAssistant ( const MAKRti::DtInetAddr &  ip )

virtual

Get the first known assistant that matches the given IP Returns the matching assistant; otherwise, NULL.

virtual const DtAssistantInfo* DtAssistantConnQueryWidget::getAssistant ( const MAKRti::DtString &  hostName )

virtual

Get the first known assistant that matches the given host name Returns the matching assistant; otherwise, NULL.

virtual void DtAssistantConnQueryWidget::getConnStatusText ( const QTreeWidgetItem *  item, const DtRtiConnectionInfoDataPair &  conn, const DtRtiConfigurationInfoDataPair &  , QString &  text  )

protectedpure virtual

Gets the connection status text to be used in the tool tip for the given connection.

Implemented in DtAssistantLrcConnQueryWidget, and DtAssistantRtiexecConnQueryWidget.

virtual void DtAssistantConnQueryWidget::getInterfaceList ( const DtAssistantInfo &  assistant, bool  useIPv4, QStringList &  interfaceAdddrList  )

virtual

Reloads the list of local network interfaces which can be selected for new connections.

virtual void DtAssistantConnQueryWidget::getResults ( DtRtiConnectionInfoDataPair &  conn, DtRtiConnectionConfigurationInfo &  config, bool &  choose  )

virtual

Fills in the current chosen connection information settings.

The choose parameter will be set to true if the user selected to set this as the chosen connection for the future in order to avoid further prompts.

virtual void DtAssistantConnQueryWidget::getSelectedConfiguration ( DtRtiConnectionConfigurationInfo &  config ) const

virtual

Get the currently selected configuration.

virtual void DtAssistantConnQueryWidget::getSelectedConnection ( DtRtiConnectionInfo &  conn ) const

virtual

Get the currently selected connection.

virtual bool DtAssistantConnQueryWidget::internalQuery ( ) const

virtual

Get if this query originated from the Assistant or a component.

virtual bool DtAssistantConnQueryWidget::isAddressNotation ( const QString &  addrString ) const

protectedvirtual

Checks if the given string contains an address notation.

e.g. "192.168.3.226" or "fe80::a8f5:2359:6c86:3890"

virtual bool DtAssistantConnQueryWidget::isConnectionNameInUse ( const QString &  name ) const

virtual

Returns true if the given connection name is already in use by a known connection.

virtual bool DtAssistantConnQueryWidget::isItemDisabled ( const QTreeWidgetItem *  item ) const

protectedvirtual

Returns true if the item is marked as disabled.

virtual bool DtAssistantConnQueryWidget::isKnownAssistant ( const DtRtiConnectionInfo &  conn )

virtual

Determine if this connection is an rtiexec connection on the same host as one of the known assistants.

virtual const DtAssistantInfoSet& DtAssistantConnQueryWidget::knownAssistants ( ) const

virtual

The assistants known by this assistant.

DtAssistantConnQueryWidget& DtAssistantConnQueryWidget::operator= ( const DtAssistantConnQueryWidget &  )

private

Assignment operator not implemented.

virtual void DtAssistantConnQueryWidget::processAdd ( )

virtualslot

Processes the pressing of the add connection button by the user.

virtual void DtAssistantConnQueryWidget::processEdit ( )

virtualslot

Processes the pressing of the edit connection button by the user.

virtual void DtAssistantConnQueryWidget::processRemove ( )

virtualslot

Processes the pressing of the remove connection button by the user.

virtual void DtAssistantConnQueryWidget::processSelectionChange ( QTreeWidgetItem *  item = 0 )

virtualslot

Processes a selection change.

If no item is specified the current selected item will attempt to be found.

virtual void DtAssistantConnQueryWidget::processTcpInterfaceChange ( int  hostIndex )

virtualslot

Process a selection change for the local TCP interface.

virtual void DtAssistantConnQueryWidget::processUdpInterfaceChange ( int  hostIndex )

virtualslot

Process a selection change for the local UDP interface.

virtual bool DtAssistantConnQueryWidget::promptUserForNewConnInfo ( DtRtiConnectionInfoDataPair &  conn )

protectedpure virtual

Prompts the user for new connection info.

Implemented in DtAssistantLrcConnQueryWidget, and DtAssistantRtiexecConnQueryWidget.

virtual bool DtAssistantConnQueryWidget::promptUserToEditConnInfo ( DtRtiConnectionInfoDataPair &  conn )

protectedpure virtual

Prompts the user to edit connection info.

Implemented in DtAssistantLrcConnQueryWidget, and DtAssistantRtiexecConnQueryWidget.

virtual void DtAssistantConnQueryWidget::refreshConnections ( const DtAssistantInfo &  assistant, bool  isConnected  )

protectedvirtual

Refresh the list of connections with the connection status of the given assistant.

virtual void DtAssistantConnQueryWidget::removeConnection ( const DtRtiConnectionInfoDataPair &  conn )

protectedpure virtual

Removes an available connection from the list.

Implemented in DtAssistantLrcConnQueryWidget, and DtAssistantRtiexecConnQueryWidget.

virtual void DtAssistantConnQueryWidget::removeConnections ( const DtRtiConnectionAndConfiguration &  conns )

virtual

Removes a set of available connections from the list.

virtual void DtAssistantConnQueryWidget::removeKnownAssistant ( const DtAssistantInfo &  assistant )

virtual

Removes an assistant to the list of known remote assistants.

Reimplemented in DtAssistantLrcConnQueryWidget, and DtAssistantRtiexecConnQueryWidget.

virtual void DtAssistantConnQueryWidget::removeProhibitedPort ( int  port )

virtual

Remove a port which is prohibited.

virtual bool DtAssistantConnQueryWidget::replaceConnection ( const DtRtiConnAndAssociatedConfig &  oldConn, DtRtiConnectionInfoDataPair &  newConn, DtNameToConnInfoMap::iterator &  connIter  )

protectedvirtual

Replace a connection on the list and pass back the iterator of the new item.

Returns true if replaced successfully.

virtual void DtAssistantConnQueryWidget::reselectConnection ( )

virtual

Unselects and reselects the specified connection to update the state of the current buttons and dialog options.

virtual QString DtAssistantConnQueryWidget::reserveNameForConnection ( const DtRtiConnectionInfoDataPair &  conn )

protectedvirtual

Reserves the name for the given connection.

Ensures that all connections are listed with unique names in the dialog. Returns the name that should be used for this connection.

virtual bool DtAssistantConnQueryWidget::selectConnection ( const DtRtiConnectionInfo &  conn )

virtual

Sets which connection should be selected.

Returns true if connection was found and selected.

void DtAssistantConnQueryWidget::selectionAccepted ( )

signal

Signal emitted when the selection is accepted.

virtual void DtAssistantConnQueryWidget::setAcceptEnabled ( bool  enabled, const QString &  reasonForDisable  )

protectedvirtual

Sets whether or not accept is enabled.

Reimplemented from DtAssistantConfigWidget.

Reimplemented in DtAssistantConnConfigWidget.

virtual void DtAssistantConnQueryWidget::setAcceptEnabledBasedOnConn ( const DtRtiConnectionInfoDataPair *  conn )

protectedpure virtual

Enables or disables the accept button based on the state of the given currently selected connection.

Implemented in DtAssistantLrcConnQueryWidget, and DtAssistantRtiexecConnQueryWidget.

virtual void DtAssistantConnQueryWidget::setComponentType ( DtAssistantComponentType  type, bool  internalQuery  )

virtual

Set the component type the dialog is handling.

virtual void DtAssistantConnQueryWidget::setConnections ( const DtRtiConnectionAndConfiguration &  connConfig, bool  preserveSelection  )

virtual

Sets the list of connections.

Clears the current list first. Will preserve the current selection if preserveSelection is true and the connection still exists after the update.

virtual void DtAssistantConnQueryWidget::setConnItemToolTip ( QTreeWidgetItem *  item, const DtRtiConnectionInfoDataPair &  conn = std::make_pair(DtRtiConnectionInfo::invalidConn(), DtRtiAssociatedConnectionData()), const DtRtiConfigurationInfoDataPair &  config = DtRtiConfigurationInfoDataPair()  )

protectedvirtual

Set the tool tip for the given item.

If the connection info is not provided it will be looked up.

virtual void DtAssistantConnQueryWidget::setEditEnabledBasedOnConn ( const DtRtiConnectionInfoDataPair *  conn )

protectedvirtual

Enables or disables the edit button based on the state of the given currently selected connection.

virtual void DtAssistantConnQueryWidget::setFullyCompliantStateBasedOnConn ( const DtRtiConnAndAssociatedConfig *  connConfig )

protectedvirtual

Enables or disables and sets the fully compliant check box based on the state of the given currently selected connection and if active, its configuration .

virtual void DtAssistantConnQueryWidget::setInitialState ( bool  check )

virtual

Set the initial state of the dialog when it is shown for the very first time.

virtual void DtAssistantConnQueryWidget::setLocalInterfaces ( const DtRtiConnectionInfo &  connInfo )

protectedvirtual

Initialize local interfaces from connection info.

virtual void DtAssistantConnQueryWidget::setRemoveEnabledBasedOnConn ( const DtRtiConnectionInfoDataPair *  conn )

protectedvirtual

Enables or disables the remove button based on the state of the given currently selected connection.

virtual void DtAssistantConnQueryWidget::setRidConfigurations ( const DtAssistantRidConfigInfoMgr::RidConfigurationList &  connConfig, bool  preserveSelection  )

virtual

Sets the list of RID configurations.

Clears existing configurations and preserves the current selection if preserveSelection is true and the configuration still exists after the update.

Reimplemented in DtAssistantConnConfigWidget.

virtual void DtAssistantConnQueryWidget::setSelectedConfiguration ( const DtRtiConnectionConfigurationInfo *  config )

virtual

Populates full compliance checkbox and selected RID configuration per the given configuration.

virtual void DtAssistantConnQueryWidget::setSelectedRtiSetting ( const MAKRti::DtString &  name, bool  isPreconfigured  )

virtual

Selects RTI Setting configuration.

virtual void DtAssistantConnQueryWidget::showContextMenu ( const QPoint &  )

virtualslot

Shows the context menu at the given location.

virtual void DtAssistantConnQueryWidget::showStartRtiexecButton ( bool  show )

virtual

Configure the widget to show the start rtiexec button.

virtual void DtAssistantConnQueryWidget::storeUserAddedConnection ( const DtRtiConnectionInfoDataPair &  conn )

protectedvirtual

Store information on a connection that user requested to add.

virtual void DtAssistantConnQueryWidget::storeUserRemovedConnection ( const DtRtiConnectionInfoDataPair &  conn )

protectedvirtual

Store information on a connection that user requested to remove.

virtual void DtAssistantConnQueryWidget::unreserveNameForConnection ( const DtRtiConnectionInfoDataPair &  conn )

protectedvirtual

Unreserves the given connection name.

virtual void DtAssistantConnQueryWidget::updateDialogBasedOnConn ( const DtRtiConnectionInfoDataPair *  conn, const DtRtiConfigurationInfoDataPair *  config, bool  isDisabled  )

inlineprotectedvirtual

Updates the dialog based on the state of the given currently selected connection and configuration.

Reimplemented in DtAssistantLrcConnQueryWidget.

virtual void DtAssistantConnQueryWidget::updateDisplayedConnection ( const QString &  name, const DtRtiConnectionInfoDataPair &  updatedConn, QTreeWidgetItem *  connItem  )

protectedpure virtual

Depending on the type of our current query connection, we update connItem based on updatedConn.

Implemented in DtAssistantLrcConnQueryWidget, DtAssistantRtiexecConnQueryWidget, and DtAssistantConnConfigWidget.

virtual void DtAssistantConnQueryWidget::useButtonsInsteadOfCheckBox ( bool  useButtons )

virtual

Configure the widget to use radio buttons rather than a check box to set/unset the whether to use the chosen connection in the future.

virtual const DtRtiConnectionAndConfiguration& DtAssistantConnQueryWidget::userAddedConnections ( )

virtual

Returns the set of user added connections during this execution of the dialog.

virtual const DtRtiConnectionAndConfiguration& DtAssistantConnQueryWidget::userRemovedConnections ( )

virtual

Returns the set of user removed connections during this execution of the dialog.

Member Data Documentation

QAction* DtAssistantConnQueryWidget::myAddConnectionAction

protected

DtRtiConnectionAndConfiguration DtAssistantConnQueryWidget::myAddedConnections

protected

Set of added connections.

DtNameToConnInfoMap::iterator DtAssistantConnQueryWidget::myChosenConnection

protected

The connection chosen to be used without prompting.

DtAssistantComponentType DtAssistantConnQueryWidget::myComponentType

protected

The type of the current querying component.

DtNameToConnInfoMap DtAssistantConnQueryWidget::myConnectionInfo

protected

The map of connection entries to detailed connection info.

QMenu* DtAssistantConnQueryWidget::myContextMenu

protected

Context Menu.

bool DtAssistantConnQueryWidget::myContextMenuEnabled

protected

Controls whether the context menu should be displayed on right clicks.

bool DtAssistantConnQueryWidget::myEditConfigurationsAvailable

protected

Indicates if "Edit Configurations..." is the final entry in the RTI Settings combo box.

QAction* DtAssistantConnQueryWidget::myEditConnectionAction

protected

bool DtAssistantConnQueryWidget::myInitialState

protected

The dialog is being displayed for the first time ever and should be in its default initial state.

bool DtAssistantConnQueryWidget::myInternalQuery

protected

Whether the query originated internally or from a component.

QIcon DtAssistantConnQueryWidget::myInvalidChoiceIcon

protected

int DtAssistantConnQueryWidget::myLastSelectedIndex

protected

Keeps track of the last selected configuration for restoration when choosing edit.

QIcon DtAssistantConnQueryWidget::myPartialValidIcon

protected

DtNameToConnInfoMap::iterator DtAssistantConnQueryWidget::myPredefinedLightweightConnection

protected

The predefined lightweight connection.

DtNameToConnInfoMap::iterator DtAssistantConnQueryWidget::myPredefinedRtiexecConnection

protected

The predefined rtiexec connection.

bool DtAssistantConnQueryWidget::myProcessLocalInterfaceSelection

protected

Indicates that dialog is being initialized and selections can be ignored.

std::map<int,QString> DtAssistantConnQueryWidget::myProhibitedPorts

protected

List of prohibited ports and reasons why.

DtAssistantInfoSet DtAssistantConnQueryWidget::myRemoteAssistants

protected

The set of known remote assistants.

QAction* DtAssistantConnQueryWidget::myRemoveConnectionAction

protected

DtRtiConnectionAndConfiguration DtAssistantConnQueryWidget::myRemovedConnections

protected

Set of added connections.

bool DtAssistantConnQueryWidget::myShowStartRtiexecButton

protected

Whether the start rtiexec button is displayed.

QAction* DtAssistantConnQueryWidget::myStartRtiexecAction

protected

Ui::AssistantConnQueryWidget DtAssistantConnQueryWidget::myUiImpl

protected

QIcon DtAssistantConnQueryWidget::myUnknownChoiceIcon

protected

bool DtAssistantConnQueryWidget::myUseButtonsInsteadOfCheckBox

protected

Whether the radio buttons are used instead of the check box to set the selected connection to be used automatically in the future.

QIcon DtAssistantConnQueryWidget::myValidChoiceIcon

protected

---

The documentation for this class was generated from the following file:

• connQueryWidget.h
