DtInteractionClassInfo Class Reference

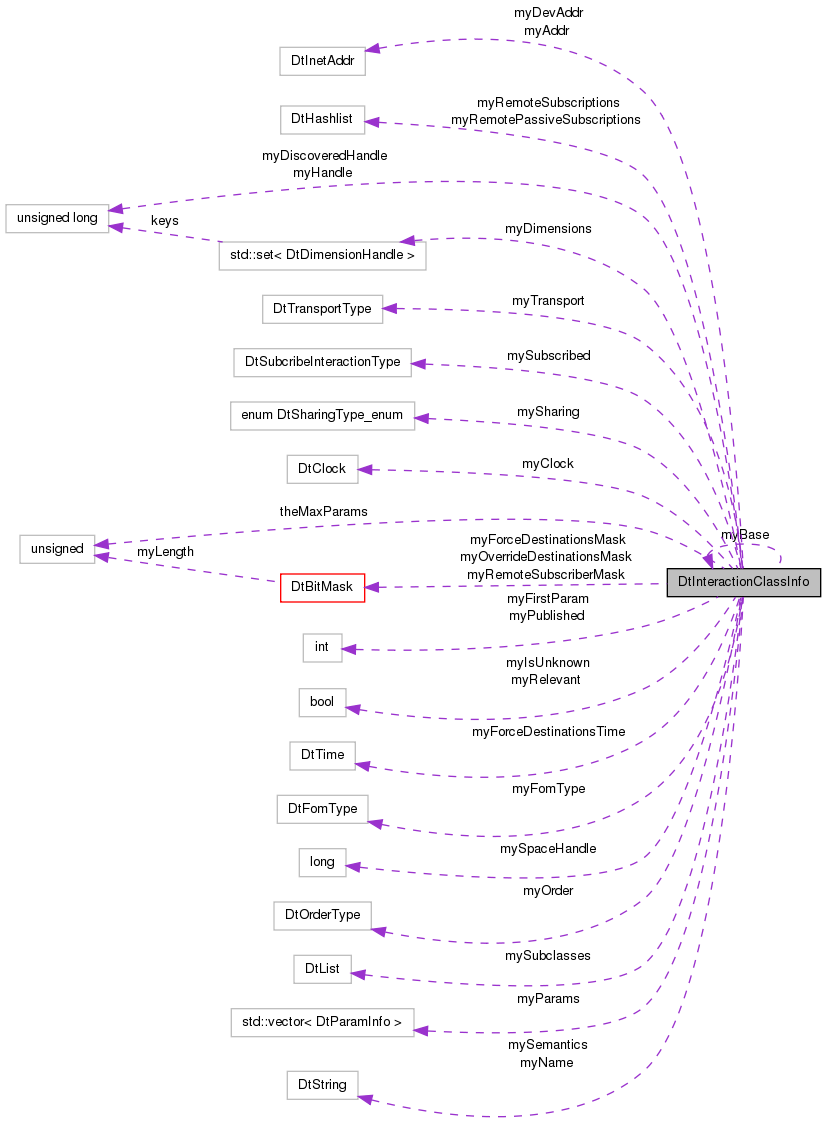

Collaboration diagram for DtInteractionClassInfo:

Public Member Functions
	DtInteractionClassInfo (const char *name, DtInteractionClassInfo *base, DtInteractionClassHandle handle, DtSharingType sharing, MAKRti::DtString semantics, MAKRti::DtTransportType transport, MAKRti::DtOrderType order)
	Constructors.
	DtInteractionClassInfo (const DtInteractionClassInfo &orig)
	Copy constructor (not implemented)
DtInteractionClassInfo &	operator= (const DtInteractionClassInfo &orig)
	Assignment operator (not implemented)
virtual	~DtInteractionClassInfo ()
	Destructor.
virtual void	setFomType (MAKRti::DtFomType type)
virtual MAKRti::DtFomType	fomType () const
virtual void	addParam (const char *paramName, const char *semantics, bool addSorted)
	Adds an parameter to the class (called during FED processing).
virtual void	addSubclass (DtInteractionClassInfo *sub)
	Add a subclass (called during FED processing).
virtual DtDimensionHandleSet const &	dimensions () const
	Set/Get dimensions.
virtual void	setDimensions (DtDimensionHandleSet const &dimList)
virtual void	addDimension (DtDimensionHandle dimHandle)
	Add/Remove a dimesion handle.
virtual void	removeDimension (DtDimensionHandle dimHandle)
virtual const char *	name () const
	Return class name, as in FED.
virtual bool	isName (const char *name) const
	Return boolean: name matches? Compare depends on FOM type: insensitive for 1.3 and sensitive for 1516 Root name is prepended to name if necessary.
virtual bool	isFullName (const char *name) const
	Root name is required.
virtual DtParameterHandle	paramHandle (const char *theName)
	Get parameter handle from name.
virtual char *	paramName (DtParameterHandle theHandle)
	Get parameter name from handle.
virtual DtInteractionClassHandle	handle () const
	Get/set class handle.
virtual void	setHandle (DtInteractionClassHandle handleValue)
virtual DtInteractionClassHandle	discoveredHandle () const
	Get/set discovered class handle This value is always 0 if isUnknown() is false.
virtual void	setDiscoveredHandle (DtInteractionClassHandle handleValue)
virtual DtInteractionClassInfo *	baseClass () const
	Return pointer to base class descriptor.
virtual void	setBaseClass (DtInteractionClassInfo *base)
	Set base class pointer (User should not need to call this);.
virtual MAKRti::DtList *	subclasses ()
	Return list of subclasses.
virtual int	isOfClass (DtInteractionClassHandle handle) const
	Returns 1 if this class is handle or is a subclass of handle.
virtual void	publish (DtInteractionMgr *interMgr)
	Publish and unpublish.
virtual void	unpublish ()
virtual int	published () const
	Return 1 if we are publishing this class, 0 otherwise.
virtual void	subscribe (bool active)
	Subscribe and unsubscribe.
virtual void	unsubscribe ()
virtual int	subscribed () const
	Return 1 if we are subscribed to this class, 0 otherwise.
virtual void	remoteSubscribe (DtFederateHandle fedHandle, DtInteractionMgr *interMgr)
	Call when another federate subscribes to this class actively.
virtual void	remotePassiveSubscribe (DtFederateHandle fedHandle, DtInteractionMgr *interMgr)
	Call when another federate subscribes to this class passively.
virtual void	remoteUnsubscribe (DtFederateHandle fedHandle, DtInteractionMgr *interMgr, bool forSmartForwarding)
	Call when another federate unsubscribes to this class.
virtual bool	remoteFederateIsSubscribed (DtFederateHandle fedHandle) const
	Returns true if the remote federate is subscribed to this class.
virtual int	numRemoteFederatesSubscribed () const
	Returns number of remote federates subscribed to this class.
virtual const MAKRti::DtList &	subscribedFederates () const
	Returns a list of federates who are subscribed to this interaction.
virtual bool	relevant () const
	Returns true if the class is relevant, false otherwise.
virtual DtParamInfo *	paramByName (const char *theName)
	Get parameter descriptor by name or handle.
virtual DtParamInfo *	paramByHandle (const DtParameterHandle theHandle)
virtual MAKRti::DtTransportType	transport () const
	Set/Get transport type representing transport mechanism.
virtual void	setTransport (MAKRti::DtTransportType theTransport)
DtSharingType	sharing () const
void	setSharing (const DtSharingType sharing)
const char *	semantics () const
void	setSemantics (const MAKRti::DtString &semantics)
virtual MAKRti::DtOrderType	order () const
	Set/Get order type.
virtual void	setOrder (MAKRti::DtOrderType theOrder)
virtual void	setSpaceHandle (DtSpaceHandle spaceHandleValue)
	Return the space handle.
virtual DtSpaceHandle	spaceHandle () const
virtual MAKRti::DtInetAddr	destinationAddress () const
	set the destination to send to when using DM Filtering
virtual MAKRti::DtInetAddr	destinationDevice () const
virtual void	setDestination (MAKRti::DtInetAddr addr, MAKRti::DtInetAddr devAddr, bool inclusive, MAKRti::DtInetAddr oldAddr, MAKRti::DtInetAddr oldDevAddr)
virtual int	subscribedWithRegion () const
	Return 1 if we are subscribed to this class with region, 0 otherwise.
virtual int	numParameters () const
	Returns the number of parameters.
virtual DtParamVector const &	params () const
	Returns the list of parameters.
virtual DtBitMask	getDestinations (bool includeBaseClass=true) const
	Get the list of remote subscribers to the class = update destinations The base class destination masks are added unless specified otherwise.
virtual void	forceDestinations (DtBitMask const &mask, MAKRti::DtTime delay)
	Temporarily force destinations with this mask for given delay A negative time delay will force the destinations indefinitely.
virtual void	overrideDestinations (DtBitMask const &mask)
	Permanently override destinations with given mask.
virtual void	clearDestinationOverride ()
	Remove destination override.
virtual bool	save (DtRtiSaveFile &file)
	save and restore
virtual bool	restore (DtInteractionClassPacket *packet)
virtual void	print () const
	Print the contents.
virtual bool	sameAncestry (const DtInteractionClassInfo *) const
	Test for equality.
bool	operator== (const DtInteractionClassInfo &other) const
bool	operator!= (const DtInteractionClassInfo &other) const
bool	isScaffolding () const
	Determines whether the class is a scaffolding class.
bool	isUnknown () const
	Determines whether this class is an unknown class, merely present to indicate that it is in other FOM modules not in use by this federate.
void	setIsUnknown (bool unknown)

Protected Member Functions
virtual void	addRemoteSubscription (DtFederateHandle fedHandle)
	Add/delete remote subscription to this class by indicated federate.
virtual void	addRemotePassiveSubscription (DtFederateHandle fedHandle)
virtual void	deleteRemoteSubscription (DtFederateHandle fedHandle, bool isForSmartForwarding=false)
virtual void	updateRelevance (DtInteractionMgr *interMgr)
	Update the relevance field of this class and all subclasses, based on current subscriptions.
void	addParamSorted (const char *paramName, MAKRti::DtString semantics)
	Insert Parameters in sorted or unsorted (deprecated) order.
void	addParamUnsorted (const char *paramName, MAKRti::DtString semantics)

Static Protected Member Functions
static bool	sameInteractionClass (const DtInteractionClassInfo &, const DtInteractionClassInfo &)
static bool	sameParamsUnsorted (const std::vector< DtParamInfo > &, const std::vector< DtParamInfo > &)
static bool	sameParamsSorted (const std::vector< DtParamInfo > &, const std::vector< DtParamInfo > &)

Protected Attributes
MAKRti::DtString	myName
DtInteractionClassHandle	myHandle
DtInteractionClassHandle	myDiscoveredHandle
DtSpaceHandle	mySpaceHandle
DtDimensionHandleSet	myDimensions
MAKRti::DtFomType	myFomType
DtSubcribeInteractionType	mySubscribed
int	myPublished
DtInteractionClassInfo *	myBase
MAKRti::DtList	mySubclasses
MAKRti::DtTransportType	myTransport
MAKRti::DtString	mySemantics
DtSharingType	mySharing
MAKRti::DtOrderType	myOrder
DtParamVector	myParams
int	myFirstParam
MAKRti::DtHashlist	myRemoteSubscriptions
MAKRti::DtHashlist	myRemotePassiveSubscriptions
DtBitMask	myRemoteSubscriberMask
DtBitMask *	myForceDestinationsMask
	Create this bit mask to temporarily force destinations after publish.
DtBitMask *	myOverrideDestinationsMask
	Create this bit mask to permanently override destinations.
MAKRti::DtTime	myForceDestinationsTime
bool	myRelevant
MAKRti::DtInetAddr	myAddr
MAKRti::DtInetAddr	myDevAddr
MAKRti::DtClock	myClock
bool	myIsUnknown
	Indicates whether this class is an unknown class, merely present to indicate that it is in other FOM modules not in use by this federate.

Static Private Attributes
static const unsigned int	theMaxParams

Constructor & Destructor Documentation

DtInteractionClassInfo::DtInteractionClassInfo	(	const char *	name,
		DtInteractionClassInfo *	base,
		DtInteractionClassHandle	handle,
		DtSharingType	sharing,
		MAKRti::DtString	semantics,
		MAKRti::DtTransportType	transport,
		MAKRti::DtOrderType	order
	)

Constructors.

DtInteractionClassInfo::DtInteractionClassInfo

(

const DtInteractionClassInfo &

orig

)

Copy constructor (not implemented)

virtual DtInteractionClassInfo::~DtInteractionClassInfo ( )

virtual

Destructor.

Member Function Documentation

virtual void DtInteractionClassInfo::addDimension ( DtDimensionHandle  dimHandle )

virtual

Add/Remove a dimesion handle.

virtual void DtInteractionClassInfo::addParam ( const char *  paramName, const char *  semantics, bool  addSorted  )

virtual

Adds an parameter to the class (called during FED processing).

void DtInteractionClassInfo::addParamSorted ( const char *  paramName, MAKRti::DtString  semantics  )

protected

Insert Parameters in sorted or unsorted (deprecated) order.

void DtInteractionClassInfo::addParamUnsorted ( const char *  paramName, MAKRti::DtString  semantics  )

protected

virtual void DtInteractionClassInfo::addRemotePassiveSubscription ( DtFederateHandle  fedHandle )

protectedvirtual

virtual void DtInteractionClassInfo::addRemoteSubscription ( DtFederateHandle  fedHandle )

protectedvirtual

Add/delete remote subscription to this class by indicated federate.

virtual void DtInteractionClassInfo::addSubclass ( DtInteractionClassInfo *  sub )

virtual

Add a subclass (called during FED processing).

virtual DtInteractionClassInfo* DtInteractionClassInfo::baseClass ( ) const

virtual

Return pointer to base class descriptor.

virtual void DtInteractionClassInfo::clearDestinationOverride ( )

virtual

Remove destination override.

virtual void DtInteractionClassInfo::deleteRemoteSubscription ( DtFederateHandle  fedHandle, bool  isForSmartForwarding = false  )

protectedvirtual

virtual MAKRti::DtInetAddr DtInteractionClassInfo::destinationAddress ( ) const

virtual

set the destination to send to when using DM Filtering

virtual MAKRti::DtInetAddr DtInteractionClassInfo::destinationDevice ( ) const

virtual

virtual DtDimensionHandleSet const& DtInteractionClassInfo::dimensions ( ) const

virtual

Set/Get dimensions.

virtual DtInteractionClassHandle DtInteractionClassInfo::discoveredHandle ( ) const

virtual

Get/set discovered class handle This value is always 0 if isUnknown() is false.

virtual MAKRti::DtFomType DtInteractionClassInfo::fomType ( ) const

virtual

virtual void DtInteractionClassInfo::forceDestinations ( DtBitMask const &  mask, MAKRti::DtTime  delay  )

virtual

Temporarily force destinations with this mask for given delay A negative time delay will force the destinations indefinitely.

virtual DtBitMask DtInteractionClassInfo::getDestinations ( bool  includeBaseClass = true ) const

virtual

Get the list of remote subscribers to the class = update destinations The base class destination masks are added unless specified otherwise.

virtual DtInteractionClassHandle DtInteractionClassInfo::handle ( ) const

virtual

Get/set class handle.

virtual bool DtInteractionClassInfo::isFullName ( const char *  name ) const

virtual

Root name is required.

virtual bool DtInteractionClassInfo::isName ( const char *  name ) const

virtual

Return boolean: name matches? Compare depends on FOM type: insensitive for 1.3 and sensitive for 1516 Root name is prepended to name if necessary.

virtual int DtInteractionClassInfo::isOfClass ( DtInteractionClassHandle  handle ) const

virtual

Returns 1 if this class is handle or is a subclass of handle.

bool DtInteractionClassInfo::isScaffolding

(

)

const

Determines whether the class is a scaffolding class.

bool DtInteractionClassInfo::isUnknown

(

)

const

Determines whether this class is an unknown class, merely present to indicate that it is in other FOM modules not in use by this federate.

virtual const char* DtInteractionClassInfo::name ( ) const

virtual

Return class name, as in FED.

virtual int DtInteractionClassInfo::numParameters ( ) const

virtual

Returns the number of parameters.

virtual int DtInteractionClassInfo::numRemoteFederatesSubscribed ( ) const

virtual

Returns number of remote federates subscribed to this class.

bool DtInteractionClassInfo::operator!=

(

const DtInteractionClassInfo &

other

)

const

DtInteractionClassInfo& DtInteractionClassInfo::operator=

(

const DtInteractionClassInfo &

orig

)

Assignment operator (not implemented)

bool DtInteractionClassInfo::operator==

(

const DtInteractionClassInfo &

other

)

const

virtual MAKRti::DtOrderType DtInteractionClassInfo::order ( ) const

virtual

Set/Get order type.

virtual void DtInteractionClassInfo::overrideDestinations ( DtBitMask const &  mask )

virtual

Permanently override destinations with given mask.

virtual DtParamInfo* DtInteractionClassInfo::paramByHandle ( const DtParameterHandle  theHandle )

virtual

virtual DtParamInfo* DtInteractionClassInfo::paramByName ( const char *  theName )

virtual

Get parameter descriptor by name or handle.

virtual DtParameterHandle DtInteractionClassInfo::paramHandle ( const char *  theName )

virtual

Get parameter handle from name.

virtual char* DtInteractionClassInfo::paramName ( DtParameterHandle  theHandle )

virtual

Get parameter name from handle.

virtual DtParamVector const& DtInteractionClassInfo::params ( ) const

virtual

Returns the list of parameters.

virtual void DtInteractionClassInfo::print ( ) const

virtual

Print the contents.

virtual void DtInteractionClassInfo::publish ( DtInteractionMgr *  interMgr )

virtual

Publish and unpublish.

virtual int DtInteractionClassInfo::published ( ) const

virtual

Return 1 if we are publishing this class, 0 otherwise.

virtual bool DtInteractionClassInfo::relevant ( ) const

virtual

Returns true if the class is relevant, false otherwise.

virtual bool DtInteractionClassInfo::remoteFederateIsSubscribed ( DtFederateHandle  fedHandle ) const

virtual

Returns true if the remote federate is subscribed to this class.

virtual void DtInteractionClassInfo::remotePassiveSubscribe ( DtFederateHandle  fedHandle, DtInteractionMgr *  interMgr  )

virtual

Call when another federate subscribes to this class passively.

Simply stores passive subscription, does not updateRelevance.

virtual void DtInteractionClassInfo::remoteSubscribe ( DtFederateHandle  fedHandle, DtInteractionMgr *  interMgr  )

virtual

Call when another federate subscribes to this class actively.

Updates subscriptions for this class, then calls updateRelevance.

virtual void DtInteractionClassInfo::remoteUnsubscribe ( DtFederateHandle  fedHandle, DtInteractionMgr *  interMgr, bool  forSmartForwarding  )

virtual

Call when another federate unsubscribes to this class.

Updates subscriptions for this class, then calls updateRelevance.

virtual void DtInteractionClassInfo::removeDimension ( DtDimensionHandle  dimHandle )

virtual

virtual bool DtInteractionClassInfo::restore ( DtInteractionClassPacket *  packet )

virtual

virtual bool DtInteractionClassInfo::sameAncestry ( const DtInteractionClassInfo *  ) const

virtual

Test for equality.

static bool DtInteractionClassInfo::sameInteractionClass ( const DtInteractionClassInfo &  , const DtInteractionClassInfo &    )

staticprotected

static bool DtInteractionClassInfo::sameParamsSorted ( const std::vector< DtParamInfo > &  , const std::vector< DtParamInfo > &    )

staticprotected

static bool DtInteractionClassInfo::sameParamsUnsorted ( const std::vector< DtParamInfo > &  , const std::vector< DtParamInfo > &    )

staticprotected

virtual bool DtInteractionClassInfo::save ( DtRtiSaveFile &  file )

virtual

save and restore

const char* DtInteractionClassInfo::semantics

(

)

const

virtual void DtInteractionClassInfo::setBaseClass ( DtInteractionClassInfo *  base )

virtual

Set base class pointer (User should not need to call this);.

virtual void DtInteractionClassInfo::setDestination ( MAKRti::DtInetAddr  addr, MAKRti::DtInetAddr  devAddr, bool  inclusive, MAKRti::DtInetAddr  oldAddr, MAKRti::DtInetAddr  oldDevAddr  )

virtual

virtual void DtInteractionClassInfo::setDimensions ( DtDimensionHandleSet const &  dimList )

virtual

virtual void DtInteractionClassInfo::setDiscoveredHandle ( DtInteractionClassHandle  handleValue )

virtual

virtual void DtInteractionClassInfo::setFomType ( MAKRti::DtFomType  type )

virtual

virtual void DtInteractionClassInfo::setHandle ( DtInteractionClassHandle  handleValue )

virtual

void DtInteractionClassInfo::setIsUnknown

(

bool

unknown

)

virtual void DtInteractionClassInfo::setOrder ( MAKRti::DtOrderType  theOrder )

virtual

void DtInteractionClassInfo::setSemantics

(

const MAKRti::DtString &

semantics

)

void DtInteractionClassInfo::setSharing

(

const DtSharingType

sharing

)

virtual void DtInteractionClassInfo::setSpaceHandle ( DtSpaceHandle  spaceHandleValue )

virtual

Return the space handle.

virtual void DtInteractionClassInfo::setTransport ( MAKRti::DtTransportType  theTransport )

virtual

DtSharingType DtInteractionClassInfo::sharing

(

)

const

virtual DtSpaceHandle DtInteractionClassInfo::spaceHandle ( ) const

virtual

virtual MAKRti::DtList* DtInteractionClassInfo::subclasses ( )

virtual

Return list of subclasses.

virtual void DtInteractionClassInfo::subscribe ( bool  active )

virtual

Subscribe and unsubscribe.

virtual int DtInteractionClassInfo::subscribed ( ) const

virtual

Return 1 if we are subscribed to this class, 0 otherwise.

virtual const MAKRti::DtList& DtInteractionClassInfo::subscribedFederates ( ) const

virtual

Returns a list of federates who are subscribed to this interaction.

virtual int DtInteractionClassInfo::subscribedWithRegion ( ) const

virtual

Return 1 if we are subscribed to this class with region, 0 otherwise.

virtual MAKRti::DtTransportType DtInteractionClassInfo::transport ( ) const

virtual

Set/Get transport type representing transport mechanism.

virtual void DtInteractionClassInfo::unpublish ( )

virtual

virtual void DtInteractionClassInfo::unsubscribe ( )

virtual

virtual void DtInteractionClassInfo::updateRelevance ( DtInteractionMgr *  interMgr )

protectedvirtual

Update the relevance field of this class and all subclasses, based on current subscriptions.

Add pending turnOn/OffInteractions when appropriate.

Member Data Documentation

MAKRti::DtInetAddr DtInteractionClassInfo::myAddr

protected

DtInteractionClassInfo* DtInteractionClassInfo::myBase

protected

MAKRti::DtClock DtInteractionClassInfo::myClock

protected

MAKRti::DtInetAddr DtInteractionClassInfo::myDevAddr

protected

DtDimensionHandleSet DtInteractionClassInfo::myDimensions

protected

DtInteractionClassHandle DtInteractionClassInfo::myDiscoveredHandle

protected

int DtInteractionClassInfo::myFirstParam

protected

MAKRti::DtFomType DtInteractionClassInfo::myFomType

protected

DtBitMask* DtInteractionClassInfo::myForceDestinationsMask

protected

Create this bit mask to temporarily force destinations after publish.

MAKRti::DtTime DtInteractionClassInfo::myForceDestinationsTime

protected

DtInteractionClassHandle DtInteractionClassInfo::myHandle

protected

bool DtInteractionClassInfo::myIsUnknown

protected

Indicates whether this class is an unknown class, merely present to indicate that it is in other FOM modules not in use by this federate.

MAKRti::DtString DtInteractionClassInfo::myName

protected

MAKRti::DtOrderType DtInteractionClassInfo::myOrder

protected

DtBitMask* DtInteractionClassInfo::myOverrideDestinationsMask

protected

Create this bit mask to permanently override destinations.

DtParamVector DtInteractionClassInfo::myParams

protected

int DtInteractionClassInfo::myPublished

protected

bool DtInteractionClassInfo::myRelevant

protected

MAKRti::DtHashlist DtInteractionClassInfo::myRemotePassiveSubscriptions

protected

DtBitMask DtInteractionClassInfo::myRemoteSubscriberMask

protected

MAKRti::DtHashlist DtInteractionClassInfo::myRemoteSubscriptions

protected

MAKRti::DtString DtInteractionClassInfo::mySemantics

protected

DtSharingType DtInteractionClassInfo::mySharing

protected

DtSpaceHandle DtInteractionClassInfo::mySpaceHandle

protected

MAKRti::DtList DtInteractionClassInfo::mySubclasses

protected

DtSubcribeInteractionType DtInteractionClassInfo::mySubscribed

protected

MAKRti::DtTransportType DtInteractionClassInfo::myTransport

protected

const unsigned int DtInteractionClassInfo::theMaxParams

staticprivate

---

The documentation for this class was generated from the following file:

• intClassInfo.h
