Responsible for maintaining the console dialogs to display log files for local RTI components. More...

Inheritance diagram for DtAssistantLogFileMgr:

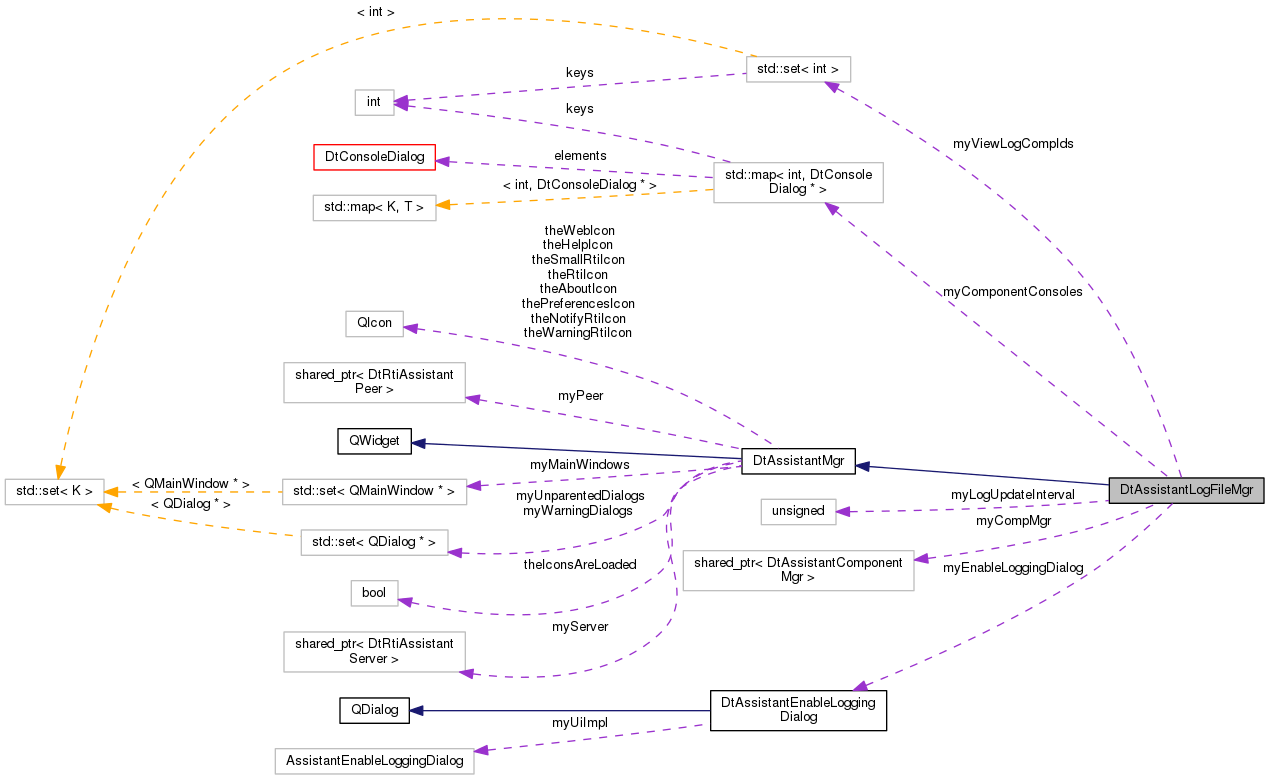

Collaboration diagram for DtAssistantLogFileMgr:

Public Slots
void	removeComponent (const DtAssistantComponentInfo *compInfo)
	Eliminates existing component. More...

void	renameComponent (const DtAssistantComponentInfo *compInfo)
	Renames an existing component. More...

void	processComponentUpdate (const DtAssistantComponentInfo *compInfo)
	Handles a component update. More...

void	sendComponentUpdateNotifyLevel (int id, MAKRti::DtNotifyLevelType level)
	Processes an update to a component notify level from the menu. More...

void	setLogUpdateInterval (unsigned int interval)
	Updates all of the existing log consoles to update at the specified update interval (in msecs). More...

void	showComponentConsole (int id)
	Displays the component's console. More...

Public Slots inherited from DtAssistantMgr
void	displayWarningDialogs ()
	Displays all warning dialogs. More...

Public Member Functions
	DtAssistantLogFileMgr (DtBoost::shared_ptr< DtRtiAssistantServer > server, DtBoost::shared_ptr< DtRtiAssistantPeer > peer, DtAssistantSignalRouter &signalRouter, DtBoost::shared_ptr< DtAssistantComponentMgr > compMgr)
	Constructor. More...

virtual	~DtAssistantLogFileMgr ()
	Destructor. More...

Public Member Functions inherited from DtAssistantMgr
	DtAssistantMgr (DtBoost::shared_ptr< DtRtiAssistantServer > server, DtBoost::shared_ptr< DtRtiAssistantPeer > peer, DtAssistantSignalRouter &signalRouter)
	Constructor. More...

virtual	~DtAssistantMgr ()
	Destructor. More...

virtual void	initialize ()
	Initializes this manager just prior to beginning assistant processing. More...

virtual void	tick ()
	Performs tasks that need to be completed periodically. More...

virtual void	startShutdown ()
	Performs any necessary processing at the start of shutdown. More...

virtual bool	dialogsVisible () const
	Determines if there are any visible dialogs for which this manager is responsible. More...

virtual void	configWidget (DtAssistantConfigWidget **widget, QIcon &icon, QString &name, DtPreferencesPage &pageId)
	Retrieves a widget which will be placed in the configuration dialog for configuring user preferences. More...

virtual void	updateConfigWidget ()
	Forces the configuration widget to be updated. More...

virtual void	processConfigWidgetAccept ()
	Process the changes that were accepted in the configuration widget. More...

Protected Types
typedef std::map< int, DtConsoleDialog * >	DtIdToFileConsoleMap

Protected Member Functions
void	enableComponentLog (int id, const MAKRti::DtString &compName, const MAKRti::DtString &logName, MAKRti::DtNotifyLevelType level)
	Enable the log display for the given component. More...

void	disableComponentLog (int id)
	Disable the log display for the given component. More...

Protected Member Functions inherited from DtAssistantMgr
void	startDialog (QDialog *dlg, bool inTaskbar, bool warningDialog)
	Sets up the given widget as a dialog. More...

void	finishDialog (QDialog *dlg)
	Should be called prior to deleting any dialog started with startDialog. More...

void	showDialog (QDialog *dlg)
	Shows the dialog. More...

void	startMainWindow (QMainWindow *dlg)
	Sets up a main window dialog. More...

void	finishMainWindow (QMainWindow *dlg)
	Should be called prior to deleting any dialog started with startMainWindow. More...

void	showMainWindow (QMainWindow *dlg)
	Shows the dialog. More...

void	showPopup (const MAKRti::DtString &text, int sourceCompId=-1, const MAKRti::DtString &advancedText=MAKRti::DtString::nullString())
	Displays a popup message with the given text, advanced text, and name of the given source component. More...

void	showPopup (const MAKRti::DtString &text, const MAKRti::DtString &source, const MAKRti::DtString &advancedText=MAKRti::DtString::nullString())
	Displays a popup message with the given text, advanced text, and source name. More...

void	displayNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, int sourceCompId=-1)
	Displays and logs a notification from the given component. More...

void	displayNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, const MAKRti::DtString &source)
	Displays and logs notification with the given component name. More...

void	logNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, int sourceCompId=-1)
	Logs a notification from the given component, does not display. More...

void	logNotification (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, const MAKRti::DtString &source)
	Logs a notification with the given component name, does not display. More...

virtual DtAssistantInfo	assistantInfoFromAssistantMsg (const DtAssistantMsg &assistantMsg, DtInetAddrSet *interfaces=0)

Protected Attributes
DtBoost::shared_ptr < DtAssistantComponentMgr >	myCompMgr
	The manager that keeps track of all local RTI components. More...

DtIdToFileConsoleMap	myComponentConsoles
	Map from component IDs to console widgets. More...

std::set< int >	myViewLogCompIds
	The set of component IDs whose logs should immediately be opened once log viewing is enabled. More...

unsigned int	myLogUpdateInterval
	Interval at which log consoles will be updated. More...

DtAssistantEnableLoggingDialog *	myEnableLoggingDialog
	Dialog to verify user wants to enable logging when disabled. More...

Protected Attributes inherited from DtAssistantMgr
DtBoost::shared_ptr < DtRtiAssistantServer >	myServer
	The Assistant server from which new messages will arrive from local RTI components. More...

DtBoost::shared_ptr < DtRtiAssistantPeer >	myPeer
	The Assistant peer which communicates with other Assistants. More...

std::set< QDialog * >	myUnparentedDialogs
	All unparented dialogs that are created by the GUI should be added to this set. More...

std::set< QMainWindow * >	myMainWindows
	All main windows that are created by the GUI should be added to this set. More...

std::set< QDialog * >	myWarningDialogs
	Set of the popup dialogs, either parented or unparented, which, when active, should cause a warning icon to be displayed. More...

Private Member Functions
	DtAssistantLogFileMgr (DtAssistantLogFileMgr const &)
	Copy Constructor not implemented – Copy Not Allowed! More...

DtAssistantLogFileMgr &	operator= (DtAssistantLogFileMgr const &)
	Assignment not implemented – Assignment Not Allowed! More...

Additional Inherited Members
Signals inherited from DtAssistantMgr
void	warningDialogDisplayed ()
	Emitted when a warning dialog is displayed. More...

void	warningDialogDismissed ()
	Emitted when a warning dialog is dismissed. More...

void	popupRequested (const MAKRti::DtString &text, int sourceCompId, const MAKRti::DtString &advancedText)
	Emitted when a popup dialog should be displayed. More...

void	popupRequested (const MAKRti::DtString &text, const MAKRti::DtString &source, const MAKRti::DtString &advancedText)
	Emitted when a popup dialog should be displayed. More...

void	notificationRequested (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, int sourceCompId, bool logOnly)
	Emitted when a notification should be displayed. More...

void	notificationRequested (const MAKRti::DtString &message, MAKRti::DtNotifyLevelType notifyLevel, const MAKRti::DtString &source, bool logOnly)
	Emitted when a notification should be displayed. More...

Static Protected Attributes inherited from DtAssistantMgr
static QIcon	theRtiIcon
	The icons used by the RTI Assistant. More...

static QIcon	theSmallRtiIcon

static QIcon	theWebIcon

static QIcon	theNotifyRtiIcon

static QIcon	theWarningRtiIcon

static QIcon	thePreferencesIcon

static QIcon	theAboutIcon

static QIcon	theHelpIcon

static bool	theIconsAreLoaded
	Whether or not the icons have yet been loaded. More...

Detailed Description

Responsible for maintaining the console dialogs to display log files for local RTI components.

Member Typedef Documentation

typedef std::map< int, DtConsoleDialog*> DtAssistantLogFileMgr::DtIdToFileConsoleMap

protected

Constructor & Destructor Documentation

DtAssistantLogFileMgr::DtAssistantLogFileMgr	(	DtBoost::shared_ptr< DtRtiAssistantServer >	server,
		DtBoost::shared_ptr< DtRtiAssistantPeer >	peer,
		DtAssistantSignalRouter &	signalRouter,
		DtBoost::shared_ptr< DtAssistantComponentMgr >	compMgr
	)

Constructor.

virtual DtAssistantLogFileMgr::~DtAssistantLogFileMgr ( )

virtual

Destructor.

DtAssistantLogFileMgr::DtAssistantLogFileMgr ( DtAssistantLogFileMgr const & )

private

Copy Constructor not implemented – Copy Not Allowed!

Member Function Documentation

void DtAssistantLogFileMgr::disableComponentLog ( int id )

protected

Disable the log display for the given component.

void DtAssistantLogFileMgr::enableComponentLog	(	int	id,
		const MAKRti::DtString &	compName,
		const MAKRti::DtString &	logName,
		MAKRti::DtNotifyLevelType	level
	)

protected

Enable the log display for the given component.

DtAssistantLogFileMgr& DtAssistantLogFileMgr::operator= ( DtAssistantLogFileMgr const & )

private

Assignment not implemented – Assignment Not Allowed!

void DtAssistantLogFileMgr::processComponentUpdate ( const DtAssistantComponentInfo * compInfo )

slot

Handles a component update.

void DtAssistantLogFileMgr::removeComponent ( const DtAssistantComponentInfo * compInfo )

slot

Eliminates existing component.

void DtAssistantLogFileMgr::renameComponent ( const DtAssistantComponentInfo * compInfo )

slot

Renames an existing component.

void DtAssistantLogFileMgr::sendComponentUpdateNotifyLevel	(	int	id,
		MAKRti::DtNotifyLevelType	level
	)

slot

Processes an update to a component notify level from the menu.

void DtAssistantLogFileMgr::setLogUpdateInterval ( unsigned int interval )

slot

Updates all of the existing log consoles to update at the specified update interval (in msecs).

void DtAssistantLogFileMgr::showComponentConsole ( int id )

slot

Displays the component's console.

Member Data Documentation

DtBoost::shared_ptr<DtAssistantComponentMgr> DtAssistantLogFileMgr::myCompMgr

protected

The manager that keeps track of all local RTI components.

DtIdToFileConsoleMap DtAssistantLogFileMgr::myComponentConsoles

protected

Map from component IDs to console widgets.

DtAssistantEnableLoggingDialog* DtAssistantLogFileMgr::myEnableLoggingDialog

protected

Dialog to verify user wants to enable logging when disabled.

unsigned int DtAssistantLogFileMgr::myLogUpdateInterval

protected

Interval at which log consoles will be updated.

std::set< int > DtAssistantLogFileMgr::myViewLogCompIds

protected

The set of component IDs whose logs should immediately be opened once log viewing is enabled.

The documentation for this class was generated from the following file:

logFileMgr.h
