DtFedExec Class Reference

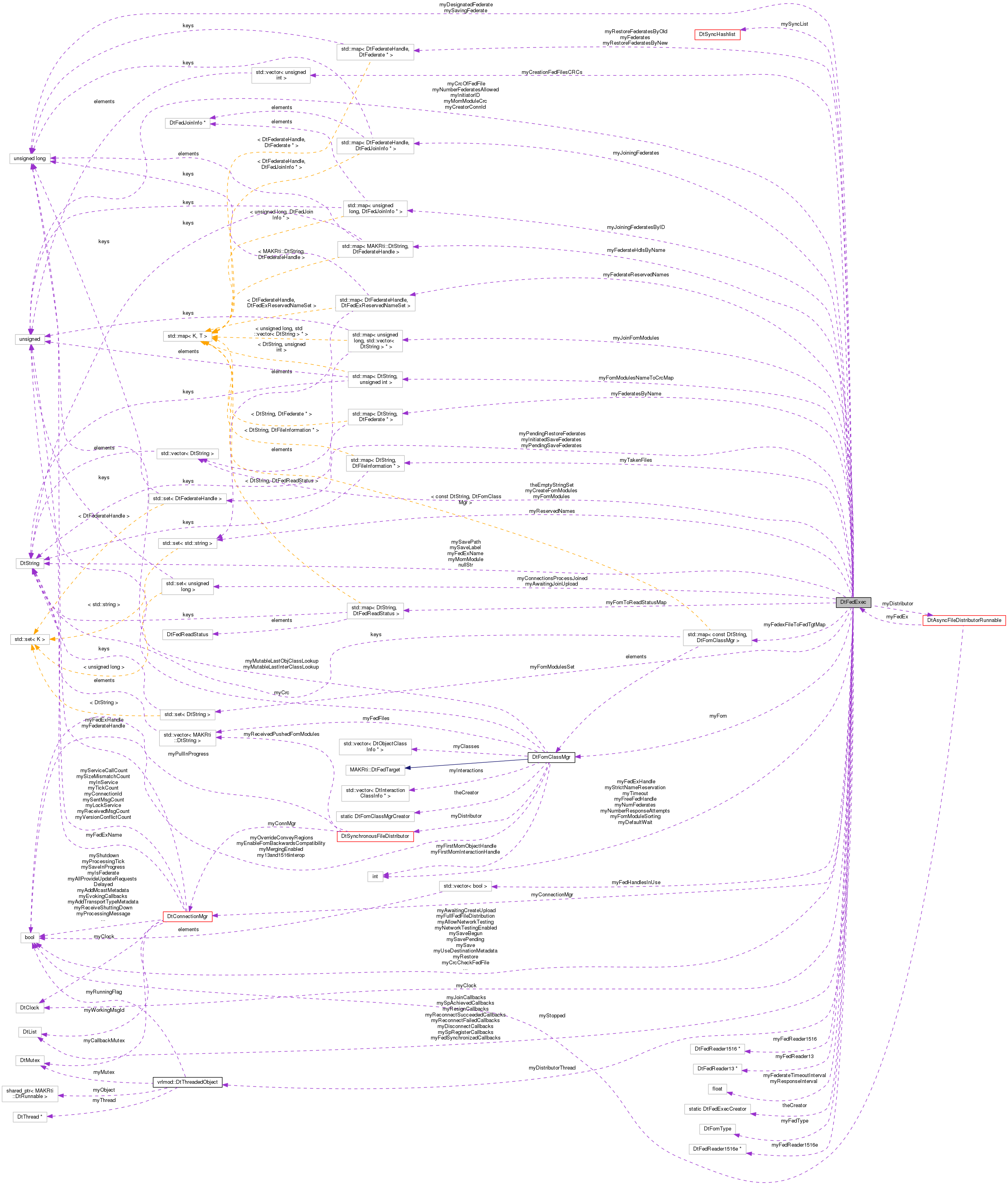

Collaboration diagram for DtFedExec:

Public Member Functions
virtual	~DtFedExec ()
	Destructor. More...
virtual DtConnectionMgr *	connectMgr ()
	Returns the connection mgr. More...
virtual DtLogicalTimeFactory *	fedTimeFactory ()
	Returns the time factory. More...
virtual const DtString &	fedExName () const
	Returns the name of the this federation execution. More...
virtual int	fedExHandle () const
	Returns the handle of this federation execution. More...
virtual const DtString &	fedFileName () const
	Returns the name of the FED file that was associated with the federation execution at creation time. More...
virtual const std::vector < DtString > &	fomModules () const
	Returns the fomModules names associated w/ the fedex. More...
virtual bool	fullyCreated () const
	Return boolean: Federation execution creation is complete. More...
virtual void	setFullyCreated (bool val)
	Set completion status. More...
virtual unsigned long	creatorID () const
	Set the ID for who created this federation execution. More...
virtual void	createDistributor (const unsigned long initiatingFedID, const DtString &momModuleName, const std::vector< DtString > &fomModules)
	Create Fed File Distributor for federation. More...
virtual int	numFederates () const
	Returns the total number of federates joined to this federation. More...
virtual DtFederate *	getFederate (DtFederateHandle handle)
	Returns the DtFederate object representing the joined federate with the indicated handle. More...
virtual DtFederateHandle	federateHandleOfConnection (unsigned long connId) const
	Return the connection's federate handle if joined to this federation; otherwise, 0. More...
virtual void	disconnectFederate (DtFederate *fed)
	Mark federate as attempting to reconnect. More...
virtual bool	removeFederateConnection (unsigned long id)
	Removes the federate with the given connection ID. More...
virtual bool	restoreFederateConnection (DtFederateHandle handle, unsigned long newConnId, unsigned long &oldConnId)
	Restore a joined federate on a new connection ID TODO: let this work for connected, not necessarily joined federates Pass back old connection ID Return bool: federate restored. More...
virtual void	reconnectFederateSucceeded (DtFederate *fed)
	Federate successfully reconnected. More...
virtual void	reconnectFederateFailed (DtFederate *fed)
	Federate failed to reconnect. More...
virtual bool	resignFederate (DtFederateHandle handle, DtResignAction action, DtResignReason reason)
	Resign the given federate from the federation. More...
virtual void	resetClockForHeartBeat ()
	This should only be called when the rtiExec has reconnected. More...
virtual bool	tick ()
	Tick the federation execution. More...
virtual void	printFederates ()
	Print the list of federates for each federation execution. More...
virtual void	addFederateJoinedCallback (DtFederateCbFn fn, void *usr)
	Register callback to be invoked whenever a federate joins a federation. More...
virtual void	removeFederateJoinedCallback (DtFederateCbFn fn, void *usr)
	Remove callback to be invoked whenever a federate joins a federation. More...
virtual void	addFederateResignedCallback (DtFederateCbFn fn, void *usr)
	Register callback to be invoked whenever a federate resigns a federation. More...
virtual void	removeFederateResignedCallback (DtFederateCbFn fn, void *usr)
	Remove callback to be invoked whenever a federate resigns a federation. More...
virtual void	addSyncPtRegisteredCallback (DtSyncPointCbFn fn, void *usr)
	Register a callback to be invoked whenever a new sync point has been registered. More...
virtual void	removeSyncPtRegisteredCallback (DtSyncPointCbFn fn, void *usr)
	Unregister a callback to be invoked whenever a new sync point has been registered. More...
virtual void	addSyncPtAchievedCallback (DtSyncPointAchievedCbFn fn, void *usr)
	Register a callback to be invoked whenever a federate has achieved a sync point. More...
virtual void	removeSyncPtAchievedCallback (DtSyncPointAchievedCbFn fn, void *usr)
	Unregister a callback to be invoked whenever a federate has achieved a sync point. More...
virtual void	addFederationSynchronizedCallback (DtSyncPointCbFn fn, void *usr)
	Register a callback to be invoked whenever all federates has achieved a sync point. More...
virtual void	removeFederationSynchronizedCallback (DtSyncPointCbFn fn, void *usr)
	Unregister a callback to be invoked whenever all federates has achieved a sync point. More...
virtual void	addFederateDisconnectedCallback (DtFederateCbFn fn, void *usr)
	Register callbacks for federate disconnected. More...
virtual void	removeFederateDisconnectedCallback (DtFederateCbFn fn, void *usr)
	Unregister callbacks for federate disconnected. More...
virtual void	addFederateReconnectSucceededCallback (DtFederateCbFn fn, void *usr)
virtual void	removeFederateReconnectSucceededCallback (DtFederateCbFn fn, void *usr)
virtual void	addFederateReconnectFailedCallback (DtFederateCbFn fn, void *usr)
virtual void	removeFederateReconnectFailedCallback (DtFederateCbFn fn, void *usr)
void	multFileReceivedCb (const DtFomModuleDistributionMsg &msg)
	File received callback... generates a distributor postCommand. More...
void	multFileRequestedCb (const DtFomModuleRequestMsg &msg)
	File requested callback... generates a distributor postCommand. More...
void	pushFomModuleToJoinedFederates (DtFederate *newFederate, DtString fileName, unsigned int fileSize, const char *fileBuffer)
	Push a FOM Module to all joined federates except the one specified. More...
void	pushFomModuleToSingleFederate (DtFederateHandle recipient, DtString fileName, unsigned int fileSize, const char *fileBuffer)
	Push a FOM Module to the given federate. More...
virtual void	processRequestedModulesArrived (const DtRequestedModulesArrivedEvent &e)
	Process arrival of requested FOM Modules. More...
virtual void	processFedFileRequestMsg (const DtFedFileRequestMsgEvent &e)
	Process FED file requests. More...
virtual void	processFileTransfer (const DtFedExTakeFileEvent &e)
	Process file transfers. More...
virtual DtFederateHandleInfoMap const &	federates () const
	Returns the list of federates for this fed exec. More...
virtual void	disableNetworkTesting ()
	Disable network testing at federate. More...
virtual void	enableNetworkTesting ()
	Enable network testing at federate. More...
virtual void	changeLatencyTestMode (DtFederateHandle handle, bool runTest, bool continuous, bool haltContinuous, bool observing, unsigned int interactionPeriod, unsigned int numInteractions, unsigned int payloadBytes)
	Changes the latency test mode for the specified federate. More...
virtual bool	transferRidParams (DtFederateHandle handle, const DtString &ridString)
	Transfer RID parameters over network. More...

Static Public Member Functions
static void	multFileReceivedExecCb (const DtFomModuleDistExecMsg &msg, void *usr)
	File received callback... generates a distributor postCommand. More...
static void	multFileReceivedCb (const DtFomModuleDistributionMsg &msg, void *usr)
	File received callback... generates a distributor postCommand. More...
static void	multFileRequestedCb (const DtFomModuleRequestMsg &msg, void *usr)
	File requested callback... generates a distributor postCommand. More...
static DtFedExec *	create (DtConnectionMgr *connMgr, const std::vector< unsigned int > &crcs, DtString const &fedExName, std::string const &timeImplName, MAKRti::DtFomType fedType, DtString const &momModuleName, const std::vector< DtString > &fomModules, int fedExHandle, DtRIDParameters *params, unsigned int momModuleCrc)
	Creates an instance of a DtFedExec;. More...
static void	setCreatorFunction (DtFedExecCreator creator)
	Call this function to set an alternate creator function With this function, users can replace this DtFedExec with their own derived class. More...
static void	init (DtRtiAssistantExecClient *assistant)
Static RTI message callbacks
Static methods to install in connection manager to process message callbacks
static void	processJoinMsg (const DtJoinMsg &msg, void *usr)
static void	processJoinConfirm (const DtJoinConfirmMsg &msg, void *usr)
static void	processAlive (const DtAliveMsg &msg, void *usr)
static void	processResign (const DtResignMsg &msg, void *usr)
static void	processSyncPoint (const DtSyncPointMsg &msg, void *usr)
static void	processSyncPointQuery (const DtSyncPointQueryMsg &msg, void *usr)
static void	processSaveRequest (const DtSaveRequestMsg &msg, void *usr)
static void	processInitiatedSave (const DtInitiatedSaveMsg &msg, void *usr)
static void	processSaveComplete (const DtSaveCompleteMsg &msg, void *usr)
static void	processSaveBegun (const DtSaveBegunMsg &msg, void *usr)
static void	processAbortSave (const DtAbortSaveMsg &msg, void *usr)
static void	processRestoreRequest (const DtRestoreRequestMsg &msg, void *usr)
static void	processRestoreBegun (const DtRestoreBegunMsg &msg, void *usr)
static void	processRestoreComplete (const DtRestoreCompleteMsg &msg, void *usr)
static void	processAbortRestore (const DtAbortRestoreMsg &msg, void *usr)
static void	processOwnership (const DtOwnershipMsg &msg, void *usr)
static void	processReserveName (DtReserveNameMsg const &msg, void *usr)
static void	processReserveMultiName (DtReserveMultiNameMsg const &msg, void *usr)
static void	processReleaseMultiName (DtReleaseMultiNameMsg const &msg, void *usr)
static void	processQuerySaveStatus (DtQuerySaveStatusMsg const &msg, void *usr)
static void	processQueryRestoreStatus (DtQueryRestoreStatusMsg const &msg, void *usr)

Protected Types
typedef std::set< std::string >	DtFedExReservedNameSet
typedef std::map < DtFederateHandle, DtFedExReservedNameSet >	DtFedExFederateReservedNameMap

Protected Member Functions
	DtFedExec (DtConnectionMgr *connMgr, const std::vector< unsigned int > &crcs, DtString const &fedExName, std::string const &timeImplName, MAKRti::DtFomType fedType, const DtString &momModuleName, const std::vector< DtString > &modules, int fedExHandle, DtRIDParameters *params, unsigned int momModuleCrc)
	Constructor. More...
virtual const std::map < unsigned long, std::vector < DtString > * > &	joinFomModules () const
	Returns the joinfomModules names associated w/ the fedex. More...
virtual std::vector< DtString > &	joinFomModulesForConnection (unsigned long connID) const
virtual const std::vector < DtString > &	createFomModules () const
	Returns the joinfomModules names associated w/ the fedex. More...
virtual void	processRegisterSyncPoint (const DtSyncPointMsg &msg)
	Process sync point registration. More...
virtual void	processAchievedSyncPoint (const DtSyncPointMsg &msg)
	Process sync point achieved. More...
virtual void	createSyncPoint (const DtSyncPointMsg &msg)
	Create a sync point. More...
virtual void	processSyncPtAchievedCallbacks (DtSyncPt *point, DtFederate *federate)
	Process the callbacks registered for federates achieving sync points. More...
virtual void	processFederationSynchronizedCallbacks (DtSyncPt *point)
	Process the callbacks registered for federates achieving sync points. More...
virtual bool	synchronized (DtSyncPt *point, DtFederateHandleSet &unsuccessfulSet) const
	Return true if we've reached synchronization for this point, false otherwise. More...
virtual void	sendSyncPointReport (const DtSyncPointQueryMsg &msg)
	Send MOM report synchronization point interaction. More...
virtual void	sendSyncPointStatusReport (const DtSyncPointQueryMsg &msg)
	Send MOM report synchronization point status interaction. More...
virtual DtFederate *	addFederate (const char *federateType, const char *federateName, DtFederateHandle handle, unsigned long connHandle, int astntCompId, const char *fedHostName, MAKRti::DtInetAddr host, DtHlaVersionId hlaVersion)
	Add a federate to the federation. More...
virtual DtFederate *	createFederate (const char *federateType, const char *federateName, DtFederateHandle handle, unsigned long connHandle, int astntCompId, const char *fedHostname, MAKRti::DtInetAddr host, DtHlaVersionId hlaVersion)
	Create a new federate. More...
virtual bool	isMember (DtFederateHandle handle) const
	Returns true if the given federate is a member of this federation. More...
virtual bool	deleteFederate (DtFederateHandle handle)
	Removes the indicated federate from the federation execution, and deletes the corresponding DtFederate object. More...
virtual void	readCreateFoms (DtFomClassMgr *topLvlTgt, std::vector< DtString > &fomFiles, DtCreateResponseFlag &response, DtString &errorResponseString, DtFedReadStatus &status, DtFomSorter *myFomSorter)
	Federation Execution Processing. More...
virtual void	readJoinFoms (std::vector< DtString > &fomFiles, DtJoinResponseMsg::errorCodes &response, DtString &errorResponseString, DtFedReadStatus &status, DtFomSorter *myFomSorter)
	Maps passed in FOM file names to corresponding fed targets for join. More...
virtual bool	processCreateReady ()
	Perform processing when create is ready. More...
virtual bool	processJoin (unsigned long connID, const DtFedJoinInfo *fedInfo)
	Process a join Return true if successful; otherwise, false. More...
virtual void	processJoinReady ()
	Perform processing when a join is ready. More...
virtual void	destroyDistributor ()
	Destroy Fed File Distributor for federation. More...
virtual DtAsyncFileDistributorRunnable *	distributor () const
	Return a pointer to the distributor. More...
virtual unsigned int	numberFederatesAllowed (unsigned int numPartners) const
	Given the number of partners allowed by a joining federate, determines the number of federates allowed in the federation. More...
virtual void	resetControl ()
	Reset control. More...
virtual bool	tickDistributor ()
	Tick the distributor. More...
virtual bool	processEvents ()
	Process events from asynchronous thread. More...
DtFedReader *	getReader (DtFomType theFomType)
DtFedReader *	getReader (DtFomType theFomType, DtFomClassMgr *target)
void	populateWithUnknownFoms (std::vector< DtString > &mods, std::vector< DtString > &requestedMods)
bool	isFomAvailable (const DtString &fomName)
bool	doesCrcMatchKnownFomModuleCrc (const DtString &fomName, unsigned int myTakenFomCrc)
virtual bool	fedFileReady (const MAKRti::DtString &fileName) const
	Return boolean: File has been received and is ready to process. More...
virtual bool	fedFilesReady (const std::vector< MAKRti::DtString > *fileNames) const
	Return boolean: Files have been received and is ready to process. More...
virtual bool	addJoinFomModuleForConnection (unsigned long connId, const std::vector< MAKRti::DtString > &modulesFromJoinRequest)
	Add the given FOM Module request to the given connection's list. More...
virtual void	removeJoinFomModuleForConnection (unsigned long connID)
	Remove the given FOM Module request to the given connection's list. More...
virtual void	tickSaveRestore ()
	Tick actions. More...
virtual void	tickJoin ()
	Periodically send a join response to prod unconfirmed federate joins This polling mechanism compensates for dropped messages. More...
virtual void	tickFederates ()
	Check if the interval since the last heartbeat for any federate has exceeded the timeout. More...
virtual void	retireSyncPoint (const char *name)
	DtTIME. More...
virtual void	announceAllSyncPoints (DtFederateHandle hand)
	Called when new federates join to announce to them all of the currently existing synch points that involve them. More...
virtual void	checkTimedSave ()
	Initiate save if conditions for timed save have been meet. More...
virtual void	initiateSave (const char *label)
	Initiates the save of the federation, including the fedex. More...
virtual bool	save (const char *label)
	saves the fedex Return boolean: save was successful? More...
virtual int	initializeRestore (const char *label)
	Initializes the restore label Returns status: 0 : OK, -1 : failed to open save label, -2 : failed to configure. More...
virtual bool	restore (const char *label)
	restores the fedex Return boolean: save was successful? More...
virtual void	endSave (DtSaveFinishedResult result)
	finish the save More...
virtual void	endRestore (DtEndRestoreResult restoreResult)
	finish the restore More...
virtual DtString &	getSaveFileName (const char *label, MAKRti::DtString &fileName, bool extendName=true)
	Create a restore file name from the label and return in supplied parameter. More...
virtual DtString &	getRestoreFileName (const char *label, MAKRti::DtString &fileName)
	Create a restore file name from the label and return in supplied parameter. More...
virtual int	getNextFreeFedHandle ()
	Used internally to get the next available Federate Id within this federation. More...
	DtFedExec ()
	Default Ctor disabled. More...
	DtFedExec (const DtFedExec &orig)
	Copy and assignment operators are disabled. More...
DtFedExec &	operator= (DtFedExec const &orig)
RTI message callbacks
Actual methods used to process message callbacks
virtual void	processJoinMsg (const DtJoinMsg &msg)
virtual bool	handleJoinFailureCases (const DtJoinMsg &msg)
virtual void	requestFedFileUpload (const DtJoinMsg &msg)
virtual void	processJoinConfirm (const DtJoinConfirmMsg &msg)
virtual void	processAlive (const DtAliveMsg &msg)
virtual void	processResign (const DtResignMsg &msg)
virtual void	processSyncPoint (const DtSyncPointMsg &msg)
virtual void	processSyncPointQuery (const DtSyncPointQueryMsg &msg)
virtual void	processSaveRequest (const DtSaveRequestMsg &msg)
virtual void	processInitiatedSave (const DtInitiatedSaveMsg &msg)
virtual void	processSaveComplete (const DtSaveCompleteMsg &msg)
virtual void	processSaveBegun (const DtSaveBegunMsg &msg)
virtual void	processAbortSave (const DtAbortSaveMsg &msg)
virtual void	processRestoreRequest (const DtRestoreRequestMsg &msg)
virtual void	processRestoreBegun (const DtRestoreBegunMsg &msg)
virtual void	processRestoreComplete (const DtRestoreCompleteMsg &msg)
virtual void	processAbortRestore (const DtAbortRestoreMsg &msg)
virtual void	processOwnership (const DtOwnershipMsg &msg)
virtual void	processReserveName (DtReserveNameMsg const &msg)
virtual void	processReserveMultiName (DtReserveMultiNameMsg const &msg)
virtual void	processReleaseMultiName (DtReleaseMultiNameMsg const &msg)
virtual void	processQuerySaveStatus (DtQuerySaveStatusMsg const &msg)
virtual void	processQueryRestoreStatus (DtQueryRestoreStatusMsg const &msg)
Send RTI messages
Send an RTI message of the appropriate kind with the given parameters.
virtual void	sendSyncPointMsg (DtSyncMsgType kind, int id, DtSyncPointStatus status, const char *name, RTINAMESPACE::VariableLengthData const *theTag=NULL, const DtFederateHandleSet *set=NULL, const DtFederateHandleSet *unsuccessfulSet=NULL)
virtual void	sendResignMsg (const char *name, DtFederateHandle fedHandle, DtResignAction action, DtResignReason reason, const DtTimeInfo *timeInfo)
virtual void	sendEnableDisableNetworkTestingMsg (const char *name, bool enabled)
virtual void	sendTransferRidParamsMsg (const char *name, DtFederateHandle fedHandle, const DtString &paramString)
virtual void	sendJoinResponseMsg (unsigned long destinationIDValue, unsigned short requestID, unsigned int crcOfFedFile, DtFederateHandle handle, const char *federateName, int fedExHandle, const char *fedExName, const DtString &momModule, const std::vector< MAKRti::DtString > &modules, unsigned long flags, bool allowNetworkTesting, bool enableNetworkTesting, DtHlaVersionId hlaVers, DtJoinResponseMsg::errorCodes errorValue=DtJoinResponseMsg::DT_NO_ERROR, const DtString &errorString=DtString::nullString())
virtual void	sendResignResponseMsgIfNecessary (const DtResignMsg &msg, DtResignResponse response, DtFederateHandle fedHandle)
virtual void	sendSaveInitiateMsg (const char *labelVal)
virtual void	sendSaveInitiateConstrainedMsg (const char *labelVal)
virtual void	sendSaveResponse (DtFederateHandle fedHandle, unsigned long requestID, const char *labelVal, DtSaveResponseFlag response)
virtual void	sendDesignatedFederate (DtFederateHandle fedHandle)
virtual void	sendNameReservedMsg (DtFederateHandle requestingFederate, char const *objectName, bool result)
virtual void	sendMultiNameReservedMsg (DtFederateHandle requestingFederate, std::set< std::wstring > const &objectNames, bool result)
virtual void	sendRestoreStatus (DtFederateHandle requestingFederate, RTINAMESPACE::FederateRestoreStatusVector const &restoreStatusList)
virtual void	sendSaveStatus (DtFederateHandle requestingFederate, RTINAMESPACE::FederateHandleSaveStatusPairVector const &saveStatusList)

Protected Attributes
DtConnectionMgr *	myConnectionMgr
unsigned int	myCrcOfFedFile
int	myFreeFedHandle
std::vector< bool >	myFedHandlesInUse
bool	myUseDestinationMetadata
DtString	myFedExName
DtFederateHandleInfoMap	myFederates
DtFederateNameInfoMap	myFederatesByName
std::map< MAKRti::DtString, DtFederateHandle >	myFederateHdlsByName
int	myNumFederates
DtSyncHashlist	mySyncList
DtString	myMomModule
unsigned int	myMomModuleCrc
std::vector< unsigned int >	myCreationFedFilesCRCs
MAKRti::DtFomType	myFedType
std::vector< DtString >	myFomModules
std::map< DtString, unsigned int >	myFomModulesNameToCrcMap
std::set< DtString >	myFomModulesSet
std::vector< DtString >	myCreateFomModules
std::map< unsigned long, std::vector< DtString > * >	myJoinFomModules
DtFomClassMgr *	myFom
int	myFedExHandle
DtFederateHandle	myDesignatedFederate
float	myFederateTimeoutInterval
std::set< unsigned long >	myConnectionsProcessJoined
std::map< DtFederateHandle, DtFedJoinInfo * >	myJoiningFederates
	List of joining federates for which a join confirm is expected. More...
std::map< unsigned long, DtFedJoinInfo * >	myJoiningFederatesByID
int	myNumberResponseAttempts
	Response interval from params is divided by this number. More...
float	myResponseInterval
	to obtain response retransmission interval More...
bool	mySave
bool	myRestore
std::set< DtFederateHandle >	myPendingSaveFederates
DtFederateHandleStdSet	myInitiatedSaveFederates
DtString	mySaveLabel
DtFederateHandle	mySavingFederate
std::set< DtFederateHandle >	myPendingRestoreFederates
DtFederateHandleInfoMap	myRestoreFederatesByOld
DtFederateHandleInfoMap	myRestoreFederatesByNew
DtString	mySavePath
bool	mySavePending
bool	mySaveBegun
std::map< DtString, DtFileInformation * >	myTakenFiles
std::map< const DtString, DtFomClassMgr >	myFedexFileToFedTgtMap
std::map< DtString, DtFedReadStatus >	myFomToReadStatusMap
bool	myAwaitingCreateUpload
unsigned long	myCreatorConnId
std::set< unsigned long >	myAwaitingJoinUpload
bool	myFullyCreated
int	myTimeout
int	myDefaultWait
int	myFomModuleSorting
DtList	myJoinCallbacks
DtList	myResignCallbacks
DtList	myDisconnectCallbacks
DtList	myReconnectSucceededCallbacks
DtList	myReconnectFailedCallbacks
DtList	myFedSynchronizedCallbacks
DtList	mySpAchievedCallbacks
DtList	mySpRegisterCallbacks
DtFedExReservedNameSet	myReservedNames
DtFedExFederateReservedNameMap	myFederateReservedNames
vrlmod::DtThreadedObject *	myDistributorThread
	DtTIME. More...
DtAsyncFileDistributorRunnable *	myDistributor
bool	myDistributeFedFile
bool	myCrcCheckFedFile
unsigned long	myInitiatorID
int	myStrictNameReservation
bool	myAllowNetworkTesting
	Whether network testing is enabled or completely disabled by the RID. More...
bool	myNetworkTestingEnabled
	Whether network testing has been toggled on/off by the assistant. More...
DtClock	myClock
unsigned int	myNumberFederatesAllowed
DtFedReader13 *	myFedReader13
DtFedReader1516 *	myFedReader1516
DtFedReader1516e *	myFedReader1516e

Static Protected Attributes
static const std::vector < DtString >	theEmptyStringSet
static DtFedExecCreator	theCreator

Private Attributes
bool	myFullFedFileDistribution

Static Private Attributes
static const DtString	nullStr

Member Typedef Documentation

typedef std::map< DtFederateHandle, DtFedExReservedNameSet > DtFedExec::DtFedExFederateReservedNameMap

protected

typedef std::set<std::string> DtFedExec::DtFedExReservedNameSet

protected

Constructor & Destructor Documentation

DtFedExec::DtFedExec ( DtConnectionMgr *  connMgr, const std::vector< unsigned int > &  crcs, DtString const &  fedExName, std::string const &  timeImplName, MAKRti::DtFomType  fedType, const DtString &  momModuleName, const std::vector< DtString > &  modules, int  fedExHandle, DtRIDParameters *  params, unsigned int  momModuleCrc  )

protected

Constructor.

virtual DtFedExec::~DtFedExec ( )

virtual

Destructor.

DtFedExec::DtFedExec ( )

protected

Default Ctor disabled.

DtFedExec::DtFedExec ( const DtFedExec &  orig )

protected

Copy and assignment operators are disabled.

Member Function Documentation

virtual DtFederate* DtFedExec::addFederate ( const char *  federateType, const char *  federateName, DtFederateHandle  handle, unsigned long  connHandle, int  astntCompId, const char *  fedHostName, MAKRti::DtInetAddr  host, DtHlaVersionId  hlaVersion  )

protectedvirtual

Add a federate to the federation.

virtual void DtFedExec::addFederateDisconnectedCallback ( DtFederateCbFn  fn, void *  usr  )

virtual

Register callbacks for federate disconnected.

virtual void DtFedExec::addFederateJoinedCallback ( DtFederateCbFn  fn, void *  usr  )

virtual

Register callback to be invoked whenever a federate joins a federation.

virtual void DtFedExec::addFederateReconnectFailedCallback ( DtFederateCbFn  fn, void *  usr  )

virtual

virtual void DtFedExec::addFederateReconnectSucceededCallback ( DtFederateCbFn  fn, void *  usr  )

virtual

virtual void DtFedExec::addFederateResignedCallback ( DtFederateCbFn  fn, void *  usr  )

virtual

Register callback to be invoked whenever a federate resigns a federation.

virtual void DtFedExec::addFederationSynchronizedCallback ( DtSyncPointCbFn  fn, void *  usr  )

virtual

Register a callback to be invoked whenever all federates has achieved a sync point.

virtual bool DtFedExec::addJoinFomModuleForConnection ( unsigned long  connId, const std::vector< MAKRti::DtString > &  modulesFromJoinRequest  )

protectedvirtual

Add the given FOM Module request to the given connection's list.

virtual void DtFedExec::addSyncPtAchievedCallback ( DtSyncPointAchievedCbFn  fn, void *  usr  )

virtual

Register a callback to be invoked whenever a federate has achieved a sync point.

virtual void DtFedExec::addSyncPtRegisteredCallback ( DtSyncPointCbFn  fn, void *  usr  )

virtual

Register a callback to be invoked whenever a new sync point has been registered.

virtual void DtFedExec::announceAllSyncPoints ( DtFederateHandle  hand )

protectedvirtual

Called when new federates join to announce to them all of the currently existing synch points that involve them.

virtual void DtFedExec::changeLatencyTestMode ( DtFederateHandle  handle, bool  runTest, bool  continuous, bool  haltContinuous, bool  observing, unsigned int  interactionPeriod, unsigned int  numInteractions, unsigned int  payloadBytes  )

virtual

Changes the latency test mode for the specified federate.

virtual void DtFedExec::checkTimedSave ( )

protectedvirtual

Initiate save if conditions for timed save have been meet.

virtual DtConnectionMgr* DtFedExec::connectMgr ( )

virtual

Returns the connection mgr.

static DtFedExec* DtFedExec::create ( DtConnectionMgr *  connMgr, const std::vector< unsigned int > &  crcs, DtString const &  fedExName, std::string const &  timeImplName, MAKRti::DtFomType  fedType, DtString const &  momModuleName, const std::vector< DtString > &  fomModules, int  fedExHandle, DtRIDParameters *  params, unsigned int  momModuleCrc  )

static

Creates an instance of a DtFedExec;.

virtual void DtFedExec::createDistributor ( const unsigned long  initiatingFedID, const DtString &  momModuleName, const std::vector< DtString > &  fomModules  )

virtual

Create Fed File Distributor for federation.

virtual DtFederate* DtFedExec::createFederate ( const char *  federateType, const char *  federateName, DtFederateHandle  handle, unsigned long  connHandle, int  astntCompId, const char *  fedHostname, MAKRti::DtInetAddr  host, DtHlaVersionId  hlaVersion  )

protectedvirtual

Create a new federate.

Override this function when overriding DtFederate.

virtual const std::vector<DtString>& DtFedExec::createFomModules ( ) const

protectedvirtual

Returns the joinfomModules names associated w/ the fedex.

virtual void DtFedExec::createSyncPoint ( const DtSyncPointMsg &  msg )

protectedvirtual

Create a sync point.

virtual unsigned long DtFedExec::creatorID ( ) const

virtual

Set the ID for who created this federation execution.

virtual bool DtFedExec::deleteFederate ( DtFederateHandle  handle )

protectedvirtual

Removes the indicated federate from the federation execution, and deletes the corresponding DtFederate object.

virtual void DtFedExec::destroyDistributor ( )

protectedvirtual

Destroy Fed File Distributor for federation.

virtual void DtFedExec::disableNetworkTesting ( )

virtual

Disable network testing at federate.

virtual void DtFedExec::disconnectFederate ( DtFederate *  fed )

virtual

Mark federate as attempting to reconnect.

virtual DtAsyncFileDistributorRunnable* DtFedExec::distributor ( ) const

protectedvirtual

Return a pointer to the distributor.

bool DtFedExec::doesCrcMatchKnownFomModuleCrc ( const DtString &  fomName, unsigned int  myTakenFomCrc  )

protected

virtual void DtFedExec::enableNetworkTesting ( )

virtual

Enable network testing at federate.

virtual void DtFedExec::endRestore ( DtEndRestoreResult  restoreResult )

protectedvirtual

finish the restore

virtual void DtFedExec::endSave ( DtSaveFinishedResult  result )

protectedvirtual

finish the save

virtual DtFederateHandle DtFedExec::federateHandleOfConnection ( unsigned long  connId ) const

virtual

Return the connection's federate handle if joined to this federation; otherwise, 0.

virtual DtFederateHandleInfoMap const& DtFedExec::federates ( ) const

virtual

Returns the list of federates for this fed exec.

virtual int DtFedExec::fedExHandle ( ) const

virtual

Returns the handle of this federation execution.

virtual const DtString& DtFedExec::fedExName ( ) const

virtual

Returns the name of the this federation execution.

virtual const DtString& DtFedExec::fedFileName ( ) const

virtual

Returns the name of the FED file that was associated with the federation execution at creation time.

virtual bool DtFedExec::fedFileReady ( const MAKRti::DtString &  fileName ) const

protectedvirtual

Return boolean: File has been received and is ready to process.

virtual bool DtFedExec::fedFilesReady ( const std::vector< MAKRti::DtString > *  fileNames ) const

protectedvirtual

Return boolean: Files have been received and is ready to process.

virtual DtLogicalTimeFactory* DtFedExec::fedTimeFactory ( )

virtual

Returns the time factory.

virtual const std::vector<DtString>& DtFedExec::fomModules ( ) const

virtual

Returns the fomModules names associated w/ the fedex.

virtual bool DtFedExec::fullyCreated ( ) const

virtual

Return boolean: Federation execution creation is complete.

virtual DtFederate* DtFedExec::getFederate ( DtFederateHandle  handle )

virtual

Returns the DtFederate object representing the joined federate with the indicated handle.

virtual int DtFedExec::getNextFreeFedHandle ( )

protectedvirtual

Used internally to get the next available Federate Id within this federation.

DtFedReader* DtFedExec::getReader ( DtFomType  theFomType )

protected

DtFedReader* DtFedExec::getReader ( DtFomType  theFomType, DtFomClassMgr *  target  )

protected

virtual DtString& DtFedExec::getRestoreFileName ( const char *  label, MAKRti::DtString &  fileName  )

protectedvirtual

Create a restore file name from the label and return in supplied parameter.

Returns a reference to the supplied parameter

virtual DtString& DtFedExec::getSaveFileName ( const char *  label, MAKRti::DtString &  fileName, bool  extendName = true  )

protectedvirtual

Create a restore file name from the label and return in supplied parameter.

Returns a reference to the supplied parameter

virtual bool DtFedExec::handleJoinFailureCases ( const DtJoinMsg &  msg )

protectedvirtual

static void DtFedExec::init ( DtRtiAssistantExecClient *  assistant )

static

virtual int DtFedExec::initializeRestore ( const char *  label )

protectedvirtual

Initializes the restore label Returns status: 0 : OK, -1 : failed to open save label, -2 : failed to configure.

virtual void DtFedExec::initiateSave ( const char *  label )

protectedvirtual

Initiates the save of the federation, including the fedex.

bool DtFedExec::isFomAvailable ( const DtString &  fomName )

protected

virtual bool DtFedExec::isMember ( DtFederateHandle  handle ) const

protectedvirtual

Returns true if the given federate is a member of this federation.

virtual const std::map< unsigned long, std::vector<DtString>*>& DtFedExec::joinFomModules ( ) const

protectedvirtual

Returns the joinfomModules names associated w/ the fedex.

virtual std::vector<DtString>& DtFedExec::joinFomModulesForConnection ( unsigned long  connID ) const

protectedvirtual

void DtFedExec::multFileReceivedCb

(

const DtFomModuleDistributionMsg &

msg

)

File received callback... generates a distributor postCommand.

static void DtFedExec::multFileReceivedCb ( const DtFomModuleDistributionMsg &  msg, void *  usr  )

static

File received callback... generates a distributor postCommand.

static void DtFedExec::multFileReceivedExecCb ( const DtFomModuleDistExecMsg &  msg, void *  usr  )

static

File received callback... generates a distributor postCommand.

void DtFedExec::multFileRequestedCb

(

const DtFomModuleRequestMsg &

msg

)

File requested callback... generates a distributor postCommand.

static void DtFedExec::multFileRequestedCb ( const DtFomModuleRequestMsg &  msg, void *  usr  )

static

File requested callback... generates a distributor postCommand.

virtual unsigned int DtFedExec::numberFederatesAllowed ( unsigned int  numPartners ) const

protectedvirtual

Given the number of partners allowed by a joining federate, determines the number of federates allowed in the federation.

The value 0 indicates no limit in both the input and return values. Returns: 0 if no partner limit; otherwise, the number of partners allowed in the federation.

virtual int DtFedExec::numFederates ( ) const

virtual

Returns the total number of federates joined to this federation.

DtFedExec& DtFedExec::operator= ( DtFedExec const &  orig )

protected

void DtFedExec::populateWithUnknownFoms ( std::vector< DtString > &  mods, std::vector< DtString > &  requestedMods  )

protected

virtual void DtFedExec::printFederates ( )

virtual

Print the list of federates for each federation execution.

static void DtFedExec::processAbortRestore ( const DtAbortRestoreMsg &  msg, void *  usr  )

static

virtual void DtFedExec::processAbortRestore ( const DtAbortRestoreMsg &  msg )

protectedvirtual

static void DtFedExec::processAbortSave ( const DtAbortSaveMsg &  msg, void *  usr  )

static

virtual void DtFedExec::processAbortSave ( const DtAbortSaveMsg &  msg )

protectedvirtual

virtual void DtFedExec::processAchievedSyncPoint ( const DtSyncPointMsg &  msg )

protectedvirtual

Process sync point achieved.

static void DtFedExec::processAlive ( const DtAliveMsg &  msg, void *  usr  )

static

virtual void DtFedExec::processAlive ( const DtAliveMsg &  msg )

protectedvirtual

virtual bool DtFedExec::processCreateReady ( )

protectedvirtual

Perform processing when create is ready.

virtual bool DtFedExec::processEvents ( )

protectedvirtual

Process events from asynchronous thread.

virtual void DtFedExec::processFederationSynchronizedCallbacks ( DtSyncPt *  point )

protectedvirtual

Process the callbacks registered for federates achieving sync points.

virtual void DtFedExec::processFedFileRequestMsg ( const DtFedFileRequestMsgEvent &  e )

virtual

Process FED file requests.

virtual void DtFedExec::processFileTransfer ( const DtFedExTakeFileEvent &  e )

virtual

Process file transfers.

static void DtFedExec::processInitiatedSave ( const DtInitiatedSaveMsg &  msg, void *  usr  )

static

virtual void DtFedExec::processInitiatedSave ( const DtInitiatedSaveMsg &  msg )

protectedvirtual

virtual bool DtFedExec::processJoin ( unsigned long  connID, const DtFedJoinInfo *  fedInfo  )

protectedvirtual

Process a join Return true if successful; otherwise, false.

static void DtFedExec::processJoinConfirm ( const DtJoinConfirmMsg &  msg, void *  usr  )

static

virtual void DtFedExec::processJoinConfirm ( const DtJoinConfirmMsg &  msg )

protectedvirtual

static void DtFedExec::processJoinMsg ( const DtJoinMsg &  msg, void *  usr  )

static

virtual void DtFedExec::processJoinMsg ( const DtJoinMsg &  msg )

protectedvirtual

virtual void DtFedExec::processJoinReady ( )

protectedvirtual

Perform processing when a join is ready.

static void DtFedExec::processOwnership ( const DtOwnershipMsg &  msg, void *  usr  )

static

virtual void DtFedExec::processOwnership ( const DtOwnershipMsg &  msg )

protectedvirtual

static void DtFedExec::processQueryRestoreStatus ( DtQueryRestoreStatusMsg const &  msg, void *  usr  )

static

virtual void DtFedExec::processQueryRestoreStatus ( DtQueryRestoreStatusMsg const &  msg )

protectedvirtual

static void DtFedExec::processQuerySaveStatus ( DtQuerySaveStatusMsg const &  msg, void *  usr  )

static

virtual void DtFedExec::processQuerySaveStatus ( DtQuerySaveStatusMsg const &  msg )

protectedvirtual

virtual void DtFedExec::processRegisterSyncPoint ( const DtSyncPointMsg &  msg )

protectedvirtual

Process sync point registration.

static void DtFedExec::processReleaseMultiName ( DtReleaseMultiNameMsg const &  msg, void *  usr  )

static

virtual void DtFedExec::processReleaseMultiName ( DtReleaseMultiNameMsg const &  msg )

protectedvirtual

virtual void DtFedExec::processRequestedModulesArrived ( const DtRequestedModulesArrivedEvent &  e )

virtual

Process arrival of requested FOM Modules.

static void DtFedExec::processReserveMultiName ( DtReserveMultiNameMsg const &  msg, void *  usr  )

static

virtual void DtFedExec::processReserveMultiName ( DtReserveMultiNameMsg const &  msg )

protectedvirtual

static void DtFedExec::processReserveName ( DtReserveNameMsg const &  msg, void *  usr  )

static

virtual void DtFedExec::processReserveName ( DtReserveNameMsg const &  msg )

protectedvirtual

static void DtFedExec::processResign ( const DtResignMsg &  msg, void *  usr  )

static

virtual void DtFedExec::processResign ( const DtResignMsg &  msg )

protectedvirtual

static void DtFedExec::processRestoreBegun ( const DtRestoreBegunMsg &  msg, void *  usr  )

static

virtual void DtFedExec::processRestoreBegun ( const DtRestoreBegunMsg &  msg )

protectedvirtual

static void DtFedExec::processRestoreComplete ( const DtRestoreCompleteMsg &  msg, void *  usr  )

static

virtual void DtFedExec::processRestoreComplete ( const DtRestoreCompleteMsg &  msg )

protectedvirtual

static void DtFedExec::processRestoreRequest ( const DtRestoreRequestMsg &  msg, void *  usr  )

static

virtual void DtFedExec::processRestoreRequest ( const DtRestoreRequestMsg &  msg )

protectedvirtual

static void DtFedExec::processSaveBegun ( const DtSaveBegunMsg &  msg, void *  usr  )

static

virtual void DtFedExec::processSaveBegun ( const DtSaveBegunMsg &  msg )

protectedvirtual

static void DtFedExec::processSaveComplete ( const DtSaveCompleteMsg &  msg, void *  usr  )

static

virtual void DtFedExec::processSaveComplete ( const DtSaveCompleteMsg &  msg )

protectedvirtual

static void DtFedExec::processSaveRequest ( const DtSaveRequestMsg &  msg, void *  usr  )

static

virtual void DtFedExec::processSaveRequest ( const DtSaveRequestMsg &  msg )

protectedvirtual

static void DtFedExec::processSyncPoint ( const DtSyncPointMsg &  msg, void *  usr  )

static

virtual void DtFedExec::processSyncPoint ( const DtSyncPointMsg &  msg )

protectedvirtual

static void DtFedExec::processSyncPointQuery ( const DtSyncPointQueryMsg &  msg, void *  usr  )

static

virtual void DtFedExec::processSyncPointQuery ( const DtSyncPointQueryMsg &  msg )

protectedvirtual

virtual void DtFedExec::processSyncPtAchievedCallbacks ( DtSyncPt *  point, DtFederate *  federate  )

protectedvirtual

Process the callbacks registered for federates achieving sync points.

void DtFedExec::pushFomModuleToJoinedFederates	(	DtFederate *	newFederate,
		DtString	fileName,
		unsigned int	fileSize,
		const char *	fileBuffer
	)

Push a FOM Module to all joined federates except the one specified.

void DtFedExec::pushFomModuleToSingleFederate	(	DtFederateHandle	recipient,
		DtString	fileName,
		unsigned int	fileSize,
		const char *	fileBuffer
	)

Push a FOM Module to the given federate.

virtual void DtFedExec::readCreateFoms ( DtFomClassMgr *  topLvlTgt, std::vector< DtString > &  fomFiles, DtCreateResponseFlag &  response, DtString &  errorResponseString, DtFedReadStatus &  status, DtFomSorter *  myFomSorter  )

protectedvirtual

Federation Execution Processing.

Maps passed in FOM file names to corresponding fed targets for create

virtual void DtFedExec::readJoinFoms ( std::vector< DtString > &  fomFiles, DtJoinResponseMsg::errorCodes &  response, DtString &  errorResponseString, DtFedReadStatus &  status, DtFomSorter *  myFomSorter  )

protectedvirtual

Maps passed in FOM file names to corresponding fed targets for join.

virtual void DtFedExec::reconnectFederateFailed ( DtFederate *  fed )

virtual

Federate failed to reconnect.

virtual void DtFedExec::reconnectFederateSucceeded ( DtFederate *  fed )

virtual

Federate successfully reconnected.

virtual bool DtFedExec::removeFederateConnection ( unsigned long  id )

virtual

Removes the federate with the given connection ID.

virtual void DtFedExec::removeFederateDisconnectedCallback ( DtFederateCbFn  fn, void *  usr  )

virtual

Unregister callbacks for federate disconnected.

virtual void DtFedExec::removeFederateJoinedCallback ( DtFederateCbFn  fn, void *  usr  )

virtual

Remove callback to be invoked whenever a federate joins a federation.

virtual void DtFedExec::removeFederateReconnectFailedCallback ( DtFederateCbFn  fn, void *  usr  )

virtual

virtual void DtFedExec::removeFederateReconnectSucceededCallback ( DtFederateCbFn  fn, void *  usr  )

virtual

virtual void DtFedExec::removeFederateResignedCallback ( DtFederateCbFn  fn, void *  usr  )

virtual

Remove callback to be invoked whenever a federate resigns a federation.

virtual void DtFedExec::removeFederationSynchronizedCallback ( DtSyncPointCbFn  fn, void *  usr  )

virtual

Unregister a callback to be invoked whenever all federates has achieved a sync point.

virtual void DtFedExec::removeJoinFomModuleForConnection ( unsigned long  connID )

protectedvirtual

Remove the given FOM Module request to the given connection's list.

virtual void DtFedExec::removeSyncPtAchievedCallback ( DtSyncPointAchievedCbFn  fn, void *  usr  )

virtual

Unregister a callback to be invoked whenever a federate has achieved a sync point.

virtual void DtFedExec::removeSyncPtRegisteredCallback ( DtSyncPointCbFn  fn, void *  usr  )

virtual

Unregister a callback to be invoked whenever a new sync point has been registered.

virtual void DtFedExec::requestFedFileUpload ( const DtJoinMsg &  msg )

protectedvirtual

virtual void DtFedExec::resetClockForHeartBeat ( )

virtual

This should only be called when the rtiExec has reconnected.

This will prevent a healthy federate from being disconnected because the rtiExec was disconnected and it did not receive the heartbeat. This comes at the cost of not detecting an unhealthy federate for the period between that federates last heartbeat and the time that this was called.

virtual void DtFedExec::resetControl ( )

protectedvirtual

Reset control.

virtual bool DtFedExec::resignFederate ( DtFederateHandle  handle, DtResignAction  action, DtResignReason  reason  )

virtual

Resign the given federate from the federation.

virtual bool DtFedExec::restore ( const char *  label )

protectedvirtual

restores the fedex Return boolean: save was successful?

virtual bool DtFedExec::restoreFederateConnection ( DtFederateHandle  handle, unsigned long  newConnId, unsigned long &  oldConnId  )

virtual

Restore a joined federate on a new connection ID TODO: let this work for connected, not necessarily joined federates Pass back old connection ID Return bool: federate restored.

virtual void DtFedExec::retireSyncPoint ( const char *  name )

protectedvirtual

DtTIME.

Remove the sync point - usually called after the point has been reached by all, and the federation is synchronized.

virtual bool DtFedExec::save ( const char *  label )

protectedvirtual

saves the fedex Return boolean: save was successful?

virtual void DtFedExec::sendDesignatedFederate ( DtFederateHandle  fedHandle )

protectedvirtual

virtual void DtFedExec::sendEnableDisableNetworkTestingMsg ( const char *  name, bool  enabled  )

protectedvirtual

virtual void DtFedExec::sendJoinResponseMsg ( unsigned long  destinationIDValue, unsigned short  requestID, unsigned int  crcOfFedFile, DtFederateHandle  handle, const char *  federateName, int  fedExHandle, const char *  fedExName, const DtString &  momModule, const std::vector< MAKRti::DtString > &  modules, unsigned long  flags, bool  allowNetworkTesting, bool  enableNetworkTesting, DtHlaVersionId  hlaVers, DtJoinResponseMsg::errorCodes  errorValue = DtJoinResponseMsg::DT_NO_ERROR, const DtString &  errorString = DtString::nullString()  )

protectedvirtual

virtual void DtFedExec::sendMultiNameReservedMsg ( DtFederateHandle  requestingFederate, std::set< std::wstring > const &  objectNames, bool  result  )

protectedvirtual

virtual void DtFedExec::sendNameReservedMsg ( DtFederateHandle  requestingFederate, char const *  objectName, bool  result  )

protectedvirtual

virtual void DtFedExec::sendResignMsg ( const char *  name, DtFederateHandle  fedHandle, DtResignAction  action, DtResignReason  reason, const DtTimeInfo *  timeInfo  )

protectedvirtual

virtual void DtFedExec::sendResignResponseMsgIfNecessary ( const DtResignMsg &  msg, DtResignResponse  response, DtFederateHandle  fedHandle  )

protectedvirtual

virtual void DtFedExec::sendRestoreStatus ( DtFederateHandle  requestingFederate, RTINAMESPACE::FederateRestoreStatusVector const &  restoreStatusList  )

protectedvirtual

virtual void DtFedExec::sendSaveInitiateConstrainedMsg ( const char *  labelVal )

protectedvirtual

virtual void DtFedExec::sendSaveInitiateMsg ( const char *  labelVal )

protectedvirtual

virtual void DtFedExec::sendSaveResponse ( DtFederateHandle  fedHandle, unsigned long  requestID, const char *  labelVal, DtSaveResponseFlag  response  )

protectedvirtual

virtual void DtFedExec::sendSaveStatus ( DtFederateHandle  requestingFederate, RTINAMESPACE::FederateHandleSaveStatusPairVector const &  saveStatusList  )

protectedvirtual

virtual void DtFedExec::sendSyncPointMsg ( DtSyncMsgType  kind, int  id, DtSyncPointStatus  status, const char *  name, RTINAMESPACE::VariableLengthData const *  theTag = NULL, const DtFederateHandleSet *  set = NULL, const DtFederateHandleSet *  unsuccessfulSet = NULL  )

protectedvirtual

virtual void DtFedExec::sendSyncPointReport ( const DtSyncPointQueryMsg &  msg )

protectedvirtual

Send MOM report synchronization point interaction.

virtual void DtFedExec::sendSyncPointStatusReport ( const DtSyncPointQueryMsg &  msg )

protectedvirtual

Send MOM report synchronization point status interaction.

virtual void DtFedExec::sendTransferRidParamsMsg ( const char *  name, DtFederateHandle  fedHandle, const DtString &  paramString  )

protectedvirtual

static void DtFedExec::setCreatorFunction ( DtFedExecCreator  creator )

static

Call this function to set an alternate creator function With this function, users can replace this DtFedExec with their own derived class.

virtual void DtFedExec::setFullyCreated ( bool  val )

virtual

Set completion status.

virtual bool DtFedExec::synchronized ( DtSyncPt *  point, DtFederateHandleSet &  unsuccessfulSet  ) const

protectedvirtual

Return true if we've reached synchronization for this point, false otherwise.

Also return the list of federates who achieved the sync point unsuccessfully.

virtual bool DtFedExec::tick ( )

virtual

Tick the federation execution.

virtual bool DtFedExec::tickDistributor ( )

protectedvirtual

Tick the distributor.

virtual void DtFedExec::tickFederates ( )

protectedvirtual

Check if the interval since the last heartbeat for any federate has exceeded the timeout.

If so, resign the federate.

virtual void DtFedExec::tickJoin ( )

protectedvirtual

Periodically send a join response to prod unconfirmed federate joins This polling mechanism compensates for dropped messages.

virtual void DtFedExec::tickSaveRestore ( )

protectedvirtual

Tick actions.

Check if a save/restore has timed out. If so, terminate it.

virtual bool DtFedExec::transferRidParams ( DtFederateHandle  handle, const DtString &  ridString  )

virtual

Transfer RID parameters over network.

Member Data Documentation

bool DtFedExec::myAllowNetworkTesting

protected

Whether network testing is enabled or completely disabled by the RID.

bool DtFedExec::myAwaitingCreateUpload

protected

std::set< unsigned long> DtFedExec::myAwaitingJoinUpload

protected

DtClock DtFedExec::myClock

protected

DtConnectionMgr* DtFedExec::myConnectionMgr

protected

std::set< unsigned long > DtFedExec::myConnectionsProcessJoined

protected

bool DtFedExec::myCrcCheckFedFile

protected

unsigned int DtFedExec::myCrcOfFedFile

protected

std::vector<DtString> DtFedExec::myCreateFomModules

protected

std::vector<unsigned int> DtFedExec::myCreationFedFilesCRCs

protected

unsigned long DtFedExec::myCreatorConnId

protected

int DtFedExec::myDefaultWait

protected

DtFederateHandle DtFedExec::myDesignatedFederate

protected

DtList DtFedExec::myDisconnectCallbacks

protected

bool DtFedExec::myDistributeFedFile

protected

DtAsyncFileDistributorRunnable* DtFedExec::myDistributor

protected

vrlmod::DtThreadedObject* DtFedExec::myDistributorThread

protected

DtTIME.

std::map< MAKRti::DtString, DtFederateHandle > DtFedExec::myFederateHdlsByName

protected

DtFedExFederateReservedNameMap DtFedExec::myFederateReservedNames

protected

DtFederateHandleInfoMap DtFedExec::myFederates

protected

DtFederateNameInfoMap DtFedExec::myFederatesByName

protected

float DtFedExec::myFederateTimeoutInterval

protected

std::map< const DtString, DtFomClassMgr > DtFedExec::myFedexFileToFedTgtMap

protected

int DtFedExec::myFedExHandle

protected

DtString DtFedExec::myFedExName

protected

std::vector<bool> DtFedExec::myFedHandlesInUse

protected

DtFedReader13* DtFedExec::myFedReader13

protected

DtFedReader1516* DtFedExec::myFedReader1516

protected

DtFedReader1516e* DtFedExec::myFedReader1516e

protected

DtList DtFedExec::myFedSynchronizedCallbacks

protected

MAKRti::DtFomType DtFedExec::myFedType

protected

DtFomClassMgr* DtFedExec::myFom

protected

std::vector<DtString> DtFedExec::myFomModules

protected

std::map<DtString, unsigned int> DtFedExec::myFomModulesNameToCrcMap

protected

int DtFedExec::myFomModuleSorting

protected

std::set<DtString> DtFedExec::myFomModulesSet

protected

std::map<DtString, DtFedReadStatus> DtFedExec::myFomToReadStatusMap

protected

int DtFedExec::myFreeFedHandle

protected

bool DtFedExec::myFullFedFileDistribution

private

bool DtFedExec::myFullyCreated

protected

DtFederateHandleStdSet DtFedExec::myInitiatedSaveFederates

protected

unsigned long DtFedExec::myInitiatorID

protected

DtList DtFedExec::myJoinCallbacks

protected

std::map<unsigned long, std::vector<DtString>* > DtFedExec::myJoinFomModules

protected

std::map<DtFederateHandle, DtFedJoinInfo*> DtFedExec::myJoiningFederates

protected

List of joining federates for which a join confirm is expected.

std::map<unsigned long, DtFedJoinInfo*> DtFedExec::myJoiningFederatesByID

protected

DtString DtFedExec::myMomModule

protected

unsigned int DtFedExec::myMomModuleCrc

protected

bool DtFedExec::myNetworkTestingEnabled

protected

Whether network testing has been toggled on/off by the assistant.

unsigned int DtFedExec::myNumberFederatesAllowed

protected

int DtFedExec::myNumberResponseAttempts

protected

Response interval from params is divided by this number.

int DtFedExec::myNumFederates

protected

std::set<DtFederateHandle> DtFedExec::myPendingRestoreFederates

protected

std::set<DtFederateHandle> DtFedExec::myPendingSaveFederates

protected

DtList DtFedExec::myReconnectFailedCallbacks

protected

DtList DtFedExec::myReconnectSucceededCallbacks

protected

DtFedExReservedNameSet DtFedExec::myReservedNames

protected

DtList DtFedExec::myResignCallbacks

protected

float DtFedExec::myResponseInterval

protected

to obtain response retransmission interval

bool DtFedExec::myRestore

protected

DtFederateHandleInfoMap DtFedExec::myRestoreFederatesByNew

protected

DtFederateHandleInfoMap DtFedExec::myRestoreFederatesByOld

protected

bool DtFedExec::mySave

protected

bool DtFedExec::mySaveBegun

protected

DtString DtFedExec::mySaveLabel

protected

DtString DtFedExec::mySavePath

protected

bool DtFedExec::mySavePending

protected

DtFederateHandle DtFedExec::mySavingFederate

protected

DtList DtFedExec::mySpAchievedCallbacks

protected

DtList DtFedExec::mySpRegisterCallbacks

protected

int DtFedExec::myStrictNameReservation

protected

DtSyncHashlist DtFedExec::mySyncList

protected

std::map<DtString, DtFileInformation*> DtFedExec::myTakenFiles

protected

int DtFedExec::myTimeout

protected

bool DtFedExec::myUseDestinationMetadata

protected

const DtString DtFedExec::nullStr

staticprivate

DtFedExecCreator DtFedExec::theCreator

staticprotected

const std::vector<DtString> DtFedExec::theEmptyStringSet

staticprotected

---

The documentation for this class was generated from the following file:

• fedex.h
