Stores the information on an RTI connection and possibly matching configuration known by the Assistant. More...

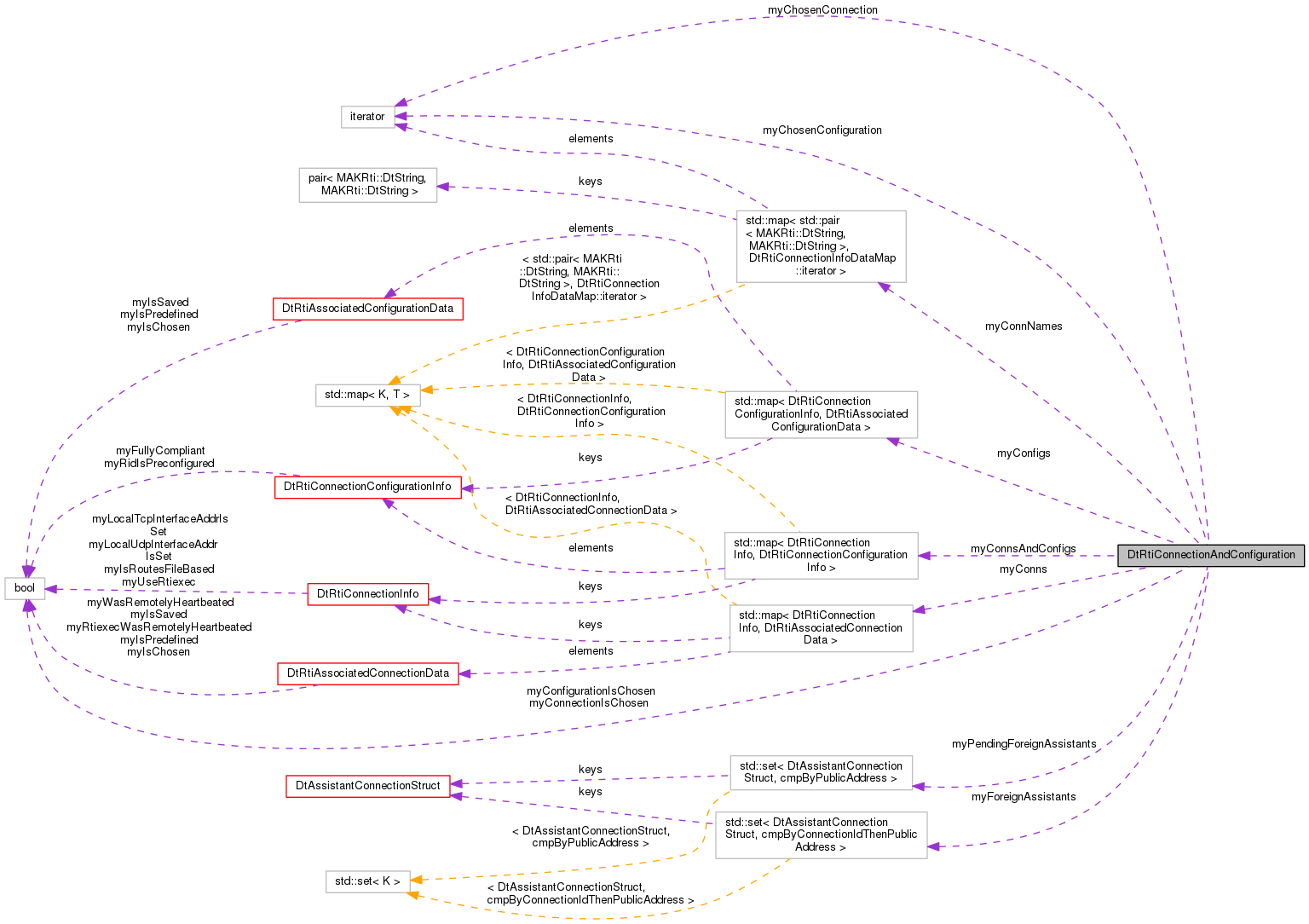

Collaboration diagram for DtRtiConnectionAndConfiguration:

Public Types
typedef std::map < DtRtiConnectionInfo, DtRtiConnectionConfigurationInfo >	DtRtiConnAndConfigMap

Public Member Functions
	DtRtiConnectionAndConfiguration ()
	Default CTOR. More...

	DtRtiConnectionAndConfiguration (const DtRtiConnectionAndConfiguration &other)
	Copy CTOR. More...

virtual	~DtRtiConnectionAndConfiguration ()
	Virtual DTOR. More...

virtual DtRtiConnectionAndConfiguration &	operator= (const DtRtiConnectionAndConfiguration &other)
	Assignment operator. More...

virtual unsigned int	size () const

virtual bool	addConfiguration (const DtRtiConfigurationInfoDataPair &config)
	If config is unknown store it and return whether it was stored. More...

virtual bool	removeConfiguration (const DtRtiConnectionConfigurationInfo &config)
	If config is known, remove it and return whether it was removed. More...

virtual bool	addConnection (const DtRtiConnectionInfoDataPair &conn)
	If connection is unknown store it and return whether it was stored. More...

virtual bool	removeConnection (const DtRtiConnectionInfo &conn)
	If connection is known, remove it and return whether it was removed. More...

virtual bool	updateConnection (DtRtiConnectionInfoDataPair &conn)
	Update the existing connection with with the new associated data as well as ensuring that both conn and the stored connection have the most complete host information. More...

virtual bool	updateConnectionAssociatedDataOnly (DtRtiConnectionInfoDataPair &conn)
	Update the existing connection with with the new associated data as well as ensuring that the passed in conn has the most complete host info. More...

virtual bool	updateConfiguration (const DtRtiConfigurationInfoDataPair &config)
	Replace the existing configuration with the new associated data. More...

virtual void	setConnectionConfigMapping (const DtRtiConnectionInfo &conn, const DtRtiConnectionConfigurationInfo &config)
	Add or changes the configuration that is mapped to the connection. More...

virtual void	removeConnectionConfigMapping (const DtRtiConnectionInfo &conn)
	Remove mapping between a connection and its configuration. More...

virtual bool	findConfigMapping (const DtRtiConnectionInfo &conn, DtRtiConfigurationInfoDataPair &config) const
	Find the configuration associated with the given connection. More...

virtual bool	willConflict (const DtRtiConnectionInfo &compare, MAKRti::DtString &reason) const
	Determines if there are any active connections in this list that will conflict with the given one. More...

virtual bool	nameAndOwnerExists (const MAKRti::DtString &name, const MAKRti::DtString &owner) const
	Checks the list to see if a connection with this name and owning host name is present, and returns true if it is. More...

virtual int	numberOfEntriesWithName (const MAKRti::DtString &name) const
	Returns the number of entries with the given name. More...

virtual bool	findConnectionWithMatchingNameAndOwner (DtRtiConnectionInfoDataPair &conn)
	Finds the connection with the matching name and owner with the given one. More...

virtual void	clearAllInfo ()
	Clears all connections, configurations, and mappings. More...

virtual bool	findConnection (DtRtiConnectionInfoDataPair &conn) const
	Find the first connection that's compatible with conn. More...

virtual bool	getRtiExecConnectionData (const DtRtiConnectionInfo &conn, DtRtiConnectionInfoDataPair &rtiExecConn) const
	Find a connection data that is hosting an active rtiexec component and whose address and port matches the given connection Return true if the connection data was found; otherwise, false. More...

virtual bool	findConfiguration (DtRtiConfigurationInfoDataPair &config) const
	Find the first configuration that's compatible. More...

virtual void	clearAllSaved ()
	For all connections set their saved status to false (if they're either verified or forwarderVerified). More...

virtual bool	getChosenConnection (DtRtiConnectionInfoDataPair &conn)
	Retrieves the chosen connection, or returns false if nothing has been chosen. More...

virtual bool	getChosenConfiguration (DtRtiConfigurationInfoDataPair &config)
	Retrieves the chosen configuration, or returns false if nothing has been chosen. More...

virtual const DtRtiConnectionInfoDataMap &	connections () const
	Returns the full set of connections. More...

virtual const DtRtiConfigurationInfoDataMap &	configs () const
	Returns the full set of configurations. More...

virtual const DtRtiConnAndConfigMap &	connToConfigMap () const
	Returns the full set of configurations. More...

virtual const DtRemoteAssistantSet &	foreignAssistants () const
	Returns the full set of foreign assistant connections. More...

virtual bool	updateLocalInterface (const MAKRti::DtString &hostName, const DtInetAddr &localInterface, DtRtiConnectionAndConfiguration &updatedConns)
	Update local interface for connections with the given host. Add updated connections to set. More...

Comparison operators.
virtual bool	operator< (const DtRtiConnectionAndConfiguration &other) const

virtual bool	operator== (const DtRtiConnectionAndConfiguration &other) const

virtual bool	operator!= (const DtRtiConnectionAndConfiguration &other) const

Foreign assistant addition methods.
Add a foreign assistant host
virtual bool	addForeignAssistant (const DtAssistantConnectionStruct &assistant)

virtual bool	addRemoteForeignAssistant (const DtAssistantConnectionStruct &assistant, DtAssistantConnectionStruct &old)

Foreign assistant removal methods.
Remove a foreign assistant host
virtual void	removeForeignAssistant (const DtAssistantConnectionStruct &assistant)

Protected Types
typedef std::map< std::pair < MAKRti::DtString, MAKRti::DtString > , DtRtiConnectionInfoDataMap::iterator >	DtNameAndOwnerMap

Protected Member Functions
virtual DtRtiConnectionInfoDataMap::iterator	replaceConnection (DtRtiConnectionInfoDataMap::iterator const &oldConnIter, DtRtiConnectionInfoDataPair &newConn)
	Replace the old connection with the new connection adjusting chosen connection if necessary. More...


virtual void	removeChosenConnection ()
	Removes the current chosen designation. More...

virtual void	removeChosenConfiguration ()
	Removes the current chosen designation. More...

Protected Attributes
DtRtiConnAndConfigMap	myConnsAndConfigs

DtRtiConnectionInfoDataMap	myConns

DtRtiConfigurationInfoDataMap	myConfigs

DtAssistantSetByAddresses	myPendingForeignAssistants

DtRemoteAssistantSet	myForeignAssistants

DtNameAndOwnerMap	myConnNames

DtRtiConnectionInfoDataMap::iterator	myChosenConnection

DtRtiConfigurationInfoDataMap::iterator	myChosenConfiguration

bool	myConnectionIsChosen

bool	myConfigurationIsChosen

Detailed Description

Stores the information on an RTI connection and possibly matching configuration known by the Assistant.

Member Typedef Documentation

typedef std::map<std::pair<MAKRti::DtString,MAKRti::DtString>, DtRtiConnectionInfoDataMap::iterator> DtRtiConnectionAndConfiguration::DtNameAndOwnerMap

protected

typedef std::map<DtRtiConnectionInfo, DtRtiConnectionConfigurationInfo> DtRtiConnectionAndConfiguration::DtRtiConnAndConfigMap

Constructor & Destructor Documentation

DtRtiConnectionAndConfiguration::DtRtiConnectionAndConfiguration ( )

Default CTOR.

DtRtiConnectionAndConfiguration::DtRtiConnectionAndConfiguration ( const DtRtiConnectionAndConfiguration & other )

Copy CTOR.

virtual DtRtiConnectionAndConfiguration::~DtRtiConnectionAndConfiguration ( )

virtual

Virtual DTOR.

Member Function Documentation

virtual bool DtRtiConnectionAndConfiguration::addConfiguration ( const DtRtiConfigurationInfoDataPair & config )

virtual

If config is unknown store it and return whether it was stored.

virtual bool DtRtiConnectionAndConfiguration::addConnection ( const DtRtiConnectionInfoDataPair & conn )

virtual

If connection is unknown store it and return whether it was stored.

virtual bool DtRtiConnectionAndConfiguration::addForeignAssistant ( const DtAssistantConnectionStruct & assistant )

virtual

virtual bool DtRtiConnectionAndConfiguration::addRemoteForeignAssistant	(	const DtAssistantConnectionStruct &	assistant,
		DtAssistantConnectionStruct &	old
	)

virtual

virtual void DtRtiConnectionAndConfiguration::clearAllInfo ( )

virtual

Clears all connections, configurations, and mappings.

virtual void DtRtiConnectionAndConfiguration::clearAllSaved ( )

virtual

For all connections set their saved status to false (if they're either verified or forwarderVerified).

virtual const DtRtiConfigurationInfoDataMap& DtRtiConnectionAndConfiguration::configs ( ) const

inlinevirtual

Returns the full set of configurations.

virtual const DtRtiConnectionInfoDataMap& DtRtiConnectionAndConfiguration::connections ( ) const

inlinevirtual

Returns the full set of connections.

virtual const DtRtiConnAndConfigMap& DtRtiConnectionAndConfiguration::connToConfigMap ( ) const

inlinevirtual

Returns the full set of configurations.

virtual bool DtRtiConnectionAndConfiguration::findConfigMapping	(	const DtRtiConnectionInfo &	conn,
		DtRtiConfigurationInfoDataPair &	config
	)		const

virtual

Find the configuration associated with the given connection.

virtual bool DtRtiConnectionAndConfiguration::findConfiguration ( DtRtiConfigurationInfoDataPair & config ) const

virtual

Find the first configuration that's compatible.

Returns the found configuration, including its associated data

virtual bool DtRtiConnectionAndConfiguration::findConnection ( DtRtiConnectionInfoDataPair & conn ) const

virtual

Find the first connection that's compatible with conn.

Returns the found connection, including its associated data

virtual bool DtRtiConnectionAndConfiguration::findConnectionWithMatchingNameAndOwner ( DtRtiConnectionInfoDataPair & conn )

virtual

Finds the connection with the matching name and owner with the given one.

Returns true if the connection was found and could be replaced.

virtual const DtRemoteAssistantSet& DtRtiConnectionAndConfiguration::foreignAssistants ( ) const

inlinevirtual

Returns the full set of foreign assistant connections.

virtual bool DtRtiConnectionAndConfiguration::getChosenConfiguration ( DtRtiConfigurationInfoDataPair & config )

virtual

Retrieves the chosen configuration, or returns false if nothing has been chosen.

virtual bool DtRtiConnectionAndConfiguration::getChosenConnection ( DtRtiConnectionInfoDataPair & conn )

virtual

Retrieves the chosen connection, or returns false if nothing has been chosen.

virtual bool DtRtiConnectionAndConfiguration::getRtiExecConnectionData	(	const DtRtiConnectionInfo &	conn,
		DtRtiConnectionInfoDataPair &	rtiExecConn
	)		const

virtual

Find a connection data that is hosting an active rtiexec component and whose address and port matches the given connection Return true if the connection data was found; otherwise, false.

virtual bool DtRtiConnectionAndConfiguration::nameAndOwnerExists	(	const MAKRti::DtString &	name,
		const MAKRti::DtString &	owner
	)		const

virtual

Checks the list to see if a connection with this name and owning host name is present, and returns true if it is.

virtual int DtRtiConnectionAndConfiguration::numberOfEntriesWithName ( const MAKRti::DtString & name ) const

virtual

Returns the number of entries with the given name.

virtual bool DtRtiConnectionAndConfiguration::operator!= ( const DtRtiConnectionAndConfiguration & other ) const

virtual

virtual bool DtRtiConnectionAndConfiguration::operator< ( const DtRtiConnectionAndConfiguration & other ) const

virtual

virtual DtRtiConnectionAndConfiguration& DtRtiConnectionAndConfiguration::operator= ( const DtRtiConnectionAndConfiguration & other )

virtual

Assignment operator.

virtual bool DtRtiConnectionAndConfiguration::operator== ( const DtRtiConnectionAndConfiguration & other ) const

virtual

virtual void DtRtiConnectionAndConfiguration::removeChosenConfiguration ( )

protectedvirtual

Removes the current chosen designation.

virtual void DtRtiConnectionAndConfiguration::removeChosenConnection ( )

protectedvirtual

Removes the current chosen designation.

virtual bool DtRtiConnectionAndConfiguration::removeConfiguration ( const DtRtiConnectionConfigurationInfo & config )

virtual

If config is known, remove it and return whether it was removed.

virtual bool DtRtiConnectionAndConfiguration::removeConnection ( const DtRtiConnectionInfo & conn )

virtual

If connection is known, remove it and return whether it was removed.

virtual void DtRtiConnectionAndConfiguration::removeConnectionConfigMapping ( const DtRtiConnectionInfo & conn )

virtual

Remove mapping between a connection and its configuration.

virtual void DtRtiConnectionAndConfiguration::removeForeignAssistant ( const DtAssistantConnectionStruct & assistant )

virtual

virtual DtRtiConnectionInfoDataMap::iterator DtRtiConnectionAndConfiguration::replaceConnection	(	DtRtiConnectionInfoDataMap::iterator const &	oldConnIter,
		DtRtiConnectionInfoDataPair &	newConn
	)

protectedvirtual

Replace the old connection with the new connection adjusting chosen connection if necessary.

Return the iterator to the new connection.

virtual void DtRtiConnectionAndConfiguration::setConnectionConfigMapping	(	const DtRtiConnectionInfo &	conn,
		const DtRtiConnectionConfigurationInfo &	config
	)

virtual

Add or changes the configuration that is mapped to the connection.

If another mapping already exists for the connection, it is removed before adding the new one.

virtual unsigned int DtRtiConnectionAndConfiguration::size ( ) const

inlinevirtual

virtual bool DtRtiConnectionAndConfiguration::updateConfiguration ( const DtRtiConfigurationInfoDataPair & config )

virtual

Replace the existing configuration with the new associated data.

virtual bool DtRtiConnectionAndConfiguration::updateConnection ( DtRtiConnectionInfoDataPair & conn )

virtual

Update the existing connection with with the new associated data as well as ensuring that both conn and the stored connection have the most complete host information.

virtual bool DtRtiConnectionAndConfiguration::updateConnectionAssociatedDataOnly ( DtRtiConnectionInfoDataPair & conn )

virtual

Update the existing connection with with the new associated data as well as ensuring that the passed in conn has the most complete host info.

Does not update any host info for the stored connection.

virtual bool DtRtiConnectionAndConfiguration::updateLocalInterface	(	const MAKRti::DtString &	hostName,
		const DtInetAddr &	localInterface,
		DtRtiConnectionAndConfiguration &	updatedConns
	)

virtual

Update local interface for connections with the given host. Add updated connections to set.

virtual bool DtRtiConnectionAndConfiguration::willConflict	(	const DtRtiConnectionInfo &	compare,
		MAKRti::DtString &	reason
	)		const

virtual

Determines if there are any active connections in this list that will conflict with the given one.

Sets a description of the reason for the conflict.

Member Data Documentation

DtRtiConfigurationInfoDataMap::iterator DtRtiConnectionAndConfiguration::myChosenConfiguration

protected

DtRtiConnectionInfoDataMap::iterator DtRtiConnectionAndConfiguration::myChosenConnection

protected

DtRtiConfigurationInfoDataMap DtRtiConnectionAndConfiguration::myConfigs

protected

bool DtRtiConnectionAndConfiguration::myConfigurationIsChosen

protected

bool DtRtiConnectionAndConfiguration::myConnectionIsChosen

protected

DtNameAndOwnerMap DtRtiConnectionAndConfiguration::myConnNames

protected

DtRtiConnectionInfoDataMap DtRtiConnectionAndConfiguration::myConns

protected

DtRtiConnAndConfigMap DtRtiConnectionAndConfiguration::myConnsAndConfigs

protected

DtRemoteAssistantSet DtRtiConnectionAndConfiguration::myForeignAssistants

protected

DtAssistantSetByAddresses DtRtiConnectionAndConfiguration::myPendingForeignAssistants

protected

The documentation for this class was generated from the following file:

connectionAndConfiguration.h

Public Types

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
