DtMacAddrMsg Class Reference

The DtMacAddrMsg defines a msg used by forwarders to connect. More...

Inheritance diagram for DtMacAddrMsg:

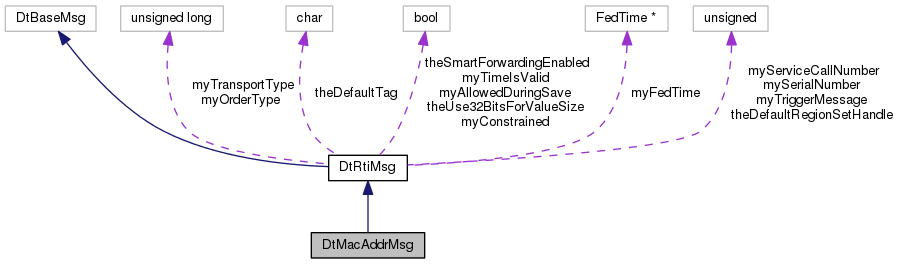

Collaboration diagram for DtMacAddrMsg:

Public Member Functions
	DtMacAddrMsg (DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Constructors. More...
	DtMacAddrMsg (const DtNetMacAddrMsg *netRepMsg, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
virtual	~DtMacAddrMsg ()
	Destructor. More...
virtual DtRtiMsg *	clone (bool copy=true) const
	Return a copy/empty object of the same type as this. More...
virtual void	printData (DtLogicalTimeFactory *logicalTimeFactory) const
	Print the data section. More...
virtual void	setMacAddr (unsigned long long addr)
	Accessor and mutators for the MAC address of the sender. More...
virtual unsigned long long	macAddr () const
virtual void	setSenderConnecting (bool yesNo)
	Accessor and mutators for whether the sender of the message is also making a connection to the recipient and the recipient should use the MAC Addr to determine whether to drop its connections. More...
virtual bool	senderConnecting () const
Public Member Functions inherited from DtRtiMsg
virtual	~DtRtiMsg ()
	Destructor. More...
virtual DtRtiMsg *	cloneWithTransport (bool copy=true) const
	Return a copy/empty object of the same type as this using clone and set the transport type from the host message. More...
virtual DtNetMsgHeader *	netHeader () const
	Get header of network representation. More...
virtual int	version () const
	Return the message version. More...
virtual bool	isValidVersion () const
	Returns bool: message version is valid? More...
virtual void	setFedEx (const MAKRti::DtString &name)
	All RTI messages contain information to identify which federation execution the message applies to. More...
virtual void	setFedEx (int handle)
	Set federation execution identifier as a handle. More...
virtual bool	isForExec (const MAKRti::DtString &execName, int execHandle) const
	Returns true if the current message belongs to the indicated federation execution, false otherwise. More...
virtual DtRtiMsgKind	msgKind () const
	Get the message kind. More...
virtual const char *	kindString () const
	Returns the message kind string name. More...
virtual bool	isConstrained () const
	Return boolean: message type can be time constrained? More...
virtual bool	isAllowedDuringSave () const
	Return boolean: message type can be processed during save? More...
virtual void	setTime (const RTI::FedTime &time)
	Set/Get time Used in timestamped messages. More...
virtual RTI::FedTime const *	time (DtLogicalTimeFactory *fedTimeFactory) const
virtual bool	hasTime () const
	Returns true if time field is valid. More...
virtual void	setSerialNumber (unsigned long serialNumberValue)
	Set/Get event retraction serial number Used in timestamped messages. More...
virtual unsigned long	serialNumber () const
virtual void	setTransportType (DtTransportHandle type)
	Set/Get transport type. More...
virtual DtTransportHandle	transportType () const
virtual DtOrderHandle	orderType () const
	This base implementation always returns recieve order. More...
virtual bool	isMetadataPresent () const
	Test if metadata has been added to a DtRtiMsg object. More...
virtual bool	addMetadata (caddr_t *mtdAddr, unsigned int size, unsigned int *alignPad, unsigned int *headerPad=NULL)
	Allocate space for next block of metadata. More...
virtual void	removeMetadata (unsigned int size)
	Update the size of the message when metadata has been removed. More...
bool	isInteractionMsgType () const
	Utility functions, check the message type against known interaciton/update message types. More...
bool	isUpdateMsgType () const
virtual void	print (DtLogicalTimeFactory *logicalTimeFactory) const
	Printing functions. More...
virtual void	printHeader (DtLogicalTimeFactory *logicalTimeFactory) const
virtual void	printTime (const char *label, RTI::FedTime const *timeValue) const
	Print the given time. More...
virtual void	printInterval (const char *label, RTI::FedTime const *intervalValue) const
	Print the interval. More...
virtual int	status () const
	Returns MSG_STATUS_OK if OK, a reason enumeration otherwise. More...
virtual const MAKRti::DtString	fedExName () const
	These two functions should be avoided in favor of isForExec(). More...
virtual int	fedExHandle () const
	Get the federation execution identifier as a handle Returns 0 if the identifier is being represented as a name. More...
virtual void	setFederateHandle (DtFederateHandle handle)
	Set/Get federate handle. More...
virtual DtFederateHandle	federateHandle () const
	Set/Get federate handle. More...
virtual void	setSequenceNumber (unsigned long value)
	Set/Get message sequence number. More...
virtual unsigned long	sequenceNumber () const
	Set/Get message sequence number. More...
virtual void	setServiceCallNumber (unsigned long value)
	Set/Get service call number. More...
virtual unsigned long	serviceCallNumber () const
	Set/Get service call number. More...
virtual void	setTriggerMessageNumber (unsigned long value)
	Set/Get trigger message sequence number (i.e., the message being processed that triggered this message being sent). More...
virtual unsigned long	triggerMessageNumber () const
	Set/Get trigger message sequence number (i.e., the message being processed that triggered this message being sent). More...

Static Public Member Functions
static DtRtiMsg *	create (const DtNetMsgHeader *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Creators. More...
static DtRtiMsg *	create (DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
static void	addCallback (DtConnectionMgr *conn, DtMacAddrCb cb, void *usr)
	Adds or removes a callback with the given connection manager for this message type. More...
static void	removeCallback (DtConnectionMgr *conn, DtMacAddrCb cb, void *usr)
Static Public Member Functions inherited from DtRtiMsg
static const DtNetMsgHeader *	netHeader (const void *buffer)
	Extracts the header network representation from the buffer. More...
static const char *	kindToString (DtRtiMsgKind kind)
	Returns the name of the message, by kind enumeration. More...
static const char *	kindString (const void *buffer)
	Extracts the message kind from the given buffer and returns its string name. More...
static unsigned long	totalSize (const void *buffer)
	Extracts the message total size form the given buffer. More...
static const DtRtiMsgKind	msgKind (const void *buffer)
	Extracts the message kind from the given buffer. More...
static unsigned int	version (const void *buffer)
	Extracts the message version form the given buffer. More...
static unsigned int	fedExHandle (const void *buffer)
	Extracts the message fedEx handle form the given buffer (0 if lightweight fedEx name) More...
static DtFederateHandle	federateHandle (const void *buffer)
	Extracts the message federate handle form the given buffer. More...
static unsigned long	sequenceNumber (const void *buffer)
	Extracts the message sequence number form the given buffer. More...
static unsigned char	flags (const void *buffer)
	Extracts the message flags form the given buffer. More...
static unsigned long	metadataSize (const void *buffer)
	Extracts the message metadata size form the given buffer. More...
static void	setDefaultRegionSet (unsigned long defaultRegionSet)
	Set the default region set handle. More...
static void	setUse32BitsForValueSize (bool use32BitsForValueSizeEnabled)
	Set/Get flag to enable use of 32 bit size field for attribute/parameter values. More...
static bool	use32BitsForValueSize ()
static void	setSmartForwardingEnabled (bool enabled)
	Set/Get is SmartForwarding enabled? More...
static bool	smartForwardingEnabled ()

Protected Member Functions
virtual DtNetMacAddrMsg *	netMacAddrMsg ()
	The network representation for the DtMacADdrMsg message. More...
virtual const DtNetMacAddrMsg *	netMacAddrMsg () const
virtual DtRtiMsgKind	internalDtRtiMsgKind ()
	Returns the kind of a DtMacAddrMsg message. More...
virtual int	minSize () const
	Returns minimum size of a message, including header. More...
Protected Member Functions inherited from DtRtiMsg
	DtRtiMsg ()
	Constructor. More...
virtual void	sizeChanged (int size)
	Called whenever size is changed using changeSize, or insert/deleteBytes. More...
void	initDtRtiMsg (int size, DtRtiMsgKind msgKindVal, DtBufferPtr buffer)
	Called by ctor, so not virtual. More...
void	initDtRtiMsg (const void *initial, int size, DtBufferPtr buffer)
void	initDtRtiMsg (const DtNetMsgHeader *header, DtBufferPtr buffer)
virtual void	adjustBytes (int offset, int numBytes)
	Adjust numBytes bytes at the indicated offset in the net rep. More...
virtual void	adjustBytes (void *address, int numBytes)
	Adjust the numBytes starting at the indicated addres. More...

Additional Inherited Members
Static Public Attributes inherited from DtRtiMsg
static unsigned long	theDefaultRegionSetHandle
static const char *	theDefaultTag
Protected Attributes inherited from DtRtiMsg
DtTransportHandle	myTransportType
DtOrderHandle	myOrderType
RTI::FedTime *	myFedTime
bool	myTimeIsValid
bool	myConstrained
bool	myAllowedDuringSave
unsigned long	mySerialNumber
unsigned long	myServiceCallNumber
unsigned long	myTriggerMessage
Static Protected Attributes inherited from DtRtiMsg
static bool	theUse32BitsForValueSize
static bool	theSmartForwardingEnabled

Detailed Description

The DtMacAddrMsg defines a msg used by forwarders to connect.

Constructor & Destructor Documentation

DtMacAddrMsg::DtMacAddrMsg

(

DtBufferPtr

buffer = DtUSE_INTERNAL_BUFFER

)

Constructors.

DtMacAddrMsg::DtMacAddrMsg	(	const DtNetMacAddrMsg *	netRepMsg,
		DtBufferPtr	buffer = DtUSE_INTERNAL_BUFFER
	)

virtual DtMacAddrMsg::~DtMacAddrMsg ( )

virtual

Destructor.

Member Function Documentation

static void DtMacAddrMsg::addCallback ( DtConnectionMgr *  conn, DtMacAddrCb  cb, void *  usr  )

static

Adds or removes a callback with the given connection manager for this message type.

virtual DtRtiMsg* DtMacAddrMsg::clone ( bool  copy = true ) const

virtual

Return a copy/empty object of the same type as this.

Implements DtRtiMsg.

static DtRtiMsg* DtMacAddrMsg::create ( const DtNetMsgHeader *  initial, DtBufferPtr  buffer = DtUSE_INTERNAL_BUFFER  )

static

Creators.

static DtRtiMsg* DtMacAddrMsg::create ( DtBufferPtr  buffer = DtUSE_INTERNAL_BUFFER )

static

virtual DtRtiMsgKind DtMacAddrMsg::internalDtRtiMsgKind ( )

protectedvirtual

Returns the kind of a DtMacAddrMsg message.

Implements DtRtiMsg.

virtual unsigned long long DtMacAddrMsg::macAddr ( ) const

virtual

virtual int DtMacAddrMsg::minSize ( ) const

protectedvirtual

Returns minimum size of a message, including header.

virtual DtNetMacAddrMsg* DtMacAddrMsg::netMacAddrMsg ( )

protectedvirtual

The network representation for the DtMacADdrMsg message.

virtual const DtNetMacAddrMsg* DtMacAddrMsg::netMacAddrMsg ( ) const

protectedvirtual

virtual void DtMacAddrMsg::printData ( DtLogicalTimeFactory *  logicalTimeFactory ) const

virtual

Print the data section.

Reimplemented from DtRtiMsg.

static void DtMacAddrMsg::removeCallback ( DtConnectionMgr *  conn, DtMacAddrCb  cb, void *  usr  )

static

virtual bool DtMacAddrMsg::senderConnecting ( ) const

virtual

virtual void DtMacAddrMsg::setMacAddr ( unsigned long long  addr )

virtual

Accessor and mutators for the MAC address of the sender.

virtual void DtMacAddrMsg::setSenderConnecting ( bool  yesNo )

virtual

Accessor and mutators for whether the sender of the message is also making a connection to the recipient and the recipient should use the MAC Addr to determine whether to drop its connections.

Only pertinent when not configuring via routes file.

---

The documentation for this class was generated from the following file:

• macAddrMsg.h
