DtMsgCompressor Class Reference

The DtMsgCompressor class provides a means for compressing and uncompressing messages. More...

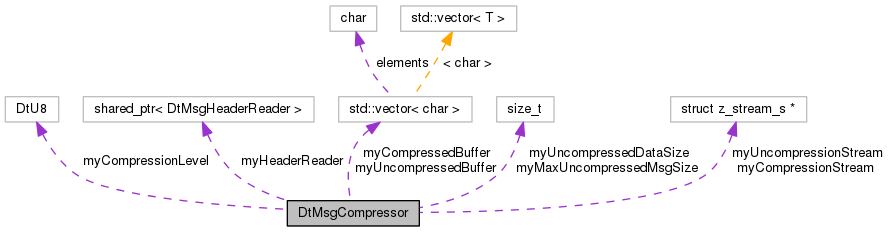

Collaboration diagram for DtMsgCompressor:

Public Member Functions
	DtMsgCompressor (DtBoost::shared_ptr< DtMsgHeaderReader > hdrReader, size_t maxUncompressedMsgSize, MAKRti::DtU8 compressionLevel=1)
	Constructor. More...
virtual	~DtMsgCompressor ()
	Destructor. More...
virtual bool	compressMsg (char *msg, size_t msgSize, char **compressedMsg, size_t &compressedSize)
	Compresses the message. More...
virtual bool	isCompressed (const char *bufferPtr, size_t size) const
	Returns true if the given message is compressed. More...
virtual bool	uncompressMsg (char *msg, size_t msgSize, char **uncompressedMsg, size_t &uncompressedSize)
	Uncompresses the message. More...
virtual MAKRti::DtU8	compressionLevel () const
	Get/Set the compression level. More...
virtual void	setCompressionLevel (MAKRti::DtU8 level)
virtual size_t	maxUncompressedMsgSize () const
	Get the maximum size of uncompressed messages. More...

Protected Attributes
std::vector< char >	myCompressedBuffer
	Buffer for storing outgoing messages after they have been compressed. More...
std::vector< char >	myUncompressedBuffer
	Buffer for storing incoming messages after they have been uncompressed. More...
size_t	myUncompressedDataSize
	Size of the data in the uncompressed buffer. More...
DtBoost::shared_ptr < DtMsgHeaderReader >	myHeaderReader
	Reads data from message header. More...
MAKRti::DtU8	myCompressionLevel
	The compression level. More...
size_t	myMaxUncompressedMsgSize
	The maximum size of uncompressed messages. More...
z_streamp	myCompressionStream
	Pointer to ZLIB stream structure used for compression. More...
z_streamp	myUncompressionStream
	Pointer to ZLIB stream structure used for decompression. More...

Detailed Description

The DtMsgCompressor class provides a means for compressing and uncompressing messages.

Constructor & Destructor Documentation

DtMsgCompressor::DtMsgCompressor	(	DtBoost::shared_ptr< DtMsgHeaderReader >	hdrReader,
		size_t	maxUncompressedMsgSize,
		MAKRti::DtU8	compressionLevel = 1
	)

Constructor.

virtual DtMsgCompressor::~DtMsgCompressor ( )

virtual

Destructor.

Member Function Documentation

virtual MAKRti::DtU8 DtMsgCompressor::compressionLevel ( ) const

inlinevirtual

Get/Set the compression level.

virtual bool DtMsgCompressor::compressMsg ( char *  msg, size_t  msgSize, char **  compressedMsg, size_t &  compressedSize  )

virtual

Compresses the message.

Returns true if the message was compressed. Fills in the location and size of the compressed message if the message is successfully compressed.

virtual bool DtMsgCompressor::isCompressed ( const char *  bufferPtr, size_t  size  ) const

virtual

Returns true if the given message is compressed.

virtual size_t DtMsgCompressor::maxUncompressedMsgSize ( ) const

inlinevirtual

Get the maximum size of uncompressed messages.

Used for internal buffer sizes.

virtual void DtMsgCompressor::setCompressionLevel ( MAKRti::DtU8  level )

virtual

virtual bool DtMsgCompressor::uncompressMsg ( char *  msg, size_t  msgSize, char **  uncompressedMsg, size_t &  uncompressedSize  )

virtual

Uncompresses the message.

Returns true if the message was uncompressed. Fills in the location and size of the uncompressed message if a full message is successfully uncompressed.

Member Data Documentation

std::vector<char> DtMsgCompressor::myCompressedBuffer

protected

Buffer for storing outgoing messages after they have been compressed.

MAKRti::DtU8 DtMsgCompressor::myCompressionLevel

protected

The compression level.

z_streamp DtMsgCompressor::myCompressionStream

protected

Pointer to ZLIB stream structure used for compression.

DtBoost::shared_ptr<DtMsgHeaderReader> DtMsgCompressor::myHeaderReader

protected

Reads data from message header.

size_t DtMsgCompressor::myMaxUncompressedMsgSize

protected

The maximum size of uncompressed messages.

std::vector<char> DtMsgCompressor::myUncompressedBuffer

protected

Buffer for storing incoming messages after they have been uncompressed.

size_t DtMsgCompressor::myUncompressedDataSize

protected

Size of the data in the uncompressed buffer.

z_streamp DtMsgCompressor::myUncompressionStream

protected

Pointer to ZLIB stream structure used for decompression.

---

The documentation for this class was generated from the following file:

• msgCompressor.h
