DtRecipientLatencyTest Class Reference

DtRecipientLatencyTest runs network connectivity tests between local RTI components. More...

Inheritance diagram for DtRecipientLatencyTest:

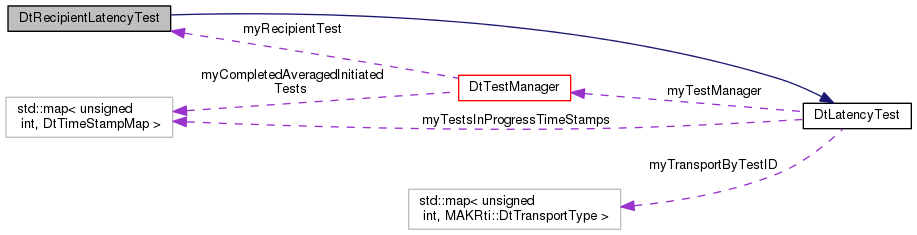

Collaboration diagram for DtRecipientLatencyTest:

Public Member Functions
	DtRecipientLatencyTest (DtTestManager *parent)
	Constructor. More...
	DtRecipientLatencyTest ()
	Constructor. More...
virtual	~DtRecipientLatencyTest ()
	Destructor. More...
virtual bool	tick ()
	Process test activities. More...
virtual void	addSendInteractionTimeStamp (unsigned int testID)
	Record the current time and associate it with the input test ID in myTestsInProgressTimeStamp with a send Interaction time stamp. More...
virtual void	addNetSendTimeStamp (unsigned int testID, DtRtiMsg &msg)
	Record the current time and associate it with the input test ID in myTestsInProgressTimeStamp with a net send time stamp. More...
virtual void	addNetReceiveTimeStamp (unsigned int testID, const DtRtiMsg &msg)
	Record the current time and associate it with the input test ID in myTestsInProgressTimeStamp with a net receive time stamp. More...
virtual void	addReceiveInteractionTimeStamp (unsigned int testID, MAKRti::DtTime timeToUse)
	Record the current time and associate it with the input test ID in myTestsInProgressTimeStamp with a receive interaction time stamp. More...
virtual void	addAsyncQueueMsgTimeStamp (unsigned int testID, const DtRtiMsg &msg)
	Record the current time and associate it with the input test ID in myTestsInProgressTimeStamp with a async Queue Msg time stamp. More...
Public Member Functions inherited from DtLatencyTest
	DtLatencyTest (DtTestManager *parent)
	Constructor. More...
	DtLatencyTest ()
	Default constructor. Not implemented. More...
virtual	~DtLatencyTest ()
	Destructor. More...
virtual void	postJoinInit ()
	Perform initializations that will allow tests to be run (e.g., publish and subscribe to test interaction) More...
virtual void	resign ()
	Perform clean up from test instrumentation. More...
virtual void	addTransportTypeForTestID (unsigned int testID, MAKRti::DtTransportType type)
	Add a mapping for this testID to this transport type. More...
virtual MAKRti::DtTransportType	transportTypeForTestID (unsigned int testID) const
	look up the transport type for this testID. More...
virtual void	removeKnowledgeOfTestId (unsigned int testID)
	Remove knowledge of this testID. More...
MAKRti::DtTime	time () const

Private Member Functions
	DtRecipientLatencyTest (DtRecipientLatencyTest const &orig)
	Copy Constructor - not allowed. More...
DtRecipientLatencyTest &	operator= (DtRecipientLatencyTest const &orig)
	Assignment operator - not allowed. More...

Additional Inherited Members
Protected Types inherited from DtLatencyTest
typedef std::multimap < DtMetadataType, MAKRti::DtTime >	DtTimeStampMap
typedef std::map< unsigned int, DtTimeStampMap >	DtTestToTimeStampMap
typedef std::multimap < DtFederateHandle, unsigned int >	DtFedHandleToTestMap
Protected Attributes inherited from DtLatencyTest
DtTestManager *	myTestManager
DtTestToTimeStampMap	myTestsInProgressTimeStamps
	TimeStamp storage (by testID) of all my known tests. More...
std::map< unsigned int, MAKRti::DtTransportType >	myTransportByTestID

Detailed Description

DtRecipientLatencyTest runs network connectivity tests between local RTI components.

Constructor & Destructor Documentation

DtRecipientLatencyTest::DtRecipientLatencyTest

(

DtTestManager *

parent

)

Constructor.

DtRecipientLatencyTest::DtRecipientLatencyTest

(

)

Constructor.

virtual DtRecipientLatencyTest::~DtRecipientLatencyTest ( )

virtual

Destructor.

DtRecipientLatencyTest::DtRecipientLatencyTest ( DtRecipientLatencyTest const &  orig )

private

Copy Constructor - not allowed.

Member Function Documentation

virtual void DtRecipientLatencyTest::addAsyncQueueMsgTimeStamp ( unsigned int  testID, const DtRtiMsg &  msg  )

virtual

Record the current time and associate it with the input test ID in myTestsInProgressTimeStamp with a async Queue Msg time stamp.

Implements DtLatencyTest.

virtual void DtRecipientLatencyTest::addNetReceiveTimeStamp ( unsigned int  testID, const DtRtiMsg &  msg  )

virtual

Record the current time and associate it with the input test ID in myTestsInProgressTimeStamp with a net receive time stamp.

Implements DtLatencyTest.

virtual void DtRecipientLatencyTest::addNetSendTimeStamp ( unsigned int  testID, DtRtiMsg &  msg  )

virtual

Record the current time and associate it with the input test ID in myTestsInProgressTimeStamp with a net send time stamp.

Implements DtLatencyTest.

virtual void DtRecipientLatencyTest::addReceiveInteractionTimeStamp ( unsigned int  testID, MAKRti::DtTime  timeToUse  )

virtual

Record the current time and associate it with the input test ID in myTestsInProgressTimeStamp with a receive interaction time stamp.

Implements DtLatencyTest.

virtual void DtRecipientLatencyTest::addSendInteractionTimeStamp ( unsigned int  testID )

virtual

Record the current time and associate it with the input test ID in myTestsInProgressTimeStamp with a send Interaction time stamp.

Implements DtLatencyTest.

DtRecipientLatencyTest& DtRecipientLatencyTest::operator= ( DtRecipientLatencyTest const &  orig )

private

Assignment operator - not allowed.

virtual bool DtRecipientLatencyTest::tick ( )

virtual

Process test activities.

Reimplemented from DtLatencyTest.

---

The documentation for this class was generated from the following file:

• recipientLatencyTest.h
