Base class for a Dialog that allows a user to enter connection information.d. More...

Inheritance diagram for DtAssistantAddConnDialog:

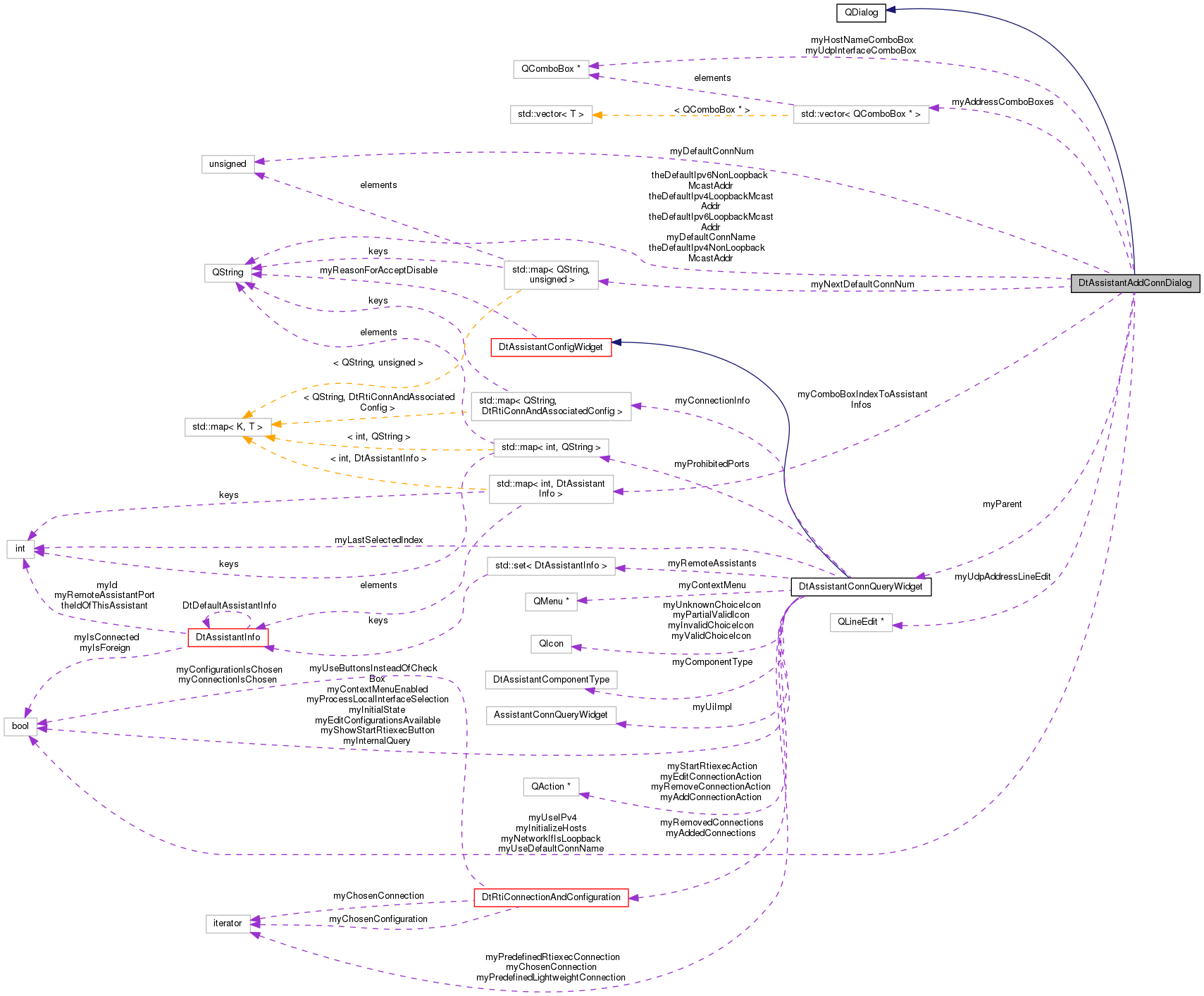

Collaboration diagram for DtAssistantAddConnDialog:

Public Slots
virtual void	ipV4Clicked (bool isChecked)
	Enforce IP V4 if checked. More...

virtual void	ipV6Clicked (bool isChecked)
	Enforce IP V6 if checked. More...

virtual void	resetNetworkInterfaces (int hostIndex)
	Reset the network interfaces for the selected host. More...

virtual void	selectUdpInterface (int intfIndex)
	Decides if a new value should be set for the UDP destination address based on a change to the UDP interface address. More...

Public Member Functions
	DtAssistantAddConnDialog (DtAssistantConnQueryWidget *parent, Qt::WindowFlags f=0)
	Constructor. More...

virtual	~DtAssistantAddConnDialog ()
	Destructor. More...

virtual void	enableDefaultConnName ()
	Enables the construction of the default connection name, instead using user entered name. More...

virtual void	disableDefaultConnName ()
	Disables the construction of the default connection name, instead using user entered name. More...

virtual void	storeNextDefaultConnNum ()
	Saves the next default connection number to be used for the current default connection name. More...

virtual void	clearDefaultConnNum ()
	Saves the next connection number to be used for the current default connection name. More...

virtual bool	isLoopbackAddress (const QString &address) const
	Returns true if the given IP address is a loopback address. More...

virtual bool	isIpv6Address (const QString &address) const
	Returns true if the given IP address is an IPv6 address. More...

virtual bool	isLoopbackDestination (const QString &address) const
	Returns true if the given destination IP address is a loopback multicast, broadcast, or unicast address. More...

virtual int	addAssistantHost (const DtAssistantInfo &assistant)
	Add the host name of the given assistant to the host name combo box Return the index of the added host name. More...

virtual void	removeAssistantHost (const DtAssistantInfo &assistant)
	Remove the host name of the given assistant from the host name combo box. More...

Protected Member Functions
virtual bool	getDefaultRtiexecConnName (QString &name, const QString &host)
	Determines the new default connection name for an rtiexec connection. More...

virtual bool	getDefaultLightweightConnName (QString &name)
	Determines the new default connection name for a lightweight connection. More...

virtual void	setNetworkInterfaceAddrs (const QStringList &networkInterfaceAddrs)
	Set the network interfaces in the appropriate UI combo boxes. More...

virtual int	compatibleUdpInterface (const QString &udpDestinationAddress, QComboBox *comboBox)
	Return the index to a compatible UDP interface. More...

Protected Attributes
DtAssistantConnQueryWidget *	myParent
	The parent of this dialog. More...

bool	myUseDefaultConnName
	Indicates that no user supplied connection name was specified, so the default should be displayed and used. More...

std::map< QString, unsigned >	myNextDefaultConnNum
	The next number to use to differentiate connections with the same default name, mapped by name. More...

unsigned	myDefaultConnNum
	The default connection name number currently being used. More...

QString	myDefaultConnName
	The base string for the default connection name currently being used. More...

bool	myUseIPv4
	Specify which family of addresses to use (if not IPv4 then IPv6) More...

bool	myInitializeHosts
	Indicates host names are being initialized. More...

bool	myNetworkIfIsLoopback
	Stores whether the previous network interface was a loopback address. More...

std::vector< QComboBox * >	myAddressComboBoxes
	The network interface combo boxes. More...

QComboBox *	myHostNameComboBox
	The host name combo box. More...

QLineEdit *	myUdpAddressLineEdit
	The UDP address line edit. More...

QComboBox *	myUdpInterfaceComboBox
	The UDP interface combo box. More...

DtIndexToAssistantInfoMap	myComboBoxIndexToAssistantInfos

Static Protected Attributes

static const QString	theDefaultIpv4LoopbackMcastAddr
	Default multicast addresses for loopback and non-loopback interfaces. More...

static const QString	theDefaultIpv4NonLoopbackMcastAddr
	Default multicast addresses for loopback and non-loopback interfaces. More...

static const QString	theDefaultIpv6LoopbackMcastAddr
	Default multicast addresses for loopback and non-loopback interfaces. More...

static const QString	theDefaultIpv6NonLoopbackMcastAddr
	Default multicast addresses for loopback and non-loopback interfaces. More...

Detailed Description

Base class for a Dialog that allows a user to enter connection information.d.

Constructor & Destructor Documentation

DtAssistantAddConnDialog::DtAssistantAddConnDialog	(	DtAssistantConnQueryWidget *	parent,
		Qt::WindowFlags	f = `0`
	)

Constructor.

virtual DtAssistantAddConnDialog::~DtAssistantAddConnDialog ( )

virtual

Destructor.

Member Function Documentation

virtual int DtAssistantAddConnDialog::addAssistantHost ( const DtAssistantInfo & assistant )

virtual

Add the host name of the given assistant to the host name combo box Return the index of the added host name.

virtual void DtAssistantAddConnDialog::clearDefaultConnNum ( )

virtual

Saves the next connection number to be used for the current default connection name.

virtual int DtAssistantAddConnDialog::compatibleUdpInterface	(	const QString &	udpDestinationAddress,
		QComboBox *	comboBox
	)

protectedvirtual

Return the index to a compatible UDP interface.

virtual void DtAssistantAddConnDialog::disableDefaultConnName ( )

virtual

Disables the construction of the default connection name, instead using user entered name.

virtual void DtAssistantAddConnDialog::enableDefaultConnName ( )

virtual

Enables the construction of the default connection name, instead using user entered name.

virtual bool DtAssistantAddConnDialog::getDefaultLightweightConnName ( QString & name )

protectedvirtual

Determines the new default connection name for a lightweight connection.

Returns false if use of the default name has been disabled.

virtual bool DtAssistantAddConnDialog::getDefaultRtiexecConnName	(	QString &	name,
		const QString &	host
	)

protectedvirtual

Determines the new default connection name for an rtiexec connection.

Returns false if use of the default name has been disabled.

virtual void DtAssistantAddConnDialog::ipV4Clicked ( bool isChecked )

virtualslot

Enforce IP V4 if checked.

virtual void DtAssistantAddConnDialog::ipV6Clicked ( bool isChecked )

virtualslot

Enforce IP V6 if checked.

virtual bool DtAssistantAddConnDialog::isIpv6Address ( const QString & address ) const

virtual

Returns true if the given IP address is an IPv6 address.

virtual bool DtAssistantAddConnDialog::isLoopbackAddress ( const QString & address ) const

virtual

Returns true if the given IP address is a loopback address.

virtual bool DtAssistantAddConnDialog::isLoopbackDestination ( const QString & address ) const

virtual

Returns true if the given destination IP address is a loopback multicast, broadcast, or unicast address.

virtual void DtAssistantAddConnDialog::removeAssistantHost ( const DtAssistantInfo & assistant )

virtual

Remove the host name of the given assistant from the host name combo box.

virtual void DtAssistantAddConnDialog::resetNetworkInterfaces ( int hostIndex )

virtualslot

Reset the network interfaces for the selected host.

virtual void DtAssistantAddConnDialog::selectUdpInterface ( int intfIndex )

virtualslot

Decides if a new value should be set for the UDP destination address based on a change to the UDP interface address.

virtual void DtAssistantAddConnDialog::setNetworkInterfaceAddrs ( const QStringList & networkInterfaceAddrs )

protectedvirtual

Set the network interfaces in the appropriate UI combo boxes.

virtual void DtAssistantAddConnDialog::storeNextDefaultConnNum ( )

virtual

Saves the next default connection number to be used for the current default connection name.

Member Data Documentation

std::vector<QComboBox*> DtAssistantAddConnDialog::myAddressComboBoxes

protected

The network interface combo boxes.

DtIndexToAssistantInfoMap DtAssistantAddConnDialog::myComboBoxIndexToAssistantInfos

protected

QString DtAssistantAddConnDialog::myDefaultConnName

protected

The base string for the default connection name currently being used.

unsigned DtAssistantAddConnDialog::myDefaultConnNum

protected

The default connection name number currently being used.

QComboBox* DtAssistantAddConnDialog::myHostNameComboBox

protected

The host name combo box.

bool DtAssistantAddConnDialog::myInitializeHosts

protected

Indicates host names are being initialized.

bool DtAssistantAddConnDialog::myNetworkIfIsLoopback

protected

Stores whether the previous network interface was a loopback address.

std::map<QString, unsigned> DtAssistantAddConnDialog::myNextDefaultConnNum

protected

The next number to use to differentiate connections with the same default name, mapped by name.

DtAssistantConnQueryWidget* DtAssistantAddConnDialog::myParent

protected

The parent of this dialog.

QLineEdit* DtAssistantAddConnDialog::myUdpAddressLineEdit

protected

The UDP address line edit.

QComboBox* DtAssistantAddConnDialog::myUdpInterfaceComboBox

protected

The UDP interface combo box.

bool DtAssistantAddConnDialog::myUseDefaultConnName

protected

Indicates that no user supplied connection name was specified, so the default should be displayed and used.

bool DtAssistantAddConnDialog::myUseIPv4

protected

Specify which family of addresses to use (if not IPv4 then IPv6)

const QString DtAssistantAddConnDialog::theDefaultIpv4LoopbackMcastAddr

staticprotected

Default multicast addresses for loopback and non-loopback interfaces.

const QString DtAssistantAddConnDialog::theDefaultIpv4NonLoopbackMcastAddr

staticprotected

Default multicast addresses for loopback and non-loopback interfaces.

const QString DtAssistantAddConnDialog::theDefaultIpv6LoopbackMcastAddr

staticprotected

Default multicast addresses for loopback and non-loopback interfaces.

const QString DtAssistantAddConnDialog::theDefaultIpv6NonLoopbackMcastAddr

staticprotected

Default multicast addresses for loopback and non-loopback interfaces.

The documentation for this class was generated from the following file:

addConnectionDialog.h
