DtFederateStatisticsDialog Class Reference

Shows detailed statistics on a federate. More...

Inheritance diagram for DtFederateStatisticsDialog:

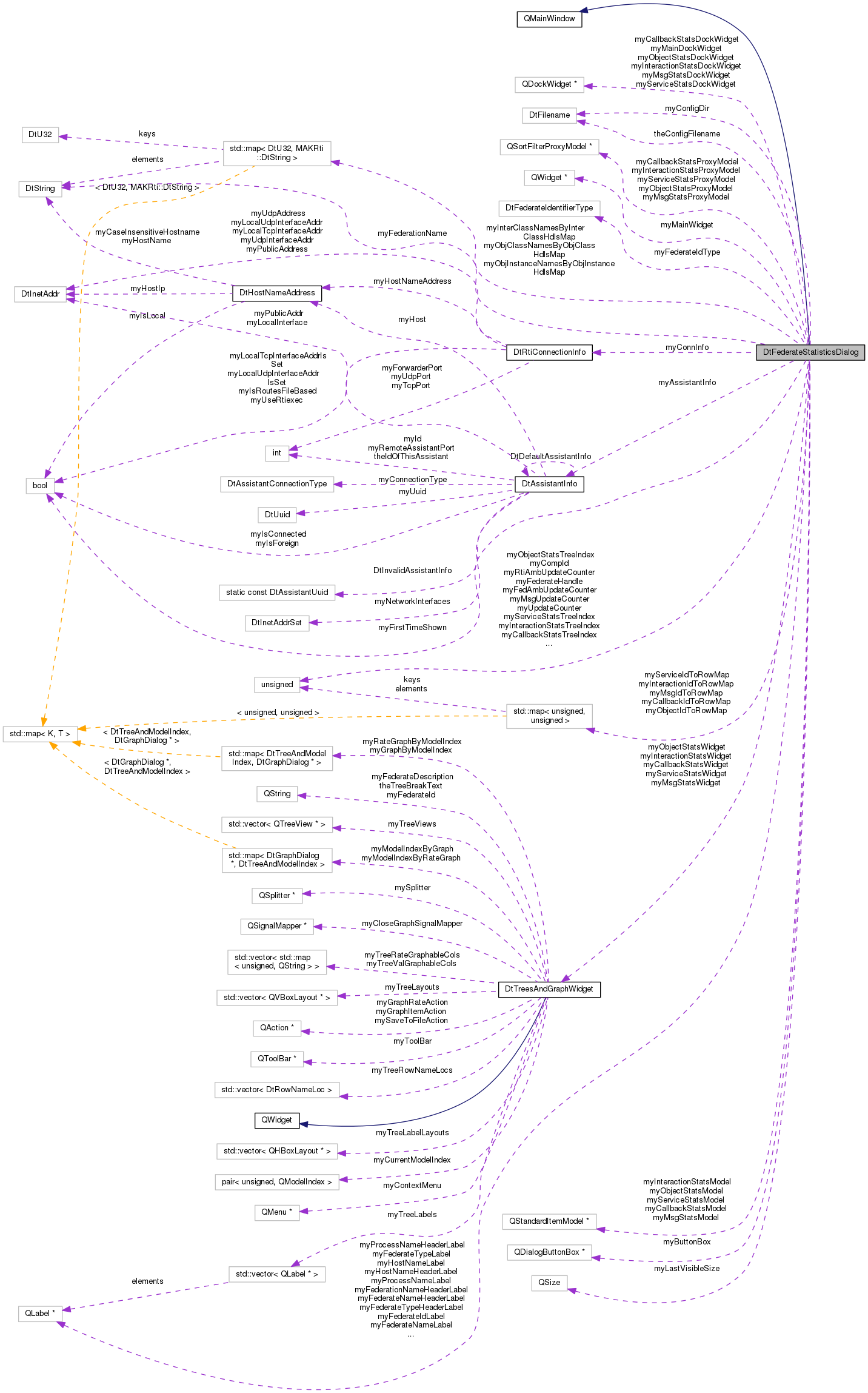

Collaboration diagram for DtFederateStatisticsDialog:

Public Types
enum	DtFederateStatisticsDialogMsgModelColumnEnum {   DtMsgModelMsgTypeCol, DtMsgModelNumSentCol, DtMsgModelNumReceivedCol, DtMsgModelBytesSentCol,   DtMsgModelBytesReceivedCol, DtMsgModelNumberOfColumns }
enum	DtFederateStatisticsDialogRtiAmbServicesModelColumnEnum {   DtRtiAmbServicesModelMethodNameCol, DtRtiAmbServicesModelNumCallsCol, DtRtiAmbServicesModelTotalTimeCol, DtRtiAmbServicesModelAvgTimeCol,   DtRtiAmbServicesModelMinTimeCol, DtRtiAmbServicesModelMaxTimeCol, DtRtiAmbServicesModelNumberOfColumns }
enum	DtFederateStatisticsDialogFedAmbCallbacksModelColumnEnum {   DtFedAmbCallbacksModelMethodNameCol, DtFedAmbCallbacksModelNumCallsCol, DtFedAmbCallbacksModelTotalTimeCol, DtFedAmbCallbacksModelAvgTimeCol,   DtFedAmbCallbacksModelMinTimeCol, DtFedAmbCallbacksModelMaxTimeCol, DtFedAmbCallbacksModelNumberOfColumns }
enum	DtFederateStatisticsDialogObjectModelColumnEnum {   DtObjectModelInstanceNameCol, DtObjectModelInstanceHandleCol, DtObjectModelClassNameCol, DtObjectModelClassHandleCol,   DtObjectModelUpdatesReceivedCol, DtObjectModelBytesReceivedCol, DtObjectModelUpdatesSentCol, DtObjectModelBytesSentCol,   DtObjectModelNumberOfColumns }
enum	DtFederateStatisticsDialogInteractionModelColumnEnum {   DtInteractionModelClassNameCol, DtInteractionModelClassHandleCol, DtInteractionModelUpdatesReceivedCol, DtInteractionModelBytesReceivedCol,   DtInteractionModelUpdatesSentCol, DtInteractionModelBytesSentCol, DtInteractionModelNumberOfColumns }

Public Slots
void	federateIdentifierUpdated (unsigned int)
	Updates how federates should be identified. More...

Signals
void	federateStatDlgClosing (const DtAssistantInfo &, int, const MAKRti::DtString &, int, const DtRtiConnectionInfo &)

Public Member Functions
	DtFederateStatisticsDialog (const MAKRti::DtFilename &configDir, QWidget *parent=0, Qt::WindowFlags f=0)
	Constructor. More...
virtual	~DtFederateStatisticsDialog ()
	Destructor. More...
virtual QSize	sizeHint () const
	Returns the recommended size for the widget. More...
void	setFederateIcon (const QPixmap &icon)
	Set the federate icon of the displayed federate. More...
void	setFederateType (const QString &t)
	Set the federate type of the displayed federate. More...
void	setFederateName (const QString &n)
	Set the federate name of the displayed federate. More...
void	setFederateProcess (const QString &p)
	Set the federate process of the displayed federate. More...
void	setFederateHost (const QString &h)
	Set the federate host name of the displayed federate. More...
void	setFederationName (const QString &n)
	Set the federation name of the displayed federate. More...
virtual void	closeEvent (QCloseEvent *event)
const std::set< DtU32 > &	getUnknownObjectInstanceNamesHandlesAndClear () const
void	clearUnknownObjInstanceNamesHdls ()
void	saveGuiConfiguration ()
	Saves the GUI configuration to a file. More...
void	switchFederate ()
	Tells the dialog that the federate being observed is changing. More...
void	setConnectionInfo (const DtRtiConnectionInfo &connInfo)
const char *	getObjectHeader (const DtFederateStatisticsDialogObjectModelColumnEnum col) const
	Retrieve the column header text for a given column. More...
const char *	getInteractionHeader (const DtFederateStatisticsDialogInteractionModelColumnEnum col) const
	Retrieve the column header text for a given column. More...
const char *	getRtiAmbServicesHeader (const DtFederateStatisticsDialogRtiAmbServicesModelColumnEnum col) const
	Retrieve the column header text for a given column. More...
const char *	getFedAmbCallbacksHeader (const DtFederateStatisticsDialogFedAmbCallbacksModelColumnEnum col) const
	Retrieve the column header text for a given column. More...
const char *	getMsgHeader (const DtFederateStatisticsDialogMsgModelColumnEnum col) const
	Retrieve the column header text for a given column. More...
const char *	getObjectHeaderToolTip (const DtFederateStatisticsDialogObjectModelColumnEnum col) const
	Retrieve the column header tool tip for a given column. More...
const char *	getInteractionHeaderToolTip (const DtFederateStatisticsDialogInteractionModelColumnEnum col) const
	Retrieve the column header tool tip for a given column. More...
const char *	getRtiAmbServicesHeaderToolTip (const DtFederateStatisticsDialogRtiAmbServicesModelColumnEnum col) const
	Retrieve the column header tool tip for a given column. More...
const char *	getFedAmbCallbacksHeaderToolTip (const DtFederateStatisticsDialogFedAmbCallbacksModelColumnEnum col) const
	Retrieve the column header tool tip for a given column. More...
const char *	getMsgHeaderToolTip (const DtFederateStatisticsDialogMsgModelColumnEnum col) const
	Retrieve the column header tool tip for a given column. More...
virtual void	updateMsgTablesAndGraphs (DtFloat64 currTime, const std::vector< DtRtiMsgKind > &msgKinds, const std::vector< DtU32 > &msgNumSent, const std::vector< DtU32 > &msgNumReceived, const std::vector< DtU32 > &msgBytesSent, const std::vector< DtU32 > &msgBytesReceived)
	Update the tables and graphs with the latest data. More...
virtual void	updateRtiAmbTablesAndGraphs (DtFloat64 currTime, const std::vector< DtRtiAmbAPIType > &rtiAmbTypes, const std::vector< DtU32 > &rtiAmbNumCalls, const std::vector< DtFloat64 > &rtiAmbTotalTime, const std::vector< DtFloat64 > &rtiAmbAvgTime, const std::vector< DtFloat64 > &rtiAmbMinTime, const std::vector< DtFloat64 > &rtiAmbMaxTime)
	Update the tables and graphs with the latest data. More...
virtual void	updateFedAmbTablesAndGraphs (DtFloat64 currTime, const std::vector< DtFedAmbAPIType > &fedAmbTypes, const std::vector< DtU32 > &fedAmbNumCalls, const std::vector< DtFloat64 > &fedAmbTotalTime, const std::vector< DtFloat64 > &fedAmbAvgTime, const std::vector< DtFloat64 > &fedAmbMinTime, const std::vector< DtFloat64 > &fedAmbMaxTime)
	Update the tables and graphs with the latest data. More...
virtual void	updateObjectsTablesAndGraphs (DtFloat64 currTime, const std::vector< DtU32 > &objectInstanceHandles, const std::vector< DtU32 > &objectClassHandles, const std::vector< DtU32 > &objectNumRegistered, const std::vector< DtU32 > &objectBytesReceived, const std::vector< DtU32 > &objectUpdatesSent, const std::vector< DtU32 > &objectBytesSent, std::set< DtU32 > &unknownInstanceNamesHandles, std::set< DtU32 > &unknownClassNamesHandles)
	Update the tables and graphs with the latest data. More...
virtual void	updateInteractionsTablesAndGraphs (DtFloat64 currTime, const std::vector< DtU32 > &interactionClassHandles, const std::vector< DtU32 > &interactionUpdatesReceived, const std::vector< DtU32 > &interactionBytesReceived, const std::vector< DtU32 > &interactionUpdatesSent, const std::vector< DtU32 > &interactionBytesSent, std::set< DtU32 > &unknownClassNamesHandles)
	Update the tables and graphs with the latest data. More...
virtual void	updateObjectTablesInstanceNames (const std::vector< DtU32 > &instanceHandles, const std::vector< MAKRti::DtString > &instanceNames)
	Update the tables and graphs with the latest data. More...
virtual void	updateObjectTablesClassNames (const std::vector< DtU32 > &classHandles, const std::vector< MAKRti::DtString > &classNames)
	Update the tables and graphs with the latest data. More...
virtual void	updateInteractionTablesClassNames (const std::vector< DtU32 > &classHandles, const std::vector< MAKRti::DtString > &classNames)
	Update the tables and graphs with the latest data. More...
void	setAssistantInfo (const DtAssistantInfo &info)
	The assistant info and component ID can identify which federate this dialog is associated with. More...
void	setCompId (unsigned int compId)
	The assistant info and component ID can identify which federate this dialog is associated with. More...
void	setFederationNameStr (const MAKRti::DtString &federationName)
	The federation name and federate handle can identify which federate this dialog is associated with. More...
MAKRti::DtString	federationNameStr () const
	The federation name and federate handle can identify which federate this dialog is associated with. More...
void	setFederateHandle (unsigned int federateHandle)
	The federation name and federate handle can identify which federate this dialog is associated with. More...
unsigned	federateHandle () const
	The federation name and federate handle can identify which federate this dialog is associated with. More...

Protected Types
enum	DtColOrRow { DtCol, DtRow }

Protected Member Functions
void	loadGuiConfiguration ()
	Loads the GUI configuration from a file. More...
virtual void	showEvent (QShowEvent *event)
	Override showEvent to load the GUI config the first time it's shown. More...
virtual void	hideEvent (QHideEvent *event)
	Override hideEvent to store the size of the dialog when it is hidden. More...
void	initBasicInfoWidgets ()
	Initialize the message stats widget. More...
void	initMsgStatsWidget ()
	Initialize the message stats widget. More...
void	initServiceStatsWidget ()
	Initialize the service calls stats widget. More...
void	initCallbackStatsWidget ()
	Initialize the callbacks stats widget. More...
void	initObjectStatsWidget ()
	Initialize the object stats widget. More...
void	initInteractionStatsWidget ()
	Initialize the interaction stats widget. More...
void	initButtonBoxWidget ()
	Initialize the widget which contains the ok button. More...
QDockWidget *	initDockWidget (bool isFixed, Qt::Orientation ori, const QString &name="")
	Creates and initializes a new dock widget. More...
unsigned	addHeaderItem (QStandardItemModel *model, const QString &text, const QString &toolTip, DtColOrRow colOrRow)
	Adds a header item to the given item model and returns the row or column number. More...
void	updateFederateId (const QString &fedId)
	Updates the federate ID in all necessary locations. More...
void	updateFederateDescription ()
	Updates the federate description in all necessary locations. More...

Private Member Functions
	DtFederateStatisticsDialog (const DtFederateStatisticsDialog &)
	Copy Constructor not implemented. More...
DtFederateStatisticsDialog &	operator= (const DtFederateStatisticsDialog &)
	Assignment Operator not implemented. More...
void	clearAll ()
MAKRti::DtString	findObjectInstanceName (DtU32 instanceHandle, std::set< DtU32 > &unknownInstanceNamesHandles)
MAKRti::DtString	findObjectClassName (DtU32 classHandle, std::set< DtU32 > &unknownClassNamesHandles)
MAKRti::DtString	findInteractionClassName (DtU32 classHandle, std::set< DtU32 > &unknownClassNamesHandles)

Private Attributes
QLabel *	myIconLabel
	Label displaying the icon for the selected federate. More...
QLabel *	myFederateIdLabel
	Label displaying the id for the selected federate. More...
QDialogButtonBox *	myButtonBox
	The dialog button box to close the dialog. More...
DtFederateIdentifierType	myFederateIdType
	How the federate should be identified. More...
unsigned	myUpdateCounter
	The update counter. More...
unsigned	myMsgUpdateCounter
	The update counter. More...
unsigned	myRtiAmbUpdateCounter
	The update counter. More...
unsigned	myFedAmbUpdateCounter
	The update counter. More...
std::map< DtU32, MAKRti::DtString >	myObjInstanceNamesByObjInstanceHdlsMap
std::map< DtU32, MAKRti::DtString >	myObjClassNamesByObjClassHdlsMap
std::map< DtU32, MAKRti::DtString >	myInterClassNamesByInterClassHdlsMap
DtFilename	myConfigDir
	The directory where the GUI config file should be stored. More...
bool	myFirstTimeShown
	Indicates whether the dialog has been shown yet. More...
QSize	myLastVisibleSize
	The size of the dialog the last time it was visible. More...
DtAssistantInfo	myAssistantInfo
unsigned int	myCompId
MAKRti::DtString	myFederationName
unsigned int	myFederateHandle
DtRtiConnectionInfo	myConnInfo
QDockWidget *	myMainDockWidget
	The dialog's main widget which is always displayed and shows basic federate identification information. More...
QWidget *	myMainWidget
	The dialog's main widget which is always displayed and shows basic federate identification information. More...
DtTreesAndGraphWidget *	myMsgStatsWidget
	The widget to display message statistics. More...
QStandardItemModel *	myMsgStatsModel
	The widget to display message statistics. More...
QSortFilterProxyModel *	myMsgStatsProxyModel
	The widget to display message statistics. More...
QDockWidget *	myMsgStatsDockWidget
	The widget to display message statistics. More...
unsigned	myMsgStatsTreeIndex
	The widget to display message statistics. More...
std::map< unsigned, unsigned >	myMsgIdToRowMap
	The widget to display message statistics. More...
DtTreesAndGraphWidget *	myServiceStatsWidget
	The widget to display service call statistics. More...
QStandardItemModel *	myServiceStatsModel
	The widget to display service call statistics. More...
QSortFilterProxyModel *	myServiceStatsProxyModel
	The widget to display service call statistics. More...
QDockWidget *	myServiceStatsDockWidget
	The widget to display service call statistics. More...
unsigned	myServiceStatsTreeIndex
	The widget to display service call statistics. More...
std::map< unsigned, unsigned >	myServiceIdToRowMap
	The widget to display service call statistics. More...
DtTreesAndGraphWidget *	myCallbackStatsWidget
	The widget to display callback statistics. More...
QStandardItemModel *	myCallbackStatsModel
	The widget to display callback statistics. More...
QSortFilterProxyModel *	myCallbackStatsProxyModel
	The widget to display callback statistics. More...
QDockWidget *	myCallbackStatsDockWidget
	The widget to display callback statistics. More...
unsigned	myCallbackStatsTreeIndex
	The widget to display callback statistics. More...
std::map< unsigned, unsigned >	myCallbackIdToRowMap
	The widget to display callback statistics. More...
DtTreesAndGraphWidget *	myObjectStatsWidget
	The widget to display object statistics. More...
QStandardItemModel *	myObjectStatsModel
	The widget to display object statistics. More...
QSortFilterProxyModel *	myObjectStatsProxyModel
	The widget to display object statistics. More...
QDockWidget *	myObjectStatsDockWidget
	The widget to display object statistics. More...
std::map< unsigned, unsigned >	myObjectIdToRowMap
	The widget to display object statistics. More...
unsigned	myObjectStatsTreeIndex
	The widget to display object statistics. More...
DtTreesAndGraphWidget *	myInteractionStatsWidget
	The widget to display interaction statistics. More...
QStandardItemModel *	myInteractionStatsModel
	The widget to display interaction statistics. More...
QSortFilterProxyModel *	myInteractionStatsProxyModel
	The widget to display interaction statistics. More...
QDockWidget *	myInteractionStatsDockWidget
	The widget to display interaction statistics. More...
std::map< unsigned, unsigned >	myInteractionIdToRowMap
	The widget to display interaction statistics. More...
unsigned	myInteractionStatsTreeIndex
	The widget to display interaction statistics. More...
QLabel *	myFederateTypeHeaderLabel
	Labels presenting basic federate information. More...
QLabel *	myFederateTypeLabel
	Labels presenting basic federate information. More...
QLabel *	myFederateNameHeaderLabel
	Labels presenting basic federate information. More...
QLabel *	myFederateNameLabel
	Labels presenting basic federate information. More...
QLabel *	myProcessNameHeaderLabel
	Labels presenting basic federate information. More...
QLabel *	myProcessNameLabel
	Labels presenting basic federate information. More...
QLabel *	myHostNameHeaderLabel
	Labels presenting basic federate information. More...
QLabel *	myHostNameLabel
	Labels presenting basic federate information. More...
QLabel *	myFederationNameHeaderLabel
	Labels presenting basic federate information. More...
QLabel *	myFederationNameLabel
	Labels presenting basic federate information. More...

Static Private Attributes
static const MAKRti::DtFilename	theConfigFilename
	The name of the file where the GUI configuration is stored. More...

Detailed Description

Shows detailed statistics on a federate.

Member Enumeration Documentation

enum DtFederateStatisticsDialog::DtColOrRow

protected

Enumerator
DtCol
DtRow

enum DtFederateStatisticsDialog::DtFederateStatisticsDialogFedAmbCallbacksModelColumnEnum

Enumerator
DtFedAmbCallbacksModelMethodNameCol
DtFedAmbCallbacksModelNumCallsCol
DtFedAmbCallbacksModelTotalTimeCol
DtFedAmbCallbacksModelAvgTimeCol
DtFedAmbCallbacksModelMinTimeCol
DtFedAmbCallbacksModelMaxTimeCol
DtFedAmbCallbacksModelNumberOfColumns

enum DtFederateStatisticsDialog::DtFederateStatisticsDialogInteractionModelColumnEnum

Enumerator
DtInteractionModelClassNameCol
DtInteractionModelClassHandleCol
DtInteractionModelUpdatesReceivedCol
DtInteractionModelBytesReceivedCol
DtInteractionModelUpdatesSentCol
DtInteractionModelBytesSentCol
DtInteractionModelNumberOfColumns

enum DtFederateStatisticsDialog::DtFederateStatisticsDialogMsgModelColumnEnum

Enumerator
DtMsgModelMsgTypeCol
DtMsgModelNumSentCol
DtMsgModelNumReceivedCol
DtMsgModelBytesSentCol
DtMsgModelBytesReceivedCol
DtMsgModelNumberOfColumns

enum DtFederateStatisticsDialog::DtFederateStatisticsDialogObjectModelColumnEnum

Enumerator
DtObjectModelInstanceNameCol
DtObjectModelInstanceHandleCol
DtObjectModelClassNameCol
DtObjectModelClassHandleCol
DtObjectModelUpdatesReceivedCol
DtObjectModelBytesReceivedCol
DtObjectModelUpdatesSentCol
DtObjectModelBytesSentCol
DtObjectModelNumberOfColumns

enum DtFederateStatisticsDialog::DtFederateStatisticsDialogRtiAmbServicesModelColumnEnum

Enumerator
DtRtiAmbServicesModelMethodNameCol
DtRtiAmbServicesModelNumCallsCol
DtRtiAmbServicesModelTotalTimeCol
DtRtiAmbServicesModelAvgTimeCol
DtRtiAmbServicesModelMinTimeCol
DtRtiAmbServicesModelMaxTimeCol
DtRtiAmbServicesModelNumberOfColumns

Constructor & Destructor Documentation

DtFederateStatisticsDialog::DtFederateStatisticsDialog	(	const MAKRti::DtFilename &	configDir,
		QWidget *	parent = 0,
		Qt::WindowFlags	f = 0
	)

Constructor.

virtual DtFederateStatisticsDialog::~DtFederateStatisticsDialog ( )

virtual

Destructor.

DtFederateStatisticsDialog::DtFederateStatisticsDialog ( const DtFederateStatisticsDialog &  )

private

Copy Constructor not implemented.

Member Function Documentation

unsigned DtFederateStatisticsDialog::addHeaderItem ( QStandardItemModel *  model, const QString &  text, const QString &  toolTip, DtColOrRow  colOrRow  )

protected

Adds a header item to the given item model and returns the row or column number.

void DtFederateStatisticsDialog::clearAll ( )

private

void DtFederateStatisticsDialog::clearUnknownObjInstanceNamesHdls

(

)

virtual void DtFederateStatisticsDialog::closeEvent ( QCloseEvent *  event )

virtual

unsigned DtFederateStatisticsDialog::federateHandle

(

)

const

The federation name and federate handle can identify which federate this dialog is associated with.

void DtFederateStatisticsDialog::federateIdentifierUpdated ( unsigned  int )

slot

Updates how federates should be identified.

void DtFederateStatisticsDialog::federateStatDlgClosing ( const DtAssistantInfo &  , int  , const MAKRti::DtString &  , int  , const DtRtiConnectionInfo &    )

signal

MAKRti::DtString DtFederateStatisticsDialog::federationNameStr

(

)

const

The federation name and federate handle can identify which federate this dialog is associated with.

MAKRti::DtString DtFederateStatisticsDialog::findInteractionClassName ( DtU32  classHandle, std::set< DtU32 > &  unknownClassNamesHandles  )

private

MAKRti::DtString DtFederateStatisticsDialog::findObjectClassName ( DtU32  classHandle, std::set< DtU32 > &  unknownClassNamesHandles  )

private

MAKRti::DtString DtFederateStatisticsDialog::findObjectInstanceName ( DtU32  instanceHandle, std::set< DtU32 > &  unknownInstanceNamesHandles  )

private

const char* DtFederateStatisticsDialog::getFedAmbCallbacksHeader

(

const DtFederateStatisticsDialogFedAmbCallbacksModelColumnEnum

col

)

const

Retrieve the column header text for a given column.

const char* DtFederateStatisticsDialog::getFedAmbCallbacksHeaderToolTip

(

const DtFederateStatisticsDialogFedAmbCallbacksModelColumnEnum

col

)

const

Retrieve the column header tool tip for a given column.

const char* DtFederateStatisticsDialog::getInteractionHeader

(

const DtFederateStatisticsDialogInteractionModelColumnEnum

col

)

const

Retrieve the column header text for a given column.

const char* DtFederateStatisticsDialog::getInteractionHeaderToolTip

(

const DtFederateStatisticsDialogInteractionModelColumnEnum

col

)

const

Retrieve the column header tool tip for a given column.

const char* DtFederateStatisticsDialog::getMsgHeader

(

const DtFederateStatisticsDialogMsgModelColumnEnum

col

)

const

Retrieve the column header text for a given column.

const char* DtFederateStatisticsDialog::getMsgHeaderToolTip

(

const DtFederateStatisticsDialogMsgModelColumnEnum

col

)

const

Retrieve the column header tool tip for a given column.

const char* DtFederateStatisticsDialog::getObjectHeader

(

const DtFederateStatisticsDialogObjectModelColumnEnum

col

)

const

Retrieve the column header text for a given column.

const char* DtFederateStatisticsDialog::getObjectHeaderToolTip

(

const DtFederateStatisticsDialogObjectModelColumnEnum

col

)

const

Retrieve the column header tool tip for a given column.

const char* DtFederateStatisticsDialog::getRtiAmbServicesHeader

(

const DtFederateStatisticsDialogRtiAmbServicesModelColumnEnum

col

)

const

Retrieve the column header text for a given column.

const char* DtFederateStatisticsDialog::getRtiAmbServicesHeaderToolTip

(

const DtFederateStatisticsDialogRtiAmbServicesModelColumnEnum

col

)

const

Retrieve the column header tool tip for a given column.

const std::set<DtU32>& DtFederateStatisticsDialog::getUnknownObjectInstanceNamesHandlesAndClear

(

)

const

virtual void DtFederateStatisticsDialog::hideEvent ( QHideEvent *  event )

protectedvirtual

Override hideEvent to store the size of the dialog when it is hidden.

void DtFederateStatisticsDialog::initBasicInfoWidgets ( )

protected

Initialize the message stats widget.

void DtFederateStatisticsDialog::initButtonBoxWidget ( )

protected

Initialize the widget which contains the ok button.

void DtFederateStatisticsDialog::initCallbackStatsWidget ( )

protected

Initialize the callbacks stats widget.

QDockWidget* DtFederateStatisticsDialog::initDockWidget ( bool  isFixed, Qt::Orientation  ori, const QString &  name = ""  )

protected

Creates and initializes a new dock widget.

If isFixed is true, the dock widget will be fixed and place (the user won't be able to pull it off or tabify it).

void DtFederateStatisticsDialog::initInteractionStatsWidget ( )

protected

Initialize the interaction stats widget.

void DtFederateStatisticsDialog::initMsgStatsWidget ( )

protected

Initialize the message stats widget.

void DtFederateStatisticsDialog::initObjectStatsWidget ( )

protected

Initialize the object stats widget.

void DtFederateStatisticsDialog::initServiceStatsWidget ( )

protected

Initialize the service calls stats widget.

void DtFederateStatisticsDialog::loadGuiConfiguration ( )

protected

Loads the GUI configuration from a file.

DtFederateStatisticsDialog& DtFederateStatisticsDialog::operator= ( const DtFederateStatisticsDialog &  )

private

Assignment Operator not implemented.

void DtFederateStatisticsDialog::saveGuiConfiguration

(

)

Saves the GUI configuration to a file.

void DtFederateStatisticsDialog::setAssistantInfo

(

const DtAssistantInfo &

info

)

The assistant info and component ID can identify which federate this dialog is associated with.

void DtFederateStatisticsDialog::setCompId

(

unsigned int

compId

)

The assistant info and component ID can identify which federate this dialog is associated with.

void DtFederateStatisticsDialog::setConnectionInfo

(

const DtRtiConnectionInfo &

connInfo

)

void DtFederateStatisticsDialog::setFederateHandle

(

unsigned int

federateHandle

)

The federation name and federate handle can identify which federate this dialog is associated with.

void DtFederateStatisticsDialog::setFederateHost

(

const QString &

h

)

Set the federate host name of the displayed federate.

void DtFederateStatisticsDialog::setFederateIcon

(

const QPixmap &

icon

)

Set the federate icon of the displayed federate.

void DtFederateStatisticsDialog::setFederateName

(

const QString &

n

)

Set the federate name of the displayed federate.

void DtFederateStatisticsDialog::setFederateProcess

(

const QString &

p

)

Set the federate process of the displayed federate.

void DtFederateStatisticsDialog::setFederateType

(

const QString &

t

)

Set the federate type of the displayed federate.

void DtFederateStatisticsDialog::setFederationName

(

const QString &

n

)

Set the federation name of the displayed federate.

void DtFederateStatisticsDialog::setFederationNameStr

(

const MAKRti::DtString &

federationName

)

The federation name and federate handle can identify which federate this dialog is associated with.

virtual void DtFederateStatisticsDialog::showEvent ( QShowEvent *  event )

protectedvirtual

Override showEvent to load the GUI config the first time it's shown.

virtual QSize DtFederateStatisticsDialog::sizeHint ( ) const

virtual

Returns the recommended size for the widget.

void DtFederateStatisticsDialog::switchFederate

(

)

Tells the dialog that the federate being observed is changing.

This will start the dialog at a blank slate to be updated.

virtual void DtFederateStatisticsDialog::updateFedAmbTablesAndGraphs ( DtFloat64  currTime, const std::vector< DtFedAmbAPIType > &  fedAmbTypes, const std::vector< DtU32 > &  fedAmbNumCalls, const std::vector< DtFloat64 > &  fedAmbTotalTime, const std::vector< DtFloat64 > &  fedAmbAvgTime, const std::vector< DtFloat64 > &  fedAmbMinTime, const std::vector< DtFloat64 > &  fedAmbMaxTime  )

virtual

Update the tables and graphs with the latest data.

void DtFederateStatisticsDialog::updateFederateDescription ( )

protected

Updates the federate description in all necessary locations.

void DtFederateStatisticsDialog::updateFederateId ( const QString &  fedId )

protected

Updates the federate ID in all necessary locations.

virtual void DtFederateStatisticsDialog::updateInteractionsTablesAndGraphs ( DtFloat64  currTime, const std::vector< DtU32 > &  interactionClassHandles, const std::vector< DtU32 > &  interactionUpdatesReceived, const std::vector< DtU32 > &  interactionBytesReceived, const std::vector< DtU32 > &  interactionUpdatesSent, const std::vector< DtU32 > &  interactionBytesSent, std::set< DtU32 > &  unknownClassNamesHandles  )

virtual

Update the tables and graphs with the latest data.

virtual void DtFederateStatisticsDialog::updateInteractionTablesClassNames ( const std::vector< DtU32 > &  classHandles, const std::vector< MAKRti::DtString > &  classNames  )

virtual

Update the tables and graphs with the latest data.

virtual void DtFederateStatisticsDialog::updateMsgTablesAndGraphs ( DtFloat64  currTime, const std::vector< DtRtiMsgKind > &  msgKinds, const std::vector< DtU32 > &  msgNumSent, const std::vector< DtU32 > &  msgNumReceived, const std::vector< DtU32 > &  msgBytesSent, const std::vector< DtU32 > &  msgBytesReceived  )

virtual

Update the tables and graphs with the latest data.

virtual void DtFederateStatisticsDialog::updateObjectsTablesAndGraphs ( DtFloat64  currTime, const std::vector< DtU32 > &  objectInstanceHandles, const std::vector< DtU32 > &  objectClassHandles, const std::vector< DtU32 > &  objectNumRegistered, const std::vector< DtU32 > &  objectBytesReceived, const std::vector< DtU32 > &  objectUpdatesSent, const std::vector< DtU32 > &  objectBytesSent, std::set< DtU32 > &  unknownInstanceNamesHandles, std::set< DtU32 > &  unknownClassNamesHandles  )

virtual

Update the tables and graphs with the latest data.

virtual void DtFederateStatisticsDialog::updateObjectTablesClassNames ( const std::vector< DtU32 > &  classHandles, const std::vector< MAKRti::DtString > &  classNames  )

virtual

Update the tables and graphs with the latest data.

virtual void DtFederateStatisticsDialog::updateObjectTablesInstanceNames ( const std::vector< DtU32 > &  instanceHandles, const std::vector< MAKRti::DtString > &  instanceNames  )

virtual

Update the tables and graphs with the latest data.

virtual void DtFederateStatisticsDialog::updateRtiAmbTablesAndGraphs ( DtFloat64  currTime, const std::vector< DtRtiAmbAPIType > &  rtiAmbTypes, const std::vector< DtU32 > &  rtiAmbNumCalls, const std::vector< DtFloat64 > &  rtiAmbTotalTime, const std::vector< DtFloat64 > &  rtiAmbAvgTime, const std::vector< DtFloat64 > &  rtiAmbMinTime, const std::vector< DtFloat64 > &  rtiAmbMaxTime  )

virtual

Update the tables and graphs with the latest data.

Member Data Documentation

DtAssistantInfo DtFederateStatisticsDialog::myAssistantInfo

private

QDialogButtonBox* DtFederateStatisticsDialog::myButtonBox

private

The dialog button box to close the dialog.

std::map<unsigned, unsigned> DtFederateStatisticsDialog::myCallbackIdToRowMap

private

The widget to display callback statistics.

QDockWidget* DtFederateStatisticsDialog::myCallbackStatsDockWidget

private

The widget to display callback statistics.

QStandardItemModel* DtFederateStatisticsDialog::myCallbackStatsModel

private

The widget to display callback statistics.

QSortFilterProxyModel* DtFederateStatisticsDialog::myCallbackStatsProxyModel

private

The widget to display callback statistics.

unsigned DtFederateStatisticsDialog::myCallbackStatsTreeIndex

private

The widget to display callback statistics.

DtTreesAndGraphWidget* DtFederateStatisticsDialog::myCallbackStatsWidget

private

The widget to display callback statistics.

unsigned int DtFederateStatisticsDialog::myCompId

private

DtFilename DtFederateStatisticsDialog::myConfigDir

private

The directory where the GUI config file should be stored.

DtRtiConnectionInfo DtFederateStatisticsDialog::myConnInfo

private

unsigned DtFederateStatisticsDialog::myFedAmbUpdateCounter

private

The update counter.

unsigned int DtFederateStatisticsDialog::myFederateHandle

private

QLabel* DtFederateStatisticsDialog::myFederateIdLabel

private

Label displaying the id for the selected federate.

DtFederateIdentifierType DtFederateStatisticsDialog::myFederateIdType

private

How the federate should be identified.

QLabel* DtFederateStatisticsDialog::myFederateNameHeaderLabel

private

Labels presenting basic federate information.

QLabel* DtFederateStatisticsDialog::myFederateNameLabel

private

Labels presenting basic federate information.

QLabel* DtFederateStatisticsDialog::myFederateTypeHeaderLabel

private

Labels presenting basic federate information.

QLabel* DtFederateStatisticsDialog::myFederateTypeLabel

private

Labels presenting basic federate information.

MAKRti::DtString DtFederateStatisticsDialog::myFederationName

private

QLabel* DtFederateStatisticsDialog::myFederationNameHeaderLabel

private

Labels presenting basic federate information.

QLabel* DtFederateStatisticsDialog::myFederationNameLabel

private

Labels presenting basic federate information.

bool DtFederateStatisticsDialog::myFirstTimeShown

private

Indicates whether the dialog has been shown yet.

QLabel* DtFederateStatisticsDialog::myHostNameHeaderLabel

private

Labels presenting basic federate information.

QLabel* DtFederateStatisticsDialog::myHostNameLabel

private

Labels presenting basic federate information.

QLabel* DtFederateStatisticsDialog::myIconLabel

private

Label displaying the icon for the selected federate.

std::map<unsigned, unsigned> DtFederateStatisticsDialog::myInteractionIdToRowMap

private

The widget to display interaction statistics.

QDockWidget* DtFederateStatisticsDialog::myInteractionStatsDockWidget

private

The widget to display interaction statistics.

QStandardItemModel* DtFederateStatisticsDialog::myInteractionStatsModel

private

The widget to display interaction statistics.

QSortFilterProxyModel* DtFederateStatisticsDialog::myInteractionStatsProxyModel

private

The widget to display interaction statistics.

unsigned DtFederateStatisticsDialog::myInteractionStatsTreeIndex

private

The widget to display interaction statistics.

DtTreesAndGraphWidget* DtFederateStatisticsDialog::myInteractionStatsWidget

private

The widget to display interaction statistics.

std::map<DtU32, MAKRti::DtString> DtFederateStatisticsDialog::myInterClassNamesByInterClassHdlsMap

private

QSize DtFederateStatisticsDialog::myLastVisibleSize

private

The size of the dialog the last time it was visible.

QDockWidget* DtFederateStatisticsDialog::myMainDockWidget

private

The dialog's main widget which is always displayed and shows basic federate identification information.

QWidget* DtFederateStatisticsDialog::myMainWidget

private

The dialog's main widget which is always displayed and shows basic federate identification information.

std::map<unsigned, unsigned> DtFederateStatisticsDialog::myMsgIdToRowMap

private

The widget to display message statistics.

QDockWidget* DtFederateStatisticsDialog::myMsgStatsDockWidget

private

The widget to display message statistics.

QStandardItemModel* DtFederateStatisticsDialog::myMsgStatsModel

private

The widget to display message statistics.

QSortFilterProxyModel* DtFederateStatisticsDialog::myMsgStatsProxyModel

private

The widget to display message statistics.

unsigned DtFederateStatisticsDialog::myMsgStatsTreeIndex

private

The widget to display message statistics.

DtTreesAndGraphWidget* DtFederateStatisticsDialog::myMsgStatsWidget

private

The widget to display message statistics.

unsigned DtFederateStatisticsDialog::myMsgUpdateCounter

private

The update counter.

std::map<DtU32, MAKRti::DtString> DtFederateStatisticsDialog::myObjClassNamesByObjClassHdlsMap

private

std::map<unsigned, unsigned> DtFederateStatisticsDialog::myObjectIdToRowMap

private

The widget to display object statistics.

QDockWidget* DtFederateStatisticsDialog::myObjectStatsDockWidget

private

The widget to display object statistics.

QStandardItemModel* DtFederateStatisticsDialog::myObjectStatsModel

private

The widget to display object statistics.

QSortFilterProxyModel* DtFederateStatisticsDialog::myObjectStatsProxyModel

private

The widget to display object statistics.

unsigned DtFederateStatisticsDialog::myObjectStatsTreeIndex

private

The widget to display object statistics.

DtTreesAndGraphWidget* DtFederateStatisticsDialog::myObjectStatsWidget

private

The widget to display object statistics.

std::map<DtU32, MAKRti::DtString> DtFederateStatisticsDialog::myObjInstanceNamesByObjInstanceHdlsMap

private

QLabel* DtFederateStatisticsDialog::myProcessNameHeaderLabel

private

Labels presenting basic federate information.

QLabel* DtFederateStatisticsDialog::myProcessNameLabel

private

Labels presenting basic federate information.

unsigned DtFederateStatisticsDialog::myRtiAmbUpdateCounter

private

The update counter.

std::map<unsigned, unsigned> DtFederateStatisticsDialog::myServiceIdToRowMap

private

The widget to display service call statistics.

QDockWidget* DtFederateStatisticsDialog::myServiceStatsDockWidget

private

The widget to display service call statistics.

QStandardItemModel* DtFederateStatisticsDialog::myServiceStatsModel

private

The widget to display service call statistics.

QSortFilterProxyModel* DtFederateStatisticsDialog::myServiceStatsProxyModel

private

The widget to display service call statistics.

unsigned DtFederateStatisticsDialog::myServiceStatsTreeIndex

private

The widget to display service call statistics.

DtTreesAndGraphWidget* DtFederateStatisticsDialog::myServiceStatsWidget

private

The widget to display service call statistics.

unsigned DtFederateStatisticsDialog::myUpdateCounter

private

The update counter.

const MAKRti::DtFilename DtFederateStatisticsDialog::theConfigFilename

staticprivate

The name of the file where the GUI configuration is stored.

---

The documentation for this class was generated from the following file:

• federateStatsDialog.h
