Inheritance diagram for DtFederateTree:

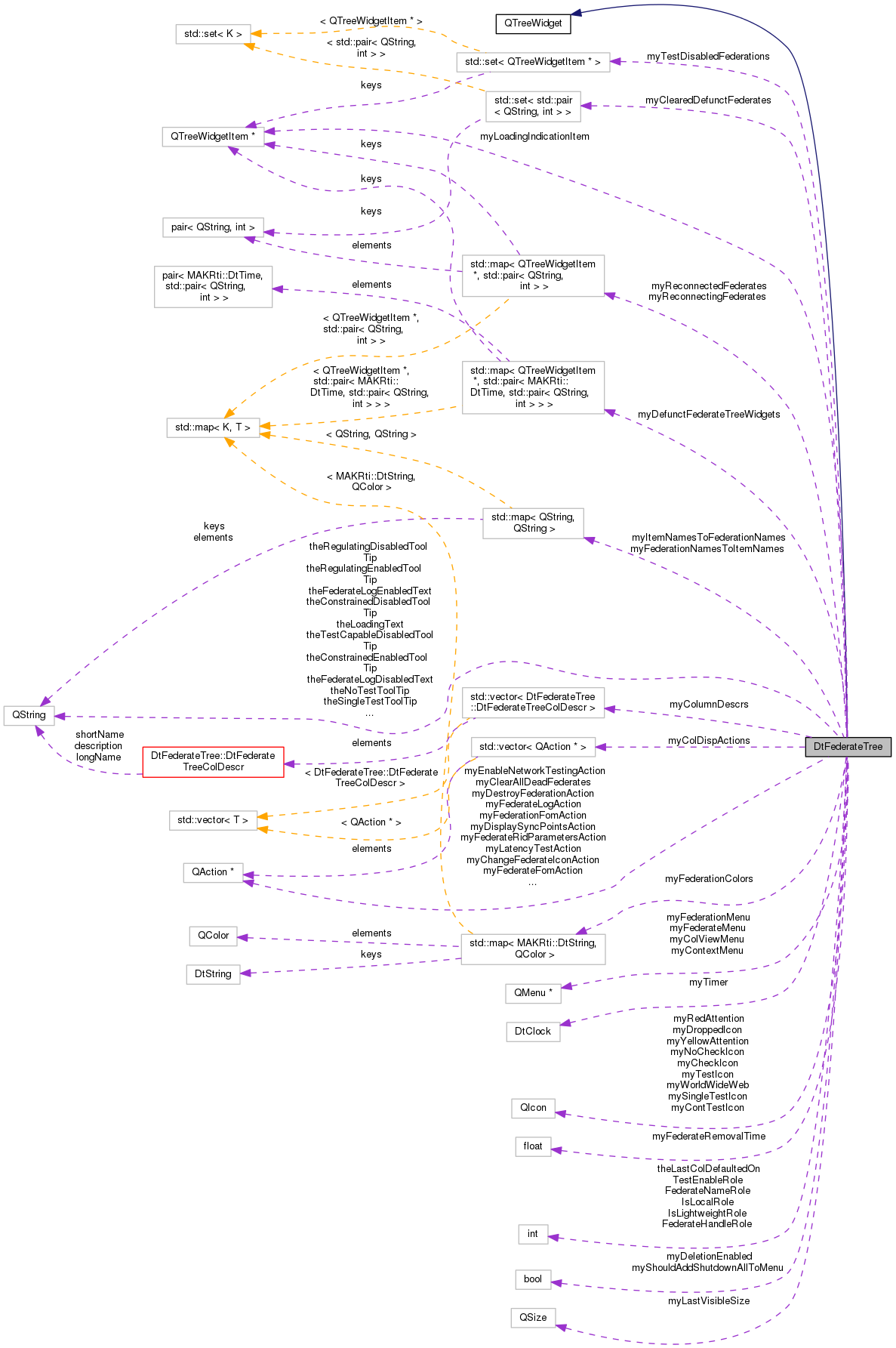

Collaboration diagram for DtFederateTree:

Classes
class	DtFederateTreeColDescr
	Structure for column description strings. More...

Public Slots
void	showColumns ()
	Updates which columns are shown or hidden. More...

void	setAllColumns (const std::map< QString, std::pair< int, bool > > &columns)
	Set the columns that are currently shown. More...

void	allColumns (std::map< QString, std::pair< int, bool > > &columns)
	Get the columns and their position / visible value (cols in emptied and populated). More...

void	showColCustomizeDlg ()
	Displays the column view customize dialog. More...

void	deleteSelectedFed ()
	Emits the fedDeleteRequest signal for the selected federate. More...

void	destroySelectedFederations ()
	For each federation selected, resign the federates then emit federationDelete. More...

void	updateEnableNetworkTestingForSelectedFederations ()
	For each federation selected, enables or disables testing. More...

void	showLatencyTest ()
	Emits the showFedLatencyTest signal for the selected federate. More...

void	clearAllDefunctFederates ()
	Clears all defunct federates. More...

bool	hasValidFederates () const
	returns whether any federates are valid. More...

void	clearCurrDefunctFederates ()
	Clear only the currently selected defunct federates. More...

void	refreshMenus ()
	Refresh the currently available menu options. More...

void	signalSelectionChange ()
	Determines what the new selection is and emits the appropriate signal. More...

void	showContextMenu (const QPoint &)
	Shows the context menu at the given position. More...

void	copySelectionToClipboard ()
	Copy selection to clipboard. More...

Signals
void	fedDeleteRequest (int, const QString &)

void	federationDeleteRequest (const QString &fedexName)

void	enableNetworkTestingRequest (const QString &)

void	disableNetworkTestingRequest (const QString &)

void	showFedLatencyTest (const QString &, int)

void	federateSelected (const MAKRti::DtString &federation, int federateHandle)
	Emitted when a single federate is selected. More...

void	federationSelected (const MAKRti::DtString &name)
	Emitted when a single federation is selected. More...

void	nothingSelected ()
	Emitted when selection is cleared. More...

void	multipleItemsSelected ()
	Emitted when multiple items are selected. More...

void	defunctFederateRemoved (const MAKRti::DtString &federation, int federateHandle)
	Emitted when a defunct federate must be removed. More...

Public Member Functions
	DtFederateTree (QWidget *parent)

virtual	~DtFederateTree ()

virtual QSize	sizeHint () const
	Returns the recommended size for the widget. More...

virtual void	hideEvent (QHideEvent *event)
	Override hideEvent to store the size of the dialog when it is hidden. More...

virtual bool	updateFederation (const DtAssistantFederationInfo federation, const DtAssistantForwarderInfo forwarderInfo, const std::vector< DtAssistantForwarderInfo > &peerInfos)
	Updates or adds a federation to the tree. More...

virtual bool	removeFederation (const QString &name)
	Removes the federation with the given name from the tree. More...

virtual void	removeAllFederations ()
	Removes all of the federations from the tree. More...

virtual void	updateFederationColor (const MAKRti::DtString &federationName, const QColor &color)
	Set the color of the specified federation. More...

virtual bool	updateFederate (const DtAssistantFederateInfo &federate, const DtAssistantForwarderInfo *forwarderInfo, const QString &fedexName, const std::vector< DtAssistantForwarderInfo > &peerInfos)
	Updates or adds a federate to an existing federation in the tree. More...

virtual bool	removeFederate (int federateHandle, const QString &fedexName, bool clearedDefunct=false)
	Removes a federate from an existing federation in the tree. More...

virtual void	displayLoadingIndication ()
	Displays a message that the current federation information is loading. More...

virtual void	removeLoadingIndication ()
	Removes the loading indication messages. More...

bool	isFederateValid (int federateHandle, const QString &fedexName) const
	Is this federate valid? More...

void	processInvalidList ()
	Process the list of Invalid federates for automatic removal. More...

QMenu *	columnViewMenu ()
	Returns a pointer to the menu which allows users to hide/display any columns in the tree. More...

QMenu *	federateMenu ()
	Returns a pointer to the menu which allows users to perform actions related to the currently selected federates. More...

QMenu *	federationMenu ()
	Returns a pointer to the menu which allows users to perform actions related to the current selected federations. More...

void	setFederateRemovalTime (float newTime)
	Change the time after which a federate that fails to reconnect will be removed from the rtiexec federate tree. More...

float	getFederateRemovalTime () const
	Get the time for the federate removal. More...

void	enableDeletion (bool enable)
	Enables or disables federate and federation deletion options. More...

QString	getTreeFederationName (const MAKRti::DtString &federationName)
	Get the federation name the tree uses ( with the handle ) More...

void	forceFederateSelection (int federateHandle, const MAKRti::DtString &federation)
	Forces selection of the specified federate. More...

void	forceFederationSelection (const MAKRti::DtString &federation)
	Forces selection of the specified federation. More...

void	forceClearSelection ()
	Forces the selection to be cleared. More...

void	saveGuiConfiguration (const MAKRti::DtFilename &configFile)
	Saves the GUI configuration to the given file. More...

void	loadGuiConfiguration (const MAKRti::DtFilename &configFile)
	Loads the GUI configuration from the given file. More...

void	initializeQtToolTips ()


QAction *	statisticsAction ()
	Returns a pointer to the specific action from the federate menu. More...

QAction *	latencyTestAction ()
	Returns a pointer to the specific action from the federate menu. More...

QAction *	federateRidParamAction ()
	Returns a pointer to the specific action from the federate menu. More...

QAction *	federateFomAction ()
	Returns a pointer to the specific action from the federate menu. More...

QAction *	federateLogAction ()
	Returns a pointer to the specific action from the federate menu. More...

QAction *	changeFederateIconAction ()
	Returns a pointer to the specific action from the federate menu. More...

QAction *	resignFederateAction ()
	Returns a pointer to the specific action from the federate menu. More...


QAction *	federationFomAction ()
	Returns a pointer to the specific action from the federate menu. More...

QAction *	syncPointsAction ()
	Returns a pointer to the specific action from the federate menu. More...

QAction *	destroyFederationAction ()
	Returns a pointer to the specific action from the federate menu. More...

Public Attributes
QString	theLoadingText
	The message that indicates information is being loaded. More...


QString	theRegulatingEnabledToolTip
	Tool tip strings. More...

QString	theRegulatingDisabledToolTip
	Tool tip strings. More...

QString	theConstrainedEnabledToolTip
	Tool tip strings. More...

QString	theConstrainedDisabledToolTip
	Tool tip strings. More...

QString	theTestCapableEnabledToolTip
	Tool tip strings. More...

QString	theTestCapableDisabledToolTip
	Tool tip strings. More...

QString	theNoTestToolTip
	Tool tip strings. More...

QString	theContinuousTestToolTip
	Tool tip strings. More...

QString	theSingleTestToolTip
	Tool tip strings. More...

QString	theFederateLogEnabledText
	Tool tip strings. More...

QString	theFederateLogDisabledText
	Tool tip strings. More...

Protected Member Functions
virtual void	updateFederateItems (const DtFederateInfoByHandleMap &federates, const DtAssistantForwarderInfo forwarderInfo, QTreeWidgetItem fedexItem, const std::vector< DtAssistantForwarderInfo > &peerInfos)
	Updates the federate items for the given federation item. More...

virtual void	updateFederateItem (const DtAssistantFederateInfo &federate, const DtAssistantForwarderInfo forwarderInfo, const QString &fedexName, QTreeWidgetItem fedItem, const std::vector< DtAssistantForwarderInfo > &peerInfos)
	Updates the federate item with the given information. More...

virtual void	updateFederateItemFromForwarderInformation (const DtAssistantFederateInfo &federate, const DtAssistantForwarderInfo forwarderInfo, const QString &fedexName, QTreeWidgetItem fedItem, const std::vector< DtAssistantForwarderInfo > &peerInfos)
	Updates the federate item with forwarder information. More...

virtual void	removeAllFederateItems (QTreeWidgetItem *fedexItem)
	Removes all of federate items from the given federation item. More...

virtual void	removeFederateItem (QTreeWidgetItem fedItem, QTreeWidgetItem fedexItem, bool clearedDefunct=false)
	Removes and deletes the given federate item from the given federation item. More...

bool	isFederateValid (QTreeWidgetItem *item) const
	Is the federate represented by this QTreeWidgetItem valid. More...

bool	isFederateLocal (QTreeWidgetItem *item) const
	Is the federate represented by this QTreeWidgetItem locally hosted. More...

bool	isFederateLightweight (QTreeWidgetItem *item) const
	Is the federate represented by this QTreeWidgetItem using a lightweight connection. More...

bool	isFederationLightweight (QTreeWidgetItem *item) const
	Is the federation represented by this QTreeWidgetItem using a lightweight connection. More...

Protected Attributes
std::vector < DtFederateTreeColDescr >	myColumnDescrs
	List of descriptions for each column. More...

QMenu *	myColViewMenu
	Column view menu. More...

std::vector< QAction * >	myColDispActions
	Column view actions. More...

QAction *	myColCustomizeAction

QMenu *	myContextMenu
	Context Menu. More...

QMenu *	myFederateMenu

QMenu *	myFederationMenu

std::map< QString, QString >	myFederationNamesToItemNames
	Map of federation names to the names used in the tree. More...

std::map< QString, QString >	myItemNamesToFederationNames
	Map of federation names to the names used in the tree. More...

std::map< QTreeWidgetItem *, std::pair< MAKRti::DtTime, std::pair< QString, int > > >	myDefunctFederateTreeWidgets
	Items are added to myDefunctFederateTreeWidgets when their socket breaks. More...

std::map< QTreeWidgetItem *, std::pair< QString, int > >	myReconnectingFederates
	Federates that are currently attempting to reconnect. More...

std::map< QTreeWidgetItem *, std::pair< QString, int > >	myReconnectedFederates
	Federates that have successfully reconnected. More...

std::set< std::pair< QString, int > >	myClearedDefunctFederates
	Defunct federates that have been cleared from the display. More...

std::set< QTreeWidgetItem * >	myTestDisabledFederations
	Federations that have testing disabled. More...

std::map< MAKRti::DtString, QColor >	myFederationColors
	Map of federation names to their colors. More...

float	myFederateRemovalTime
	Time after which defunct federates will automatically be removed from the tree. More...

QTreeWidgetItem *	myLoadingIndicationItem
	Item that indicates federation information is currently being loaded. More...

bool	myDeletionEnabled
	Indicates whether or not federate and federation deletion is enabled. More...

MAKRti::DtClock	myTimer

QSize	myLastVisibleSize
	The size of the dialog the last time it was visible. More...

bool	myShouldAddShutdownAllToMenu
	Determines based on RTI_ASSISTANT_REMOVE_SHUT_DOWN_ALL environment variable whether shut down all, resign, and destroy actions should be visible. More...


QAction *	myStatisticsAction
	Federate menu actions. More...

QAction *	myLatencyTestAction
	Federate menu actions. More...

QAction *	myFederateRidParametersAction
	Federate menu actions. More...

QAction *	myFederateFomAction
	Federate menu actions. More...

QAction *	myFederateLogAction
	Federate menu actions. More...

QAction *	myChangeFederateIconAction
	Federate menu actions. More...

QAction *	myResignFederateAction
	Federate menu actions. More...

QAction *	myClearCurrDefunctFederate
	Federate menu actions. More...


QAction *	myFederationFomAction
	Federation menu actions. More...

QAction *	myDisplaySyncPointsAction
	Federation menu actions. More...

QAction *	myEnableNetworkTestingAction
	Federation menu actions. More...

QAction *	myDestroyFederationAction
	Federation menu actions. More...

QAction *	myClearAllDeadFederates
	Federation menu actions. More...


QIcon	myCheckIcon
	Icons to be used in the federate tree. More...

QIcon	myNoCheckIcon
	Icons to be used in the federate tree. More...

QIcon	myContTestIcon
	Icons to be used in the federate tree. More...

QIcon	mySingleTestIcon
	Icons to be used in the federate tree. More...

QIcon	myYellowAttention
	Icons to be used in the federate tree. More...

QIcon	myRedAttention
	Icons to be used in the federate tree. More...

QIcon	myWorldWideWeb
	Icons to be used in the federate tree. More...

QIcon	myTestIcon
	Icons to be used in the federate tree. More...

QIcon	myDroppedIcon
	Icons to be used in the federate tree. More...

Static Protected Attributes
static const int	FederateNameRole

static const int	FederateHandleRole

static const int	TestEnableRole

static const int	IsLocalRole

static const int	IsLightweightRole

static const int	theLastColDefaultedOn
	The number of the last column which is displayed by default the first time the dialog is shown. More...

Private Member Functions
void	clearDefunctFederate (QString fedexName, QTreeWidgetItem *federate)
	Clear defunct federates under passed in federation. More...

bool	isFederateDefunct (QTreeWidgetItem *federate)
	Returns true if passed in federate is defunct. More...

	DtFederateTree (const DtFederateTree &)
	Copy constructor not implemented – Copy not allowed! More...

DtFederateTree &	operator= (const DtFederateTree &)
	Assignment operator not implemented – Assignment not allowed! More...

Member Enumeration Documentation

enum DtFederateTree::DtFederateTreeCol

Enumerator
FederationNameIndex
FederateTypeAndHandleIndex
FederateProcessIndex
FederateNameIndex
FederateHostNameIndex
FederateIPIndex
ConnectedForwarderIpIndex
HlaVersionIndex
FederateQueueStatusIndex
FederatePIDIndex
FederateCommandArgsIndex
RegulatingStateIndex
ConstrainedStateIndex
LbtsIndex
LookAheadIndex
CurrentTimeIndex
TestStatusIndex
TestCountIndex
NumFederateTreeCols

Constructor & Destructor Documentation

DtFederateTree::DtFederateTree ( QWidget * parent )

virtual DtFederateTree::~DtFederateTree ( )

virtual

DtFederateTree::DtFederateTree ( const DtFederateTree & )

private

Copy constructor not implemented – Copy not allowed!

Member Function Documentation

void DtFederateTree::allColumns ( std::map< QString, std::pair< int, bool > > & columns )

slot

Get the columns and their position / visible value (cols in emptied and populated).

QAction* DtFederateTree::changeFederateIconAction ( )

inline

Returns a pointer to the specific action from the federate menu.

void DtFederateTree::clearAllDefunctFederates ( )

slot

Clears all defunct federates.

void DtFederateTree::clearCurrDefunctFederates ( )

slot

Clear only the currently selected defunct federates.

void DtFederateTree::clearDefunctFederate	(	QString	fedexName,
		QTreeWidgetItem *	federate
	)

private

Clear defunct federates under passed in federation.

QMenu* DtFederateTree::columnViewMenu ( )

inline

Returns a pointer to the menu which allows users to hide/display any columns in the tree.

void DtFederateTree::copySelectionToClipboard ( )

slot

Copy selection to clipboard.

void DtFederateTree::defunctFederateRemoved	(	const MAKRti::DtString &	federation,
		int	federateHandle
	)

signal

Emitted when a defunct federate must be removed.

void DtFederateTree::deleteSelectedFed ( )

slot

Emits the fedDeleteRequest signal for the selected federate.

QAction* DtFederateTree::destroyFederationAction ( )

inline

Returns a pointer to the specific action from the federate menu.

void DtFederateTree::destroySelectedFederations ( )

slot

For each federation selected, resign the federates then emit federationDelete.

void DtFederateTree::disableNetworkTestingRequest ( const QString & )

signal

virtual void DtFederateTree::displayLoadingIndication ( )

virtual

Displays a message that the current federation information is loading.

void DtFederateTree::enableDeletion ( bool enable )

Enables or disables federate and federation deletion options.

void DtFederateTree::enableNetworkTestingRequest ( const QString & )

signal

void DtFederateTree::fedDeleteRequest	(	int	,
		const QString &
	)

signal

QAction* DtFederateTree::federateFomAction ( )

inline

Returns a pointer to the specific action from the federate menu.

QAction* DtFederateTree::federateLogAction ( )

inline

Returns a pointer to the specific action from the federate menu.

QMenu* DtFederateTree::federateMenu ( )

inline

Returns a pointer to the menu which allows users to perform actions related to the currently selected federates.

QAction* DtFederateTree::federateRidParamAction ( )

inline

Returns a pointer to the specific action from the federate menu.

void DtFederateTree::federateSelected	(	const MAKRti::DtString &	federation,
		int	federateHandle
	)

signal

Emitted when a single federate is selected.

void DtFederateTree::federationDeleteRequest ( const QString & fedexName )

signal

QAction* DtFederateTree::federationFomAction ( )

inline

Returns a pointer to the specific action from the federate menu.

QMenu* DtFederateTree::federationMenu ( )

inline

Returns a pointer to the menu which allows users to perform actions related to the current selected federations.

void DtFederateTree::federationSelected ( const MAKRti::DtString & name )

signal

Emitted when a single federation is selected.

void DtFederateTree::forceClearSelection ( )

Forces the selection to be cleared.

void DtFederateTree::forceFederateSelection	(	int	federateHandle,
		const MAKRti::DtString &	federation
	)

Forces selection of the specified federate.

void DtFederateTree::forceFederationSelection ( const MAKRti::DtString & federation )

Forces selection of the specified federation.

float DtFederateTree::getFederateRemovalTime ( ) const

Get the time for the federate removal.

QString DtFederateTree::getTreeFederationName ( const MAKRti::DtString & federationName )

Get the federation name the tree uses ( with the handle )

bool DtFederateTree::hasValidFederates ( ) const

slot

returns whether any federates are valid.

virtual void DtFederateTree::hideEvent ( QHideEvent * event )

virtual

Override hideEvent to store the size of the dialog when it is hidden.

void DtFederateTree::initializeQtToolTips ( )

bool DtFederateTree::isFederateDefunct ( QTreeWidgetItem * federate )

private

Returns true if passed in federate is defunct.

bool DtFederateTree::isFederateLightweight ( QTreeWidgetItem * item ) const

protected

Is the federate represented by this QTreeWidgetItem using a lightweight connection.

bool DtFederateTree::isFederateLocal ( QTreeWidgetItem * item ) const

protected

Is the federate represented by this QTreeWidgetItem locally hosted.

bool DtFederateTree::isFederateValid	(	int	federateHandle,
		const QString &	fedexName
	)		const

Is this federate valid?

bool DtFederateTree::isFederateValid ( QTreeWidgetItem * item ) const

protected

Is the federate represented by this QTreeWidgetItem valid.

bool DtFederateTree::isFederationLightweight ( QTreeWidgetItem * item ) const

protected

Is the federation represented by this QTreeWidgetItem using a lightweight connection.

QAction* DtFederateTree::latencyTestAction ( )

inline

Returns a pointer to the specific action from the federate menu.

void DtFederateTree::loadGuiConfiguration ( const MAKRti::DtFilename & configFile )

Loads the GUI configuration from the given file.

void DtFederateTree::multipleItemsSelected ( )

signal

Emitted when multiple items are selected.

void DtFederateTree::nothingSelected ( )

signal

Emitted when selection is cleared.

DtFederateTree& DtFederateTree::operator= ( const DtFederateTree & )

private

Assignment operator not implemented – Assignment not allowed!

void DtFederateTree::processInvalidList ( )

Process the list of Invalid federates for automatic removal.

void DtFederateTree::refreshMenus ( )

slot

Refresh the currently available menu options.

virtual void DtFederateTree::removeAllFederateItems ( QTreeWidgetItem * fedexItem )

protectedvirtual

Removes all of federate items from the given federation item.

virtual void DtFederateTree::removeAllFederations ( )

virtual

Removes all of the federations from the tree.

virtual bool DtFederateTree::removeFederate	(	int	federateHandle,
		const QString &	fedexName,
		bool	clearedDefunct = `false`
	)

virtual

Removes a federate from an existing federation in the tree.

Returns true if successful. If clearedDefunct flag is true, the federate item will not be removed, but instead be placed in the list of cleared defunct federates.

virtual void DtFederateTree::removeFederateItem	(	QTreeWidgetItem *	fedItem,
		QTreeWidgetItem *	fedexItem,
		bool	clearedDefunct = `false`
	)

protectedvirtual

Removes and deletes the given federate item from the given federation item.

The item will be added to the list of cleared defunct federates if the clearedDefunct flag is true.

virtual bool DtFederateTree::removeFederation ( const QString & name )

virtual

Removes the federation with the given name from the tree.

Returns true if successful.

virtual void DtFederateTree::removeLoadingIndication ( )

virtual

Removes the loading indication messages.

QAction* DtFederateTree::resignFederateAction ( )

inline

Returns a pointer to the specific action from the federate menu.

void DtFederateTree::saveGuiConfiguration ( const MAKRti::DtFilename & configFile )

Saves the GUI configuration to the given file.

void DtFederateTree::setAllColumns ( const std::map< QString, std::pair< int, bool > > & columns )

slot

Set the columns that are currently shown.

void DtFederateTree::setFederateRemovalTime ( float newTime )

Change the time after which a federate that fails to reconnect will be removed from the rtiexec federate tree.

void DtFederateTree::showColCustomizeDlg ( )

slot

Displays the column view customize dialog.

void DtFederateTree::showColumns ( )

slot

Updates which columns are shown or hidden.

void DtFederateTree::showContextMenu ( const QPoint & )

slot

Shows the context menu at the given position.

void DtFederateTree::showFedLatencyTest	(	const QString &	,
		int
	)

signal

void DtFederateTree::showLatencyTest ( )

slot

Emits the showFedLatencyTest signal for the selected federate.

void DtFederateTree::signalSelectionChange ( )

slot

Determines what the new selection is and emits the appropriate signal.

virtual QSize DtFederateTree::sizeHint ( ) const

virtual

Returns the recommended size for the widget.

QAction* DtFederateTree::statisticsAction ( )

inline

Returns a pointer to the specific action from the federate menu.

QAction* DtFederateTree::syncPointsAction ( )

inline

Returns a pointer to the specific action from the federate menu.

void DtFederateTree::updateEnableNetworkTestingForSelectedFederations ( )

slot

For each federation selected, enables or disables testing.

virtual bool DtFederateTree::updateFederate	(	const DtAssistantFederateInfo &	federate,
		const DtAssistantForwarderInfo *	forwarderInfo,
		const QString &	fedexName,
		const std::vector< DtAssistantForwarderInfo > &	peerInfos
	)

virtual

Updates or adds a federate to an existing federation in the tree.

Returns true if a new federation was added.

virtual void DtFederateTree::updateFederateItem	(	const DtAssistantFederateInfo &	federate,
		const DtAssistantForwarderInfo *	forwarderInfo,
		const QString &	fedexName,
		QTreeWidgetItem *	fedItem,
		const std::vector< DtAssistantForwarderInfo > &	peerInfos
	)

protectedvirtual

Updates the federate item with the given information.

virtual void DtFederateTree::updateFederateItemFromForwarderInformation	(	const DtAssistantFederateInfo &	federate,
		const DtAssistantForwarderInfo *	forwarderInfo,
		const QString &	fedexName,
		QTreeWidgetItem *	fedItem,
		const std::vector< DtAssistantForwarderInfo > &	peerInfos
	)

protectedvirtual

Updates the federate item with forwarder information.

virtual void DtFederateTree::updateFederateItems	(	const DtFederateInfoByHandleMap &	federates,
		const DtAssistantForwarderInfo *	forwarderInfo,
		QTreeWidgetItem *	fedexItem,
		const std::vector< DtAssistantForwarderInfo > &	peerInfos
	)

protectedvirtual

Updates the federate items for the given federation item.

virtual bool DtFederateTree::updateFederation	(	const DtAssistantFederationInfo *	federation,
		const DtAssistantForwarderInfo *	forwarderInfo,
		const std::vector< DtAssistantForwarderInfo > &	peerInfos
	)

virtual

Updates or adds a federation to the tree.

Returns true if a new federation was added.

virtual void DtFederateTree::updateFederationColor	(	const MAKRti::DtString &	federationName,
		const QColor &	color
	)

virtual

Set the color of the specified federation.

Member Data Documentation

const int DtFederateTree::FederateHandleRole

staticprotected

const int DtFederateTree::FederateNameRole

staticprotected

const int DtFederateTree::IsLightweightRole

staticprotected

const int DtFederateTree::IsLocalRole

staticprotected

QAction* DtFederateTree::myChangeFederateIconAction

protected

Federate menu actions.

QIcon DtFederateTree::myCheckIcon

protected

Icons to be used in the federate tree.

QAction* DtFederateTree::myClearAllDeadFederates

protected

Federation menu actions.

QAction* DtFederateTree::myClearCurrDefunctFederate

protected

Federate menu actions.

std::set< std::pair<QString,int> > DtFederateTree::myClearedDefunctFederates

protected

Defunct federates that have been cleared from the display.

QAction* DtFederateTree::myColCustomizeAction

protected

std::vector<QAction*> DtFederateTree::myColDispActions

protected

Column view actions.

std::vector<DtFederateTreeColDescr> DtFederateTree::myColumnDescrs

protected

List of descriptions for each column.

QMenu* DtFederateTree::myColViewMenu

protected

Column view menu.

QMenu* DtFederateTree::myContextMenu

protected

Context Menu.

QIcon DtFederateTree::myContTestIcon

protected

Icons to be used in the federate tree.

std::map<QTreeWidgetItem*, std::pair<MAKRti::DtTime, std::pair<QString,int> > > DtFederateTree::myDefunctFederateTreeWidgets

protected

Items are added to myDefunctFederateTreeWidgets when their socket breaks.

These federates are removed if: 1) They fail to reconnect and are manually removed 2) They fail to reconnect and are automatically removed by timer 3) The federation is destroyed

bool DtFederateTree::myDeletionEnabled

protected

Indicates whether or not federate and federation deletion is enabled.

QAction* DtFederateTree::myDestroyFederationAction

protected

Federation menu actions.

QAction* DtFederateTree::myDisplaySyncPointsAction

protected

Federation menu actions.

QIcon DtFederateTree::myDroppedIcon

protected

Icons to be used in the federate tree.

QAction* DtFederateTree::myEnableNetworkTestingAction

protected

Federation menu actions.

QAction* DtFederateTree::myFederateFomAction

protected

Federate menu actions.

QAction* DtFederateTree::myFederateLogAction

protected

Federate menu actions.

QMenu* DtFederateTree::myFederateMenu

protected

float DtFederateTree::myFederateRemovalTime

protected

Time after which defunct federates will automatically be removed from the tree.

QAction* DtFederateTree::myFederateRidParametersAction

protected

Federate menu actions.

std::map<MAKRti::DtString,QColor> DtFederateTree::myFederationColors

protected

Map of federation names to their colors.

QAction* DtFederateTree::myFederationFomAction

protected

Federation menu actions.

QMenu* DtFederateTree::myFederationMenu

protected

std::map<QString,QString> DtFederateTree::myFederationNamesToItemNames

protected

Map of federation names to the names used in the tree.

std::map<QString,QString> DtFederateTree::myItemNamesToFederationNames

protected

Map of federation names to the names used in the tree.

QSize DtFederateTree::myLastVisibleSize

protected

The size of the dialog the last time it was visible.

QAction* DtFederateTree::myLatencyTestAction

protected

Federate menu actions.

QTreeWidgetItem* DtFederateTree::myLoadingIndicationItem

protected

Item that indicates federation information is currently being loaded.

QIcon DtFederateTree::myNoCheckIcon

protected

Icons to be used in the federate tree.

std::map<QTreeWidgetItem*, std::pair<QString,int> > DtFederateTree::myReconnectedFederates

protected

Federates that have successfully reconnected.

std::map<QTreeWidgetItem*, std::pair<QString,int> > DtFederateTree::myReconnectingFederates

protected

Federates that are currently attempting to reconnect.

QIcon DtFederateTree::myRedAttention

protected

Icons to be used in the federate tree.

QAction* DtFederateTree::myResignFederateAction

protected

Federate menu actions.

bool DtFederateTree::myShouldAddShutdownAllToMenu

protected

Determines based on RTI_ASSISTANT_REMOVE_SHUT_DOWN_ALL environment variable whether shut down all, resign, and destroy actions should be visible.

QIcon DtFederateTree::mySingleTestIcon

protected

Icons to be used in the federate tree.

QAction* DtFederateTree::myStatisticsAction

protected

Federate menu actions.

std::set<QTreeWidgetItem*> DtFederateTree::myTestDisabledFederations

protected

Federations that have testing disabled.

QIcon DtFederateTree::myTestIcon

protected

Icons to be used in the federate tree.

MAKRti::DtClock DtFederateTree::myTimer

protected

QIcon DtFederateTree::myWorldWideWeb

protected

Icons to be used in the federate tree.

QIcon DtFederateTree::myYellowAttention

protected

Icons to be used in the federate tree.

const int DtFederateTree::TestEnableRole

staticprotected

QString DtFederateTree::theConstrainedDisabledToolTip

Tool tip strings.

QString DtFederateTree::theConstrainedEnabledToolTip

Tool tip strings.

QString DtFederateTree::theContinuousTestToolTip

Tool tip strings.

QString DtFederateTree::theFederateLogDisabledText

Tool tip strings.

QString DtFederateTree::theFederateLogEnabledText

Tool tip strings.

const int DtFederateTree::theLastColDefaultedOn

staticprotected

The number of the last column which is displayed by default the first time the dialog is shown.

QString DtFederateTree::theLoadingText

The message that indicates information is being loaded.

QString DtFederateTree::theNoTestToolTip

Tool tip strings.

QString DtFederateTree::theRegulatingDisabledToolTip

Tool tip strings.

QString DtFederateTree::theRegulatingEnabledToolTip

Tool tip strings.

QString DtFederateTree::theSingleTestToolTip

Tool tip strings.

QString DtFederateTree::theTestCapableDisabledToolTip

Tool tip strings.

QString DtFederateTree::theTestCapableEnabledToolTip

Tool tip strings.

The documentation for this class was generated from the following file:

federateTree.h

Public Types
enum	DtFederateTreeCol { FederationNameIndex = 0, FederateTypeAndHandleIndex = 0, FederateProcessIndex, FederateNameIndex, FederateHostNameIndex, FederateIPIndex, ConnectedForwarderIpIndex, HlaVersionIndex, FederateQueueStatusIndex, FederatePIDIndex, FederateCommandArgsIndex, RegulatingStateIndex, ConstrainedStateIndex, LbtsIndex, LookAheadIndex, CurrentTimeIndex, TestStatusIndex, TestCountIndex, NumFederateTreeCols }

Classes

Public Types

Public Slots

Signals

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Static Protected Attributes

Private Member Functions

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
