Distributes fomModule files from initiating federate to RtiExec and then from RtiExec to all joining federates. More...

Inheritance diagram for DtFileDistributor:

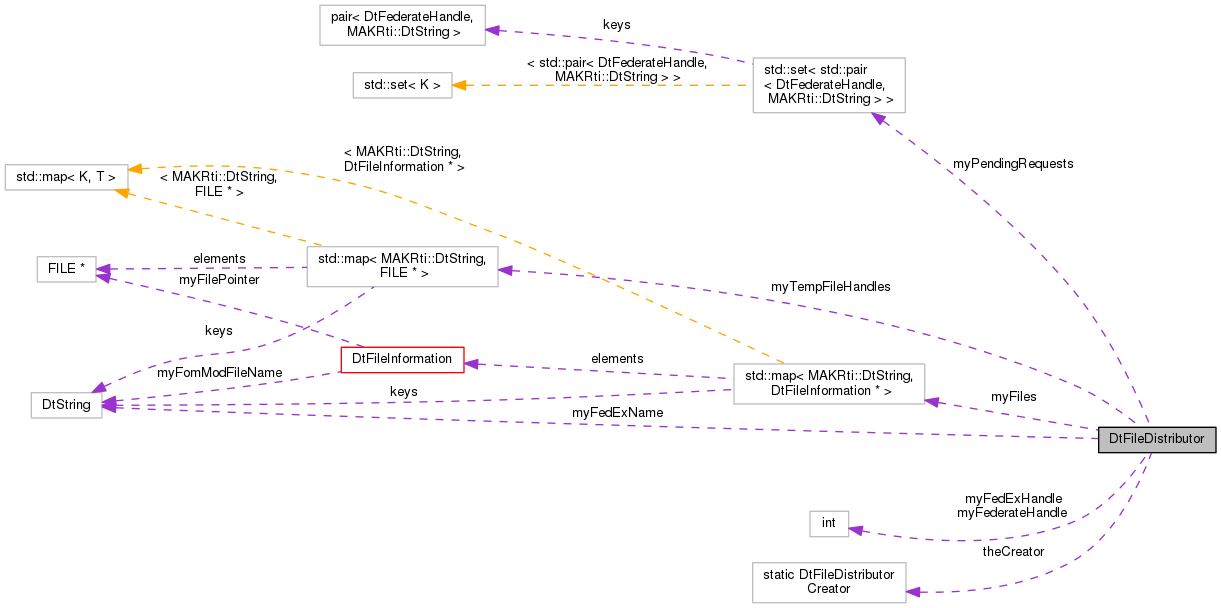

Collaboration diagram for DtFileDistributor:

Public Member Functions
virtual bool	sendFedFile (const std::vector< MAKRti::DtString > &modules)
	Override sendFedFile upload fed files passed in. More...

virtual bool	pushFedFile (DtConnectionMgr connMgr, const MAKRti::DtString &fileName, const unsigned int fileSize, const char fileBuffer, const DtFederateHandle destination=0)
	pushFedFile More...

virtual void	fedFileUploaded (const MAKRti::DtString fileUploaded)
	Called when Fom Module received successfully. More...

virtual bool	fileReceived (const DtFomModuleDistributionMsg &msg, bool &areAllHere)

virtual bool	fileRequested (const DtFomModuleRequestMsg &msg)

virtual void	removeFile (const MAKRti::DtString fileName)
	Remove all knowledge of this file from myFiles. More...

virtual void	removeFiles (const std::vector< MAKRti::DtString > &modules)
	Remove all knowledge of these file from myFiles. More...

virtual bool	fedFileReady (const MAKRti::DtString &fileName) const
	Does the distributor have a valid copy of this fom Module. More...

virtual bool	fedFilesReady (const std::vector< MAKRti::DtString > *fileNames) const
	Does the distributor have a valid copy of all of these fom Modules. More...

const FILE *	fedFilePtr (MAKRti::DtString fileName) const
	Get the fed file pointer. More...

const char *	fedFileBuff (MAKRti::DtString fileName) const
	Get the fed file buffer. More...

DtFileInformation *	takeFedFile (MAKRti::DtString fileName)
	Take ownership of the file. More...

unsigned int	fileSize (MAKRti::DtString fileName) const

FILE *	getTmpFile ()

void	setFedHandle (unsigned int newHandle)
	Set the Fed Handle of the distributor. More...

void	setFedexHandle (unsigned int newHandle)

bool	requestsPending () const
	Are there outstanding requests to be handled? More...

Static Public Member Functions
static void	setCreatorFunction (DtFileDistributorCreator fn)

Protected Types
typedef std::list< DtRtiMsg * >	rtiMsgList

Protected Member Functions
	DtFileDistributor (const int fedExHandle, const int federateHandle, const MAKRti::DtString &fedExName)
	Constructor. More...

virtual	~DtFileDistributor ()
	Destructor. More...

Protected Attributes
std::map< MAKRti::DtString, DtFileInformation * >	myFiles
	Map between files that have been uploaded to me and their 'file names'. More...

std::set< std::pair < DtFederateHandle, MAKRti::DtString > >	myPendingRequests

MAKRti::DtString	myFedExName

int	myFedExHandle

int	myFederateHandle

std::map< MAKRti::DtString, FILE * >	myTempFileHandles

Static Protected Attributes
static DtFileDistributorCreator	theCreator

Private Member Functions
	DtFileDistributor ()

	DtFileDistributor (const DtFileDistributor &orig)

DtFileDistributor &	operator= (const DtFileDistributor &orig)

Detailed Description

Distributes fomModule files from initiating federate to RtiExec and then from RtiExec to all joining federates.

Member Typedef Documentation

typedef std::list< DtRtiMsg* > DtFileDistributor::rtiMsgList

protected

Constructor & Destructor Documentation

DtFileDistributor::DtFileDistributor	(	const int	fedExHandle,
		const int	federateHandle,
		const MAKRti::DtString &	fedExName
	)

protected

Constructor.

virtual DtFileDistributor::~DtFileDistributor ( )

protectedvirtual

Destructor.

DtFileDistributor::DtFileDistributor ( )

private

DtFileDistributor::DtFileDistributor ( const DtFileDistributor & orig )

private

Member Function Documentation

const char* DtFileDistributor::fedFileBuff ( MAKRti::DtString fileName ) const

Get the fed file buffer.

const FILE* DtFileDistributor::fedFilePtr ( MAKRti::DtString fileName ) const

Get the fed file pointer.

virtual bool DtFileDistributor::fedFileReady ( const MAKRti::DtString & fileName ) const

virtual

Does the distributor have a valid copy of this fom Module.

virtual bool DtFileDistributor::fedFilesReady ( const std::vector< MAKRti::DtString > * fileNames ) const

virtual

Does the distributor have a valid copy of all of these fom Modules.

virtual void DtFileDistributor::fedFileUploaded ( const MAKRti::DtString fileUploaded )

virtual

Called when Fom Module received successfully.

virtual bool DtFileDistributor::fileReceived	(	const DtFomModuleDistributionMsg &	msg,
		bool &	areAllHere
	)

virtual

virtual bool DtFileDistributor::fileRequested ( const DtFomModuleRequestMsg & msg )

virtual

unsigned int DtFileDistributor::fileSize ( MAKRti::DtString fileName ) const

FILE* DtFileDistributor::getTmpFile ( )

DtFileDistributor& DtFileDistributor::operator= ( const DtFileDistributor & orig )

private

virtual bool DtFileDistributor::pushFedFile	(	DtConnectionMgr *	connMgr,
		const MAKRti::DtString &	fileName,
		const unsigned int	fileSize,
		const char *	fileBuffer,
		const DtFederateHandle	destination = `0`
	)

virtual

pushFedFile

virtual void DtFileDistributor::removeFile ( const MAKRti::DtString fileName )

virtual

Remove all knowledge of this file from myFiles.

virtual void DtFileDistributor::removeFiles ( const std::vector< MAKRti::DtString > & modules )

virtual

Remove all knowledge of these file from myFiles.

bool DtFileDistributor::requestsPending ( ) const

Are there outstanding requests to be handled?

virtual bool DtFileDistributor::sendFedFile ( const std::vector< MAKRti::DtString > & modules )

virtual

Override sendFedFile upload fed files passed in.

Reimplemented in DtSynchronousFileDistributor.

static void DtFileDistributor::setCreatorFunction ( DtFileDistributorCreator fn )

static

void DtFileDistributor::setFedexHandle ( unsigned int newHandle )

void DtFileDistributor::setFedHandle ( unsigned int newHandle )

Set the Fed Handle of the distributor.

Because federates will use the distributor before they're joined, they'll need to reassign from the connectHandle to their Fed Handle once they're joined.

DtFileInformation* DtFileDistributor::takeFedFile ( MAKRti::DtString fileName )

Take ownership of the file.

retVal will be zero if file not complete (or nonexistent)

Member Data Documentation

int DtFileDistributor::myFederateHandle

protected

int DtFileDistributor::myFedExHandle

protected

MAKRti::DtString DtFileDistributor::myFedExName

protected

std::map<MAKRti::DtString, DtFileInformation*> DtFileDistributor::myFiles

protected

Map between files that have been uploaded to me and their 'file names'.

std::set<std::pair<DtFederateHandle, MAKRti::DtString> > DtFileDistributor::myPendingRequests

protected

std::map<MAKRti::DtString, FILE* > DtFileDistributor::myTempFileHandles

protected

DtFileDistributorCreator DtFileDistributor::theCreator

staticprotected

The documentation for this class was generated from the following file:

fileDistributor.h
