Observes the RTI Forwarder and is responsible sending information on RTI Forwarder to the RTI Assistant. More...

Inheritance diagram for DtForwarderObserverForAssistant:

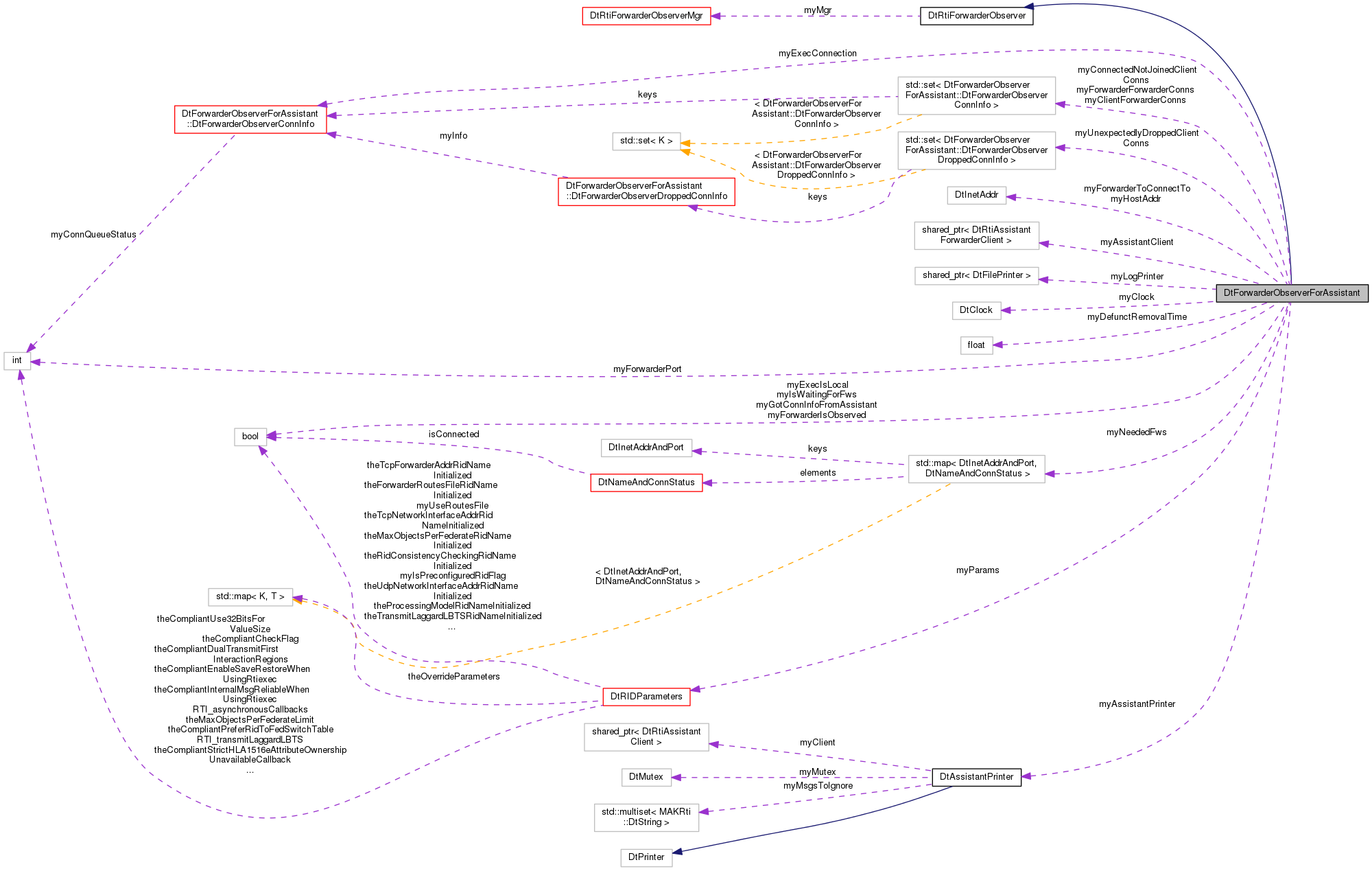

Collaboration diagram for DtForwarderObserverForAssistant:

Classes
struct	DtForwarderObserverConnInfo

struct	DtForwarderObserverDroppedConnInfo

Public Member Functions
	DtForwarderObserverForAssistant ()
	Default CTOR. More...

virtual	~DtForwarderObserverForAssistant ()
	Virtual DTOR. More...

virtual void	initialize (DtRIDParameters *params)
	Initialize the observer. More...

virtual void	queryForConnectionInfo (int &forwarderPort, MAKRti::DtInetAddr &forwarderToConnectTo)
	Queries the assistant for the connection info to use. More...

virtual void	performParameterOverrides (DtRIDParameters &ridParams) const
	Overrides RID parameters based on connection status and other settings. More...

virtual void	setForwarderInfo (int forwarderPort, const MAKRti::DtInetAddr &forwarderToConnectTo)
	If we're not querying the assistant, provide some way for the forwarder to indicate what its forwarderConnInfo is. More...

virtual void	enableNotifications ()
	Enables sending DtWarn & DtFatal to assistant as notifications. More...

virtual void	disableNotifications ()
	Disables sending DtWarn & DtFatal to assistant as notifications. More...

virtual void	processLogFileUpdatedEvent (const MAKRti::DtFilename &logFile)
	Process a log file name update event. More...

virtual int	clientToForwarderConnectionEstablished (const MAKRti::DtString &connName, const MAKRti::DtString &hostName, const MAKRti::DtString &connType, unsigned int connID, const DtInetAddrAndPort &connAddr)
	Callback for established joined client<->forwarder connections. More...

virtual int	clientToForwarderConnectionLost (const MAKRti::DtString &connName, const MAKRti::DtString &hostName, unsigned int connID, const DtInetAddrAndPort &connAddr)
	Callback for lost client<->forwarder connections. More...

virtual void	clientToForwarderFederateJoined (const DtString &connName, const DtString &connType, const DtString &federationName, unsigned int connID, unsigned int fedHandle, const DtInetAddrAndPort &connAddr, const MAKRti::DtString &connHost, unsigned int processId, const MAKRti::DtString &processName, const MAKRti::DtString &commandArgs, DtHlaVersionId hlaVersion)
	Callback for fully joined client<->forwarder connections. More...

virtual void	clientToForwarderFederateLost (const MAKRti::DtString &connName, const MAKRti::DtString &connType, unsigned int connID, unsigned int fedHandle, const DtInetAddrAndPort &connAddr)
	Callback for lost client<->forwarder connections that were fully joined. More...

virtual int	forwarderToForwarderExecConnected (const MAKRti::DtString &connName, unsigned int connID, const DtInetAddrAndPort &connAddr, const MAKRti::DtString &hostName, bool fullyCompliant)
	Callback for connected forwarder<->forwarder exec connections. More...

virtual int	forwarderToForwarderExecLost (const MAKRti::DtString &connName, unsigned int connID, const DtInetAddrAndPort &connAddr)
	Callback for lost forwarder<->forwarder exec connections. More...

virtual int	clientToForwarderExecConnected (const MAKRti::DtString &connName, unsigned int connID, const DtInetAddrAndPort &connAddr, const MAKRti::DtString &connHost, bool fullyCompliant)
	Callback for connected client->forwarder exec connections. More...

virtual int	clientToForwarderExecLost (const MAKRti::DtString &connName, unsigned int connID, const DtInetAddrAndPort &connAddr)
	Callback for lost client->forwarder exec connections. More...

virtual void	forwarderToForwarderConnectionEstablished (const MAKRti::DtString &connName, const MAKRti::DtString &hostName, unsigned int connID, const std::pair< DtInetAddrAndPort, DtInetAddrAndPort > &connAddr)
	Callback for established forwarder<->forwarder connections. More...

virtual void	forwarderToForwarderConnectionLost (const MAKRti::DtString &connName, const MAKRti::DtString &hostName, unsigned int connID, const std::pair< DtInetAddrAndPort, DtInetAddrAndPort > &connAddr)
	Callback for lost forwarder<->forwarder connections. More...

virtual void	forwarderToForwarderConnectionChanged (const MAKRti::DtString &connName, const MAKRti::DtString &hostName, unsigned int oldConnID, unsigned int newConnID, const DtInetAddrAndPort &connAddr)
	Callback for changed forwarder<->forwarder connections. More...

virtual int	clientToForwarderSocketQueueUpdate (unsigned int connId, int connQueueStatus)
	Callback for socket queue update. More...

virtual void	waitingForFowrarderConnections (const DtForwarderPort::DtConnAndNameMap &allNeededFws, const DtForwarderPort::DtConnAndNameMap &stillNeededFws)
	Callback to signal that forwarder is waiting for forwarder<->forwarder connections. More...

virtual void	notWaitingForFowrarderConnections ()
	Callback to signal that forwarder is no longer waiting for forwarder<->forwarder connections. More...

bool	gotConnInfoFromAssistant ()
	/brief Returns true if the assistant supplied the RTI Forwarder connection info. More...

DtBoost::shared_ptr < DtRtiAssistantForwarderClient >	assistantClient ()

virtual void	sendTrayNotification (const MAKRti::DtString &text, DtNotifyLevelType notifyLevel)

const DtRIDParameters *	ridParams () const

DtRIDParameters *	ridParams ()

Public Member Functions inherited from DtRtiForwarderObserver
	DtRtiForwarderObserver ()
	Constructor. More...

virtual	~DtRtiForwarderObserver ()
	Destructor. More...

virtual void	setMgr (DtRtiForwarderObserverMgr *mgr)
	Sets the manager for this observer. More...

virtual void	initMgr ()
	Initializes the mgr. More...

virtual void	removeMgr ()
	Removes the manager for this observer. More...

virtual void	clientToForwarderFederateJoined (const MAKRti::DtString &connName, const MAKRti::DtString &connType, const MAKRti::DtString &federationName, unsigned int connID, unsigned int fedHandle, const DtInetAddrAndPort &connAddr, const MAKRti::DtString &connHost, unsigned int processId, const MAKRti::DtString &processName, const MAKRti::DtString &commandArgs, DtHlaVersionId hlaVersion)=0
	Callback for joined client<->forwarder federate connections. More...

virtual void	addRtiMsgCallback (DtRtiMsgKind msgKind, DtRtiMsgCbMgr::DtCallbackFcn fcn, bool isMomCallback=false)
	Register to receive an event whenever an RTI Msg of the specified kind is received. More...

virtual void	removeRtiMsgCallback (DtRtiMsgKind msgKind, DtRtiMsgCbMgr::DtCallbackFcn fcn, bool isMomCallback=false)
	Unregister to receive an event whenever an RTI Msg of the specified kind is received. More...

virtual void	addTickCallback (DtTickCbFn fcn, MAKRti::DtTime interval)
	Add a tick callback function to be called periodically at the given time interval. More...

virtual void	removeTickCallback (DtTickCbFn fcn)
	Remove tick callback. More...

virtual unsigned long	connectionId () const
	Get the connection ID for this forwarder (thread safe) More...

Protected Member Functions
virtual void	addCallbacks ()
	/brief Adds all RTI message and tick callbacks. Called when a manager is set. More...

virtual void	removeCallbacks ()
	/brief Removes all RTI message and tick callbacks. More...

virtual void	sendForwarderInfoToAssistant () const
	/brief Populates necessary data and sends it to the assistant client (for observation requests) More...

virtual void	sendWaitingForForwardersToAssistant () const
	/brief Populates necessary data and sends a message to the assistant specifying that we are waiting for additional forwarder connections. More...

Protected Member Functions inherited from DtRtiForwarderObserver

Protected Attributes
DtBoost::shared_ptr < DtRtiAssistantForwarderClient >	myAssistantClient
	The assistant client. More...

DtAssistantPrinter *	myAssistantPrinter
	The printer which sends notifications to the assistant. More...

bool	myForwarderIsObserved
	Whether or not there is currently an assistant observing this RTI Forwarder. More...

DtRIDParameters *	myParams
	The RID parameter settings. More...

MAKRti::DtInetAddr	myHostAddr
	The host address used for connection. More...

bool	myGotConnInfoFromAssistant
	Whether or not the assistant supplied connection info. More...

std::set < DtForwarderObserverConnInfo >	myConnectedNotJoinedClientConns

std::set < DtForwarderObserverConnInfo >	myClientForwarderConns

std::set < DtForwarderObserverConnInfo >	myForwarderForwarderConns

std::set < DtForwarderObserverDroppedConnInfo >	myUnexpectedlyDroppedClientConns

DtNeededFwConnMap	myNeededFws
	List of forwarders which we are trying to connect to and whether or not a connection has been made. More...

bool	myIsWaitingForFws
	Whether we are still waiting for forwarder connections. More...

MAKRti::DtClock	myClock

float	myDefunctRemovalTime

DtForwarderObserverConnInfo *	myExecConnection

bool	myExecIsLocal

DtBoost::shared_ptr < DtFilePrinter >	myLogPrinter
	Printer which prints output to a log file. More...


int	myForwarderPort
	Forwarder connection information. More...

MAKRti::DtInetAddr	myForwarderToConnectTo
	Forwarder connection information. More...

Protected Attributes inherited from DtRtiForwarderObserver
DtRtiForwarderObserverMgr *	myMgr
	Pointer to the observer manager. More...

event processing functions
virtual void	tick ()
	Periodic processing. More...

static void	tick (void *usr)
	Callback for periodic processing. More...

RTI Assistant message processing callbacks
virtual void	processForwarderObserveMsg (const DtAssistantStateObserveMsg &msg)
	/brief Process forwarder observer message by enabling or disabling update messages. More...

virtual void	processExitCmndMsg (const DtAssistantExitMsg &msg)
	Process exit command. More...

virtual void	processRidParamRequest (const DtAssistantRidParamsMsg &msg)
	Process RID parameter request. More...

virtual void	processEnableLoggingMsg (const DtAssistantLogEnableMsg &msg)
	Process logging enable command. More...

virtual void	processNotifyLevelChangeMsg (const DtAssistantNtfyLvlUpdateMsg &msg)
	Process notify level change command. More...

virtual void	processAssistantDisconnect ()
	Process assistant disconnect. More...

static void	processForwarderObserveMsg (const DtAssistantStateObserveMsg &msg, void *usr)
	/brief Callback for a message notifying this forwarder that it is or is not being observed. More...

static void	processExitCmndMsg (const DtAssistantExitMsg &msg, void *usr)
	/brief Callback for exit command message More...

static void	processRidParamRequest (const DtAssistantRidParamsMsg &msg, void *usr)
	/brief Callback for assistant RID parameter request message More...

static void	processEnableLoggingMsg (const DtAssistantLogEnableMsg &msg, void *usr)
	Callback for logging enable command message. More...

static void	processNotifyLevelChangeMsg (const DtAssistantNtfyLvlUpdateMsg &msg, void *usr)
	Callback for notify level change command message. More...

static void	processAssistantDisconnect (void *usr)
	/brief Callback for assistant disconnect More...

Detailed Description

Observes the RTI Forwarder and is responsible sending information on RTI Forwarder to the RTI Assistant.

Also accepts commands from the Assistant and gives them to the RTI Forwarder for processing.

Constructor & Destructor Documentation

DtForwarderObserverForAssistant::DtForwarderObserverForAssistant ( )

Default CTOR.

virtual DtForwarderObserverForAssistant::~DtForwarderObserverForAssistant ( )

virtual

Virtual DTOR.

Member Function Documentation

virtual void DtForwarderObserverForAssistant::addCallbacks ( )

protectedvirtual

/brief Adds all RTI message and tick callbacks. Called when a manager is set.

Implements DtRtiForwarderObserver.

DtBoost::shared_ptr<DtRtiAssistantForwarderClient> DtForwarderObserverForAssistant::assistantClient ( )

inline

virtual int DtForwarderObserverForAssistant::clientToForwarderConnectionEstablished	(	const MAKRti::DtString &	connName,
		const MAKRti::DtString &	hostName,
		const MAKRti::DtString &	connType,
		unsigned int	connID,
		const DtInetAddrAndPort &	connAddr
	)

virtual

Callback for established joined client<->forwarder connections.

Implements DtRtiForwarderObserver.

virtual int DtForwarderObserverForAssistant::clientToForwarderConnectionLost	(	const MAKRti::DtString &	connName,
		const MAKRti::DtString &	hostName,
		unsigned int	connID,
		const DtInetAddrAndPort &	connAddr
	)

virtual

Callback for lost client<->forwarder connections.

Implements DtRtiForwarderObserver.

virtual int DtForwarderObserverForAssistant::clientToForwarderExecConnected	(	const MAKRti::DtString &	connName,
		unsigned int	connID,
		const DtInetAddrAndPort &	connAddr,
		const MAKRti::DtString &	connHost,
		bool	fullyCompliant
	)

virtual

Callback for connected client->forwarder exec connections.

Implements DtRtiForwarderObserver.

virtual int DtForwarderObserverForAssistant::clientToForwarderExecLost	(	const MAKRti::DtString &	connName,
		unsigned int	connID,
		const DtInetAddrAndPort &	connAddr
	)

virtual

Callback for lost client->forwarder exec connections.

Implements DtRtiForwarderObserver.

virtual void DtForwarderObserverForAssistant::clientToForwarderFederateJoined	(	const DtString &	connName,
		const DtString &	connType,
		const DtString &	federationName,
		unsigned int	connID,
		unsigned int	fedHandle,
		const DtInetAddrAndPort &	connAddr,
		const MAKRti::DtString &	connHost,
		unsigned int	processId,
		const MAKRti::DtString &	processName,
		const MAKRti::DtString &	commandArgs,
		DtHlaVersionId	hlaVersion
	)

virtual

Callback for fully joined client<->forwarder connections.

virtual void DtForwarderObserverForAssistant::clientToForwarderFederateLost	(	const MAKRti::DtString &	connName,
		const MAKRti::DtString &	connType,
		unsigned int	connID,
		unsigned int	fedHandle,
		const DtInetAddrAndPort &	connAddr
	)

virtual

Callback for lost client<->forwarder connections that were fully joined.

Implements DtRtiForwarderObserver.

virtual int DtForwarderObserverForAssistant::clientToForwarderSocketQueueUpdate	(	unsigned int	connId,
		int	connQueueStatus
	)

virtual

Callback for socket queue update.

Implements DtRtiForwarderObserver.

virtual void DtForwarderObserverForAssistant::disableNotifications ( )

virtual

Disables sending DtWarn & DtFatal to assistant as notifications.

virtual void DtForwarderObserverForAssistant::enableNotifications ( )

virtual

Enables sending DtWarn & DtFatal to assistant as notifications.

virtual void DtForwarderObserverForAssistant::forwarderToForwarderConnectionChanged	(	const MAKRti::DtString &	connName,
		const MAKRti::DtString &	hostName,
		unsigned int	oldConnID,
		unsigned int	newConnID,
		const DtInetAddrAndPort &	connAddr
	)

virtual

Callback for changed forwarder<->forwarder connections.

Implements DtRtiForwarderObserver.

virtual void DtForwarderObserverForAssistant::forwarderToForwarderConnectionEstablished	(	const MAKRti::DtString &	connName,
		const MAKRti::DtString &	hostName,
		unsigned int	connID,
		const std::pair< DtInetAddrAndPort, DtInetAddrAndPort > &	connAddr
	)

virtual

Callback for established forwarder<->forwarder connections.

Implements DtRtiForwarderObserver.

virtual void DtForwarderObserverForAssistant::forwarderToForwarderConnectionLost	(	const MAKRti::DtString &	connName,
		const MAKRti::DtString &	hostName,
		unsigned int	connID,
		const std::pair< DtInetAddrAndPort, DtInetAddrAndPort > &	connAddr
	)

virtual

Callback for lost forwarder<->forwarder connections.

Implements DtRtiForwarderObserver.

virtual int DtForwarderObserverForAssistant::forwarderToForwarderExecConnected	(	const MAKRti::DtString &	connName,
		unsigned int	connID,
		const DtInetAddrAndPort &	connAddr,
		const MAKRti::DtString &	hostName,
		bool	fullyCompliant
	)

virtual

Callback for connected forwarder<->forwarder exec connections.

Implements DtRtiForwarderObserver.

virtual int DtForwarderObserverForAssistant::forwarderToForwarderExecLost	(	const MAKRti::DtString &	connName,
		unsigned int	connID,
		const DtInetAddrAndPort &	connAddr
	)

virtual

Callback for lost forwarder<->forwarder exec connections.

Implements DtRtiForwarderObserver.

bool DtForwarderObserverForAssistant::gotConnInfoFromAssistant ( )

inline

/brief Returns true if the assistant supplied the RTI Forwarder connection info.

References myGotConnInfoFromAssistant.

virtual void DtForwarderObserverForAssistant::initialize ( DtRIDParameters * params )

virtual

Initialize the observer.

Observer takes ownership of params, which could be changed or reinstantiated - do not continue to use the pointer passed into this method. Use ridParams accessor instead.

virtual void DtForwarderObserverForAssistant::notWaitingForFowrarderConnections ( )

virtual

Callback to signal that forwarder is no longer waiting for forwarder<->forwarder connections.

Implements DtRtiForwarderObserver.

virtual void DtForwarderObserverForAssistant::performParameterOverrides ( DtRIDParameters & ridParams ) const

virtual

Overrides RID parameters based on connection status and other settings.

static void DtForwarderObserverForAssistant::processAssistantDisconnect ( void * usr )

static

/brief Callback for assistant disconnect

virtual void DtForwarderObserverForAssistant::processAssistantDisconnect ( )

virtual

Process assistant disconnect.

static void DtForwarderObserverForAssistant::processEnableLoggingMsg	(	const DtAssistantLogEnableMsg &	msg,
		void *	usr
	)

static

Callback for logging enable command message.

virtual void DtForwarderObserverForAssistant::processEnableLoggingMsg ( const DtAssistantLogEnableMsg & msg )

virtual

Process logging enable command.

static void DtForwarderObserverForAssistant::processExitCmndMsg	(	const DtAssistantExitMsg &	msg,
		void *	usr
	)

static

/brief Callback for exit command message

virtual void DtForwarderObserverForAssistant::processExitCmndMsg ( const DtAssistantExitMsg & msg )

virtual

Process exit command.

static void DtForwarderObserverForAssistant::processForwarderObserveMsg	(	const DtAssistantStateObserveMsg &	msg,
		void *	usr
	)

static

/brief Callback for a message notifying this forwarder that it is or is not being observed.

virtual void DtForwarderObserverForAssistant::processForwarderObserveMsg ( const DtAssistantStateObserveMsg & msg )

virtual

/brief Process forwarder observer message by enabling or disabling update messages.

virtual void DtForwarderObserverForAssistant::processLogFileUpdatedEvent ( const MAKRti::DtFilename & logFile )

virtual

Process a log file name update event.

static void DtForwarderObserverForAssistant::processNotifyLevelChangeMsg	(	const DtAssistantNtfyLvlUpdateMsg &	msg,
		void *	usr
	)

static

Callback for notify level change command message.

virtual void DtForwarderObserverForAssistant::processNotifyLevelChangeMsg ( const DtAssistantNtfyLvlUpdateMsg & msg )

virtual

Process notify level change command.

static void DtForwarderObserverForAssistant::processRidParamRequest	(	const DtAssistantRidParamsMsg &	msg,
		void *	usr
	)

static

/brief Callback for assistant RID parameter request message

virtual void DtForwarderObserverForAssistant::processRidParamRequest ( const DtAssistantRidParamsMsg & msg )

virtual

Process RID parameter request.

virtual void DtForwarderObserverForAssistant::queryForConnectionInfo	(	int &	forwarderPort,
		MAKRti::DtInetAddr &	forwarderToConnectTo
	)

virtual

Queries the assistant for the connection info to use.

Note: May reinstantiate RID Parameters object, invalidating old pointers.

virtual void DtForwarderObserverForAssistant::removeCallbacks ( )

protectedvirtual

/brief Removes all RTI message and tick callbacks.

Called when a manager is removed or the observer is destroyed.

Implements DtRtiForwarderObserver.

const DtRIDParameters* DtForwarderObserverForAssistant::ridParams ( ) const

inline

DtRIDParameters* DtForwarderObserverForAssistant::ridParams ( )

inline

virtual void DtForwarderObserverForAssistant::sendForwarderInfoToAssistant ( ) const

protectedvirtual

/brief Populates necessary data and sends it to the assistant client (for observation requests)

void DtForwarderObserverForAssistant::sendTrayNotification	(	const MAKRti::DtString &	text,
		DtNotifyLevelType	notifyLevel
	)

virtual

References myAssistantClient.

virtual void DtForwarderObserverForAssistant::sendWaitingForForwardersToAssistant ( ) const

protectedvirtual

/brief Populates necessary data and sends a message to the assistant specifying that we are waiting for additional forwarder connections.

virtual void DtForwarderObserverForAssistant::setForwarderInfo	(	int	forwarderPort,
		const MAKRti::DtInetAddr &	forwarderToConnectTo
	)

virtual

If we're not querying the assistant, provide some way for the forwarder to indicate what its forwarderConnInfo is.

static void DtForwarderObserverForAssistant::tick ( void * usr )

static

Callback for periodic processing.

virtual void DtForwarderObserverForAssistant::tick ( )

virtual

Periodic processing.

virtual void DtForwarderObserverForAssistant::waitingForFowrarderConnections	(	const DtForwarderPort::DtConnAndNameMap &	allNeededFws,
		const DtForwarderPort::DtConnAndNameMap &	stillNeededFws
	)

virtual

Callback to signal that forwarder is waiting for forwarder<->forwarder connections.

Implements DtRtiForwarderObserver.

Member Data Documentation

DtBoost::shared_ptr<DtRtiAssistantForwarderClient> DtForwarderObserverForAssistant::myAssistantClient

protected

The assistant client.

Referenced by sendTrayNotification().

DtAssistantPrinter* DtForwarderObserverForAssistant::myAssistantPrinter

protected

The printer which sends notifications to the assistant.

std::set<DtForwarderObserverConnInfo> DtForwarderObserverForAssistant::myClientForwarderConns

protected

MAKRti::DtClock DtForwarderObserverForAssistant::myClock

protected

std::set<DtForwarderObserverConnInfo> DtForwarderObserverForAssistant::myConnectedNotJoinedClientConns

protected

float DtForwarderObserverForAssistant::myDefunctRemovalTime

protected

DtForwarderObserverConnInfo* DtForwarderObserverForAssistant::myExecConnection

protected

bool DtForwarderObserverForAssistant::myExecIsLocal

protected

std::set<DtForwarderObserverConnInfo> DtForwarderObserverForAssistant::myForwarderForwarderConns

protected

bool DtForwarderObserverForAssistant::myForwarderIsObserved

protected

Whether or not there is currently an assistant observing this RTI Forwarder.

int DtForwarderObserverForAssistant::myForwarderPort

protected

Forwarder connection information.

MAKRti::DtInetAddr DtForwarderObserverForAssistant::myForwarderToConnectTo

protected

Forwarder connection information.

bool DtForwarderObserverForAssistant::myGotConnInfoFromAssistant

protected

Whether or not the assistant supplied connection info.

Referenced by gotConnInfoFromAssistant().

MAKRti::DtInetAddr DtForwarderObserverForAssistant::myHostAddr

protected

The host address used for connection.

bool DtForwarderObserverForAssistant::myIsWaitingForFws

protected

Whether we are still waiting for forwarder connections.

DtBoost::shared_ptr<DtFilePrinter> DtForwarderObserverForAssistant::myLogPrinter

protected

Printer which prints output to a log file.

DtNeededFwConnMap DtForwarderObserverForAssistant::myNeededFws

protected

List of forwarders which we are trying to connect to and whether or not a connection has been made.

DtRIDParameters* DtForwarderObserverForAssistant::myParams

protected

The RID parameter settings.

std::set<DtForwarderObserverDroppedConnInfo> DtForwarderObserverForAssistant::myUnexpectedlyDroppedClientConns

protected

The documentation for this class was generated from the following file:

forwarderObserverForAssistant.h

Classes

Public Member Functions

Protected Member Functions

Protected Attributes

event processing functions

RTI Assistant message processing callbacks

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
