The client connection to the RTI Assistant for the rtiexec. More...

Inheritance diagram for DtRtiAssistantExecClient:

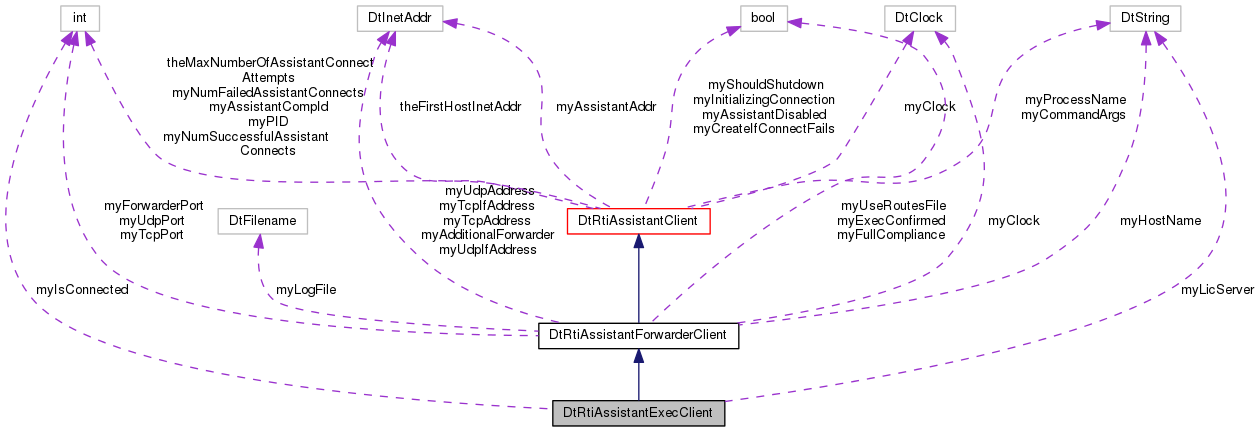

Collaboration diagram for DtRtiAssistantExecClient:

Public Member Functions
	DtRtiAssistantExecClient (int port=0)
	Constructor. More...

virtual	~DtRtiAssistantExecClient ()
	Destructor. More...

virtual void	updateIsConnected (bool connected)
	Updates the flag indicating that the rtiexec is conencted to the forwarder. More...

virtual void	updateLicenseServer (const MAKRti::DtString &server)
	Updates the license server used by this rtiexec. More...

virtual void	sendClientInfo ()
	Send forwarder address and port, log file info, and license server to the assistant. More...

virtual void	sendFederationStateMsg (const DtAssistantFederationInfo &fedexInfo, bool isRemoval)
	Sends a message to update the assistant with the latest info for an entire federation. More...

virtual void	sendNoFederationMsg ()
	Sends a message to tell the assistant that this rtiexec currently has no federations. More...

virtual void	sendExecStateMsg (const std::list< DtAssistantFederationInfo > &execInfo)
	Sends a message to update the assistant with the latest info for an entire Exec (all fedex's). More...

virtual void	sendFederateUpdateMsg (const DtAssistantFederateInfo &fedInfo, const MAKRti::DtString &fedexName, bool isRemoval)
	Sends a message to update the assistant with the latest info for a single federate. More...

virtual void	sendFederationTimeStateMsg (const DtAssistantFederationInfo &fedexInfo)
	Send all time state information for the given federation. More...

virtual void	sendSyncPtUpdateMsg (const MAKRti::DtString &syncPtName, const DtPendingAchievedPair &pendAchieve, const MAKRti::DtString &fedexName, bool isRemoval)
	Sends a message to update the assistant with the latest sync point info for a federation. More...

virtual void	sendLogMsg (const DtLogEntryList &log, unsigned maxSize, const MAKRti::DtInetAddr &destAddr=MAKRti::DtInetAddr(), int destId=-1)
	Send the log. Can optionally specify the destination assistant. More...

Public Member Functions inherited from DtRtiAssistantForwarderClient
	DtRtiAssistantForwarderClient (DtAssistantComponentType type, int port=DtASSISTANT_DEFAULT_PORT)
	Constructor. More...

virtual	~DtRtiAssistantForwarderClient ()
	Destructor. More...

virtual void	updateForwarderInfo (const MAKRti::DtInetAddr &tcpAddr, int tcpPort, const DtInetAddr &tcpNetworkIfAddr, const MAKRti::DtInetAddr &udpAddr, int udpPort, const DtInetAddr &udpNetworkIfAddr, bool fullCompliance, const MAKRti::DtInetAddr &additionalForwarder, int forwarderPort, bool useRoutesFile)
	Updates the forwarder connection info to be sent to the Assistant. More...

virtual void	updateLogFile (const MAKRti::DtFilename &file)
	Updates the log file name used by this forwarder. More...

virtual void	updateExecConfirmed (bool confirmed, bool fullyCompliant)
	Updates whether or not there is an rtiexec confirmed in order to be sent to the Assistant. More...

virtual void	sendFullForwarderInfo (unsigned int numForwarderToForwarderConns, const std::vector< MAKRti::DtString > &forwarderIdentifiers, const std::vector< MAKRti::DtString > &forwarderConnectionNames, const std::vector< MAKRti::DtString > &forwarderConnectionHostNames, const std::vector< std::pair< MAKRti::DtInetAddr, MAKRti::DtInetAddr > > &forwarderConnectionAddrs, const std::vector< int > &forwarderConnectionPorts, unsigned int numForwarderExecConns, unsigned int numForwarderClientConns, const std::vector< MAKRti::DtString > &clientConnectionNames, const std::vector< MAKRti::DtString > &clientConnectionTypeNames, const std::vector< DtString > &clientConnectionProcessNames, const std::vector< DtString > &clientConnectionPIDs, const std::vector< DtString > &clientConnectionCommandArgs, const std::vector< MAKRti::DtString > &clientConnectionHostNames, const std::vector< MAKRti::DtInetAddr > &clientConnectionAddrs, const std::vector< MAKRti::DtString > &clientConnectionFederationNames, const std::vector< int > &clientFederateHandles, const std::vector< unsigned > &clientConnIds, const std::vector< int > &clientConnectionQueueStatus, const std::vector< DtHlaVersionId > &clientHlaVersions, const std::vector< DtAssistantMsgFederateStatus > &clientConnectionFederateStatus)
	Sends information on this forwarder and all of its connected components. More...

virtual void	sendWaitingForForwarders (bool isWaiting, const DtNeededFwConnMap &neededFws)
	Sends information regarding what forwarder connections we are currently waiting for. More...

Public Member Functions inherited from DtRtiAssistantClient
	DtRtiAssistantClient (DtAssistantComponentType type, int port=DtASSISTANT_DEFAULT_PORT)
	Constructor. More...

virtual	~DtRtiAssistantClient ()
	Destructor. More...

virtual bool	tick (unsigned int timeout=0)
	Do the actual message processing. More...

virtual bool	isConnected ()
	Returns true if the socket is connected. More...

virtual bool	isDisabled ()
	Returns true if the socket is disabled. More...

virtual void	addMsgCallback (DtAssistantMsgKind msgKind, DtAssistantMsgCbMgr::DtCallbackFcn fcn, void *usr)
	Message Callbacks These callback functions operate on all of the connections. More...

virtual void	removeMsgCallback (DtAssistantMsgKind msgKind, DtAssistantMsgCbMgr::DtCallbackFcn fcn, void *usr)

virtual void	addWildcardMsgCallback (DtAssistantMsgCbMgr::DtCallbackFcn fcn, void *usr)

virtual void	removeWildcardMsgCallback (DtAssistantMsgCbMgr::DtCallbackFcn fcn, void *usr)

virtual void	addDisconnectCallback (DtAssistantDisconnectCb cb, void *usr)
	These functions add callbacks for notification of a socket disconnect. More...

virtual void	removeDisconnectCallback (DtAssistantDisconnectCb cb, void *usr)

virtual bool	sendLRCConnQueryMsg (bool error, MAKRti::DtString &connectionName, bool &ridIsPreconfigured, MAKRti::DtString &ridConfig, MAKRti::DtInetAddr &tcpAddr, int &tcpPort, MAKRti::DtInetAddr &tcpIntf, MAKRti::DtInetAddr &udpAddr, int &udpPort, MAKRti::DtInetAddr &udpIntf, int &forwarderPort, bool &useRtiexec, bool &forceFullCompliance)
	Send a message querying for the connection parameters. More...

virtual bool	sendForwardingComponentConnQueryMsg (bool error, MAKRti::DtString &connectionName, bool &ridIsPreconfigured, MAKRti::DtString &ridConfig, MAKRti::DtInetAddr &tcpAddr, int &tcpPort, MAKRti::DtInetAddr &tcpIntf, MAKRti::DtInetAddr &udpAddr, int &udpPort, MAKRti::DtInetAddr &udpIntf, MAKRti::DtInetAddr &forwarderToConnectTo, int &forwarderPort, bool &forceFullCompliance)
	Send a message querying for the rtiexec connection parameters. More...

virtual void	sendLatencyTestMsg (const DtAssistantLatencyReportMsg &msg)
	Send a message to the assistant with latency test measurements. More...

virtual void	sendLatencyTestStatusMsg (const DtAssistantTestMgrStatusMsg &msg)
	Send an updated latency test status message to the assistant. More...

virtual bool	getNewLicenseServerFromAssistant (bool allowUnlicensed, bool &runUnlicensed, MAKRti::DtString &serverName, const MAKRti::DtString &featToCheck)
	Send a message to the assistant to query the user for an alternate license server. More...

virtual void	sendNotifyMsg (const MAKRti::DtString &text, DtNotifyLevelType notifyLevel)
	Send a message to display a pop up notification above the tray icon. More...

virtual void	sendSignalTickedMsg ()
	Send a signal ticked message to the assistant. More...

virtual void	sendDialogBoxMsg (const MAKRti::DtString &text, const MAKRti::DtString &advancedText)
	Send a message to display a dialog notification. More...

virtual void	sendClose ()
	Send connection closed message to Assistant. More...

virtual void	sendRidParamsMsg (const MAKRti::DtString &params, const MAKRti::DtFilename &filename, const MAKRti::DtString &federation=MAKRti::DtString::nullString(), unsigned federateHdl=0)
	Send the RID parameters. More...

virtual void	setMsgFactory (DtAssistantMessageFactory *fact)
	Get/Set the message factory. More...

virtual DtAssistantMessageFactory *	msgFactory () const

virtual void	shutDownConnection ()
	AssistantClientOwner should call this function when it processes an assistantExitMsg. More...

virtual MAKRti::DtString	getProcessName () const
	get the process name More...

virtual int	getPID () const
	get the PID More...

virtual MAKRti::DtString	getCommandArgs () const
	get the command args More...

bool	testConnectionStatus ()
	test the connection More...

virtual int	componentId () const
	Returns the component ID assigned by the assistant. More...

Protected Attributes
int	myIsConnected
	Indicates if the rtiexec is connected to the forwarder. More...

MAKRti::DtString	myLicServer
	The license server used by this LRC. More...

Protected Attributes inherited from DtRtiAssistantForwarderClient
MAKRti::DtString	myHostName
	The host name for the forwarder. More...

MAKRti::DtInetAddr	myTcpAddress
	The host address for the forwarder. More...

int	myTcpPort
	The TCP port for the forwarder. More...

MAKRti::DtInetAddr	myTcpIfAddress
	The forwarder's TCP network interface address. More...

MAKRti::DtInetAddr	myUdpAddress
	The best effort address for the forwarder. More...

int	myUdpPort
	The UDP port for the forwarder. More...

MAKRti::DtInetAddr	myUdpIfAddress
	The forwarder's UDP network interface address. More...

bool	myFullCompliance
	Whether full compliance is enabled. More...

MAKRti::DtInetAddr	myAdditionalForwarder
	The IP address of an optional additional forwarder that this forwarder attempted to connect to. More...

int	myForwarderPort
	The port used to connect to other forwarders. More...

bool	myUseRoutesFile
	Whether or not to use routes file. More...

bool	myExecConfirmed
	Whether an exec has connected to this forwarder or in the distributed forwarder network. More...

MAKRti::DtFilename	myLogFile
	The name and full path of the log file. More...

DtClock	myClock

Protected Attributes inherited from DtRtiAssistantClient
bool	myAssistantDisabled
	Set to true if the Assistant is disabled. More...

MAKRti::DtInetAddr	myAssistantAddr
	The IP address of the Assistant. More...

unsigned int	myAssistantPort
	The port on which the RTI Assistant listens for connections. More...

DtTcpMsgSocket *	mySocket
	The socket to the RTI Assistant. More...

bool	myCreateIfConnectFails
	Indicates whether an Assistant should be created if a connection cannot be established. More...

DtAssistantConnectionStatus	myConnStatus
	The current connection status. More...

bool	myInitializingConnection
	Is connection being initialized. More...

MAKRti::DtU32	mySockOpts
	The socket options to be used when connecting to the Assistant. More...

DtAssistantMessageFactory *	myMessageFactory
	The message factory. More...

DtAssistantDfltMsgFactory	myDefaultMessageFactory
	Default message factory. More...

DtAssistantComponentType	myComponentType
	The component type. (LRC, rtiexec, etc.) More...

MAKRti::DtClock	myClock
	Clock for timeouts. More...

MAKRti::DtTime	myConnTestInterval
	Interval at which connection should be tested. More...

MAKRti::DtTime	myTimeToTestConnection
	Next time to test connection. More...

DtAssistantMsgCbMgr	myMsgCbMgr
	Message callback manager. More...

std::auto_ptr< DtAssistantMsg >	myRespMsg
	The last response message to be received. More...

std::list < DtAssistantDisconnectCbInfo * >	myDisconnectCallbacks
	Lists of pointers to socket disconnect callbacks. More...

MAKRti::DtMutex *	mySocketMutex
	locks access to the socket connection. More...

bool	myShouldShutdown
	should be set when assistant exit msg has been received. More...

int	myNumFailedAssistantConnects
	How many assistant restarts have we attempted. More...

int	myNumSuccessfulAssistantConnects
	How many assistant reconnects occurred. More...

int	myPID
	the Process ID ( PID ) More...

MAKRti::DtString	myProcessName
	the Process Name More...

MAKRti::DtString	myCommandArgs
	the command line arguments More...

int	myAssistantCompId
	The assistant assigned component ID. More...

unsigned long	mySequence
	Message sequence number. More...

Additional Inherited Members
Protected Member Functions inherited from DtRtiAssistantClient
virtual bool	initialize ()
	Attempts to connect to the RTI Assistant. More...

virtual DtAssistantConnectionStatus	connectToAssistant ()
	Attempt to open a connection and handshake with the Assistant. More...

virtual DtAssistantConnectionStatus	makeSingleConnectionAttempt ()

virtual bool	startAssistant ()
	Attempt to start a new Assistant. More...

virtual bool	readAndProcess (MAKRti::DtTime maxTime)
	Read and process any messages on the socket for up to the maxTime. More...

virtual bool	sendMsg (const DtAssistantMsg &msg)
	Send a message to the RTI Assistant. More...

virtual DtAssistantMsg *	sendMsgAndWait (const DtAssistantMsg &msg, DtAssistantMsgKind respKind, unsigned int waitSecs=0)
	Send a message to the RTI Assistant and wait for response of the specified kind. More...

virtual DtAssistantConnectionStatus	sendConnectMsg ()
	Send basic component information to the Assistant for a new connection. More...

virtual void	processRespMsg (const DtAssistantMsg &respMsg)

virtual void	processNtfyLvlUpdateMsg (const DtAssistantNtfyLvlUpdateMsg &updateMsg)

virtual void	processAssistantExitMsg (const DtAssistantExitMsg &inter)

virtual void	processDisconnect ()
	Process Assistant socket disconnect. More...

virtual std::auto_ptr < DtAssistantMsg >	netRead (int *retCode) const
	Attempt to read a new message from the socket. More...

virtual bool	sendLicQueryMsg (bool allowUnlicensed, bool &runUnlicensed, MAKRti::DtString &licServer)
	Send a message querying for the license server. More...

Static Protected Member Functions inherited from DtRtiAssistantClient
static void	processRespMsg (const DtAssistantMsg &respMsg, void *usr)
	Response message callback. More...

static void	processNtfyLvlUpdateMsg (const DtAssistantNtfyLvlUpdateMsg &updateMsg, void *usr)
	Notify level update message callback. More...

static void	processAssistantExitMsg (const DtAssistantExitMsg &inter, void *usr)
	Process the assistant exit message. The assistant is commanding us to exit. More...

Static Protected Attributes inherited from DtRtiAssistantClient
static const int	theMaxNumberOfAssistantConnectAttempts
	either starting up or reconnecting, how many assistant restarts do we tolerate before giving up. More...

static const MAKRti::DtTime	theSleepBetweenAssistantConnectAttempts
	When attempting to connect, this is the number of seconds. More...

static const MAKRti::DtInetAddr	theFirstHostInetAddr
	The first InetAddr when the federate was launched. More...

Detailed Description

The client connection to the RTI Assistant for the rtiexec.

DtRtiAssistantExecClient manages the client connection of the rtiexec to the RTI Assistant. Provides routines to create and send messages to the Assistant.

Constructor & Destructor Documentation

DtRtiAssistantExecClient::DtRtiAssistantExecClient ( int port = 0 )

Constructor.

virtual DtRtiAssistantExecClient::~DtRtiAssistantExecClient ( )

virtual

Destructor.

Member Function Documentation

virtual void DtRtiAssistantExecClient::sendClientInfo ( )

virtual

Send forwarder address and port, log file info, and license server to the assistant.

Reimplemented from DtRtiAssistantForwarderClient.

virtual void DtRtiAssistantExecClient::sendExecStateMsg ( const std::list< DtAssistantFederationInfo > & execInfo )

virtual

Sends a message to update the assistant with the latest info for an entire Exec (all fedex's).

virtual void DtRtiAssistantExecClient::sendFederateUpdateMsg	(	const DtAssistantFederateInfo &	fedInfo,
		const MAKRti::DtString &	fedexName,
		bool	isRemoval
	)

virtual

Sends a message to update the assistant with the latest info for a single federate.

The given federate is to be removed if the isRemoval flag is set. Does not send time state information.

virtual void DtRtiAssistantExecClient::sendFederationStateMsg	(	const DtAssistantFederationInfo &	fedexInfo,
		bool	isRemoval
	)

virtual

Sends a message to update the assistant with the latest info for an entire federation.

The given federation is to be removed if the isRemoval flag is set.

virtual void DtRtiAssistantExecClient::sendFederationTimeStateMsg ( const DtAssistantFederationInfo & fedexInfo )

virtual

Send all time state information for the given federation.

virtual void DtRtiAssistantExecClient::sendLogMsg	(	const DtLogEntryList &	log,
		unsigned	maxSize,
		const MAKRti::DtInetAddr &	destAddr = `MAKRti::DtInetAddr()`,
		int	destId = `-1`
	)

virtual

Send the log. Can optionally specify the destination assistant.

virtual void DtRtiAssistantExecClient::sendNoFederationMsg ( )

virtual

Sends a message to tell the assistant that this rtiexec currently has no federations.

virtual void DtRtiAssistantExecClient::sendSyncPtUpdateMsg	(	const MAKRti::DtString &	syncPtName,
		const DtPendingAchievedPair &	pendAchieve,
		const MAKRti::DtString &	fedexName,
		bool	isRemoval
	)

virtual

Sends a message to update the assistant with the latest sync point info for a federation.

The given sync point is to be removed if the isRemoval flag is set.

virtual void DtRtiAssistantExecClient::updateIsConnected ( bool connected )

virtual

Updates the flag indicating that the rtiexec is conencted to the forwarder.

Note that this method does not send the message to the assistant, just stores the value to be sent when sendLrcInfo is called.

virtual void DtRtiAssistantExecClient::updateLicenseServer ( const MAKRti::DtString & server )

virtual

Updates the license server used by this rtiexec.

Used by the Assistant to help other components locate a license. Note that this method does not send the message to the assistant, just stores the name to be sent when sendClientInfo is called.

Member Data Documentation

int DtRtiAssistantExecClient::myIsConnected

protected

Indicates if the rtiexec is connected to the forwarder.

MAKRti::DtString DtRtiAssistantExecClient::myLicServer

protected

The license server used by this LRC.

The documentation for this class was generated from the following file:

rtiAssistantExecClient.h

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
