DtAssistantConnConfigWidget Class Reference

Widget that can be brought up by the user to configure their RTI config preferences. More...

Inheritance diagram for DtAssistantConnConfigWidget:

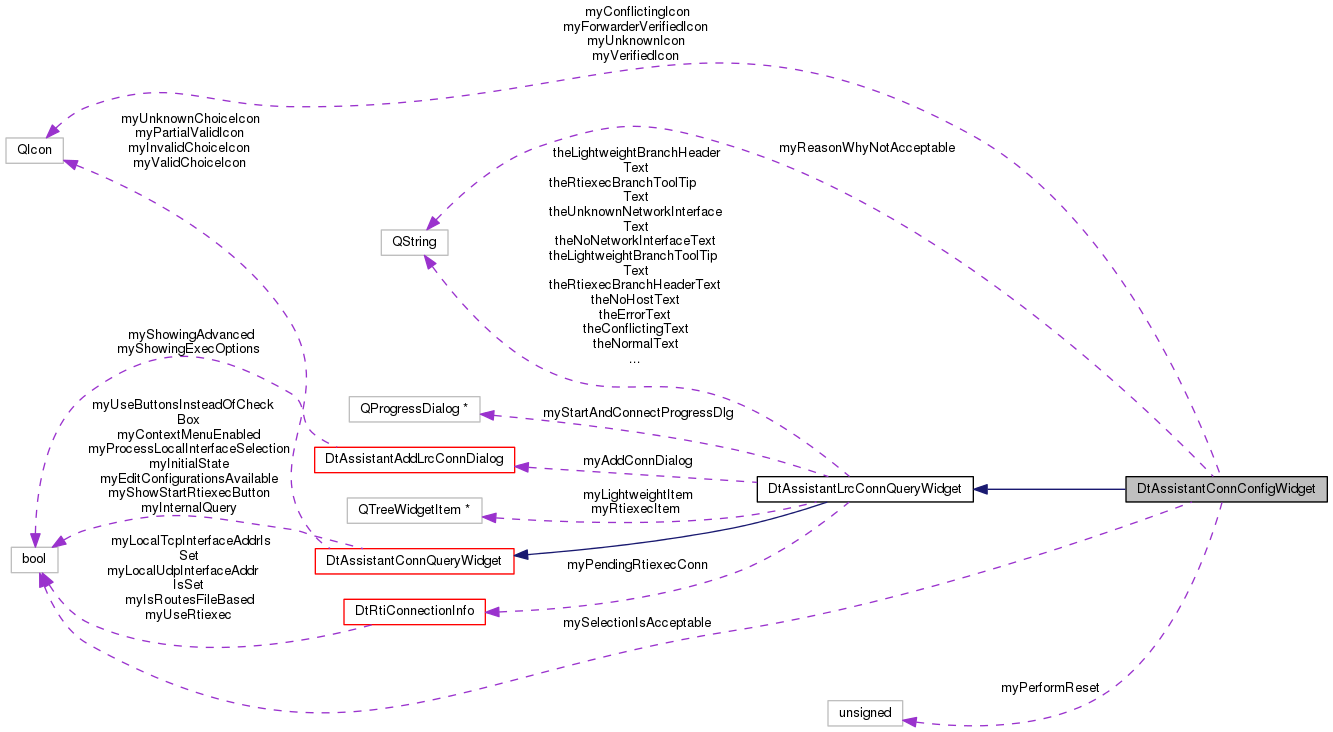

Collaboration diagram for DtAssistantConnConfigWidget:

Public Slots
void	enableOrDisablePrefAccept ()
	Determines whether or not the preference dialog accept button should be enabled or disabled. More...
Public Slots inherited from DtAssistantLrcConnQueryWidget
void	processStartRtiexec ()
	Processes the pressing of the start rtiexec button by the user. More...
void	cancelStartAndConnect ()
	Processes a cancel from progress dialog for starting and connecting to an rtiexec. More...
Public Slots inherited from DtAssistantConnQueryWidget
virtual void	processAdd ()
	Processes the pressing of the add connection button by the user. More...
virtual void	processRemove ()
	Processes the pressing of the remove connection button by the user. More...
virtual void	processEdit ()
	Processes the pressing of the edit connection button by the user. More...
virtual void	processSelectionChange (QTreeWidgetItem *item=0)
	Processes a selection change. More...
virtual void	configurationIndexChanged (int index)
	Processes selection change in the configuration combo box. More...
virtual void	processTcpInterfaceChange (int hostIndex)
	Process a selection change for the local TCP interface. More...
virtual void	processUdpInterfaceChange (int hostIndex)
	Process a selection change for the local UDP interface. More...
virtual void	showContextMenu (const QPoint &)
	Shows the context menu at the given location. More...

Public Member Functions
	DtAssistantConnConfigWidget (QWidget *parent, Qt::WindowFlags f=0)
	CTOR. More...
virtual	~DtAssistantConnConfigWidget ()
	Virtual DTOR. More...
Public Member Functions inherited from DtAssistantLrcConnQueryWidget
	DtAssistantLrcConnQueryWidget (QWidget *parent=0, Qt::WindowFlags f=0)
	Constructor. More...
virtual	~DtAssistantLrcConnQueryWidget ()
	Destructor. More...
virtual void	displayErrorText (bool error)
	Set the variation of widget text based on whether or not it is being displayed due to an error. More...
virtual void	setStartRtiexecEnabled (bool enable, const QString &reason)
	Sets whether or not the "Start rtiexec" button is enabled. More...
virtual bool	acceptCurrentSelection ()
	Processes acceptance of the current selection, starting an rtiexec if necessary and possible. More...
virtual void	initializeQtToolTips ()
virtual void	addKnownAssistant (const DtAssistantInfo &assistant)
	Adds an assistant to the list of known remote assistants. More...
virtual void	removeKnownAssistant (const DtAssistantInfo &assistant)
	Removes an assistant to the list of known remote assistants. More...
Public Member Functions inherited from DtAssistantConnQueryWidget
	DtAssistantConnQueryWidget (QWidget *parent, Qt::WindowFlags f=0)
	Constructor. More...
virtual	~DtAssistantConnQueryWidget ()
	Destructor. More...
virtual void	setComponentType (DtAssistantComponentType type, bool internalQuery)
	Set the component type the dialog is handling. More...
virtual DtAssistantComponentType	componentType () const
	Get the component type the dialog handled. More...
virtual bool	internalQuery () const
	Get if this query originated from the Assistant or a component. More...
virtual void	useButtonsInsteadOfCheckBox (bool useButtons)
	Configure the widget to use radio buttons rather than a check box to set/unset the whether to use the chosen connection in the future. More...
virtual void	showStartRtiexecButton (bool show)
	Configure the widget to show the start rtiexec button. More...
virtual const DtAssistantInfoSet &	knownAssistants () const
	The assistants known by this assistant. More...
virtual bool	isKnownAssistant (const DtRtiConnectionInfo &conn)
	Determine if this connection is an rtiexec connection on the same host as one of the known assistants. More...
virtual const DtAssistantInfo *	getAssistant (const MAKRti::DtInetAddr &ip)
	Get the first known assistant that matches the given IP Returns the matching assistant; otherwise, NULL. More...
virtual const DtAssistantInfo *	getAssistant (const MAKRti::DtString &hostName)
	Get the first known assistant that matches the given host name Returns the matching assistant; otherwise, NULL. More...
virtual void	setConnections (const DtRtiConnectionAndConfiguration &connConfig, bool preserveSelection)
	Sets the list of connections. More...
virtual void	addConnections (const DtRtiConnectionAndConfiguration &conns)
	Adds a set of available connections to the list. More...
virtual void	removeConnections (const DtRtiConnectionAndConfiguration &conns)
	Removes a set of available connections from the list. More...
virtual void	getResults (DtRtiConnectionInfoDataPair &conn, DtRtiConnectionConfigurationInfo &config, bool &choose)
	Fills in the current chosen connection information settings. More...
virtual const DtRtiConnectionAndConfiguration &	userAddedConnections ()
	Returns the set of user added connections during this execution of the dialog. More...
virtual const DtRtiConnectionAndConfiguration &	userRemovedConnections ()
	Returns the set of user removed connections during this execution of the dialog. More...
virtual void	clearUserAddedAndRemoved ()
	Clears all connections added and removed by the user during this execution of the dialog. More...
virtual bool	selectConnection (const DtRtiConnectionInfo &conn)
	Sets which connection should be selected. More...
virtual void	reselectConnection ()
	Unselects and reselects the specified connection to update the state of the current buttons and dialog options. More...
virtual void	setSelectedConfiguration (const DtRtiConnectionConfigurationInfo *config)
	Populates full compliance checkbox and selected RID configuration per the given configuration. More...
virtual void	setSelectedRtiSetting (const MAKRti::DtString &name, bool isPreconfigured)
	Selects RTI Setting configuration. More...
virtual void	getSelectedConnection (DtRtiConnectionInfo &conn) const
	Get the currently selected connection. More...
virtual void	getSelectedConfiguration (DtRtiConnectionConfigurationInfo &config) const
	Get the currently selected configuration. More...
virtual void	addProhibitedPort (int port, const QString &reason)
	Add a port which is prohibited, along with a reason. More...
virtual void	removeProhibitedPort (int port)
	Remove a port which is prohibited. More...
virtual void	setInitialState (bool check)
	Set the initial state of the dialog when it is shown for the very first time. More...
virtual bool	isConnectionNameInUse (const QString &name) const
	Returns true if the given connection name is already in use by a known connection. More...
virtual void	getInterfaceList (const DtAssistantInfo &assistant, bool useIPv4, QStringList &interfaceAdddrList)
	Reloads the list of local network interfaces which can be selected for new connections. More...
virtual bool	checkForPortConflicts (int port1, int port2=0)
	Check if the port is prohibited and display an error if it is. More...
virtual bool	checkForValidAddr (const QString &addrStr, const MAKRti::DtInetAddr &ifAddr, MAKRti::DtInetAddr &addr)
	Check if the string is a valid address, as well as valid for the specified interface. More...
virtual bool	checkForConnNameConflict (const QString &name)
	Check if the new connection name is unique. More...
virtual bool	checkForDuplicateConn (const DtRtiConnectionInfo &conn)
	Check if the given connection is a duplicate of an existing connection. More...
Public Member Functions inherited from DtAssistantConfigWidget
	DtAssistantConfigWidget (QWidget *parent=0, Qt::WindowFlags f=0)
	Constructor. More...
virtual	~DtAssistantConfigWidget ()
	Destructor. More...
virtual QString	reasonForDisabledAccept () const
	If the widget has disabled the accept button, returns the reason why. More...

Protected Member Functions
virtual void	updateDisplayedConnection (const QString &name, const DtRtiConnectionInfoDataPair &updatedConn, QTreeWidgetItem *connItem)
	Depending on the type of our current query connection, we update connItem based on updatedConn. More...
virtual void	showEvent (QShowEvent *event)
	Prepare the widget to be shown. More...
virtual void	clearAllConnections ()
	Clears the entire connection list. More...
virtual void	setRidConfigurations (const DtAssistantRidConfigInfoMgr::RidConfigurationList &connConfig, bool preserveSelection)
	Overridden to remove the 'Edit Configuration' option when displayed in the preferences dialog. More...
virtual void	setAcceptEnabled (bool enabled, const QString &reasonForDisable)
	Sets whether or not accept is enabled. More...
Protected Member Functions inherited from DtAssistantLrcConnQueryWidget
virtual bool	addConnection (const DtRtiConnectionInfoDataPair &conn, const DtRtiConfigurationInfoDataPair &config, DtNameToConnInfoMap::iterator &connIter)
	Adds an available connection to the list. More...
virtual void	removeConnection (const DtRtiConnectionInfoDataPair &conn)
	Removes an available connection from the list. More...
virtual QTreeWidgetItem *	findConnInTree (const DtRtiConnectionInfo &conn, DtNameToConnInfoMap::iterator &connIter)
	Finds the connection item in the tree. More...
virtual void	getConnStatusText (const QTreeWidgetItem *item, const DtRtiConnectionInfoDataPair &conn, const DtRtiConfigurationInfoDataPair &, QString &text)
	Gets the connection status text for the given connection. More...
virtual void	evaluateConnections ()
	Evaluates connections for conflicts or invalid configuration. More...
virtual bool	checkForValidAddrAndHost (const QString &addrStr, const MAKRti::DtInetAddr &ifAddr, MAKRti::DtInetAddr &addr)
	Check if the string is a valid address, as well as valid for the specified interface. More...
virtual bool	promptUserForNewConnInfo (DtRtiConnectionInfoDataPair &conn)
	Prompts the user for new connection info. More...
virtual bool	promptUserToEditConnInfo (DtRtiConnectionInfoDataPair &conn)
	Prompts the user to edit connection info. More...
virtual bool	promptUserForConnInfo (DtRtiConnectionInfoDataPair &conn, const QString &dialogTitle, bool useNameOfGivenConn)
	Prompts the user for connection info. More...
virtual void	setAcceptEnabledBasedOnConn (const DtRtiConnectionInfoDataPair *conn)
	Enables or disables the accept button based on the state of the given currently selected connection. More...
virtual void	updateDialogBasedOnConn (const DtRtiConnectionInfoDataPair *conn, const DtRtiConfigurationInfoDataPair *config, bool isDisabled)
	Updates the LRC connection query dialog specific items based on the state of the given currently selected connection and configuration. More...
Protected Member Functions inherited from DtAssistantConnQueryWidget
virtual bool	replaceConnection (const DtRtiConnAndAssociatedConfig &oldConn, DtRtiConnectionInfoDataPair &newConn, DtNameToConnInfoMap::iterator &connIter)
	Replace a connection on the list and pass back the iterator of the new item. More...
virtual void	refreshConnections (const DtAssistantInfo &assistant, bool isConnected)
	Refresh the list of connections with the connection status of the given assistant. More...
virtual void	storeUserAddedConnection (const DtRtiConnectionInfoDataPair &conn)
	Store information on a connection that user requested to add. More...
virtual void	storeUserRemovedConnection (const DtRtiConnectionInfoDataPair &conn)
	Store information on a connection that user requested to remove. More...
virtual void	setConnItemToolTip (QTreeWidgetItem *item, const DtRtiConnectionInfoDataPair &conn=std::make_pair(DtRtiConnectionInfo::invalidConn(), DtRtiAssociatedConnectionData()), const DtRtiConfigurationInfoDataPair &config=DtRtiConfigurationInfoDataPair())
	Set the tool tip for the given item. More...
virtual void	setFullyCompliantStateBasedOnConn (const DtRtiConnAndAssociatedConfig *connConfig)
	Enables or disables and sets the fully compliant check box based on the state of the given currently selected connection and if active, its configuration . More...
virtual void	setRemoveEnabledBasedOnConn (const DtRtiConnectionInfoDataPair *conn)
	Enables or disables the remove button based on the state of the given currently selected connection. More...
virtual void	setEditEnabledBasedOnConn (const DtRtiConnectionInfoDataPair *conn)
	Enables or disables the edit button based on the state of the given currently selected connection. More...
virtual void	disableItem (QTreeWidgetItem *item, bool disable)
	Marks the item as disabled. More...
virtual bool	isItemDisabled (const QTreeWidgetItem *item) const
	Returns true if the item is marked as disabled. More...
virtual QString	reserveNameForConnection (const DtRtiConnectionInfoDataPair &conn)
	Reserves the name for the given connection. More...
virtual void	unreserveNameForConnection (const DtRtiConnectionInfoDataPair &conn)
	Unreserves the given connection name. More...
virtual bool	isAddressNotation (const QString &addrString) const
	Checks if the given string contains an address notation. More...
virtual void	setLocalInterfaces (const DtRtiConnectionInfo &connInfo)
	Initialize local interfaces from connection info. More...

Protected Attributes
bool	mySelectionIsAcceptable
	Whether or not the current selection is acceptable. More...
QString	myReasonWhyNotAcceptable
	Reason why the selection is not acceptable. More...
unsigned	myPerformReset
	Flag to determine whether or not display should be reset on show event. More...
Icons
QIcon	myVerifiedIcon
QIcon	myForwarderVerifiedIcon
QIcon	myUnknownIcon
QIcon	myConflictingIcon
Protected Attributes inherited from DtAssistantLrcConnQueryWidget
DtAssistantAddLrcConnDialog *	myAddConnDialog
	Dialog used to set information for a new connection. More...
QTreeWidgetItem *	myLightweightItem
	Top level item for the lightweight connection type. More...
QTreeWidgetItem *	myRtiexecItem
	Top level item for the rtiexec connection type. More...
QProgressDialog *	myStartAndConnectProgressDlg
	A dialog to display progress when starting and connecting to an rtiexec. More...
DtRtiConnectionInfo	myPendingRtiexecConn
	The rtiexec connection we are attempting to start and connect to. More...
QString	theErrorText
	Text to be displayed when there was a connection error. More...
QString	theNormalText
	Text to be displayed when there was no error. More...
QString	theErrorTitle
	Title to be displayed when there was a connection error. More...
QString	theNormalTitle
	Title to be displayed when there was no error. More...
QString	theVerifiedText
	Text descriptions for each possible connection status. More...
QString	theVerifiedForwarderText
	Text descriptions for each possible connection status. More...
QString	theUnknownText
	Text descriptions for each possible connection status. More...
QString	theConflictingText
	Text descriptions for each possible connection status. More...
QString	theUnknownNetworkInterfaceText
	Text descriptions for each possible connection status. More...
QString	theNoNetworkInterfaceText
	Text descriptions for each possible connection status. More...
QString	theNoHostText
	Text descriptions for each possible connection status. More...
QString	theLightweightBranchHeaderText
	Connection tree branch headers and tool tips. More...
QString	theLightweightBranchToolTipText
	Connection tree branch headers and tool tips. More...
QString	theRtiexecBranchHeaderText
	Connection tree branch headers and tool tips. More...
QString	theRtiexecBranchToolTipText
	Connection tree branch headers and tool tips. More...
Protected Attributes inherited from DtAssistantConnQueryWidget
Ui::AssistantConnQueryWidget	myUiImpl
DtAssistantComponentType	myComponentType
	The type of the current querying component. More...
bool	myInternalQuery
	Whether the query originated internally or from a component. More...
DtNameToConnInfoMap	myConnectionInfo
	The map of connection entries to detailed connection info. More...
DtAssistantInfoSet	myRemoteAssistants
	The set of known remote assistants. More...
DtRtiConnectionAndConfiguration	myAddedConnections
	Set of added connections. More...
DtRtiConnectionAndConfiguration	myRemovedConnections
	Set of added connections. More...
DtNameToConnInfoMap::iterator	myPredefinedLightweightConnection
	The predefined lightweight connection. More...
DtNameToConnInfoMap::iterator	myPredefinedRtiexecConnection
	The predefined rtiexec connection. More...
DtNameToConnInfoMap::iterator	myChosenConnection
	The connection chosen to be used without prompting. More...
std::map< int, QString >	myProhibitedPorts
	List of prohibited ports and reasons why. More...
QMenu *	myContextMenu
	Context Menu. More...
bool	myContextMenuEnabled
	Controls whether the context menu should be displayed on right clicks. More...
bool	myShowStartRtiexecButton
	Whether the start rtiexec button is displayed. More...
bool	myUseButtonsInsteadOfCheckBox
	Whether the radio buttons are used instead of the check box to set the selected connection to be used automatically in the future. More...
bool	myInitialState
	The dialog is being displayed for the first time ever and should be in its default initial state. More...
bool	myProcessLocalInterfaceSelection
	Indicates that dialog is being initialized and selections can be ignored. More...
int	myLastSelectedIndex
	Keeps track of the last selected configuration for restoration when choosing edit. More...
bool	myEditConfigurationsAvailable
	Indicates if "Edit Configurations..." is the final entry in the RTI Settings combo box. More...
QAction *	myAddConnectionAction
QAction *	myRemoveConnectionAction
QAction *	myEditConnectionAction
QAction *	myStartRtiexecAction
QIcon	myValidChoiceIcon
QIcon	myUnknownChoiceIcon
QIcon	myInvalidChoiceIcon
QIcon	myPartialValidIcon

Private Member Functions
	DtAssistantConnConfigWidget (const DtAssistantConnConfigWidget &)
	Copy constructor not implemented. More...
DtAssistantConnConfigWidget &	operator= (const DtAssistantConnConfigWidget &)
	Assignment operator not implemented. More...

Additional Inherited Members
Signals inherited from DtAssistantLrcConnQueryWidget
void	startRtiexec (const DtRtiConnectionInfoDataPair &conn, const DtRtiConnectionConfigurationInfo &config, bool isRemote)
	Signal emitted when user chooses to start an rtiexec. More...
void	updateWindowTitle (const QString &)
	Signal emitted when the window title should be changed. More...
void	requestStartRtiexecEnable (const DtRtiConnectionInfoDataPair &)
	Signal emitted when we think we may want to enable the "Start rtiexec" option, but need to be told if its ok (could be disabled by remote assistant for this connection) More...
Signals inherited from DtAssistantConnQueryWidget
void	editRtiConfigurations ()
	Signal emitted when user chooses to edit configurations. More...
void	selectionAccepted ()
	Signal emitted when the selection is accepted. More...
void	acceptEnabled (bool)
	Signal that the accept button should be enabled/disabled. More...
void	connectionAdded (const DtRtiConnectionInfoDataPair &conn, DtAssistantConnQueryWidget *widget)
	Signal emitted when a new connection is added by a user (but not yet accepted). More...
Signals inherited from DtAssistantConfigWidget
void	enablePrefAccept ()
	Emitted to indicate that the accept button can be enabled. More...
void	disablePrefAccept ()
	Emitted to indicate that the accept button should be disabled. More...
Protected Types inherited from DtAssistantConnQueryWidget
enum	DtConnQueryCol { ConnectionNameCol, StatusCol, SortCol }
typedef std::map< QString, DtRtiConnAndAssociatedConfig >	DtNameToConnInfoMap

Detailed Description

Widget that can be brought up by the user to configure their RTI config preferences.

Constructor & Destructor Documentation

DtAssistantConnConfigWidget::DtAssistantConnConfigWidget	(	QWidget *	parent,
		Qt::WindowFlags	f = 0
	)

CTOR.

virtual DtAssistantConnConfigWidget::~DtAssistantConnConfigWidget ( )

virtual

Virtual DTOR.

DtAssistantConnConfigWidget::DtAssistantConnConfigWidget ( const DtAssistantConnConfigWidget &  )

private

Copy constructor not implemented.

Member Function Documentation

virtual void DtAssistantConnConfigWidget::clearAllConnections ( )

protectedvirtual

Clears the entire connection list.

Reimplemented from DtAssistantLrcConnQueryWidget.

void DtAssistantConnConfigWidget::enableOrDisablePrefAccept ( )

slot

Determines whether or not the preference dialog accept button should be enabled or disabled.

DtAssistantConnConfigWidget& DtAssistantConnConfigWidget::operator= ( const DtAssistantConnConfigWidget &  )

private

Assignment operator not implemented.

virtual void DtAssistantConnConfigWidget::setAcceptEnabled ( bool  enabled, const QString &  reasonForDisable  )

protectedvirtual

Sets whether or not accept is enabled.

Reimplemented from DtAssistantConnQueryWidget.

virtual void DtAssistantConnConfigWidget::setRidConfigurations ( const DtAssistantRidConfigInfoMgr::RidConfigurationList &  connConfig, bool  preserveSelection  )

protectedvirtual

Overridden to remove the 'Edit Configuration' option when displayed in the preferences dialog.

Reimplemented from DtAssistantConnQueryWidget.

virtual void DtAssistantConnConfigWidget::showEvent ( QShowEvent *  event )

protectedvirtual

Prepare the widget to be shown.

Reimplemented from DtAssistantLrcConnQueryWidget.

virtual void DtAssistantConnConfigWidget::updateDisplayedConnection ( const QString &  name, const DtRtiConnectionInfoDataPair &  updatedConn, QTreeWidgetItem *  connItem  )

protectedvirtual

Depending on the type of our current query connection, we update connItem based on updatedConn.

Reimplemented from DtAssistantLrcConnQueryWidget.

Member Data Documentation

QIcon DtAssistantConnConfigWidget::myConflictingIcon

protected

QIcon DtAssistantConnConfigWidget::myForwarderVerifiedIcon

protected

unsigned DtAssistantConnConfigWidget::myPerformReset

protected

Flag to determine whether or not display should be reset on show event.

QString DtAssistantConnConfigWidget::myReasonWhyNotAcceptable

protected

Reason why the selection is not acceptable.

bool DtAssistantConnConfigWidget::mySelectionIsAcceptable

protected

Whether or not the current selection is acceptable.

QIcon DtAssistantConnConfigWidget::myUnknownIcon

protected

QIcon DtAssistantConnConfigWidget::myVerifiedIcon

protected

---

The documentation for this class was generated from the following file:

• connConfigWidget.h
