The DtAssistantInfoMsg defines a wrapper for the RTI Assistant information message used by the Assistants to share settings and known rtiexec and forwarder information with one another. More...

Inheritance diagram for DtAssistantInfoMsg:

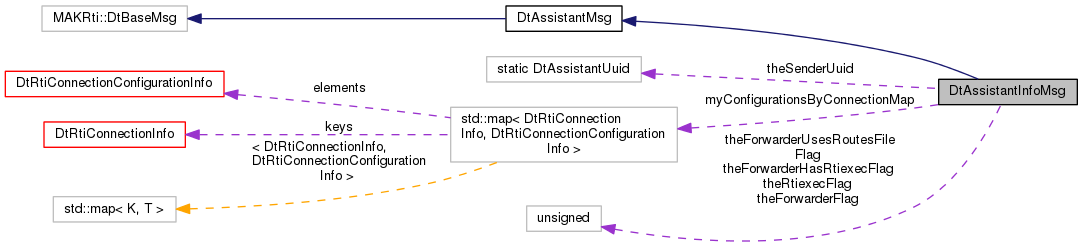

Collaboration diagram for DtAssistantInfoMsg:

Public Member Functions
	DtAssistantInfoMsg (DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Constructors. More...

	DtAssistantInfoMsg (const DtNetAssistantInfoMsg *netRepMsg, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)

virtual	~DtAssistantInfoMsg ()
	Destructor. More...

virtual DtAssistantMsg *	clone (bool copy=true) const
	Return a copy/empty object of the same type as this. More...

virtual void	setRtiexecsAndForwarders (const DtRtiConnectionAndConfiguration &rtiexecsAndForwarders)
	Set rtiexec and forwarder information. More...

virtual void	getRtiexecsAndForwarders (DtRtiConnectionAndConfiguration &rtiexecsAndForwarders, const MAKRti::DtInetAddr &interfaceReceivedOn, bool ignoreInterface=false) const
	Get rtiexec and forwarder information Public addresses for connections are not resolved. More...

virtual void	setInterfaces (const DtInetAddrSet &localInterAddrs)
	Set the interfaces for the assistant host. More...

virtual void	getInterfaces (DtInetAddrSet &localInterAddrs) const
	Get the interfaces for the assistant host. More...

virtual bool	isRemoval () const
	Get/Set whether the message is indicating the removal of the specified rtiexecs and license servers. More...

virtual void	setRemoval (bool val)

virtual bool	remoteCmdsAccepted () const
	Get/Set whether the sending assistant is accepting remote commands (e.g. More...

virtual void	setRemoteCmdsAccepted (bool val)

virtual unsigned int	assistantInfoMemoryPeriod () const
	Get / Set the assistant information memory period. More...

virtual void	setAssistantInfoMemoryPeriod (unsigned int interval)

virtual void	setAssistantUuid (const DtAssistantUuid &assistantUuid)
	Set/Get owning rtiAssistant's UUID. More...

virtual const DtAssistantUuid &	assistantUuid () const

virtual void	printData () const
	Print the data section. More...

Public Member Functions inherited from DtAssistantMsg
virtual	~DtAssistantMsg ()
	Destructor. More...

virtual DtNetAssistantMsgHeader *	netHeader () const
	Get header of network representation. More...

virtual int	version () const
	Return the message version. More...

virtual bool	isValidVersion () const
	Returns bool: message version is valid? More...

virtual DtAssistantMsgKind	msgKind () const
	Get the message kind. More...

virtual void	print () const
	Printing functions. More...

virtual void	printHeader () const

virtual void	printSrcDest () const

virtual bool	isOk () const
	Message is good? More...

bool	isAssistantToAssistantMessage () const
	Returns whether or not this message contains source/destination information included in messages sent between assistants. More...

virtual MAKRti::DtInetAddr	sourceAddr () const
	Get/Set the IP address of the source of this message. More...

virtual void	setSourceAddr (const MAKRti::DtInetAddr &addr)

virtual int	sourceId () const
	Get/Set the ID of the source of this message. More...

virtual void	setSourceId (int id)

virtual MAKRti::DtString	sourceHost () const
	Get/Set the host name of the source of this message. More...

virtual void	setSourceHost (const MAKRti::DtString &addr)

virtual MAKRti::DtInetAddr	destAddr () const
	Get/Set the IP address of the destination of this message. More...

virtual void	setDestAddr (const MAKRti::DtInetAddr &addr)

virtual int	destId () const
	Get/Set the ID of the destination of this message. More...

virtual void	setDestId (int id)

virtual int	compId () const
	Get/Set the related component's connection ID. More...

virtual void	setCompId (int compId)

virtual const DtAssistantUuid &	sourceUuid () const
	Get/Set the uuid of the source of this message. More...

virtual void	setSourceUuid (const DtAssistantUuid &uuid)

virtual bool	isForeign () const
	Get/Set the whether the source considers the destination foreign Assistant-to-Assistant messages only. More...

virtual void	setIsForeign (bool isForeignDestination)

virtual DtU32	sequence () const
	Get/Set sequence number Assistant-to-Assistant messages only. More...

virtual void	setSequence (DtU32 sequenceNumber)

Static Public Member Functions
static void	setSenderUuid (const DtAssistantUuid senderUuid)

static DtAssistantMsg *	create (const DtNetAssistantMsgHeader *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Creators. More...

static DtAssistantMsg *	create (DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)

static void	addCallback (DtRtiAssistantPeer conn, DtAssistantInfoCb cb, void usr)
	Adds or removes a callback with the given Assistant peer for this message type. More...

static void	removeCallback (DtRtiAssistantPeer conn, DtAssistantInfoCb cb, void usr)

Static Public Member Functions inherited from DtAssistantMsg
static const char *	kindToString (DtAssistantMsgKind kind)
	Returns the name of the message, by kind enumeration. More...

Protected Member Functions
virtual DtNetAssistantInfoMsg *	netAssistantInfoMsg ()
	The network representation for the message. More...

virtual const DtNetAssistantInfoMsg *	netAssistantInfoMsg () const

virtual DtAssistantMsgKind	internalMsgKind ()
	Returns the kind of a DtAssistantInfoMsg message. More...

virtual int	minSize () const
	Returns minimum size of a message, including header. More...

virtual void	setLocalIpv4InterfaceCount (unsigned long count)
	Set/Get number of local Ipv4 interfaces. More...

virtual unsigned long	localIpv4InterfaceCount () const

virtual void	setLocalIpv6InterfaceCount (unsigned long count)
	Set/Get number of local Ipv6 interfaces. More...

virtual unsigned long	localIpv6InterfaceCount () const

virtual void	setRtiexecForwarderCount (unsigned long count)
	Set/Get number of rtiexecs/forwarders. More...

virtual unsigned long	rtiexecForwarderCount () const

virtual const DtNetU128 *	localInterfaceAddressPtr () const
	Return pointer to location of local interface addresses. More...

virtual DtNetU128 *	localInterfaceAddressPtr ()

virtual const DtNetU128 *	tcpAddressPtr () const
	Return pointer to location of rtiexec/forwarder TCP addresses. More...

virtual DtNetU128 *	tcpAddressPtr ()

virtual const DtNetU128 *	udpAddressPtr () const
	Return pointer to location of rtiexec/forwarder UDP addresses. More...

virtual DtNetU128 *	udpAddressPtr ()

virtual const DtNetU128 *	udpIntferfacePtr () const
	Return pointer to location of rtiexec/forwarder UDP interface addresses. More...

virtual DtNetU128 *	udpIntferfacePtr ()

virtual const DtNetU32 *	addressFamiliesPtr () const
	Return pointer to location of address families. More...

virtual DtNetU32 *	addressFamiliesPtr ()

virtual const DtNetU32 *	rtiexecCompIdsPtr () const
	Return pointer to location of rtiexec component IDs. More...

virtual DtNetU32 *	rtiexecCompIdsPtr ()

virtual const DtNetU32 *	forwarderCompIdsPtr () const
	Return pointer to location of forwarder component IDs. More...

virtual DtNetU32 *	forwarderCompIdsPtr ()

virtual const DtNetU16 *	tcpPortsPtr () const
	Return pointer to location of rtiexec/forwarder TCP ports. More...

virtual DtNetU16 *	tcpPortsPtr ()

virtual const DtNetU16 *	udpPortsPtr () const
	Return pointer to location of rtiexec/forwarder UDP ports. More...

virtual DtNetU16 *	udpPortsPtr ()

virtual const DtNetU16 *	forwarderPortsPtr () const
	Return pointer to location of forwarder-to-forwarder ports. More...

virtual DtNetU16 *	forwarderPortsPtr ()

virtual const DtNetU8 *	fullCompliancePtr () const
	Return pointer to location of rtiexec/forwarder full compliance settings. More...

virtual DtNetU8 *	fullCompliancePtr ()

virtual const DtNetU8 *	rtiexecForwarderFlagPtr () const
	Return pointer to location of flags which indicate if each included rtiexec/forwarder is an rtiexec, forwarder, or both. More...

virtual DtNetU8 *	rtiexecForwarderFlagPtr ()

virtual void	setRtiexecForwarderNamesSize (unsigned long size)
	Set/Get rtiexec/forwarder connection names text size. More...

virtual unsigned long	rtiexecForwarderNamesSize () const

virtual const char *	rtiexecForwarderNamesPtr () const
	Return pointer to rtiexec/forwarder conn names location in msg. More...

virtual char *	rtiexecForwarderNamesPtr ()

virtual void	setHostNamesSize (unsigned long size)
	Set/Get rtiexec/forwarder host names text size. More...

virtual unsigned long	hostNamesSize () const

virtual const char *	hostNamesPtr () const
	Return pointer to rtiexec/forwarder host names location in msg. More...

virtual char *	hostNamesPtr ()

virtual void	setOwnerHostSize (unsigned size)
	Set/Get owning host names text size. More...

virtual unsigned	ownerHostSize () const

virtual const char *	ownerHostsPtr () const
	Return pointer to host names of the machines that own the conns. More...

virtual char *	ownerHostsPtr ()

Protected Member Functions inherited from DtAssistantMsg
	DtAssistantMsg ()
	Constructor. More...

virtual void	sizeChanged (int size)
	Called whenever size is changed using changeSize, or insert/deleteBytes. More...

void	initAssistantMsg (int size, DtAssistantMsgKind msgKindVal, DtBufferPtr buffer)
	Called by ctor, so not virtual. More...

void	initAssistantMsg (const void *initial, int size, DtBufferPtr buffer)

void	initAssistantMsg (const DtNetAssistantMsgHeader *header, DtBufferPtr buffer)

virtual void	adjustBytes (int offset, int numBytes)
	Adjust numBytes bytes at the indicated offset in the net rep. More...

virtual void	adjustBytes (void *address, int numBytes)
	Adjust the numBytes starting at the indicated address. More...

virtual void	resizeForSrcDestInfo ()
	Allocates memory at the end of the message for source/destination information needed when sending messages between assistants. More...

virtual const DtNetAssistantSrcDestInfo *	srcDestInfoPtr () const
	Return pointer to source/destination information in the message. More...

virtual DtNetAssistantSrcDestInfo *	srcDestInfoPtr ()

virtual void	setSourceHostSize (unsigned long size)
	Set/Get source host name text size. More...

virtual unsigned long	sourceHostSize () const

virtual const char *	sourceHostPtr () const
	Return pointer to source host name in message. More...

virtual char *	sourceHostPtr ()

Protected Attributes
std::map< DtRtiConnectionInfo, DtRtiConnectionConfigurationInfo >	myConfigurationsByConnectionMap

Static Protected Attributes
static const unsigned	theRtiexecFlag
	Flag indicating that an entry is an rtiexec. More...

static const unsigned	theForwarderFlag
	Flag indicating that an entry is a forwarder. More...

static const unsigned	theForwarderHasRtiexecFlag
	Flag indicating that, if entry is for a forwarder, the forwarder is also aware of an rtiexec in its network. More...

static const unsigned	theForwarderUsesRoutesFileFlag
	Flag indicating that, if entry is for a forwarder, the forwarder uses a routes file. More...

static DtAssistantUuid	theSenderUuid
	The UUID of the sender assistant. Must be set by setSenderUuid() More...

Detailed Description

The DtAssistantInfoMsg defines a wrapper for the RTI Assistant information message used by the Assistants to share settings and known rtiexec and forwarder information with one another.

Constructor & Destructor Documentation

DtAssistantInfoMsg::DtAssistantInfoMsg ( DtBufferPtr buffer = DtUSE_INTERNAL_BUFFER )

Constructors.

DtAssistantInfoMsg::DtAssistantInfoMsg	(	const DtNetAssistantInfoMsg *	netRepMsg,
		DtBufferPtr	buffer = `DtUSE_INTERNAL_BUFFER`
	)

virtual DtAssistantInfoMsg::~DtAssistantInfoMsg ( )

virtual

Destructor.

Member Function Documentation

static void DtAssistantInfoMsg::addCallback	(	DtRtiAssistantPeer *	conn,
		DtAssistantInfoCb	cb,
		void *	usr
	)

static

Adds or removes a callback with the given Assistant peer for this message type.

virtual const DtNetU32* DtAssistantInfoMsg::addressFamiliesPtr ( ) const

protectedvirtual

Return pointer to location of address families.

virtual DtNetU32* DtAssistantInfoMsg::addressFamiliesPtr ( )

protectedvirtual

virtual unsigned int DtAssistantInfoMsg::assistantInfoMemoryPeriod ( ) const

virtual

Get / Set the assistant information memory period.

virtual const DtAssistantUuid& DtAssistantInfoMsg::assistantUuid ( ) const

virtual

virtual DtAssistantMsg* DtAssistantInfoMsg::clone ( bool copy = true ) const

virtual

Return a copy/empty object of the same type as this.

Implements DtAssistantMsg.

static DtAssistantMsg* DtAssistantInfoMsg::create	(	const DtNetAssistantMsgHeader *	initial,
		DtBufferPtr	buffer = `DtUSE_INTERNAL_BUFFER`
	)

static

Creators.

static DtAssistantMsg* DtAssistantInfoMsg::create ( DtBufferPtr buffer = DtUSE_INTERNAL_BUFFER )

static

virtual const DtNetU32* DtAssistantInfoMsg::forwarderCompIdsPtr ( ) const

protectedvirtual

Return pointer to location of forwarder component IDs.

virtual DtNetU32* DtAssistantInfoMsg::forwarderCompIdsPtr ( )

protectedvirtual

virtual const DtNetU16* DtAssistantInfoMsg::forwarderPortsPtr ( ) const

protectedvirtual

Return pointer to location of forwarder-to-forwarder ports.

virtual DtNetU16* DtAssistantInfoMsg::forwarderPortsPtr ( )

protectedvirtual

virtual const DtNetU8* DtAssistantInfoMsg::fullCompliancePtr ( ) const

protectedvirtual

Return pointer to location of rtiexec/forwarder full compliance settings.

virtual DtNetU8* DtAssistantInfoMsg::fullCompliancePtr ( )

protectedvirtual

virtual void DtAssistantInfoMsg::getInterfaces ( DtInetAddrSet & localInterAddrs ) const

virtual

Get the interfaces for the assistant host.

virtual void DtAssistantInfoMsg::getRtiexecsAndForwarders	(	DtRtiConnectionAndConfiguration &	rtiexecsAndForwarders,
		const MAKRti::DtInetAddr &	interfaceReceivedOn,
		bool	ignoreInterface = `false`
	)		const

virtual

Get rtiexec and forwarder information Public addresses for connections are not resolved.

virtual const char* DtAssistantInfoMsg::hostNamesPtr ( ) const

protectedvirtual

Return pointer to rtiexec/forwarder host names location in msg.

virtual char* DtAssistantInfoMsg::hostNamesPtr ( )

protectedvirtual

virtual unsigned long DtAssistantInfoMsg::hostNamesSize ( ) const

protectedvirtual

virtual DtAssistantMsgKind DtAssistantInfoMsg::internalMsgKind ( )

protectedvirtual

Returns the kind of a DtAssistantInfoMsg message.

Implements DtAssistantMsg.

virtual bool DtAssistantInfoMsg::isRemoval ( ) const

virtual

Get/Set whether the message is indicating the removal of the specified rtiexecs and license servers.

If not, it is for addition.

virtual const DtNetU128* DtAssistantInfoMsg::localInterfaceAddressPtr ( ) const

protectedvirtual

Return pointer to location of local interface addresses.

virtual DtNetU128* DtAssistantInfoMsg::localInterfaceAddressPtr ( )

protectedvirtual

virtual unsigned long DtAssistantInfoMsg::localIpv4InterfaceCount ( ) const

protectedvirtual

virtual unsigned long DtAssistantInfoMsg::localIpv6InterfaceCount ( ) const

protectedvirtual

virtual int DtAssistantInfoMsg::minSize ( ) const

protectedvirtual

Returns minimum size of a message, including header.

virtual DtNetAssistantInfoMsg* DtAssistantInfoMsg::netAssistantInfoMsg ( )

protectedvirtual

The network representation for the message.

virtual const DtNetAssistantInfoMsg* DtAssistantInfoMsg::netAssistantInfoMsg ( ) const

protectedvirtual

virtual unsigned DtAssistantInfoMsg::ownerHostSize ( ) const

protectedvirtual

virtual const char* DtAssistantInfoMsg::ownerHostsPtr ( ) const

protectedvirtual

Return pointer to host names of the machines that own the conns.

virtual char* DtAssistantInfoMsg::ownerHostsPtr ( )

protectedvirtual

virtual void DtAssistantInfoMsg::printData ( ) const

virtual

Print the data section.

Reimplemented from DtAssistantMsg.

virtual bool DtAssistantInfoMsg::remoteCmdsAccepted ( ) const

virtual

Get/Set whether the sending assistant is accepting remote commands (e.g.

starting & shutding down rtiexecs).

static void DtAssistantInfoMsg::removeCallback	(	DtRtiAssistantPeer *	conn,
		DtAssistantInfoCb	cb,
		void *	usr
	)

static

virtual const DtNetU32* DtAssistantInfoMsg::rtiexecCompIdsPtr ( ) const

protectedvirtual

Return pointer to location of rtiexec component IDs.

virtual DtNetU32* DtAssistantInfoMsg::rtiexecCompIdsPtr ( )

protectedvirtual

virtual unsigned long DtAssistantInfoMsg::rtiexecForwarderCount ( ) const

protectedvirtual

virtual const DtNetU8* DtAssistantInfoMsg::rtiexecForwarderFlagPtr ( ) const

protectedvirtual

Return pointer to location of flags which indicate if each included rtiexec/forwarder is an rtiexec, forwarder, or both.

virtual DtNetU8* DtAssistantInfoMsg::rtiexecForwarderFlagPtr ( )

protectedvirtual

virtual const char* DtAssistantInfoMsg::rtiexecForwarderNamesPtr ( ) const

protectedvirtual

Return pointer to rtiexec/forwarder conn names location in msg.

virtual char* DtAssistantInfoMsg::rtiexecForwarderNamesPtr ( )

protectedvirtual

virtual unsigned long DtAssistantInfoMsg::rtiexecForwarderNamesSize ( ) const

protectedvirtual

virtual void DtAssistantInfoMsg::setAssistantInfoMemoryPeriod ( unsigned int interval )

virtual

virtual void DtAssistantInfoMsg::setAssistantUuid ( const DtAssistantUuid & assistantUuid )

virtual

Set/Get owning rtiAssistant's UUID.

virtual void DtAssistantInfoMsg::setHostNamesSize ( unsigned long size )

protectedvirtual

Set/Get rtiexec/forwarder host names text size.

virtual void DtAssistantInfoMsg::setInterfaces ( const DtInetAddrSet & localInterAddrs )

virtual

Set the interfaces for the assistant host.

virtual void DtAssistantInfoMsg::setLocalIpv4InterfaceCount ( unsigned long count )

protectedvirtual

Set/Get number of local Ipv4 interfaces.

virtual void DtAssistantInfoMsg::setLocalIpv6InterfaceCount ( unsigned long count )

protectedvirtual

Set/Get number of local Ipv6 interfaces.

virtual void DtAssistantInfoMsg::setOwnerHostSize ( unsigned size )

protectedvirtual

Set/Get owning host names text size.

virtual void DtAssistantInfoMsg::setRemoteCmdsAccepted ( bool val )

virtual

virtual void DtAssistantInfoMsg::setRemoval ( bool val )

virtual

virtual void DtAssistantInfoMsg::setRtiexecForwarderCount ( unsigned long count )

protectedvirtual

Set/Get number of rtiexecs/forwarders.

virtual void DtAssistantInfoMsg::setRtiexecForwarderNamesSize ( unsigned long size )

protectedvirtual

Set/Get rtiexec/forwarder connection names text size.

virtual void DtAssistantInfoMsg::setRtiexecsAndForwarders ( const DtRtiConnectionAndConfiguration & rtiexecsAndForwarders )

virtual

Set rtiexec and forwarder information.

static void DtAssistantInfoMsg::setSenderUuid ( const DtAssistantUuid senderUuid )

static

virtual const DtNetU128* DtAssistantInfoMsg::tcpAddressPtr ( ) const

protectedvirtual

Return pointer to location of rtiexec/forwarder TCP addresses.

virtual DtNetU128* DtAssistantInfoMsg::tcpAddressPtr ( )

protectedvirtual

virtual const DtNetU16* DtAssistantInfoMsg::tcpPortsPtr ( ) const

protectedvirtual

Return pointer to location of rtiexec/forwarder TCP ports.

virtual DtNetU16* DtAssistantInfoMsg::tcpPortsPtr ( )

protectedvirtual

virtual const DtNetU128* DtAssistantInfoMsg::udpAddressPtr ( ) const

protectedvirtual

Return pointer to location of rtiexec/forwarder UDP addresses.

virtual DtNetU128* DtAssistantInfoMsg::udpAddressPtr ( )

protectedvirtual

virtual const DtNetU128* DtAssistantInfoMsg::udpIntferfacePtr ( ) const

protectedvirtual

Return pointer to location of rtiexec/forwarder UDP interface addresses.

virtual DtNetU128* DtAssistantInfoMsg::udpIntferfacePtr ( )

protectedvirtual

virtual const DtNetU16* DtAssistantInfoMsg::udpPortsPtr ( ) const

protectedvirtual

Return pointer to location of rtiexec/forwarder UDP ports.

virtual DtNetU16* DtAssistantInfoMsg::udpPortsPtr ( )

protectedvirtual

Member Data Documentation

std::map<DtRtiConnectionInfo, DtRtiConnectionConfigurationInfo> DtAssistantInfoMsg::myConfigurationsByConnectionMap

protected

const unsigned DtAssistantInfoMsg::theForwarderFlag

staticprotected

Flag indicating that an entry is a forwarder.

const unsigned DtAssistantInfoMsg::theForwarderHasRtiexecFlag

staticprotected

Flag indicating that, if entry is for a forwarder, the forwarder is also aware of an rtiexec in its network.

const unsigned DtAssistantInfoMsg::theForwarderUsesRoutesFileFlag

staticprotected

Flag indicating that, if entry is for a forwarder, the forwarder uses a routes file.

const unsigned DtAssistantInfoMsg::theRtiexecFlag

staticprotected

Flag indicating that an entry is an rtiexec.

DtAssistantUuid DtAssistantInfoMsg::theSenderUuid

staticprotected

The UUID of the sender assistant. Must be set by setSenderUuid()

The documentation for this class was generated from the following file:

assistantInfoMsg.h

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
