Instances of DtRtiExecFederateMgr process federation-level messages (such as create, destroy, join, resign, and sync points) for HLA applications that are using the rtiexec. More...

Inheritance diagram for DtRtiExecFederateMgr:

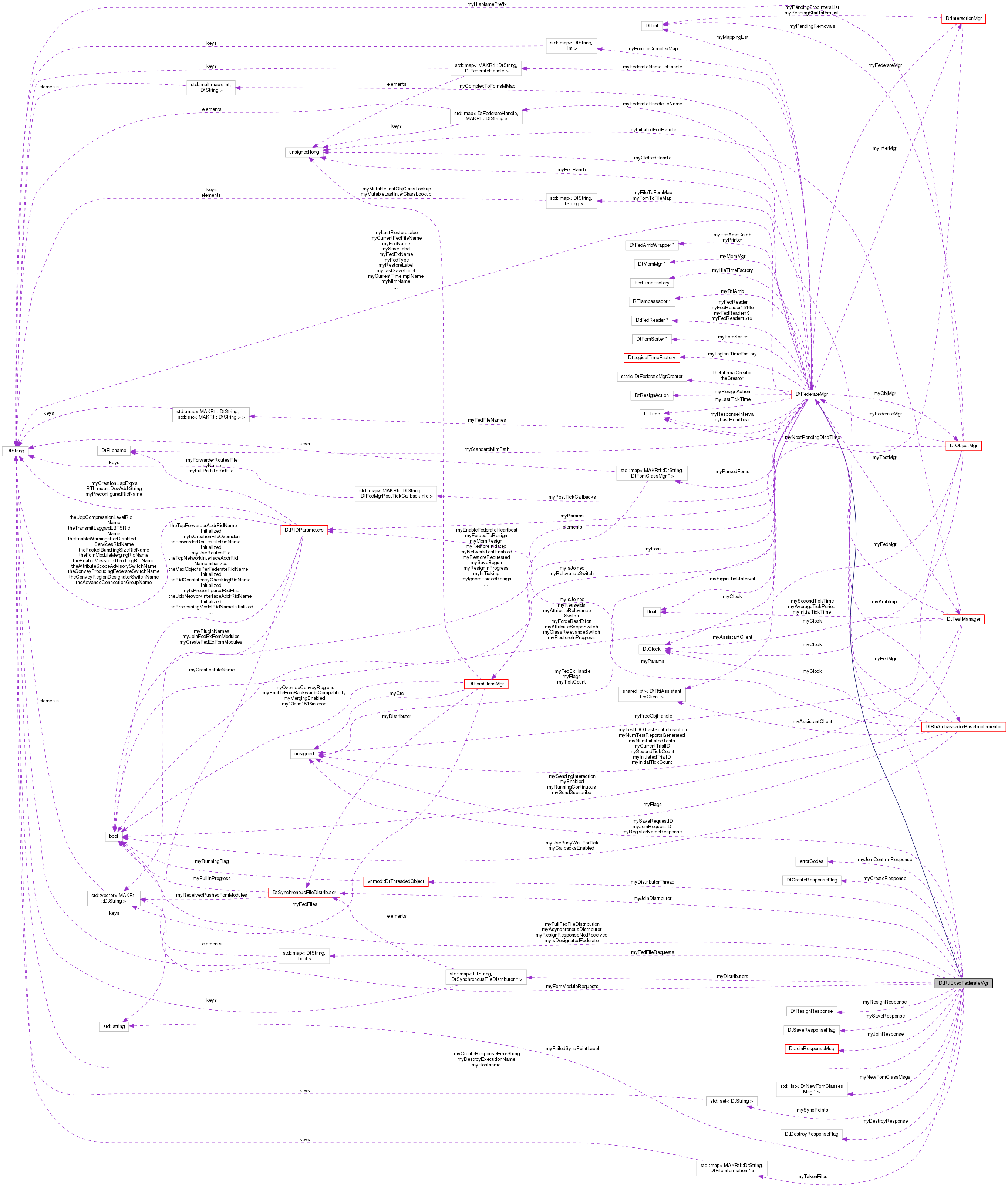

Collaboration diagram for DtRtiExecFederateMgr:

Public Member Functions
	DtRtiExecFederateMgr (DtRIDParameters params, DtRtiAmbassadorBaseImplementor ambImplPtr, DtConnectionMgr *connMgr, DtBoost::shared_ptr< DtRtiAssistantLrcClient > assistantClient)
	Constructor. More...

virtual	~DtRtiExecFederateMgr ()
	Destructor. More...

DtSynchronousFileDistributor *	distributor (const char *executionName)
	Access to the file distributor for the given federation execution name. More...

virtual void	init ()
	Virtual initialization within create. More...

CreateDestoryJoinResignServices
Handle the create/destroy and join/resign services
virtual void	createFederationExecution (const char executionName, const char timeImplName, const char *fed)
	Process the create federation execution service. More...

virtual void	destroyFederationExecution (const char *executionName)
	Process the destroy federation execution service. More...

virtual RTI::FederateHandle	joinFederationExecution (const char yourName, const char executionName, RTI::FederateAmbassador *federateAmbassadorReference, unsigned long flags)
	Process the join federation execution service. More...

virtual void	resignFederationExecution (RTI::ResignAction theAction)
	Process the resign federation execution service. More...

SynchronizationPointServices
Handle the synchronization point services
virtual void	registerFederationSynchronizationPoint (char const label, char const theTag)
	Process the register synchronization point service. More...

virtual void	registerFederationSynchronizationPoint (char const label, char const theTag, DtFederateHandleSet const &syncSet)
	Process the register synchronization point service. More...

virtual void	synchronizationPointAchieved (char const *label, bool successfully=true)
	Process the synchronization point achieved service. More...

SaveRestoreServices
Process the save and restore services
virtual void	requestFederationSave (char const label, RTI::FedTime const time=NULL)
	Process the request federation save service. More...

virtual void	federateSaveBegun ()
	Process the federate save begun service. More...

virtual void	federateSaveComplete ()
	Process the federate save complete service. More...

virtual void	federateSaveNotComplete ()
	Process the federate save complete service. More...

virtual void	requestFederationRestore (const char *label)
	Process the request federation restore service. More...

virtual void	federateRestoreComplete ()
	Process the federate restore complete service. More...

virtual void	federateRestoreNotComplete ()
	Process the federate restore complete service. More...


DtSynchronousFileDistributor *	joinDistributor ()
	Access to the Join file distributor of the currently join(ed/ing) federation execution. More...

DtSynchronousFileDistributor *	joinDistributor () const
	Access to the Join file distributor of the currently join(ed/ing) federation execution. More...

Public Member Functions inherited from DtFederateMgr
virtual	~DtFederateMgr ()
	Destructor. More...

virtual bool	automaticReserveObjectName (const char *)
	HLA 1.3 does not have the ability to reserve an object name, so this function allows us to implici. More...

virtual MAKRti::DtString	fedFileName (MAKRti::DtString execName)
	Return the .fed file name associated with the federation execution name. More...

virtual MAKRti::DtString	timeImplName (MAKRti::DtString execName)
	Return the time implementation name associated with the federation execution name. More...

virtual bool	tick ()
	Update the state of the federation. More...

virtual void	pretick ()

virtual void	postTickCallbacks ()

virtual void	addPostTickCallback (const MAKRti::DtString &label, const DtFedMgrPostTickCallbackInfo &cb)

virtual void	removePostTickCallback (const MAKRti::DtString &label)

virtual char *	getTransportationName (MAKRti::DtTransportType transport)
	Get transport name service. More...

virtual char *	getOrderName (MAKRti::DtOrderType order)
	Get order name service. More...

virtual MAKRti::DtTransportType	getTransportationHandle (MAKRti::DtString transport)
	Get transport handle service. More...

virtual MAKRti::DtOrderType	getOrderHandle (MAKRti::DtString order)
	Get order handle service. More...

virtual DtFederateHandle	federateHandle () const
	Get the federate handle. More...

virtual MAKRti::DtString const &	fedType () const
	Get the federate type. More...

virtual MAKRti::DtString const &	fedName () const
	Get the federate name (HLA Evolved) More...

virtual MAKRti::DtString const &	fedExName () const
	Get the federation execution name. More...

virtual unsigned long	fedExHandle () const
	Get the federation execution handle. More...

virtual bool	isJoined () const
	Return boolean: federate is joined? More...

virtual DtConnectionMgr *	connectMgr ()
	Access to the connection manager. More...

virtual DtConnectionMgr *	connectMgr () const

virtual DtRIDParameters *	params ()
	Access to the RID parameters. More...

virtual DtRIDParameters *	params () const

virtual DtFomClassMgr *	fom ()
	Access to the fom. More...

virtual DtFomClassMgr *	fom () const

virtual DtInteractionMgr *	interMgr ()
	Access to the interaction mgr. More...

virtual DtInteractionMgr *	interMgr () const

virtual DtTestManager *	testMgr ()
	Access to the test Manager. More...

virtual DtTestManager *	testMgr () const

virtual DtObjectMgr *	objMgr ()
	Access to the object mgr. More...

virtual DtObjectMgr *	objMgr () const

virtual DtLogicalTimeFactory *	timeFactory ()
	Access to the time factory. More...

virtual DtLogicalTimeFactory *	timeFactory () const

virtual DtRtiAssistantLrcClient *	assistantClient ()
	Access to the RTI Assistant client. More...

virtual DtRtiAssistantLrcClient *	assistantClient () const

virtual bool	isJoinedFederate (DtFederateHandle federateHandleValue) const
	Return bool: Is the federate handle known to be in the federation. More...

virtual bool	forcedToResign () const
	Return bool: Was federate forced to resign? More...

virtual void	setMomResign ()
	Marks that MOM is invoking resign. More...

virtual void	resetMomResign ()
	Unmark that MOM is invoking resign. More...

virtual bool	saveInitiated () const
	return bool: save initiated? More...

virtual bool	saveBegun () const
	return bool: save begun? More...

virtual bool	restoreRequested () const
	return bool: restore requested? More...

virtual bool	restoreInitiated () const
	return bool: restore initiated ? More...

virtual bool	restoreBegun () const
	return bool: restore begun? More...

virtual const MAKRti::DtString &	restoreLabel () const
	return current restore label More...

virtual const MAKRti::DtString &	lastRestoreLabel () const
	return last restore label More...

const MAKRti::DtString &	currentFedFileName () const
	get/set current FED file name More...

void	setCurrentFedFileName (const MAKRti::DtString &)

const MAKRti::DtString &	mimName () const
	get/set MIM name More...

void	setMimName (const MAKRti::DtString &)

const MAKRti::DtString &	currentTimeImplName () const
	get/set current time implementation name More...

void	setCurrentTimeImplName (const MAKRti::DtString &)

virtual const MAKRti::DtString &	saveLabel () const
	Set/Get save label. More...

virtual void	setSaveLabel (const MAKRti::DtString &value)

virtual const MAKRti::DtString &	lastSaveLabel () const
	Set/Get last save label. More...

virtual void	setLastSaveLabel (const MAKRti::DtString &value)

virtual MAKRti::DtString &	getSaveFileName (const char *label, DtFederateHandle fedHandle, MAKRti::DtString &fileName, bool extendName=true)
	Create a save file name from the label and return in supplied parameter. More...

virtual MAKRti::DtString &	getRestoreFileName (const char *label, DtFederateHandle fedHandle, MAKRti::DtString &fileName)
	Create a restore file name from the label and return in supplied parameter. More...

virtual unsigned long	tickCount () const
	Return the number of ticks. More...

virtual bool	isTicking () const
	Return true if currently processing tick. More...

virtual void	reportLatencyTestResults (const DtLatencyReportMsg &msg)
	Report results of a latency test. More...

virtual void	reportLatencyTestStatus (const DtTestMgrStatusMsg &msg)
	Report current latency test status. More...

unsigned long	flags () const

DtResignAction	automaticResignDirective () const

virtual const MAKRti::DtString &	getFederateNameFromHandle (DtFederateHandle handle)
	Get Federate Name / Handle from Handle / Name. More...

virtual DtFederateHandle	getFederateHandleFromName (const MAKRti::DtString &name)

virtual void	setTopLevelAmbassador (RTI::RTIambassador *ambPtr)
	Provide access to top level RTI Ambassador (and Federate Ambassador for 1516E) More...

RTI::RTIambassador *	rtiAmb ()
	Access to the top level RTI Ambassador given to the federate. More...

RTI::RTIambassador *	rtiAmb () const
	Access to the top level RTI Ambassador given to the federate. More...

virtual RTI::FederateAmbassador *	federateAmbassador () const
	Access to the Federate Ambassador submitted by the federate. More...

Static Public Member Functions
static DtFederateMgr *	create (DtRIDParameters params, DtRtiAmbassadorBaseImplementor ambImplPtr, DtConnectionMgr *connMgr, DtBoost::shared_ptr< DtRtiAssistantLrcClient > assistantClient)
	Creates an instance of this derived class;. More...

MessageCallbacks
Register these methods for callbacks. Pass this manager as the user data
static void	processSyncPointMsg (const DtSyncPointMsg &msg, void *usr)
	sync point message callback More...

static void	processDesignatedFederateMsg (const DtDesignatedFederateMsg &msg, void *usr)
	designated federate message callback More...

static void	processFomModuleFileRequestMsg (const DtFomModuleRequestMsg &msg, void *usr)
	Fom Module file distribution message callback. More...

static void	processCreateResponseMsg (const DtCreateResponseMsg &msg, void *usr)
	Create response message callback. More...

static void	processJoinResponseMsg (const DtJoinResponseMsg &msg, void *usr)
	Join response message callback. More...

static void	processDestroyResponseMsg (const DtDestroyResponseMsg &msg, void *usr)
	Destroy response message callback. More...

static void	processNewFomClassesMsg (const DtNewFomClassesMsg &msg, void *usr)
	Callback for message indicating new FOM classes have been added via FOM module merging. More...

static void	processResignResponseMsg (const DtResignRespMsg &msg, void *usr)
	Callback for message indicating acceptance or rejection of resign federation execution. More...

static void	processRegisterNameMsg (const DtNameReservedMsg &msg, void *usr)
	Callback for message indicating acceptance or rejection of reserve name. More...

Static Public Member Functions inherited from DtFederateMgr
static DtFederateMgr *	create (DtRIDParameters params, DtRtiAmbassadorBaseImplementor ambImplPtr, DtConnectionMgr *connMgr, DtBoost::shared_ptr< DtRtiAssistantLrcClient > assistantClient)
	A Federate Manager instance is created, initialized, and its pointer is returned. More...

static void	setCreatorFunction (DtFederateMgrCreator fn)
	Register a creator function. More...

static void	setInternalCreatorFunction (DtFederateMgrCreator fn)
	Register alternate internal creators. More...

Protected Member Functions
virtual void	initRidTester ()
	Initialize the RidTester. More...

virtual void	waitForCreateResponse (const char *executionName)
	This function will wait for the create response or fail and throw. More...

virtual void	waitForJoinResponse (const char *executionName, std::vector< MAKRti::DtString > &joinModules)
	This function will wait for the join response or fail and throw. More...

virtual void	waitForResignResponse (bool serviceCall=true)
	This function will wait for the resign response or fail and throw. More...

virtual void	waitForReserveNameResponse (bool serviceCall=true)
	This function will wait for the reserve name response or fail and throw. More...

void	handleFailedJoinResponse (bool timedOutDueToCreation)
	Handle a failed join response and throw appropriate exception. More...

virtual void	initializeTimeFactory ()
	Initialize the time factory. More...

virtual void	initializeFOM (const char *executionName)
	Initialize the FOM. More...

virtual void	postJoinInit (const char yourName, const char executionName, const char federateName, RTI::FederateAmbassador federateAmbassadorReference)
	Uses the given information to initialize federate data. More...

virtual void	postJoinConfirmInit ()
	Initializes managers which require the joinConfirm message to be sent. More...

virtual void	handleFailedJoin (unsigned long sourceID, DtJoinConfirmMsg::errorCodes code)
	Handle the join failure before throwing an exception. More...

virtual void	setDesignatedFederate (bool isDesignated)
	Set/Get designated status of this federate's LRC. More...

virtual bool	isDesignatedFederate ()

void	appendFomModule (std::vector< MAKRti::DtString > &target, MAKRti::DtString const &source)
	Append the source FED file name into the target list, stripping the path name as it is appended into the target. More...

void	appendFomModules (std::vector< MAKRti::DtString > &target, std::vector< MAKRti::DtString > const &source)
	Append the source FED file names into the target list, stripping the path names as they are appended into the target. More...

virtual bool	findFedFileNameFromMapping (const MAKRti::DtString execName, const std::vector< MAKRti::DtString > &orig, std::vector< MAKRti::DtString > &namesToUse) const
	Find the full FED file path from the stripped name. More...

void	testReadFomModules (const DtRIDParameters::DtStringList &, MAKRti::DtString executionName, bool isMim=false)
	Attempt to read modules. More...

virtual void	mergeFomModules (const std::vector< MAKRti::DtString > *fomModules)
	Merge the given FOM Modules into the current FOM. More...

virtual void	testSaveProgress ()
	Check for save/restore in progress exceptions. More...

virtual void	applyRidParameters ()
	Apply RID parameters. More...

virtual void	processNewFomClasses (const DtNewFomClassesMsg &msg)
	Takes note of any FOM classes added after we have joined. More...

virtual void	posttick ()
	Processing after a tick. More...

void	populateWithUnknownFoms (std::vector< DtString > &mods, std::vector< DtString > &requestedMods)

bool	isFomAvailable (const DtString &fomName)

void	getCrcsOfFoms (std::vector< unsigned int > &moduleCrcs, const std::vector< MAKRti::DtString > &creationFomModuleNames)

MessageHandling
Process federation management messages Registered callback call these methods
virtual void	processSyncPointMsg (const DtSyncPointMsg &msg)
	Process a sync point message. More...

virtual void	processDesignatedFederateMsg (const DtDesignatedFederateMsg &msg)
	Process designated federate message. More...

virtual void	processFomModuleFileRequestMsg (const DtFomModuleRequestMsg &msg)
	Process Fom Module file distribution message. More...

virtual void	processCreateResponseMsg (const DtCreateResponseMsg &msg)
	Process create response message. More...

virtual void	processJoinResponseMsg (const DtJoinResponseMsg &msg)
	Process join response message. More...

virtual void	processDestroyResponseMsg (const DtDestroyResponseMsg &msg)
	Process destroy response message. More...

virtual void	processSaveInitiate (const DtSaveInitiateMsg &msg)
	Process the save initiate message. More...

virtual void	processSaveInitiate (const char *label)
	Process the save initiate. More...

virtual void	requestImmediateSave (const char *label)
	Process the immediate save message. More...

virtual void	processSaveResponse (const DtSaveResponseMsg &msg)
	Process the save response message. More...

virtual void	processSaveFinished (const DtSaveFinishedMsg &msg)
	Process the save finished message. More...

virtual void	processRestoreReply (const DtRestoreReplyMsg &msg)
	Process the restore reply message. More...

virtual void	processRestoreEnd (const DtRestoreEndMsg &msg)
	Process the restore end message. More...

virtual void	processRestoreInitiate (const DtRestoreInitiateMsg &msg)
	Process the restore initiate message. More...

virtual void	processRestore (const DtRestoreMsg &msg)
	Process the restore message. More...

virtual void	processNewFomClassesMsg (const DtNewFomClassesMsg &msg)
	Process message indicating new FOM classes have been added via FOM module merging. More...

virtual void	processResignResponseMsg (const DtResignRespMsg &msg)
	Process message indicating acceptance or rejection of resign federation execution. More...

virtual void	processRegisterNameMsg (const DtNameReservedMsg &msg)
	Process message indicating acceptance or rejection of resign federation execution. More...

SendMessages
Send messages of different types
virtual void	sendCreateMsg (MAKRti::DtString const &fedExNameVal, MAKRti::DtString const &timeImplName, const std::vector< unsigned int > &moduleCrcs, MAKRti::DtFomType fedType, MAKRti::DtString const &momModuleName, const std::vector< MAKRti::DtString > &fomModules, unsigned int momModuleCrc)
	Send create federation message. More...

virtual void	sendDestroyMsg (const char *name)
	Send destroy federation message. More...

virtual void	sendJoinMsg (unsigned long sourceID, unsigned short requestID, const char fedType, const char fedExName, const char *fedName, const std::vector< MAKRti::DtString > &fomModules, const unsigned long flags, const std::vector< unsigned int > &joinModulesCrcs)
	Send join federation message. More...

virtual void	sendJoinConfirmMsg (unsigned long sourceID, DtJoinConfirmMsg::errorCodes errorCode)
	Send join federation confirm message. More...

virtual void	sendSyncPointMsg (DtSyncMsgType kind, DtFederateHandle &id, char const name, char const tag=NULL, DtFederateHandleSet const *set=NULL)
	Send synchronization point message. More...

virtual void	sendSaveRequestMsg (unsigned long requestID, const char *label)
	Send save federation request message. More...

virtual void	sendSaveBegunMsg ()
	Send save federate begun message. More...

virtual void	sendSaveCompleteMsg (const char *label, bool success)
	Send federate complete message. More...

virtual void	sendRestoreRequestMsg (const char *label)
	Send restore federation request message. More...

virtual void	sendRestoreBegunMsg (const char *label, DtResponseFlag response)
	Send restore federate begun message. More...

virtual void	sendRestoreCompleteMsg (const char *label, bool success)
	Send restore federate complete message. More...

SaveRestoreHelpers
Helper methods to process save and restore
virtual void	initiateSave ()
	Perform the actual save possibly after waiting to enter time advancing state. More...

virtual void	initiateTimedSave (RTI::FedTime const &saveTime)
	Perform the actual save possibly after waiting to enter time advancing state. More...

virtual bool	saveLRC (DtRtiSaveFile &saveFile)
	Save the LRC state information. More...

virtual bool	save (DtRtiSaveFile &file)
	Save the federation manager state information to the given file. More...

virtual void	prepareToRestoreLRC ()
	Prepare the state information of the LRC for a restore (may include a back up save in case restore fails). More...

virtual bool	restoreLRC (DtRtiSaveFile &saveFile)
	Restore the LRC state information Return bool: restore successful? More...

virtual void	prepareToRestore ()
	Prepare the state information to be restored (i.e., clear out existing data). More...

virtual bool	restore (DtRtiSaveFile &file)
	Restore the federation manager state information from the given file. More...

Protected Member Functions inherited from DtFederateMgr
	DtFederateMgr (DtRIDParameters params, DtRtiAmbassadorBaseImplementor ambImplPtr, DtConnectionMgr *connMgr, DtBoost::shared_ptr< DtRtiAssistantLrcClient > assistantClient)
	Constructor. More...

virtual void	sendAlive ()
	Send the alive message. More...

virtual void	sendResignMsg (const char *fedExName, DtFederateHandle fedHandle, DtResignAction action)
	Send the resign message. More...

void	sendTickedMsg ()
	Send the signal ticked message. More...

virtual MAKRti::DtFilename	fedFileNameToUse (MAKRti::DtString fileName, MAKRti::DtString executionName)
	Utility function, finds fed file name to use based on fed file name and exeution name. More...

virtual int	mapFomDepComplexity (DtString fomFileName)

virtual void	mapFomNameToFileName (std::vector< DtString > *fomFileNames)

virtual void	sortFomFileNames (std::vector< DtString > *fomFileNames)

virtual void	testReadFedFile (MAKRti::DtString fileName, MAKRti::DtString executionName)
	Attempts to read a fed file but does not fill in the fom class. More...

virtual void	readFedFile (MAKRti::DtString fileName, MAKRti::DtString executionName)
	Reads a FED file into a DtFomClassMgr object. More...

virtual void	readFedFilePtr (const FILE *fp, const MAKRti::DtString &fileName, const MAKRti::DtString &executionName)
	Reads a FED file into a DtFomClassMgr object. More...

virtual void	addFedExNameMapping (const MAKRti::DtString &execName, const MAKRti::DtString &timeImplName, const MAKRti::DtString &fed)
	Add mapping between federation execution name, time Impl Name and fed file name. More...

virtual void	addFomModuleNameMapping (const MAKRti::DtString executionName, const std::vector< MAKRti::DtString > &modules)

virtual void	addFomModuleNameMapping (const MAKRti::DtString executionName, const MAKRti::DtString &modules)

virtual DtResignAction	testResign (RTI::ResignAction theAction)
	Test the resign action and return the internal representation. More...

virtual MAKRti::DtResignAction	convertResignAction (RTI::ResignAction) const

virtual RTI::ResignAction	convertResignAction (MAKRti::DtResignAction) const

DtFedReader *	getReader (DtFomType theFomType, DtFomClassMgr *target)

DtFedReader *	getReader (DtFomType theFomType)

void	addToParsedFomMap (DtFedReader myFedReader, const MAKRti::DtString &fileNameToUse, DtFomClassMgr fedTarget, unsigned long theCrc=0)

virtual void	processResign (const DtResignMsg &msg)
	Process resign message. More...

virtual void	processEnableDisableNetworkTesting (const DtEnableDisableNetworkTestingMsg &msg)
	disable network testing More...

virtual void	processAssistantResign (const DtAssistantExitMsg &msg)
	Process resign message from Assistant. More...

virtual void	processAssistantEnableLogging (const DtAssistantLogEnableMsg &msg)
	Process resign message from Assistant. More...

virtual void	processSignalTickInterval (const DtAssistantFederateSignalTickIntervalMsg &msg)
	Process a change in the interval at which a federate is expected to tick. More...

virtual void	processRidParamRequest (const DtAssistantRidParamsMsg &msg)
	Process a RID parameter request from the Assistant. More...

virtual void	createObjectMgr ()
	Create the Object Manager. More...

virtual void	createInteractionMgr ()
	Create the Interaction Manager. More...

virtual void	createDdmMgr ()
	Create the DDM Manager. More...

virtual void	createTimeMgr ()
	Create the Time manager. More...

virtual void	createMomMgr ()
	Create the MOM Manager. More...

virtual void	createTestMgr ()
	Create the test Manager. More...

Protected Attributes
std::map< DtString, DtSynchronousFileDistributor * >	myDistributors
	federate Fed File Distributors. More...

DtSynchronousFileDistributor *	myJoinDistributor
	The Fed File Distributor of the joined federation execution. More...

DtCreateResponseFlag	myCreateResponse
	Status of create federation. More...

DtResignResponse	myResignResponse
	Status of resign federation. More...

bool	myResignResponseNotReceived
	Status of resign federation received. More...

unsigned	myRegisterNameResponse
	Status of registerName 0 = no response, 1 = success, 2 = failure. More...

MAKRti::DtString	myCreateResponseErrorString
	Error String of create federation. More...

DtDestroyResponseFlag	myDestroyResponse
	Status of destroy federation. More...

DtJoinResponseMsg *	myJoinResponse
	Copy of join response. More...

DtJoinConfirmMsg::errorCodes	myJoinConfirmResponse
	Status of join confirm. More...

MAKRti::DtString	myDestroyExecutionName
	Name of federation to destroy. More...

std::map< DtString, bool >	myFedFileRequests
	Status of fed file request. More...

std::vector< MAKRti::DtString >	myFomModuleRequests
	Queue of modules requested. More...

unsigned short	myJoinRequestID
	Join request ID. More...

unsigned long	mySaveRequestID
	Save request ID. More...

DtSaveResponseFlag	mySaveResponse
	Save response status. More...

std::set< DtString >	mySyncPoints
	MAKRti::DtHashList of DtStringHashKeys representing synch point names that have been announced to us. More...

std::string *	myFailedSyncPointLabel
	Failed sync point request. More...

DtFederateHandle	myOldFedHandle
	during a restore the fedhandle changes. More...

bool	myIsDesignatedFederate
	This federate LRC is designated for handling some federation wide tasks (e.g., MOM Federation attribute ownership) More...

vrlmod::DtThreadedObject *	myDistributorThread
	Should we use local or distributed fed file? More...

bool	myAsynchronousDistributor

std::map< MAKRti::DtString, DtFileInformation * >	myTakenFiles
	When files are received from distributor, store them here until requester takes them. More...

std::list< DtNewFomClassesMsg * >	myNewFomClassMsgs
	Queue of FOM class messages to be processed after we join. More...

bool	myFullFedFileDistribution

MAKRti::DtString	myHostname

Protected Attributes inherited from DtFederateMgr
RTI::RTIambassador *	myRtiAmb
	The federate's RTI Ambassador. More...

DtRtiAmbassadorBaseImplementor *	myAmbImpl
	The federate's RTI Ambassador Implementor. More...

MAKRti::DtTime	myResponseInterval
	Interval to wait for response message during a message protocol. More...

MAKRti::DtString	myFedExName
	Federation execution name. More...

unsigned long	myFedExHandle
	Federation handle. More...

MAKRti::DtString	myFedType
	Federate type. More...

MAKRti::DtString	myFedName
	Federate name. More...

DtFederateHandle	myFedHandle
	Federate handle. More...

MAKRti::DtString	myCurrentFedFileName
	Current FED/FDD file name. More...

MAKRti::DtString	myMimName
	MIM name. More...

MAKRti::DtString	myCurrentTimeImplName
	Current time implementation name. More...

MAKRti::DtTime	myLastHeartbeat
	Time of last heartbeat. More...

DtLogicalTimeFactory *	myLogicalTimeFactory
	Logical time factory Even if NULL, need to have this factory. More...

RTI::FedTimeFactory	myHlaTimeFactory

DtFedAmbWrapper *	myPrinter
	Prints data for federate ambassador calls. More...

DtFedAmbWrapper *	myFedAmbCatch
	Catches exceptions from federate ambassador calls. More...

DtRIDParameters *	myParams
	Initialization data. More...

DtFedReader *	myFedReader
	Temporary internal reader used until changes made to VR-Link fed reader. More...

DtFedReader *	myFedReader13

DtFedReader *	myFedReader1516

DtFedReader *	myFedReader1516e

MAKRti::DtList	myMappingList
	List of federation execution names with FED files names and time implementation names. More...

std::map< MAKRti::DtString, std::set< MAKRti::DtString > >	myFedFileNames

DtParsedFomsMap	myParsedFoms
	Map containing FOMs parsed into FedTargets. More...

DtComplexToFomsMMap	myComplexToFomsMMap

DtFomToComplexMap	myFomToComplexMap

DtFomNameToFileNameMap	myFomToFileMap

DtFileNameToFomNameMap	myFileToFomMap

DtBoost::shared_ptr < DtRtiAssistantLrcClient >	myAssistantClient
	Manages the connection to the RTI Assistant. More...

bool	myIgnoreForcedResign
	Prevents forcing duplicate resign. More...

bool	myForcedToResign
	Indicates forced resign occurred. More...

bool	myMomResign
	Indicates MOM caused resign. More...

bool	myMomSaveEvokeCallbacks
	State of evoking callbacks prior to MOM resign. More...

bool	myResignInProgress
	Indicates a resign is in progress. More...

MAKRti::DtClock	myClock
	Clock for timing. More...

unsigned long	myTickCount
	Tick counter. More...

bool	myIsTicking
	indicates currently processing tick More...

bool	myEnableFederateHeartbeat
	is heartbeating enabled? More...

unsigned long	myFlags

DtTestManager *	myTestMgr

bool	myNetworkTestEnabled

float	mySignalTickInterval
	The Signal Tick Interval. More...

DtTime	myLastTickTime
	The last tick time. More...

DtPostTickCallbackMap	myPostTickCallbacks

MAKRti::DtFilename	myStandardMimPath

std::map< MAKRti::DtString, DtFederateHandle >	myFederateNameToHandle

std::map< DtFederateHandle, MAKRti::DtString >	myFederateHandleToName

MAKRti::DtResignAction	myResignAction
	The resign action. More...

DtFomSorter *	myFomSorter

DtConnectionMgr *	myConnectMgr
	The connection manager. More...

DtFomClassMgr *	myFom
	The FOM manager. More...

DtInteractionMgr *	myInterMgr
	The interaction manager. More...

DtObjectMgr *	myObjMgr
	The object manager. More...

DtMomMgr *	myMomMgr
	The MOM manager. More...

bool	mySaveInitiated
	Indicates save initiated. More...

bool	mySaveBegun
	Indicates save begun. More...

bool	myRestoreRequested
	Indicates restore requested. More...

bool	myRestoreInitiated
	Indicates restore initiated. More...

bool	myRestoreBegun
	Indicates restore begun. More...

MAKRti::DtString	mySaveLabel
	The save label. More...

MAKRti::DtString	myLastSaveLabel
	The last save label. More...

MAKRti::DtString	myRestoreLabel
	The restore label. More...

MAKRti::DtString	myLastRestoreLabel
	The last restore label. More...

Private Member Functions
	DtRtiExecFederateMgr (DtFederateMgr const &)
	Copy Constructor not implemented – Copy Not Allowed! More...

DtRtiExecFederateMgr &	operator= (DtRtiExecFederateMgr const &)
	Assignment not implemented – Assignment Not Allowed! More...

Additional Inherited Members
Public Types inherited from DtFederateMgr
typedef DtFederateMgr (	DtFederateMgrCreator )(DtRIDParameters ridParams, DtRtiAmbassadorBaseImplementor ambImplPtr, DtConnectionMgr *connMgr, DtBoost::shared_ptr< DtRtiAssistantLrcClient > assistantClient)
	Federate manager creator. More...

typedef void(*	DtFedMgrPostTickCallbackFcn )(void *)

typedef std::pair < DtFedMgrPostTickCallbackFcn, void * >	DtFedMgrPostTickCallbackInfo

typedef std::map < MAKRti::DtString, DtFedMgrPostTickCallbackInfo >	DtPostTickCallbackMap

typedef std::map < MAKRti::DtString, DtFomClassMgr * >	DtParsedFomsMap

typedef std::map < MAKRti::DtString, std::pair < char *, int > >	DtFileNameToDataMap

typedef std::map< DtString, int >	DtFomToComplexMap

typedef std::map< DtString, DtString >	DtFomNameToFileNameMap

typedef std::map< DtString, DtString >	DtFileNameToFomNameMap

typedef std::multimap< int, DtString >	DtComplexToFomsMMap

Public Attributes inherited from DtFederateMgr
bool	myFedCallbackReached

Protected Types inherited from DtFederateMgr
typedef std::pair< int, DtString >	DtMMapPair

typedef std::pair< DtString, int >	DtFomCompPair

typedef std::pair< DtString, DtString >	DtFomFilePair

typedef std::pair< DtString, DtString >	DtFileFomPair

Static Protected Member Functions inherited from DtFederateMgr
static void	processResign (const DtResignMsg &msg, void *usr)
	resign message callback More...

static void	processEnableDisableNetworkTesting (const DtEnableDisableNetworkTestingMsg &msg, void *usr)
	process enable / disable network testing callback More...

static void	processSaveInitiate (const DtSaveInitiateMsg &msg, void *usr)
	save initiate message callback More...

static void	processSaveResponse (const DtSaveResponseMsg &msg, void *usr)
	save response message callback More...

static void	processSaveFinished (const DtSaveFinishedMsg &msg, void *usr)
	save finished message callback More...

static void	processRestoreReply (const DtRestoreReplyMsg &msg, void *usr)
	restore reply message callback More...

static void	processRestore (const DtRestoreMsg &msg, void *usr)
	restore message callback More...

static void	processRestoreInitiate (const DtRestoreInitiateMsg &msg, void *usr)
	restore initiate message callback More...

static void	processRestoreEnd (const DtRestoreEndMsg &msg, void *usr)
	restore end message callback More...

static void	processAssistantResign (const DtAssistantExitMsg &msg, void *usr)
	Assistant resign message callback. More...

static void	processAssistantEnableLogging (const DtAssistantLogEnableMsg &msg, void *usr)
	Assistant logging enable message callback. More...

static void	processSignalTickInterval (const DtAssistantFederateSignalTickIntervalMsg &msg, void *usr)
	Assistant signal tick interval message callback. More...

static void	processRidParamRequest (const DtAssistantRidParamsMsg &msg, void *usr)
	Assistant RID parameter request message callback. More...

Static Protected Attributes inherited from DtFederateMgr
static DtFederateMgrCreator	theCreator
	The plugin creator. More...

static DtFederateMgrCreator	theInternalCreator
	The internal creator. More...

Detailed Description

Instances of DtRtiExecFederateMgr process federation-level messages (such as create, destroy, join, resign, and sync points) for HLA applications that are using the rtiexec.

It also manages the manager objects responsible for handling general communication, objects, interactions, the FOM, MOM, and data distribution mmg. Override this class if you want to change how federation-level messages get processed. To inspect federation data, users can obtain a pointer to an instance of this class through the RTI's DtRtiAmbassadorImplementor pointer.

Constructor & Destructor Documentation

DtRtiExecFederateMgr::DtRtiExecFederateMgr	(	DtRIDParameters *	params,
		DtRtiAmbassadorBaseImplementor *	ambImplPtr,
		DtConnectionMgr *	connMgr,
		DtBoost::shared_ptr< DtRtiAssistantLrcClient >	assistantClient
	)

Constructor.

virtual DtRtiExecFederateMgr::~DtRtiExecFederateMgr ( )

virtual

Destructor.

DtRtiExecFederateMgr::DtRtiExecFederateMgr ( DtFederateMgr const & )

private

Copy Constructor not implemented – Copy Not Allowed!

Member Function Documentation

void DtRtiExecFederateMgr::appendFomModule	(	std::vector< MAKRti::DtString > &	target,
		MAKRti::DtString const &	source
	)

protected

Append the source FED file name into the target list, stripping the path name as it is appended into the target.

void DtRtiExecFederateMgr::appendFomModules	(	std::vector< MAKRti::DtString > &	target,
		std::vector< MAKRti::DtString > const &	source
	)

protected

Append the source FED file names into the target list, stripping the path names as they are appended into the target.

virtual void DtRtiExecFederateMgr::applyRidParameters ( )

protectedvirtual

Apply RID parameters.

Reimplemented from DtFederateMgr.

static DtFederateMgr* DtRtiExecFederateMgr::create	(	DtRIDParameters *	params,
		DtRtiAmbassadorBaseImplementor *	ambImplPtr,
		DtConnectionMgr *	connMgr,
		DtBoost::shared_ptr< DtRtiAssistantLrcClient >	assistantClient
	)

static

Creates an instance of this derived class;.

virtual void DtRtiExecFederateMgr::createFederationExecution	(	const char *	executionName,
		const char *	timeImplName,
		const char *	fed
	)

virtual

Process the create federation execution service.

Implements DtFederateMgr.

virtual void DtRtiExecFederateMgr::destroyFederationExecution ( const char * executionName )

virtual

Process the destroy federation execution service.

Implements DtFederateMgr.

DtSynchronousFileDistributor* DtRtiExecFederateMgr::distributor ( const char * executionName )

Access to the file distributor for the given federation execution name.

If a distributor does not exist for the federation execution, it is created and added to map of distributors.

virtual void DtRtiExecFederateMgr::federateRestoreComplete ( )

virtual

Process the federate restore complete service.

Implements DtFederateMgr.

virtual void DtRtiExecFederateMgr::federateRestoreNotComplete ( )

virtual

Process the federate restore complete service.

Implements DtFederateMgr.

virtual void DtRtiExecFederateMgr::federateSaveBegun ( )

virtual

Process the federate save begun service.

Implements DtFederateMgr.

virtual void DtRtiExecFederateMgr::federateSaveComplete ( )

virtual

Process the federate save complete service.

Implements DtFederateMgr.

virtual void DtRtiExecFederateMgr::federateSaveNotComplete ( )

virtual

Process the federate save complete service.

Implements DtFederateMgr.

virtual bool DtRtiExecFederateMgr::findFedFileNameFromMapping	(	const MAKRti::DtString	execName,
		const std::vector< MAKRti::DtString > &	orig,
		std::vector< MAKRti::DtString > &	namesToUse
	)		const

protectedvirtual

Find the full FED file path from the stripped name.

void DtRtiExecFederateMgr::getCrcsOfFoms	(	std::vector< unsigned int > &	moduleCrcs,
		const std::vector< MAKRti::DtString > &	creationFomModuleNames
	)

protected

virtual void DtRtiExecFederateMgr::handleFailedJoin	(	unsigned long	sourceID,
		DtJoinConfirmMsg::errorCodes	code
	)

protectedvirtual

Handle the join failure before throwing an exception.

void DtRtiExecFederateMgr::handleFailedJoinResponse ( bool timedOutDueToCreation )

protected

Handle a failed join response and throw appropriate exception.

virtual void DtRtiExecFederateMgr::init ( )

virtual

Virtual initialization within create.

Reimplemented from DtFederateMgr.

virtual void DtRtiExecFederateMgr::initializeFOM ( const char * executionName )

protectedvirtual

Initialize the FOM.

virtual void DtRtiExecFederateMgr::initializeTimeFactory ( )

protectedvirtual

Initialize the time factory.

virtual void DtRtiExecFederateMgr::initiateSave ( )

protectedvirtual

Perform the actual save possibly after waiting to enter time advancing state.

Reimplemented from DtFederateMgr.

virtual void DtRtiExecFederateMgr::initiateTimedSave ( RTI::FedTime const & saveTime )

protectedvirtual

Perform the actual save possibly after waiting to enter time advancing state.

Provide time of save.

Reimplemented from DtFederateMgr.

virtual void DtRtiExecFederateMgr::initRidTester ( )

protectedvirtual

Initialize the RidTester.

virtual bool DtRtiExecFederateMgr::isDesignatedFederate ( )

protectedvirtual

bool DtRtiExecFederateMgr::isFomAvailable ( const DtString & fomName )

protected

DtSynchronousFileDistributor* DtRtiExecFederateMgr::joinDistributor ( )

Access to the Join file distributor of the currently join(ed/ing) federation execution.

DtSynchronousFileDistributor* DtRtiExecFederateMgr::joinDistributor ( ) const

Access to the Join file distributor of the currently join(ed/ing) federation execution.

virtual RTI::FederateHandle DtRtiExecFederateMgr::joinFederationExecution	(	const char *	yourName,
		const char *	executionName,
		RTI::FederateAmbassador *	federateAmbassadorReference,
		unsigned long	flags
	)

virtual

Process the join federation execution service.

Implements DtFederateMgr.

virtual void DtRtiExecFederateMgr::mergeFomModules ( const std::vector< MAKRti::DtString > * fomModules )

protectedvirtual

Merge the given FOM Modules into the current FOM.

DtRtiExecFederateMgr& DtRtiExecFederateMgr::operator= ( DtRtiExecFederateMgr const & )

private

Assignment not implemented – Assignment Not Allowed!

void DtRtiExecFederateMgr::populateWithUnknownFoms	(	std::vector< DtString > &	mods,
		std::vector< DtString > &	requestedMods
	)

protected

virtual void DtRtiExecFederateMgr::postJoinConfirmInit ( )

protectedvirtual

Initializes managers which require the joinConfirm message to be sent.

This is a special case for MOM publishers when using Smart Internal Forwarding.

Reimplemented from DtFederateMgr.

virtual void DtRtiExecFederateMgr::postJoinInit	(	const char *	yourName,
		const char *	executionName,
		const char *	federateName,
		RTI::FederateAmbassador *	federateAmbassadorReference
	)

protectedvirtual

Uses the given information to initialize federate data.

DtFomClassMgr needs to be initialized before this function is called.

Reimplemented from DtFederateMgr.

virtual void DtRtiExecFederateMgr::posttick ( )

protectedvirtual

Processing after a tick.

Reimplemented from DtFederateMgr.

virtual void DtRtiExecFederateMgr::prepareToRestore ( )

protectedvirtual

Prepare the state information to be restored (i.e., clear out existing data).

virtual void DtRtiExecFederateMgr::prepareToRestoreLRC ( )

protectedvirtual

Prepare the state information of the LRC for a restore (may include a back up save in case restore fails).

virtual void DtRtiExecFederateMgr::processCreateResponseMsg ( const DtCreateResponseMsg & msg )

protectedvirtual

Process create response message.

static void DtRtiExecFederateMgr::processCreateResponseMsg	(	const DtCreateResponseMsg &	msg,
		void *	usr
	)

static

Create response message callback.

virtual void DtRtiExecFederateMgr::processDesignatedFederateMsg ( const DtDesignatedFederateMsg & msg )

protectedvirtual

Process designated federate message.

static void DtRtiExecFederateMgr::processDesignatedFederateMsg	(	const DtDesignatedFederateMsg &	msg,
		void *	usr
	)

static

designated federate message callback

virtual void DtRtiExecFederateMgr::processDestroyResponseMsg ( const DtDestroyResponseMsg & msg )

protectedvirtual

Process destroy response message.

static void DtRtiExecFederateMgr::processDestroyResponseMsg	(	const DtDestroyResponseMsg &	msg,
		void *	usr
	)

static

Destroy response message callback.

virtual void DtRtiExecFederateMgr::processFomModuleFileRequestMsg ( const DtFomModuleRequestMsg & msg )

protectedvirtual

Process Fom Module file distribution message.

static void DtRtiExecFederateMgr::processFomModuleFileRequestMsg	(	const DtFomModuleRequestMsg &	msg,
		void *	usr
	)

static

Fom Module file distribution message callback.

virtual void DtRtiExecFederateMgr::processJoinResponseMsg ( const DtJoinResponseMsg & msg )

protectedvirtual

Process join response message.

static void DtRtiExecFederateMgr::processJoinResponseMsg	(	const DtJoinResponseMsg &	msg,
		void *	usr
	)

static

Join response message callback.

virtual void DtRtiExecFederateMgr::processNewFomClasses ( const DtNewFomClassesMsg & msg )

protectedvirtual

Takes note of any FOM classes added after we have joined.

This is so that we can tell what the parentage of any new classes are, so that we can discover new objects of those classes as their appropriate parent classes.

virtual void DtRtiExecFederateMgr::processNewFomClassesMsg ( const DtNewFomClassesMsg & msg )

protectedvirtual

Process message indicating new FOM classes have been added via FOM module merging.

static void DtRtiExecFederateMgr::processNewFomClassesMsg	(	const DtNewFomClassesMsg &	msg,
		void *	usr
	)

static

Callback for message indicating new FOM classes have been added via FOM module merging.

virtual void DtRtiExecFederateMgr::processRegisterNameMsg ( const DtNameReservedMsg & msg )

protectedvirtual

Process message indicating acceptance or rejection of resign federation execution.

static void DtRtiExecFederateMgr::processRegisterNameMsg	(	const DtNameReservedMsg &	msg,
		void *	usr
	)

static

Callback for message indicating acceptance or rejection of reserve name.

virtual void DtRtiExecFederateMgr::processResignResponseMsg ( const DtResignRespMsg & msg )

protectedvirtual

Process message indicating acceptance or rejection of resign federation execution.

static void DtRtiExecFederateMgr::processResignResponseMsg	(	const DtResignRespMsg &	msg,
		void *	usr
	)

static

Callback for message indicating acceptance or rejection of resign federation execution.

virtual void DtRtiExecFederateMgr::processRestore ( const DtRestoreMsg & msg )

protectedvirtual

Process the restore message.

Reimplemented from DtFederateMgr.

virtual void DtRtiExecFederateMgr::processRestoreEnd ( const DtRestoreEndMsg & msg )

protectedvirtual

Process the restore end message.

Reimplemented from DtFederateMgr.

virtual void DtRtiExecFederateMgr::processRestoreInitiate ( const DtRestoreInitiateMsg & msg )

protectedvirtual

Process the restore initiate message.

Reimplemented from DtFederateMgr.

virtual void DtRtiExecFederateMgr::processRestoreReply ( const DtRestoreReplyMsg & msg )

protectedvirtual

Process the restore reply message.

Reimplemented from DtFederateMgr.

virtual void DtRtiExecFederateMgr::processSaveFinished ( const DtSaveFinishedMsg & msg )

protectedvirtual

Process the save finished message.

Reimplemented from DtFederateMgr.

virtual void DtRtiExecFederateMgr::processSaveInitiate ( const DtSaveInitiateMsg & msg )

protectedvirtual

Process the save initiate message.

Reimplemented from DtFederateMgr.

virtual void DtRtiExecFederateMgr::processSaveInitiate ( const char * label )

protectedvirtual

Process the save initiate.

virtual void DtRtiExecFederateMgr::processSaveResponse ( const DtSaveResponseMsg & msg )

protectedvirtual

Process the save response message.

Reimplemented from DtFederateMgr.

virtual void DtRtiExecFederateMgr::processSyncPointMsg ( const DtSyncPointMsg & msg )

protectedvirtual

Process a sync point message.

static void DtRtiExecFederateMgr::processSyncPointMsg	(	const DtSyncPointMsg &	msg,
		void *	usr
	)

static

sync point message callback

virtual void DtRtiExecFederateMgr::registerFederationSynchronizationPoint	(	char const *	label,
		char const *	theTag
	)

virtual

Process the register synchronization point service.

Implements DtFederateMgr.

virtual void DtRtiExecFederateMgr::registerFederationSynchronizationPoint	(	char const *	label,
		char const *	theTag,
		DtFederateHandleSet const &	syncSet
	)

virtual

Process the register synchronization point service.

Implements DtFederateMgr.

virtual void DtRtiExecFederateMgr::requestFederationRestore ( const char * label )

virtual

Process the request federation restore service.

Implements DtFederateMgr.

virtual void DtRtiExecFederateMgr::requestFederationSave	(	char const *	label,
		RTI::FedTime const *	time = `NULL`
	)

virtual

Process the request federation save service.

Implements DtFederateMgr.

virtual void DtRtiExecFederateMgr::requestImmediateSave ( const char * label )

protectedvirtual

Process the immediate save message.

virtual void DtRtiExecFederateMgr::resignFederationExecution ( RTI::ResignAction theAction )

virtual

Process the resign federation execution service.

Reimplemented from DtFederateMgr.

virtual bool DtRtiExecFederateMgr::restore ( DtRtiSaveFile & file )

protectedvirtual

Restore the federation manager state information from the given file.

Reimplemented from DtFederateMgr.

virtual bool DtRtiExecFederateMgr::restoreLRC ( DtRtiSaveFile & saveFile )

protectedvirtual

Restore the LRC state information Return bool: restore successful?

virtual bool DtRtiExecFederateMgr::save ( DtRtiSaveFile & file )

protectedvirtual

Save the federation manager state information to the given file.

Reimplemented from DtFederateMgr.

virtual bool DtRtiExecFederateMgr::saveLRC ( DtRtiSaveFile & saveFile )

protectedvirtual

Save the LRC state information.

Return bool: save successful?

virtual void DtRtiExecFederateMgr::sendCreateMsg	(	MAKRti::DtString const &	fedExNameVal,
		MAKRti::DtString const &	timeImplName,
		const std::vector< unsigned int > &	moduleCrcs,
		MAKRti::DtFomType	fedType,
		MAKRti::DtString const &	momModuleName,
		const std::vector< MAKRti::DtString > &	fomModules,
		unsigned int	momModuleCrc
	)

protectedvirtual

Send create federation message.

virtual void DtRtiExecFederateMgr::sendDestroyMsg ( const char * name )

protectedvirtual

Send destroy federation message.

virtual void DtRtiExecFederateMgr::sendJoinConfirmMsg	(	unsigned long	sourceID,
		DtJoinConfirmMsg::errorCodes	errorCode
	)

protectedvirtual

Send join federation confirm message.

virtual void DtRtiExecFederateMgr::sendJoinMsg	(	unsigned long	sourceID,
		unsigned short	requestID,
		const char *	fedType,
		const char *	fedExName,
		const char *	fedName,
		const std::vector< MAKRti::DtString > &	fomModules,
		const unsigned long	flags,
		const std::vector< unsigned int > &	joinModulesCrcs
	)

protectedvirtual

Send join federation message.

virtual void DtRtiExecFederateMgr::sendRestoreBegunMsg	(	const char *	label,
		DtResponseFlag	response
	)

protectedvirtual

Send restore federate begun message.

virtual void DtRtiExecFederateMgr::sendRestoreCompleteMsg	(	const char *	label,
		bool	success
	)

protectedvirtual

Send restore federate complete message.

virtual void DtRtiExecFederateMgr::sendRestoreRequestMsg ( const char * label )

protectedvirtual

Send restore federation request message.

virtual void DtRtiExecFederateMgr::sendSaveBegunMsg ( )

protectedvirtual

Send save federate begun message.

virtual void DtRtiExecFederateMgr::sendSaveCompleteMsg	(	const char *	label,
		bool	success
	)

protectedvirtual

Send federate complete message.

virtual void DtRtiExecFederateMgr::sendSaveRequestMsg	(	unsigned long	requestID,
		const char *	label
	)

protectedvirtual

Send save federation request message.

virtual void DtRtiExecFederateMgr::sendSyncPointMsg	(	DtSyncMsgType	kind,
		DtFederateHandle &	id,
		char const *	name,
		char const *	tag = `NULL`,
		DtFederateHandleSet const *	set = `NULL`
	)

protectedvirtual

Send synchronization point message.

virtual void DtRtiExecFederateMgr::setDesignatedFederate ( bool isDesignated )

protectedvirtual

Set/Get designated status of this federate's LRC.

virtual void DtRtiExecFederateMgr::synchronizationPointAchieved	(	char const *	label,
		bool	successfully = `true`
	)

virtual

Process the synchronization point achieved service.

Implements DtFederateMgr.

void DtRtiExecFederateMgr::testReadFomModules	(	const DtRIDParameters::DtStringList &	,
		MAKRti::DtString	executionName,
		bool	isMim = `false`
	)

protected

Attempt to read modules.

virtual void DtRtiExecFederateMgr::testSaveProgress ( )

protectedvirtual

Check for save/restore in progress exceptions.

Implements DtFederateMgr.

virtual void DtRtiExecFederateMgr::waitForCreateResponse ( const char * executionName )

protectedvirtual

This function will wait for the create response or fail and throw.

virtual void DtRtiExecFederateMgr::waitForJoinResponse	(	const char *	executionName,
		std::vector< MAKRti::DtString > &	joinModules
	)

protectedvirtual

This function will wait for the join response or fail and throw.

virtual void DtRtiExecFederateMgr::waitForReserveNameResponse ( bool serviceCall = true )

protectedvirtual

This function will wait for the reserve name response or fail and throw.

Reimplemented from DtFederateMgr.

virtual void DtRtiExecFederateMgr::waitForResignResponse ( bool serviceCall = true )

protectedvirtual

This function will wait for the resign response or fail and throw.

Reimplemented from DtFederateMgr.

Member Data Documentation

bool DtRtiExecFederateMgr::myAsynchronousDistributor

protected

DtCreateResponseFlag DtRtiExecFederateMgr::myCreateResponse

protected

Status of create federation.

MAKRti:: DtString DtRtiExecFederateMgr::myCreateResponseErrorString

protected

Error String of create federation.

MAKRti::DtString DtRtiExecFederateMgr::myDestroyExecutionName

protected

Name of federation to destroy.

DtDestroyResponseFlag DtRtiExecFederateMgr::myDestroyResponse

protected

Status of destroy federation.

std::map<DtString, DtSynchronousFileDistributor*> DtRtiExecFederateMgr::myDistributors

protected

federate Fed File Distributors.

vrlmod::DtThreadedObject* DtRtiExecFederateMgr::myDistributorThread

protected

Should we use local or distributed fed file?

std::string* DtRtiExecFederateMgr::myFailedSyncPointLabel

protected

Failed sync point request.

std::map<DtString, bool> DtRtiExecFederateMgr::myFedFileRequests

protected

Status of fed file request.

std::vector<MAKRti::DtString> DtRtiExecFederateMgr::myFomModuleRequests

protected

Queue of modules requested.

bool DtRtiExecFederateMgr::myFullFedFileDistribution

protected

MAKRti::DtString DtRtiExecFederateMgr::myHostname

protected

bool DtRtiExecFederateMgr::myIsDesignatedFederate

protected

This federate LRC is designated for handling some federation wide tasks (e.g., MOM Federation attribute ownership)

DtJoinConfirmMsg::errorCodes DtRtiExecFederateMgr::myJoinConfirmResponse

protected

Status of join confirm.

DtSynchronousFileDistributor* DtRtiExecFederateMgr::myJoinDistributor

protected

The Fed File Distributor of the joined federation execution.

unsigned short DtRtiExecFederateMgr::myJoinRequestID

protected

Join request ID.

DtJoinResponseMsg* DtRtiExecFederateMgr::myJoinResponse

protected

Copy of join response.

std::list<DtNewFomClassesMsg*> DtRtiExecFederateMgr::myNewFomClassMsgs

protected

Queue of FOM class messages to be processed after we join.

DtFederateHandle DtRtiExecFederateMgr::myOldFedHandle

protected

during a restore the fedhandle changes.

this stores the old handle so it can make some communications with the fedex during a restore but after changing the fedhandle

unsigned DtRtiExecFederateMgr::myRegisterNameResponse

protected

Status of registerName 0 = no response, 1 = success, 2 = failure.

DtResignResponse DtRtiExecFederateMgr::myResignResponse

protected

Status of resign federation.

bool DtRtiExecFederateMgr::myResignResponseNotReceived

protected

Status of resign federation received.

unsigned long DtRtiExecFederateMgr::mySaveRequestID

protected

Save request ID.

DtSaveResponseFlag DtRtiExecFederateMgr::mySaveResponse

protected

Save response status.

std::set<DtString> DtRtiExecFederateMgr::mySyncPoints

protected

MAKRti::DtHashList of DtStringHashKeys representing synch point names that have been announced to us.

Data associated with the string is just (void*)

(NULL wouldn't work, because it's indistinguishable from "not present" in a lookup result.)

std::map<MAKRti::DtString, DtFileInformation*> DtRtiExecFederateMgr::myTakenFiles

protected

When files are received from distributor, store them here until requester takes them.

The documentation for this class was generated from the following file:

execFedMgr.h

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
