The DtRtiexecObserverMgr is the class which manages all rtiexec observers. More...

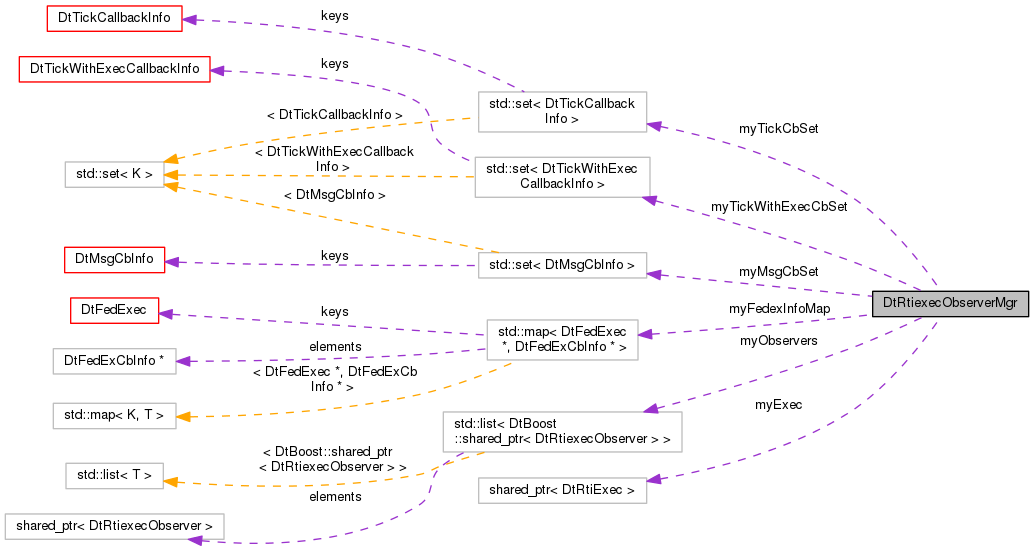

Collaboration diagram for DtRtiexecObserverMgr:

Public Member Functions
	DtRtiexecObserverMgr ()
	Constructor. More...

virtual	~DtRtiexecObserverMgr ()
	Destructor. More...

virtual void	setExec (DtBoost::shared_ptr< DtRtiExec > exec)
	Sets the exec to be observed. More...

virtual void	addObserver (DtBoost::shared_ptr< DtRtiexecObserver > observer)
	Add a new rtiexec observer. More...

virtual void	removeObserver (DtBoost::shared_ptr< DtRtiexecObserver > observer)
	Remove rtiexec observer. More...

virtual void	removeAllObservers ()
	Remove all rtiexec observers. More...

virtual void	addRtiMsgCallback (DtRtiMsgKind msgKind, DtRtiMsgCbMgr::DtCallbackFcn fcn, DtRtiexecObserver *observer, bool isMomCallback)
	Add callback for incoming RTI message. More...

virtual void	removeRtiMsgCallback (DtRtiMsgKind msgKind, DtRtiMsgCbMgr::DtCallbackFcn fcn, DtRtiexecObserver *observer, bool isMomCallback)
	Remove callback for incoming RTI message. More...

virtual void	addTickCallback (DtTickCbFn fcn, DtRtiexecObserver *observer, DtTime interval)
	Add a tick callback function to be called periodically at the given time interval. More...

virtual void	removeTickCallback (DtTickCbFn fcn, DtRtiexecObserver *observer)
	Remove tick callback. More...

virtual void	addTickCallback (DtTickWithExecCbFn fcn, DtRtiexecObserver *observer, DtTime interval)
	Add a tick callback function that takes a reference to a DtRtiExec to be called periodically at the given time interval. More...

virtual void	removeTickCallback (DtTickWithExecCbFn fcn, DtRtiexecObserver *observer)
	Remove tick callback that takes a reference to a DtRtiExec. More...

void	federationCreatedCallback (DtFedExec *exec)

void	federationDestroyedCallback (DtFedExec *exec)

void	federateJoinedCallback (DtFedExec exec, DtFederate federate)

void	federateResignedCallback (DtFedExec exec, DtFederate federate)

void	syncPtRegisteredCallback (DtFedExec exec, DtSyncPt pt)

void	federationSynchronizedCallback (DtFedExec exec, DtSyncPt pt)

void	syncPtAchievedCallback (DtFedExec exec, DtFederate fed, DtSyncPt *pt)

void	federateDisconnectedCallback (DtFedExec exec, DtFederate fed)

void	federateReconnectSucceededCallback (DtFedExec exec, DtFederate fed)

void	federateReconnectFailedCallback (DtFedExec exec, DtFederate fed)

void	updateLogFileNameCallback (const DtFilename &logFile)

virtual unsigned long	connectionId () const
	Get the connection ID for this exec. More...

Static Public Member Functions
static void	federationCreatedCallback (DtFedExec exec, void usr)
	Callback for new federations. More...

static void	federationDestroyedCallback (DtFedExec exec, void usr)
	Callback for destroyed federations. More...

static void	federateJoinedCallback (DtFederate federate, void usr)
	Callback for joined federates. More...

static void	federateResignedCallback (DtFederate federate, void usr)
	Callback for resigned federates. More...

static void	syncPtRegisteredCallback (DtSyncPt pt, void usr)
	Callback for registered sync. points. More...

static void	federationSynchronizedCallback (DtSyncPt pt, void usr)
	Callback for federation synchronized announcements. More...

static void	syncPtAchievedCallback (DtFederate fed, DtSyncPt pt, void *usr)
	Callback for achieved sync. points. More...

static void	federateDisconnectedCallback (DtFederate fed, void usr)
	Callback for disconnected federate connections. More...

static void	federateReconnectSucceededCallback (DtFederate fed, void usr)
	Callback for successfully reconnected federate connections. More...

static void	federateReconnectFailedCallback (DtFederate fed, void usr)
	Callback for unsuccessfully reconnected federate connections. More...

static void	updateLogFileNameCallback (const DtFilename &logFile, void *usr)
	Callback for updated log file name. More...

Protected Types
typedef std::map< DtFedExec , DtFedExCbInfo >	DtFedexToCbInfoMap

typedef std::set< DtMsgCbInfo >	DtMsgCbSet

typedef std::set < DtTickCallbackInfo >	DtTickCbSet

typedef std::set < DtTickWithExecCallbackInfo >	DtTickWithExecCbSet

typedef std::list < DtBoost::shared_ptr < DtRtiexecObserver > >	DtExecObsList

Protected Member Functions
	DtRtiexecObserverMgr (const DtRtiexecObserverMgr &orig)
	Copy constructor unimplemented. More...

DtRtiexecObserverMgr &	operator= (const DtRtiexecObserverMgr &orig)
	Assignment unimplemented. More...

Protected Attributes
DtBoost::shared_ptr< DtRtiExec >	myExec
	The rtiexec which is being observed. More...

DtExecObsList	myObservers
	List of rtiexec observers. More...

DtMsgCbSet	myMsgCbSet
	Set of all registered message callbacks. More...

DtTickCbSet	myTickCbSet
	Set of all registered tick callbacks. More...

DtTickWithExecCbSet	myTickWithExecCbSet
	Set of all registered tick callbacks that take a DtRtiExec reference. More...

DtFedexToCbInfoMap	myFedexInfoMap
	Map from fedex to fedex callback info. More...

Detailed Description

The DtRtiexecObserverMgr is the class which manages all rtiexec observers.

Member Typedef Documentation

typedef std::list< DtBoost::shared_ptr<DtRtiexecObserver> > DtRtiexecObserverMgr::DtExecObsList

protected

typedef std::map<DtFedExec*, DtFedExCbInfo*> DtRtiexecObserverMgr::DtFedexToCbInfoMap

protected

typedef std::set<DtMsgCbInfo> DtRtiexecObserverMgr::DtMsgCbSet

protected

typedef std::set<DtTickCallbackInfo> DtRtiexecObserverMgr::DtTickCbSet

protected

typedef std::set<DtTickWithExecCallbackInfo> DtRtiexecObserverMgr::DtTickWithExecCbSet

protected

Constructor & Destructor Documentation

DtRtiexecObserverMgr::DtRtiexecObserverMgr ( )

Constructor.

virtual DtRtiexecObserverMgr::~DtRtiexecObserverMgr ( )

virtual

Destructor.

DtRtiexecObserverMgr::DtRtiexecObserverMgr ( const DtRtiexecObserverMgr & orig )

protected

Copy constructor unimplemented.

Member Function Documentation

virtual void DtRtiexecObserverMgr::addObserver ( DtBoost::shared_ptr< DtRtiexecObserver > observer )

virtual

Add a new rtiexec observer.

virtual void DtRtiexecObserverMgr::addRtiMsgCallback	(	DtRtiMsgKind	msgKind,
		DtRtiMsgCbMgr::DtCallbackFcn	fcn,
		DtRtiexecObserver *	observer,
		bool	isMomCallback
	)

virtual

Add callback for incoming RTI message.

virtual void DtRtiexecObserverMgr::addTickCallback	(	DtTickCbFn	fcn,
		DtRtiexecObserver *	observer,
		DtTime	interval
	)

virtual

Add a tick callback function to be called periodically at the given time interval.

virtual void DtRtiexecObserverMgr::addTickCallback	(	DtTickWithExecCbFn	fcn,
		DtRtiexecObserver *	observer,
		DtTime	interval
	)

virtual

Add a tick callback function that takes a reference to a DtRtiExec to be called periodically at the given time interval.

virtual unsigned long DtRtiexecObserverMgr::connectionId ( ) const

virtual

Get the connection ID for this exec.

Referenced by DtRtiexecObserver::connectionId().

static void DtRtiexecObserverMgr::federateDisconnectedCallback	(	DtFederate *	fed,
		void *	usr
	)

static

Callback for disconnected federate connections.

void DtRtiexecObserverMgr::federateDisconnectedCallback	(	DtFedExec *	exec,
		DtFederate *	fed
	)

static void DtRtiexecObserverMgr::federateJoinedCallback	(	DtFederate *	federate,
		void *	usr
	)

static

Callback for joined federates.

void DtRtiexecObserverMgr::federateJoinedCallback	(	DtFedExec *	exec,
		DtFederate *	federate
	)

static void DtRtiexecObserverMgr::federateReconnectFailedCallback	(	DtFederate *	fed,
		void *	usr
	)

static

Callback for unsuccessfully reconnected federate connections.

void DtRtiexecObserverMgr::federateReconnectFailedCallback	(	DtFedExec *	exec,
		DtFederate *	fed
	)

static void DtRtiexecObserverMgr::federateReconnectSucceededCallback	(	DtFederate *	fed,
		void *	usr
	)

static

Callback for successfully reconnected federate connections.

void DtRtiexecObserverMgr::federateReconnectSucceededCallback	(	DtFedExec *	exec,
		DtFederate *	fed
	)

static void DtRtiexecObserverMgr::federateResignedCallback	(	DtFederate *	federate,
		void *	usr
	)

static

Callback for resigned federates.

void DtRtiexecObserverMgr::federateResignedCallback	(	DtFedExec *	exec,
		DtFederate *	federate
	)

static void DtRtiexecObserverMgr::federationCreatedCallback	(	DtFedExec *	exec,
		void *	usr
	)

static

Callback for new federations.

void DtRtiexecObserverMgr::federationCreatedCallback ( DtFedExec * exec )

static void DtRtiexecObserverMgr::federationDestroyedCallback	(	DtFedExec *	exec,
		void *	usr
	)

static

Callback for destroyed federations.

void DtRtiexecObserverMgr::federationDestroyedCallback ( DtFedExec * exec )

static void DtRtiexecObserverMgr::federationSynchronizedCallback	(	DtSyncPt *	pt,
		void *	usr
	)

static

Callback for federation synchronized announcements.

void DtRtiexecObserverMgr::federationSynchronizedCallback	(	DtFedExec *	exec,
		DtSyncPt *	pt
	)

DtRtiexecObserverMgr& DtRtiexecObserverMgr::operator= ( const DtRtiexecObserverMgr & orig )

protected

Assignment unimplemented.

virtual void DtRtiexecObserverMgr::removeAllObservers ( )

virtual

Remove all rtiexec observers.

virtual void DtRtiexecObserverMgr::removeObserver ( DtBoost::shared_ptr< DtRtiexecObserver > observer )

virtual

Remove rtiexec observer.

virtual void DtRtiexecObserverMgr::removeRtiMsgCallback	(	DtRtiMsgKind	msgKind,
		DtRtiMsgCbMgr::DtCallbackFcn	fcn,
		DtRtiexecObserver *	observer,
		bool	isMomCallback
	)

virtual

Remove callback for incoming RTI message.

virtual void DtRtiexecObserverMgr::removeTickCallback	(	DtTickCbFn	fcn,
		DtRtiexecObserver *	observer
	)

virtual

Remove tick callback.

virtual void DtRtiexecObserverMgr::removeTickCallback	(	DtTickWithExecCbFn	fcn,
		DtRtiexecObserver *	observer
	)

virtual

Remove tick callback that takes a reference to a DtRtiExec.

virtual void DtRtiexecObserverMgr::setExec ( DtBoost::shared_ptr< DtRtiExec > exec )

virtual

Sets the exec to be observed.

static void DtRtiexecObserverMgr::syncPtAchievedCallback	(	DtFederate *	fed,
		DtSyncPt *	pt,
		void *	usr
	)

static

Callback for achieved sync. points.

void DtRtiexecObserverMgr::syncPtAchievedCallback	(	DtFedExec *	exec,
		DtFederate *	fed,
		DtSyncPt *	pt
	)

static void DtRtiexecObserverMgr::syncPtRegisteredCallback	(	DtSyncPt *	pt,
		void *	usr
	)

static

Callback for registered sync. points.

void DtRtiexecObserverMgr::syncPtRegisteredCallback	(	DtFedExec *	exec,
		DtSyncPt *	pt
	)

static void DtRtiexecObserverMgr::updateLogFileNameCallback	(	const DtFilename &	logFile,
		void *	usr
	)

static

Callback for updated log file name.

void DtRtiexecObserverMgr::updateLogFileNameCallback ( const DtFilename & logFile )

Member Data Documentation

DtBoost::shared_ptr<DtRtiExec> DtRtiexecObserverMgr::myExec

protected

The rtiexec which is being observed.

DtFedexToCbInfoMap DtRtiexecObserverMgr::myFedexInfoMap

protected

Map from fedex to fedex callback info.

DtMsgCbSet DtRtiexecObserverMgr::myMsgCbSet

protected

Set of all registered message callbacks.

DtExecObsList DtRtiexecObserverMgr::myObservers

protected

List of rtiexec observers.

DtTickCbSet DtRtiexecObserverMgr::myTickCbSet

protected

Set of all registered tick callbacks.

DtTickWithExecCbSet DtRtiexecObserverMgr::myTickWithExecCbSet

protected

Set of all registered tick callbacks that take a DtRtiExec reference.

The documentation for this class was generated from the following file:

execObserverMgr.h
