The object manager class processes the object management services. More...

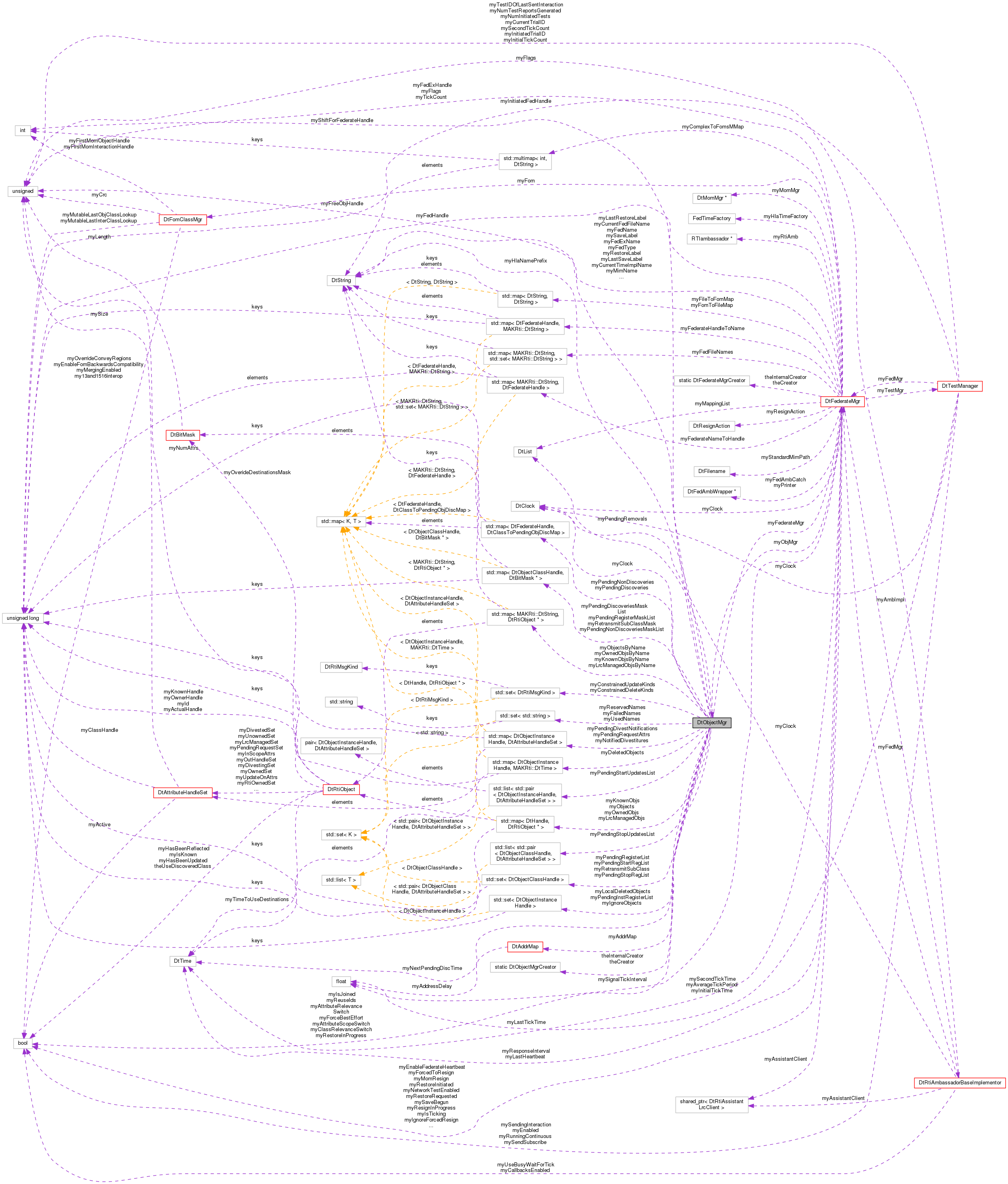

Collaboration diagram for DtObjectMgr:

Public Types
typedef DtObjectMgr (	DtObjectMgrCreator )(DtFederateMgr *fedMgr)
	Object manager creator type. More...

typedef std::map < DtObjectInstanceHandle, DtAttributeHandleSet >	DtPendingRequestAttrMap
	Map of requested attributes. More...

Public Member Functions
virtual	~DtObjectMgr ()
	Destructor. More...

virtual void	postJoinInit ()
	Post join processing. All managers shall have been created and initialized. More...

virtual bool	isPostJoined () const
	Return bool: Was the post join initialization perfomerd? More...

DtFederateMgr *	federateMgr ()
	Access to the federate manager. More...

DtFederateMgr *	federateMgr () const

DtConnectionMgr *	connectMgr ()
	Returns pointer to network connection mgr. More...

DtConnectionMgr *	connectMgr () const

virtual bool	useHlaNamePrefix ()
	Get switch to use HLA prefix for object names. More...

virtual DtObjectInstanceHandle	objectHandle (const char *name)
	Get objectHandle from name. More...

virtual const char *	objectName (DtObjectInstanceHandle handle)
	Get object name from handle. More...

virtual DtObjectClassHandle	objectClass (DtObjectInstanceHandle handle)
	Get an object's class. More...

virtual int	subscribed (DtObjectClassHandle handle)
	Returns 1 if subscribed to the class, 0 otherwise. More...

virtual int	published (DtObjectClassHandle handle)
	Returns 1 if published the class, 0 otherwise. More...

virtual void	publish (DtObjectClassHandle theObject, const DtAttributeHandleSet &attributeList)
	Publish specified class attributes. More...

virtual void	unpublishClass (DtObjectClassHandle theObject)
	Unpublishes all attributes but privilege to delete is implicit. More...

virtual void	unpublishAttributes (DtObjectClassHandle theClass, DtAttributeHandleSet const &attributeList)
	Explicit unpublish of specified attributes. More...

virtual void	unpublishAttributes (DtObjectClassInfo &classDesc, DtAttributeHandleSet const &attributeList, bool implicitlyUnpublishPrivilegeToDelete)
	Explicit unpublish of specified attributes Except privilege to delete is implicit if so designated. More...

virtual void	subscribe (DtObjectClassHandle theClass, const DtAttributeHandleSet &attributeList, bool active)
	Subscribe specified class attributes. More...

virtual void	unsubscribeClass (DtObjectClassHandle theClass)
	Unsubscribe from all attributes of specified class. More...

virtual void	unsubscribeAttributes (DtObjectClassHandle theClass, DtAttributeHandleSet const &attributeList)
	Unsubscribe specified class attributes. More...

virtual void	unsubscribeAttributes (DtObjectClassInfo &classDesc, DtAttributeHandleSet const &attributeList)
	Unsubscribe specified class attributes. More...

virtual void	reserveObjectInstanceName (std::string const &theObjectInstanceName)
	Reserve object instance name. More...

virtual DtObjectInstanceHandle	registerObj (DtObjectClassHandle theClass, const char *name)
	Register a locally simulated object. More...

virtual DtObjectInstanceHandle	registerObj (DtObjectClassHandle theClass)
	Register a locally simulated object. More...

virtual unsigned long	deleteObj (DtObjectInstanceHandle objectID, RTI::FedTime const theTime, char const theTag)
	Delete a locally simulated object Return retraction handle serial number. More...

virtual void	localDeleteObj (DtObjectInstanceHandle obj)
	Implements the localDeleteObjectInstance service. More...

virtual void	requestObjectUpdate (DtObjectInstanceHandle theObject, const DtAttributeHandleSet &theAttributes, char const *tag=DtRtiMsg::theDefaultTag)
	Request an attribute value update for an object. More...

virtual void	requestClassUpdate (DtObjectClassHandle theClass, const DtAttributeHandleSet &theAttributes, char const *tag=DtRtiMsg::theDefaultTag, DtHandle regionSetHandle=DtDefaultRegionSetHandle)
	Request an attribute value update for a class of objects. More...

virtual unsigned long	sendUpdate (DtObjectInstanceHandle theObject, const DtAhvps &theAttrs, RTI::FedTime const theTime, char const tag)
	Implements update attribute values Checks attributes definition and ownership Return retraction handle serial number. More...

virtual unsigned long	sendUpdate (DtRtiObject theObject, const DtAhvps &theAttrs, RTI::FedTime const theTime, char const *tag)
	Generate and transmit update attribute value messages Return retraction handle serial number. More...

virtual void	acquireAttrs (DtObjectInstanceHandle objHand, const DtAttributeHandleSet &desiredAttributes, bool onlyIfAvail, char const *tag=DtRtiMsg::theDefaultTag)
	Process an attribute acquisition. More...

virtual void	cancelAcquire (DtObjectInstanceHandle objHand, const DtAttributeHandleSet &attrs)
	Cancel an attribute acquisition. More...

virtual void	divestOwnership (DtObjectInstanceHandle objHand, const DtAttributeHandleSet &attrs, DtDivestCondition condition, char const *tag=DtRtiMsg::theDefaultTag)
	Process a attribute divestiture. More...

virtual void	cancelDivest (DtObjectInstanceHandle objHand, const DtAttributeHandleSet &attrs)
	Cancel an attribute divestiture. More...

virtual DtAttributeHandleSet *	releaseResponse (DtObjectInstanceHandle objHand, const DtAttributeHandleSet &attrs)
	Respond to an attribute acquisition. More...

virtual void	removeFromAllLists (DtRtiObject *object)
	Remove an object from all lists. More...

virtual void	queryOwnership (DtObjectInstanceHandle obj, DtAttributeHandle attr)
	Implements the queryAttributeOwnership service. More...

virtual bool	isAcquistionPending ()
	Return true if ownership acquistion is pending for remote attrs. More...

virtual int	evaluateSubscription (DtRtiMsg const &msg)
	Return bool: is message an update or delete that can generate a reflect or remove callback? Determine if message is update or delete and if so, is it subscribed e.g., would be delivered as callback if processed Returns -1 if not an update/delete, 0 if no delivery expected, 1 if delivery expected. More...

virtual void	autoProvideAttrValueUpdate ()
	Invoke provide for all owned attributes. More...

virtual void	sendRegister (DtRtiObject *obj)
	Sends register information, if DDM is active then this information could include region and region association information. More...

virtual void	resendRegister (DtRtiObject obj, DtBitMask sendMask=0)
	Re-sends register information, if DDM is active then this information could include region and region association information. More...

virtual void	resendMultiRegister (DtObjectClassHandle classHandle)
	Re-sends register information for all objects of a specific class if DDM is active then this information could include region and region association information. More...

virtual void	addPendingStartUpdates (DtObjectInstanceHandle obj, const DtAttributeHandleSet &attributeList)
	Add pending startUpdates that will get called during the next tick. More...

virtual void	addPendingStopUpdates (DtObjectClassHandle theClass, const DtAttributeHandleSet &attributeList)
	Add pending stopUpdates that will get called during the next tick. More...

virtual void	addPendingStartReg (DtObjectClassHandle theClass)
	Add pending startRegistration that will get processed during the next tick. More...

virtual void	addPendingStopReg (DtObjectClassHandle theClass)
	Add pending stopRegistration that will get processed during the next tick. More...

virtual void	addPendingRegister (DtObjectClassHandle theClass, DtFederateHandle fedHandle=0)
	Add pending Register that will get processed during the next tick. More...

virtual void	addPendingSubscription (DtObjectClassHandle theClass, DtFederateHandle fedHandle=0)
	Add pending subscription class retransmissions that will get processed during next tick. More...

virtual void	addPendingRegisterForObject (DtObjectInstanceHandle objHandle)
	Add pending Register for the given object that will get processed during next tick. More...

virtual void	addPendingRemoval (DtObjectInstanceHandle id)
	Add pending object removals that will get processed during the next tick. More...

virtual void	addPendingRequestAttrs (DtObjectInstanceHandle objectHandle, DtAttributeHandleSet attributes)
	Add pending request attribute value that will get processed during the next tick. More...

virtual void	addPendingDivestNotification (DtObjectInstanceHandle objectHandle, DtAttributeHandleSet attributes)
	Add pending divest notification that will get processed during the next tick. More...

virtual void	addPendingDiscovery (DtObjectInstanceHandle objectHandle, DtObjectClassHandle classHandle, DtFederateHandle federate, bool isNonDiscovery)
	Add pending discovery/non-discovery. More...

virtual void	processResign (const DtResignMsg &msg)
	Process the resign message. More...

virtual void	preTick ()
	Called before processing messages in RTI ambassador tick / evoke callbacks. More...

virtual void	postTick ()
	Called after processing messages in RTI ambassador tick / evoke callbacks. More...

virtual void	setClassRelevanceSwitch (bool enableSwitch)
	Set/Get value of classRelevanceAdvisorySwitch. More...

virtual bool	classRelevanceSwitch ()

virtual void	setAttributeRelevanceSwitch (bool enableSwitch)
	Set/Get value of attributeRelevanceAdvisorySwitch. More...

virtual bool	attributeRelevanceSwitch ()

virtual void	setAttributeScopeSwitch (bool enableSwitch)
	Set/Get value of attributeScopeAdvisorySwitch. More...

virtual bool	attributeScopeSwitch ()

virtual void	turnUpdatesOn (DtRtiObject const &object, DtAttributeHandleSet const &oldOnSet)
	Turn updates on for any attribute now on but it is not in old on set. More...

virtual void	turnUpdatesOff (DtRtiObject const &object, DtAttributeHandleSet const &oldOnSet)
	Turn updates off for any attribute now off but it is in old on set. More...

virtual DtObjectInstanceHandle	uniqueHandle ()
	Returns an ObjectHandle that is unique across the federation. More...

virtual void	getUniqueName (DtObjectInstanceHandle handle, MAKRti::DtString &objectName)
	Use the supplied object handle to construct a unique object name and assign a unique name to the supplied string. More...

virtual bool	objectWasCreatedByFederate (DtRtiObject const &obj, DtFederateHandle const &fedHandle)
	Query the object manager to determine whether the specified federate was the initial creator of the specified object. More...

virtual DtRtiObject *	processNewObj (DtObjectInstanceHandle objHand, DtObjectClassHandle realClass, const char *name, const DtAttributeHandleSet &inSet, DtHandle regSetHandle, DtFederateHandle sourceFederate)
	Assumes we have not yet discovered objHand. More...

virtual DtObjectClassInfo *	firstSubscribedClass (DtObjectClassInfo *classDesc, DtHandle regSetHandle)
	Returns most specific superclass of class, to which we are subscribed. More...

virtual int	numObjectsOwned ()
	return the number of owned objects More...

virtual void	setAttributeTransportType (DtObjectInstanceHandle theObject, const DtAttributeHandleSet &theAttributes, MAKRti::DtTransportType theType)
	Set the transport type of the attribute instance. More...

virtual void	setAttributeOrderType (DtObjectInstanceHandle theObject, const DtAttributeHandleSet &theAttributes, MAKRti::DtOrderType theType)
	Set the order type of the attribute instance. More...

virtual bool	save (DtRtiSaveFile &file)
	DDM. More...

virtual void	prepareToRestore ()
	Prepare the state information to be restored (i.e., clear out existing data). More...

virtual bool	restore (DtRtiSaveFile &file)
	Restore the state information from the given file. More...

virtual void	sendNotDiscoveredMsgForSmartForwarding (DtObjectInstanceHandle handle, const DtObjectClassInfo &classInfo, DtFederateHandle federate, const DtAttributeHandleSet *attributes=0)
	Send a message removing this federate from remote federate's smart forwarding list for the given object. More...

virtual void	sendNotDiscoveredMsgForSmartForwarding (DtObjectInstanceHandle handle, const DtObjectClassInfo &classInfo, DtFederateHandle federate, const DtAhvps *attributes)

virtual void	ignoreNextUpdate (DtObjectInstanceHandle hdl)
	Tells the object manager to ignore the next update for the given object. More...


DtRIDParameters *	params ()
	Return pointer to RID parameters. More...

DtRIDParameters *	params () const
	Return pointer to RID parameters. More...


DtFomClassMgr *	fom ()
	Return fom pointer. More...

DtFomClassMgr *	fom () const
	Return fom pointer. More...


virtual void	addAllObj (DtRtiObject *obj)
	Add/Remove/Get objects (superset of all objects including MOM) All objects must be in this set. More...

virtual void	removeAllObj (DtObjectInstanceHandle obj)
	Add/Remove/Get objects (superset of all objects including MOM) All objects must be in this set. More...

virtual const DtRtiObjectMap &	allObjects () const
	Add/Remove/Get objects (superset of all objects including MOM) All objects must be in this set. More...

virtual DtRtiObject *	allObj (DtObjectInstanceHandle id)
	Add/Remove/Get objects (superset of all objects including MOM) All objects must be in this set. More...

virtual DtRtiObject *	allObj (const char *name)
	Add/Remove/Get objects (superset of all objects including MOM) All objects must be in this set. More...


virtual void	addKnownObj (DtRtiObject *obj)
	Add/Remove/Get known objects (registered or discovered) All registered and discovered objects must be in this set. More...

virtual void	removeKnownObj (DtObjectInstanceHandle obj)
	Add/Remove/Get known objects (registered or discovered) All registered and discovered objects must be in this set. More...

virtual const DtRtiObjectMap &	knownObjects () const
	Add/Remove/Get known objects (registered or discovered) All registered and discovered objects must be in this set. More...

virtual DtRtiObject *	knownObj (DtObjectInstanceHandle id)
	Add/Remove/Get known objects (registered or discovered) All registered and discovered objects must be in this set. More...

virtual DtRtiObject *	knownObj (const char *name)
	Add/Remove/Get known objects (registered or discovered) All registered and discovered objects must be in this set. More...


virtual void	addOwnedObj (DtRtiObject *obj)
	Add/Remove/Get owned objects (at least one owned attribute) All objects with attributes owned by this federate must be in this set. More...

virtual void	removeOwnedObj (DtObjectInstanceHandle obj)
	Add/Remove/Get owned objects (at least one owned attribute) All objects with attributes owned by this federate must be in this set. More...

virtual const DtRtiObjectMap &	ownedObjects () const
	Add/Remove/Get owned objects (at least one owned attribute) All objects with attributes owned by this federate must be in this set. More...

virtual DtRtiObject *	ownedObj (DtObjectInstanceHandle id)
	Add/Remove/Get owned objects (at least one owned attribute) All objects with attributes owned by this federate must be in this set. More...

virtual DtRtiObject *	ownedObj (const char *name)
	Add/Remove/Get owned objects (at least one owned attribute) All objects with attributes owned by this federate must be in this set. More...


virtual void	addLrcManagedObj (DtRtiObject *obj)
	Add/Remove/Get lrc managed objects (at least one LRC managed attribute) All objects with attributes owned by this LRC must be in this set. More...

virtual void	removeLrcManagedObj (DtObjectInstanceHandle obj)
	Add/Remove/Get lrc managed objects (at least one LRC managed attribute) All objects with attributes owned by this LRC must be in this set. More...

virtual const DtRtiObjectMap &	lrcManagedObjects () const
	Add/Remove/Get lrc managed objects (at least one LRC managed attribute) All objects with attributes owned by this LRC must be in this set. More...

virtual DtRtiObject *	lrcManagedObj (DtObjectInstanceHandle id)
	Add/Remove/Get lrc managed objects (at least one LRC managed attribute) All objects with attributes owned by this LRC must be in this set. More...

virtual DtRtiObject *	lrcManagedObj (const char *name)
	Add/Remove/Get lrc managed objects (at least one LRC managed attribute) All objects with attributes owned by this LRC must be in this set. More...


void	testResign (RTI::ResignAction const &theAction)
	Called when resigning from a federation to test conditions and to delete owned objects. More...

void	prepareToResign (RTI::ResignAction const &theAction)
	Called when resigning from a federation to test conditions and to delete owned objects. More...


virtual void	setRestoreInProgress (bool isRestore)
	Note: The advisory switches are disabled by a restore in progress. More...

virtual bool	restoreInProgress () const
	Note: The advisory switches are disabled by a restore in progress. More...


virtual void	enableClassRelevanceSwitch ()
	Enable/Disable classRelevanceAdvisorySwitch 1516 throws exception if call is redundant. More...

virtual void	disableClassRelevanceSwitch ()
	Enable/Disable classRelevanceAdvisorySwitch 1516 throws exception if call is redundant. More...


virtual void	enableAttributeRelevanceSwitch ()
	Enable/Disable attributeRelevanceAdvisorySwitch 1516 throws exception if call is redundant. More...

virtual void	disableAttributeRelevanceSwitch ()
	Enable/Disable attributeRelevanceAdvisorySwitch 1516 throws exception if call is redundant. More...


virtual void	enableAttributeScopeSwitch ()
	Enable/Disable attributeScopeAdvisorySwitch 1516 throws exception if call is redundant. More...

virtual void	disableAttributeScopeSwitch ()
	Enable/Disable attributeScopeAdvisorySwitch 1516 throws exception if call is redundant. More...

Static Public Member Functions
static DtObjectMgr *	create (DtFederateMgr *fedMgr)
	A Object Manager instance is created and its pointer is returned. More...

static void	setCreatorFunction (DtObjectMgrCreator creator)
	Register a creator function. More...

static void	setInternalCreatorFunction (DtObjectMgrCreator fn)
	Register alternate internal creators. More...

Protected Types
typedef std::set < DtObjectClassHandle >	DtObjectClassHandleSet

typedef std::set < DtObjectInstanceHandle >	DtObjectInstanceHandleSet

typedef std::map < DtObjectClassHandle, DtBitMask * >	DtObjectClassMaskMap

typedef std::map < DtObjectInstanceHandle, DtBitMask * >	DtObjectInstanceMaskMap

typedef std::list< std::pair < DtObjectClassHandle, DtAttributeHandleSet > >	DtObjClassAttrSetPairList

typedef std::list< std::pair < DtObjectInstanceHandle, DtAttributeHandleSet > >	DtObjInstAttrSetPairList

typedef std::set < DtObjectInstanceHandle >	DtObjHandleSet
	Pending discoveries and non-discoveries. More...

typedef std::map < DtObjectClassHandle, DtObjHandleSet >	DtClassToPendingObjDiscMap

typedef std::map < DtFederateHandle, DtClassToPendingObjDiscMap >	DtFederateToPendingObjDiscMap

Protected Member Functions
	DtObjectMgr (DtFederateMgr *fedMgr)
	Constructor. More...

virtual void	insertBitMask (DtObjectClassMaskMap &classMaskMap, DtObjectClassHandle classHandle, DtFederateHandle fedHandle)

virtual void	insertRegBitMask (DtObjectClassHandle classHandle, DtFederateHandle fedHandle)

virtual void	insertSubBitMask (DtObjectClassHandle classHandle, DtFederateHandle fedHandle)

virtual void	insertDiscBitMask (DtObjectClassHandle classHandle, DtFederateHandle fedHandle)

virtual void	insertNonDiscBitMask (DtObjectClassHandle classHandle, DtFederateHandle fedHandle)

virtual void	provideAttrValueUpdate (const DtRtiObject obj, const DtAttributeHandleSet &attrHandles, char const tag)
	Make the fedAmb call to provide attrValUpdate for this object. More...

virtual void	remoteSubscribe (DtObjectClassInfo &classDesc, const DtAttributeHandleSet &attrs, DtFederateHandle fedHandle, bool isReplacement)
	Add a remote subscription to object known database and determine effects on advisories. More...

virtual void	remotePassiveSubscribe (DtObjectClassInfo &classDesc, const DtAttributeHandleSet &attrs, DtFederateHandle fedHandle, bool isReplacement)
	Track passive subscriptions ( no effect on advisories ) More...

virtual void	remoteUnsubscribe (DtObjectClassHandle classHandle, const DtAttributeHandleSet &attrs, DtFederateHandle fedHandle)
	Remove a remote subscription to object known database and determine effects on advisories. More...

virtual void	setDiscoveredClass (DtRtiObject &object, DtFederateHandle federateHandle, DtObjectClassHandle classHandle)
	Set the remote federate's discovered class and update the object's remote subscription information. More...

virtual void	processAcquire (DtObjectInstanceHandle objHand, const DtAttributeHandleSet &attrs, DtFederateHandle fed, bool onlyIfAvail, char const *tag)
	Process a remote attribute acquisition. More...

virtual void	processCancelAcquire (DtObjectInstanceHandle objHand, const DtAttributeHandleSet &attrs, DtFederateHandle fed)
	Process a remote cancel attribute acquisition. More...

virtual void	processConfirmCancelAcquire (DtObjectInstanceHandle objHand, const DtAttributeHandleSet &attrs)
	Process a remote confirm attribute acquisition. More...

virtual void	processDivest (DtObjectInstanceHandle objHand, const DtAttributeHandleSet &attrs, DtFederateHandle fed, bool negotiated, char const *tag=DtRtiMsg::theDefaultTag)
	Process a remote attribute divestiture. More...

virtual void	notifyDivestedAttributes (DtObjectClassHandle objectClass, DtAttributeHandleSet const &attrs)
	Find any divested attributes instances that match (is of) the supplied class and set. More...

virtual void	processQueryOwner (DtObjectInstanceHandle objHand, DtAttributeHandle attr, DtFederateHandle requestor)
	Process a remote attribute ownership queury. More...

virtual void	processNotifyAcquire (DtObjectInstanceHandle objHand, const DtAttributeHandleSet &attrs, char const *tag=DtRtiMsg::theDefaultTag, bool forceAcquire=false)
	Process a remote notify attribute acquisition. More...

virtual void	processNotifyAcquireForDirectedMessaging (DtFederateHandle fedHandle, DtObjectInstanceHandle objHand, const DtAttributeHandleSet &attrs)
	Process a remote notify attribute acquisition for directed messaging. More...

virtual void	processGiveToLrc (DtObjectInstanceHandle objHand, const DtAttributeHandleSet &attrs, char const *tag, DtHandle hand)
	Give the supplied attributes to the local RTI component. More...

virtual void	resetOwner (DtFederateHandle fedHandle, DtObjectInstanceHandle objHandle)
	Reset the owner of the object. More...

virtual void	sendPendingStartUpdates ()
	Send pending startUpdates. More...

virtual void	sendPendingStopUpdates ()
	Send pending stopUpdates. More...

virtual void	sendPendingStartReg ()
	Send pending startRegistration. More...

virtual void	sendPendingStopReg ()
	Send pending stopRegistration. More...

virtual void	sendPendingRegister ()
	Send pending Register. More...

virtual void	sendPendingSubscription ()
	Send pending subscription class retransmissions. More...

virtual void	sendPendingRemovals ()
	Send pending object removals. More...

virtual void	sendPendingRequestAttributes ()
	Send pending request attribute value. More...

virtual void	sendPendingDiscoveries ()
	Send pending discoveries. More...

virtual void	invokePendingDivestNotification ()
	Invoke pending divest notification. More...

virtual void	purgeDeletedObjects ()
	Purge entries for recently deleted objects that have timed out. More...

virtual void	throwIfAcquisitionPending (DtObjectClassHandle classHand, const DtAttributeHandleSet &attrs)
	If an acquisition request is pending for an attributes in attrs for any objects known at class classHand, throw RTI::OwnershipAcquisitionPending. More...

virtual void	divestAllInstances (DtObjectClassHandle classHand, const DtAttributeHandleSet &attrs)
	Divest ownership (unconditionally) of all owned attributes in attrs for each object that's known at class classHand. More...

virtual void	divestAllInstances ()
	Divest ownership (unconditionally) of all owned attributes of all objects. More...

virtual void	releaseAllAttributes (DtRtiObject *object)
	Release (unconditionally) all owned and LRC managed attributes Only used during a resign. More...

virtual void	releaseOwnership (DtRtiObject *obj, const DtAttributeHandleSet &attrs)
	Releases ownership of the specified attributes to the LRC Used when unpublishing. More...

virtual void	sendUpdateMessage (DtUpdateMsg update, DtObjectClassInfo classDesc, DtUpdateType updateType, MAKRti::DtTransportType trans, unsigned int numberAttrs, MAKRti::DtInetAddr destAddr=DtInetAddr::inaddrAny(), unsigned int offset=0)
	Send update message. More...

virtual void	deleteAllOwnedObjects ()
	Delete all objects for which we own the privilege. More...

virtual void	deleteObj (DtRtiObject *obj, bool isLocalDelete=false)
	Remove object from all lists and delete it. More...

virtual void	retainTsoDeletedObj (DtRtiObject *obj, RTI::FedTime const &time)
	TSO deleted object was prematurely deleted when regulation disabled Hold onto it until deletion time passes in order to process discovery. More...

virtual void	retainTsoRemovedObj (DtRtiObject *obj, RTI::FedTime const &time)
	TSO removed object may be discovered by other federates but should not be rediscovered by this federate. More...

virtual bool	removedObjectIsRetained (DtObjectInstanceHandle objectHandle)
	Check list of objects that have been removed via TSO delete and are unknown to the federate but whose delete time has not passed yet. More...

virtual void	removeObjectAssociations (DtRtiObject &object)
	Remove associations to this object (e.g., regions) More...

virtual void	collectRemoteSubscriptions (DtRtiObject &object)
	Collect existing remote subscriptions and apply them to given object Supports attribute advisories when not distributing discovered class. More...

virtual DtObjectInstanceHandle	findReusableHandle ()
	Attempt to find an instance handle that can be re-assigned to a new registration Returns a 0 handle if no free handle found. More...

virtual DtRtiObject *	registerObj (DtObjectClassHandle theClass, DtObjectInstanceHandle objHandle, const char *name)
	Register a locally simulated object. More...

virtual DtRtiObject *	processNewObj (DtObjectInstanceHandle objHand, DtObjectClassInfo actualClass, DtObjectClassInfo subscribedClass, const char *name, const DtAhvps &inSet, DtHandle regSetHandle, DtFederateHandle sourceFederate)
	Assumes we have not yet discovered objHand. More...

virtual DtRtiObject *	discoverObject (DtObjectInstanceHandle objHandle, const char objName, DtObjectClassInfo actualClass, DtObjectClassInfo *discoveredClass, const DtAttributeHandleSet &attrSet, DtFederateHandle federateHandle, bool federateOwnsPrivilegeToDelete)
	Discover this object using the actual and discovered class and the supplied attributes that intersect the federate's subscription(s) Return object if discover successful; otherwise, NULL. More...

virtual void	invokeReflect (DtFederateHandle federateHandle, DtObjectInstanceHandle objectHandle, DtAhvps const &reflectedValues, DtTransportHandle transportType, DtOrderHandle sentOrder, char const tag=0, RTI::FedTime const time=0, unsigned long serialNumber=0)
	Invoke the reflect attribute values update call. More...

virtual bool	acceptObjectChannel (unsigned long channel)
	Return true if the channel (region set handle) should be accepted NOTE: This always returns true when DDM is disabled. More...

virtual bool	acceptRequestChannel (unsigned long channel)
	Return true if the channel (region set handle) should be accepted NOTE: This always returns true when DDM is disabled. More...

virtual bool	saveObjectList (DtRtiSaveFile &file)
	save out the list of of known and owned objects More...

virtual bool	restoreObjectList (DtRtiSaveFile &file)
	restore the list of known and owned objects More...

virtual void	destroyObjectLists ()
	Destroy all the object lists and their elements. More...

virtual unsigned long	savePacketLength ()
	Return the length of buffer needed to save the state data. More...

virtual void	removeFromNotifiedDivestitures (DtObjectInstanceHandle objHdl, const DtAttributeHandleSet &attrs)
	Removes the attributes from the list of attribute divestitures. More...


virtual void	processUpdate (const DtUpdateMsg &msg)
	Process messages. More...

virtual void	processReserveName (DtReserveNameMsg const &msg)
	Process messages. More...

virtual void	processNameReserved (DtNameReservedMsg const &msg)
	Process messages. More...

virtual void	processRegister (const DtRegObjMsg &msg)
	Process messages. More...

virtual void	processMultiRegister (const DtMultiRegObjMsg &msg)
	Process messages. More...

virtual void	processDiscover (const DtDiscObjMsg &msg)
	Process messages. More...

virtual void	processRequestDiscover (const DtReqDiscObjMsg &msg)
	Process messages. More...

virtual void	processDelete (const DtDeleteRoMsg &msg)
	Process messages. More...

virtual void	processLocDelete (const DtLocDelMsg &msg)
	Process messages. More...

virtual void	processPub (const DtPubObjMsg &msg)
	Process messages. More...

virtual void	processUnpub (const DtUnpubObjMsg &msg)
	Process messages. More...

virtual void	processSub (const DtSubObjMsg &msg)
	Process messages. More...

virtual void	processUnsub (const DtUnsubObjMsg &msg)
	Process messages. More...

virtual void	processRequest (const DtRequestMsg &msg)
	Process messages. More...

virtual void	processOwnership (const DtOwnershipMsg &msg)
	Process messages. More...


virtual void	sendPublishMsg (DtObjectClassHandle handle, const DtAttributeHandleSet &theSet)
	Send various types of RTI messages. More...

virtual void	sendUnpublishMsg (DtObjectInstanceHandle handle, const DtAttributeHandleSet &theSet)
	Send various types of RTI messages. More...

virtual void	sendUnsubscribeMsg (DtObjectClassHandle handle, const DtAttributeHandleSet &theSet)
	Send various types of RTI messages. More...

virtual void	sendSubscribeMsg (DtObjectClassHandle theObj, bool isPassive, bool replacement, const DtAttributeHandleSet &theSet, DtFederateHandle fedHandle)
	Send various types of RTI messages. More...

virtual void	sendSubscribeMsg (DtObjectClassHandle theObj, bool isPassive, bool replacement, const DtAttributeHandleSet &theSet, DtBitMask *sendMask=0)
	Send various types of RTI messages. More...

virtual void	sendRegisterMsg (DtRtiObject object, DtBitMask sendMask=0)
	Send various types of RTI messages. More...

virtual void	sendRegisterMsg (DtRtiMsg msg, DtRtiObject object, DtBitMask *sendMask=0)
	Send various types of RTI messages. More...

virtual void	sendLocalDeleteMsg (DtObjectInstanceHandle handle)
	Send various types of RTI messages. More...

virtual void	sendDiscoverMsg (DtObjectInstanceHandle objHandle, DtObjectClassHandle classHandle, DtFederateHandle owner)
	Send various types of RTI messages. More...

virtual void	sendDiscoverMsg (DtObjectInstanceHandle objHandle, DtObjectClassHandle classHandle, DtFederateHandle owner, DtBitMask *fedHandles)
	Send various types of RTI messages. More...

virtual void	sendRequestDiscoverMsg (DtObjectInstanceHandle objHandle, DtObjectClassHandle classHandle)
	Send various types of RTI messages. More...

virtual void	sendRemoveDiscoverMsg (DtObjectInstanceHandle objHandle, DtObjectClassHandle classHandle, DtFederateHandle fedHandle)
	Send various types of RTI messages. More...

virtual void	sendReserveNameMsg (std::string const &theObjectInstanceName)
	Send various types of RTI messages. More...


virtual unsigned long	federateHandleSlotFromObjectHandle (DtObjectInstanceHandle handle) const
	Return the federate handle slot used to construct the given object ID. More...

virtual unsigned long	nextOffsetId ()
	Return the next offset ID. More...


virtual void	addClassMulticast (DtObjectClassInfo *classDesc, float rate=-1.0)
	Recursively add and remove the DM multicast address of this class and all its subclasses The Rate determines which update rate multicast offsets to join and drop A rate less than zero indicates rate should be retrieved from class A rate equal zero indicates no rate should be used and all offsets are affected. More...

virtual void	removeClassMulticast (DtObjectClassInfo *classDesc, float rate=-1.0)
	Recursively add and remove the DM multicast address of this class and all its subclasses The Rate determines which update rate multicast offsets to join and drop A rate less than zero indicates rate should be retrieved from class A rate equal zero indicates no rate should be used and all offsets are affected. More...

Static Protected Member Functions

static void	processUpdate (const DtUpdateMsg &msg, void *usr)
	Message callback methods to register with connection manager. More...

static void	processReserveName (DtReserveNameMsg const &msg, void *usr)
	Message callback methods to register with connection manager. More...

static void	processNameReserved (DtNameReservedMsg const &msg, void *usr)
	Message callback methods to register with connection manager. More...

static void	processRegister (const DtRegObjMsg &msg, void *usr)
	Message callback methods to register with connection manager. More...

static void	processMultiRegister (const DtMultiRegObjMsg &msg, void *usr)
	Message callback methods to register with connection manager. More...

static void	processDiscover (const DtDiscObjMsg &msg, void *usr)
	Message callback methods to register with connection manager. More...

static void	processRequestDiscover (const DtReqDiscObjMsg &msg, void *usr)
	Message callback methods to register with connection manager. More...

static void	processDelete (const DtDeleteRoMsg &msg, void *usr)
	Message callback methods to register with connection manager. More...

static void	processLocDelete (const DtLocDelMsg &msg, void *usr)
	Message callback methods to register with connection manager. More...

static void	processPub (const DtPubObjMsg &msg, void *usr)
	Message callback methods to register with connection manager. More...

static void	processUnpub (const DtUnpubObjMsg &msg, void *usr)
	Message callback methods to register with connection manager. More...

static void	processSub (const DtSubObjMsg &msg, void *usr)
	Message callback methods to register with connection manager. More...

static void	processUnsub (const DtUnsubObjMsg &msg, void *usr)
	Message callback methods to register with connection manager. More...

static void	processRequest (const DtRequestMsg &msg, void *usr)
	Message callback methods to register with connection manager. More...

static void	processOwnership (const DtOwnershipMsg &msg, void *usr)
	Message callback methods to register with connection manager. More...

Protected Attributes
DtFederateMgr *	myFederateMgr
	Access to the federate manager. More...

std::set< std::string >	myReservedNames
	These names are reserved by this federate but have not been used. More...

std::set< std::string >	myUsedNames
	These names have been used by this federate to register an object instance. More...

std::set< std::string >	myFailedNames
	Reservation of these names failed (i.e., reserved by another federate). More...

MAKRti::DtString	myHlaNamePrefix
	The HLA object instance name prefix. More...

DtRtiObjectMap	myObjects
	List of all objects by handle. More...

std::map< MAKRti::DtString, DtRtiObject * >	myObjectsByName
	List of all objects by name. More...

DtRtiObjectMap	myKnownObjs
	List of known objects by handle. More...

std::map< MAKRti::DtString, DtRtiObject * >	myKnownObjsByName
	List of known objects by name. More...

DtRtiObjectMap	myOwnedObjs
	List of owned objects by handle. More...

std::map< MAKRti::DtString, DtRtiObject * >	myOwnedObjsByName
	List of owned objects by name. More...

DtRtiObjectMap	myLrcManagedObjs
	List of LRC owned objects by handle. More...

std::map< MAKRti::DtString, DtRtiObject * >	myLrcManagedObjsByName
	List of LRC owned objects by name. More...

DtAddrMap	myAddrMap
	Map of routing addresses by region set handle. More...

std::map < DtObjectInstanceHandle, MAKRti::DtTime >	myDeletedObjects
	Set of objects that have been recently deleted that will not be discovered via update. More...

DtHandle	myFreeObjHandle
	The next free object handle. More...

bool	myIsJoined
	Manager has performed join processing. More...

bool	myRestoreInProgress
	Status of restore. More...

bool	myReuseIds
	Unique object IDs have been exhausted, attempt to reuse IDs. More...

MAKRti::DtClock	myClock
	Clock for timing. More...

DtFederateToPendingObjDiscMap	myPendingDiscoveries

DtObjectClassMaskMap	myPendingDiscoveriesMaskList

DtFederateToPendingObjDiscMap	myPendingNonDiscoveries

DtObjectClassMaskMap	myPendingNonDiscoveriesMaskList

DtTime	myNextPendingDiscTime
	Next time we should send pending discovery messages. More...

DtObjHandleSet	myIgnoreObjects
	Set of object handles whose next updates should be ignored. More...

bool	myForceBestEffort
	Send everything best effort. More...

std::set< DtRtiMsgKind >	myConstrainedUpdateKinds

std::set< DtRtiMsgKind >	myConstrainedDeleteKinds

const int	myShiftForFederateHandle


DtObjectClassHandleSet	myRetransmitSubClass
	Post processing lists. More...

DtObjectClassMaskMap	myRetransmitSubClassMask
	Post processing lists. More...

DtObjectInstanceHandleSet	myLocalDeletedObjects
	Post processing lists. More...

DtObjInstAttrSetPairList	myPendingStartUpdatesList
	Post processing lists. More...

DtObjClassAttrSetPairList	myPendingStopUpdatesList
	Post processing lists. More...

DtObjectClassHandleSet	myPendingStartRegList
	Post processing lists. More...

DtObjectClassHandleSet	myPendingStopRegList
	Post processing lists. More...

DtObjectClassHandleSet	myPendingRegisterList
	Post processing lists. More...

DtObjectClassMaskMap	myPendingRegisterMaskList
	Post processing lists. More...

DtObjectInstanceHandleSet	myPendingInstRegisterList
	Post processing lists. More...

MAKRti::DtList	myPendingRemovals
	Post processing lists. More...

DtPendingRequestAttrMap	myPendingRequestAttrs
	Post processing lists. More...

DtPendingRequestAttrMap	myPendingDivestNotifications
	Post processing lists. More...

DtPendingRequestAttrMap	myNotifiedDivestitures
	Post processing lists. More...


bool	myClassRelevanceSwitch
	Advisory switches. More...

bool	myAttributeRelevanceSwitch
	Advisory switches. More...

bool	myAttributeScopeSwitch
	Advisory switches. More...

Static Protected Attributes
static DtObjectMgrCreator	theCreator
	The plugin creator. More...

static DtObjectMgrCreator	theInternalCreator
	The internal creator. More...

Private Member Functions
	DtObjectMgr (DtObjectMgr const &)
	Copy Constructor not implemented – Copy Not Allowed! More...

DtObjectMgr &	operator= (DtObjectMgr const &)
	Assignment not implemented – Assignment Not Allowed! More...

Detailed Description

The object manager class processes the object management services.

The object manager manages all the objects in a federation. It handles registers, discovers, updates, reflects, subscriptions, publications, and ownership management.

Member Typedef Documentation

typedef std::map<DtObjectClassHandle, DtObjHandleSet> DtObjectMgr::DtClassToPendingObjDiscMap

protected

typedef std::map<DtFederateHandle, DtClassToPendingObjDiscMap> DtObjectMgr::DtFederateToPendingObjDiscMap

protected

typedef std::list< std::pair< DtObjectClassHandle, DtAttributeHandleSet > > DtObjectMgr::DtObjClassAttrSetPairList

protected

typedef std::set< DtObjectClassHandle > DtObjectMgr::DtObjectClassHandleSet

protected

typedef std::map< DtObjectClassHandle,DtBitMask*> DtObjectMgr::DtObjectClassMaskMap

protected

typedef std::set< DtObjectInstanceHandle > DtObjectMgr::DtObjectInstanceHandleSet

protected

typedef std::map< DtObjectInstanceHandle,DtBitMask*> DtObjectMgr::DtObjectInstanceMaskMap

protected

typedef DtObjectMgr*(* DtObjectMgr::DtObjectMgrCreator)(DtFederateMgr *fedMgr)

Object manager creator type.

typedef std::set<DtObjectInstanceHandle> DtObjectMgr::DtObjHandleSet

protected

Pending discoveries and non-discoveries.

typedef std::list< std::pair< DtObjectInstanceHandle, DtAttributeHandleSet > > DtObjectMgr::DtObjInstAttrSetPairList

protected

typedef std::map<DtObjectInstanceHandle, DtAttributeHandleSet> DtObjectMgr::DtPendingRequestAttrMap

Map of requested attributes.

Constructor & Destructor Documentation

DtObjectMgr::DtObjectMgr ( DtFederateMgr * fedMgr )

protected

Constructor.

virtual DtObjectMgr::~DtObjectMgr ( )

virtual

Destructor.

DtObjectMgr::DtObjectMgr ( DtObjectMgr const & )

private

Copy Constructor not implemented – Copy Not Allowed!

Member Function Documentation

virtual bool DtObjectMgr::acceptObjectChannel ( unsigned long channel )

protectedvirtual

Return true if the channel (region set handle) should be accepted NOTE: This always returns true when DDM is disabled.

virtual bool DtObjectMgr::acceptRequestChannel ( unsigned long channel )

protectedvirtual

Return true if the channel (region set handle) should be accepted NOTE: This always returns true when DDM is disabled.

virtual void DtObjectMgr::acquireAttrs	(	DtObjectInstanceHandle	objHand,
		const DtAttributeHandleSet &	desiredAttributes,
		bool	onlyIfAvail,
		char const *	tag = `DtRtiMsg::theDefaultTag`
	)

virtual

Process an attribute acquisition.

virtual void DtObjectMgr::addAllObj ( DtRtiObject * obj )

virtual

Add/Remove/Get objects (superset of all objects including MOM) All objects must be in this set.

virtual void DtObjectMgr::addClassMulticast	(	DtObjectClassInfo *	classDesc,
		float	rate = `-1.0`
	)

protectedvirtual

Recursively add and remove the DM multicast address of this class and all its subclasses The Rate determines which update rate multicast offsets to join and drop A rate less than zero indicates rate should be retrieved from class A rate equal zero indicates no rate should be used and all offsets are affected.

virtual void DtObjectMgr::addKnownObj ( DtRtiObject * obj )

virtual

Add/Remove/Get known objects (registered or discovered) All registered and discovered objects must be in this set.

virtual void DtObjectMgr::addLrcManagedObj ( DtRtiObject * obj )

virtual

Add/Remove/Get lrc managed objects (at least one LRC managed attribute) All objects with attributes owned by this LRC must be in this set.

virtual void DtObjectMgr::addOwnedObj ( DtRtiObject * obj )

virtual

Add/Remove/Get owned objects (at least one owned attribute) All objects with attributes owned by this federate must be in this set.

virtual void DtObjectMgr::addPendingDiscovery	(	DtObjectInstanceHandle	objectHandle,
		DtObjectClassHandle	classHandle,
		DtFederateHandle	federate,
		bool	isNonDiscovery
	)

virtual

Add pending discovery/non-discovery.

virtual void DtObjectMgr::addPendingDivestNotification	(	DtObjectInstanceHandle	objectHandle,
		DtAttributeHandleSet	attributes
	)

virtual

Add pending divest notification that will get processed during the next tick.

virtual void DtObjectMgr::addPendingRegister	(	DtObjectClassHandle	theClass,
		DtFederateHandle	fedHandle = `0`
	)

virtual

Add pending Register that will get processed during the next tick.

virtual void DtObjectMgr::addPendingRegisterForObject ( DtObjectInstanceHandle objHandle )

virtual

Add pending Register for the given object that will get processed during next tick.

virtual void DtObjectMgr::addPendingRemoval ( DtObjectInstanceHandle id )

virtual

Add pending object removals that will get processed during the next tick.

virtual void DtObjectMgr::addPendingRequestAttrs	(	DtObjectInstanceHandle	objectHandle,
		DtAttributeHandleSet	attributes
	)

virtual

Add pending request attribute value that will get processed during the next tick.

virtual void DtObjectMgr::addPendingStartReg ( DtObjectClassHandle theClass )

virtual

Add pending startRegistration that will get processed during the next tick.

virtual void DtObjectMgr::addPendingStartUpdates	(	DtObjectInstanceHandle	obj,
		const DtAttributeHandleSet &	attributeList
	)

virtual

Add pending startUpdates that will get called during the next tick.

virtual void DtObjectMgr::addPendingStopReg ( DtObjectClassHandle theClass )

virtual

Add pending stopRegistration that will get processed during the next tick.

virtual void DtObjectMgr::addPendingStopUpdates	(	DtObjectClassHandle	theClass,
		const DtAttributeHandleSet &	attributeList
	)

virtual

Add pending stopUpdates that will get called during the next tick.

virtual void DtObjectMgr::addPendingSubscription	(	DtObjectClassHandle	theClass,
		DtFederateHandle	fedHandle = `0`
	)

virtual

Add pending subscription class retransmissions that will get processed during next tick.

virtual DtRtiObject* DtObjectMgr::allObj ( DtObjectInstanceHandle id )

virtual

Add/Remove/Get objects (superset of all objects including MOM) All objects must be in this set.

virtual DtRtiObject* DtObjectMgr::allObj ( const char * name )

virtual

Add/Remove/Get objects (superset of all objects including MOM) All objects must be in this set.

virtual const DtRtiObjectMap& DtObjectMgr::allObjects ( ) const

virtual

Add/Remove/Get objects (superset of all objects including MOM) All objects must be in this set.

virtual bool DtObjectMgr::attributeRelevanceSwitch ( )

virtual

virtual bool DtObjectMgr::attributeScopeSwitch ( )

virtual

virtual void DtObjectMgr::autoProvideAttrValueUpdate ( )

virtual

Invoke provide for all owned attributes.

virtual void DtObjectMgr::cancelAcquire	(	DtObjectInstanceHandle	objHand,
		const DtAttributeHandleSet &	attrs
	)

virtual

Cancel an attribute acquisition.

virtual void DtObjectMgr::cancelDivest	(	DtObjectInstanceHandle	objHand,
		const DtAttributeHandleSet &	attrs
	)

virtual

Cancel an attribute divestiture.

virtual bool DtObjectMgr::classRelevanceSwitch ( )

virtual

virtual void DtObjectMgr::collectRemoteSubscriptions ( DtRtiObject & object )

protectedvirtual

Collect existing remote subscriptions and apply them to given object Supports attribute advisories when not distributing discovered class.

Actually can report more attributes than required.

DtConnectionMgr* DtObjectMgr::connectMgr ( )

inline

Returns pointer to network connection mgr.

DtConnectionMgr* DtObjectMgr::connectMgr ( ) const

inline

static DtObjectMgr* DtObjectMgr::create ( DtFederateMgr * fedMgr )

static

A Object Manager instance is created and its pointer is returned.

A registered creator is used if present; otherwise, an internal class is instantiated.

virtual void DtObjectMgr::deleteAllOwnedObjects ( )

protectedvirtual

Delete all objects for which we own the privilege.

virtual unsigned long DtObjectMgr::deleteObj	(	DtObjectInstanceHandle	objectID,
		RTI::FedTime const *	theTime,
		char const *	theTag
	)

virtual

Delete a locally simulated object Return retraction handle serial number.

virtual void DtObjectMgr::deleteObj	(	DtRtiObject *	obj,
		bool	isLocalDelete = `false`
	)

protectedvirtual

Remove object from all lists and delete it.

virtual void DtObjectMgr::destroyObjectLists ( )

protectedvirtual

Destroy all the object lists and their elements.

virtual void DtObjectMgr::disableAttributeRelevanceSwitch ( )

virtual

Enable/Disable attributeRelevanceAdvisorySwitch 1516 throws exception if call is redundant.

virtual void DtObjectMgr::disableAttributeScopeSwitch ( )

virtual

Enable/Disable attributeScopeAdvisorySwitch 1516 throws exception if call is redundant.

virtual void DtObjectMgr::disableClassRelevanceSwitch ( )

virtual

Enable/Disable classRelevanceAdvisorySwitch 1516 throws exception if call is redundant.

virtual DtRtiObject* DtObjectMgr::discoverObject	(	DtObjectInstanceHandle	objHandle,
		const char *	objName,
		DtObjectClassInfo *	actualClass,
		DtObjectClassInfo *	discoveredClass,
		const DtAttributeHandleSet &	attrSet,
		DtFederateHandle	federateHandle,
		bool	federateOwnsPrivilegeToDelete
	)

protectedvirtual

Discover this object using the actual and discovered class and the supplied attributes that intersect the federate's subscription(s) Return object if discover successful; otherwise, NULL.

virtual void DtObjectMgr::divestAllInstances	(	DtObjectClassHandle	classHand,
		const DtAttributeHandleSet &	attrs
	)

protectedvirtual

Divest ownership (unconditionally) of all owned attributes in attrs for each object that's known at class classHand.

virtual void DtObjectMgr::divestAllInstances ( )

protectedvirtual

Divest ownership (unconditionally) of all owned attributes of all objects.

virtual void DtObjectMgr::divestOwnership	(	DtObjectInstanceHandle	objHand,
		const DtAttributeHandleSet &	attrs,
		DtDivestCondition	condition,
		char const *	tag = `DtRtiMsg::theDefaultTag`
	)

virtual

Process a attribute divestiture.

virtual void DtObjectMgr::enableAttributeRelevanceSwitch ( )

virtual

Enable/Disable attributeRelevanceAdvisorySwitch 1516 throws exception if call is redundant.

virtual void DtObjectMgr::enableAttributeScopeSwitch ( )

virtual

Enable/Disable attributeScopeAdvisorySwitch 1516 throws exception if call is redundant.

virtual void DtObjectMgr::enableClassRelevanceSwitch ( )

virtual

Enable/Disable classRelevanceAdvisorySwitch 1516 throws exception if call is redundant.

virtual int DtObjectMgr::evaluateSubscription ( DtRtiMsg const & msg )

virtual

Return bool: is message an update or delete that can generate a reflect or remove callback? Determine if message is update or delete and if so, is it subscribed e.g., would be delivered as callback if processed Returns -1 if not an update/delete, 0 if no delivery expected, 1 if delivery expected.

virtual unsigned long DtObjectMgr::federateHandleSlotFromObjectHandle ( DtObjectInstanceHandle handle ) const

protectedvirtual

Return the federate handle slot used to construct the given object ID.

DtFederateMgr* DtObjectMgr::federateMgr ( )

inline

Access to the federate manager.

DtFederateMgr* DtObjectMgr::federateMgr ( ) const

inline

virtual DtObjectInstanceHandle DtObjectMgr::findReusableHandle ( )

protectedvirtual

Attempt to find an instance handle that can be re-assigned to a new registration Returns a 0 handle if no free handle found.

virtual DtObjectClassInfo* DtObjectMgr::firstSubscribedClass	(	DtObjectClassInfo *	classDesc,
		DtHandle	regSetHandle
	)

virtual

Returns most specific superclass of class, to which we are subscribed.

DtFomClassMgr* DtObjectMgr::fom ( )

inline

Return fom pointer.

DtFomClassMgr* DtObjectMgr::fom ( ) const

inline

Return fom pointer.

virtual void DtObjectMgr::getUniqueName	(	DtObjectInstanceHandle	handle,
		MAKRti::DtString &	objectName
	)

virtual

Use the supplied object handle to construct a unique object name and assign a unique name to the supplied string.

virtual void DtObjectMgr::ignoreNextUpdate ( DtObjectInstanceHandle hdl )

virtual

Tells the object manager to ignore the next update for the given object.

virtual void DtObjectMgr::insertBitMask	(	DtObjectClassMaskMap &	classMaskMap,
		DtObjectClassHandle	classHandle,
		DtFederateHandle	fedHandle
	)

protectedvirtual

virtual void DtObjectMgr::insertDiscBitMask	(	DtObjectClassHandle	classHandle,
		DtFederateHandle	fedHandle
	)

protectedvirtual

virtual void DtObjectMgr::insertNonDiscBitMask	(	DtObjectClassHandle	classHandle,
		DtFederateHandle	fedHandle
	)

protectedvirtual

virtual void DtObjectMgr::insertRegBitMask	(	DtObjectClassHandle	classHandle,
		DtFederateHandle	fedHandle
	)

protectedvirtual

virtual void DtObjectMgr::insertSubBitMask	(	DtObjectClassHandle	classHandle,
		DtFederateHandle	fedHandle
	)

protectedvirtual

virtual void DtObjectMgr::invokePendingDivestNotification ( )

protectedvirtual

Invoke pending divest notification.

virtual void DtObjectMgr::invokeReflect	(	DtFederateHandle	federateHandle,
		DtObjectInstanceHandle	objectHandle,
		DtAhvps const &	reflectedValues,
		DtTransportHandle	transportType,
		DtOrderHandle	sentOrder,
		char const *	tag = `0`,
		RTI::FedTime const *	time = `0`,
		unsigned long	serialNumber = `0`
	)

protectedvirtual

Invoke the reflect attribute values update call.

virtual bool DtObjectMgr::isAcquistionPending ( )

virtual

Return true if ownership acquistion is pending for remote attrs.

virtual bool DtObjectMgr::isPostJoined ( ) const

virtual

Return bool: Was the post join initialization perfomerd?

virtual DtRtiObject* DtObjectMgr::knownObj ( DtObjectInstanceHandle id )

virtual

Add/Remove/Get known objects (registered or discovered) All registered and discovered objects must be in this set.

virtual DtRtiObject* DtObjectMgr::knownObj ( const char * name )

virtual

Add/Remove/Get known objects (registered or discovered) All registered and discovered objects must be in this set.

virtual const DtRtiObjectMap& DtObjectMgr::knownObjects ( ) const

virtual

Add/Remove/Get known objects (registered or discovered) All registered and discovered objects must be in this set.

virtual void DtObjectMgr::localDeleteObj ( DtObjectInstanceHandle obj )

virtual

Implements the localDeleteObjectInstance service.

virtual DtRtiObject* DtObjectMgr::lrcManagedObj ( DtObjectInstanceHandle id )

virtual

Add/Remove/Get lrc managed objects (at least one LRC managed attribute) All objects with attributes owned by this LRC must be in this set.

virtual DtRtiObject* DtObjectMgr::lrcManagedObj ( const char * name )

virtual

Add/Remove/Get lrc managed objects (at least one LRC managed attribute) All objects with attributes owned by this LRC must be in this set.

virtual const DtRtiObjectMap& DtObjectMgr::lrcManagedObjects ( ) const

virtual

Add/Remove/Get lrc managed objects (at least one LRC managed attribute) All objects with attributes owned by this LRC must be in this set.

virtual unsigned long DtObjectMgr::nextOffsetId ( )

protectedvirtual

Return the next offset ID.

An invalid ID of 0 is returned if this next offset exceeded the maximum.

virtual void DtObjectMgr::notifyDivestedAttributes	(	DtObjectClassHandle	objectClass,
		DtAttributeHandleSet const &	attrs
	)

protectedvirtual

Find any divested attributes instances that match (is of) the supplied class and set.

Send a notify divest for them.

virtual int DtObjectMgr::numObjectsOwned ( )

virtual

return the number of owned objects

virtual DtObjectClassHandle DtObjectMgr::objectClass ( DtObjectInstanceHandle handle )

virtual

Get an object's class.

virtual DtObjectInstanceHandle DtObjectMgr::objectHandle ( const char * name )

virtual

Get objectHandle from name.

virtual const char* DtObjectMgr::objectName ( DtObjectInstanceHandle handle )

virtual

Get object name from handle.

Returns pointer to internal memory.

virtual bool DtObjectMgr::objectWasCreatedByFederate	(	DtRtiObject const &	obj,
		DtFederateHandle const &	fedHandle
	)

virtual

Query the object manager to determine whether the specified federate was the initial creator of the specified object.

DtObjectMgr& DtObjectMgr::operator= ( DtObjectMgr const & )

private

Assignment not implemented – Assignment Not Allowed!

virtual DtRtiObject* DtObjectMgr::ownedObj ( DtObjectInstanceHandle id )

virtual

Add/Remove/Get owned objects (at least one owned attribute) All objects with attributes owned by this federate must be in this set.

virtual DtRtiObject* DtObjectMgr::ownedObj ( const char * name )

virtual

Add/Remove/Get owned objects (at least one owned attribute) All objects with attributes owned by this federate must be in this set.

virtual const DtRtiObjectMap& DtObjectMgr::ownedObjects ( ) const

virtual

Add/Remove/Get owned objects (at least one owned attribute) All objects with attributes owned by this federate must be in this set.

DtRIDParameters* DtObjectMgr::params ( )

inline

Return pointer to RID parameters.

DtRIDParameters* DtObjectMgr::params ( ) const

inline

Return pointer to RID parameters.

virtual void DtObjectMgr::postJoinInit ( )

virtual

Post join processing. All managers shall have been created and initialized.

virtual void DtObjectMgr::postTick ( )

virtual

Called after processing messages in RTI ambassador tick / evoke callbacks.

void DtObjectMgr::prepareToResign ( RTI::ResignAction const & theAction )

Called when resigning from a federation to test conditions and to delete owned objects.

virtual void DtObjectMgr::prepareToRestore ( )

virtual

Prepare the state information to be restored (i.e., clear out existing data).

virtual void DtObjectMgr::preTick ( )

virtual

Called before processing messages in RTI ambassador tick / evoke callbacks.

virtual void DtObjectMgr::processAcquire	(	DtObjectInstanceHandle	objHand,
		const DtAttributeHandleSet &	attrs,
		DtFederateHandle	fed,
		bool	onlyIfAvail,
		char const *	tag
	)

protectedvirtual

Process a remote attribute acquisition.

virtual void DtObjectMgr::processCancelAcquire	(	DtObjectInstanceHandle	objHand,
		const DtAttributeHandleSet &	attrs,
		DtFederateHandle	fed
	)

protectedvirtual

Process a remote cancel attribute acquisition.

virtual void DtObjectMgr::processConfirmCancelAcquire	(	DtObjectInstanceHandle	objHand,
		const DtAttributeHandleSet &	attrs
	)

protectedvirtual

Process a remote confirm attribute acquisition.

virtual void DtObjectMgr::processDelete ( const DtDeleteRoMsg & msg )

protectedvirtual

Process messages.

static void DtObjectMgr::processDelete	(	const DtDeleteRoMsg &	msg,
		void *	usr
	)

staticprotected

Message callback methods to register with connection manager.

virtual void DtObjectMgr::processDiscover ( const DtDiscObjMsg & msg )

protectedvirtual

Process messages.

static void DtObjectMgr::processDiscover	(	const DtDiscObjMsg &	msg,
		void *	usr
	)

staticprotected

Message callback methods to register with connection manager.

virtual void DtObjectMgr::processDivest	(	DtObjectInstanceHandle	objHand,
		const DtAttributeHandleSet &	attrs,
		DtFederateHandle	fed,
		bool	negotiated,
		char const *	tag = `DtRtiMsg::theDefaultTag`
	)

protectedvirtual

Process a remote attribute divestiture.

virtual void DtObjectMgr::processGiveToLrc	(	DtObjectInstanceHandle	objHand,
		const DtAttributeHandleSet &	attrs,
		char const *	tag,
		DtHandle	hand
	)

protectedvirtual

Give the supplied attributes to the local RTI component.

virtual void DtObjectMgr::processLocDelete ( const DtLocDelMsg & msg )

protectedvirtual

Process messages.

static void DtObjectMgr::processLocDelete	(	const DtLocDelMsg &	msg,
		void *	usr
	)

staticprotected

Message callback methods to register with connection manager.

virtual void DtObjectMgr::processMultiRegister ( const DtMultiRegObjMsg & msg )

protectedvirtual

Process messages.

static void DtObjectMgr::processMultiRegister	(	const DtMultiRegObjMsg &	msg,
		void *	usr
	)

staticprotected

Message callback methods to register with connection manager.

virtual void DtObjectMgr::processNameReserved ( DtNameReservedMsg const & msg )

protectedvirtual

Process messages.

static void DtObjectMgr::processNameReserved	(	DtNameReservedMsg const &	msg,
		void *	usr
	)

staticprotected

Message callback methods to register with connection manager.

virtual DtRtiObject* DtObjectMgr::processNewObj	(	DtObjectInstanceHandle	objHand,
		DtObjectClassHandle	realClass,
		const char *	name,
		const DtAttributeHandleSet &	inSet,
		DtHandle	regSetHandle,
		DtFederateHandle	sourceFederate
	)

virtual

Assumes we have not yet discovered objHand.

If the object meets our discovery criteria, create a new object, add to the list of known objects, and call discover RTI service. Returns the new object if discovered; otherwise, NULL.

virtual DtRtiObject* DtObjectMgr::processNewObj	(	DtObjectInstanceHandle	objHand,
		DtObjectClassInfo *	actualClass,
		DtObjectClassInfo *	subscribedClass,
		const char *	name,
		const DtAhvps &	inSet,
		DtHandle	regSetHandle,
		DtFederateHandle	sourceFederate
	)

protectedvirtual

Assumes we have not yet discovered objHand.

If the object meets our discovery criteria, create a new object, add to the list of known objects, and call discover RTI service. Returns the new object if discovered; otherwise, NULL.

virtual void DtObjectMgr::processNotifyAcquire	(	DtObjectInstanceHandle	objHand,
		const DtAttributeHandleSet &	attrs,
		char const *	tag = `DtRtiMsg::theDefaultTag`,
		bool	forceAcquire = `false`
	)

protectedvirtual

Process a remote notify attribute acquisition.

virtual void DtObjectMgr::processNotifyAcquireForDirectedMessaging	(	DtFederateHandle	fedHandle,
		DtObjectInstanceHandle	objHand,
		const DtAttributeHandleSet &	attrs
	)

protectedvirtual

Process a remote notify attribute acquisition for directed messaging.

virtual void DtObjectMgr::processOwnership ( const DtOwnershipMsg & msg )

protectedvirtual

Process messages.

static void DtObjectMgr::processOwnership	(	const DtOwnershipMsg &	msg,
		void *	usr
	)

staticprotected

Message callback methods to register with connection manager.

virtual void DtObjectMgr::processPub ( const DtPubObjMsg & msg )

protectedvirtual

Process messages.

static void DtObjectMgr::processPub	(	const DtPubObjMsg &	msg,
		void *	usr
	)

staticprotected

Message callback methods to register with connection manager.

virtual void DtObjectMgr::processQueryOwner	(	DtObjectInstanceHandle	objHand,
		DtAttributeHandle	attr,
		DtFederateHandle	requestor
	)

protectedvirtual

Process a remote attribute ownership queury.

virtual void DtObjectMgr::processRegister ( const DtRegObjMsg & msg )

protectedvirtual

Process messages.

static void DtObjectMgr::processRegister	(	const DtRegObjMsg &	msg,
		void *	usr
	)

staticprotected

Message callback methods to register with connection manager.

virtual void DtObjectMgr::processRequest ( const DtRequestMsg & msg )

protectedvirtual

Process messages.

static void DtObjectMgr::processRequest	(	const DtRequestMsg &	msg,
		void *	usr
	)

staticprotected

Message callback methods to register with connection manager.

virtual void DtObjectMgr::processRequestDiscover ( const DtReqDiscObjMsg & msg )

protectedvirtual

Process messages.

static void DtObjectMgr::processRequestDiscover	(	const DtReqDiscObjMsg &	msg,
		void *	usr
	)

staticprotected

Message callback methods to register with connection manager.

virtual void DtObjectMgr::processReserveName ( DtReserveNameMsg const & msg )

protectedvirtual

Process messages.

static void DtObjectMgr::processReserveName	(	DtReserveNameMsg const &	msg,
		void *	usr
	)

staticprotected

Message callback methods to register with connection manager.

virtual void DtObjectMgr::processResign ( const DtResignMsg & msg )

virtual

Process the resign message.

virtual void DtObjectMgr::processSub ( const DtSubObjMsg & msg )

protectedvirtual

Process messages.

static void DtObjectMgr::processSub	(	const DtSubObjMsg &	msg,
		void *	usr
	)

staticprotected

Message callback methods to register with connection manager.

virtual void DtObjectMgr::processUnpub ( const DtUnpubObjMsg & msg )

protectedvirtual

Process messages.

static void DtObjectMgr::processUnpub	(	const DtUnpubObjMsg &	msg,
		void *	usr
	)

staticprotected

Message callback methods to register with connection manager.

virtual void DtObjectMgr::processUnsub ( const DtUnsubObjMsg & msg )

protectedvirtual

Process messages.

static void DtObjectMgr::processUnsub	(	const DtUnsubObjMsg &	msg,
		void *	usr
	)

staticprotected

Message callback methods to register with connection manager.

virtual void DtObjectMgr::processUpdate ( const DtUpdateMsg & msg )

protectedvirtual

Process messages.

static void DtObjectMgr::processUpdate	(	const DtUpdateMsg &	msg,
		void *	usr
	)

staticprotected

Message callback methods to register with connection manager.

virtual void DtObjectMgr::provideAttrValueUpdate	(	const DtRtiObject *	obj,
		const DtAttributeHandleSet &	attrHandles,
		char const *	tag
	)

protectedvirtual

Make the fedAmb call to provide attrValUpdate for this object.

virtual void DtObjectMgr::publish	(	DtObjectClassHandle	theObject,
		const DtAttributeHandleSet &	attributeList
	)

virtual

Publish specified class attributes.

virtual int DtObjectMgr::published ( DtObjectClassHandle handle )

virtual

Returns 1 if published the class, 0 otherwise.

virtual void DtObjectMgr::purgeDeletedObjects ( )

protectedvirtual

Purge entries for recently deleted objects that have timed out.

virtual void DtObjectMgr::queryOwnership	(	DtObjectInstanceHandle	obj,
		DtAttributeHandle	attr
	)

virtual

Implements the queryAttributeOwnership service.

virtual DtObjectInstanceHandle DtObjectMgr::registerObj	(	DtObjectClassHandle	theClass,
		const char *	name
	)

virtual

Register a locally simulated object.

virtual DtObjectInstanceHandle DtObjectMgr::registerObj ( DtObjectClassHandle theClass )

virtual

Register a locally simulated object.

virtual DtRtiObject* DtObjectMgr::registerObj	(	DtObjectClassHandle	theClass,
		DtObjectInstanceHandle	objHandle,
		const char *	name
	)

protectedvirtual

Register a locally simulated object.

virtual void DtObjectMgr::releaseAllAttributes ( DtRtiObject * object )

protectedvirtual

Release (unconditionally) all owned and LRC managed attributes Only used during a resign.

virtual void DtObjectMgr::releaseOwnership	(	DtRtiObject *	obj,
		const DtAttributeHandleSet &	attrs
	)

protectedvirtual

Releases ownership of the specified attributes to the LRC Used when unpublishing.

virtual DtAttributeHandleSet* DtObjectMgr::releaseResponse	(	DtObjectInstanceHandle	objHand,
		const DtAttributeHandleSet &	attrs
	)

virtual

Respond to an attribute acquisition.

virtual void DtObjectMgr::remotePassiveSubscribe	(	DtObjectClassInfo &	classDesc,
		const DtAttributeHandleSet &	attrs,
		DtFederateHandle	fedHandle,
		bool	isReplacement
	)

protectedvirtual

Track passive subscriptions ( no effect on advisories )

virtual void DtObjectMgr::remoteSubscribe	(	DtObjectClassInfo &	classDesc,
		const DtAttributeHandleSet &	attrs,
		DtFederateHandle	fedHandle,
		bool	isReplacement
	)

protectedvirtual

Add a remote subscription to object known database and determine effects on advisories.

virtual void DtObjectMgr::remoteUnsubscribe	(	DtObjectClassHandle	classHandle,
		const DtAttributeHandleSet &	attrs,
		DtFederateHandle	fedHandle
	)

protectedvirtual

Remove a remote subscription to object known database and determine effects on advisories.

virtual void DtObjectMgr::removeAllObj ( DtObjectInstanceHandle obj )

virtual

Add/Remove/Get objects (superset of all objects including MOM) All objects must be in this set.

virtual void DtObjectMgr::removeClassMulticast	(	DtObjectClassInfo *	classDesc,
		float	rate = `-1.0`
	)

protectedvirtual

Recursively add and remove the DM multicast address of this class and all its subclasses The Rate determines which update rate multicast offsets to join and drop A rate less than zero indicates rate should be retrieved from class A rate equal zero indicates no rate should be used and all offsets are affected.

virtual bool DtObjectMgr::removedObjectIsRetained ( DtObjectInstanceHandle objectHandle )

protectedvirtual

Check list of objects that have been removed via TSO delete and are unknown to the federate but whose delete time has not passed yet.

Return boolean: is the specified object retained?

virtual void DtObjectMgr::removeFromAllLists ( DtRtiObject * object )

virtual

Remove an object from all lists.

virtual void DtObjectMgr::removeFromNotifiedDivestitures	(	DtObjectInstanceHandle	objHdl,
		const DtAttributeHandleSet &	attrs
	)

protectedvirtual

Removes the attributes from the list of attribute divestitures.

virtual void DtObjectMgr::removeKnownObj ( DtObjectInstanceHandle obj )

virtual

Add/Remove/Get known objects (registered or discovered) All registered and discovered objects must be in this set.

virtual void DtObjectMgr::removeLrcManagedObj ( DtObjectInstanceHandle obj )

virtual

Add/Remove/Get lrc managed objects (at least one LRC managed attribute) All objects with attributes owned by this LRC must be in this set.

virtual void DtObjectMgr::removeObjectAssociations ( DtRtiObject & object )

protectedvirtual

Remove associations to this object (e.g., regions)

virtual void DtObjectMgr::removeOwnedObj ( DtObjectInstanceHandle obj )

virtual

Add/Remove/Get owned objects (at least one owned attribute) All objects with attributes owned by this federate must be in this set.

virtual void DtObjectMgr::requestClassUpdate	(	DtObjectClassHandle	theClass,
		const DtAttributeHandleSet &	theAttributes,
		char const *	tag = `DtRtiMsg::theDefaultTag`,
		DtHandle	regionSetHandle = `DtDefaultRegionSetHandle`
	)

virtual

Request an attribute value update for a class of objects.

virtual void DtObjectMgr::requestObjectUpdate	(	DtObjectInstanceHandle	theObject,
		const DtAttributeHandleSet &	theAttributes,
		char const *	tag = `DtRtiMsg::theDefaultTag`
	)

virtual

Request an attribute value update for an object.

virtual void DtObjectMgr::resendMultiRegister ( DtObjectClassHandle classHandle )

virtual

Re-sends register information for all objects of a specific class if DDM is active then this information could include region and region association information.

Overridden in DtObjectDataDistMgr

virtual void DtObjectMgr::resendRegister	(	DtRtiObject *	obj,
		DtBitMask *	sendMask = `0`
	)

virtual

Re-sends register information, if DDM is active then this information could include region and region association information.

Overridden in DtObjectDataDistMgr

virtual void DtObjectMgr::reserveObjectInstanceName ( std::string const & theObjectInstanceName )

virtual

Reserve object instance name.

virtual void DtObjectMgr::resetOwner	(	DtFederateHandle	fedHandle,
		DtObjectInstanceHandle	objHandle
	)

protectedvirtual

Reset the owner of the object.

virtual bool DtObjectMgr::restore ( DtRtiSaveFile & file )

virtual

Restore the state information from the given file.

virtual bool DtObjectMgr::restoreInProgress ( ) const

virtual

Note: The advisory switches are disabled by a restore in progress.

They are restored to saved state upon completion of restore. Set/Get restore in progress status

virtual bool DtObjectMgr::restoreObjectList ( DtRtiSaveFile & file )

protectedvirtual

restore the list of known and owned objects

virtual void DtObjectMgr::retainTsoDeletedObj	(	DtRtiObject *	obj,
		RTI::FedTime const &	time
	)

protectedvirtual

TSO deleted object was prematurely deleted when regulation disabled Hold onto it until deletion time passes in order to process discovery.

virtual void DtObjectMgr::retainTsoRemovedObj	(	DtRtiObject *	obj,
		RTI::FedTime const &	time
	)

protectedvirtual

TSO removed object may be discovered by other federates but should not be rediscovered by this federate.

Hold onto it until deletion time passes in order to prevent rediscovery

virtual bool DtObjectMgr::save ( DtRtiSaveFile & file )

virtual

DDM.

Save the state information to the given file

virtual bool DtObjectMgr::saveObjectList ( DtRtiSaveFile & file )

protectedvirtual

save out the list of of known and owned objects

virtual unsigned long DtObjectMgr::savePacketLength ( )

protectedvirtual

Return the length of buffer needed to save the state data.

virtual void DtObjectMgr::sendDiscoverMsg	(	DtObjectInstanceHandle	objHandle,
		DtObjectClassHandle	classHandle,
		DtFederateHandle	owner
	)

protectedvirtual

Send various types of RTI messages.

virtual void DtObjectMgr::sendDiscoverMsg	(	DtObjectInstanceHandle	objHandle,
		DtObjectClassHandle	classHandle,
		DtFederateHandle	owner,
		DtBitMask *	fedHandles
	)

protectedvirtual

Send various types of RTI messages.

virtual void DtObjectMgr::sendLocalDeleteMsg ( DtObjectInstanceHandle handle )

protectedvirtual

Send various types of RTI messages.

virtual void DtObjectMgr::sendNotDiscoveredMsgForSmartForwarding	(	DtObjectInstanceHandle	handle,
		const DtObjectClassInfo &	classInfo,
		DtFederateHandle	federate,
		const DtAttributeHandleSet *	attributes = `0`
	)

virtual

Send a message removing this federate from remote federate's smart forwarding list for the given object.

virtual void DtObjectMgr::sendNotDiscoveredMsgForSmartForwarding	(	DtObjectInstanceHandle	handle,
		const DtObjectClassInfo &	classInfo,
		DtFederateHandle	federate,
		const DtAhvps *	attributes
	)

virtual

virtual void DtObjectMgr::sendPendingDiscoveries ( )

protectedvirtual

Send pending discoveries.

virtual void DtObjectMgr::sendPendingRegister ( )

protectedvirtual

Send pending Register.

virtual void DtObjectMgr::sendPendingRemovals ( )

protectedvirtual

Send pending object removals.

virtual void DtObjectMgr::sendPendingRequestAttributes ( )

protectedvirtual

Send pending request attribute value.

virtual void DtObjectMgr::sendPendingStartReg ( )

protectedvirtual

Send pending startRegistration.

virtual void DtObjectMgr::sendPendingStartUpdates ( )

protectedvirtual

Send pending startUpdates.

virtual void DtObjectMgr::sendPendingStopReg ( )

protectedvirtual

Send pending stopRegistration.

virtual void DtObjectMgr::sendPendingStopUpdates ( )

protectedvirtual

Send pending stopUpdates.

virtual void DtObjectMgr::sendPendingSubscription ( )

protectedvirtual

Send pending subscription class retransmissions.

virtual void DtObjectMgr::sendPublishMsg	(	DtObjectClassHandle	handle,
		const DtAttributeHandleSet &	theSet
	)

protectedvirtual

Send various types of RTI messages.

virtual void DtObjectMgr::sendRegister ( DtRtiObject * obj )

virtual

Sends register information, if DDM is active then this information could include region and region association information.

Overridden in DtObjectDataDistMgr

virtual void DtObjectMgr::sendRegisterMsg	(	DtRtiObject *	object,
		DtBitMask *	sendMask = `0`
	)

protectedvirtual

Send various types of RTI messages.

virtual void DtObjectMgr::sendRegisterMsg	(	DtRtiMsg *	msg,
		DtRtiObject *	object,
		DtBitMask *	sendMask = `0`
	)

protectedvirtual

Send various types of RTI messages.

virtual void DtObjectMgr::sendRemoveDiscoverMsg	(	DtObjectInstanceHandle	objHandle,
		DtObjectClassHandle	classHandle,
		DtFederateHandle	fedHandle
	)

protectedvirtual

Send various types of RTI messages.

virtual void DtObjectMgr::sendRequestDiscoverMsg	(	DtObjectInstanceHandle	objHandle,
		DtObjectClassHandle	classHandle
	)

protectedvirtual

Send various types of RTI messages.

virtual void DtObjectMgr::sendReserveNameMsg ( std::string const & theObjectInstanceName )

protectedvirtual

Send various types of RTI messages.

virtual void DtObjectMgr::sendSubscribeMsg	(	DtObjectClassHandle	theObj,
		bool	isPassive,
		bool	replacement,
		const DtAttributeHandleSet &	theSet,
		DtFederateHandle	fedHandle
	)

protectedvirtual

Send various types of RTI messages.

virtual void DtObjectMgr::sendSubscribeMsg	(	DtObjectClassHandle	theObj,
		bool	isPassive,
		bool	replacement,
		const DtAttributeHandleSet &	theSet,
		DtBitMask *	sendMask = `0`
	)

protectedvirtual

Send various types of RTI messages.

virtual void DtObjectMgr::sendUnpublishMsg	(	DtObjectInstanceHandle	handle,
		const DtAttributeHandleSet &	theSet
	)

protectedvirtual

Send various types of RTI messages.

virtual void DtObjectMgr::sendUnsubscribeMsg	(	DtObjectClassHandle	handle,
		const DtAttributeHandleSet &	theSet
	)

protectedvirtual

Send various types of RTI messages.

virtual unsigned long DtObjectMgr::sendUpdate	(	DtObjectInstanceHandle	theObject,
		const DtAhvps &	theAttrs,
		RTI::FedTime const *	theTime,
		char const *	tag
	)

virtual

Implements update attribute values Checks attributes definition and ownership Return retraction handle serial number.

virtual unsigned long DtObjectMgr::sendUpdate	(	DtRtiObject *	theObject,
		const DtAhvps &	theAttrs,
		RTI::FedTime const *	theTime,
		char const *	tag
	)

virtual

Generate and transmit update attribute value messages Return retraction handle serial number.

virtual void DtObjectMgr::sendUpdateMessage	(	DtUpdateMsg *	update,
		DtObjectClassInfo *	classDesc,
		DtUpdateType	updateType,
		MAKRti::DtTransportType	trans,
		unsigned int	numberAttrs,
		MAKRti::DtInetAddr	destAddr = `DtInetAddr::inaddrAny()`,
		unsigned int	offset = `0`
	)

protectedvirtual

Send update message.

virtual void DtObjectMgr::setAttributeOrderType	(	DtObjectInstanceHandle	theObject,
		const DtAttributeHandleSet &	theAttributes,
		MAKRti::DtOrderType	theType
	)

virtual

Set the order type of the attribute instance.

virtual void DtObjectMgr::setAttributeRelevanceSwitch ( bool enableSwitch )

virtual

Set/Get value of attributeRelevanceAdvisorySwitch.

virtual void DtObjectMgr::setAttributeScopeSwitch ( bool enableSwitch )

virtual

Set/Get value of attributeScopeAdvisorySwitch.

virtual void DtObjectMgr::setAttributeTransportType	(	DtObjectInstanceHandle	theObject,
		const DtAttributeHandleSet &	theAttributes,
		MAKRti::DtTransportType	theType
	)

virtual

Set the transport type of the attribute instance.

virtual void DtObjectMgr::setClassRelevanceSwitch ( bool enableSwitch )

virtual

Set/Get value of classRelevanceAdvisorySwitch.

static void DtObjectMgr::setCreatorFunction ( DtObjectMgrCreator creator )

static

Register a creator function.

When set, it will be used to create the Object Manager.

virtual void DtObjectMgr::setDiscoveredClass	(	DtRtiObject &	object,
		DtFederateHandle	federateHandle,
		DtObjectClassHandle	classHandle
	)

protectedvirtual

Set the remote federate's discovered class and update the object's remote subscription information.

static void DtObjectMgr::setInternalCreatorFunction ( DtObjectMgrCreator fn )

static

Register alternate internal creators.

The RTI proper uses this function to choose from various internal implementations. This function should not be used by plugins as the assignment may be overridden internally. Use the setCreatorFunction.

virtual void DtObjectMgr::setRestoreInProgress ( bool isRestore )

virtual

Note: The advisory switches are disabled by a restore in progress.

They are restored to saved state upon completion of restore. Set/Get restore in progress status

virtual void DtObjectMgr::subscribe	(	DtObjectClassHandle	theClass,
		const DtAttributeHandleSet &	attributeList,
		bool	active
	)

virtual

Subscribe specified class attributes.

virtual int DtObjectMgr::subscribed ( DtObjectClassHandle handle )

virtual

Returns 1 if subscribed to the class, 0 otherwise.

void DtObjectMgr::testResign ( RTI::ResignAction const & theAction )

Called when resigning from a federation to test conditions and to delete owned objects.

virtual void DtObjectMgr::throwIfAcquisitionPending	(	DtObjectClassHandle	classHand,
		const DtAttributeHandleSet &	attrs
	)

protectedvirtual

If an acquisition request is pending for an attributes in attrs for any objects known at class classHand, throw RTI::OwnershipAcquisitionPending.

virtual void DtObjectMgr::turnUpdatesOff	(	DtRtiObject const &	object,
		DtAttributeHandleSet const &	oldOnSet
	)

virtual

Turn updates off for any attribute now off but it is in old on set.

virtual void DtObjectMgr::turnUpdatesOn	(	DtRtiObject const &	object,
		DtAttributeHandleSet const &	oldOnSet
	)

virtual

Turn updates on for any attribute now on but it is not in old on set.

virtual DtObjectInstanceHandle DtObjectMgr::uniqueHandle ( )

virtual

Returns an ObjectHandle that is unique across the federation.

Uniqueness isn't truly guaranteed unless you're using rtiexec mode.

virtual void DtObjectMgr::unpublishAttributes	(	DtObjectClassHandle	theClass,
		DtAttributeHandleSet const &	attributeList
	)

virtual

Explicit unpublish of specified attributes.

virtual void DtObjectMgr::unpublishAttributes	(	DtObjectClassInfo &	classDesc,
		DtAttributeHandleSet const &	attributeList,
		bool	implicitlyUnpublishPrivilegeToDelete
	)

virtual

Explicit unpublish of specified attributes Except privilege to delete is implicit if so designated.

virtual void DtObjectMgr::unpublishClass ( DtObjectClassHandle theObject )

virtual

Unpublishes all attributes but privilege to delete is implicit.

virtual void DtObjectMgr::unsubscribeAttributes	(	DtObjectClassHandle	theClass,
		DtAttributeHandleSet const &	attributeList
	)

virtual

Unsubscribe specified class attributes.

virtual void DtObjectMgr::unsubscribeAttributes	(	DtObjectClassInfo &	classDesc,
		DtAttributeHandleSet const &	attributeList
	)

virtual

Unsubscribe specified class attributes.

virtual void DtObjectMgr::unsubscribeClass ( DtObjectClassHandle theClass )

virtual

Unsubscribe from all attributes of specified class.

virtual bool DtObjectMgr::useHlaNamePrefix ( )

virtual

Get switch to use HLA prefix for object names.

Member Data Documentation

DtAddrMap DtObjectMgr::myAddrMap

protected

Map of routing addresses by region set handle.

bool DtObjectMgr::myAttributeRelevanceSwitch

protected

Advisory switches.

bool DtObjectMgr::myAttributeScopeSwitch

protected

Advisory switches.

bool DtObjectMgr::myClassRelevanceSwitch

protected

Advisory switches.

MAKRti::DtClock DtObjectMgr::myClock

protected

Clock for timing.

std::set<DtRtiMsgKind> DtObjectMgr::myConstrainedDeleteKinds

protected

std::set<DtRtiMsgKind> DtObjectMgr::myConstrainedUpdateKinds

protected

std::map<DtObjectInstanceHandle, MAKRti::DtTime> DtObjectMgr::myDeletedObjects

protected

Set of objects that have been recently deleted that will not be discovered via update.

std::set<std::string> DtObjectMgr::myFailedNames

protected

Reservation of these names failed (i.e., reserved by another federate).

DtFederateMgr* DtObjectMgr::myFederateMgr

protected

Access to the federate manager.

bool DtObjectMgr::myForceBestEffort

protected

Send everything best effort.

DtHandle DtObjectMgr::myFreeObjHandle

protected

The next free object handle.

MAKRti::DtString DtObjectMgr::myHlaNamePrefix

protected

The HLA object instance name prefix.

DtObjHandleSet DtObjectMgr::myIgnoreObjects

protected

Set of object handles whose next updates should be ignored.

bool DtObjectMgr::myIsJoined

protected

Manager has performed join processing.

DtRtiObjectMap DtObjectMgr::myKnownObjs

protected

List of known objects by handle.

std::map<MAKRti::DtString, DtRtiObject*> DtObjectMgr::myKnownObjsByName

protected

List of known objects by name.

DtObjectInstanceHandleSet DtObjectMgr::myLocalDeletedObjects

protected

Post processing lists.

DtRtiObjectMap DtObjectMgr::myLrcManagedObjs

protected

List of LRC owned objects by handle.

std::map<MAKRti::DtString, DtRtiObject*> DtObjectMgr::myLrcManagedObjsByName

protected

List of LRC owned objects by name.

DtTime DtObjectMgr::myNextPendingDiscTime

protected

Next time we should send pending discovery messages.

DtPendingRequestAttrMap DtObjectMgr::myNotifiedDivestitures

protected

Post processing lists.

DtRtiObjectMap DtObjectMgr::myObjects

protected

List of all objects by handle.

std::map<MAKRti::DtString, DtRtiObject*> DtObjectMgr::myObjectsByName

protected

List of all objects by name.

DtRtiObjectMap DtObjectMgr::myOwnedObjs

protected

List of owned objects by handle.

std::map<MAKRti::DtString, DtRtiObject*> DtObjectMgr::myOwnedObjsByName

protected

List of owned objects by name.

DtFederateToPendingObjDiscMap DtObjectMgr::myPendingDiscoveries

protected

DtObjectClassMaskMap DtObjectMgr::myPendingDiscoveriesMaskList

protected

DtPendingRequestAttrMap DtObjectMgr::myPendingDivestNotifications

protected

Post processing lists.

DtObjectInstanceHandleSet DtObjectMgr::myPendingInstRegisterList

protected

Post processing lists.

DtFederateToPendingObjDiscMap DtObjectMgr::myPendingNonDiscoveries

protected

DtObjectClassMaskMap DtObjectMgr::myPendingNonDiscoveriesMaskList

protected

DtObjectClassHandleSet DtObjectMgr::myPendingRegisterList

protected

Post processing lists.

DtObjectClassMaskMap DtObjectMgr::myPendingRegisterMaskList

protected

Post processing lists.

MAKRti::DtList DtObjectMgr::myPendingRemovals

protected

Post processing lists.

DtPendingRequestAttrMap DtObjectMgr::myPendingRequestAttrs

protected

Post processing lists.

DtObjectClassHandleSet DtObjectMgr::myPendingStartRegList

protected

Post processing lists.

DtObjInstAttrSetPairList DtObjectMgr::myPendingStartUpdatesList

protected

Post processing lists.

DtObjectClassHandleSet DtObjectMgr::myPendingStopRegList

protected

Post processing lists.

DtObjClassAttrSetPairList DtObjectMgr::myPendingStopUpdatesList

protected

Post processing lists.

std::set<std::string> DtObjectMgr::myReservedNames

protected

These names are reserved by this federate but have not been used.

bool DtObjectMgr::myRestoreInProgress

protected

Status of restore.

DtObjectClassHandleSet DtObjectMgr::myRetransmitSubClass

protected

Post processing lists.

DtObjectClassMaskMap DtObjectMgr::myRetransmitSubClassMask

protected

Post processing lists.

bool DtObjectMgr::myReuseIds

protected

Unique object IDs have been exhausted, attempt to reuse IDs.

const int DtObjectMgr::myShiftForFederateHandle

protected

std::set<std::string> DtObjectMgr::myUsedNames

protected

These names have been used by this federate to register an object instance.

DtObjectMgrCreator DtObjectMgr::theCreator

staticprotected

The plugin creator.

DtObjectMgrCreator DtObjectMgr::theInternalCreator

staticprotected

The internal creator.

The documentation for this class was generated from the following file:

objMgr.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Static Protected Attributes

Private Member Functions

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
