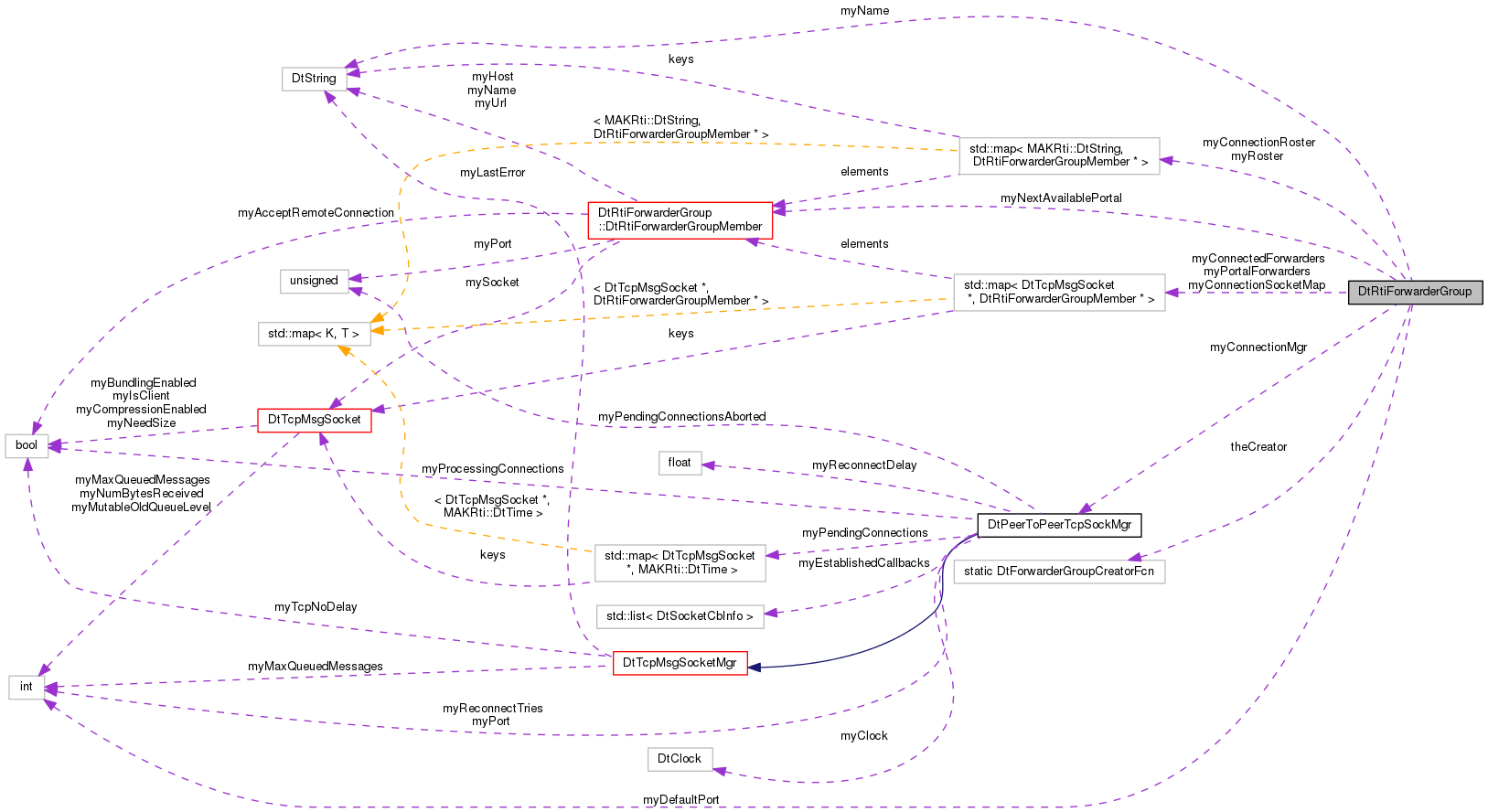

Collaboration diagram for DtRtiForwarderGroup:

Classes
class	DtRtiForwarderGroupMember
	Data-only helper class to store information about forwarders in the group. More...

Public Types
typedef std::map < DtTcpMsgSocket , DtRtiForwarderGroupMember >	DtForwarderGroupConnectionList

typedef std::map < MAKRti::DtString, DtRtiForwarderGroupMember * >	DtForwarderGroupMemberList

typedef DtRtiForwarderGroup (	DtForwarderGroupCreatorFcn )(const MAKRti::DtString &, int)
	DtForwarderPort creator signature. More...

Public Member Functions
virtual	~DtRtiForwarderGroup ()
	Destructor. More...

virtual bool	addForwarderToGroup (const MAKRti::DtString &fwderName, const MAKRti::DtInetAddr &addr, const MAKRti::DtString &host, int connectPort=-1, const MAKRti::DtString &url=NULL, bool isPortal=false)
	Add an unconnected forwarder to the group. More...

virtual unsigned int	connectToPortal (const MAKRti::DtString &fwderName=NULL, bool ignorePortalFlag=false)
	Add a connection to a portal (send-and-receive) forwarder in the group. More...

virtual unsigned int	connectToPortal (DtTcpMsgSocket *socket, bool ignorePortalFlag=false)

virtual bool	connectToForwarder (const MAKRti::DtString &fwderName)
	Add a connection to a non-portal (receive-only) forwarder in the group. More...

virtual bool	connectToForwarder (DtTcpMsgSocket *socket)

virtual bool	disconnectFromForwarder (DtTcpMsgSocket *socket)
	Disconnect from the specified forwarder, but don't remove from the group. More...

virtual void	disconnectFromGroup ()
	Disconnect from all forwarders in the group. More...

virtual bool	removeForwarder (const MAKRti::DtString &fwderName)
	Remove (and disconnect if necessary) the specified forwarder from the group. More...

virtual bool	removeForwarder (DtTcpMsgSocket *socket)

virtual void	dissolve ()
	Remove (and disconnect from) all forwarders in the group. More...

virtual const DtForwarderGroupMemberList	members () const
	Return the map of all forwarders (keyed by name) in the group. More...

virtual bool	isMember (const MAKRti::DtString &fwderName)
	Return true if the specified forwarder is a member of the group. More...

virtual bool	isMember (const DtInetAddrAndPort &addr)

virtual bool	isMember (DtTcpMsgSocket *sock)

virtual const DtForwarderGroupConnectionList &	portalConnections () const
	Return the map of portals (keyed by socket) (ie. More...

virtual const DtForwarderGroupConnectionList &	connections () const
	Return a map of all forwarders (keyed by socket) that messages may be received from (ie. More...

virtual void	setConnectionManager (DtPeerToPeerTcpSockMgr *connMgr)
	Set the connection manager if it is not provided in the ctor. More...

virtual void	setDefaultPort (int port)
	Change the group characteristics. More...

virtual void	setForwarderInfo (const DtInetAddrAndPort &addr, const MAKRti::DtString &url=NULL, bool isPortal=false)
	Change the group member characteristics. More...

virtual void	setForwarderInfo (DtTcpMsgSocket *socket, const MAKRti::DtString &url=NULL, bool isPortal=false)

MAKRti::DtString	getForwarderNameByAddr (const DtInetAddrAndPort &addr) const
	Return the name of the forwarder based on its IP address. More...

DtInetAddrAndPort	getForwarderAddrByName (const MAKRti::DtString &fwderName) const
	Return the IP address of the forwarder based on its name. More...

virtual bool	forwarderIsAPortal (const MAKRti::DtString &fwderName) const
	Return value indicates whether the specified group member is a portal (or at least capable of being one, even if it's not being used as the portal to this group at the moment) More...

virtual unsigned int	portalCount () const
	Return a count of portal connections to the group. More...

virtual unsigned int	connectionCount () const
	Return a count of all connections existing to the group. More...

virtual unsigned int	memberCount () const
	Return a count of all forwarders (connected or not) in the group. More...

virtual const MAKRti::DtString &	groupName () const
	Return the group name. More...

virtual DtRtiForwarderGroup::DtRtiForwarderGroupMember *	nextAvailablePortal ()
	Get pointer to next portal available to accept connection from foreign forwarders in load-balance configurations. More...

virtual bool	updateNextAvailablePortal ()
	Update next available portal to select next member in roster capable of acting as a portal. More...

Static Public Member Functions
static DtRtiForwarderGroup *	create (const MAKRti::DtString &name, int defaultPort)
	Creates an instance of a DtRtiForwarderGroup. More...

static void	setCreatorFunction (DtForwarderGroupCreatorFcn creator)
	Call this function to set an alternate creator function With this function, users can replace this DtRtiForwarderGroup with their own derived class. More...

Protected Member Functions
	DtRtiForwarderGroup (const MAKRti::DtString &name, int defaultPort)
	Constructor. Use create() to instantiate a new group object. More...

Protected Attributes
MAKRti::DtString	myName

DtPeerToPeerTcpSockMgr *	myConnectionMgr

int	myDefaultPort

DtForwarderGroupConnectionList	myConnectionSocketMap
	Connections keyed by socket. More...

DtForwarderGroupMemberList	myConnectionRoster
	Connections keyed by forwarder name. More...

DtForwarderGroupMemberList	myRoster
	Group member list keyed by forwarder name. More...

DtForwarderGroupConnectionList	myPortalForwarders
	Socket lists to simplify the task of determining where to transmit messages to (myPortalForwarders) and receive messages from (myConnectedForwarders). More...

DtForwarderGroupConnectionList	myConnectedForwarders

DtRtiForwarderGroup::DtRtiForwarderGroupMember *	myNextAvailablePortal
	Aid to keep track of which portal in group is next in line to accept connections from foreign groups in load-balanced configurations. More...

Static Protected Attributes
static DtForwarderGroupCreatorFcn	theCreator

Member Typedef Documentation

typedef std::map<DtTcpMsgSocket*, DtRtiForwarderGroupMember*> DtRtiForwarderGroup::DtForwarderGroupConnectionList

typedef DtRtiForwarderGroup*(* DtRtiForwarderGroup::DtForwarderGroupCreatorFcn)(const MAKRti::DtString &, int)

DtForwarderPort creator signature.

typedef std::map<MAKRti::DtString, DtRtiForwarderGroupMember*> DtRtiForwarderGroup::DtForwarderGroupMemberList

Constructor & Destructor Documentation

DtRtiForwarderGroup::DtRtiForwarderGroup	(	const MAKRti::DtString &	name,
		int	defaultPort
	)

protected

Constructor. Use create() to instantiate a new group object.

virtual DtRtiForwarderGroup::~DtRtiForwarderGroup ( )

virtual

Destructor.

Member Function Documentation

virtual bool DtRtiForwarderGroup::addForwarderToGroup	(	const MAKRti::DtString &	fwderName,
		const MAKRti::DtInetAddr &	addr,
		const MAKRti::DtString &	host,
		int	connectPort = `-1`,
		const MAKRti::DtString &	url = `NULL`,
		bool	isPortal = `false`
	)

virtual

Add an unconnected forwarder to the group.

Returns true if new forwarder added successfully, false if duplicate forwarder name found.

unsigned int DtRtiForwarderGroup::connectionCount ( ) const

inlinevirtual

Return a count of all connections existing to the group.

References myConnectedForwarders.

const DtRtiForwarderGroup::DtForwarderGroupConnectionList & DtRtiForwarderGroup::connections ( ) const

inlinevirtual

Return a map of all forwarders (keyed by socket) that messages may be received from (ie.

all forwarders in this group with which a connection exists)

References myConnectedForwarders.

virtual bool DtRtiForwarderGroup::connectToForwarder ( const MAKRti::DtString & fwderName )

virtual

Add a connection to a non-portal (receive-only) forwarder in the group.

If socket is supplied the peer forwarder must have initiated the connection. Otherwise if the specified forwarder accepts incoming connections a new connection will be initiated. Returns true if connection successful.

virtual bool DtRtiForwarderGroup::connectToForwarder ( DtTcpMsgSocket * socket )

virtual

virtual unsigned int DtRtiForwarderGroup::connectToPortal	(	const MAKRti::DtString &	fwderName = `NULL`,
		bool	ignorePortalFlag = `false`
	)

virtual

Add a connection to a portal (send-and-receive) forwarder in the group.

Returns the number of 'portal' connections already established to the group. If the first form is used and the forwarder name is not supplied next group member in the roster capable of acting as a portal will be selected. The second form is to be used when the remote forwarder has initiated the connection. Note: all forwarders in the local host's group will be considered 'portal' forwarders in order that all forwarders in the same group will be fully-connected to other members of the group.

virtual unsigned int DtRtiForwarderGroup::connectToPortal	(	DtTcpMsgSocket *	socket,
		bool	ignorePortalFlag = `false`
	)

virtual

static DtRtiForwarderGroup* DtRtiForwarderGroup::create	(	const MAKRti::DtString &	name,
		int	defaultPort
	)

static

Creates an instance of a DtRtiForwarderGroup.

virtual bool DtRtiForwarderGroup::disconnectFromForwarder ( DtTcpMsgSocket * socket )

virtual

Disconnect from the specified forwarder, but don't remove from the group.

virtual void DtRtiForwarderGroup::disconnectFromGroup ( )

virtual

Disconnect from all forwarders in the group.

virtual void DtRtiForwarderGroup::dissolve ( )

virtual

Remove (and disconnect from) all forwarders in the group.

virtual bool DtRtiForwarderGroup::forwarderIsAPortal ( const MAKRti::DtString & fwderName ) const

virtual

Return value indicates whether the specified group member is a portal (or at least capable of being one, even if it's not being used as the portal to this group at the moment)

DtInetAddrAndPort DtRtiForwarderGroup::getForwarderAddrByName ( const MAKRti::DtString & fwderName ) const

Return the IP address of the forwarder based on its name.

MAKRti::DtString DtRtiForwarderGroup::getForwarderNameByAddr ( const DtInetAddrAndPort & addr ) const

Return the name of the forwarder based on its IP address.

const MAKRti::DtString & DtRtiForwarderGroup::groupName ( ) const

inlinevirtual

Return the group name.

References myName.

virtual bool DtRtiForwarderGroup::isMember ( const MAKRti::DtString & fwderName )

virtual

Return true if the specified forwarder is a member of the group.

virtual bool DtRtiForwarderGroup::isMember ( const DtInetAddrAndPort & addr )

virtual

virtual bool DtRtiForwarderGroup::isMember ( DtTcpMsgSocket * sock )

virtual

unsigned int DtRtiForwarderGroup::memberCount ( ) const

inlinevirtual

Return a count of all forwarders (connected or not) in the group.

References myRoster.

virtual const DtForwarderGroupMemberList DtRtiForwarderGroup::members ( ) const

virtual

Return the map of all forwarders (keyed by name) in the group.

Referenced by nextAvailablePortal().

DtRtiForwarderGroup::DtRtiForwarderGroupMember * DtRtiForwarderGroup::nextAvailablePortal ( )

inlinevirtual

Get pointer to next portal available to accept connection from foreign forwarders in load-balance configurations.

References members(), and myNextAvailablePortal.

const DtRtiForwarderGroup::DtForwarderGroupConnectionList & DtRtiForwarderGroup::portalConnections ( ) const

inlinevirtual

Return the map of portals (keyed by socket) (ie.

forwarders in this group that messages will be sent to)

References myPortalForwarders.

unsigned int DtRtiForwarderGroup::portalCount ( ) const

inlinevirtual

Return a count of portal connections to the group.

References myPortalForwarders.

virtual bool DtRtiForwarderGroup::removeForwarder ( const MAKRti::DtString & fwderName )

virtual

Remove (and disconnect if necessary) the specified forwarder from the group.

virtual bool DtRtiForwarderGroup::removeForwarder ( DtTcpMsgSocket * socket )

virtual

virtual void DtRtiForwarderGroup::setConnectionManager ( DtPeerToPeerTcpSockMgr * connMgr )

virtual

Set the connection manager if it is not provided in the ctor.

static void DtRtiForwarderGroup::setCreatorFunction ( DtForwarderGroupCreatorFcn creator )

static

Call this function to set an alternate creator function With this function, users can replace this DtRtiForwarderGroup with their own derived class.

void DtRtiForwarderGroup::setDefaultPort ( int port )

inlinevirtual

Change the group characteristics.

References myDefaultPort.

virtual void DtRtiForwarderGroup::setForwarderInfo	(	const DtInetAddrAndPort &	addr,
		const MAKRti::DtString &	url = `NULL`,
		bool	isPortal = `false`
	)

virtual

Change the group member characteristics.

If a connection (socket) to the specified forwarder already exists it will be maintained. However if no connection exists no attempt will be made to initiate a new one. Only the URL and portal designation flag are alterable. This should be sufficient to allow 'replacement' portals to be designated on-the-fly if future needs dictate.

virtual void DtRtiForwarderGroup::setForwarderInfo	(	DtTcpMsgSocket *	socket,
		const MAKRti::DtString &	url = `NULL`,
		bool	isPortal = `false`
	)

virtual

virtual bool DtRtiForwarderGroup::updateNextAvailablePortal ( )

virtual

Update next available portal to select next member in roster capable of acting as a portal.

Wraps around to beginning of roster if necessary. This routine is primarily intended to aid setup of forwarder networks employing load-balancing between groups over the WAN, which implies that there will be more than one portal in each Forwarder Group.

Member Data Documentation

DtForwarderGroupConnectionList DtRtiForwarderGroup::myConnectedForwarders

protected

Referenced by connectionCount(), and connections().

DtPeerToPeerTcpSockMgr* DtRtiForwarderGroup::myConnectionMgr

protected

DtForwarderGroupMemberList DtRtiForwarderGroup::myConnectionRoster

protected

Connections keyed by forwarder name.

DtForwarderGroupConnectionList DtRtiForwarderGroup::myConnectionSocketMap

protected

Connections keyed by socket.

int DtRtiForwarderGroup::myDefaultPort

protected

Referenced by setDefaultPort().

MAKRti::DtString DtRtiForwarderGroup::myName

protected

Referenced by groupName().

DtRtiForwarderGroup::DtRtiForwarderGroupMember* DtRtiForwarderGroup::myNextAvailablePortal

protected

Aid to keep track of which portal in group is next in line to accept connections from foreign groups in load-balanced configurations.

Referenced by nextAvailablePortal().

DtForwarderGroupConnectionList DtRtiForwarderGroup::myPortalForwarders

protected

Socket lists to simplify the task of determining where to transmit messages to (myPortalForwarders) and receive messages from (myConnectedForwarders).

Referenced by portalConnections(), and portalCount().

DtForwarderGroupMemberList DtRtiForwarderGroup::myRoster

protected

Group member list keyed by forwarder name.

Referenced by memberCount().

DtForwarderGroupCreatorFcn DtRtiForwarderGroup::theCreator

staticprotected

The documentation for this class was generated from the following file:

forwarderGroup.h

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
