DtRtiMsgForwarder manages connections and message distribution to local federates and remote Forwarders (if any). More...

Inheritance diagram for DtRtiMsgForwarder:

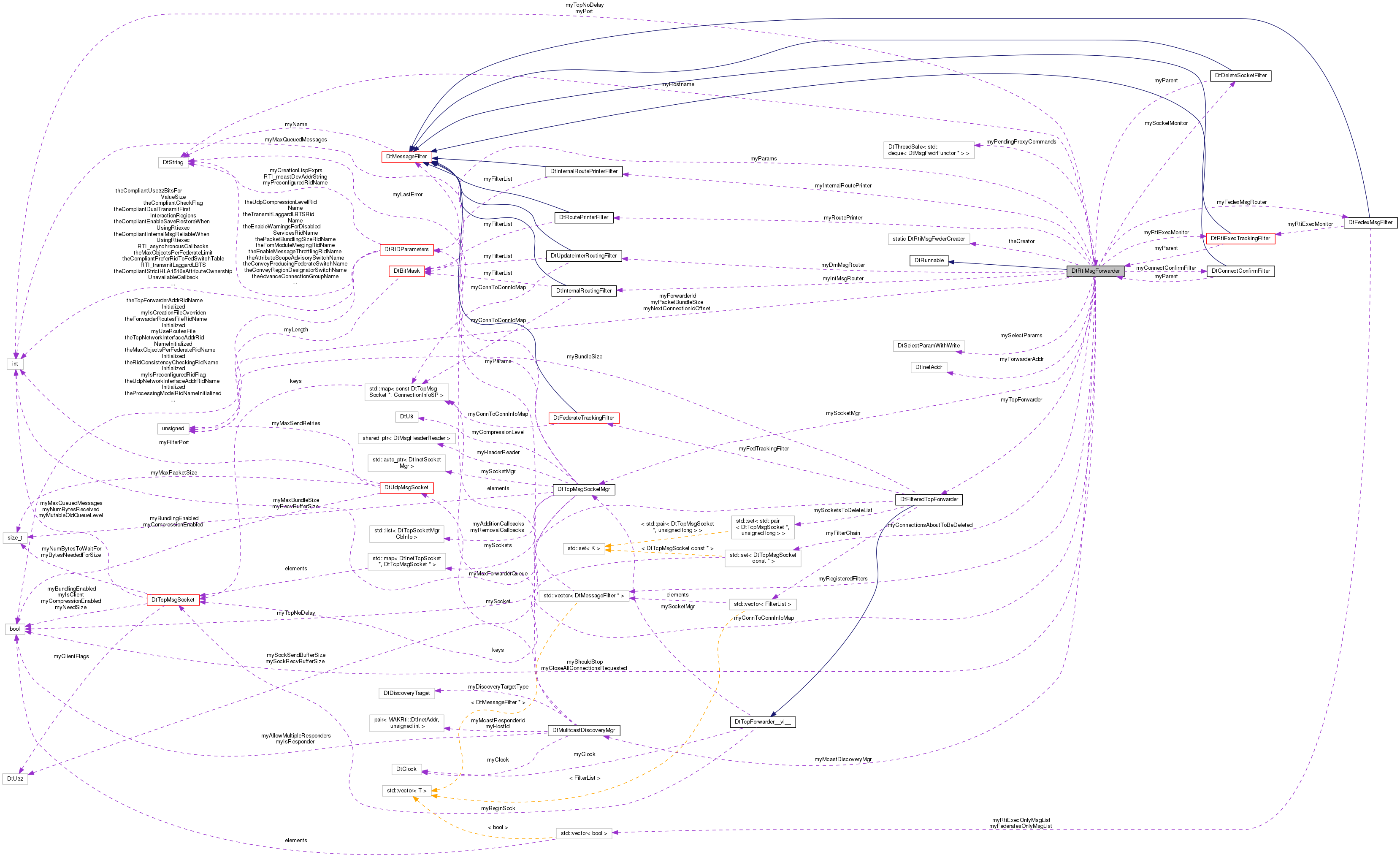

Collaboration diagram for DtRtiMsgForwarder:

Classes
struct	ConnectionInfo

Public Types
typedef DtBoost::shared_ptr < ConnectionInfo >	ConnectionInfoSP

typedef DtBoost::weak_ptr < ConnectionInfo >	ConnectionInfoWP

typedef std::map< const DtTcpMsgSocket *, ConnectionInfoSP >	SocketToConnInfoMap

Public Member Functions
virtual	~DtRtiMsgForwarder ()
	Destructor. More...

virtual void	init ()
	Initialize the forwarder (called by creator) More...

virtual bool	hasExec () const
	Query the rtiExec Handshake monitor for whether it has an exec. More...

virtual void	run ()
	Main execution routine. More...

virtual void	setEnableBundling (unsigned int maxBundleSize)
	Get the rtiexec's socket if known. More...

virtual void	setUseSmartForwarding (bool yesNo)
	Enable Smart DM Subscription Filtering. More...

virtual void	setUseInternalSmartForwarding (bool yesNo)
	Enable Smart DM Subscription Filtering for internal messages. More...

virtual void	setRouteFedexMessages (bool yesNo)
	Enable Smart Fedex Message Filtering. More...

virtual void	addPacketFilter (DtMessageFilter *filter)
	[Un]Register a forwarding filter on incoming packets More...

virtual void	removePacketFilter (DtMessageFilter *filter)

virtual unsigned long	forwarderId () const
	Return the forwarder ID (defines the address space for connIds for this forwarder) More...

virtual void	setForwarderId (unsigned long newId)
	set the forwarder ID. More...

void	updateTcpForwarderQueuedSockets ()
	update the tcp forwarders queued sockets More...

virtual const DtRtiMsgForwarder::SocketToConnInfoMap &	getConnToConnInfoMap () const
	WARNING: These methods are not thread-safe and may only be called by the back-end forwarder thread! More...

virtual ConnectionInfoSP	getConnectionInfoByConnId (unsigned long connId) const
	Get a shared pointer to the connection info for a connection by Conn ID. More...

virtual ConnectionInfoSP	getConnectionInfoByHandle (unsigned long federateHandle) const
	Get a shared pointer to the connection info for a connection by Federate Handle. More...

virtual ConnectionInfoSP	getConnectionInfoBySocket (const DtTcpMsgSocket *sock) const
	Get a shared pointer to the connection info for a connection by Socket. More...

virtual std::pair< bool, unsigned long >	rtiExecConnected () const
	Is the rtiexec connected and if so what is its connId? More...

virtual void	sendMessage (const DtRtiMsg &msg, const DtTcpMsgSocket *src=0)
	Send a message to all local sockets (filters will be applied) More...

virtual void	requestCloseAllConnections ()
	Disconnect all open connections after this pass through run-loop completes. More...

virtual void	requestKillSingleConnection (const DtTcpMsgSocket *sock)
	Disconnect the requestedTcpSocket. More...

virtual void	markConnectionAsAboutToBeDeleted (DtTcpMsgSocket const *socket, unsigned int connectionId)
	Mark the given socket as one that is to be deleted silently. More...

virtual bool	isConnectionMarkedForDeletion (unsigned int connectionId) const
	Return boolean: given connection has been marked for deletion? More...

virtual void	removeOldConnection (unsigned int connectionId)
	Remove the socket specified by the given connection. More...

virtual void	shutdownRequestedByExec ()
	Shutdown the forwarder application. More...

virtual bool	updateFederateConnectionId (unsigned long orig, unsigned long final)
	Set a locally connected federate's connId in the associated connection info struct. More...

virtual void	updateConnectionProcessParameters (unsigned long connId, unsigned long processId, MAKRti::DtString processName, MAKRti::DtString commandArgs)
	Set a connections process information. More...

virtual bool	shouldStop ()
	should this forwarder stop. More...

Static Public Member Functions
static DtRtiMsgForwarder *	create (unsigned long id, const DtRIDParameters &params)
	Create an instance of a DtRtiMsgForwarder. More...

static void	setCreatorFunction (DtRtiMsgFwderCreator fn)
	Call this function to set an alternate creator function With this function, users can replace this DtRtiMsgForwarder with their own derived class. More...

static void	tcpSocketAdditionCb (DtTcpMsgSocket sock, void usr)
	Callbacks on addition/removal of TCP sockets. More...

static void	tcpSocketRemovalCb (DtTcpMsgSocket sock, void usr)

Protected Member Functions
	DtRtiMsgForwarder (unsigned long id, const DtRIDParameters &params)
	Default Constructor. More...

virtual void	performMcastDiscovery ()

virtual void	applyRegisteredFilters ()
	Enable / Disable all filters registered with forwarder. More...

virtual void	disableRegisteredFilters ()

virtual void	waitForIo ()
	Wait on sockets for next IO event (allows RTIspy users to control the wait mechanism and period) More...

virtual void	tcpSocketAdditionCb (DtTcpMsgSocket *sock)

virtual void	tcpSocketRemovalCb (DtTcpMsgSocket *sock)

virtual unsigned long	consumeConnId ()
	Get and consume Connection ID. More...

virtual void	preRunLoopEvent ()
	Plug-in defined Run Loop operations Gives users the ability to add functionality to the Run() loop without over-riding it completely. More...

virtual void	runLoopEvent ()

virtual void	postRunLoopEvent ()

virtual bool	populateConnectionInformation (unsigned int &numForwarderToForwarderConns, std::vector< MAKRti::DtString > &forwarderIdentifiers, std::vector< MAKRti::DtString > &forwarderConnectionHostNames, std::vector< MAKRti::DtInetAddr > &forwarderConnectionAddrs, unsigned int &numForwarderClientConns, std::vector< MAKRti::DtString > &clientConnectionHostNames, std::vector< MAKRti::DtInetAddr > &clientConnectionAddrs) const

virtual void	closeAllConnectionsIfRequested ()
	Disconnect all open connections. More...

	DtRtiMsgForwarder (const DtRtiMsgForwarder &orig)
	Copy Ctor and Assignment Operator unimplemented. More...

DtRtiMsgForwarder &	operator= (const DtRtiMsgForwarder &orig)

Protected Attributes
unsigned long	myForwarderId
	Data Members. More...

MAKRti::DtInetAddr	myForwarderAddr
	Local host IP address (used by rtiExec monitor filter, among other uses) More...

bool	myCloseAllConnectionsRequested
	Connection shutdown requested? More...

DtFilteredTcpForwarder *	myTcpForwarder
	Tcp Forwarder with Filtering Capabilities. More...

DtTcpMsgSocketMgr *	mySocketMgr
	Tcp Socket Manager (handles passive connections to Federates) More...

int	myPort
	Port for local federate connections. More...

int	myTcpNoDelay

unsigned long	myNextConnectionIdOffset
	The ID to be assigned to the next Federate or Forwarder connection The IDs are offset from the forwarderId. More...

unsigned int	myPacketBundleSize
	Packet Bundle size (if bundle size = 0, bundling is disabled) More...

DtRtiExecTrackingFilter *	myRtiExecMonitor
	If registered, Monitors rtiexec connection life-cycle. More...

DtRoutePrinterFilter *	myRoutePrinter
	Smart DM Forwarding Filters. More...

DtInternalRoutePrinterFilter *	myInternalRoutePrinter

DtUpdateInterRoutingFilter *	myDmMsgRouter

DtInternalRoutingFilter *	myIntMsgRouter

DtFedexMsgFilter *	myFedexMsgRouter
	Fedex Routing Filter. More...

DtConnectConfirmFilter *	myConnectConfirmFilter
	Extracts info from connect confirm messages. More...

DtDeleteSocketFilter *	mySocketMonitor
	Marks sockets that are being disconnected normally so that no complaint is given when they disconnect versus abnormal disconnect. More...

const DtRIDParameters &	myParams
	Local access to the RID Parameters. More...

DtMulitcastDiscoveryMgr	myMcastDiscoveryMgr

DtThreadSafe< std::deque < DtMsgFwdrFunctor * > >	myPendingProxyCommands

std::vector< DtMessageFilter * >	myRegisteredFilters
	Registered Message Filters. More...

SocketToConnInfoMap	myConnToConnInfoMap
	Map from socket (conn) to ConnectionInfo object for that connection notes: More...

std::set< DtTcpMsgSocket const * >	myConnectionsAboutToBeDeleted
	Set of connections that when deleted there should be no complaint. More...

MAKRti::DtSelectParamWithWrite	mySelectParams

bool	myShouldStop
	should this forwarder stop. More...

MAKRti::DtString	myHostname

Static Protected Attributes
static DtRtiMsgFwderCreator	theCreator

Detailed Description

DtRtiMsgForwarder manages connections and message distribution to local federates and remote Forwarders (if any).

It is designed to run as a thread, asynchronous to the main execution.

Member Typedef Documentation

typedef DtBoost::shared_ptr<ConnectionInfo> DtRtiMsgForwarder::ConnectionInfoSP

typedef DtBoost::weak_ptr<ConnectionInfo> DtRtiMsgForwarder::ConnectionInfoWP

typedef std::map< const DtTcpMsgSocket*, ConnectionInfoSP > DtRtiMsgForwarder::SocketToConnInfoMap

Constructor & Destructor Documentation

DtRtiMsgForwarder::DtRtiMsgForwarder	(	unsigned long	id,
		const DtRIDParameters &	params
	)

protected

Default Constructor.

virtual DtRtiMsgForwarder::~DtRtiMsgForwarder ( )

virtual

Destructor.

DtRtiMsgForwarder::DtRtiMsgForwarder ( const DtRtiMsgForwarder & orig )

protected

Copy Ctor and Assignment Operator unimplemented.

Member Function Documentation

virtual void DtRtiMsgForwarder::addPacketFilter ( DtMessageFilter * filter )

virtual

[Un]Register a forwarding filter on incoming packets

Filters directly modify the current Destination list

virtual void DtRtiMsgForwarder::applyRegisteredFilters ( )

protectedvirtual

Enable / Disable all filters registered with forwarder.

called only once at start and stop of run

virtual void DtRtiMsgForwarder::closeAllConnectionsIfRequested ( )

protectedvirtual

Disconnect all open connections.

virtual unsigned long DtRtiMsgForwarder::consumeConnId ( )

protectedvirtual

Get and consume Connection ID.

static DtRtiMsgForwarder* DtRtiMsgForwarder::create	(	unsigned long	id,
		const DtRIDParameters &	params
	)

static

Create an instance of a DtRtiMsgForwarder.

virtual void DtRtiMsgForwarder::disableRegisteredFilters ( )

protectedvirtual

unsigned long DtRtiMsgForwarder::forwarderId ( ) const

inlinevirtual

Return the forwarder ID (defines the address space for connIds for this forwarder)

References myForwarderId.

virtual ConnectionInfoSP DtRtiMsgForwarder::getConnectionInfoByConnId ( unsigned long connId ) const

virtual

Get a shared pointer to the connection info for a connection by Conn ID.

virtual ConnectionInfoSP DtRtiMsgForwarder::getConnectionInfoByHandle ( unsigned long federateHandle ) const

virtual

Get a shared pointer to the connection info for a connection by Federate Handle.

virtual ConnectionInfoSP DtRtiMsgForwarder::getConnectionInfoBySocket ( const DtTcpMsgSocket * sock ) const

virtual

Get a shared pointer to the connection info for a connection by Socket.

const DtRtiMsgForwarder::SocketToConnInfoMap & DtRtiMsgForwarder::getConnToConnInfoMap ( ) const

inlinevirtual

WARNING: These methods are not thread-safe and may only be called by the back-end forwarder thread!

Get a handle to the connection to connId map

References myConnToConnInfoMap.

virtual bool DtRtiMsgForwarder::hasExec ( ) const

virtual

Query the rtiExec Handshake monitor for whether it has an exec.

virtual void DtRtiMsgForwarder::init ( )

virtual

Initialize the forwarder (called by creator)

Reimplemented in DtExtendedRtiMsgForwarder.

virtual bool DtRtiMsgForwarder::isConnectionMarkedForDeletion ( unsigned int connectionId ) const

virtual

Return boolean: given connection has been marked for deletion?

virtual void DtRtiMsgForwarder::markConnectionAsAboutToBeDeleted	(	DtTcpMsgSocket const *	socket,
		unsigned int	connectionId
	)

virtual

Mark the given socket as one that is to be deleted silently.

The forwarder won't complain when the given socket disconnects. If known, the socket connection ID should be provided A confirmation message is returned through the socket.

DtRtiMsgForwarder& DtRtiMsgForwarder::operator= ( const DtRtiMsgForwarder & orig )

protected

virtual void DtRtiMsgForwarder::performMcastDiscovery ( )

protectedvirtual

virtual bool DtRtiMsgForwarder::populateConnectionInformation	(	unsigned int &	numForwarderToForwarderConns,
		std::vector< MAKRti::DtString > &	forwarderIdentifiers,
		std::vector< MAKRti::DtString > &	forwarderConnectionHostNames,
		std::vector< MAKRti::DtInetAddr > &	forwarderConnectionAddrs,
		unsigned int &	numForwarderClientConns,
		std::vector< MAKRti::DtString > &	clientConnectionHostNames,
		std::vector< MAKRti::DtInetAddr > &	clientConnectionAddrs
	)		const

protectedvirtual

virtual void DtRtiMsgForwarder::postRunLoopEvent ( )

inlineprotectedvirtual

virtual void DtRtiMsgForwarder::preRunLoopEvent ( )

inlineprotectedvirtual

Plug-in defined Run Loop operations Gives users the ability to add functionality to the Run() loop without over-riding it completely.

virtual void DtRtiMsgForwarder::removeOldConnection ( unsigned int connectionId )

virtual

Remove the socket specified by the given connection.

Used by reconnect to clean up orphaned sockets where client detected break but server has not.

virtual void DtRtiMsgForwarder::removePacketFilter ( DtMessageFilter * filter )

virtual

virtual void DtRtiMsgForwarder::requestCloseAllConnections ( )

virtual

Disconnect all open connections after this pass through run-loop completes.

cannot immediately disconnect since this may be called from a RTI Forwarder callback

virtual void DtRtiMsgForwarder::requestKillSingleConnection ( const DtTcpMsgSocket * sock )

virtual

Disconnect the requestedTcpSocket.

Introduced so that the rtiExecTrackingFilter can have connections deleted. The alternative is that the myTcpForwarder be made publicly accessible. Filter will call this on sockets from which it receives rtiExecReconnectMsgs when it is still connected to the rtiExec, and connect and disconnect messages from the exec when we are still connected and are not connected to the rtiExec respectively.

virtual std::pair< bool, unsigned long > DtRtiMsgForwarder::rtiExecConnected ( ) const

virtual

Is the rtiexec connected and if so what is its connId?

virtual void DtRtiMsgForwarder::run ( )

virtual

Main execution routine.

Called by start() when run as a thread
Can be called directly to run sequentially

virtual void DtRtiMsgForwarder::runLoopEvent ( )

inlineprotectedvirtual

virtual void DtRtiMsgForwarder::sendMessage	(	const DtRtiMsg &	msg,
		const DtTcpMsgSocket *	src = `0`
	)

virtual

Send a message to all local sockets (filters will be applied)

static void DtRtiMsgForwarder::setCreatorFunction ( DtRtiMsgFwderCreator fn )

static

Call this function to set an alternate creator function With this function, users can replace this DtRtiMsgForwarder with their own derived class.

virtual void DtRtiMsgForwarder::setEnableBundling ( unsigned int maxBundleSize )

virtual

Get the rtiexec's socket if known.

Enable Message Bundling optimization

virtual void DtRtiMsgForwarder::setForwarderId ( unsigned long newId )

virtual

set the forwarder ID.

virtual void DtRtiMsgForwarder::setRouteFedexMessages ( bool yesNo )

virtual

Enable Smart Fedex Message Filtering.

virtual void DtRtiMsgForwarder::setUseInternalSmartForwarding ( bool yesNo )

virtual

Enable Smart DM Subscription Filtering for internal messages.

virtual void DtRtiMsgForwarder::setUseSmartForwarding ( bool yesNo )

virtual

Enable Smart DM Subscription Filtering.

virtual bool DtRtiMsgForwarder::shouldStop ( )

virtual

should this forwarder stop.

virtual void DtRtiMsgForwarder::shutdownRequestedByExec ( )

virtual

Shutdown the forwarder application.

Triggered by the rtiExec sending a forwarderShutdown message to the RTI Forwarder.

static void DtRtiMsgForwarder::tcpSocketAdditionCb	(	DtTcpMsgSocket *	sock,
		void *	usr
	)

static

Callbacks on addition/removal of TCP sockets.

virtual void DtRtiMsgForwarder::tcpSocketAdditionCb ( DtTcpMsgSocket * sock )

protectedvirtual

Reimplemented in DtExtendedRtiMsgForwarder.

static void DtRtiMsgForwarder::tcpSocketRemovalCb	(	DtTcpMsgSocket *	sock,
		void *	usr
	)

static

virtual void DtRtiMsgForwarder::tcpSocketRemovalCb ( DtTcpMsgSocket * sock )

protectedvirtual

Reimplemented in DtExtendedRtiMsgForwarder.

virtual void DtRtiMsgForwarder::updateConnectionProcessParameters	(	unsigned long	connId,
		unsigned long	processId,
		MAKRti::DtString	processName,
		MAKRti::DtString	commandArgs
	)

virtual

Set a connections process information.

virtual bool DtRtiMsgForwarder::updateFederateConnectionId	(	unsigned long	orig,
		unsigned long	final
	)

virtual

Set a locally connected federate's connId in the associated connection info struct.

This should only need to be invoked when the forwarder is part of the federate's Forwarder Group, but not its primary forwarder.

void DtRtiMsgForwarder::updateTcpForwarderQueuedSockets ( )

update the tcp forwarders queued sockets

virtual void DtRtiMsgForwarder::waitForIo ( )

protectedvirtual

Wait on sockets for next IO event (allows RTIspy users to control the wait mechanism and period)

Member Data Documentation

bool DtRtiMsgForwarder::myCloseAllConnectionsRequested

protected

Connection shutdown requested?

DtConnectConfirmFilter* DtRtiMsgForwarder::myConnectConfirmFilter

protected

Extracts info from connect confirm messages.

std::set<DtTcpMsgSocket const*> DtRtiMsgForwarder::myConnectionsAboutToBeDeleted

protected

Set of connections that when deleted there should be no complaint.

SocketToConnInfoMap DtRtiMsgForwarder::myConnToConnInfoMap

protected

Map from socket (conn) to ConnectionInfo object for that connection notes:

infos may be shared by some registered filters (which is why the are SPs)
lrcs which have not joined (or have resigned) will have empty fields)

Referenced by getConnToConnInfoMap().

DtUpdateInterRoutingFilter* DtRtiMsgForwarder::myDmMsgRouter

protected

DtFedexMsgFilter* DtRtiMsgForwarder::myFedexMsgRouter

protected

Fedex Routing Filter.

MAKRti::DtInetAddr DtRtiMsgForwarder::myForwarderAddr

protected

Local host IP address (used by rtiExec monitor filter, among other uses)

unsigned long DtRtiMsgForwarder::myForwarderId

protected

Data Members.

Address space for connection IDs for this LAN (required to differentiate when there are multiple forwarders)

Referenced by forwarderId().

MAKRti::DtString DtRtiMsgForwarder::myHostname

protected

DtInternalRoutePrinterFilter* DtRtiMsgForwarder::myInternalRoutePrinter

protected

DtInternalRoutingFilter* DtRtiMsgForwarder::myIntMsgRouter

protected

DtMulitcastDiscoveryMgr DtRtiMsgForwarder::myMcastDiscoveryMgr

protected

unsigned long DtRtiMsgForwarder::myNextConnectionIdOffset

protected

The ID to be assigned to the next Federate or Forwarder connection The IDs are offset from the forwarderId.

unsigned int DtRtiMsgForwarder::myPacketBundleSize

protected

Packet Bundle size (if bundle size = 0, bundling is disabled)

const DtRIDParameters& DtRtiMsgForwarder::myParams

protected

Local access to the RID Parameters.

DtThreadSafe< std::deque<DtMsgFwdrFunctor*> > DtRtiMsgForwarder::myPendingProxyCommands

protected

int DtRtiMsgForwarder::myPort

protected

Port for local federate connections.

std::vector< DtMessageFilter* > DtRtiMsgForwarder::myRegisteredFilters

protected

Registered Message Filters.

DtRoutePrinterFilter* DtRtiMsgForwarder::myRoutePrinter

protected

Smart DM Forwarding Filters.

DtRtiExecTrackingFilter* DtRtiMsgForwarder::myRtiExecMonitor

protected

If registered, Monitors rtiexec connection life-cycle.

MAKRti::DtSelectParamWithWrite DtRtiMsgForwarder::mySelectParams

protected

bool DtRtiMsgForwarder::myShouldStop

protected

should this forwarder stop.

DtTcpMsgSocketMgr* DtRtiMsgForwarder::mySocketMgr

protected

Tcp Socket Manager (handles passive connections to Federates)

DtDeleteSocketFilter* DtRtiMsgForwarder::mySocketMonitor

protected

Marks sockets that are being disconnected normally so that no complaint is given when they disconnect versus abnormal disconnect.

DtFilteredTcpForwarder* DtRtiMsgForwarder::myTcpForwarder

protected

Tcp Forwarder with Filtering Capabilities.

int DtRtiMsgForwarder::myTcpNoDelay

protected

DtRtiMsgFwderCreator DtRtiMsgForwarder::theCreator

staticprotected

The documentation for this class was generated from the following file:

rtiMessageForwarder.h

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
