DtForwarderFedexMsgProcessor Class Reference

The DtForwarderFedexMsgProcessor class consists of filters for rtiexec internal messages for the OUT port of a forwarder node. More...

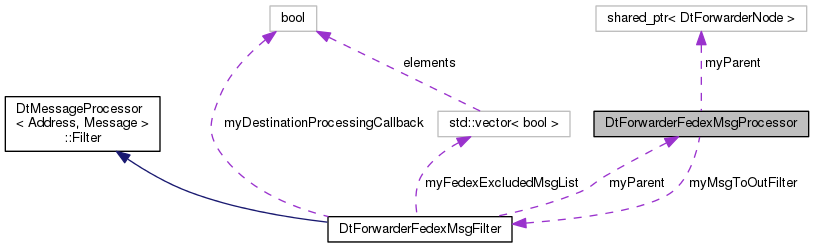

Collaboration diagram for DtForwarderFedexMsgProcessor:

Public Types
typedef bool(DtForwarderFedexMsgProcessor::*	DestinationProcessingMemberCb )(const DtInetAddrAndPort &src, DtForwarderPort::DtAddressPortList &destinations)
	Pointer to member function callbacks used by the port filters. More...

Public Member Functions
	DtForwarderFedexMsgProcessor (DtBoost::shared_ptr< DtForwarderNode > parent)
	Default Ctor. More...
virtual	~DtForwarderFedexMsgProcessor ()
	Default Dtor. More...
virtual bool	processFedexMsgDestinations (const DtInetAddrAndPort &src, DtForwarderPort::DtAddressPortList &destinations)
	Set forwarding destination list based on source (eg. More...
virtual DtInetAddrAndPort	rootForwarder ()
	Return address of root forwarder (the one the rtiexec is connected to) More...
virtual DtInetAddrAndPort	localNodeAddress ()
	Return parent node address. More...
virtual bool	isSmartForwardingEnabled ()
	Return true if smart forwarding enabled. More...

Protected Attributes
DtBoost::shared_ptr < DtForwarderNode >	myParent
DtForwarderFedexMsgFilter *	myMsgToOutFilter

Detailed Description

The DtForwarderFedexMsgProcessor class consists of filters for rtiexec internal messages for the OUT port of a forwarder node.

The processor detects certain messages passing through the forwarder node bound for the rtiexec and adjusts the outbound destination list to ensure the message is sent to the next upstream forwarder connection toward the rtiexec's root forwarder.

Member Typedef Documentation

typedef bool(DtForwarderFedexMsgProcessor::* DtForwarderFedexMsgProcessor::DestinationProcessingMemberCb)(const DtInetAddrAndPort &src, DtForwarderPort::DtAddressPortList &destinations)

Pointer to member function callbacks used by the port filters.

Constructor & Destructor Documentation

DtForwarderFedexMsgProcessor::DtForwarderFedexMsgProcessor

(

DtBoost::shared_ptr< DtForwarderNode >

parent

)

Default Ctor.

virtual DtForwarderFedexMsgProcessor::~DtForwarderFedexMsgProcessor ( )

virtual

Default Dtor.

Member Function Documentation

virtual bool DtForwarderFedexMsgProcessor::isSmartForwardingEnabled ( )

virtual

Return true if smart forwarding enabled.

Referenced by DtForwarderFedexMsgFilter::applyFilter().

virtual DtInetAddrAndPort DtForwarderFedexMsgProcessor::localNodeAddress ( )

virtual

Return parent node address.

virtual bool DtForwarderFedexMsgProcessor::processFedexMsgDestinations ( const DtInetAddrAndPort &  src, DtForwarderPort::DtAddressPortList &  destinations  )

virtual

Set forwarding destination list based on source (eg.

which inlet the message was received on) and forwarder network configuration

virtual DtInetAddrAndPort DtForwarderFedexMsgProcessor::rootForwarder ( )

virtual

Return address of root forwarder (the one the rtiexec is connected to)

Member Data Documentation

DtForwarderFedexMsgFilter* DtForwarderFedexMsgProcessor::myMsgToOutFilter

protected

DtBoost::shared_ptr<DtForwarderNode> DtForwarderFedexMsgProcessor::myParent

protected

---

The documentation for this class was generated from the following file:

• forwarderFedexMsgProcessor.h
