DtMessageThrottle Class Reference

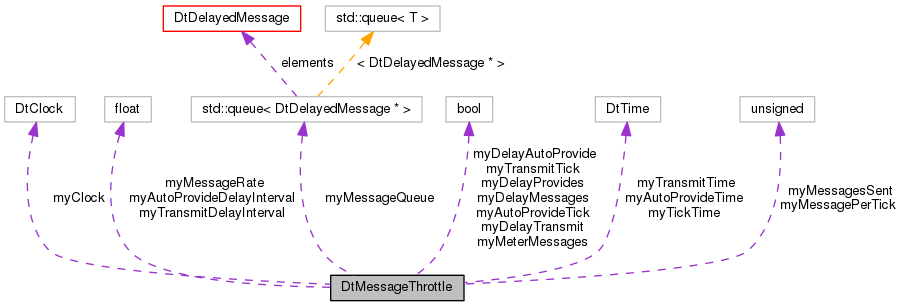

Collaboration diagram for DtMessageThrottle:

Public Member Functions
	DtMessageThrottle (float transmitDelay, float transmitRate, float autoProvideDelay)
	Constructor. More...
virtual	~DtMessageThrottle ()
	Destructor. More...
virtual void	activateTransmitDelay ()
	Activate a delay timer (based on RID) used by managers to control transmission of internal state Expired delays disable activation for current tick. More...
virtual bool	delayTransmit () const
	Return true if retransmission of internal state should be delayed. More...
virtual bool	queueMessage (DtRtiMsg const &msg, MAKRti::DtTransportType transport, MAKRti::DtInetAddr addr)
	Queue message (clone) if transmit delay is active Return true if message was queued. More...
virtual bool	queueMessage (DtRtiMsg *msg, MAKRti::DtTransportType transport, MAKRti::DtInetAddr addr)
	Queue message if transmit delay is active Message will be deleted when processed later Return true if message was queued. More...
virtual void	testTransmitDelay (DtConnectionMgr *connMgr)
	Test if retransmit delay time has expired. More...
virtual void	activateAutoProvideDelay ()
	Activate a delay timer (based on RID) used by managers to control timing of autoprovide callbacks Expired delays disable activation for current tick. More...
virtual bool	delayAutoProvide () const
	Return true if autoprovide should be delayed. More...
virtual void	testAutoProvideDelay (DtConnectionMgr *connMgr)
	Test if autoprovide delay time has expired. More...
virtual void	processQueuedMessages (DtConnectionMgr *connMgr)
	Process queued messages that are being sent at specified rate. More...
virtual void	flush (DtConnectionMgr *connMgr)
	Flush any remaining messages. More...
virtual void	clear ()
	Clear out any queued messages without sending them. More...

Protected Member Functions
	DtMessageThrottle ()
	disable default constructor More...

Protected Attributes
MAKRti::DtClock	myClock
std::queue< DtDelayedMessage * >	myMessageQueue
MAKRti::DtTime	myTransmitTime
MAKRti::DtTime	myTickTime
MAKRti::DtTime	myAutoProvideTime
float	myTransmitDelayInterval
float	myAutoProvideDelayInterval
float	myMessageRate
unsigned long	myMessagePerTick
unsigned long	myMessagesSent
bool	myMeterMessages
bool	myDelayMessages
bool	myDelayTransmit
bool	myDelayProvides
bool	myDelayAutoProvide
bool	myTransmitTick
bool	myAutoProvideTick

Constructor & Destructor Documentation

DtMessageThrottle::DtMessageThrottle ( )

protected

disable default constructor

DtMessageThrottle::DtMessageThrottle	(	float	transmitDelay,
		float	transmitRate,
		float	autoProvideDelay
	)

Constructor.

virtual DtMessageThrottle::~DtMessageThrottle ( )

virtual

Destructor.

Member Function Documentation

virtual void DtMessageThrottle::activateAutoProvideDelay ( )

virtual

Activate a delay timer (based on RID) used by managers to control timing of autoprovide callbacks Expired delays disable activation for current tick.

virtual void DtMessageThrottle::activateTransmitDelay ( )

virtual

Activate a delay timer (based on RID) used by managers to control transmission of internal state Expired delays disable activation for current tick.

virtual void DtMessageThrottle::clear ( )

virtual

Clear out any queued messages without sending them.

virtual bool DtMessageThrottle::delayAutoProvide ( ) const

virtual

Return true if autoprovide should be delayed.

virtual bool DtMessageThrottle::delayTransmit ( ) const

virtual

Return true if retransmission of internal state should be delayed.

virtual void DtMessageThrottle::flush ( DtConnectionMgr *  connMgr )

virtual

Flush any remaining messages.

virtual void DtMessageThrottle::processQueuedMessages ( DtConnectionMgr *  connMgr )

virtual

Process queued messages that are being sent at specified rate.

virtual bool DtMessageThrottle::queueMessage ( DtRtiMsg const &  msg, MAKRti::DtTransportType  transport, MAKRti::DtInetAddr  addr  )

virtual

Queue message (clone) if transmit delay is active Return true if message was queued.

virtual bool DtMessageThrottle::queueMessage ( DtRtiMsg *  msg, MAKRti::DtTransportType  transport, MAKRti::DtInetAddr  addr  )

virtual

Queue message if transmit delay is active Message will be deleted when processed later Return true if message was queued.

virtual void DtMessageThrottle::testAutoProvideDelay ( DtConnectionMgr *  connMgr )

virtual

Test if autoprovide delay time has expired.

When the delay has expired, the current tick will allow autoprovide.

virtual void DtMessageThrottle::testTransmitDelay ( DtConnectionMgr *  connMgr )

virtual

Test if retransmit delay time has expired.

If so, deactivate delay and activate message metering. When the delay has expired, the current tick will allow retransmission of internal state (see method - delayTransmit). The transmission of these messages can be metered at a give rate. If so, then any messages over the specified rate are queued to be transmitted in subsequent ticks.

Member Data Documentation

float DtMessageThrottle::myAutoProvideDelayInterval

protected

bool DtMessageThrottle::myAutoProvideTick

protected

MAKRti::DtTime DtMessageThrottle::myAutoProvideTime

protected

MAKRti::DtClock DtMessageThrottle::myClock

protected

bool DtMessageThrottle::myDelayAutoProvide

protected

bool DtMessageThrottle::myDelayMessages

protected

bool DtMessageThrottle::myDelayProvides

protected

bool DtMessageThrottle::myDelayTransmit

protected

unsigned long DtMessageThrottle::myMessagePerTick

protected

std::queue<DtDelayedMessage*> DtMessageThrottle::myMessageQueue

protected

float DtMessageThrottle::myMessageRate

protected

unsigned long DtMessageThrottle::myMessagesSent

protected

bool DtMessageThrottle::myMeterMessages

protected

MAKRti::DtTime DtMessageThrottle::myTickTime

protected

float DtMessageThrottle::myTransmitDelayInterval

protected

bool DtMessageThrottle::myTransmitTick

protected

MAKRti::DtTime DtMessageThrottle::myTransmitTime

protected

---

The documentation for this class was generated from the following file:

• messageThrottle.h
